Product type	Integrated decorative hood
Brand	Franke
Model	FCMY 90 C XS A KL
Width	90 cm
Depth	Approximately 50 cm
Height	Approximately 70 cm (varies with installation)
Weight	Approximately 18 kg
Power supply	230 V, 50 Hz
Total power	280 W
Maximum noise level	65 dB(A)
Number of speeds	4 speeds + intensive
Lighting	Integrated LED, 2 x 3 W
Filtration system	Washable metal grease filter + charcoal filter (optional)
Maximum airflow	720 m³/h
Air outlet diameter	150 mm
Extraction mode	Ducted or recirculation
Controls	Electronic touch controls
Special functions	Timer, automatic shutdown, filter saturation indicator
Maintenance	Dishwasher-safe grease filter
Safety	Automatic shutdown in case of overheating
Repairability index	7.5/10 (indicative source)
Spare parts	Available through Franke after-sales service
Warranty	2 years, parts and labor

Frequently Asked Questions - FCMY 90 C XS A KL FRANKE

How to clean the grease filter of the Franke FCMY 90 C XS A KL hood?

The metal grease filter can be cleaned in the dishwasher or by hand with a non-abrasive sponge and mild detergent. It is recommended to clean it every 2 to 3 months depending on usage.

Can I use the hood in recirculation mode without external extraction?

Yes, the hood can operate in recirculation mode with an optional charcoal filter (not supplied). It must be replaced regularly (every 3 to 6 months).

Is the remote control included?

No, this Franke hood does not have a remote control. Controls are via touch controls integrated on the front panel.

What is the recommended installation height above the hob?

For electric hobs, the minimum distance is 65 cm; for gas hobs, 75 cm. Respect the safety distances indicated in the manual.

How to reset the filter saturation indicator?

Press and hold (3 to 5 seconds) the + button or the dedicated button until the light goes off. Refer to the manual for your exact model.

Is the hood noisy?

The noise level varies from 45 dB on speed 1 to 65 dB on intensive speed, which is normal for a hood of this power.

How to replace the LED bulb?

The LED bulbs are integrated and cannot be replaced individually. In case of failure, contact Franke after-sales service.

Can a backdraft damper be installed in the air outlet?

Yes, it is recommended to install a backdraft damper (not supplied) to prevent backflow of outside air.

The hood stops by itself after a certain time, is this normal?

Yes, the automatic shutdown (timer) function is programmable. By default, it may stop after 15 minutes in intensive mode.

Where can I buy spare parts for this Franke hood?

Spare parts are available from Franke after-sales service or authorized dealers. Visit the official Franke website with reference FCMY 90 C XS A KL.

USER MANUAL FCMY 90 C XS A KL FRANKE

IT 3

EN 9

DE 15

FR 21

TR 28

ES 34

PT 40

GR 46

RU 53

NL 60

SI 66

SV 72

PL 78

CZ 85

HR 91

HU 97

SR 103

LT 109

LV 115

ET 121

FI 127

UK 133

RO 140

DA 146

NO 152

AR 158

IT

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
• The cut-out devices must be installed in the fixed system according to wiring system regulations.
• For Class I appliances, check that the domestic power supply is adequately earthed.
• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to recycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

Declaration of Conformity

The manufacturer declares that this appliance with radio functionality complies with Directive 2014/53/EU.

The complete text of the EU declaration of conformity is available at the following link by searching for the product code:

https://www.franke.com/

This code can be found on the label located inside the product.

Fre-quency bands	Maximum transmit-ted power
2.4 GHz 100 mW max.

PSTI Statement of Compliance

The manufacturer declares that this product is compliant with the applicable security requirements in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 (“Security Requirements”).

The Statement of Compliance (SOC) can be found at the following link:

https://catalog.franke.com/franke/psti/ceiling/

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

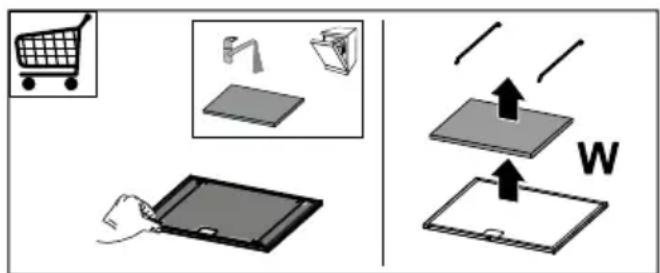

- The sponge-like part of the filter can be washed in the dishwasher at least once every 4 months, or more frequently if use is particularly intense. Operation is guaranteed for up to a maximum of 5 washes, after which it must be replaced (W).

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and neutral liquid detergent.

- For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

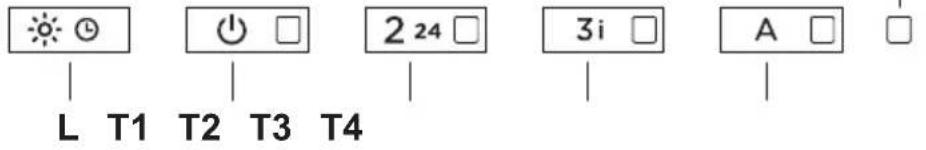

4. CONTROLS

S1|
Key Key press Function LED
L	Short The lights	alternate between high intensity, medium intensity (if present), off.If there is an induction cooktop coupled with the hood and the hood is off, as soon as the induction cooktop is turned on, the hood lights automatically turn on at the maximum intensity.	-
	Long press with light or motor on	Delay FunctionActivates/Deactivates the Delay function (automatic shutdown of the Motor and of the lighting delayed by 30').Cannot be activated with Intensive or 24h function.	Flashing
	Long press with all loads off (motor and lights)	K-Link couplingBefore starting the procedure follow the specific instructions of the manuals of the devices to be coupled.For the remote control, see “connected mode”.Starts the pairing procedure between the hood and compatible K-Link devices (induction cooktop or remote control). Up to 3 induction cooktops can be paired and only one remote control. See the manual of the devices for details of the operations that need to be performed on these.The coupling procedure takes 2 minutes. If no devices are recognised within this time check that you have previously activated the procedure for the devices to be coupled. The maximum number of linkable devices may have been reached.	LEDs T1 and T2 flashing:coupling in progress.Upon successful completion of the procedure LEDs T1 and T2 will light up for 2 seconds.
T1	Short Turns the motor on/off at the first speed. Fixed
	Long press with light on	Activates/Deactivates the Activated Carbon Filters alarm.	All LEDs flash twice:alarm activated.All LEDs lit for 1 second:alarm deactivated.
	Long press with all loads off (motor and lights)	K-Link uncouplingStarts the procedure for the cancellation of all compatible K-Link devices previously coupled with the K-Link coupling function.	Upon successful completion of the procedure LEDs T1 and T2 flash 5 times.
T2	Short Turns the motor on/off at the second speed. Fixed
	Long press with light or motor on	24h FunctionActivates/Deactivates the motor in the 24h Air Exchange mode, a speed that allows suction of 10 minutes every hour, for a 24-hour cycle.Cannot be activated if the Intensive or Delay modes are active.	Flashing
	Long press with all loads off (motor and lights)	Wi-Fi connectionActivates/Deactivates the Wi-Fi Connection function.Note: the Wi-Fi function is automatically activated when the user requests the Wi-Fi configuration procedure.	LED S1 Flashing: connection to domestic network in progress.LED S1 Fixed: Wi-Fi connection activated.
T3	Short Turns the motor on at the third speed. Fixed
	Long press with light or motor on	Turns the motor on at theIntensive 1speed.This speed is timed for 10 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode.	Flashing
		By pressing the key again with a long press (with light or motor on), the motor starts at theIntensive 2speed.This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode.	Fast flashing
	Long press with all loads off (motor and lights)	TheFilter saturation alarmis reset.	All LEDs flash 3 times.
		Signals thesaturated Metal Grease Filters alarmand the need to wash them. The alarm is activated after 100 hours of effective hood operation.	LEDs T2 and T3 lit with the hood off.
		Signals theActivated Charcoal Odour Filter saturation alarm. The alarm is activated after 200 hours of effective hood operation.	LEDs T2 and T3 flashing with the hood off.
T4	Short	AUTO ModeActivates/Deactivates the Automatic operating mode.AUTO mode is deactivated whenever any other keys are pressed.AUTO mode is activated when the key is pressed or theCoupled Induction Cooktopis turned on. The hood speed is automatically set using the highest power level present on the hob. When the induction cooktop is turned off the last activated speed is held for 5 seconds, then speed 1 for 15 minutes. Once the 15 minutes have passed the motor turns off. The light status does not change.	Fixed on: AUTO mode activated.Off: AUTO mode temporarily deactivated.
	Long press with light on and motor off	Induction/Gas Cooktop SelectionSelect the type of cooktop in use, either Induction or Gas.The Induction Cooktop is set by default.	1 Flash: confirms the Induction Cooktop selection.2 Flashes: confirms the Gas Cooktop selection.
	Long press with all loads off (motor and lights)	Wi-Fi configurationActivates/Deactivates the Wi-Fi set-up procedure.Before starting the procedure, use theFranke@Home Appto register with the Franke IOT system. Then follow the instructions to add a new device and register the domestic router.If the procedure is not successfully completed within a few minutes, deactivate it by long pressing the key again, then make another attempt. The hood will nonetheless abandon the procedure if it is not successfully completed within 15 minutes.	LEDs T3 and T4 flashing: configuration procedure in progress.Upon successful completion of the procedure LEDs T3 and T4 will light up for 2 seconds.
Recommended device coupling sequence:1 - K-Link Mode (See “connected mode” of remote control manual)2 - K-Link Coupling (See hood manual)3 - Remote Control-Hood Coupling (See remote control manual)4 - K-Link Coupling (See hood manual)5 - Cooktop-Hood Coupling (See induction cooktop manual)

5. FRANKE@HOME APP

The Franke@Home App is available for iOS and Android smartphones and allows remote access to all hood functions.

[70ZW]	[70ZW]	[654T]
Icon Function
	Home page
	Add new device
	User profile management
	Connected to the Wi-Fi Franke network
	Hood on/off
	Lighting system management
	Motor speed management
	Intensive Function
	24h Function
	Delay Function
	Automatic Function
	App settings management

6. REMOTE CONTROL

• This appliance may be controlled using a remote control.
• WARNING: the first procedure to carry out on the remote control is to activate the Connected Mode (refer to the device manual for more details).

ATTENTION: some functions can only be activated via the remote control (refer to the device manual for further details).

7. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").
