Trimax - Massage device LANAFORM - Free user manual and instructions

Product type	Massage device
Brand	Lanaform
Model	Trimax
Dimensions (L x W x H)	30 x 20 x 15 cm
Weight	1.5 kg
Power supply	Mains 220-240 V / 50 Hz
Power consumption	30 W
Main functions	Percussion massage, vibration, infrared heat
Intensity levels	3 adjustable levels
Included accessories	4 interchangeable massage heads
Recommended usage duration	15 minutes per session
Automatic shut-off	Yes, after 15 minutes
Care and cleaning	Clean with a soft, damp cloth. Do not immerse.
Storage	In a dry place away from dust
Safety	Do not use on irritated skin or if you have a medical condition. Avoid contact with water.
Spare parts and repairability	The massage heads are replaceable. Contact customer service for parts.
Warranty	2 years
General information	Versatile full-body massage device. For domestic use.

Frequently Asked Questions - Trimax LANAFORM

How to use the Trimax for a back massage?

Attach the appropriate massage head to the device, turn it on, and select the desired intensity. Gently apply to tense areas of the back using circular motions. Do not use for more than 15 minutes per session.

Can I use the Trimax on wet skin?

No, the device is not waterproof. Use it only on dry skin to avoid any electrical hazard.

How to clean and maintain the device?

Unplug the device before cleaning. Wipe the massage heads and body with a slightly damp soft cloth. Do not use abrasive products and never immerse the device in water.

Are the massage heads interchangeable?

Yes, the Trimax comes with 4 different heads suitable for various body areas (shoulder, back, thigh, etc.). To change them, simply clip the new head onto the attachment.

Is there a risk of burns from the heat function?

The infrared heat is gentle and should not cause burns if the device is used correctly. Avoid prolonged use on the same area and keep the device moving.

How long can I use the device continuously?

For safety, the device automatically shuts off after 15 minutes of continuous use. Respect this duration and let the device cool down before using it again.

Is the Trimax suitable for pregnant women?

It is not recommended to use a massage device during pregnancy, especially on the abdomen and lower back. Consult your doctor before any use.

What if the device does not turn on?

Check that the power cord is properly plugged in and that the outlet works. If the problem persists, contact Lanaform customer service.

Can I use the Trimax on sensitive body parts (face, neck)?

No, the device is designed for large muscle areas. Avoid the face, neck, spine, and any bony or fragile areas.

Where can I find spare parts or additional heads?

Contact Lanaform customer service or visit their website. Part numbers are listed in the user manual.

USER MANUAL Trimax LANAFORM

Vibrating massager with infrared

Man in striped shirt sitting in chair reading newspaper, with blue feet stepping on a blue exercise device; inset shows close-up of fitness equipment (no text or symbols visible)

Infrared massage machine

Thank you for choosing the TRIMAX system by LANAFORM®. Foot reflexology is a traditional method of reflexology originating from China. In addition to massaging the foot, this appliance can also be used on the calves, thighs, back and waist. The vibrating massage enables the body to reduce the feeling of tiredness and alleviate muscle stiffness.

Whether at home or at work, with TRIMAX you can appreciate the benefits of a powerful and comfortable massage to improve your health and well-being.

Please read this manual carefully before using this appliance.

IMPORTANT SAFETY INSTRUCTIONS

- «This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities are impaired, or by persons lacking experience or knowledge, unless they are supervised or instructed in the use of the appliance first by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.»

- This appliance must only be used for its intended purpose, as described in this instruction manual. Only use the accessories provided with this unit.

- If the power supply lead is damaged, it must be replaced by a similar lead available from the supplier or its after-sales service.

- Always unplug the appliance from the power supply immediately after use and before cleaning. When plugged in, the appliance must never be left unattended.

- Refrain from using any appliance which is not operating correctly, which has fallen or been damaged, or which has fallen into water. Send the appliance to a qualified technician or a servicing centre for inspection and repairs.

- Keep the lead away from hot surfaces.

- Do not use this appliance in humid or dirty conditions, as this may cause an electrical failure or cause the machine to malfunction.

- Do not use this appliance in the bath or shower.

- Do not place or store this appliance in any place from which it is susceptible to fall or be pulled into a bath or sink. Refrain from placing the appliance or dropping it into water or any other liquid.

- Do not try to recover an appliance which has fallen into water or any other liquid. Turn off the power supply immediately.

- Never use the appliance when sleeping. Never fall asleep when using the appliance.

- Do not use this product before going to bed. The massage has a stimulating effect and could provoke difficulty sleeping.

- Never drop the unit and never insert objects into holes in the unit.

- Refrain from using the equipment in the event or aerosol use (sprays) or when administering oxygen.

- Refrain from using the equipment on or near the eyes or any other highly sensitive area.

- Refrain from using the equipment under a cover or pillow. This could produce excessive heat and cause a fire, electric shock or body lesions.

- Do not move this appliance by means of its power supply lead and refrain from using the lead as a handle.

- For indoor use only.

- To unplug the appliance, turn the power supply to the «OFF» position; then remove the plug.

• This appliance is designed for domestic use only.

• This product is not intended for professional use. Do not use this product to replace medical care.

• Do not cover the appliance when in operation.
• Extended use could cause the product to overheat and reduce its lifespan. To avoid these inconveniences, turn off the unit and let it cool down before turning it on.

IMPORTANT

- If you have any doubts regarding your health, consult your doctor before using this product. The following categories of users must obtain doctor's approval before using this appliance:

• Persons using a pacemaker.
• Patients suffering from cardiopathy.
• Patients suffering from a deformation of the vertebral column or undergoing treatment for a fracture or fracture deformity.
• Pregnant women or patients suffering from a fever after an operation.
• Patients suffering from an acute illness or a serious form of cancer.
• Contagious patients suffering from skin disease.
• Patients who have not yet fully recovered from an operation.
• Patients suffering from diabetes.

• Persons suffering from physical problems capable of hindering their ability to use the controls.

• Use of this unit must be forbidden for children.

• Do not use this product for more than 20 minutes per session.
• Never use this product directly on swollen or inflamed areas, open wounds or rashes.

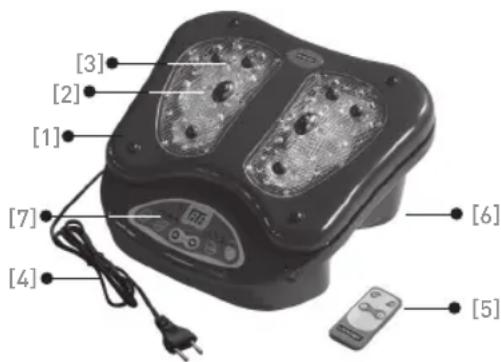

FEATURES

1) Vibrating surface plate
2) Infra-red light
3) Massage points
4) Lead
5) Remote control
6) Support
7) Control panel

USER MANUAL

• Place the machine on a flat surface and plug it into the power supply.
• Press the «ON/OFF» button; the machine will switch on and a light will light up. The LCD screen will display the value 06; this means that the vibration intensity level is set to 6. The initial setting is in manual mode: vibration speed 6, timer set to 10 minutes and infra-red thermal treatment set to speed 3.
• Press ▲ to increase the vibration speed and ▼ to decrease the speed. Each press represents an increase or decrease of one level. At the same time, the screen will display the number corresponding to the speed modification. The settings range in speed from 0 to 12 with 0 stopping the massage.
• Press «TIME» to select the treatment time. Each press on this button enables you to successively move between the 10-minute – 15-minute – 20-minute and 10-minute modes. The initial setting is set to 10 minutes.
• Press «INFRARED» to change the thermotherapy. The range of use of the infra-red light fluctuates from H0 to H5, in

which H0 turns off the heat. The initial setting is set to H3. Each press on this button enables you to successively move between the H4-H5-H0-H1-H2-H3-H4 modes. Upon each press of the «INFRARED» button, you can read the heat level on the LCD screen. The screen will then display the speed level again after a time delay of 8 seconds after each press.

- Press «AUTO» to select automatic mode. This unit has two programmes available: circulation I and circulation II. Each press on the «AUTO» button enables you to successively move between the Manuel – Circulation I – Circulation II – Manuel modes.

1. Circulation I:

The vibration speed varies between levels 2 and 12.

The infra-red heat varies between levels 5 and 1.

The time delay between passing from each mode is 8 seconds.

1. Circulation II:

The vibration speed varies successively between levels 2-8-4-6-12-7-9 and 5.

The infra-red heat varies between the following levels: 5-5-4-4-1-1-3-3.

The time delay between passing from each mode is 4 seconds.

• Select the appropriate time, infra-red temperature and speed according to your state of health. We recommend using the appliance for 1 to 3 minutes for its first use in a given area. Then change the duration, temperature and speed according to your desires. You must select the functions starting from a low level of intensity.
• Press the «ON/OFF» button to turn off the power supply; then remove the plug from the plug socket.

REMOTE CONTROL: TO BE USED WHEN IN MANUAL MODE.

The remote control operates with a CR2032 battery (not provided).

Insert the battery into the remote control according to the «+» and «-» polarities.

1) POWER SUPPLY ON/OFF: to turn the appliance on or off.
2) Infra-red: to change the level of thermotherapy.
3) Speed: to adjust the vibration speed.

APPLICATIONS AND EFFICIENCY

This appliance can be used to massage the feet, but also other parts of the body. For calf, thigh, back and waist massages, the vibrating massage can reduce the feeling of tiredness and alleviate muscle stiffness.

- Foot massage

Sit comfortably and place your feet on the board. You do not have to remove your pants or your socks. The feet reflect the overall health of the body. Therefore, the foot massage allows reducing and evacuating the deposits, promoting a better blood circulation and a better body balance.

• Calf massage

Sit or lie down in a comfortable position and place your calf in the centre of the appliance.

• Thigh and buttocks massage

Sit down in a comfortable position and place your thigh in the centre of the appliance. Massaging these parts of the body helps the muscles to relax.

EN

- Back and waist massage

Place the massaging system on the sofa in a vertical position by pressing its base against the back of the chair and sit down, pressing the part of the back and waist that you would like to massage against the appliance. If you feel uncomfortable, place a thick piece of cloth between the massaging appliance and this part of your back and waist.

- Palm massage

The stimulation of certain points in the palm can alleviate stiffness felt in the neck and shoulders.

MAINTENANCE AND STORAGE

Clean the appliance before any use for an extended period of time. Switch the power supply interrupter to the off position after using the TRIMAX appliance.

Cleaning:

• Verify that the interrupter is in the off position and that the plug has been removed before cleaning the appliance.
• Do not use a solvent to clean the appliance, as this may damage the leather and produce cracks in the plastic.
• In the event of an oil-based stain, clean with a cotton cloth soaked in detergent; then use a dry cloth to dry the appliance. Clean the appliance with a clean cloth.
  • The use of a humid cloth to clean the remote control and the area around the switch is forbidden. Use a soft, dry cloth.
• Avoid the transfer of any detergent into the ventilation slot located at the back of the appliance.
• Do not wash the unit with a cleaning brush or any hard object, as this may cause damage to the unit.
• Refrain from disassembling the appliance so as to avoid any risks.

Storage:

Unplug the appliance from the plug socket and leave it to cool down before storing it in its box or in a clean, dry place, out of the reach of children. Do not wind the power supply lead around the unit, as this could damage and break the lead.

TROUBLESHOOTING

Malfunction Cause Solution
The appliance does not work when the power supply is turned on	The power supply does not work	Check for the presence of electricity.
	The power supply lead may be damaged	Send the appliance to the technical centre
	The button does not work	Press the ON/OFF button; the appliance will turn itself on when you hear a «beep».
The appliance stops working after a certain time	The treatment time has been exceeded.	Restart the unit

TECHNICAL SPECIFICATIONS

Voltage: 220 V—240V/50Hz

Consumption: 60 W

ADVICE REGARDING THE DISPOSAL OF WASTE

• All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.
• When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

LIMITED WARRANTY

LANAFORM® guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM® guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM® product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM®'s control.

LANAFORM® may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM® will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM®'s Service Centre®. Any attempt to maintain this product by a person other than LANAFORM®'s Service Centre will render this guarantee void.
