Product Type	Rotary hammer
Brand	Ferm
Model	HDM1017
Voltage	230 V
Frequency	50 Hz
Power	900 W
No-load speed	0 – 950 min⁻¹
Impact rate	0 – 4500 min⁻¹
Max. drilling diameter (concrete)	26 mm
Max. drilling diameter (steel)	13 mm
Max. drilling diameter (wood)	30 mm
Weight	4 kg
Sound pressure level (LpA)	92.3 + 3 dB(A)
Sound power level (LwA)	103.3 + 3 dB(A)
Vibration (chiseling)	13.781 + 1.5 m/s²
Vibration (hammer drilling concrete)	15.78 + 1.5 m/s²
Protection class	II (double insulation)
Chuck type	SDS-Plus
Functions	Drilling, hammer drilling, chiseling with angle adjustment, demolition hammer
Variable speed	Yes, by wheel and trigger
Rotation direction	Reversible (left/right)
Auxiliary handle	Yes, adjustable
Maintenance	Clean regularly with a soft cloth; do not use solvents
Safety	Wear hearing protection, eye protection and dust mask recommended; use the handles provided
Warranty	See enclosed warranty certificate

Frequently Asked Questions - HDM1017 Ferm

How to change the drill bit on the Ferm HDM1017 rotary hammer?

Unplug the tool. Pull the locking sleeve (7) back, insert the SDS-Plus bit while turning slightly until it clicks, then release the sleeve. To remove, pull the sleeve back again and remove the bit.

How to adjust the rotation speed?

Turn the speed control wheel (3) to position 1 or 2 for a speed range. Then use the trigger (2) for gradual adjustment from 0 to the selected maximum speed.

How to use the hammer function?

Turn the mode selector switch (5) to position B (hammer drilling). Make sure the bit is suitable for hammering (concrete, brick). Apply light pressure and let the tool work.

Does the bit jam easily?

Yes, especially in hard concrete. Always use the auxiliary handle to control the tool. If it jams, release the trigger and remove the bit by turning gently.

How to set the drilling depth?

Loosen the auxiliary handle, insert the depth stop rod into the hole provided, set the desired depth, and tighten the handle.

What accessories are included with the Ferm HDM1017?

The product comes with an auxiliary handle, depth stop, and SDS-Plus chisels. Refer to the manual for the complete list.

How to change the rotation direction?

Use the left/right selector switch (1) located above the trigger. This function is only available in drill mode (A). Never change direction while the motor is running.

What to do if the motor does not start?

Check the power supply, power cord and switch. If these are okay, the brushes may be worn. Have the brushes replaced by a professional.

How to clean the rotary hammer?

Use a soft, slightly damp cloth (soapy water) to clean the housing. Never immerse the tool in water. Clean the ventilation slots regularly.

What is the warranty on the product?

The warranty conditions are detailed in the warranty certificate provided with the tool. Keep it carefully.

USER MANUAL HDM1017 Ferm

Close-up of a handheld electric shaver with orange buttons and black handle, resting on a textured surface (no visible text or symbols)

EN Original instructions 04

Fig. A

Technical line drawing of a drill bit being inserted into a drill bit, showing tool path and motion direction (no text or symbols)

Four circular biological specimens labeled A, B, C, D, showing internal structures with red highlights (no text or symbols beyond labels)

ROTARY HAMMER DRILL HDM1017

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on pages 2 - 3.

Read this manual carefully, before using the machine. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine functions correctly. Store this manual and other enclosed documentation with the machine.

Intended use

The FDHD-900K is intended for drilling holes in masonry such as brick, concrete and similar materials. Furthermore, the machine can be used as a demolition hammer in combination with the SDS cold chisels provided. The machine is on no account intended for other purposes.

Not suitable for construction site usage.

Please inspect the machine and accessories for transit damage.

Contents

1. Machine information
2. Safety instructions
3. Operating
4. Maintenance

1. MACHINE INFORMATION

Technical specifications

Voltage	230 V
Frequency		50 Hz
Power rating		900 W
Rotational speed, not loaded 0 - 950/min
Impact rate		0 - 4500/min
Max. bit diameter
Concrete		∅ 26 mm
Steel	∅ 13 mm
Wood	∅ 30 mm
Weight	4 kg
Lpa		92.3 + 3 dB(A)
Lwa		103.3 + 3 dB(A)
Vibration
When chiseling	13.781 + 1.5 m/s ^2
When hammering in concrete	15.780 + 1.5 m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Product information

Fig. A

1. Left/Right selection switch
2. On/Off switch
3. Speed control
4. Lock on button
5. Mode selection button
6. Auxiliary handle
7. Locking sleeve

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Wear ear and eye protection.

Wear a dust mask. Working with wood, metals and other materials may produce dust that is harmful to health. Do not work with material containing asbestos.

Specific safety instructions

For use of this machine/tool:

• Inspect the surface to be drilled for hidden electrical wiring, gas pipes or other obstacles (for example, using a metal detector).

• Check the following points:

• Does the appliance's voltage correspond with the mains power supply voltage?

• Are power cords, insulation and plug in good order: sound, not loose or damaged?
• Is there a good, firm connection at the mains socket?
• Does the drill show any sign of abnormal running, overheating or excessive sparking?

• Whenever any of the problems mentioned above appear, immediately cease using the machine and have it repaired by an expert.

• Wear ear protectors. Exposure to noise can cause hearing loss.

• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and give the operator an electric shock.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the mains voltage is the same as on the type plate of the machine.

Class II machine - Double insulation - You don't need any earthed plug.

Replacement of power cords or plugs

Immediately dispose of old cords and plugs once they have been replaced.

It is dangerous to plug a loose power cord into a mains power socket.

Use of extension leads

Only ever use approved extension leads that are suitable for the power rating of the machine. The minimum core thickness is 1.5 mm^2 . Whenever using a reel extension lead, always fully unroll the lead.

Immediately switch off the machine when:

• Excessive sparking of the carbon brushes and verticiliosis in the collector.
• Interruption of the mains plug, mains lead or mains lead damage.
• Defect switch
• Smoke or stench of scorched isolation

3. OPERATING

Hammer drills require very little operator pressure. Excessive pressure on the tool can lead to unnecessary overheating of the motor, and burning of the driven tool.

Auxiliary handgrip

The auxiliary handgrip can be rotated 360° around the drill head, enabling safe and comfortable operation, for both left and right-handed users.

• Loosen the handgrip by turning it anticlockwise.
• Rotate the handgrip to the desire position.
• Retighten the handgrip in the new position.

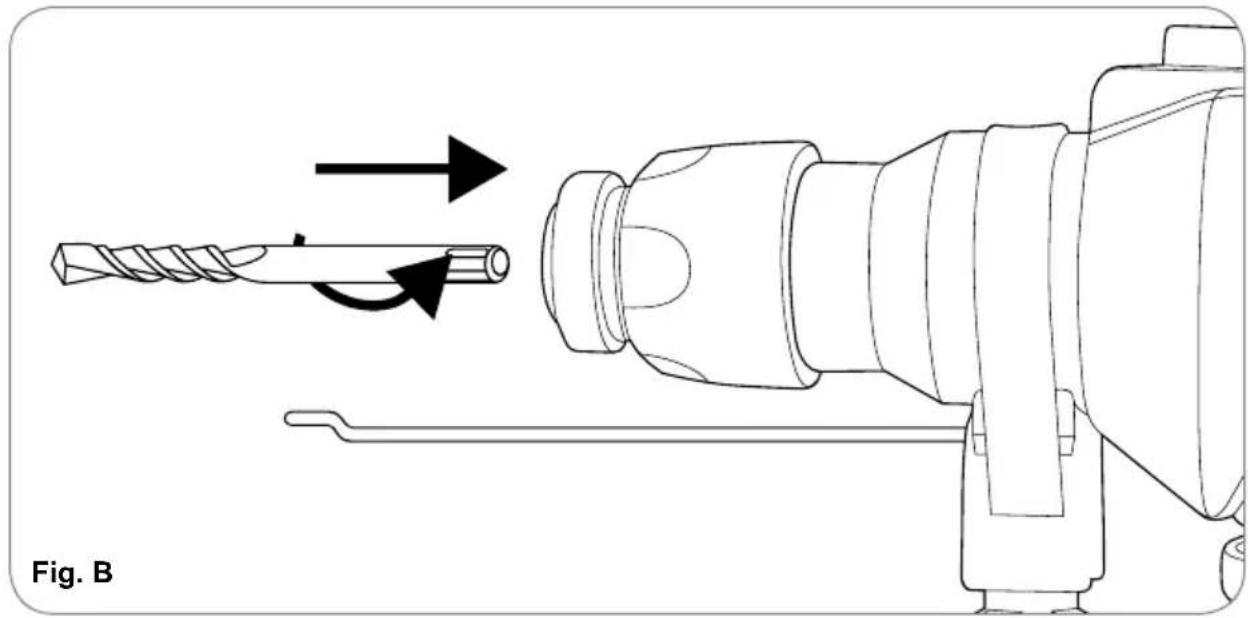

Exchanging and removing drill bits

Fig. A + B

Before exchanging bits, first remove the power plug from the wall socket.

Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.

• Lightly oil the bit shaft before inserting it into the chuck.
• Slide the locking sleeve (7) to the rear, and insert the bit into the chuck opening. Ensure that the keyway in the bit is seated properly in the chuck, by carefully turning the bit until it clicks into place. Release the locking sleeve.
• To remove the bit, slide and hold the locking sleeve to the rear.

Setting depth gauge

Fig. A

• Loosen the handgrip by turning it anticlockwise.
• Insert the depth gauge ruler through the hole in the auxiliary handgrip.
• Slide the ruler to the desired depth. Retighten the screw firmly.

Function selection switch

Fig. C

The correct position of the selection switch for each machine function is given in the diagram (Fig.C) on page 3.

A: Drilling
B: Hammer Drilling
C: Chisel angle adjustment
D: Demolition hammer/chisel

The On/Off switch

Fig. A

- Switch the machine on by pressing the triggerswitch (2). When you release the triggerswitch (2) the machine will turn off.

Switch-lock

- You can lock the On/Off switch by pressing the triggerswitch (2) and then pressing knob (4). Release the switch-lock by pressing the triggerswitch (2) shortly.

Speed-control

- The rotation-speed can be continuously adjusted from 0 to 950 and 0 to 4500 rotations

per minute by pressing the switch (2) deeper or less deep.

Adjusting of the maximum rotation speed

• Switch the machine on by pressing triggerswitch (2).
• Lock the triggerswitch (2) by pressing knob (4).
• Adjust the speed by turning the small wheel (3) to the desired maximum rotation speed.

Switching the direction of rotation

• Direction of rotation counter-clockwise: shift switch to “▶”.
• Direction of rotation clockwise: shift switch to “◀”.

This function is only available when the machine is set to "drill mode".

User tips

Always use the machine with the auxiliary handgrip firmly anchored in place – you will not only work with more comfort, you will also work with more precision.

Hammer drilling in concrete or brick

Caution: Stone drills can get very hot.

It may be necessary to drill with smaller bits and re-drill to nominal size so that later the plug is firmly seated.

For large bores, for instance in very hard concrete, use a smaller bit for pilot drilling and re-drill to nominal size.

Do not apply a lot of pressure on the machine, let the machine do the work, guiding the machine with light pressure is sufficient.

Hold the machine with the auxiliary handle, the bit can jam, particularly with deep bores, and the machine will turn.

Chipping in concrete and brick

You can also use the machine for chipping.

Prior to starting work ensure that the front selection switch and handle selection switch are fully engaged. Do not operate the hammer drill with selection switches in mid position. Only change the function when the motor has come to a standstill.

Here as well: Do not apply a lot of pressure on the machine, let the machine do the work, guiding

the machine with light pressure is sufficient.

4. MAINTENANCE

Take care that the machine is not connected to power whenever maintenance work on the mechanical parts is taking place.

These machines are designed to function problem-free for a long period with a minimum of maintenance. Through regular cleaning and correct treatment, you help assure a long working life for your machine.

Defects

The machine should be regularly inspected for the following possible defects, and repaired if necessary.

• Damage to power cord
• Broken on/off trigger assembly.
• Short circuiting.
• Damaged moving parts.

Trouble shooting

1. When switched on, the motor does not turn

2. Failure in power supply.

3. Check the power supply.
4. Poor contact in the on/off trigger.
5. Repair or replace the trigger assembly.
6. Mains voltage too low.
7. Extension lead too long, or too light.
8. Damaged motor.
9. Have your machine repaired by an expert.
   • Carbon brushes worn.

10. Replace the carbon brushes.

11. Motor generates excessive noise, and runs too slowly or not at all

- Motor is overloaded due to excessive pressure or drilling depth.

- Reduce the pressure or drilling depth, reduce power.

• Damaged motor.
• Have your machine repaired by an expert.
  • Supply voltage too low.
• Adjust the supply voltage.
  • Carbon brushes worn.

• Replace the carbon brushes.

• Overheating in the transmission case

• Overloading of machine, or blunt drill bit
- Reduce the loading, or hone the drill bit.
- Reduced voltage.

- Adjust the supply voltage.

1. Heavy sparking from the motor

- Inspect the carbon brushes for wear.

Cleaning

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. Separate you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

BOHRHAMMER HDM1017

Hamerboren in beton of baksteen

2. NURODYMAI SAUGIAM DARBUI

DECLARATION OF CONFORMITY

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoLšu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/95/EC, 2002/96/EC

Zwolle, 01-10-2011

I. Mönnink

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

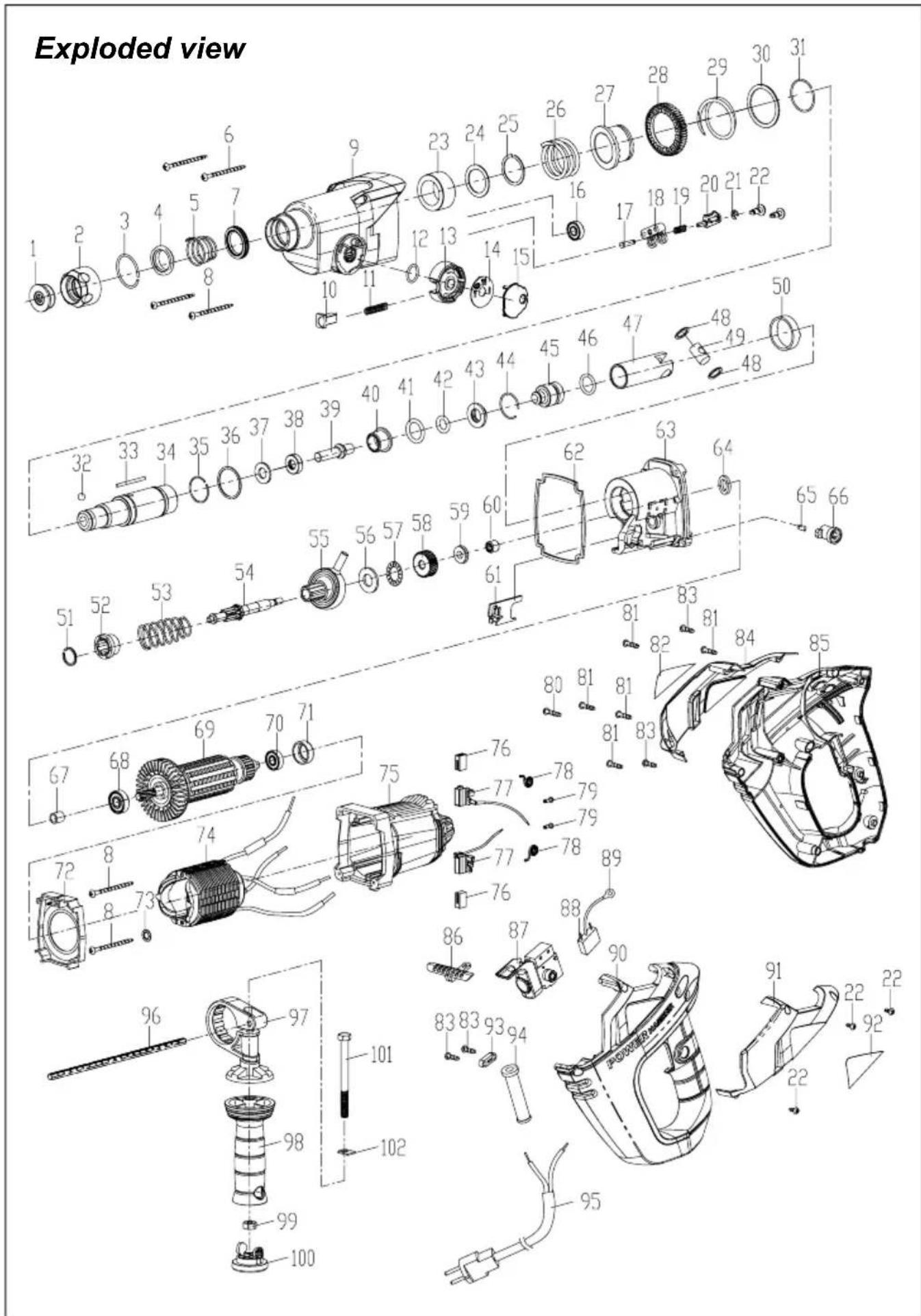

Spare parts list HDM1017 - FDHD-900K

Position Description No.

1 Seal circlet 409835
2 Sleeve 409836
4 + 5 Spring + holder 409837
10 till 15 Function knob complete 409838
23 Needle bearing HK2512 409839
24 + 25 Set of rings 409840
27 Shaft sleeve 409841
27 + 38 till 40 + 45 + 54 Hammer set	409842
28 Gear	409843
30 + 31 Set of rings 409844
32 Steel ball	409845
34 Impact shaft	409846
38 Retaining ring	409847
39 Crash hammer	409848
40 till 44 Set of rings 409849
48 + 49 Piston pin	409850
46 + 47 Cylinder	409851
51 till 53 Clutch	409852
55 Vibration bearing	409853
58 Pinion	409854
59 Needle bearing 0818	409855
60 Needle bearing HK0808 409856
68 Bearing 609ZZ
69 Rotor	409857
70 Bearing 607ZZ
71 Bearing sleeve	409858
74 Stator	409859
76 Brush set	409860
77 Brush holder	409861
78 Spring for brush	409862
86 L/R switch	409863
87 Switch	409864
96 Depth ruler	409865
97 till 102 Auxiliary handle	409866
