USER MANUAL 320/25 GUDE
Battery-Powered Lawn Mower
Original Operating Instructions
Please read carefully the Operating Instructions before assembling and putting the machine into operation!
Français F16-21
To enjoy your new 320/25 LI-ION battery-powered lawn mower as long as possible, please read carefully the Operating Instructions and the attached safety instructions before using it. Further, we recommend keeping the Operating Instructions to recall the product features in the future.
Within the continuous product development, we reserve the right to make technical changes to improve it.
This document represents original Operating Instructions.
Any reprints, even partial, are subject to approval.
Supply includes
Take the machine out of the transport package and check whether there are the following parts:
Battery-powered lawn mower
2 Knurled nut
collection box
Charger
Battery
Original Operating Instructions
Please contact your dealer if any parts are missing or are damaged.

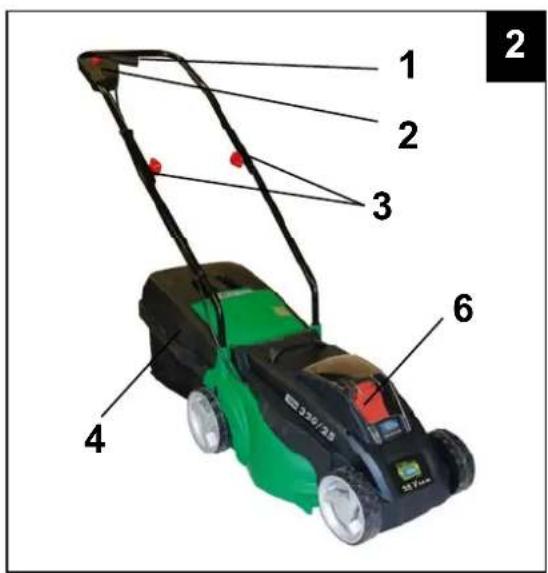

Machine description (pic. 1+2)
- Safet y handle
- ON button
- Knurled nut
- Collection box
- Start key
- Battery
- Batter y charger
Technical specifications
Voltage: 25,2 V
Battery capacity 3,0 Ah LI-ION
Engine speed: 3,800 per min
Collection box capacity: 30 litres
Charger (2 > pcs): 3-5 hour
Cutting width: 320 mm
Cutting area: 150-250 m²
Cutting height adjustment: 5 degrees (25/45/65 mm)
Protection type: IP 21
Sound power level: Lwa 88.6 dB (A)
*K=2.13 dB(A)
Guaranteed
sound power level: Lwa 96 dB (A)
Sound pressure level: L_PA 75.8 dB (A)
*K=3 dB (A)
Vibrations: 0.892 m/s2 *K=1.5 m/s2
Weight: 17 kg
Technical specifications of the lithium-ion battery
Battery capacity: LI-ION 3.0 Ah
Voltage: 25,2 V
Charging time: 3-5 hour
Technical specifications of the charger
Connection: 100 V -240 V\~50/60 HZ 40W
Output voltage: 30 VDC ---- 900 mA
Safety instructions
Read carefully these Operating Instructions. Familiarise with the controls and proper use of the machine. Keep the Operating Instructions for future reference.
General
The battery-powered lawn mower has been designed to treat grass areas and lawns for private purposes. The mower must not be used for other purposes due to the physical danger to the user and other persons.
Never cut when there are persons, especially children, around.
Cut under adequate visibility only.
The mower must not be exposed to temperatures exceeding 80^ C, i.e. do not let the mower stand outdoors in direct sunlight or for a longer time in the boot, e.g. of a vehicle.
Please be sure to know that the user is responsible for any injuries and damage caused to third parties or their property.
Before cutting
Cut with solid shoes and long trousers only, never cut when barefooted or in sandals.
Check the ground where the machine is to be used for any items that may get caught and be thrown away by the mower and remove these items (stones, branches, etc.).
Check the cables on the machine for any damage and aging (fragility) and have them repaired by an electrician.
At regular intervals, check the collection box for any wear and deformation.
Before each use, check (visual inspection) the cutting tools and their fasteners for any damage.
To prevent imbalance, any damaged or worn-out parts need to be replaced in sets only.
When cutting
Do not tilt the machine when starting the engine and when the start key is inserted.
Keep the safety distance delimited by the handles.
Turn the engine on only when your feet are in a safe distance from the cutting blade.
Make sure your posture is safe. Proceed easily forward with the mower.
Cutting on slopes:
Cut across slopes at all times, not up and down. Be particularly careful when changing direction Do not cut on too steep slopes
Be particularly careful when reversing with the mower or pulling it to you.
Never touch in the rotating cutting blade
Never stand in front of the grass ejection hole when opened.
Never open the grass ejection hole when the engine is running.
Never ride on gravel when the engine is running. RISK OF BEING HIT BY STONES!!!
Do not cut in wet grass.
Guide the battery-operated lawn mower at step pace.
Never use the mower when the protective equipment or safety screens are damaged or without the protective equipment, e.g. collection boxes, being in place.
Under the following circumstances, the machine must be switched off, the start key pulled out and you must wait until the machine fully stops.
When leaving the mower
When releasing a blocked blade
When adjusting the cutting height
When emptying the collection box
When hitting an undesirable item
(check the mower for any damage. Repairs need to be executed before putting the machine into operation again.) If the mower is vibrating intensively due to imbalance (switch the mower immediately off and identify the cause)
If the mower is vibrating intensively due to imbalance (switch the mower immediately off and identify the cause)
When lifting and taking the mower away
When tilting or moving the mower (e.g. from/to the lawn or via paths).
Before any check, cleaning or other works on the mower.
Servicing
CAUTION – ROTATING CUTTING BLADE!!!
Before any servicing and cleaning:
Take out the start key and remove the battery. Do not touch the rotating edges.
At regular intervals, check all visible fixing screws and nuts, especially on the cutter bar, if tightened properly and tighten them if necessary.
Do not keep the mower in moist rooms.
For safety reasons, worn-out or damaged parts need to be immediately replaced.
Spare parts of the manufacturer to be used only.
Charger
The charger is only suitable to charge the 320/25 LI-ION mower battery. Charging other batteries is inadmissible.
Never use the charger in a moist or wet environment. Suitable to be used in interiors only.
Disconnect the cable connections by pulling the plug only. Pulling the cable could damage the cable and the plug and electrical safety would not be guaranteed in such a case.
Never use the charger if the cable, plug or the machine itself is damaged by external interference. In such a case, take the charger to the nearest authorised service centre.
Avoid disabling of the cooling function of the machine as a result of covering the ventilation slots. Do not use the machine near heat sources.
Never open the charger. Contact an authorised service centre in case of any failure.
To charge the battery, use the Güde charger only. There may be defects or fire can be caused when other chargers are used.
Battery
Fumes may be produced in case of unauthorised use or when damaged batteries are used. Provide supply of fresh air and see a doctor in case of any problems. Fumes may irritate the airways.
Risk of fire!
Never charge the batteries near acids and highly flammable materials.
Batteries to be charged at the ambient temperature of 0^ C to +40^ C only. Let the batteries cool down first after being subject to heavy load.
Risk of explosion!
Protect the battery against excess temperatures and fire.
Never put the battery to heater elements or do not expose it to intense solar radiation for a long time.
Battery to be used at the ambient temperature of 0^ C to +40^ C only.
Risk of short circuit!
The battery must be wrapped up (plastic bag, box) or the contacts must be covered with an adhesive tape when disposed, transported and stored.
Never open the battery.
Marking
Product safety:
 |  | |
| Product corresponds to applicable EU standards | Protection class II | |
 | ||
| Safety transformer | ||
Prohibitions:
 |  |
| Protect against rain and moisture! | No touching inside |
 | |
| The machine must not be used by children |
Warning:
 |  | ||
| Warning/Caution | Warning against dangerous voltage | ||
| Warning against thrown-away items | Keep bystanders in safe distance from the machine (at least 5 m) | ||
 |  | ||
| Warning against hand injury | Warning against cutting blade | ||
 |  | ||
| Caution – take out the start key before servicing and cleaning – risk of injury | Caution! Knives coast! Wait until all rotating parts stop. | ||
Commands:
 |  | ||
| General command sign | Please read carefully the Operating Instructions. Learn carefully how the machine is used before using it. | ||
 |  | ||
| Use protective glasses and headphones | Protective gloves to be used | ||
 |  | ||
| Safety shoes to be used | Charger to be used in interiors only | ||
 |  | ||
| Protect the battery against excess temperatures and fire | Protect the battery against water and moisture | ||
 | |||
| Protect the battery against temperatures exceeding 45°C | |||
Environment protection:
 |  | |||
| Dispose waste professionally so as not harm the environment. | Packing cardboard material may be delivered to collecting centres for recycling. | |||
 |  | |||
| — | Li-ion | |||
| Any defective and/or disposed electric or electronic devices must be delivered to respective collection centres. | Any defective and/or disposed lithium-ion batteries must be delivered to respective collection centres. | |||
Package:
 | |
| Protect against moisture | This side up |
 | |
| Interseroh-Recycling |
Technical specifications:
| [4871] | [3CS8] |
| Battery voltage/capacity | Engine speed |
 |  |
| Collection box capacity | Cutting height adjustment |
 |  |
| Cutting width | Weight |
 |  |
| Noise | Battery charging time |
Training
Please read carefully the Operating and servicing instructions. Familiarise thoroughly with the controls and proper use of the machine. You must know how the machine works and how to switch the controls immediately off.
Never let children work with the machine. Never let adults work with the machine if not trained properly. Do not let any persons, especially small children and pets, to the place of your work.
Be careful to prevent any slipping or falling down.
Use as designated
The battery-powered lawn mower has been designed to treat grass areas and lawns for private purposes.
The machine cannot be used for works other than for which it has been designed and that are specified in the Operating Instructions.
Any other use is a use in conflict with the designation. The manufacturer will not be liable for any consequential damage and injuries. Please be sure to know that the machine has not been designed for industrial purposes.
Assembly

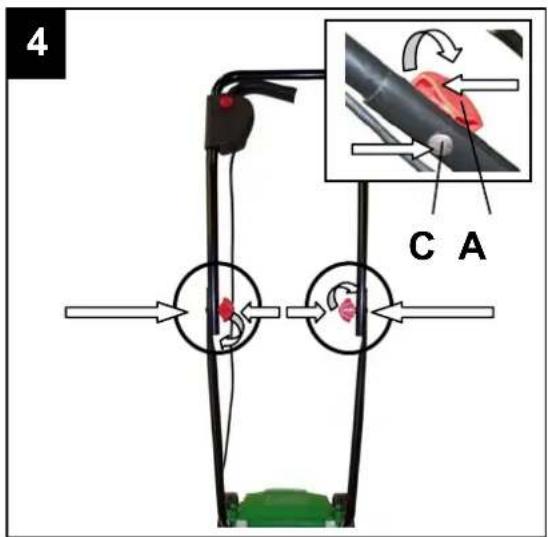

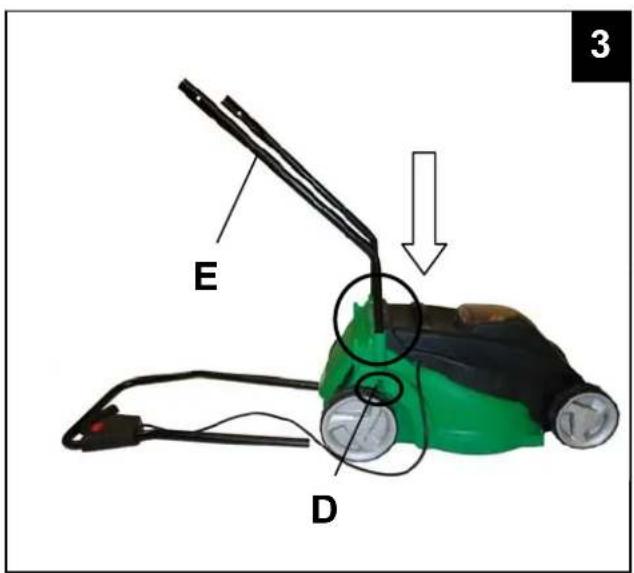

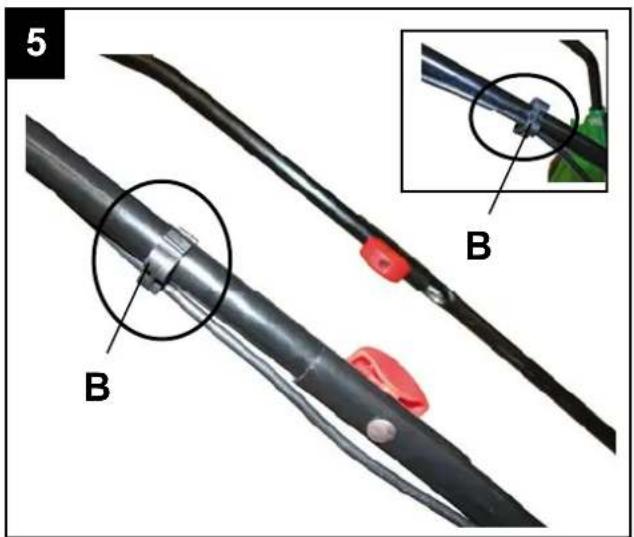

Fitting the handles (pic. 3-5)

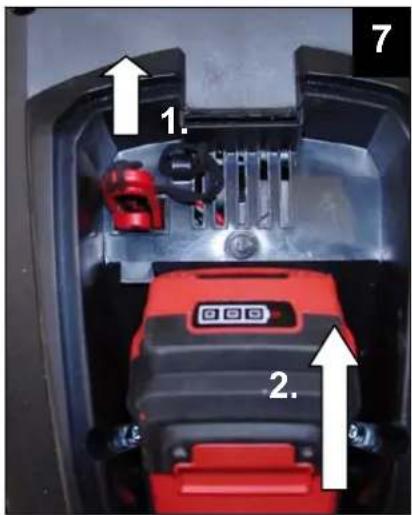

Battery charging (pic. 6-7)
Caution! Charger to be used in dry rooms only.
General instructions for charging
To reach as long battery life as possible, the following instructions must be followed:
The battery must be charged to the full extent before being used for the first time
The mower is automatically switched off when the battery voltage is low. In such a case, the battery must be charged.
The battery should be charged before longer breaks, e.g. before winterising.
The battery may be charged in any state of charging and charging may be interrupted at any moment without this causing any damage to the battery.
- Take out the start key.
- Use your finger to push the battery cover and release it.
- Take the battery out of the compartment.
- Connect the battery to the charger.
- Plug the charger (230V\~).
Instructions for Charger
Green LED permanently on: Ready for operation Red LED permanently on: Battery being charged. Green LED permanently on when battery is inserted: Battery is fully charged.
Instructions to the battery charge indicator
If the button on the battery is kept pressed, the charge level can be read:
3 green LED are on: Battery is fully charged.
2 green LED are on: Battery is half full.
1 green LED is on: Battery is almost empty.
Caution: The battery reaches the maximum capacity after 3-4 charges.

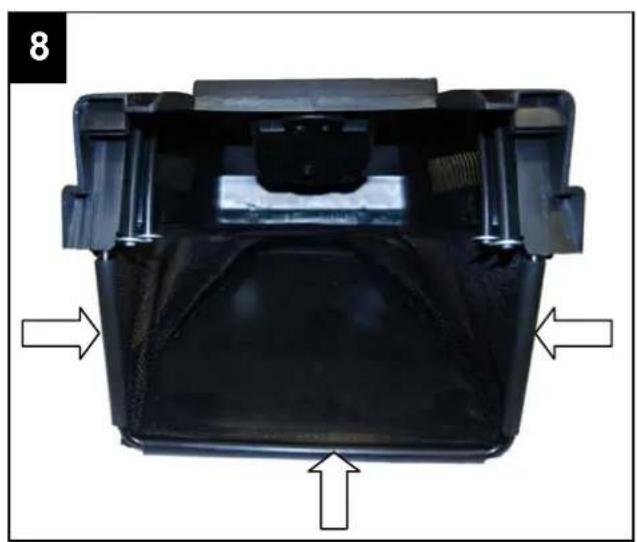

Mounting the collection box (pic. 8)
Fit the collection box as shown in the picture.
Operation
Caution! Rotating blade
Works/adjustments on the machine only to be performed when the engine is off, start key removed and the cutting blade idle.
The duration of work with a charged battery depends on the cut grass.
The higher and thicker the grass, the shorter time you work with a charged battery.
General information on the operation
Start key
Caution! Rotating blade
Before any adjustment:
Take out the start key
Do not touch the rotating blade
The mower may only be started when the start key is inserted in the machine.
Hanging the collection box (pic. 9)
Fit the collection box as shown in picture 9.
Cutting height adjustment (pic. 10-12)
Cutting height is given by readjusting the axis and the wheels.
- Hold the wheel and unscrew the wheel cover.
• Take the axis out and put it to the guide in the required height.
Make sure both the front and rear axis is installed in the same height.
SWITCHING the mower ON/OFF (pic. 2)
Start the mower on a flat surface.
Do not start it in high grass. Tip the mower over in high grass if necessary.
Starting the engine:
Press the ON button (pic.2/2)
With ON being pressed, pull the safety handle (pic. 2/1).
Release the ON button (pic. 2/2)
Switching the engine off:
Release the safety handle (pic. 2/1).
Emptying the collection box
The filling indicator flap goes down when the collection box is full.
Caution! Rotating blade
Works/adjustments on the machine only to be performed when the engine is off, spanner pulled out and the cutting blade idle.
Unhook and empty the collection box.
Remove any obstruction in the cutting area.
Refit the collection box as shown in picture 9.
At regular intervals, clean the openings below the filling indicator in the collection box.
Warranty
A warranty period of 12 months applies to commercial use and 24 months apply to private use and commences on the day of purchase of the device.
Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.
Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.
Residual risks and protective measures
Mechanical residual risks:
| Risk Description Protective measure(s) | ||
| Cutting, amputation | Rotating blades may cause serious cutting injuries or amputation of parts of your body. | Never touch under the cover when the machine is being operated.Wear protective shoesNever remove the collection box when the machine is being operated. |
Other risks
| Risk Description Protective measure(s) | ||
| Thrown-away items | Thrown-away stones or soil may cause injuries. | Remove any undesirable items from the area you want to cut.Make sure the collection box is fitted properly.Wear protective glasses when working. |
Neglecting the ergonomic principles
| Risk Description Protective measure(s) | ||
| Inadequate local lighting | Inadequate lighting/poor visibility represents a high safety risk. | Provide adequate lighting or more precisely good visibility when working with the machine. |
Behaviour in case of emergency
Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible.
Protect the injured person from other injuries and calm him/her down.
In case of accident, first aid kit must always be available in the place of your work in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away.
Please provide the following details if help is needed:
- Place of accident
- A cccident nature
- Number of injured persons
- Injur y type
Disposal
The disposal instructions are based on icons placed on the machine or its package. The description of the meanings can be found in the "Marking" section.
Environment-friendly disposal of batteries
Lithium-ion batteries are subject to disposal. Have any defective batteries disposed by an authorised dealer. Batteries must be removed from the machine before scrapping.
Transport package disposal
The package protects the machine against damage during transport. Packing materials are usually chosen depending on their environmental friendliness and disposal method and can therefore be recycled.
Returning the package to material circulation saves raw materials and reduces waste disposal costs.
Parts of packages (e.g. foils, styropor®) can be dangerous to children. Risk of suffocation!
Keep parts of the package away from children and dispose them as soon as possible.
Operator requirements
The operator must carefully read the Operating Instructions before using the machine.
Qualification
No special qualification is necessary for using the machine apart from detailed instruction by an expert.
Minimum age
The machine can only be operated by persons over 18 years of age. An exception includes youngsters operating the machine within their professional education to achieve necessary skills under trainer's supervision.
Training
Using the machine only requires appropriate instructions by a professional or reading the Operating Instructions. No special training necessary.
Maintenance
Do you have any technical questions? A claim? Do you need spare parts or the Operating Instructions?
You will be helped quickly and without needless bureaucracy at our webpage www.guede.com in the Services section. Please help us be able to assist you. To identify your machine when claimed, we need to know its serial No., order No, and year of production. All these details can be found on the type label. Enter the details below for future reference.
Serial No.
Order No.
Year of production:
Tel. +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
Email: support@ts.guede.com
Servicing
Rotating blade
Works/adjustments on the machine only to be performed when the engine is off, start key pulled out and the cutting blade idle.
Any servicing work not explicitly specified in this manual must be performed by authorised staff as there may be dangerous situations the operator is unable to handle. Spare parts may only be replaced by authorised staff.
Cleaning
Clean the mower after any use with a hand brush.
In any case, do not spray water on the mower.
Winterising
Clean the mower thoroughly.
Keep the mower in a dry room.
Charge the battery before storing the machine.
Changing the blade
Wear protective gloves when changing the blade.
Loosen the screw on the blade. The cutting blade can now be removed.
Troubleshooting
The table shows possible failures, their causes and remedy options. If the problem still cannot be removed, contact a professional to help you.
Switch the machine off and unplug it before any icing and cleaning.
Risk of electric shock
| Symptom | Possible cause | Remedy |
| Engine not running | Battery is empty | See “Battery charging” |
| Battery is defective | See “Maintenance” | |
| Start key is not inserted | See “General information on the operation” | |
| ON button or safety arch is not pressed | See “Switching the mower on” | |
| Irregular running, machine strongly vibrating | Blade is defective | See “Maintenance” |
| Blade is loosened | See “Changing the blade” | |
| Poor cutting/collection performance | Blade is blunt | See “Maintenance” |
| Collection box is blocked | See “Emptying the collection box” | |
| Cutting height is inappropriate | See “Cutting height adjustment” | |
| Battery is defective | See “Maintenance” |
Introduction
Attention! Lame rotative
Attention! Lame rotative
Attention! Lame rotative
Nabíječka (2 > ks): 3-5 h
Záběr: 320 mm
POZOR – ROTUJÍCÍ ŽACÍ NŮŽ!!!
Volum cos colector: 30 litri
EC-Declaration of Conformity
We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.
