USER MANUAL OS-400P JBL

HIGH-PERFORMANCE SPEAKER DOCK FOR iPhone AND iPod

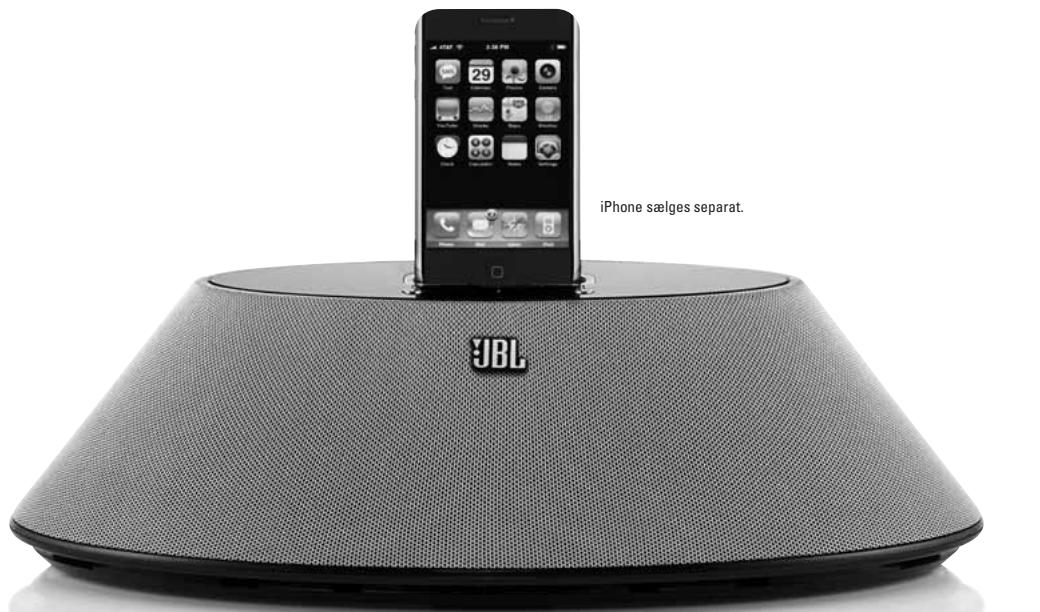

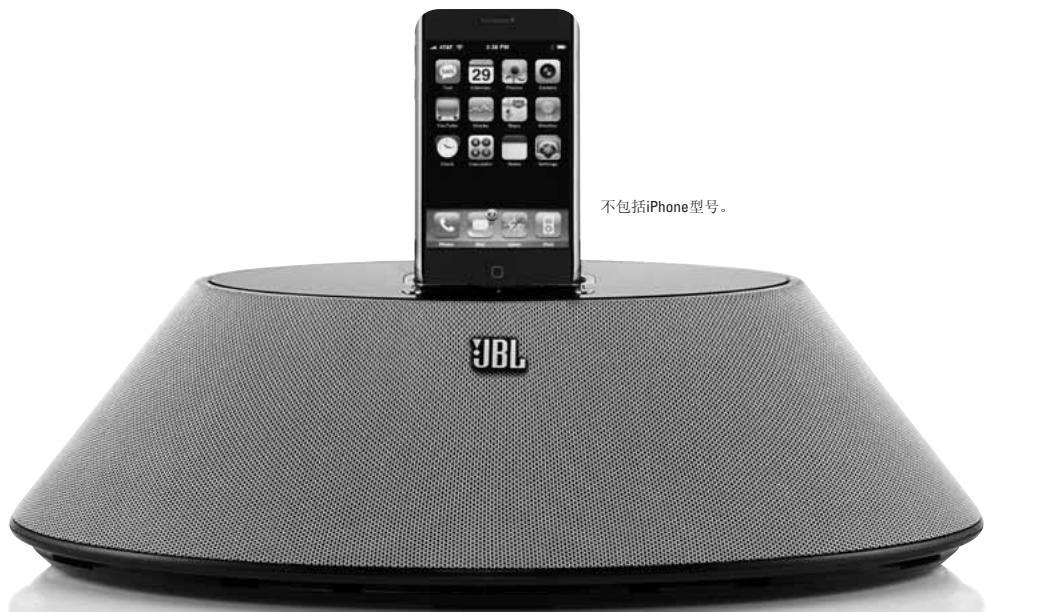

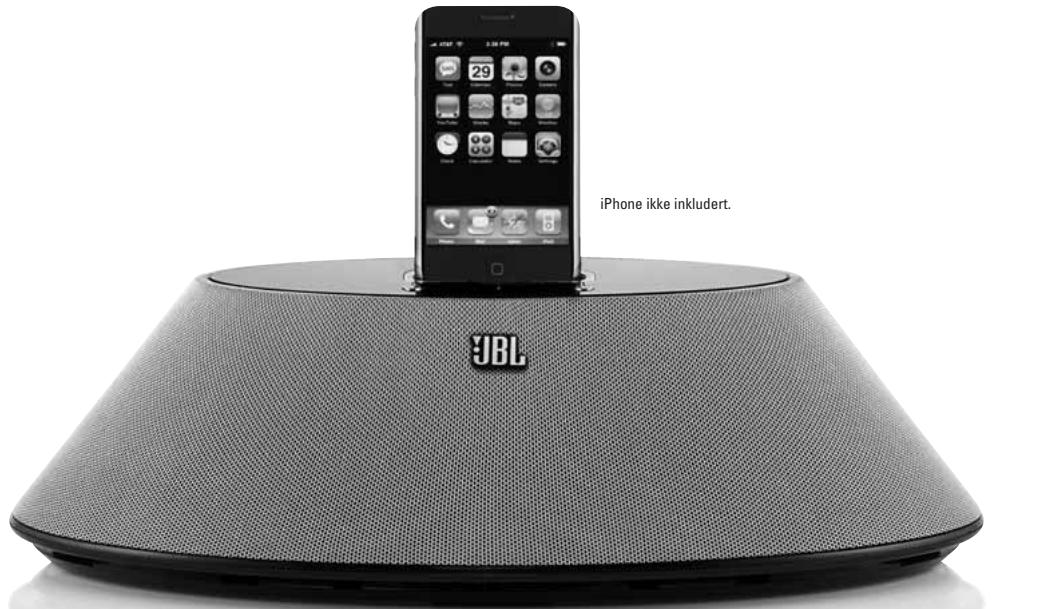

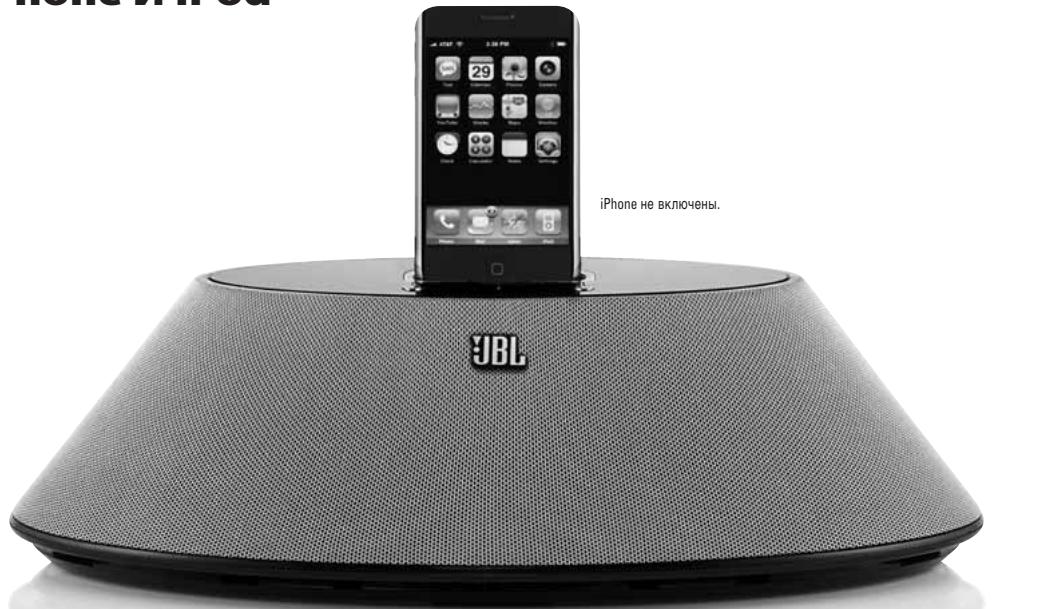

iPhone not included/iPhone non inclus.

USER GUIDE HIGH-PERFORMANCE SPEAKER DOCK FOR iPhone AND iPod

USER GUIDE English 3

French 11 German 19 Italian 27 Spanish 35 Dutch 43 Korean 51 Danish 59 Japanese 67 Chinese 75 Russian 83 Swedish 91 Finnish 99 Norwegian 107

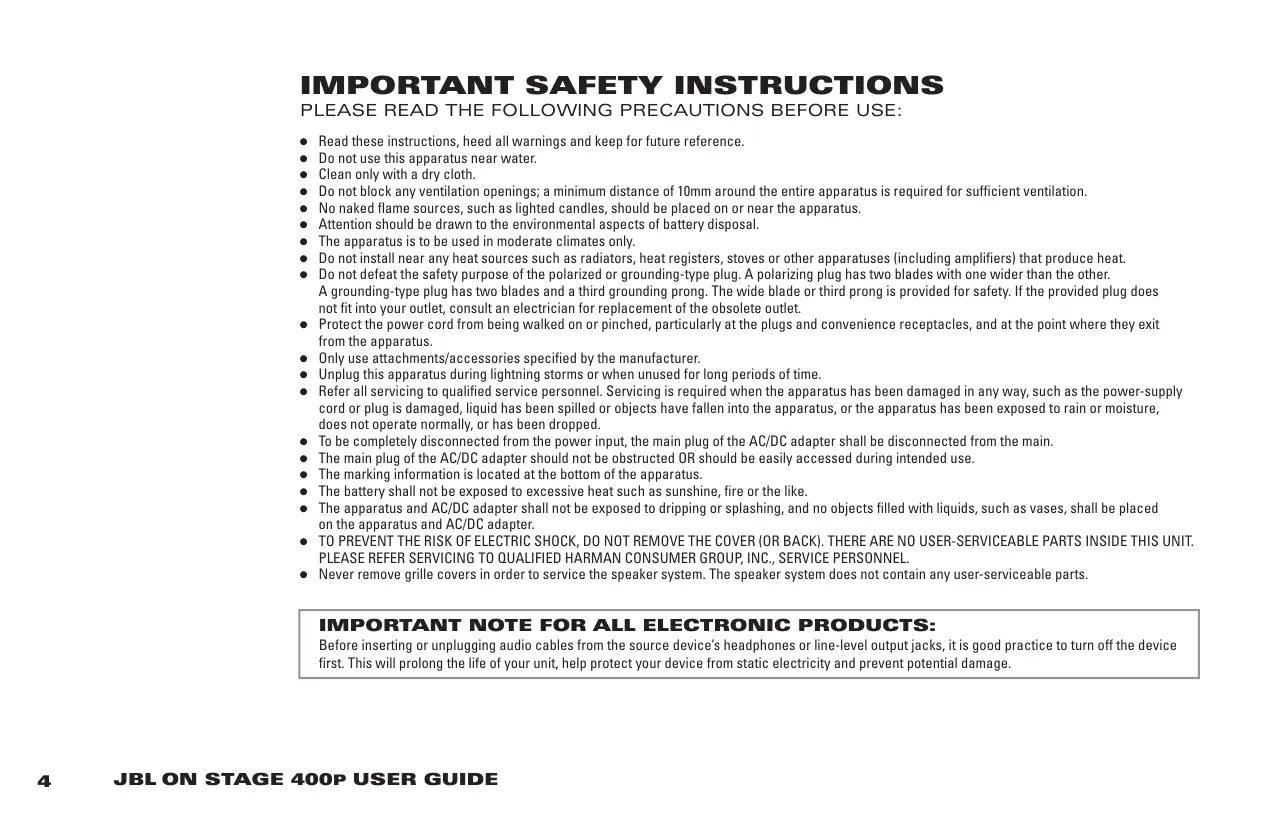

IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THE FOLLOWING PRECAUTIONS BEFORE USE:

• • • • • • • • • • • • • • • • • • •

Read these instructions, heed all warnings and keep for future reference.

Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings; a minimum distance of 10mm around the entire apparatus is required for sufﬁcient ventilation. No naked ﬂame sources, such as lighted candles, should be placed on or near the apparatus. Attention should be drawn to the environmental aspects of battery disposal. The apparatus is to be used in moderate climates only. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatuses (including ampliﬁers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarizing plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or third prong is provided for safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched, particularly at the plugs and convenience receptacles, and at the point where they exit from the apparatus. Only use attachments/accessories speciﬁed by the manufacturer. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. To be completely disconnected from the power input, the main plug of the AC/DC adapter shall be disconnected from the main. The main plug of the AC/DC adapter should not be obstructed OR should be easily accessed during intended use. The marking information is located at the bottom of the apparatus. The battery shall not be exposed to excessive heat such as sunshine, ﬁre or the like. The apparatus and AC/DC adapter shall not be exposed to dripping or splashing, and no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus and AC/DC adapter. TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. PLEASE REFER SERVICING TO QUALIFIED HARMAN CONSUMER GROUP, INC., SERVICE PERSONNEL. Never remove grille covers in order to service the speaker system. The speaker system does not contain any user-serviceable parts.

IMPORTANT NOTE FOR ALL ELECTRONIC PRODUCTS:

Before inserting or unplugging audio cables from the source device’s headphones or line-level output jacks, it is good practice to turn off the device ﬁrst. This will prolong the life of your unit, help protect your device from static electricity and prevent potential damage.

FCC STATEMENT AND WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • •

Reorient the receiving antenna.

Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Any special accessories needed for compliance must be speciﬁed in the instruction manual.

MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT UNDER FCC RULES.

CAUTION: TO REDUCE THE RISK OF SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU TO IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.

WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUID, SUCH AS VASES, SHOULD BE PLACED ON THE APPARATUS.

THE APPROPRIATE ADAPTER MUST BE INSTALLED BEFORE INSERTING YOUR iPod/iPhone INTO THE JBL® PRODUCT. MAKE SURE THAT THE CONNECTOR FOR THE iPod/iPhone IS PROPERLY ALIGNED WITH THE JBL PRODUCT’S CONNECTOR WHEN INSTALLING YOUR iPod/iPhone. FAILURE TO DO SO MAY CAUSE PERMANENT DAMAGE TO THE CONNECTOR FOR THE iPod/iPhone, RENDERING THE iPod/iPhone INOPERABLE.

JBL ON STAGE™* 400P HIGH-PERFORMANCE SPEAKER DOCK FOR iPhone AND iPod

The JBL On Stage™* 400P high-performance speaker dock is the latest JBL® innovation. As a longtime leading brand in high-end, professional component audio systems, JBL represents a unique audio heritage, incorporating continual research, to provide the superior technologies built into the JBL On Stage 400P system. This complete docking sound system for iPod/iPhone is the new centerpoint of your personal entertainment space. Imagine a combined subwoofer and satellite sound system in one place, with no extra wires running across your table or desk surface. The compact JBL On Stage 400P high-performance sound center is controllable by remote, up to 15 ft. away. Connected to your iPod/iPhone, MP3 player or any other music source with an audio jack, the system produces clean, powerful sound. Take complete control of your music and videos with the JBL On Stage 400P speaker dock. COMPATIBILITY The JBL On Stage 400P system is compatible with all docking versions of the iPod/iPhone. A stereo mini jack connection also allows you to enjoy high-quality audio from a variety of other devices, such as iPod shufﬂe, MP3 and CD players, desktop computers (all platforms), satellite radio and laptops. REMOTE Just a touch of the Volume controls increases or decreases the volume. Using the Navigation controls, browse songs and photos, change tracks and settings, and more. With the JBL On Stage 400P remote, you have complete control of your iPod/iPhone, as though it were in your hand. EVERCHARGE TOPOLOGY The unit charges your iPod/iPhone, even when not connected to the computer or when the system is off. COMPACT DESIGN The JBL On Stage 400P loudspeaker dock is a complete 2.1-channel audio system, in one easy-to-place footprint. DIGITAL POWER AND DSP The system delivers sound with a powerfully tuned digital audio path. The clean and compact digital ampliﬁcation, coupled with DSP (digital signal processing) equalization, efﬁciently provides the transducers with cool-running power.

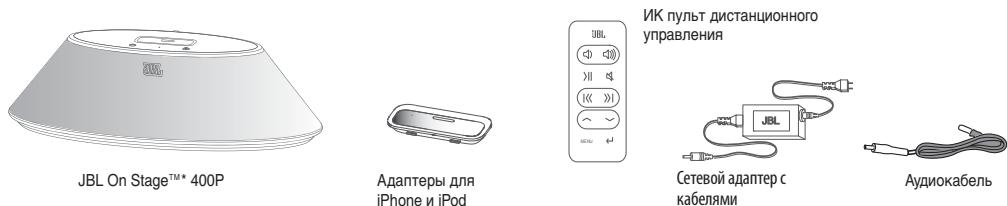

UNPACKING YOUR JBL ON STAGE™* 400P Carefully unpack your speaker system and identify all its components:

JBL MENU JBL On Stage™* 400P IR remote

Adapters for iPhone and iPod

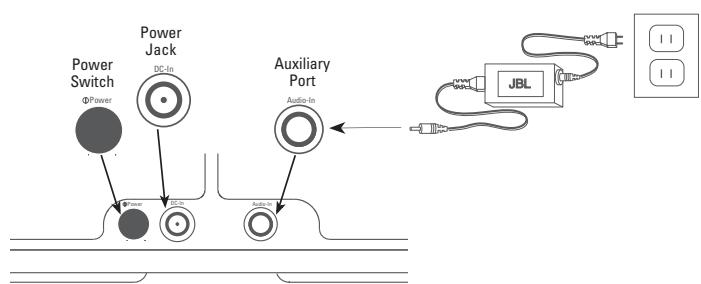

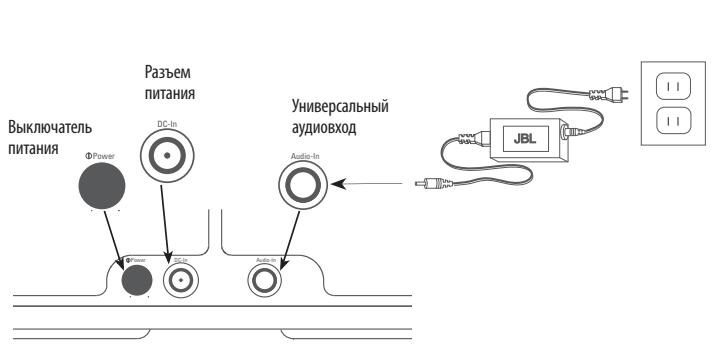

QUICK SETUP INSTRUCTIONS

Plug the barrel end of the power supply cord into the power jack and plug the other end into the wall.

Next, push the power switch; a green LED will light up, indicating that the unit is powered. Find the correct adapter for your iPod/iPhone, iPod , then ﬁrmly place it into the docking area shown. Next, place your iPod/iPhone iPod into the dock, making sure your iPod/iPhone iPod is ﬁrmly seated. Adjust the volume, using (+) to increase and (–) to decrease. Press both to mute the JBL On Stage 400P unit. Press either button to unmute. Power Jack Power Switch

SPECIFICATIONS TROUBLESHOOTING Frequency Response: 40Hz – 20kHz

Power Consumption: 55 Watts maximum JBL On Stage 400P Transducers: One Atlas™ (45mm) neodymium and four Odyssey® (25mm)

JBL On Stage 400P unit.

No power to the unit.

Make sure the wall power outlet or power strip has power. Make sure all switches for the outlet/power strip are on and that all switches for the speaker system are on.

Is the LED on? If not, power is not getting to your JBL On Stage

400P system; try the solutions shown.

Incorrect source selection.

Make sure the iPod/iPhone is properly docked or that the auxilary cable is properly connected to an external audio device.

Turn up the volume. Check the system with a known good source, such as your iPod/ iPhone. Connect the Auxiliary Port cable to the headphone jack on your iPod/iPhone.

Sound comes from one side/channel only.

iPod/iPhone or audio cable is not seated properly.

Make sure the iPod/iPhone or Auxiliary

Port cable is seated all the way into the JBL On Stage 400P unit.

Distortion (static, crackling or hissing sounds).

Noise may be caused by interference from a monitor, cell phone or other transmitting device.

Turn monitor off to see whether noise is eliminated. Move JBL On Stage 400P unit’s cables farther away from monitor.

Too much bass or treble.

JBL On Stage 400P is being overdriven by an ampliﬁed audio source.

Make sure that the JBL On Stage 400P unit is connected to an appropriate source device.

Power: 1 x 30 Watts (woofer)

2 x 15 Watts (tweeters), at 1% THD Input Impedance: >10k Ohms Signal-to-Noise Ratio: >85dB Input Sensitivity: 250mV RMS for rated power output Power (USA/Canada): 120 Volts, 60Hz AC Power (Europe/UK): 220 – 240 Volts, 50Hz or 60Hz AC Power (Japan): 100 Volts, 50Hz or 60Hz AC Power (Australia): 240 Volts, 50Hz or 60Hz AC UL/CUL/CE-Approved Dimensions: 14-1/4" x 7-3/16" x 3-3/4" (W x D x H) (362mm x 183mm x 95mm)

Make sure all signal cables are inserted snugly into receptacles.

Weight: 3.8 lb (1.7kg)

Volume level may be too high.

Power Supply Manufacturer: JBL, Inc.

Some devices will distort the output signal if the volume is set to Maximum.

Power Supply Model: 700-0084

Check the EQ setting on your iPod/iPhone or source device.

Check volume of source device.

It is recommended that the source device

EQ be set to Flat or Off.

JBL On Stage 400P unit emits a loud hum or buzzing noise.

Input cables are not plugged in properly.

Check input cable connection.

Speaker system experiences radio frequency interference or picks up a radio station.

Input cable may be picking up interference.

Wrap up excess input cable, in order to make it as short as possible.

Error message: “Device is not iPhone Compatible” is displayed on iPhone after docking on the unit.

iPhone has an old ﬁrmware version.

Upgrade iPhone ﬁrmware to latest version.

Undock & re-dock iPhone in unit.

If you are using a longer cable, make sure it’s a

3.5mm mini-jack stereo male-to-male cable.

TROUBLESHOOTING CHARGING Symptom

iPod/iPhone will not charge.

Wrong adapter is used.

Make sure correct adapter is used for your speciﬁc iPod/iPhone model.

The iPod/iPhone is not making full contact with the docking station.

Make sure the iPod/iPhone is seated securely into the docking station.

DISPOSAL: Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

IMPORTANT: Use UM4/AAA/LR03 alkaline-type nonrechargeable batteries only.

JBL and Odyssey are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Atlas is a trademark of Harman

International Industries, Incorporated. * The trademark On Stage is used with permission of OSA International, Inc. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone and Shufﬂe are trademarks of Apple Inc. iPod and iPhone not included. “Made for iPod” means that an electronic accessory has been designed to connect speciﬁcally to iPod and has been certiﬁed by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect speciﬁcally to iPhone and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Harman Consumer Group, Inc.

Part Number: 950-0253-001 Rev. C Français

JBL On Stage™* 400P Harman Consumer Group, Inc.

Document Number: 950-0253-001 Rev. C RISCHIO DI CHOC ELETTRICO – NON APRIRE JBL On Stage™* 400P Alimentatore

1 x 30 Watt (woofer)

2 x 15 Watt (tweeter),

a 1% THD Impedenza ingresso:

Approvato UL/CUL/CE Dimensioni:

Harman Consumer Group, Inc.

Numero documento: 950-0253-001 Rev. C JBL On Stage™* 400P JBL On Stage™* 400P INSTRUCTIES VOOR SNEL OPZETTEN

JBL On Stage 400P bromt of zoemt

Harman Consumer Group, Inc.

Document Number: 950-0253-001 Rev. C JBL On Stage™* 400P

䅖㧊な㦮GiPod/iPhoneG⋮GAuxGṖJBL On

Stage 400P ₆₆⪲G㢚㩚䧞G⏩㡂㧞⓪㰖G 䢫㧎䞮㕃㔲㡺UGG

⳾┞䎆⯒Gℒ㍲G㧷㦢㧊G㠜㠊㪢ⓦ㰖G⽊㕃

㔲㡺U JBL On Stage 400PG₆₆㦮G䅖㧊な㦚G ⳾┞䎆㠦㍲G▪GⲖⰂG⚦㕃㔲㡺U

JBL On Stage 400PG㧊G㯳䙃

♲G㡺❪㡺G㿲㤦㦒⪲Gὒ㡊♮ ἶG㧞㔋┞┺

LYNSYMBOL I TREKANT ADVARER MOD FARLIG SPÆNDING INDE I APPARATET.

EN KORREKT ADAPTOR SKAL VÆRE INSTALLERET INDEN EN iPod/iPhone TILSLUTTES JBL® PRODUKTET. iPod/ iPhone KONNEKTOREN SKAL VÆRE KORREKT PLACERET VED JBL PRODUKTETS KONNEKTOR VED TILSLUTNING AF iPod/iPhone. OVERHOLDES DETTE IKKE, KAN DER SKE PERMANENT SKADE PÅ iPod/iPhone KONNEKTOREN SOM GØR iPod/iPhone UBRUGELIG.

JBL On Stage™* 400P Strømforsyning producent: JBL, Inc.

JBL On Stage 400P brummer eller summer.

Harman Consumer Group, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA 516.255.4525 (USA only) www.jbl.com © 2008 Harman International Industries, Incorporated. All rights reserved. Tous droits réservés. Document Number: 950-0253-001 Rev C.

HIGH-PERFORMANCE SPEAKER DOCK FOR iPhone AND iPod

JBL On Stage™* 400P JBLとOdyssey、

Atlasは米国とその他の国々で使用されているHarman International Industries, Incorporated.の商標です。 * The trademark On Stage is used with permission of OSA International, Inc. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone and Shufﬂe are trademarks of Apple Inc. iPod and iPhone not included. “Made for iPod” means that an electronic accessory has been designed to connect speciﬁcally to iPod and has been certiﬁed by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect speciﬁcally to iPhone and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Harman Consumer Group, Inc.

Document Number: 950-0233-001 Rev. C JBL On Stage™* 400P

ϡ҂ˈेJBL On Stage 400P㋏㒳ⱘ⬉⑤᳾᥹ 䗮˗ᇱ䆩䗮䖛߫Вⱘ㾷 އᮍḜᴹ㾷އ䆹䯂乬Ǆ

⹂ֱiPod/iPhone៪䷇乥䕧ܹ䖲᥹఼Ꮖ

ϢJBL On Stage 400P䆒໛ཹ୘䖲᥹Ǆ

JBL On Stage 400Pⱘ䷇乥

ẔᶹiPod/iPhone៪݊ᅗ⑤㺙㕂ㄝ఼࣪ⱘ䆒ᅮǄ

Harman Consumer Group, Inc.

᭛ӊ㓪ো˖950-0233-001 Rev. C JBL On Stage™* 400P JBL и Odyssey являются торговыми марками Harman International Industries, Incorporated, зарегистрированной в Соединенных Штатах и/или других странах. Atlas

является торговой маркой Harman International Industries, Incorporated. * Торговая марка On Stage используется с разрешения OSA International, Inc. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone and Shuffle are trademarks of Apple Inc. iPod and iPhone not included. “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

HÖGPRESTERANDE HÖGTALARDOCKA FÖR iPhone OCH iPod

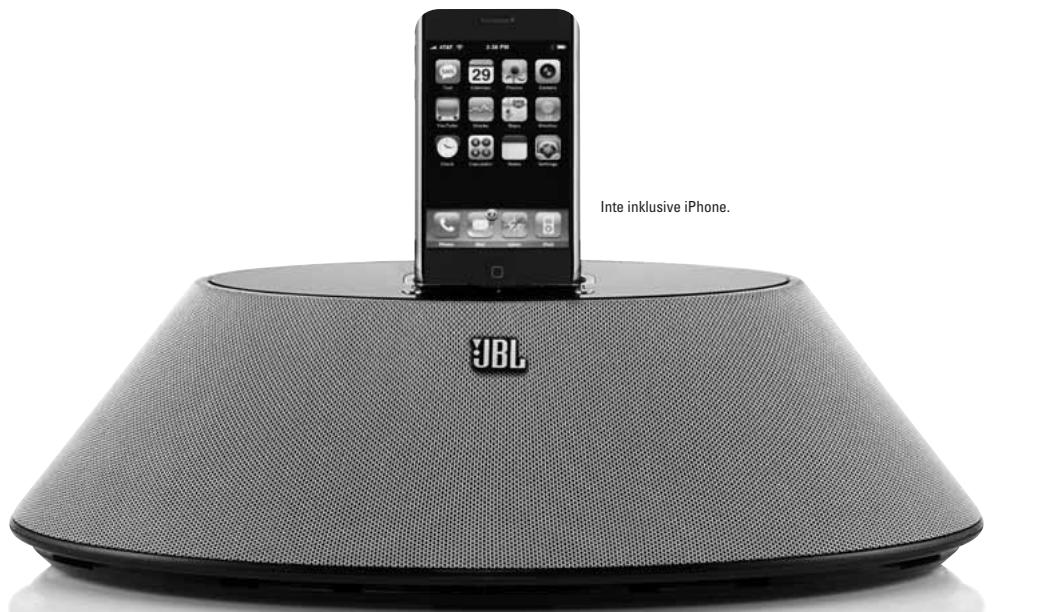

Inte inklusive iPhone.

BRUKSANVISNING Svenska

14-1/4" x 7-3/16" x 3-3/4"

(362 mm x 183 mm x 95 mm) 3.8 lb (1.7kg) JBL, Inc. 700-0084

Harman Consumer Group, Inc.

Dokumentnummer: 950-0253-001 Rev. C JBL On Stage™* 400P Virtalähde

LYNET OG PILSPISSEN INNENFOR TREKANTEN ER ET ADVARSELSSYMBOL SOM VARSLER OM HØY SPENNING INNE I PRODUKTET.

ADVARSEL FOR Å MINSKE FAREN FOR STØT BØR IKKE DEKSELET FJERNES. INGEN DELER PÅ INNSIDEN BØR BEHANDLES AV BRUKER.

KONTAKT KVALIFISERT PERSONELL FOR SERVICE PÅ PRODUKTET.

VIKTIG: RIKTIG ADAPTER MÅ INSTALLERES FØR DU PLASSERER DIN iPod/iPhone I JBL®-PRODUKTET. FORSIKRE DEG OM AT iPod/iPhone KOPLING ER RIKTIG RETTET INN I FORHOLD TIL JBL-PRODUKTETS KOPLING FØR INSTALLASJON AV iPod/ iPhone. HVIS IKKE RISIKERER MAN PERMANENT SKADE PÅ iPod/iPhone KOPLING SOM VIL GJØRE DEN UBRUKELIG.
