Product type	Filter coffee maker
Brand	AEG-ELECTROLUX
Model	EKF4040
Supply voltage	220-240 V
Power consumption	1000-1200 W
Maximum capacity	10 large cups
Coffee type	Medium grind
Aroma level function	For 2 to 4 cups, activation by 2-4 button
Keep warm	Automatic after brewing, stops after 2 h
Anti-drip system	Integrated in the filter holder
Automatic shut-off	2 hours after brewing finishes
Carafe	Glass with lid, level marks
Dimensions (approx.)	25 x 20 x 35 cm
Weight (approx.)	1.5 kg
Materials	Plastic, glass, stainless steel (heating plate)
Carafe care	Dishwasher safe
Recommended descaling	Every 3 months with environmentally friendly product
Compatible filter	Paper filter size 1x4
Child safety	Supervision required, cord out of reach
Repairability index	Not provided

Frequently Asked Questions - EKF4040 AEG-ELECTROLUX

How to use the aroma level function for 2-4 cups?

Press the ON/OFF button then the 2-4 button. The 2-4 indicator lights up and the ON/OFF indicator turns off. The function automatically deactivates after 11 minutes.

What to do if coffee overflows from the filter?

Do not remove the carafe for more than 30 seconds during brewing. The anti-drip system prevents drips, but overflow can occur if the carafe is absent for too long. Also check that the filter is properly positioned.

How to clean the coffee maker?

Unplug the appliance. Clean the housing with a damp cloth. The carafe and lid are dishwasher safe. Rinse the filter holder under running water while operating the anti-drip system several times. Never immerse the appliance in water.

How often should I descale my coffee maker?

At least every 3 months. Use an environmentally friendly descaler without formic acid. Follow the manufacturer's instructions. After descaling, run at least two cycles with clear water.

Can I use mineral or distilled water?

No. Only use cold, clear tap water. Mineral water, distilled water, milk or tea may damage the appliance.

How to stop the coffee maker manually?

Press the ON/OFF button (symbol ①). The indicator turns off. The appliance also stops automatically 2 hours after brewing finishes.

What to do if the carafe breaks?

Contact your dealer or the after-sales service. Provide the model (see rating plate under the appliance). A replacement carafe may be provided at a charge.

Does the keep-warm plate stay on permanently?

No, it remains active as long as the appliance is on. It turns off with manual or automatic stop after 2 hours.

What type of ground coffee to use?

Use medium grind coffee. The amount depends on your taste: about 6-7 g per cup for a medium-strength coffee.

Why is my coffee not hot enough?

Check that the carafe is properly placed on the keep-warm plate. The plate maintains the coffee at the ideal temperature. If the problem persists, descaling may be necessary.

USER MANUAL EKF4040 AEG-ELECTROLUX

Lagg in filterpapper.

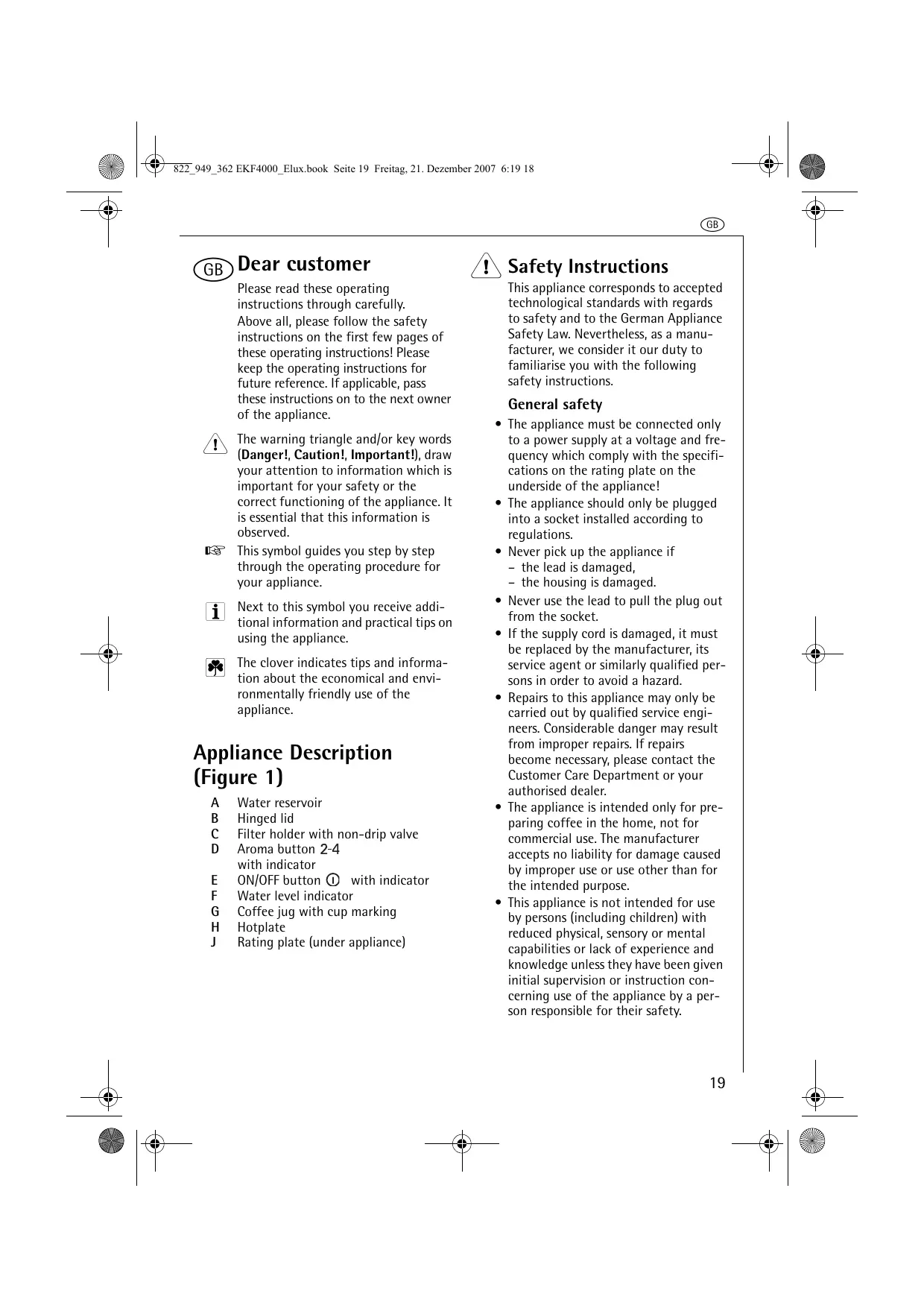

Please read these operating instructions through carefully. Above all, please follow the safety instructions on the first few pages of these operating instructions! Please keep the operating instructions for future reference. If applicable, pass these instructions on to the next owner of the appliance.

The warning triangle and/or key words (Danger!, Caution!, Important!), draw your attention to information which is important for your safety or the correct functioning of the appliance. It is essential that this information is observed.

This symbol guides you step by step through the operating procedure for your appliance.

Next to this symbol you receive additional information and practical tips on using the appliance.

The clover indicates tips and information about the economical and environmentally friendly use of the appliance.

Appliance Description (Figure 1)

A Water reservoir
B Hinged lid
C Filter holder with non-drip valve
D Aroma button 2-4 with indicator

E ON/OFF button ① with indicator
F Water level indicator
G Coffee jug with cup marking
H Hotplate
Rating plate (under appliance)

! Safety Instructions

This appliance corresponds to accepted technological standards with regards to safety and to the German Appliance Safety Law. Nevertheless, as a manufacturer, we consider it our duty to familiarise you with the following safety instructions.

General safety

• The appliance must be connected only to a power supply at a voltage and frequency which comply with the specifications on the rating plate on the underside of the appliance!
• The appliance should only be plugged into a socket installed according to regulations.
• Never pick up the appliance if
• the lead is damaged,
• the housing is damaged.
• Never use the lead to pull the plug out from the socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Repairs to this appliance may only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact the Customer Care Department or your authorised dealer.
• The appliance is intended only for preparing coffee in the home, not for commercial use. The manufacturer accepts no liability for damage caused by improper use or use other than for the intended purpose.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety.

Safety of children

• Never leave the appliance running unattended. Take particular care when children are around!
• Packaging material, e.g. plastic bags, should not be accessible to children.
  Children should be supervised to ensure that they do not play with the appliance.

Points to note when using the appliance

• Never allow the cord to come into contact with the hotplate!
• Before cleaning and carrying out maintenance, switch the appliance off and unplug from the mains socket.
• The hotplate, water outlet pipe and filter cover will heat up during use. Keep children away!
• Do not fill the appliance with water when it is hot.

Switch the coffee maker off and wait approx. 5 minutes for it to cool down!

• Please follow the instructions for descaling!
• Never immerse the unit in liquid.
• The manufacturer accepts no liability for any damage caused by improper or incorrect use.
• Do not leave the appliance unattended. Unplug from the mains socket even when leaving the room for a short time.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Operation

Before using your coffee maker for the first time

Before using the appliance for the first time, clean it by running water through it once or twice without using paper filter and coffee.

Making coffee

Open the lid (figure 1/B).

Fill in water (figure 2).

Fill the water reservoir only with fresh cold water. Never fill the water reservoir with mineral water, distilled water, milk, ready made coffee, tea etc.

You can use the coffee jug to fill in the amount of water you require. There is a gauge for 2-10 cups in the water reservoir and on the coffee jug.

The markings apply for the amount of fresh water.

The quantity of coffee produced is lower as the ground coffee absorbs water.

GB

Insert paper filter.

Insert a size 1x4 paper filter in the filter holder (figure 1/C). Please fold the perforated edges before doing this.

Fill in ground coffee.

Please use ground coffee, medium grind. The quantity of coffee is matter of personal taste. For an average strong coffee one measuring spoon (approx. 6-7 g) is sufficient per cup.

Close the lid (figure 1/B).
Place the coffee jug complete with lid onto the hotplate.
Switch on the appliance with the ON/OFF button (figure 1/E).

The indicator lamp lights up. After a few seconds, hot water flows into the filter. When the water has stopped flowing, the appliance automatically switches to the warming mode.

Remove the jug.

Whilst boiling, the jug must not be removed for longer than 30 seconds or the filter will overflow.

Once the jug has been removed, the filter valve prevents coffee from dripping onto the hotplate. The hotplate always keeps the coffee hot. It remains on until the appliance is switched off with the ON/OFF button (figure 1/E) and the indicator lamp goes out.

If the appliance is not switched off by hand, it automatically switches off 2 hours after the end of boiling.
To guarantee uniform coffee strength it should be stirred in the coffee jug after preparation.
If the water has stopped flowing and you wish to refill water for a fresh jug of coffee, switch the appliance off and allow it to cool down for a few minutes.

Aroma setting

The aroma setting guarantees full coffee enjoyment even with small quantities (2-4 cups).

Switch on the appliance with the ON/OFF button (figure 1/E). The indicator lamp lights up.
Switch on the aroma setting with the Aroma button 2-4 (figure 1/D). The indicator lamp of the button 2-4 lights, the indicator lamp of the button ① goes out. Aroma setting is switched on.
11 minutes after the end of boiling aroma setting automatically switches off, and the indicator lamp of the ON/OFF button ① lights again.
To restart the aroma setting, press Aroma button 2-4 (figure 1/D) again.

Cleaning and Care

Unplug the power cord from the mains socket before cleaning.
To clean the filter holder, swing up the handle and remove the filter holder (figure 3). To clean the filter valve thoroughly, activate it several times whilst it is being rinsed.
Reinsert filter holder and swing handle down.
Clean the appliance with a damp cloth but never immerse it in water!
Coffee jug and jug lid are dishwasher proof.

Descending - making your coffee maker last longer

As a precautionary measure, we recommend descending every three months. Only use an environmentally friendly descaler and follow the instructions on the packet. Please do not use a descaler with a formic base, or any descaler in powder form.

Fill the water reservoir with water and only then add the descaler. Not vice versa!
Place the coffee jug with its lid onto the hotplate.

GB

Allow the descaler to take effect for about 15 minutes, then switch the appliance on. Switch it off when the descaler solution has finished flowing through.

If necessary repeat the descending process.
Following this, allow the appliance to run at least twice with plain water.
Thoroughly rinse the coffee jug, lid and filter holder under running water, activate the filter valve repeatedly during the rinse process.

Coffee jug

If your coffee jug smashed, you can purchase a new one from your sales dealer or the service centre specifying the model of your coffee maker, see rating plate (figure 1/J).

Technical Data

Mains voltage: 220 - 240 V

Power consumption: 1000 - 1200 W

This appliance conforms with the following EC Directives:

• Low Voltage Directive 2006/95/EC
  EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC
