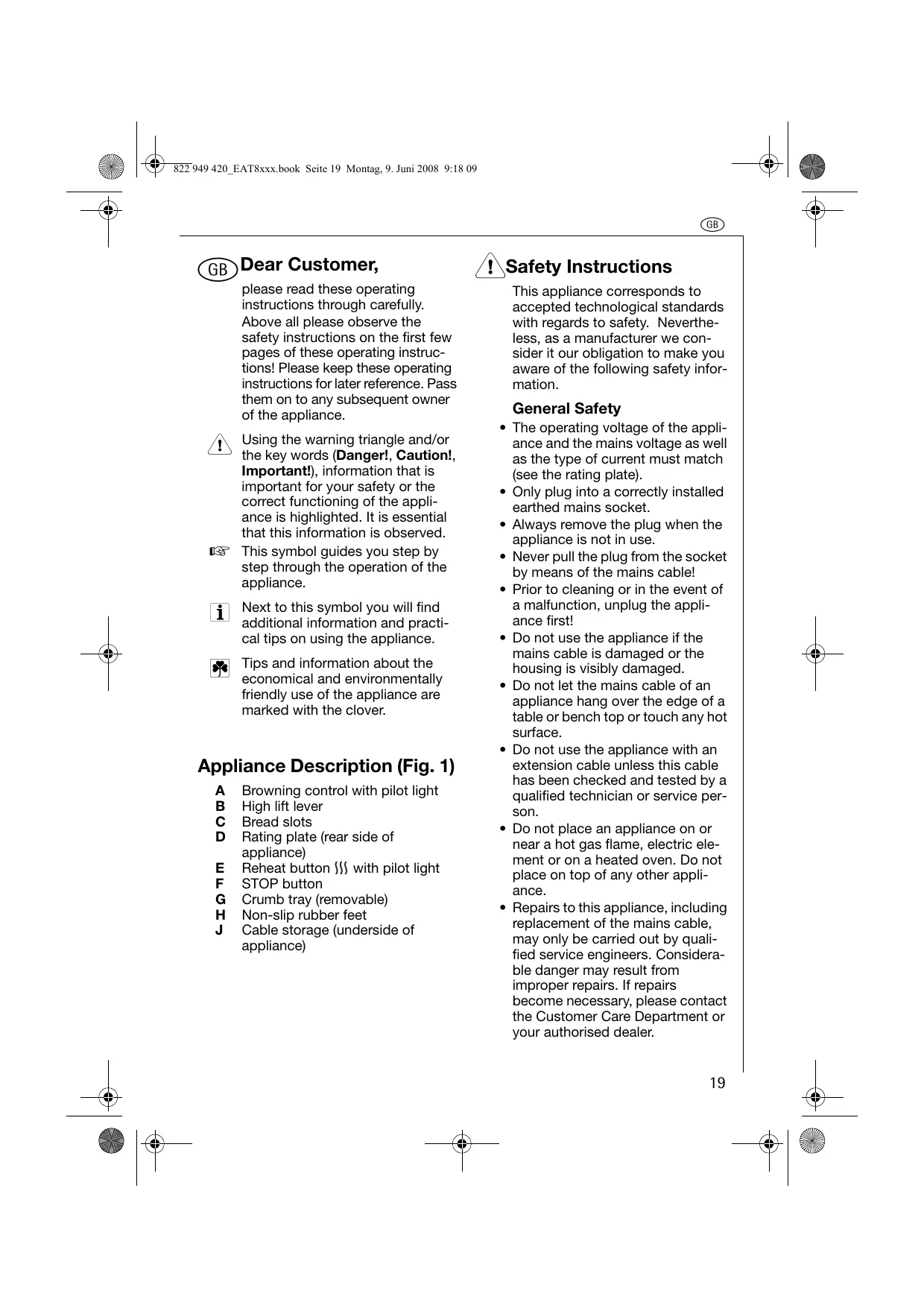

USER MANUAL EAT8000 AEG-ELECTROLUX

please read these operating instructions through carefully. Above all please observe the safety instructions on the first few pages of these operating instructions! Please keep these operating instructions for later reference. Pass them on to any subsequent owner of the appliance.

Using the warning triangle and/or the key words (Danger!, Caution!, Important!), information that is important for your safety or the correct functioning of the appliance is highlighted. It is essential that this information is observed.
This symbol guides you step by step through the operation of the appliance.
Next to this symbol you will find additional information and practical tips on using the appliance.
Tips and information about the economical and environmentally friendly use of the appliance are marked with the clover.

Appliance Description (Fig. 1)

A Browning control with pilot light
B High lift lever
C Bread slots
D Rating plate (rear side of appliance)
E Reheat button with pilot light
F STOP button
G Crumb tray (removable)
H Non-slip rubber feet
J Cable storage (underside of appliance)

! Safety Instructions

This appliance corresponds to accepted technological standards with regards to safety. Nevertheless, as a manufacturer we consider it our obligation to make you aware of the following safety information.

General Safety

• The operating voltage of the appliance and the mains voltage as well as the type of current must match (see the rating plate).
• Only plug into a correctly installed earthed mains socket.
  Always remove the plug when the appliance is not in use.
• Never pull the plug from the socket by means of the mains cable!
• Prior to cleaning or in the event of a malfunction, unplug the appliance first!
• Do not use the appliance if the mains cable is damaged or the housing is visibly damaged.
• Do not let the mains cable of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not use the appliance with an extension cable unless this cable has been checked and tested by a qualified technician or service person.
• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven. Do not place on top of any other appliance.
• Repairs to this appliance, including replacement of the mains cable, may only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact the Customer Care Department or your authorised dealer.

GB

• If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted for any damage that may be caused.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety.

Child Safety

• Never leave the appliance unattended while in use.
• Keep children away from electrical appliances.
• Packaging material, e.g. plastic bags, should not be accessible to children.
• Children should be supervised to ensure that they do not play with the appliance.

Safety in operation

Always place the unit on a flat, level surface.
- Do not place any objects such as toast, bread or similar on top of your toaster when in use.
- Use your toaster well away from walls, curtains or other combustible materials.
- Do not leave your toaster unattended when in use.
- Do not use the appliance without crumb tray in place. Clean crumb tray regularly. Do not allow crumbs to accumulate in the crumb tray.
- Do not cover the toasting slots when toasting.
- Do not toast stale bread, rice crackers or similar, on high settings as they may catch fire.

• Never attempt to extract jammed toast, crumpets or muffins with a knife or any other object, as contact with live element may cause electrocution.
• Parts on the top of the appliance and in the toasting slot will become hot – there is a risk of burns!

Safety in cleaning and care

• Follow the cleaning instructions.
• Prior to cleaning, unplug the appliance first and let cool down!
• Do not immerse the appliance in water or any other liquid.
• Do not store or cover the appliance until it has fully cooled down.

Operating

Before using for the first time

Before using your appliance for the first time, remove all packing material, wipe the housing with a damp cloth and dry.
Plug the power cable into a 220-240 V power outlet.
To avoid the build up of unpleasant odours, the appliance should be placed near an open window and operated a few times at the maximum browning setting without any bread.

Toasting bread

Plug the power cable into a 220-240 V power outlet.
Position the bread into the bread slot (Fig. 1/C).

The extra wide and deep bread slots enable you to toast a large variety of breads – regardless of thickness. Whether you are toasting thick or thin bread, your bread will always be held in the centre of the slot to ensure even toasting.

Select the desired colour setting on the browning control (Fig. 1/A). Setting 1 for lightest browning. Setting 6 for darkest browning. The additional frozen setting is for toasting frozen bread.

We would recommend to adjust a setting that the toast is browned to a „golden yellow“ or „light-brown“ colour. The electronic browning control ensures that once a browning setting has been chosen, the results are always the same for the same type of bread.

Important: Do not toast stale bread, rice crackers or similar on a high setting as they may catch fire.

Push the toasting lever (Fig. 1/B) down to commence the toasting cycle. The browning control pilot light illuminates.

When the colour setting is achieved, the toaster will automatically turn off and slide the toast up.

If you need to remove the toast before the cycle is complete, then press the STOP button (Fig. 1/F). The STOP button will immediately interrupt the toasting cycle and slide the toast up.

To remove small pieces of bread such as bagels, crumpets or muffins use the High Lift Lever to lift the toast above the starting position. This will prevent burning your fingers as you remove the toast.

After use, remove the plug from the power outlet.

Reheat function

The reheat function enables you to warm up already toasted bread to keep it warm and crisp.

When using the reheat functor, it is not necessary to change the setting on the browning control (Fig. 1/A).

Position the bread into the bread slot (Fig. 1/C).
Push the toasting lever (Fig. 1/B) down. The browning control pilot light illuminates.
Then push the reheat button (Fig. 1/E). The pilot light illuminates.

When the bread is reheated, the toaster will automatically turn off and slide the toast up.

Care and Cleaning

Always remove the plug from the power outlet after use and before cleaning your toaster.

Before cleaning, always leave the toaster to cool down.

Liquid must not be applied to the toaster, the toaster must also never be immersed in liquid.

To clean the exterior

Wipe exterior with a slightly dampened cloth and polish with a soft dry cloth.
Do not use metal scourers or abrasives as this may scratch the exterior surface.

Removable crumb tray

To remove the crumbs, simply push and slide out the tray, empty and place it back in the toaster. Clean the crumb tray regularly.
! Do not allow crumbs to accumulate, as this may cause a potential fire hazard.

To clean the toaster interior

Clean inside the toaster regularly. To do this, unplug the appliance, turn it upside down over the sink and gently shake all the crumbs out.

Storage

Wrap the cable around the cable storage at the underside of the appliance.

Technical Data

Mains voltage:

220-240V/50-60Hz

Power consumption:

EAT8000 (2 slice): 1010 - 1200 W

EAT8100 (4 slice): 2020 - 2400 W

This appliance conforms with the following EC Directives:

Low Voltage Directive 2006/95/EC
EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE < , >PS < , etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
