Product type	Steam iron
Brand	Zelmer
Model	Front Jetix R IR2200
Steam control	Adjustable steam output via slider
Spray function	Yes, via spray button
Steam burst function	Yes, via steam burst button
Frontal steam jet	Yes, for vertical steaming and crease removal
Self-cleaning function	Yes, via self-clean button to remove scale
Anti-scale system	Built-in anti-limescale container
Anti-drip system	Prevents water leakage when iron is not hot enough
Auto-off	Automatic shut-off after 30 sec (horizontal) or 8 min (vertical)
Temperature control	Rotary dial with settings for delicate to linen
Water tank	Refillable, with Max level indicator
Recommended water	Demineralised or distilled water
Dry ironing	Yes, by setting steam control to off position
Steam ironing	Yes, with suitable temperature settings
Safety features	Auto-off, anti-drip, anti-scale, grounded plug
Power cord	Flexible with bend protector
Indicator lights	Heater light (red) and auto-off light (green)
User maintenance	Clean soleplate with damp cloth; self-clean monthly; empty tank after use
Storage	Vertical after cooling, cord not wrapped around unit

Frequently Asked Questions - Front Jetix R IR2200 Zelmer

How do I fill the water tank?

Unplug the iron, set the steam control to the off position (✗), lift the water tank cover, and fill with water using the supplied cup up to the Max mark. Use demineralised or distilled water for best results.

Why is the iron not producing steam?

Possible causes: the water tank is empty, the temperature dial is set too low (below ••), or the steam control is turned off. Ensure the iron has reached the required temperature (heater light goes off) and that the steam control is at the desired setting.

How does the self-cleaning function work?

Set the temperature dial to •••, wait for the heater light to go off and on again, then unplug. Hold the iron horizontally over a sink, press and hold the self-clean button. Steam and boiling water will flush out scale. Release the button when done, then let the iron cool and wipe the soleplate.

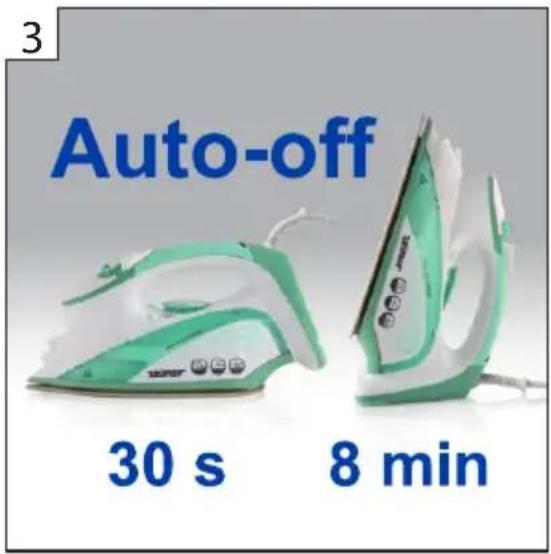

What does the auto-off feature do?

If the iron is left unattended, it switches off automatically: after 30 seconds in horizontal position (soleplate down) or after 8 minutes in vertical position (on its heel). The green auto-off light flashes. Moving the iron reactivates it.

Can I use the iron without water?

Yes, for dry ironing: set the steam control to the off position (✗) and select the appropriate temperature. Do not press the steam burst or spray buttons when the tank is empty.

How to clean the soleplate?

Allow the iron to cool completely. Wipe the soleplate with a soft damp cloth and mild detergent. Never use abrasive cleaners, vinegar, or descaling agents, and avoid sharp objects.

Is the iron safe to use around children?

The iron gets very hot. Keep it and its cord out of reach of children under 8 years when plugged in or cooling. Children over 8 can use it with supervision, but cleaning and maintenance should not be done by children.

What type of water should I use?

For best results and to reduce limescale, use demineralised or distilled water. Do not use chemically descaled water, perfume, vinegar, or other chemicals as they may damage the iron.

How do I use the frontal steam jet (vertical steaming)?

Fill the water tank, set the temperature dial to •••, and wait for the heater light to go off. Aim the steam nozzle at the fabric (e.g., curtains or hanging clothes) and press the steam burst button. Keep the iron a few centimetres away from delicate fabrics.

What should I do if water drips from the soleplate?

This may happen if the iron has not reached the sufficient temperature for steam. Turn the temperature dial to ••• and wait for the heater light to go off. Also ensure the steam control is not set too high before the iron is hot. The anti-drip system may make a clicking sound, which is normal.

USER MANUAL Front Jetix R IR2200 Zelmer

Green and white Zelmer air iron on a white surface, no visible text or symbols on the device itself.

PL INSTRUKCJA UŻYTKOWANIA ŻELAZKO PAROWE 3–9
CZ NÁVOD K POUŽITÍ NAPAŘOVACÍ ŽEHLIČKA 10–15
SK NÁVOD NA OBSLUHU NAPAROVACIA ŽEHLIČKA 16–22
HU HASZNÁLATI UTASÍTÁS GÖZÖLŐS VASALÓ 23–28
RO INSTRUCTIUNI DE UTILIZARE FIER DE CÄLCAT 29–35
RU ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ УТЮГ С ФУНКЦИЕЙ ПОДАЧИ ПАРА 36–42
BG ИНСТРУКЦИЯ ЗА УПОТРЕБА ПАРНА ЮТИЯ 43–49

UA ІНСТРУКЦІЯ З КОРИСТУВАННЯ ПАРОВОЙ УТЮГ 50–56
LT VARTOJIMO INSTRUKCIJA GARINIS LYGINTUVAS 57–62
LV LIETOŠANAS INSTRUKCIJA TVAIKA GLUDEKLIS 63–68
ET KASUTUSJUHEND AURUTRIIKRAUD 69–74
KZ ПАЙДАЛАНУШЫ НУСКАУЛЫГЫ БУ БЕРУ КЫЗМЕТІ БАР УТИК 75–80
EN USER MANUAL STEAM IRON 81-86

A

B

Close-up of hands pressing down on a white and green iron iron (no text or symbols visible)

Person using a green and white electric iron on a surface, no text or symbols visible

Hand pressing down on a white and green iron iron (no text or symbols visible)

C

Hand using a green and white iron on a surface, no text or symbols visible

Close-up of a hand using a green and white electric iron (no visible text or symbols)

Close-up of a hand using a green iron iron on a white and green power strip (no visible text or symbols)

PL

Szanowni Klienci!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Important safety and proper handling instructions

Always keep these basic safety instruction during ironing:

DANGER! / WARNING! Health hazard

• The iron must be used and rested on a stable surface.
• The iron must not be left unattended while it is connected to the supply mains.
• The plug must be removed from the socket-outlet before the water reservoir is filled with water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The filling aperture must not be opened during use.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
  • Empty the tank after each usage.
• If any part of the iron is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.
• It can be refurbished by qualified staff only. Improper refurbishment can cause serious hazard for the user. In case of any defects, please contact service desk.
• Do not use the appliance when it is damaged or performs abnormally.
• Do not touch the iron rest during or just after ironing. It is hot!
  Do not touch the surfaces marked

with symbol △ during or just after ironing. It is hot (Please refer to the following figure 1 and figure 2).

Figure 1: Right side

Figure 2: Left side

• The appliance generates high temperature. Use it carefully and warn other users against possible hazard.
• Keep special care when ironing in presence of children. Do not allow to touch the iron during ironing.

• Do not allow children to perform cleaning and user maintenance when they are without supervision.

• Never iron and clothes or fabrics that are being worn by human or pets.

• Never direct the steam to human or pets.

CAUTION!

Not observance can result in damage to possessions

Remove any protective films or stickers from the sole plate and the cabinet.
Unwind and straighten the power cord before usage.
Fill the water using included vessel for water.
Keep the power cord away from the soleplate.
Make sure that the voltage on the rating plate corresponds to that of your power grid.
Always connect the iron to a suitable mains supply outletm (AC only), with grounding, which voltage complies with the voltage indicated on the appliance nameplate.
Do not use an extension power cord set without grounding!
Do not pour liquids other than water into the water tank, i.e. perfumes, vinegar or other chemicals.
Do not immerse the appliance in water or any other liquid.
Do not wrap the power cord around the unit for storage until it has cooled down completely.
Do not attempt to open the cabinet or dismantle any parts from the appliance.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
If you do not use the iron, even for short time, switch it off, turning Temperature Dial in anti-clockwise direction to „MIN”.
If you are not going to use the iron even for a short period of time, turn off the steam function by setting the steam control to ✗ position.
Use "SELF CLEANING" function at least once a month.

SUGGESTION

Information on the product and suggestions for its use

The iron is intended for domestic usage only and you can use it solely according to herewith manual.

Hints for ironing

① Sort out the articles to be ironed according to the type of fabric. This will minimize the frequency of temperature adjustment for different garments.
② Test ironing a small area on the backside or inside the garment if you are unsure about the type of fabric. Start with a low temperature and increase gradually.
③ Wait for about three minutes before ironing heat sensitive fabrics. Temperature adjustment needs certain time to reach the required level no matter it is higher or lower.
④ Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to prevent shine marks.
⑤ You may need a few times of press to activate the spray, burst and vertically burst function.
⑥ Read the garment labels and follow the manufacturer's ironing instructions which are often shown by symbols similar to the following:

Temperature settings
	AcetateElastics	PolyamidePolypropylen
	CuproPolyesterProteinsSilk	TriacetateViscoseWool
	CottonLinen

Technical data

The iron technical parameters are included at the name plate. The iron is I class appliance, equipped with supplying cord and plug with grounding.

ZELMER iron meets the requirements of effective standards. This device complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.

The appliance meets the requirements of the following directives:

• Electrical equipment designed for use within specific voltage limits (LVD) - 2006/95/EC.
• Electro- Magnetic Compatibility (EMC) - 2004/108/EC.

The product is marked with CE symbol on the name plate.

Features

1 Steam Control
2 Steam Burst Button
3 Spray Button
4 Self-Clean Button
5 Temperature Indicator
6 Temperature Dial

7 Water Tank Cover
8 Spray Nozzle
9 Steam nozzle
10 Bend Protector
11 Power Cord
12 Auto-Off Light (green)
13 Heater Light (red)
14 Water Tank
15 Soleplate

Before first use

① Unwind and straighten the Power Cord.
② Fill the tank with water. See the "FILLING THE IRON WATER" section.
③ Plug in the unit.

First use

① Proceed as described in the "Before first use" section.
② Turn the Temperature Dial clockwise to „●●●”.
③ The Heater Light will come on.

iThe light will go off once the required temperature is reached.

④ Set the Steam Control to position.
⑤ Place the iron in horizontal position or press the steam burst button. Steam will come out of the holes in the soleplate. The iron is ready for use.
⑥ Begin first time ironing with an old towel.

The iron will stop steaming once the water tank is empty.

Ironing

Always follow the ironing instructions on garment's care label.

FILLING THE IRON WITH WATER

Unplug the unit.

① Set the Steam Control to ✗ position and lift the Water Tank Cover.

② Fill the tank with water using the supplied cup.

For best ironing results, it is recommended to use fresh demineralised or distilled water.

Do not use chemically descaled water or any other liquids.

Never exceed the 'Max' level marked side of the water tank.

③ Close the Water Tank Cover.

DRY IRONING

① Proceed as described in the "Before First Use" section.
② Set the Steam Control to position.
③ Turn the Temperature Dial to „●”, “●●” or „●●●”.
④ The Heater Light will come on.

iThe light will go off once the required temperature is reached.

The iron is ready for use.

STEAM IRONING

① Proceed as described in the “Before first use” section.
② Turn the Temperature Dial to „●●” or „●●●”.
For optimum steam quality, do not set the Temperature Dial to „•” position for steam ironing.

③ The Heater Light will come on.

iThe light will go off once the required temperature is reached.

The iron is ready for use.

④ Use the Steam Control to set the required amount of steam.

SPRAYING

This function can be used any time without affecting any other settings.

① Fill the water tank. See the "FILLING THE IRON WITH WATER" section.
② Aim the nozzle at the garment.
③ Press the Spray Button.

It may be necessary to press the spray button a few times to start spraying.

the FRONTAL JET - FRONTAL STEAM SHOOTING

The frontal function enables a steam burst by the frontal steam nozzle. The steam burst initially loosens fibres during ironing. It also eliminates creases and refreshes the material. The frontal jet function is safe for delicate materials as the hot soleplate of the iron is not aimed at the fabric.

The steam generated by the iron has very high temperature. Never use the appliance for ironing clothes or fabrics while they are being worn by people or pets. Never aim the steam at people or pets.

① Proceed as described in the "Before First Use" section.
② Turn the Temperature Dial to „●●●”.
③The Heater Light will come on.

The light will go off once the required temperature is reached.

The iron is ready for use.

④ Aim the steam nozzle at the creased fabric or curtain. Press the Steam Burst Button – steam will shoot from the holes of the soleplate.
⑤ For Stubborn wrinkles, wait a few seconds before pressing the Steam Burst Button again.

st wrinkles can be removed within presses.

may be necessary to press the Steam Burst Button several times to start this function.

optimum steam quality, do not pre Steam Burst Button more than three times in a row.

When ironing delicate fabrics (synthetics, silk, velvet etc.), keep the iron a few away from the garment to prevent damage.

ENDING THE IRONING

① Turn the Temperature Dial counter-clockwise to "MIN" position. The will turn off.
② Set the steam control to position.
③ Unplug the unit.
④ Empty the water tank. See „Emptying The Water Tank”.
⑤ When the iron has cooled completely, store it vertically in a safe place.

Emptying The Water Tank

Set the Steam Control to position.

Unplug the unit.

① Hold the iron upside down and shake it gently to remove the remaining water.
② When the soleplate is still hot, press the Steam Burst Button to drain the water tank.
③ Press the Spray Button to release any remaining water.

Before storing the iron, make sure the Steam Control is set to position.

Additional Functions

ANTI SCALE SYSTEM

The appliance has a build-in anti-limescale container.

It is designed to reduce the build-up of limescale which occurs during steam ironing.

build-in anti-scale cartridge prolongs

the service life of the iron. However, not completely stop the natural process limescale build-up.

SELF CLEANING

This function provides for removal of scale and mineral built-up in the Steam Chamber. The performance of the iron largely depends on the water hardness and the frequency of performing the self-cleaning process. It is recommended to perform self-cleaning at least once a month or more regularly.

three Proceed as described in the "Before First Use" section.

② Turn the Temperature Dial to „●●●“.
③ The Heater Light will come on.

light will go off once the required temperature is reached.

The iron is ready for use.

④ Wait for one more cycle. The light will go on and off.
⑤ Turn the Temperature Dial counter-clockwise to 'MIN' position.

centimetres 6 Unplus

⑦ Hold the iron horizontally over a sink.
⑧ Press and hold the Self-Cleaning Button.
⑨ Steam and boiling water will flow out of the holes on the soleplate, washing away the scales and minerals accumulated inside the steam chamber.
⑩ Sway the iron gently until the water tank is empty.
⑪ Release the Self-Cleaning Button when self cleaning is complete.
⑫ Place the iron on a flat and level surface and allow it to cool down completely.
⑬ Wipe the soleplate with a cold damp cloth.

water flowing out of the soleplate is very hot. Take extra care when performing the self-clean operation.

ANTI DRIP

The anti-drip system is designed to prevent water leaking from the soleplate when the iron is not sufficiently hot.

When engaged, the anti drip system may produce a clicking sound, particularly during heat-up or when the iron is cooling down. This is normal and indicates that the system is working correctly.

AUTO OFF

The iron has an auto-off feature in vertical and horizontal position which activates automatically when the appliance is plugged in and left unattended.

① The iron will shut-off automatically after about 30 seconds of inactivity if left on its soleplate (in horizontal position) and after about 8 minutes in vertical position.
② If The Auto-Off Light will pulse (flash) which indicates that the iron is in the automatic shot-off mode.
③ Move the unit to continue ironing. The iron will go back to the previous settings and will heat-up again.

iron will revert to the previous each time it is used (moved). The heat-up for about 60 seconds up temperature set with the temperature dial.

Cleaning And Maintenance

• Unplug the appliance.
  Before cleaning, allow the iron to cool completely.

Use a soft cloth and mild detergent for cleaning the iron. For cleaning the housing, do not use abrasive cleaning agents such as emulsions, creams, pastes, etc. They may remove graphic symbols, such as scales, markings, warning signs, etc.

• Never use sharp or rough objects to remove the deposits from the soleplate.
• Never use any abrasive, vinegar or descaling agents to clean the soleplate.

Troubleshooting

Some problems may be easily removed on your own. Before you contact the service centre, see the table below for a possible solution to your problem with the unit. If the problem persists, contact the info line or your local service centre.

ISSUE POSSIBLE CAUSE WHAT TO DO
The appliance is plugged, but the soleplate is cold.	The socket is damaged or there is no voltage at the outlet.	Check if the fuse is not blown or if the automatic fuse is on. If these protection devices work correctly check the socket by plugging other appliance.Plug the appliance to the other socket.
	There is a connection problem. Make sure that the power cord is plugged securely.
	MIN temperature is set. Set the required temperature on the temperature dial.
Steam does not come out of the holes in the soleplate.	There is not enough water in the water tank.	Fill the water tank. See the “FILLING THE IRON WITH WATER” section.
	Temperature dial is set in a position that does not produce steam.	Set the temperature suitable to produce steam.
Steam does not come out of the nozzle.	There is not enough water in the water tank.	Fill the water tank. See the “FILLING THE IRON WITH WATER” section.
	The appliance is used for the first time.	Keep pressing the steam burst button until steam comes out of the nozzle.
Spraying does not work. There is not enough water in the water tank.		Fill the water tank. See the “FILLING THE IRON WITH WATER” section.
		Keep pressing the spray button until spraying starts.
The appliance irons feebly.	Temperature dial is set in a wrong position.	Set the temperature suitable for ironing a particular piece of clothing.
Water drops from the soleplate. The appliance has not reached the temperature sufficient to produce steam.		Turn the temperature dial to „●●●”.
		Before filling the water tank set the steam control in the position.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose the appliance with the municipal waste!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

Close-up of a white steam iron next to a green and white plow, emitting smoke (no text or symbols visible)
