Product Type	Steam Iron
Model	Navigator Premier 28Z030
Brand	Zelmer
Power Supply	220-240 V, 50/60 Hz (typical household)
Power Consumption	Approx. 2400 W
Water Tank Capacity	Approx. 300 ml
Soleplate Material	Ceramic (inferred from design)
Temperature Settings	Adjustable with dots (·, ··, ···, MAX) for different fabrics
Steam Control	Adjustable steam knob with variable steam output
Spray Function	Yes, with spray button
Burst of Steam	Yes, horizontal and vertical
Vertical Steaming	Yes, for hanging garments
Self-Cleaning	Yes, with self-cleaning button to remove scale
Anti-Drip System	Yes, prevents water leakage at low temperatures
Dry Ironing	Yes, with steam knob set to off
Power Cord Length	Approx. 1.8 m (typical)
Indicator Light	Red light shows when heating
Cleaning	Wipe with damp cloth; no abrasives
Storage	Vertical storage after cooling

Frequently Asked Questions - Navigator Premier 28Z030 Zelmer

How do I fill the water tank?

Disconnect the iron from the mains, open the water inlet cover, and fill with water up to the MAX mark using the included vessel. Use demineralised or distilled water for best results.

What type of water should I use?

It is advisable to use demineralised or distilled water. Do not use chemically descaled water, vinegar, or perfumed liquids, as they can damage the appliance.

How do I use the steam function?

Fill the tank, set the temperature dial to at least ●●● (high heat), wait for the pilot light to go off, then move the steam control knob to the desired steam level.

How do I activate the burst of steam?

Ensure the iron is at high temperature (●●● or MAX) and the pilot light is off. Press the burst of steam button. For vertical steam, hold the iron 15-30 cm from the fabric.

What is the anti-drip system?

It prevents water from leaking out of the soleplate when the iron is too cold. A clicking sound during heating or cooling is normal and indicates proper function.

How often should I use the self-cleaning function?

At least once a month, or more frequently if you have hard water. Fill the tank, set to MAX temperature, unplug, then hold the iron horizontally over a sink and press the self-cleaning button until the tank empties.

Can I use the iron on delicate fabrics like silk?

Yes, but use a low temperature setting (· or ··) and an ironing cloth to prevent shine. For vertical steaming, hold the iron away from the fabric.

How do I drain the water after use?

Disconnect the iron, press the burst of steam and spray buttons while the soleplate is still warm to release trapped water, then turn the iron upside down and shake gently.

What should I do if the soleplate gets dirty?

Allow the iron to cool completely, then wipe the soleplate with a damp cloth. Do not use abrasive cleaners, vinegar, or metal objects.

Is the iron suitable for hanging garments?

Yes, the vertical burst of steam function is designed for hanging garments like curtains and delicate clothing. Hold the iron 15-30 cm away and press the burst button.

USER MANUAL Navigator Premier 28Z030 Zelmer

Line drawing of a vintage mechanical device with a flag and base plate (no text or symbols)

Line drawing of a steam iron with decorative cloud-like patterns on the side (no text or symbols)

Line drawing of a steam iron with water droplets below (no text or symbols)

Wylewanie wody

Line drawing of a mechanical device with a stand and base (no text or symbols)

Line drawing of a vintage mechanical device with a handle and base plate (no text or symbols)

Technické údaje

Line drawing of an iron iron with steam rising (no text or symbols)

Line drawing of a steam iron with water droplets below (no text or symbols)

[NO TEXT]

Line drawing of a spray gun mounted on a stand (no text or symbols)

Line drawing of a mechanical device with a flag and internal components (no text or symbols)

Line drawing of a steam iron with multiple steamers emitting smoke (no text or symbols)

Line drawing of an iron (£) with decorative cloud patterns on the side (no text or symbols)

Line drawing of a steam iron with a screw and droplet pattern below (no text or symbols)

Vylievanie vody

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Čistenie a údržba

A víz betöltése

Line drawing of a vintage mechanical device with a flag and handle (no text or symbols)

Line drawing of a vintage steam locomotive with four propellers and a handle (no text or symbols)

Line drawing of a steam iron with decorative leaf-like patterns on the side (no text or symbols)

Line drawing of a steam iron with liquid droplets below (no text or symbols)

A víz kiöntése

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Line drawing of a vintage military-style tank with a flag, turret, and mounted equipment (no text or symbols)

Line drawing of a vintage military-style tank with smokestacks at the base (no text or symbols)

Line drawing of a steam iron with decorative cloud patterns on the side (no text or symbols)

Sistem anti-picurare – Anti-Drip

Line drawing of a steam iron with a syringe and droplets below (no text or symbols)

Line drawing of a vintage office lamp with a flag and mechanical components (no text or symbols)

Line drawing of an iron (£) with steam rising (no text or symbols)

Line drawing of a steam iron with decorative cloud-like patterns on the side (no text or symbols)

Line drawing of a steam iron with water droplets below (no text or symbols)

Line drawing of a mechanical device with a stand and cylindrical base (no text or symbols)

Line drawing of a vintage mechanical device with a flag and base plate (no text or symbols)

Line drawing of an iron (£) with steam rising (no text or symbols)

Line drawing of a vintage steam iron with smokestacks emitting vapor (no text or symbols)

ВНИМАНИЕ:

Line drawing of an iron (£) with steam rising, showing no text or symbols

Line drawing of a steam iron with attached spray bottle and droplet pattern (no text or symbols)

Изливане на водата

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Line drawing of a vintage mechanical device with a flag and base plate (no text or symbols)

Line drawing of an iron (£) with steam rising (no text or symbols)

Line drawing of a portable electronic device with three flame-like structures below (no text or symbols)

Line drawing of a steam iron with decorative cloud-like patterns on the side (no text or symbols)

Line drawing of a steam iron with a screw and liquid droplets below (no text or symbols)

Виливання води

Line drawing of a mechanical device with a stand and lever (no text or symbols)

Important safety and proper handling instructions....50

Hints for ironing 51

Technical characteristics ....51

Outline 51

How to fill the water 51

Preparation for operation – first time ironing 52

After ironing 52

Spraying 52

Dry ironing 52

Steam ironing 52

Burst of steam 53

Burst of steam in vertical position....53

Self-cleaning....54

Anti-drip system....54

Draining the water 54

Cleaning and maintenance....54

Ecology – environment protection ....55

Dear Clients!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety and proper handling instructions

Always keep these basic safety instruction during ironing:

- The iron is intended for domestic usage only and you can use it solely according to herewith manual.

Remove any protective films or stickers from the sole plate and the cabinet.

Unwind and straighten the power cord before usage.

Unplug before filling or emptying the water tank.

Fill the water using included vessel for water. —

Empty the tank after each usage. -

- If any part of the iron is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance should be repaired by trained staff only. Improper repair can result in serious hazard for a user. In case of defects we recommend you to contact qualified service desk.

Do not use the appliance when it is damaged or performs abnormally.

- Do not touch the iron rest during or just after ironing. It is hot!

- Avoid any contact of supplying cord with the iron rest.

- Always connect the iron to a suitable mains supply outletm (AC only), with grounding, which voltage complies with the voltage indicated on the appliance nameplate.

The appliance generates high temperature. Use it carefully and warn – other users against possible hazard.

- Do not use an extension power cord set without grounding!

- Do not add perfumed, vinegar or other chemical liquids into the water tank; they can damage the appliance seriously.

- Do not immerse the appliance in water or any other liquid.

- Do not roll the power cord around the iron until it has cooled down completely.

- Do not attempt to open the cabinet or dismantle any parts from the appliance.

- Use and place the appliance on a firm and steady surface.

-Do not open water inlet during ironing.

- Keep special care when ironing in presence of children. Do not allow to touch the iron during ironing.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Do not leave the appliance unattended when it is connected to a mains supply outlet or it is hot.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• If you do not use the iron, even for short time, switch it off, turning Temperature Dial in anti-clockwise direction to „MIN”.
• If you do not use the iron, even for short time, switch the steam function off, setting the knob on position.
• Never iron and clothes or fabrics that are being worn by human or pets. Never direct the steam to human or pets. – Use self-cleaning function at least once a month. –

Hints for ironing

1. Sort out the articles to be ironed according to the type of fabric. This will minimize the frequency of temperature adjustment for different garments.
2. Test ironing a small area on the backside or inside the garment if you are unsure about the type of fabric. Start with a low temperature and increase gradually.
3. Wait for about three minutes before ironing heat sensitive fabrics. Temperature adjustment needs certain time to reach the required level no matter it is higher or lower.
4. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to prevent shine marks.
5. You may need a few times of press to activate the spray, burst and vertically burst function.
6. Read the garment labels and follow the manufacturer's ironing instructions which are often shown by symbols similar to the following:

Temperature settings
○ Acetate○ Elastics○ Polyamide○ Polypropylene	○ Cupro ○ Triacetate○ Polyester ○ Viscose○ Proteins ○ Wool○ Silk	○ Cotton○ Linen

Line drawing of a mechanical device with a flag and screw (no text or symbols)

Technical data

The iron technical parameters are included at the name plate. The iron is I class appliance, equipped with supplying cord and plug with grounding. ZELMER iron meets the requirements of effective standards.

The appliance meets the requirements of the following directives: -Low Voltage Device (LVD) - 2006/95/EC.

- Electro- Magnetic Compatibility (EMC) - 2004/108/EC.

The product is marked with CE symbol on the name plate.

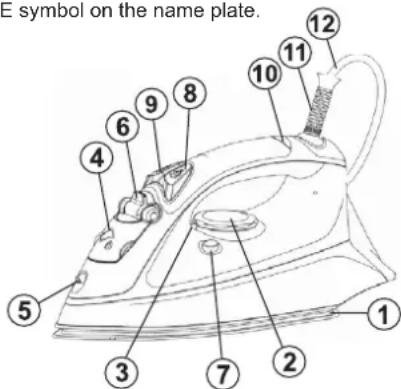

Outline

1. Sole plate
2. Temperature Dial
3. Temperature dial pointer
4. Water inlet cover
5. Spraying nozzle
6. Steam control knob
7. Self-cleaning button
8. Burst of Steam button
9. Water Spray button
10. Pilot light indicating the heater in operation (red)
11. Cord grommet
12. Power cord

How to fill the water

• Disconnect the iron from mains supply outlet.
• Move the Steam Control Knob (6) to position.
  – Release the water inlet cover (4) and fill water through the water inlet hole.
• Fill up to the „MAX“ level marked on the side of water tank.
• Close the water inlet cover (4).

Note:

For best result, it is advisable to use demineralised water or distilled water. Do not use chemically descaled water or any other liquids.

Preparation for operation – first ironing

• Remove any protective films or sticker from the soleplate (1) and the cabinet, if any.
  – Unwind and straighten the power cord (12).
  Fill the iron as described in "How to fill water".
  Connect the iron to a suitable mains supply outlet. -
• Turn the Temperature Dial (2) in clockwise direction to ••• position
• control light (10) glows.
  Control light goes off when the required temperature is reached.
• Move the Steam Control Knob (6) to ↑ position.
• Steam starts coming out from the holes in the sole plate after putting the iron in horizontal position and after Burst of steam knob (9).
• Begin first time ironing with an old towel.
• The steam is not generated after the water tank is emptied.
• The preparation work is completed. The iron is now ready for proper use.

After operation

• Move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.
• Move the Steam Control Knob (6) to position.
• Disconnect the iron from mains supply outlet.
• When the iron gets cool completely, store it vertically in a safe place.

Spraying

• This function can be used any time and is not affect any setting.
• Fill the water tank as described in How to Fill Water.
• Aim the nozzle (5) to the garment.
• Press the Spray Button (8).
• It may be necessary to press the spray button a few times to start this function.

Line drawing of an iron iron with steam rising (no text or symbols)

Dry ironing – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

– Unwind and straighten the power cord (12).
- Move the Steam Control Knob (6) to ✗ position.
Connect the iron to a suitable mains supply outlet. -
- Turn the Temperature Dial (2) in clockwise direction to; set , or position.
– Control light (10) glows, indicating that the iron is on.
- Control light goes off when the required temperature is reached. The iron is now ready for use.
- Move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.
– Disconnect the iron from mains supply outlet.
- When the iron gets cool completely, store it vertically in a safe place.

Steam ironing – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

– Unwind and straighten the power cord (12).
Fill the iron as described in "How to fill water".

- Connect the iron to a suitable mains supply outlet.

- Turn the Temperature Dial (2) in clockwise direction to ●●● position. (For optimum steam quality, do not use ● or ●● setting for steam ironing).

– Control light (10) glows, indicating that the iron is on.

- Control light goes off when the required temperature is reached. The iron is now ready for use.

- Move the Steam Control Knob (6) to selected position, in order to set the amount of steam.

- After finishing move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.

- Move the Steam Control Knob (6) to ✗ position.

– Disconnect the iron from mains supply outlet.

- When the iron gets cool completely, store it vertically in a safe place.

Burst of steam – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

This function provides extra amount of steam which can be used for ironing very wrinkled (crumpled) clothes.

– Unwind and straighten the power cord (12).
Fill the water tank in as described under "How To Fill Water". – Connect the iron to a suitable mains supply outlet. –
- Turn the Temperature Dial (2) in clockwise direction to ••• position. See preparation for operation.
– Control light (10) glows, indicating that the iron is on.
- Control light goes off when the required temperature is reached. The iron is now ready for use.
- Press the Burst of Steam Button (9) once – steam will shoot from the holes of the soleplate.
- For stubborn wrinkles, wait a few seconds before pressing the Burst of Steam Button (9) again. Most wrinkles can be removed within three presses.
- After finishing move the Temperature Dial (2) in anti-clockwise direction to „MIN”; the iron is switched off.
- Move the Steam Control Knob (6) to ✗ position.
– Disconnect the iron from mains supply outlet.
- When the iron gets cool completely, store it vertically in a safe place.

ATTENTION:

It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times after the pilot light goes off.

Burst of steam in vertical position – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

This function provides extra amount of steam to remove wrinkles on delicate garments in hanging position, hanging curtains, or other hanging fabrics.

Warning:

Do not apply steam on any clothes or fabrics that are being worn by human or pets. Temperature of steam is very high. Never direct the steam to human or pets.

Fill the water tank in as described under "How To Fill Water". – Connect the iron to a suitable mains supply outlet. –

• Turn the Temperature Dial (2) to ••• position. See „Preparation for operation“.
• Control light (10) glows, indicating that the iron is on.
• Control light goes off when the required temperature is reached. The iron is now ready for use.
• Hold the iron between 15 and 30 centimetres away from the garment.
• Press the Burst of Steam Button (9) once – steam will shoot from the holes of the soleplate.
• For stubborn wrinkles, wait a few seconds before pressing the Burst of Steam Button (9) again. Most wrinkles can be removed within three presses.
• After operation turn the temperature dial knob (2) in counter clockwise direction to „MIN“ position. The iron is switched off.
• Lock the iron with stand as described in "How to Use Iron Lock".
• Move the Steam Control Knob (6) to ✗ position.
  – Disconnect the iron from mains supply outlet.
• When the iron gets cool completely, store it vertically in a safe place.

It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times after the pilot light goes off.

Hold the iron some centimetres away from delicate garments (artificial, silk, velvet etc.), otherwise they can be damaged.

Line drawing of an iron (£) with decorative steam pattern on the side (no text or symbols)

Self-cleaning

This function removes the scales and minerals built up in the Steam Chamber.

The iron will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of the water used.

Fill the iron as described in "How to fill water".

• Connect the iron to a suitable mains supply outlet. See „Preparation for operation”.
• Turn the Temperature Dial (2) in clockwise direction to "MAX" position. Control light (10) – glows, indicating that the iron is on.
• Control light goes off when the required temperature is reached. The iron is now ready for use.
  Wait for one more cycle; pilot light glows and goes off. -
• After finishing move the Temperature Dial (2) in anti-clockwise direction to „MIN”; the iron is switched off.
  – Disconnect the iron from mains supply outlet.
  —Hold the iron horizontally over a sink.
• Press and hold the Self-Cleaning Knob (7).
• Steam and boiling hot water will drain from the holes on the soleplate washing away the scales and minerals that have built up inside the Steam Chamber.
  – Gently move the iron back and forth until the water tank is empty.
• When Self-Cleaning is complete, release the Self-Cleaning Knob.
  — Rest your iron at the stand and allow to fully cool down.
• Wipe the soleplate with a cold damp cloth.

Caution!

Keep skin/body away from the hot water.

Anti-Drip System

• The system, which is designed to prevent automatically water escaping from the sole-plate when the iron is too cold.
• During use, the anti-drip system may emit a loud clicking sound, particularly during heat-up or whilst cooling down. This is per-fectly normal and indicates that the system is functioning correctly.

Draining the water

• Move the Steam Control Knob (6) to position.
• Disconnect the iron from mains supply outlet.
• Press the Burst of Steam Button (9), to release any trapped water when the soleplate still hot.
• Press the Spray Buttons (8), to release any trapped water.
• Turn the iron upside down and gently shake it to remove the remaining water.

Before storage make sure that Steam Control Knob (6) is in ✗ position.

Cleaning and maintenance

– Disconnect the iron from mains supply outlet.
- The iron should get cool completely before cleaning.
- Use a damp cloth and gentle washing liquid for cleaning.
- Do not use aggressive detergents like cream, milk, paste etc. to clean the casing. They can remove graphic symbols such as: scales, marking, caution signs, etc.

Never use sharp or rough objects to remove the deposits on the sole – plate.

- Never use any abrasive, vinegar or descaling agents to clean the iron.

Line drawing of a steam iron with attached drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drop drops (no text or symbols)

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Ecology – Environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
