Product Type Steam Iron
Brand Zelmer
Model Navigator Economic 28Z019
Color White / Blue
Soleplate Material Stainless Steel or Ceramic (estimated)
Power Supply 220-240 V ~ 50/60 Hz
Power Consumption 2000-2400 W (estimated)
Cord Length Approx. 1.8 m
Water Tank Capacity Approx. 300 ml
Steam Output (continuous) Up to 30 g/min (estimated)
Steam Boost Up to 100 g/min (estimated)
Spray Function Yes
Anti-Drip System Yes
Self-Cleaning Function Yes
Automatic Shut-Off Yes (after 30 sec horizontal, 8 min vertical or tip-over)
Dimensions (L x W x H) Approx. 29 x 12 x 15 cm
Weight Approx. 1.2 kg
Dry Ironing Yes
Vertical Steaming Yes
Water Fill Opening Large opening for easy filling
Cleaning Unplug, let cool, wipe with damp cloth; use self-clean function periodically
Safety Features Auto shut-off, anti-drip, heat-resistant cord, stable heel rest
Spare Parts Availability Soleplate, water tank cap, spray nozzle, cord (contact Zelmer support)
Repairability Designed for maintenance; user-replaceable parts: none; professional repair recommended

Frequently Asked Questions - Navigator Economic 28Z019 Zelmer

How do I fill the water tank?
Unplug the iron. Open the water fill cap (usually on the front of the handle). Use a measuring cup to fill with tap water or distilled water up to the MAX line. Do not overfill. Close cap securely.
Why is my iron not producing steam?
Check if the water tank is empty. Ensure the iron is at a high enough temperature setting (usually above 2 or 3 dots). Also try the steam boost button to clear any blockage. If no steam, perform the self-clean cycle.
How do I use the self-clean function?
Fill the tank to MAX, set the iron to maximum temperature, and unplug it. Hold the iron over a sink, press and hold the self-clean button. Steam and hot water will flush out scale. Repeat if needed. Wipe soleplate after.
What does the anti-drip system do?
The anti-drip function prevents water from leaking out of the soleplate when the iron is not hot enough. This avoids water stains on your clothes while ironing at low temperatures.
How do I clean the soleplate?
Wait until the iron is completely cool. Use a damp cloth or a non-abrasive cleaner specifically for irons. Avoid scratching the soleplate. For stubborn residue, use a mixture of vinegar and water.
What is the automatic shut-off feature?
If the iron is left idle horizontally for about 30 seconds or vertically for 8 minutes, or if it tips over, it automatically shuts off the heating element for safety. Simply move the iron to reset.
Can I use tap water in my iron?
Yes, tap water is acceptable. However, in areas with very hard water, it is recommended to mix with distilled water or use demineralized water to reduce scale buildup. Do not use water with additives.
How do I store the iron after use?
Empty the water tank while the iron is still warm (unplugged). Allow to cool completely. Wrap the cord loosely around the heel rest. Store upright in a dry place. Never store with water in the tank.
Why is water leaking from the soleplate?
Leaking can occur if the iron is not hot enough (temperature too low), or if the anti-drip is not functioning. Also check if the water tank is overfilled. If problem persists, run a self-clean cycle.
Where can I find spare parts or get repairs?
Contact Zelmer customer service or visit their official website for authorized service centers. Spare parts like soleplates, caps, and cords may be available. Do not attempt internal repairs yourself.

User questions about Navigator Economic 28Z019 Zelmer

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Iron in PDF format for free! Find your manual Navigator Economic 28Z019 - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Navigator Economic 28Z019 by Zelmer.

USER MANUAL Navigator Economic 28Z019 Zelmer

natural_image Line drawing of a vintage steam iron with handle, spout, and base plate (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising (no text or symbols)
natural_image Line drawing of a steam iron with multiple steam fins (no text or symbols)
natural_image Line drawing of an iron (£) with a handle, showing internal structure and decorative elements (no text or symbols)
natural_image Line drawing of a steam iron with bubbles and a syringe, no text or symbols present
natural_image Line drawing of a mechanical device with a stand and handle (no text or symbols)
28Z019Economic
28Z020Zelmer Navigator Economic 28Z019 - 1neSelf-classVerticalAnti-scalsAnti-drip
28Z021Zelmer Navigator Economic 28Z019 - 2omfortiSelf-classVerticalAnti-scalsAnti-drip
28Z022Zelmer Navigator Economic 28Z019 - 3ualityiSelf-classVerticalAnti-scalsAnti-drip

Pokyny k žehlení

natural_image Line drawing of a mechanical device with a flag and handle (no text or symbols)
natural_image Line drawing of an iron on a machine, emitting steam or dust (no text or symbols)
natural_image Line drawing of an iron (£) with decorative cloud-like patterns on the side (no text or symbols)
natural_image Line drawing of a steam iron with attached screw and cooling fins (no text or symbols)
natural_image Line drawing of a mechanical device with a stand (no text or symbols)

Čištění a údržba

natural_image Line drawing of a vintage steam iron with handle, spout, and base plate (no text or symbols)
natural_image Line drawing of a steam iron with visible exhaust plume (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising nearby (no text or symbols)
natural_image Line drawing of a steam iron with water droplets below (no text or symbols)
natural_image Line drawing of a hand washing a small object with a stand (no text or symbols)

Čistenie a údržba

28Z019economicSelf-classVerticalAnti-drip
28Z020fineSelf-classVerticalAnti-scalAnti-drip
28Z021ComfortSelf-classVerticalAnti-scalAnti-drip
28Z022QualitySelf-classVerticalAnti-scalAnti-drip
natural_image Line drawing of a mechanical device with a flag, handle, and base (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising (no text or symbols)
natural_image Line drawing of a steam iron with three flame-like patterns at the base (no text or symbols)

FIGYELEM:

natural_image Line drawing of an iron (£) with decorative cloud-like patterns on the side (no text or symbols)
natural_image Line drawing of a steam iron with water droplets below (no text or symbols)
natural_image Line drawing of a spray gun mounted on a stand (no text or symbols)
natural_image Line drawing of a vintage office machine with a flag and handle (no text or symbols)
natural_image Line drawing of a steam iron with exhaust plume (no text or symbols)
natural_image Line drawing of a vintage steam iron with smokestacks emitting vapor (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising, no text or symbols present

Sistem anti-picurare – Anti-Drip

Zelmer Navigator Economic 28Z019 - Sistem anti-picurare – Anti-Drip - 1

natural_image Line drawing of a steam iron with water droplets below (no text or symbols)

Oprise automată:

(Pentru fierul de călcat tip 28Z021, 28Z022)

Zelmer Navigator Economic 28Z019 - Oprise automată: - 1

natural_image Line drawing of a mechanical device with a stand and base (no text or symbols)
28Z019Economicself-classVerticalAnti-drip
28Z020fineself-classVerticalAnti-scaesAnti-drip
28Z021ComfortSelf-classVerticalAnti-scaesAnti-drip
28Z022QualitySelf-classVerticalAnti-scaesAnti-drip
natural_image Line drawing of a vintage mechanical device with a flag and handle (no text or symbols)
natural_image Line drawing of a steam iron with visible steam and handle (no text or symbols)
natural_image Line drawing of a portable electric stove with cooling fans below (no text or symbols)

Zelmer Navigator Economic 28Z019 - Oprise automată: - 2

natural_image Line drawing of a steam iron with attached syringe and droplets below (no text or symbols)
natural_image Line drawing of a mechanical device with a lever and base mount (no text or symbols)
28Z019economicSelf-classVerticalAnti-drip
28Z020fineSelf-classVerticalAnti-scalsAnti-drip
28Z021ComfortSelf-classVerticalAnti-scalsAnti-drip
28Z022QualitySelf-classVerticalAnti-scalsAnti-drip
natural_image Line drawing of a mechanical device with a flag and internal components (no text or symbols)
natural_image Line drawing of a steam iron with exhaust plume (no text or symbols)
natural_image Line drawing of a steam iron with three flame-like drops below (no text or symbols)
natural_image Line drawing of a steam iron with decorative patterned side panels (no text or symbols)
natural_image Line drawing of a steam iron with bubbles at the base (no text or symbols)
natural_image Line drawing of a mechanical device with a stand (no text or symbols)
natural_image Line drawing of a mechanical device with a handle and base plate (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising (no text or symbols)
natural_image Line drawing of a portable electric stove with four fans below (no text or symbols)

УВАГА:

natural_image Line drawing of an iron (£) with steam rising nearby (no text or symbols)
natural_image Line drawing of a mechanical device with a lever and base mount (no text or symbols)
natural_image Line drawing of a mechanical device with a flag and handle (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising (no text or symbols)
natural_image Line drawing of a steam iron with decorative leaf-like patterns on the side (no text or symbols)
natural_image Line drawing of a vintage steam iron with a handle and spool, showing internal components and tail (no text or symbols)
natural_image Line drawing of a mechanical device with a lever and base mount (no text or symbols)
natural_image Line drawing of a mechanical device with a flag and handle (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising (no text or symbols)
natural_image Line drawing of a steam iron with a screw and flame-like base (no text or symbols)
natural_image Line drawing of an iron (£) with decorative cloud-like patterns on the side (no text or symbols)
natural_image Line drawing of a steam iron with water droplets below (no text or symbols)
natural_image Line drawing of a mechanical device with a lever and base mount (no text or symbols)
natural_image Line drawing of a mechanical device with a flag and handle (no text or symbols)
natural_image Line drawing of a steam iron with visible exhaust plume (no text or symbols)
natural_image Line drawing of an iron (£) with steam rising, no text or symbols present
natural_image Line drawing of a steam iron with water droplets below (no text or symbols)
natural_image Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Important safety and proper handling instructions....79

Hints for ironing 80

Technical characteristics 80

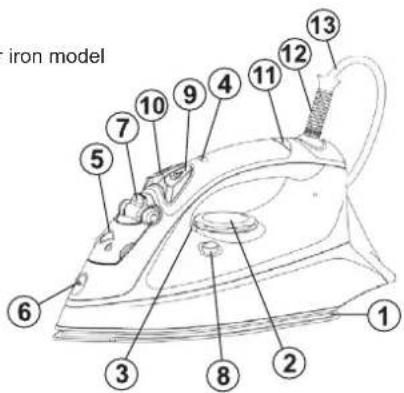

Outline 80

How to fill the water 81

Preparation for operation – first time ironing 81

After ironing 81

Spraying 81

Dry ironing 81

Steam ironing 81

Burst of steam 82

Burst of steam in vertical position....82

Built-in anti-scale system 83

Self-cleaning....83

Anti-drip system....83

Auto shut-off feature 83

Auto shut-off in horizontal position 83

Auto shut-off in vertical position 83

Draining the water 84

Cleaning and maintenance....84

Ecology – environment protection 84

Dear Clients!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety and proper handling instructions

Always keep these basic safety instruction during ironing:

- The iron is intended for domestic usage only and you can use it solely according to herewith manual.

- Remove any protective films or stickers from the sole plate and the cabinet. Unwind and straighten the power cord before usage.

Unplug before filling or emptying the water tank. -

Fill the water using included vessel for water. — Empty the tank after each usage. —

- If any part of the iron is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

- If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

- It can be refurbished by qualified staff only. Improper refurbishment can cause serious hazard for the user. In case of any defects, please contact service desk.

- Do not use the appliance when it is damaged or performs abnormally.

- Do not touch the iron rest during or just after ironing. It is hot!

- Avoid any contact of supplying cord with the iron rest. Always connect the iron to a suitable mains supply outletm (AC - only), with grounding, which voltage complies with the voltage indicated on the appliance nameplate.

The appliance generates high temperature. Use it carefully and warn – other users against possible hazard.

- Do not use an extension power cord set without grounding!

- Do not add perfumed, vinegar or other chemical liquids into the water tank; they can damage the appliance seriously.

- Do not immerse the appliance in water or any other liquid.

- Do not roll the power cord around the iron until it has cooled down completely.

- Do not attempt to open the cabinet or dismantle any parts from the appliance.

- Use and place the appliance on a firm and steady surface. - Do not open water inlet during ironing.

- Keep special care when ironing in presence of children. Do not allow to touch the iron during ironing.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not leave the appliance unattended when it is connected to a mains supply outlet or it is hot.

  • The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
  • If you do not use the iron, even for short time, switch it off, turning Temperature Dial in anti-clockwise direction to „MIN”.
  • If you do not use the iron, even for short time, switch the steam function off, setting the knob on position.
  • Never iron and clothes or fabrics that are being worn by human or pets. Never direct the steam to human or pets. – Use self-cleaning function at least once a month. –
28Z019economicSelf-classVerticalAnti-drip
28Z020fineSelf-classVerticalAnti-scalAnti-drip
28Z021ComfortSelf-classVerticalAnti-scalAnti-drip
28Z022QualitySelf-classVerticalAnti-scalAnti-drip

Hints for ironing

  1. Sort out the articles to be ironed according to the type of fabric. This will minimize the frequency of temperature adjustment for different garments.
  2. Test ironing a small area on the backside or inside the garment if you are unsure about the type of fabric. Start with a low temperature and increase gradually.
  3. Wait for about three minutes before ironing heat sensitive fabrics. Temperature adjustment needs certain time to reach the required level no matter it is higher or lower.
  4. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to prevent shine marks.
  5. You may need a few times of press to activate the spray, burst and vertically burst function.
  6. Read the garment labels and follow the manufacturer's ironing instructions which are often shown by symbols similar to the following:
Temperature settings
Zelmer Navigator Economic 28Z019 - Hints for ironing - 1
AcetateElasticsPolyamidePolypropyleneCupro TriacetatePolyester ViscoseProteins WoolSilkCottonLinen

Technical data

The iron technical parameters are included at the name plate. The iron is I class appliance, equipped with supplying cord and plug with grounding. ZELMER iron meets the requirements of effective standards.

The appliance meets the requirements of the following directives: -Low Voltage Device (LVD) - 2006/95/EC.

- Electro- Magnetic Compatibility (EMC) - 2004/108/EC.

The product is marked with CE symbol on the name plate.

Outline

  1. Sole plate
  2. Temperature Dial
  3. Temperature dial pointer
  4. Water inlet cover
  5. Spraying nozzle
  6. Steam control knob
  7. Self-cleaning button
  8. Burst of Steam button
  9. Water Spray button
  10. Pilot light indicating the heater in operation (red)
  11. Cord grommet
  12. Power cord

  13. Auto shut-off indicator (for iron model 28Z021, 28Z022)

iron model 1 2 3 4 5 6 7 8 9 10 11 12 13

How to fill the water

Disconnect the iron from mains supply outlet. -

  • Move the Steam Control Knob (7) to position.
  • Release the water inlet cover (5) and fill water through the water inlet hole.

Fill up to the „- MAX" level marked on the side of water tank.

- Close the water inlet cover (5).

Zelmer Navigator Economic 28Z019 - How to fill the water - 1

natural_image Line drawing of a vintage mechanical device with a flag and handle (no text or symbols)

Note:

For best result, it is advisable to use demineralised water or distilled water. Do not use chemically descaled water or any other liquids.

Preparation for operation – first ironing

  • Remove any protective films or sticker from the soleplate (1) and the cabinet, if any.
    – Unwind and straighten the power cord (13).
    – Fill the iron as described in "How to fill water".
  • Connect the iron to a suitable mains supply outlet.
  • Turn the Temperature Dial (2) in clockwise direction to ●●● position
  • control light (11) glows.
    – Control light goes off when the required temperature is reached.
  • Move the Steam Control Knob (7) to ⬇ position.
  • Steam starts coming out from the holes in the sole plate after putting the iron in horizontal position and after pressing the Burst of Steam Button (9).
  • Begin first time ironing with an old towel.
  • The steam is not generated after the water tank is emptied.
  • The preparation work is completed. The iron is now ready for proper use.

After operation

  • Move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.
  • Move the Steam Control Knob (7) to ✗ position.
    – Disconnect the iron from mains supply outlet.
  • When the iron gets cool completely, store it vertically in a safe place.

Spraying

Zelmer Navigator Economic 28Z019 - Spraying - 1

  • This function can be used any time and is not affect any setting.
  • Fill the water tank as described in How to Fill Water.
  • Aim the nozzle (6) to the garment.
  • Press the Spray Button (10).
  • It may be necessary to press the spray button a few times to start this function.

Dry ironing – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

– Unwind and straighten the power cord (13).
- Move the Steam Control Knob (7) to position.
- Connect the iron to a suitable mains supply outlet.
- Turn the Temperature Dial (2) in clockwise direction to; set , or position.
– Control light (11) glows, indicating that the iron is on.
- Control light goes off when the required temperature is reached. The iron is now ready for use.
- Move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.
– Disconnect the iron from mains supply outlet.
- When the iron gets cool completely, store it vertically in a safe place.

Steam ironing – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

– Unwind and straighten the power cord (13).
– Fill the iron as described in "How to fill water".
- Connect the iron to a suitable mains supply outlet.
- Turn the Temperature Dial (2) in clockwise direction to ●●● position. (For optimum steam quality, do not use ● or ●● setting for steam ironing).
– Control light (11) glows, indicating that the iron is on.

Zelmer Navigator Economic 28Z019 - Spraying - 2

  • Control light goes off when the required temperature is reached. The iron is now ready for use.
  • Move the Steam Control Knob (7) to selected position, in order to set the amount of steam.
  • After finishing move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.
  • Move the Steam Control Knob (7) to ✗ position.
    Disconnect the iron from mains supply outlet. –
  • When the iron gets cool completely, store it vertically in a safe place.

Burst of steam – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

This function provides extra amount of steam which can be used for ironing very wrinkled (crumpled) clothes.

– Unwind and straighten the power cord (13).

— Fill the water tank in as described under "How To Fill Water".

- Connect the iron to a suitable mains supply outlet.

- Turn the Temperature Dial (2) in clockwise direction to ●●● position. See preparation for operation.

- Control light (11) glows, indicating that the iron is on.

- Control light goes off when the required temperature is reached. The iron is now ready for use.

- Press the Burst of Steam Button (9) once – steam will shoot from the holes of the soleplate.

- For stubborn wrinkles, wait a few seconds before pressing the Burst of Steam Button (9) again. Most wrinkles can be removed within three presses.

- After finishing move the Temperature Dial (2) in anti-clockwise direction to „MIN“; the iron is switched off.

- Move the Steam Control Knob (7) to ✉ position. Disconnect the iron from mains supply outlet. -

- When the iron gets cool completely, store it vertically in a safe place.

Zelmer Navigator Economic 28Z019 - Burst of steam – Always follow the garment manufacturer's ironing instructions mentioned at the garment label. - 1

natural_image Line drawing of a steam iron with multiple flutes (no text or symbols)

ATTENTION:

It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times after the pilot light goes off.

Burst of steam in vertical position – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

This function provides extra amount of steam to remove wrinkles on delicate garments in hanging position, hanging curtains, or other hanging fabrics.

Zelmer Navigator Economic 28Z019 - Burst of steam in vertical position – Always follow the garment manufacturer's ironing instructions mentioned at the garment label. - 1

Warning:

Do not apply steam on any clothes or fabrics that are being worn by human or pets. Temperature of steam is very high. Never direct the steam to human or pets.

  • Fill the water tank in as described under "How To Fill Water".
  • Connect the iron to a suitable mains supply outlet.
  • Turn the Temperature Dial (2) to ••• position. See „Preparation for operation“.
  • Control light (11) glows, indicating that the iron is on.
  • Control light goes off when the required temperature is reached. The iron is now ready for use.
  • Hold the iron between 15 and 30 centimetres away from the garment.
  • Press the Burst of Steam Button (9) once – steam will shoot from the holes of the soleplate.
  • For stubborn wrinkles, wait a few seconds before pressing the Burst of Steam Button (9) again. Most wrinkles can be removed within three presses.
  • After operation turn the temperature dial knob (2) in counter clockwise direction to „MIN“ position. The iron is switched off.
  • Lock the iron with stand as described in "How to Use Iron Lock".
  • Move the Steam Control Knob (7) to ✗ position. Disconnect the iron from mains supply outlet. -
  • When the iron gets cool completely, store it vertically in a safe place.

Zelmer Navigator Economic 28Z019 - Warning: - 1

natural_image Line drawing of a steam iron with multiple flutes (no text or symbols)

Zelmer Navigator Economic 28Z019 - Warning: - 2

natural_image Line drawing of a steam iron with decorative cloud patterns on the side (no text or symbols)

It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times after the pilot light goes off.

Hold the iron some centimetres away from delicate garments (artificial, silk, velvet etc.), otherwise they can be damaged.

Build-in anti-scale system

(concerning irons type 28Z020, 28Z021, 28Z022)

Zelmer Navigator Economic 28Z019 - Build-in anti-scale system - 1

The build-in anti-scale cartridge is designed to reduce the build-up of lime scale that occurs during steam ironing. This will prolong the working life of your iron, although it does not stop the natural process of build-up of lime scale completely.

Zelmer Navigator Economic 28Z019 - Build-in anti-scale system - 2

Self-cleaning

This function removes the scales and minerals built up in the Steam Chamber.

The iron will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of the water used.

Fill the iron as described in "How to fill water".

  • Connect the iron to a suitable mains supply outlet. See „Preparation for operation”.
  • Turn the Temperature Dial (2) in clockwise direction to „MAX“ position. Control light (11) – glows, indicating that the iron is on.
  • Control light goes off when the required temperature is reached. The iron is now ready for use.

Wait for one more cycle; pilot light glows and goes off. -

  • After finishing move the Temperature Dial (2) in anti-clockwise direction to „MIN"; the iron is switched off.
    – Disconnect the iron from mains supply outlet.

-Hold the iron horizontally over a sink.

  • Press and hold the Self-Cleaning Knob (8).
  • Steam and boiling hot water will drain from the holes on the soleplate washing away the scales and minerals that have built up inside the Steam Chamber.

– Gently move the iron back and forth until the water tank is empty.
- When Self-Cleaning is complete, release the Self-Cleaning Knob.
– Rest your iron at the stand and allow to fully cool down.
- Wipe the soleplate with a cold damp cloth.

Caution!

Keep skin/body away from the hot water.

Anti-Drip System

Zelmer Navigator Economic 28Z019 - Anti-Drip System - 1

-The system, which is designed to prevent automatically water escaping from the sole-plate when the iron is too cold.

- During use, the anti-drip system may emit a loud clicking sound, particularly during heat-up or whilst cooling down. This is per-fectly normal and indicates that the system is functioning correctly.

Auto shut-off feature

(Concerning iron 28Z021, 28Z022)

Zelmer Navigator Economic 28Z019 - Auto shut-off feature - 1

Zelmer Navigator Economic 28Z019 - Auto shut-off feature - 2

natural_image Line drawing of a steam iron with liquid droplets below (no text or symbols)

The Auto shut-off feature will operate automatically when the iron is un-attended and it is connected to a mains supply outlet.

AUTO SHUT-OFF IN HORIZONTAL POSITION

  1. The iron will switch off automatically after approximately 30 seconds, if it is immobile in the ironing position (horizontal).
  2. You can hear a sound signal. The auto switch-off pilot light (4), shall flash indicating that the iron changed to auto switch-off mode.
  3. Simply moving the iron, it will back on and the auto switch-off function shall be wyzerowana. You will hear a sound signal, the pilot light shall go off, whereas the pilot light indicating heater in operation shall glow (11) – the iron shall reheat again.

AUTO SHUT-OFF IN VERTICAL POSITION

  1. The iron will switch off automatically after approximately 5-10 min-utes, if it is immobile in the rest position (vertical).
  2. You can hear a sound signal. The auto switch-off pilot light (4), shall flash indicating that the iron changed to auto switch-off mode.

  3. Simply moving the iron, it will back on and the auto switch-off function shall be wyzerowana. You will hear a sound signal, the pilot light shall go off, whereas the pilot light indicating heater in operation shall glow (11) – the iron shall reheat again.

Attention: Each time usage – moving the iron shall bring it back to the previous setting. The iron will take about 60 seconds to reach its previous temperature setting.

Draining the water

- Move the Steam Control Knob (7) to position.

Disconnect the iron from mains supply – outlet.

Press the – Burst of Steam Button (9), to release any trapped water when the soleplate still hot.

- Press the Spray Buttons (10), to release any trapped water.

Turn the iron upside down and gently shake – it to remove the remaining water.

Before storage make sure that Steam Control Knob (7) is in ✕ position.

Zelmer Navigator Economic 28Z019 - Draining the water - 1

natural_image Line drawing of a mechanical device with a stand and cylindrical base (no text or symbols)

Cleaning and maintenance

– Disconnect the iron from mains supply outlet.
– The iron should get cool completely before cleaning.
- Use a damp cloth and gentle washing liquid for cleaning.
- Do not use aggressive detergents like cream, milk, paste etc. to clean the casing. They can remove graphic symbols such as: scales, marking, caution signs, etc.
- Never use sharp or rough objects to remove the deposits on the sole plate.
- Never use any abrasive, vinegar or descaling agents to clean the iron.

Ecology – Environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

Zelmer Navigator Economic 28Z019 - Ecology – Environment protection - 1

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Zelmer

Model : Navigator Economic 28Z019

Category : Iron
