USER MANUAL ASPIRE V5-131 ACER

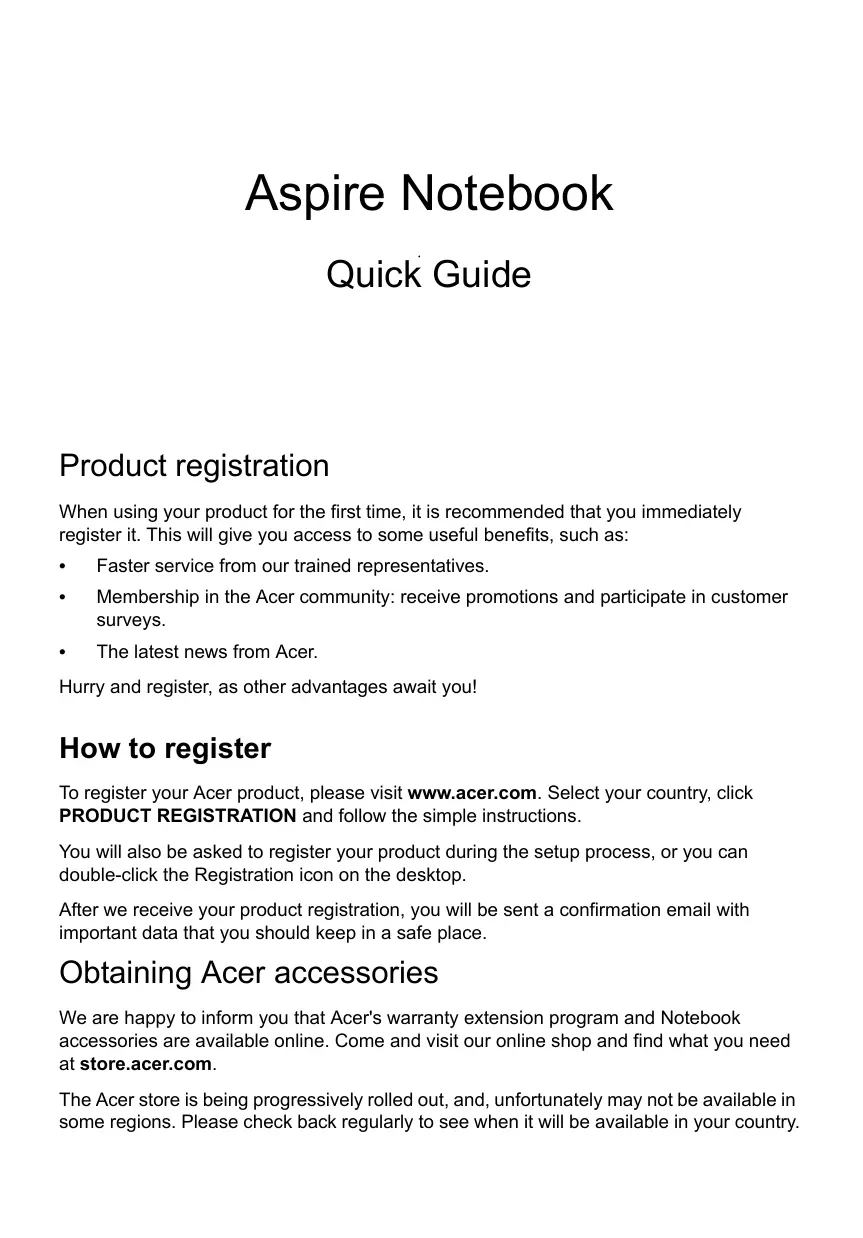

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives.
  Membership in the Acer community: receive promotions and participate in customer surveys.
  The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

Model number:

Serial number:

Date of purchase:

Place of purchase:

Acer recommends...

Productivity Software

Work Great with Microsoft® Office 2010 - Express your ideas, solve problems and simplify everyday projects with Office 2010.

Photo editing - Easily edit and print your photos with Windows Live Photo Gallery. Then share them on Facebook, YouTube or Windows Live.

Search & Decide with Bing - Find and organize the answers you need using Bing™, so you can make faster, more informed decisions.

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The User's Manual contains useful information applying to your notebook. It covers basic topics such as using the keyboard and audio, etc.

The Quick Guide introduces the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the User's Manual. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Type "User" from Start.
2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

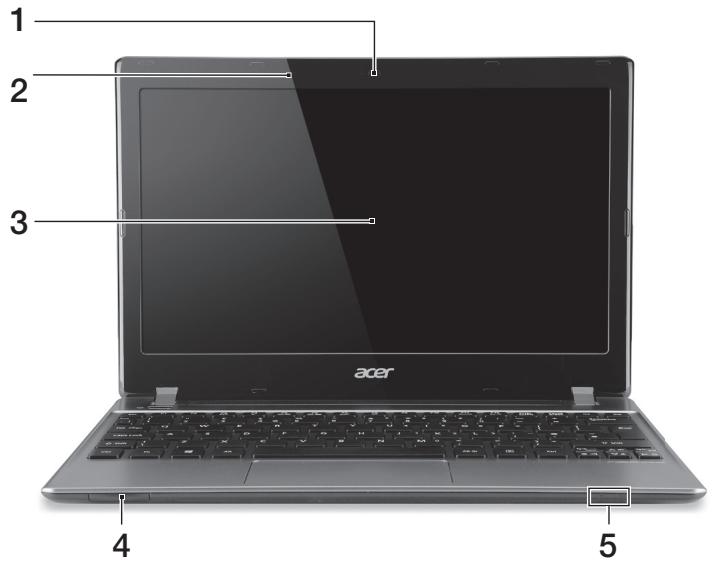

Front view

#	Icon	Item	Description
1		Webcam	Web camera for video communication. A light next to the webcam indicates that the webcam is active (for selected models only).
2		Microphone	Internal microphone for sound recording.
3		Screen	Also called Liquid-Crystal Display (LCD), displays computer output.
4	IIIIIIIM MULTIRECORD 2	2-in-1 card reader	Accepts Secure Digital (SD), MultiMediaCard (MMC). Note: Push to remove/install the card. Only one card can operate at any given time.
5		Power indicator	Indicates the computer's power status.
		Battery indicator	Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.

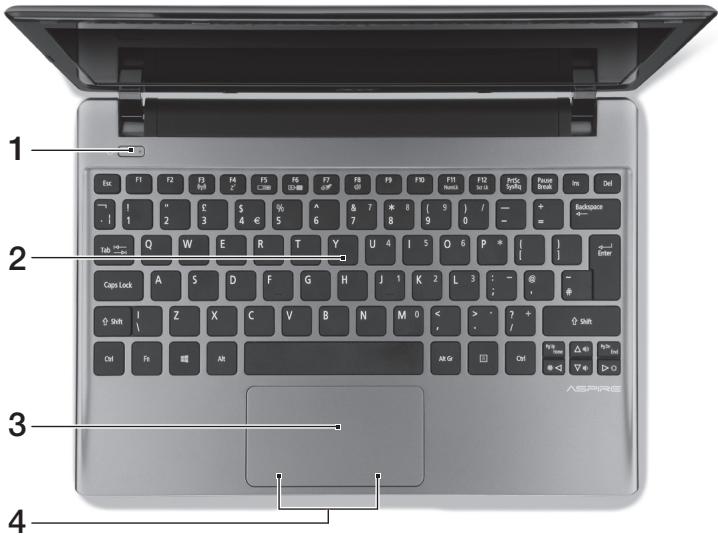

Keyboard view

#	Icon	Item	Description
1		Power button / indicator	Turns the computer on and off. Indicates the computer's power status.
2		Keyboard	For entering data into your computer.
3		Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
4		Click buttons (left and right)	The left and right buttons function like the left and right mouse buttons.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
+Fn> + <F3>	((:)	Communication	Enables/disables the computer's communication devices.
+Fn> + <F4>	Z²	Sleep	Puts the computer in Sleep mode.
+Fn> + <F5>	□□	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
+Fn> + <F6>	□□	Screen blank	Turns the display screen backlight off to save power. Press any key to return.
+Fn> + <F7>	○□	Touchpad toggle	Turns the internal touchpad on and off.
+Fn> + <F8>	◇	Speaker toggle	Turns the speakers on and off.
+Fn> + <▷>	◇	Brightness up	Increases the screen brightness.
+Fn> + <◁>	◇	Brightness down	Decreases the screen brightness.
+Fn> + <△>	◇	Volume up	Increases the sound volume.
+Fn> + <▽>	◇	Volume down	Decreases the sound volume.

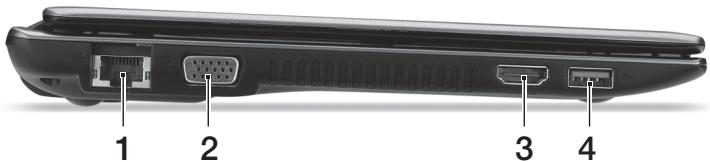

Left view

#	Icon	Item	Description
1	☐☐	Ethernet (RJ-45) port	Connects to an Ethernet 10/100-based network.
2	☐	External display (VGA) port	Connects to a display device (e.g., external monitor, LCD projector).
3	HDMI	HDMI port	Supports high-definition digital video connections.
4	USB+	USB port	Connects to USB devices. If a port is black it is USB 2.0 compatible, if it is blue it is also USB 3.0 compatible (see below).

Information on USB 3.0

Compatible with USB 3.0 and earlier USB devices.
For optimal performance, use USB 3.0-certified devices.
- Defined by the USB 3.0 specification (SuperSpeed USB).

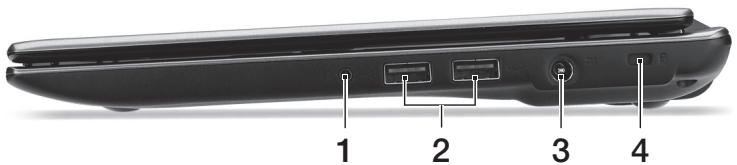

Right view

#	Icon	Item	Description
1		Headset/speaker jack	Connects to audio devices (e.g., speakers, headphones), or a headset with microphone.
2		USB port	Connects to USB devices. If a port is black it is USB 2.0 compatible, if it is blue it is also USB 3.0 compatible.
3		DC-in jack	Connects to an AC adapter.
4		Kensington lock slot	Connects to a Kensington-compatible computer security lock. Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

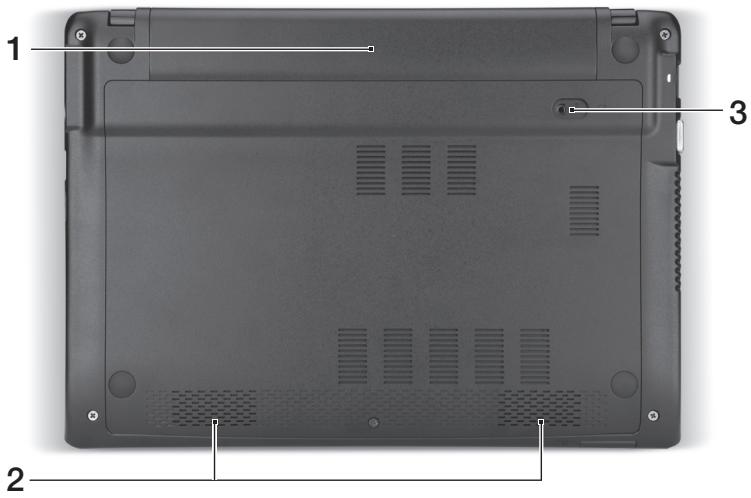

Base view

#	Icon	Item	Description
1		Battery bay	Houses the computer's battery pack.
2		Speakers	Left and right speakers deliver stereo audio output.
3		Battery release latch/lock	Releases the battery for removal.Insert a suitable tool into the latch and slide to release.

Environment

Temperature:

• Operating: 5^ C to 35^ C
  Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80%
  Non-operating: 20% to 80%

Notebook Aspire

Guide rapide

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	CNC 54-4512
Modelo: Delphi D40 (AM5)	CNC 54-5681

[Bluetooth]

Modelo: BCM92046	CNC 16-6735
Modelo: BCM92070MD_REF	CNC 16-7165
Modelo: T77H056	CNC 16-7788
Modelo: AR5BBU12	CNC 16-7946

[Bluetooth+802.11bgn]

Modelo: BCM943225HMB

CNC C-7497

[802.11AGN]

Modelo: 512AN_MMW	CNC C-6399
Modelo: 533AN_MMW	CNC C-6385
Modelo: 512AN_HMW	CNC C-7612
Modelo: 533AN_HMW	CNC C-7618
Modelo: 622ANHMW	CNC C-7682
Modelo: 633ANHMW	CNC C-7681

[802.11BGN]

Modelo: AR5B95	CNC C-7152
Modelo: AR5B93	CNC C-7151
Modelo: 112BNHMW	CNC C-7470
Modelo: 112BNMMW	CNC C-7471
Modelo: RTL8192SE	CNC C-7495
Modelo: BCM943225HM	CNC C-7395
Modelo: AR5B97	CNC C-7781
Modelo: BCM94313HMG2L	CNC C-7881

[802.11BG]

Modelo: BCM94312HMG

CNC 16-6180

[3G]

Modelo: UNDP-1	CNC 17-6334
Modelo: Gobi2000	CNC 17-7291

[Brasil] Noticia adicional de regulamento Anatel

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	COFETEL: TTDCORD06-536
Modelo: Delphi_D40 (AM5)	COFETEL: TTDAGDE07-056

[Bluetooth]

Modelo: BCM92046	COFETEL: RCPFOBC08-0472
Modelo: BCM92070MD_REF	COFETEL: RCPBRBC09-0213
Modelo: T77H056	COFETEL: RCPATT709-1049
Modelo: AR5BBU12	COFETEL: RCPATAR10-0064

[Bluetooth+802.11BGN]

Modelo: BCM943225HMB

COFETEL: RCPBRBC09-0574

[802.11AGN]

Modelo: 512AN_HMW	COFETEL:RCPIN5108-0260
Modelo: 512AN_MMW	COFETEL:RCPIN5108-0260-A3
Modelo: 533AN_HMW	COFETEL:RCPIN5108-0260-A2
Modelo: 533AN_MMW	COFETEL:RCPIN5108-0260-A1
Modelo: 622ANHMW	COFETEL:RCPIN6209-1009
Modelo: 633ANHMW	COFETEL:RCPIN6309-1010

[802.11BGN]

Modelo: AR5B95	COFETEL:RCPATAR09-0168
Modelo: AR5B93	COFETEL: RCPATAR09-0167
Modelo: 112BNHMW	COFETEL: RCPIN1109-0613-A1
Modelo: 112BNMMW	COFETEL: RCPIN1109-0613
Modelo: RTL8192SE	COFETEL: RCPRERT09-0751
Modelo: BCM943225HM	COFETEL: RCPBRBC09-0464
Modelo: AR5B97	COFETEL: RCPATAR09-1103
Modelo: BCM94313HMG2L	COFETEL: RCPBRBC09-1196

[802.11BG]

Modelo: BCM94312HMG

COFETEL: RCPBRBC08-0015

[3G]

Modelo: UNDP-1	COFETEL:RTIQUUN08-0253
Modelo: Gobi2000	COFETEL:RTIQUGO09-0555
Modelo: EM770W	COFETEL:RTIHUEM10-0096

[WiMax]

Modelo: 622ANXHMW

COFETEL: RCPIN6210-0219
