Brand	PHILIPS
Model	QG3330
Product type	Electric trimmer
Power supply	Mains adapter, built-in rechargeable battery
Input voltage	Suitable for mains voltage (check on adapter)
Standard charging time	Approximately 10 hours
Standard battery life	Up to 35 minutes
Maximum battery life (16h charge)	Up to 45 minutes
Main functions	Beard trimming (1-18 mm), 3-day beard (1-12 mm), contour drawing, nose/ear trimming, precision shaving
Included accessories	Beard comb, 3-day beard comb, precision trimmer, nose/ear trimmer, mini foil shaver, pouch, cleaning brush
Cleaning	Washable (waterproof), rinse under tap, use the provided brush
Safety	Do not immerse adapter; do not use in bath or shower; operating temperature 5-35°C
Maintenance	Clean after each use; do not use abrasive products or compressed air
Spare parts	Available at shop.philips.com or from authorized dealers; use only original Philips parts
Warranty	International warranty (excluding normal wear of the trimmer unit)
Sound level	Lc = 75 dB(A)
Compliance	IEC standards; safely washable under water
Recycling	Removable rechargeable battery; dispose of the appliance at a collection point

Frequently Asked Questions - QG3330 PHILIPS

How to charge the PHILIPS QG3330 device?

Turn off the device before charging. Insert the plug into the device and connect the adapter to a mains socket. The charging indicator lights up. Standard charging time is approximately 10 hours. For a maximum battery life of 45 minutes, charge for 16 hours.

What is the battery life of the QG3330 trimmer?

Standard battery life is 35 minutes after a 10-hour charge. If you charge the device for 16 hours, you can achieve up to 45 minutes of cordless use.

How to use the beard comb?

Place the trimmer on the handle and secure it by turning clockwise. Slide the comb into the grooves. Press the selector to adjust the cutting height from 1 to 18 mm. Turn on the device and move it slowly against the direction of hair growth.

Can I use the QG3330 trimmer in the shower?

No, the device is not designed for use in the bath or shower. However, the handle and accessories are waterproof and can be cleaned under the tap.

How to clean the PHILIPS QG3330 trimmer?

Make sure the device is turned off and unplugged. Remove combs and accessories. Shake off hairs, use the cleaning brush. Rinse parts under warm water. For the mini foil shaver, remove the top part and clean it without using the brush on the foil.

What to do if the device no longer works?

Check the battery charge. If the battery is empty, charge the device for 10 hours. Make sure the device is turned off during charging. If the charging indicator does not blink, check the mains socket. If the problem persists, contact Philips Consumer Care.

How to adjust the cutting height on the 3-day beard comb?

Attach the '3-day beard' comb to the handle. Press the selector and slide the comb to choose a height between 1 and 12 mm. Turn on the device and trim by moving the trimmer slowly.

How to maintain the mini foil shaver?

After each use, remove the top part of the mini foil shaver. Do not clean the foil with the brush as it is delicate. Shake or blow off hairs. Clean the top part with warm water. If the foil is damaged, stop using it.

Where to buy replacement accessories for the QG3330?

You can buy accessories on the online shop www.shop.philips.com/service. If it is not available in your country, contact your Philips dealer or an Authorized Philips Service Center.

How to remove the battery for recycling?

Remove the battery only when disposing of the device. Make sure it is completely discharged. Unplug the device, remove the accessory, then use a flathead screwdriver to remove the on/off button and the front panel. Separate the inside and cut the wires to access the battery. Take the battery to a collection point.

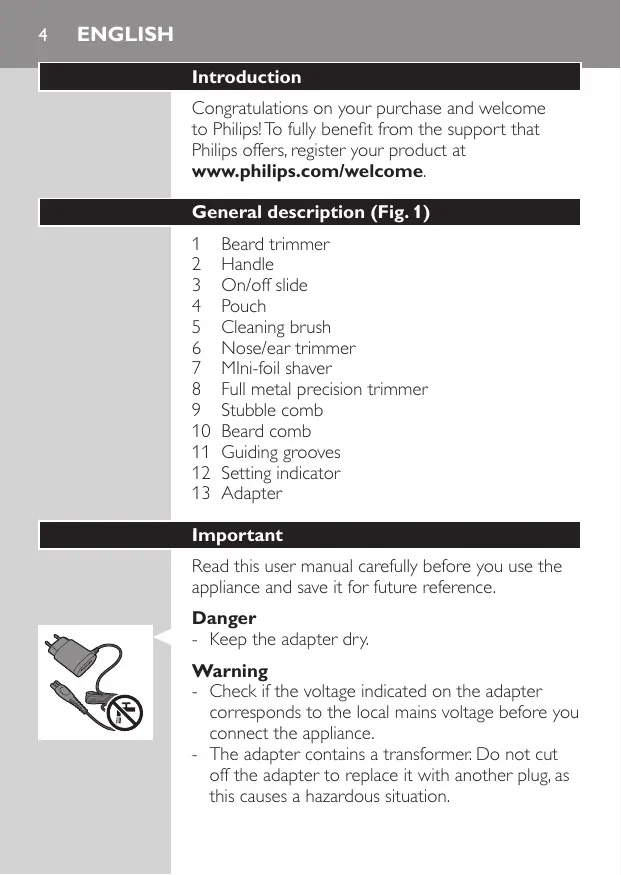

USER MANUAL QG3330 PHILIPS

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Beard trimmer
2 Handle
3 On/off slide
4 Pouch
5 Cleaning brush
6 Nose/ear trimmer
7 Mlni-foil shaver
8 Full metal precision trimmer
9 Stubble comb
10 Beard comb
11 Guiding grooves
12 Setting indicator
13 Adapter

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Keep the adapter dry.

Warning

• Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance.
• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is not intended for use by children. Children should be supervised to ensure that they do not play with the appliance.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury.
• Do not use the appliance in the bath or in the shower.

Caution

• Only use the adapter supplied.
• Use, charge and store the appliance at a temperature between 5^ C and 35^ C .
• Make sure the appliance is switched off and disconnected from the mains before you clean it under the tap.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• If the appliance is subjected to a major change in temperature, pressure or humidity, let the appliance acclimatise for 30 minutes before you use it.
• Do not use the appliance if any of its parts is damaged or broken, as this may cause injury.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
  Maximum noise level: Lc = 75dB( A)

Compliance with standards

• This appliance complies with the internationally approved IEC Safety regulations and can be safely cleaned under the tap.
• This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Charging

Standard charging takes approximately 10 hours. When the appliance is fully charged, it has an operating time of up to 35 minutes.

Note: You can get 45 minutes of cordless operating time when the appliance is charged overnight for 16 hours.

1 Switch off the appliance before you charge it.
2 Insert the appliance plug into the appliance.
3 Put the adapter in the wall socket.
The charging light on the adapter goes on to indicate that the appliance is charging.

Note:The charging light does not change colour and does not go out when the appliance is fully charged.

Using the appliance

Beard and stubble trimming

When you trim your beard for the first time, be careful. Do not move the trimmer too fast. Make smooth and gentle movements.

Beard trimming with beard comb

1 Place the trimmer onto the handle (1).
Turn the trimmer clockwise to fix it (2).

2 Slide the beard comb into the guiding grooves on both sides of the handle.

3 Press the setting selector (1) and slide the comb to the desired hair length setting (2). You can choose any setting between 1 and 18mm

4 Switch on the appliance.
5 Slowly move the trimmer against the hair growth direction. Press lightly and always make sure the surface of the comb is in full contact with the skin.

Note: When you trim for the first time, start at the highest setting (18mm) to familiarise yourself with the appliance.

Trimming your stubbles

You can use the stubble comb to trim your stubbles.

1 Place the trimmer onto the handle (1). Turn the trimmer clockwise to fix it (2).
2 Slide the stubble comb into the guiding grooves on both sides of the handle.
3 Press the setting selector (1) and slide the comb to the desired hair length setting (2).

You can choose any setting between 1 and 12mm

4 Switch on the appliance.
Slowly move the trimmer against the hair growth direction. Press lightly and always make sure the surface of the comb is in full contact with the skin.

Styling/contouring your beard

You can use the precision trimmer to contour or cut shapes in beard hair. It cuts hair very close to the skin, at a length of 1mm.

Caution: Be careful when you use the precision trimmer because it removes every hair it comes in contact with.

1 Place the precision trimmer onto the handle (1).Turn the precision trimmer clockwise to fix it (2).
2 To achieve a good cutting result, move the precision trimmer against the direction of hair growth. Always make sure the precision trimmer is in full contact with the skin.
3 Make careful and controlled movements with the precision trimmer.

Tip: For the perfect finish, you can use the mini-foil shaver to make the edges and lines of your beard style even smoother.

Trimming nose and ear hair

Trimming nose hair

1 Place the nose/ear trimmer onto the handle (1).Turn the nose/ear trimmer clockwise to fix it (2).
2 Make sure your nostrils are clean.
3 Switch on the appliance and insert the tip of the trimmer into one of your nostrils.

Do not insert the tip more than 0.5cm into your nostril.

4 Slowly move the tip in and out while turning it round at the same time to remove unwanted hair. To reduce the tickling effect, make sure that you press the side of the tip firmly against the skin.

Trimming ear hair

1 Attach the nose/ear trimmer onto the handle.
2 Clean the outer ear channel. Make sure it is free from wax.
3 Switch on the appliance and move the tip softly round the ear to remove hairs that stick out beyond the rim of the ear.
4 Carefully insert the tip into the outer ear channel.

Do not insert the tip more than 0.5cm into the ear channel as this could damage the eardrum.

Cleaning

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Always keep the adapter dry.

Clean the appliance after each use. The appliance is waterproof therefore the handle, combs and attachments are easily cleaned under the tap.

1 Make sure the appliance is switched off and disconnected from the mains.
2 Remove any comb and/or attachment from the appliance.

3 Blow and/or shake out any hair that has accumulated in the attachments and/or combs or use the cleaning brush.
4 Clean the attachments and the combs under a lukewarm tap and/or with the cleaning brush.
5 Clean the handle under a lukewarm tap and/or with the cleaning brush.

Cleaning the mini-foil shaver

1 After each use, pull the top part of the mini-foil shaver off the bottom part.
The shaving foil is very delicate. Handle it carefully. If the shaving foil is damaged, do not use the minifoil shaver anymore.
Do not clean the shaving foil with the cleaning brush, as this may cause damage.
2 Blow and/or shake out any hair that has accumulated inside the mini-foil shaver.
3 Clean the top part of the mini-foil shaver under a lukewarm.

Storage

Store the handle, combs, attachments and adapter in the storage pouch supplied to prevent damage.

Ordering accessories

To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard. Only replace damaged or worn attachments or combs with original Philips replacement attachments or combs.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

• The built-in rechargeable battery contains substances that may pollute the environment. Always remove the battery before you discard and hand in the appliance at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the appliance. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips and housing parts are very sharp.

1 Make sure the appliance is disconnected from the mains.
2 Remove the attachment.
3 Remove the on/off button of the appliance with a flathead screwdriver.
4 Remove the front panel of the appliance with a flathead screwdriver.
5 To pull out the inner, apply a tilting force in the indicated hole with a flathead screwdriver. Pull upward on the top cover.
6 Separate the inner and the tube.
7 Remove the on/off contact.
8 Unhook and remove the rest of the cover to expose the rechargeable battery.
9 Cut the wires to separate the rechargeable battery from the appliance.

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/support or contact the Philips Consumer Care Centre in your country. You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Guarantee restrictions

Cutting units are not covered by the terms of the international guarantee because they are subject to wear:

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem	Possible cause	Solution
The beard comb does not stay attached to the handle.	You do not attach the beard comb correctly.	Slide the beard comb into the guiding grooves on both sides of the handle until you hear a click.
	The guiding grooves are dirty.	Clean the appliance and the guiding grooves thoroughly.
	The comb is broken.	Go to your Philips dealer or contact a Philips service centre to purchase a new comb.
The appliance does not work anymore.	The rechargeable battery is empty.	Charge the appliance (see chapter ‘Charging’). Make sure you switch off the appliance before you charge it. During charging, the charging light on the adapter flashes. If the charging light does not flash, check whether there is a power failure or if the wall socket is live. If there is no power failure and the wall socket is live but the charging light still does not flash, take the appliance to your dealer or a Philips service centre.
The appliance does not work when it is connected to the mains.	The appliance is not designed to work from the mains.	Switch off the appliance and charge it for 10 hours (see chapter ‘Charging’).
The appliance does not charge when it is connected to the mains.	The appliance has to be switched off when you charge it.	Switch off the appliance.
The appliance does not trim as well as it used to.	The cutting element of the attachment you are using is dirty.	Remove the attachment from the appliance. Clean the attachment under a lukewarm tap.
The appliance becomes hot.	The cutting element of the attachment you are using is dirty.	Remove the attachment from the appliance. Clean the attachment under a lukewarm tap.
