USER MANUAL Gostyler NT9140 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

NT9141

NT9140

User manual

PHILIPS

ENGLISH 4

FRANÇAIS 10

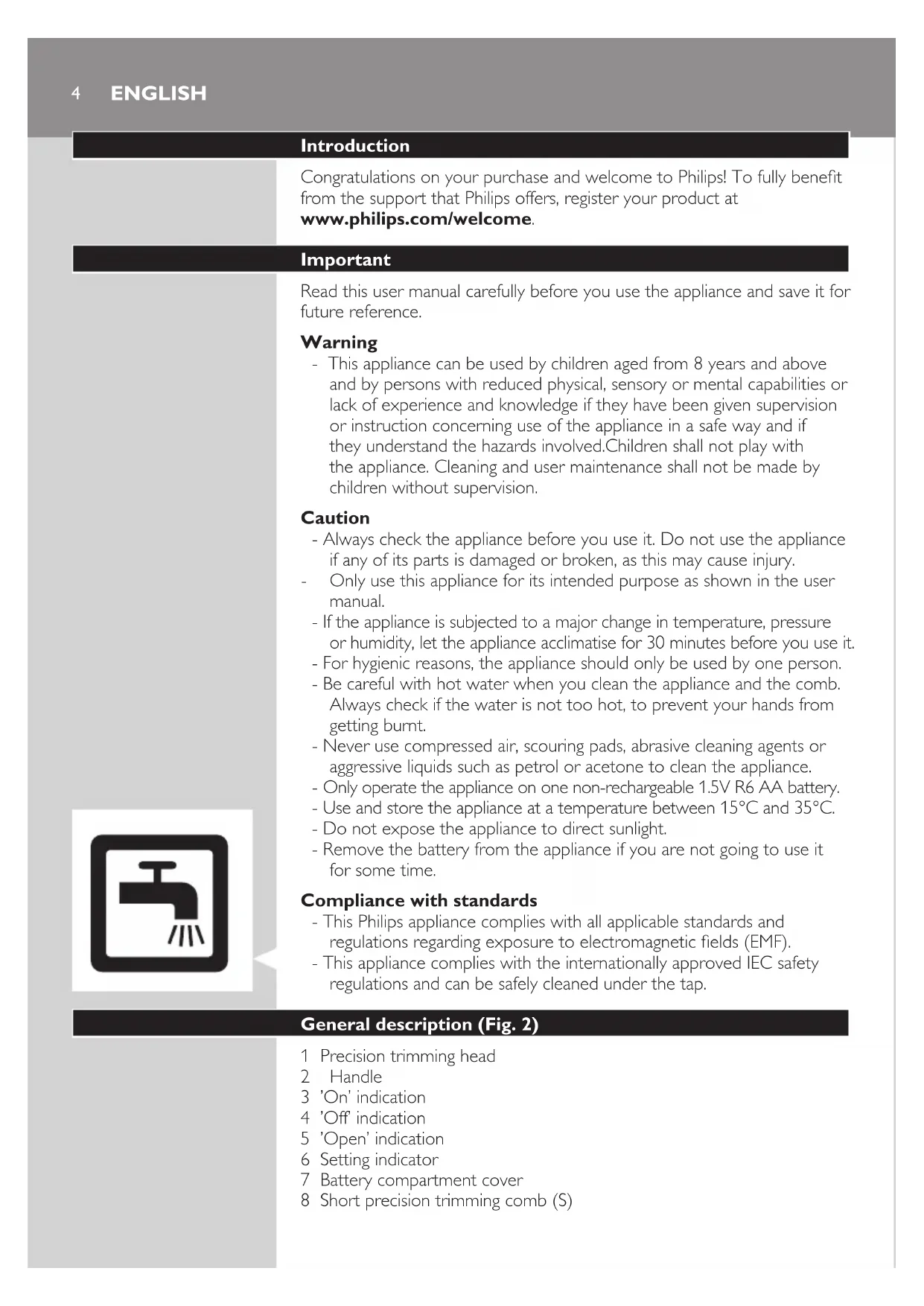

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Caution

• Always check the appliance before you use it. Do not use the appliance if any of its parts is damaged or broken, as this may cause injury.
• Only use this appliance for its intended purpose as shown in the user manual.
• If the appliance is subjected to a major change in temperature, pressure or humidity, let the appliance acclimatise for 30 minutes before you use it.
• For hygienic reasons, the appliance should only be used by one person.
• Be careful with hot water when you clean the appliance and the comb. Always check if the water is not too hot, to prevent your hands from getting burnt.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Only operate the appliance on one non-rechargeable 1.5V R6 AA battery.
• Use and store the appliance at a temperature between 15^ and 35^
• Do not expose the appliance to direct sunlight.
• Remove the battery from the appliance if you are not going to use it for some time.

Compliance with standards

• This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields (EMF)
• This appliance complies with the internationally approved IEC safety regulations and can be safely cleaned under the tap.

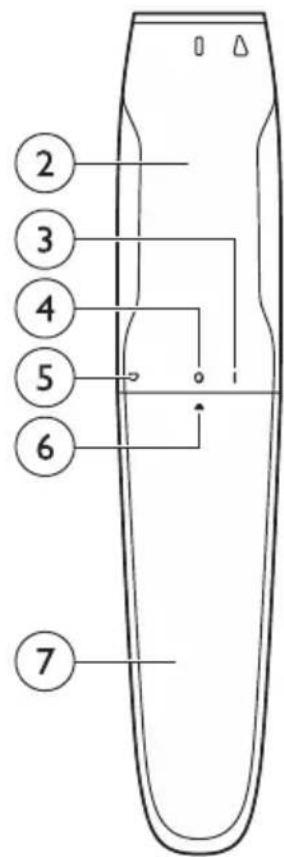

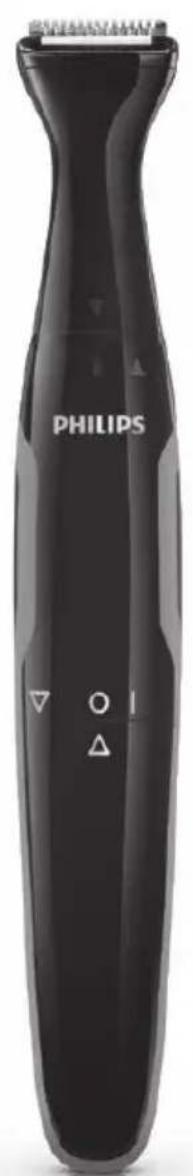

General description (Fig. 2)

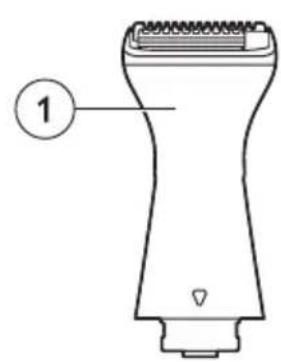

1 Precision trimming head
2 Handle
3 'On' indication
4 'Off indication
5 'Open' indication
6 Setting indicator
7 Battery compartment cover
8 Short precision trimming comb (S)

Preparing for use

Placing the batteries

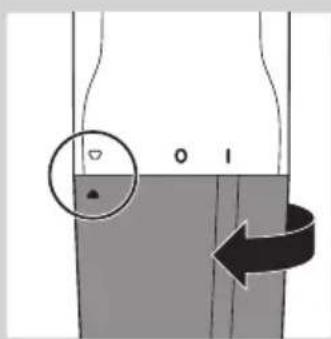

To remove the battery compartment cover, turn it clockwise until the setting indicator points to the 'open' indication.

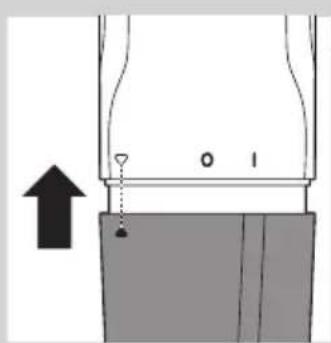

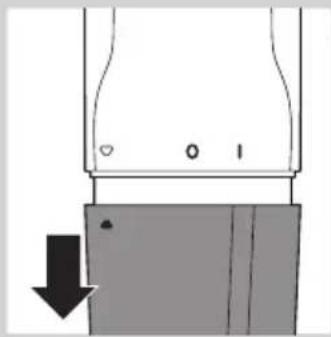

2 Pull the battery compartment cover off the handle.

3 Put the battery in the battery compartment.

Make sure the + and - poles of the battery point in the right direction.

Note: The appliance runs on one R6 AA 1.5-volt battery (included). Preferably use Philips alkaline batteries. A new AA alkaline battery has an operating time of up to 2 hours.

4 Slide the battery compartment cover back onto the handle.

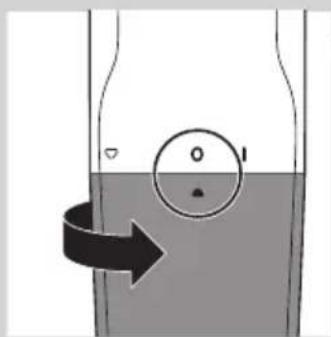

5 Turn the battery compartment cover anticlockwise until the setting indicator points to the 'off' indication.

To avoid damage due to battery leakage:

• do not expose the appliance to direct sunlight.
• do not expose the appliance to temperatures higher than 35^ C .
• remove the battery if you are not going to use the appliance for a month or more.
• do not leave an empty battery in the appliance.

Using the appliance

When you trim your beard for the first time, be careful and test the appliance on a small part of your arm or leg. Do not move the trimmer too fast. Make smooth and gentle movements.

If any irritation or allergic reaction occurs, discontinue use immediately. Do no use the appliance on sensitive or irritated skin.

Trimming with the precision trimming head

With the precision trimming head without precision trimming comb, you can trim hairs to a length of 1mm, the so-called 'stubble look'.

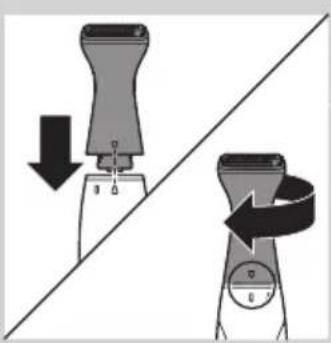

1 Put the precision trimming head on the appliance. Align the locking indicator with the 'unlocked' indication (black upward arrowhead) and put the attachment on the handle. Then turn the attachment clockwise until the locking indicator points to the 'locked' indication (I).

Switch on the appliance. Turn the battery compartment cover from the 'off' position (0) to the 'on' position (1).

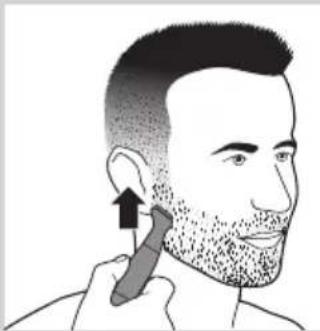

3 Touch the hairs lightly with the precision trimming head and move it against the direction of hair growth.

Note: You can use the precision trimming head with the trimmer teeth pointing towards the skin. You can also use it with the flat part touching the skin and the teeth pointing in the direction in which you move the appliance.

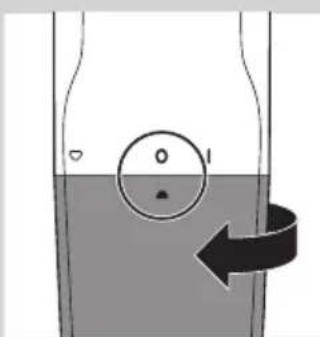

4 To switch off the appliance, turn the battery compartment to the 'off' indication (0).

Trimming with the precision trimming comb

With the precision trimming head with precision trimming comb, you can trim hairs to a length of 4mm.

1 Put the precision trimming comb on the precision trimming head and push it until it locks into place ('click').

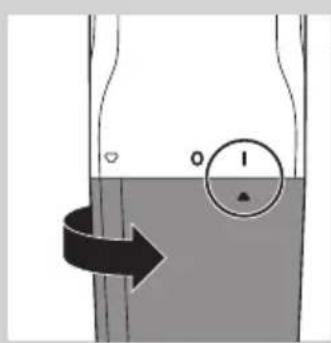

Switch on the appliance. Turn the battery compartment cover from the 'off' position (0) to the 'on' position (1).

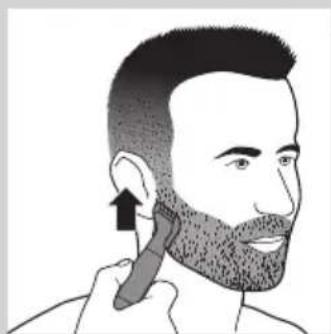

3 Move the appliance slowly and with light pressure against the direction of hair growth.

Note: To make trimming easier, stretch the skin with your free hand during trimming.

Note: Make sure that the flat part of the comb always touches the skin to obtain an even result.

Note: Do not press the appliance with the comb onto the skin too hard. This may cause the appliance to trim the hairs shorter than the length indicated on the comb.

Note: In areas where the hair grows in different directions, move the appliance upwards, downwards and sideways.

Regularly remove cut hairs from the comb. If a lot of hairs have accumulated in the comb, detach the comb from the appliance and blow and/or shake the hairs out of it.
5 To switch off the appliance, turn the battery compartment to the 'off' indication (0).
6 To detach the comb, put your finger under the bottom edge of the comb and pull it off the appliance.

Cleaning

Clean the appliance immediately after use and when a lot of hair or dirt has accumulated on the cutting elements.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Do not tap on the cutting element.

Do not use any sharp objects to clean the cutting element.

1 Switch off the appliance.

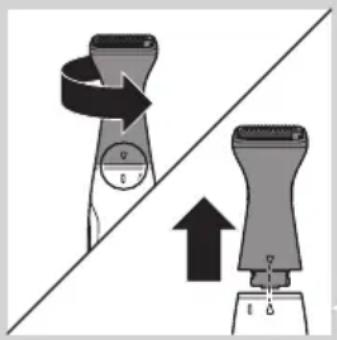

2 To detach the precision trimming head turn it anticlockwise until the locking indicator points to the 'unlocked' indication (black upward arrowhead). Then pull the precision trimming head off the handle.
3 Rinse the precision trimming head and the precision trimming comb with lukewarm water.
4 Let all parts dry completely before you use the appliance again.

Ordering accessories

If the comb is damaged or worn, always replace it with original Philips comb. If the cutting element of the precision trimming head is damaged or worn, replace it.

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

• Batteries contain substances that may pollute the environment. Remove the battery when it is empty or when you discard the appliance. Do not throw away the battery with the normal household waste, but hand it in at an official collection point.

Guarantee and support

If you need information or support, please visit the Philips website at www.philips.com/support or read the worldwide guarantee leaflet.

Guarantee restrictions

Cutting units are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Cause Solution

The appliance does not work as well as it should.

Hairs may be stuck in the precision trimming head.

Clean the precision trimming head (see chapter 'Cleaning').

The appliance pulls at the hairs.

You move the appliance too fast.

Do not move the appliance too fast.

The appliance works, but the result is uneven.

The disposable battery is empty.

Insert a new battery.

You press the appliance onto the skin too hard.

Do not press the appliance onto the skin too hard, as this may cause the hair length after trimming to be shorter than the indicated hair lengths.

The precision trimming comb is not in full contact with the skin.

When you use the comb, always make sure it is fully in contact with the skin.

The appliance does not work.

The disposable battery is empty or has been inserted incorrectly.

Always move the appliance against the direction of hair growth. As not all hairs grow in the same direction, this means that you have to move the appliance up, down and sideways.

Replace the battery or insert it correctly.
