Product Type	Double child stroller (tandem or side-by-side)
Brand	Emmaljunga
Model	Double Viking
Dimensions (open)	Approx. 110 x 65 x 105 cm
Dimensions (folded)	Approx. 80 x 65 x 40 cm
Weight	Approx. 18 kg
Weight Capacity	Up to 15 kg per seat
Age Range	From birth to 3 years (with appropriate inserts)
Seat Orientation	Reversible: parent-facing or world-facing
Recline Positions	Multiple recline positions including flat for newborns
Canopy	Large extendable canopy with UV protection
Suspension	All-wheel suspension for smooth ride
Brakes	Foot-operated parking brake
Wheels	Puncture-proof tires, front swivel wheels with lock
Folding	One-hand compact fold with auto-lock
Harness	5-point safety harness per seat
Accessories Included	Rain cover, shopping basket, bumper bar
Compatibility	Compatible with Emmaljunga car seats and carrycots (adapters may be required)
Cleaning	Wipe frame with damp cloth; fabric covers machine washable (30°C)
Safety Standards	ECE R44/04, EN 1888
Warranty	2 years (subject to registration)

Frequently Asked Questions - Double Viking Emmaljunga

How do I fold the Emmaljunga Double Viking stroller?

To fold, ensure both seats are in the upright position, then press the folding button located on the handlebar and push the stroller forward. The stroller will lock into a compact folded position.

What is the maximum weight capacity per seat?

Each seat can hold up to 15 kg (33 lbs). Do not exceed this weight to ensure safety.

Can I use the Double Viking from birth?

Yes, the seats recline to a flat position suitable for newborns. Additionally, you can use the carrycot or car seat with adapters for extra comfort.

How do I clean the fabric parts?

The fabric covers are removable and machine washable at 30°C. For stubborn stains, spot clean with mild soap. The frame can be wiped with a damp cloth.

Are the wheels puncture-proof?

Yes, the Double Viking features puncture-proof tires that require no maintenance. The front wheels can swivel or be locked for stability.

Is the stroller compatible with car seats?

Yes, it is compatible with Emmaljunga car seats using adapters (sold separately). Always check the manual for specific models.

How do I adjust the seat recline?

Each seat has a recline handle located at the back. Squeeze the handle and gently push or pull the seat back to the desired position.

What safety harness does it have?

Each seat is equipped with a 5-point safety harness with adjustable straps. Ensure the harness is snug and fastened correctly.

Can I steer with one hand?

Yes, the ergonomic handlebar and all-wheel suspension make maneuvering easy, even with one hand. The stroller is stable on various terrains.

What is the warranty period?

The Emmaljunga Double Viking comes with a 2-year warranty from the date of purchase, provided you register the product on the Emmaljunga website.

USER MANUAL Double Viking Emmaljunga

IMPORTANT! KEEP FOR FUTURE REFERENCE. FOR THE PROPER USE OF THIS VEHICLE, BE SURE TO READ THIS USER'S MANUAL CAREFULLY. This product complies with DIN EN 1888:2012, EN 1466:2008, EN 1466:2004+A1:2007

This product is suitable for two (2) children from 0 months - 3 years.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided. Maximum weight of the child: 15kg.

WARNING! The product is not suitable for running or skating. The outer length and width of the Viking Carry Cot is 795 mm/360 mm.

WARNING! The carrycot / pram (accessories) body can only be used for the transportation of one child from 0 to 6 months. This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg.

WARNING! Never use this carrycot on a stand.

WARNING! Please visit www.emmaljunga.co.uk for the latest version of this information before using the product.

ISSE INSTRUKTIONER OMHYGGELIGT F∅R BRUG OG GEM DEM FOR FREMTIDIG REFERENCE. DIT BARNS SIKKERHED ÄVIRKES HVIS DU IKKE F∅LGER DISSE INSTRUKTIONER!

Dette produkt opfylder DIN EN 1888:2012, EN 1466:2008, EN 1466:2004+A1:2007

Product photo of a baby stroller with black wheels and gray cabinetry (no visible text or symbols)

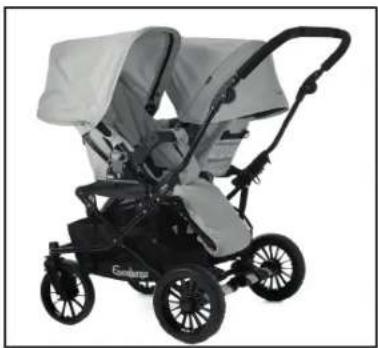

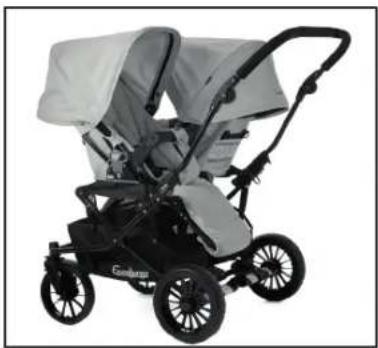

Två sittdelar

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

Black and white baby stroller with two shades of cream, no visible text or symbols

Black and white baby stroller with two covers, no visible text or symbols

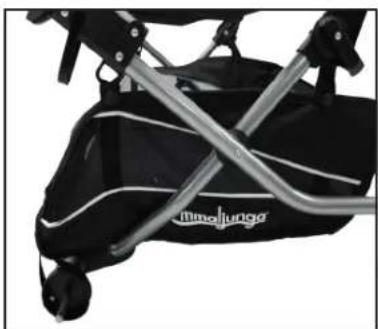

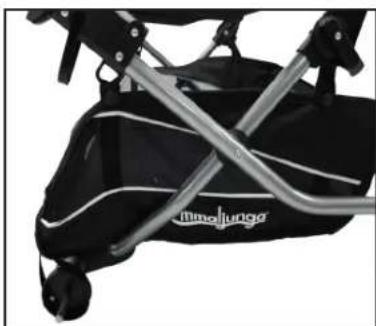

Två korgar

Product photo of a baby stroller with two shades of gray cabinetry (no text or symbols visible)

Black and white photo of a baby stroller with two large boxes, no visible text or symbols

Black stroller with a white cross symbol on the front, no text or symbols present

WARNING

Black and white photo of a baby stroller with no visible text or symbols

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

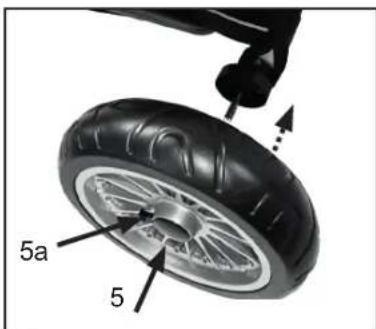

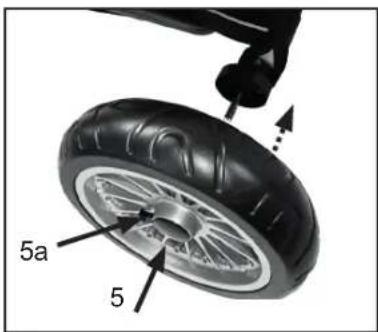

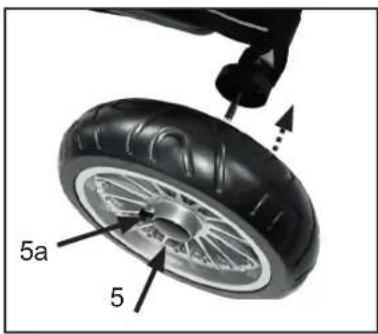

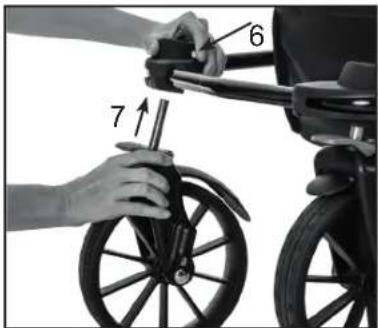

Montera hjulen

Close-up of a black bicycle saddle with silver railings and wheels, no visible text or symbols

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle tire with a curved handle, showing a 13-inch angle measurement (no text or symbols on the object itself)

10

Använda bromsen

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

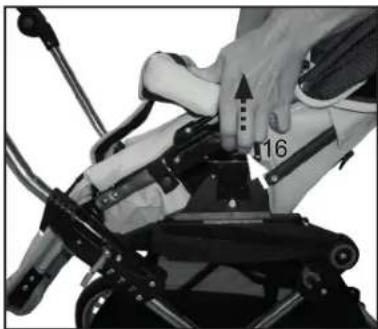

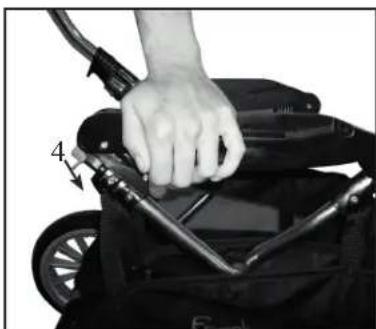

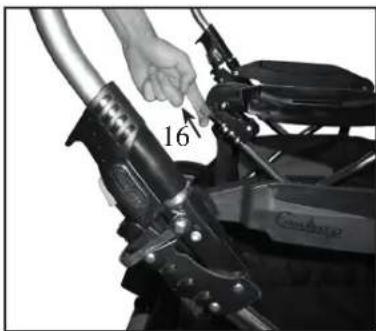

• Lyft centrum-chassilåset (16)

12

Close-up of a hand using a power crimping tool with a 17-degree angle indicator (no text or symbols on the tool itself)

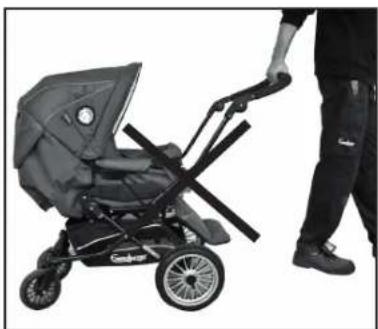

Side view of a baby stroller with a person walking nearby (no text or symbols visible)

WARNING

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

Transportsäkring

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

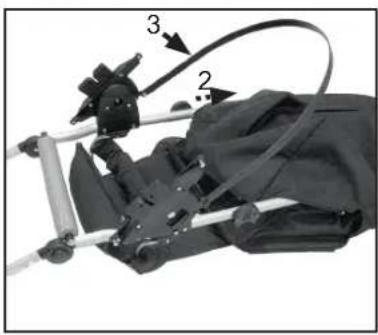

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Montera suffletten

Close-up of a backpack with visible straps and straps, no text or symbols present

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

WARNING

- Klämrisk.

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a person in a white chair with a large X symbol on the backrest (no text or symbols present)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a car seatbelt with a white arrow pointing to the belt (no text or symbols visible)

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to a detail (no visible text or symbols)

Montera frambågen

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Mechanical component with a triangular cover and arrow indicating 17 degrees of motion (no text or symbols)

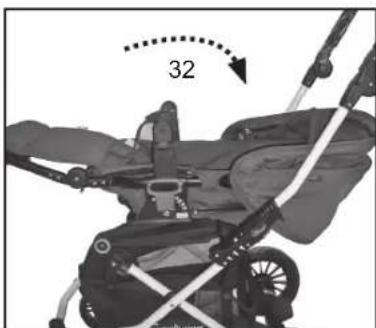

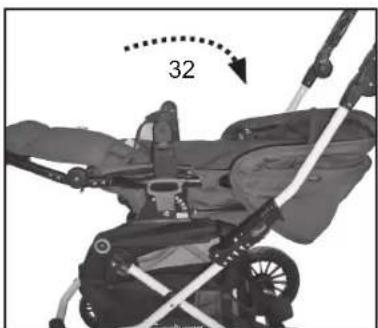

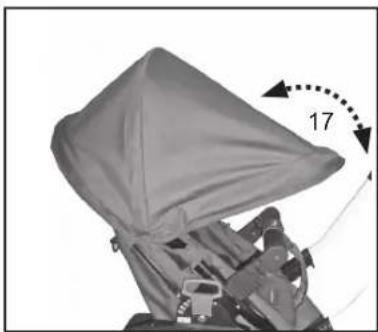

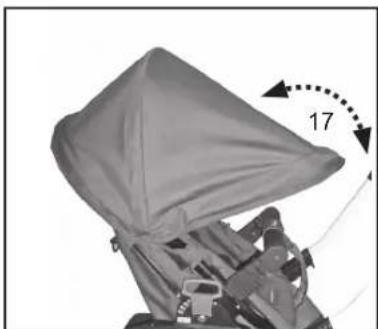

Justera suffletten

Illustration of a baby stroller with a numbered arrow indicating '31' (no text or symbols on the device itself)

25

20

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a black mesh pad and white arrow pointing to a numbered component (no text or symbols visible)

5

Manual Double Viking v. 2.0

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Montera suffletten

Close-up of a small car seatbelt with a numbered arrow pointing to the side panel (no text or symbols visible)

VIKTIGT

Close-up of a mechanical component with a curved surface and a label '17' (no readable text or symbols)

WARNING

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

WARNING

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas can beside it (no text or symbols visible)

Product photo of a baby stroller with black wheels and gray canopy (no text or symbols visible)

Zwei Sitzeinheiten

Black and white photo of a baby stroller with a canopy cover, no visible text or symbols

Black and white baby stroller with two shades of gray cabin, no visible text or symbols

Black and white photo of a baby stroller with two covers, no visible text or symbols

Zwei Liegewannen

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Black and white photo of a baby stroller with two large covers, no visible text or symbols

Black stroller with white cross symbol on body, no text or symbols present

WARNUNG

Black and white photo of a baby stroller with no visible text or symbols

Close-up of a hand adjusting a black stroller with a handle, no visible text or symbols

Montage der Räder

Close-up of a black llimo/junga bicycle seat with visible tracks and wheels (no text or symbols)

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle buckle with a handle, showing part number 13 (no text or symbols on the device itself)

10

Manual Double Viking v. 2.0

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the number 16 (no visible text or symbols)

Close-up of a hand using a mechanical tool to adjust a component, with a 17-degree rotation indicator (no text or symbols visible)

Person walking beside a baby stroller with a person standing beside it (no visible text or symbols)

WARNUNG

Close-up of a hand adjusting a black bicycle frame with a handle (no visible text or symbols)

Transportklemme

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a hand adjusting a backpack cover with straps and a cable (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or symbols on the robot or background)

WARNUNG

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

42

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a person wearing a white safety vest with a black handle, against a plain background (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing or adjusting a cylindrical pipe component, with a numbered arrow pointing to the pipe (no text or symbols visible)

Manual Double Viking v. 2.0

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no readable text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

19

20

44

Manual Double Viking v. 2.0

Illustration of a baby stroller with a numbered arrow indicating '31' (no text or symbols on the device itself)

Illustration of a stroller with a dotted arc indicating measurement (no text or symbols present)

WICHTIG

Manual Double Viking v. 2.0

Close-up of a mechanical component with a central hole and two circular holes, labeled '3' (no text or symbols on the main subject)

Close-up of a textured, curved object with a numbered arrow and dotted pattern, possibly a device or component (no readable text or symbols)

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray patterned object resembling a stylized backpack or cushion, with no visible text or symbols.

Close-up of a person's seatbelt device with a numbered label '14' pointing to the seat area (no other text or symbols visible)

WICHTIG!

Close-up of a mechanical component with a curved base and a vertical panel, labeled '17' in the top-left corner (no other text or symbols visible)

WARNUNG

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

WARNUNG

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Product photo of a car wheel and a gas cylinder (no text or symbols visible)

Contents of the box 55

Emmaljunga's original accessories 55

Important safety information 56-59

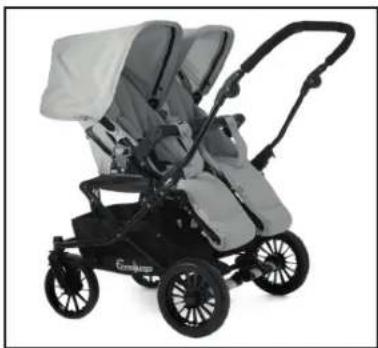

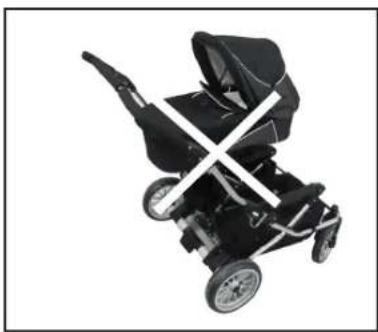

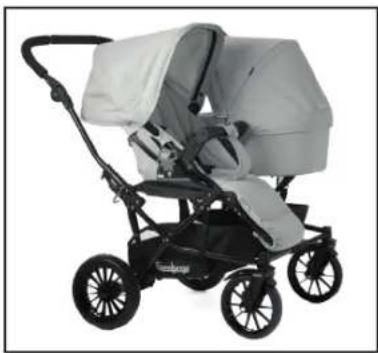

Combinations the pram can be used in 60-61

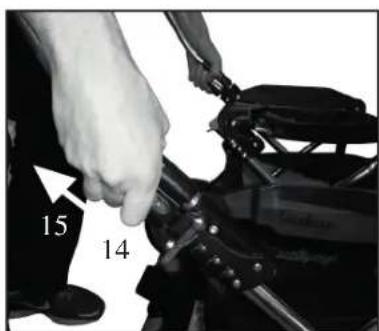

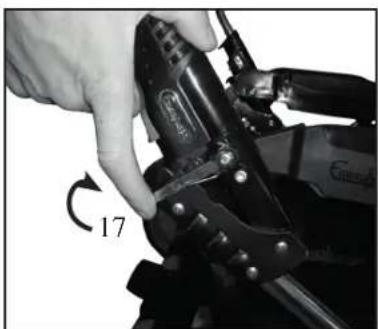

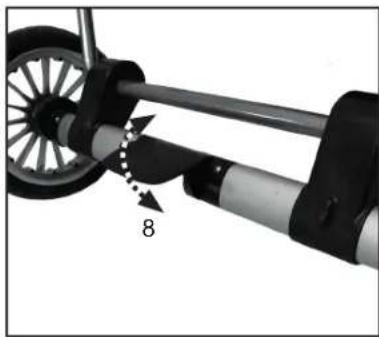

Assembly and usage of chassis 62-64

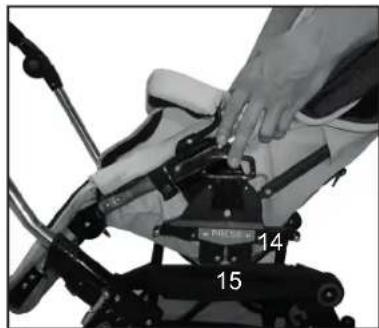

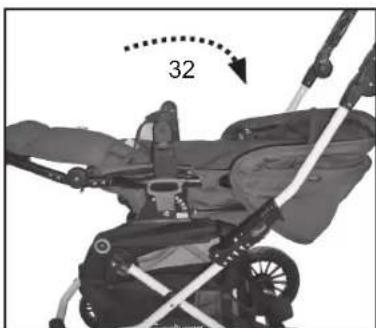

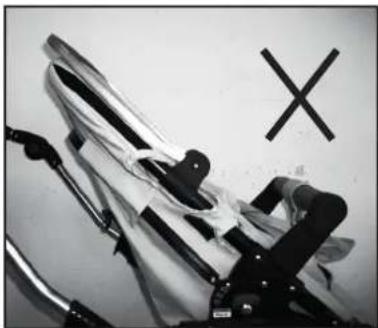

Assembly and usage of seat unit.... 65-69

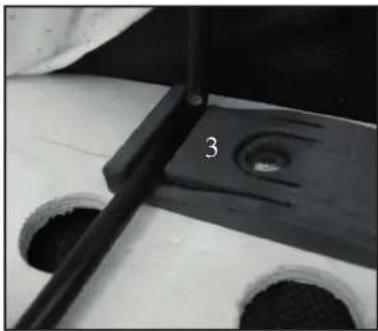

Assembly and usage of bassinet 70-72

Care and maintenance 73-74

Service Documentation.... 75

Delivery Check.... 76

Service Protocol.... 77

Contents of the box:

Double Viking Chassis

1 pc folded chassis with 2 trays
2 pc wheel 300 mm
2 pcs Swivel front wheels incl. Mudguards
1 pc Instruction manual

Viking Seat Unit

1 pc seat unit incl 5-point harness
1 set shoulder harness pads
1 pc hood
1 pc seat-unit fabrics
1 pc bumper bar cover

Viking Bassinet

1 pc bassinet
1 pc hood fabric
1 pc apron
1 pc mattress

Emmaljunga's original accessories

Please use Emmaljunga's original accessories for maximum safety and comfort. Information about co-ordinating accessories can be found in our brochure or at any of our authorised retailers.

Important Safety Information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

Note! This instruction manual includes the chassis, seat unit and bassinet. Therefore it's very important to read through this manual if any additional accessories (seat unit and/or bassinet) is purchased at a later date.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

Warning sentences according to EN1888:2012

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

WARNING Follow the manufacturer's instructions.

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

Important Safety Information

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use this bassinet once the child can sit up unaided.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING This product is only suitable for a child who cannot sit up unaided.

WARNING Do not let other children play unattended near the carrycot.

WARNING Do not use the bassinet if any part is broken, torn or missing.

WARNING Use only replacement parts supplied or approved by the manufacturer.

WARNING Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carry cot.

WARNING The handles and the bottom of the bassinet should be inspected regularly for signs of damage and wear.

WARNING Never use the bassineton a stand.

WARNING Do not leave your child unattended.

WARNING Use only the bassinet on a firm, horizontal level and dry surface.

Warning sentences according to EN 1466:2004+A1:2007, bassinet.

Important Safety Information

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

WARNING It may be dangerous to leave your child unattended.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crotch strap in combinations with the waist belt.

WARNING Never pull a pram with swivel front wheels behind you. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

WARNING This product is designed and built according to the standard EN1888/EN1466. This product should not be used as a medical treatment device. If your child has special medical needs in connection with transportation you should consult your doctor.

WARNING Do not modify this product as it may compromise the safety of your child. The manufacturer is NOT liable for any modifications to the product.

WARNING Do not use this product in strong winds or thunderstorm.

WARNING Please note that train or underground stations may cause sudden high pressure changes in the air (wind or vacuum). Never place this product near any rails without having both hands on the handle as the braking device alone may not be sufficient to keep your stroller safely in place.

WARNING Do not cross rails when the child is placed in the stroller or the prambody. Wheels may get stuck!

WARNING When transporting on public transport (bus, underground, train etc.) it is not enough to use the pram's parking brake only. The pram can be exposed to conditions (abrupt braking, turns and bumps in the road surface, acceleration etc.) that it has not been tested for according to the current pram standard EN1888. Follow the recommendations and instructions regarding the safe anchorage of prams during transport that public transport operators are obliged to supply.

Important Safety Information

operators are obliged to supply. WARNING Keep away from fire.

- Your child's safety is your responsibility.

- This product is suitable for two (2) children from 0 months - 3 years. Only use the pram for the number of children it is intended for.

- The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided. Maximum weight of the child: 15kg.

- The carrycot / pram (accessories) body can only be used for the transportation of one child from 0 to 6 months. This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg.

- Double Viking chassis should only be used together with an Viking bassinet or a Viking Seat Unit.

- Follow the care and maintenance instructions.

- The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram.

- It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories how they should be used, even if the person(s) in question will only use them for a short time.

- The maximum weight for one child using the Toddler Roller accessory on the pram is 20 kg.

- Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller or car seat adaptor.

- Do not place objects on the hood. Never use the pram without the hood.

- If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.

- The pram is intended for transportation only. Never use the pram as a bed for your child.

- Never leave the pram with a child in it without engaging the brake.

• The brake should always be engaged when you lift your child in and out of the pram.

- Never park the pram on a hill or an uneven surface.

- Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.

- Never use the product if a part is faulty or damaged.

- Check that all zips and poppers are securely fastened before use.

• Always remove the child before you fold the pram.

- Do not place any additional mattresses in the bassinet / pram body. Only use the original Emmaljunga mattress that is included with the produc.

• Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the pram.

- Any load that is placed on the pram (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.

- The shopping tray has a maximum weight limit of total 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is une venly distributed.

- Only use original replacement parts supplied by Emmaljunga.

- Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.

- The seat unit or carrycot must not be used as a car seat.

- The outer length and width of the Viking Bassinet is 795 mm / 360 mm.

- If you need to identify this product there is a sticker showing model name and serial number placed on the chassis / pram body / Carrycot.

- For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable or a bed.

Combinations the pram can be used in

1

Product photo of a baby stroller with two shades of gray and black design (no visible text or symbols)

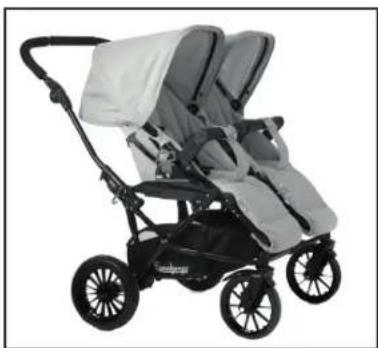

Two seat units

- Two seat units, both facing backward.

2

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

- Two seat units, one facing forward and one facing backward.

3

Black and white baby stroller with two shades of gray cabin, no visible text or symbols

- Two seat units, both facing forward.

4

Black and white photo of a baby stroller with two covers, no visible text or symbols

Two bassinets

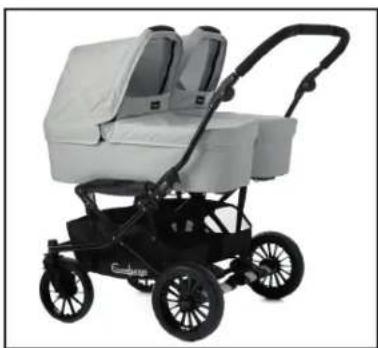

- Two bassinets, both facing backward.

5

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

One seat unit and one bassinet

• One bassinet facing backward and one seat unit facing backward.

Combinations the pram can be used in

6

Black and white photo of a baby stroller with two large covers, no visible text or symbols

• One bassinet facing backward and one seat unit facing forward.

7

Black baby stroller with a white cross symbol on the front, isolated on white background (no text or symbols)

WARNING

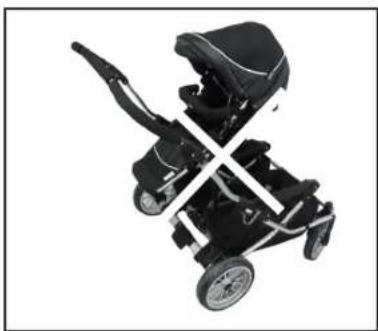

- Never use the pram with only one bassinet or seat unit. The pram shall never be used with one empty place.

8

Black and white photo of a baby stroller with no visible text or symbols

Assembly and usage of chassis

1

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle rear lunge seat with metal frame and wheels (no visible text or symbols)

WARNING

Make sure that children are kept away from moving parts when assembling the pram, otherwise they might be at risk of injury. Unfolding the chassis

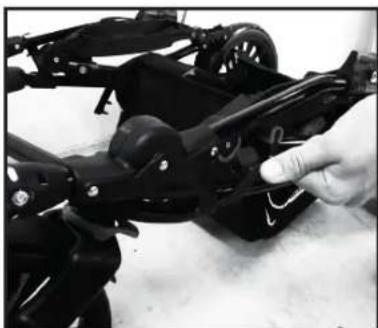

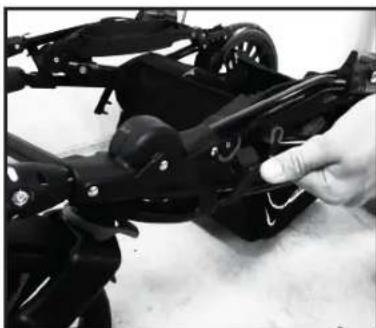

- Apply the brake on the pram. To unfold the chassis, pull the handle upwards, whilst holding down the side of the chassis.

WARNING

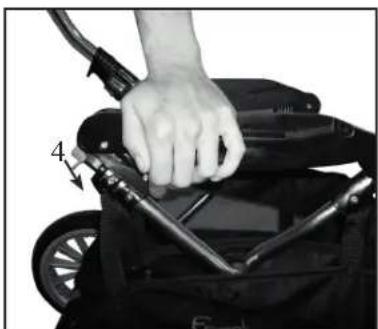

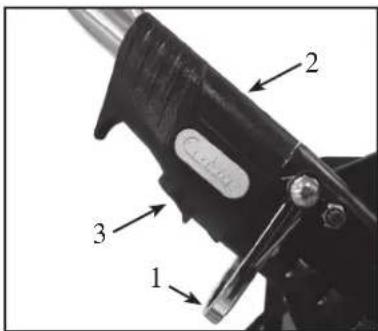

• Always make sure that the main locking device (2) and the button (3) on both sides clicks into locked position.

- The safety catch (1) (secondary locking mechanism) is activated to prevent unintentional folding if the chassis locks are not locked into position. Make sure, before you use the pram that both chassis locks are in locked position.

- Before use always make sure that both main locking devices and the center locking device are in locked position.

- Always make sure that the center locking device are locked into position by pressing down on the center plastic part. This step is very important!

Attaching the wheels

- Remove the plastic protection from the axles. Save them for future use.

- Release the brake by pushing the brake bar upwards using minimum force with your foot.

- Press in the hub cap's release button (5 or 5a), push the wheel onto the axle as far as it can go. Release the button and pull the wheel towards you, until you hear a definite click. Repeat the same procedure for both rear wheels. Make sure that the wheels are attached properly and cannot be pulled off the axle.

IMPORTANT

- The wheels are greased and can leave marks on textiles. Please use wheel protection indoors to protect your floors.

- Risk of suffocation. Don't let your child play with or in some other way handle the plastic protectors.

Attaching the front wheels to chassis.

(Only for chassis with removable front wheels.)

- Depress the release button (6) and push the front wheel in place (7).

Important.

- Before use, always make sure that the front wheels are correct mounted to the chassis.

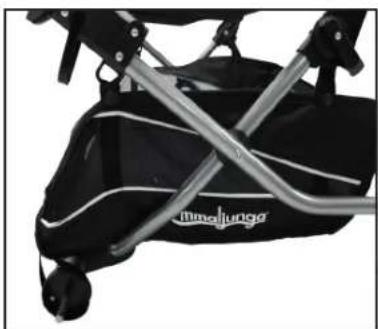

- Attach the shopping tray to the chassis according to the included instruction.

Assembly and usage of chassis

6

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand adjusting a small wheeled bicycle wheel, with a 13-inch angle indicator (no text or symbols on the wheel itself)

10

Close-up of a hand adjusting a mechanical component with numbered parts (14 and 15), no visible text or symbols beyond labels.

Manual Double Viking v. 2.0

Engaging the parking device

• Engage the parking device by pushing the brake pedal (8) all the way down with your foot.
  • Disengage the parking device by lifting the pedal up with your foot.

WARNING

• Never leave the vehicle without first engaging the parking device.
• The brake should always be engaged when you lift your child in and out of the stroller/pram.
• Avoid uphill or downhill parking.
• Make sure that the cogs are attached properly on both back wheels.
• Make sure that the brake pin engages into the cogs when the vehicle is parked.

How to adjust the height of the handle

- Adjust the height by pressing the grey buttons on the inside of the handle (9). Keep the buttons pressed in while you adjust the handle to the required position (10).

Removing front wheels from cahssis.

(Only for chassis with removable front wheels.)

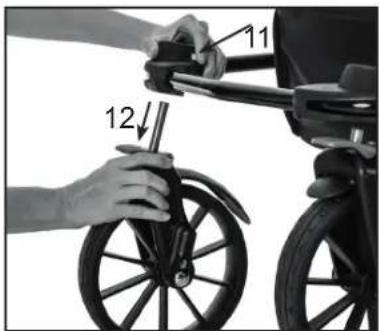

- Depress the release button (11) and pull out the front wheel (12).

The front wheel can be fixed or swivel 360 degrees.

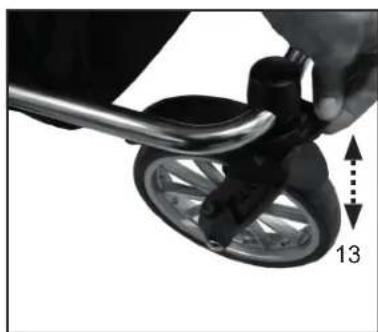

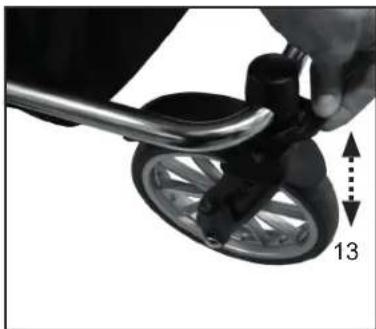

• The wheels are fixed by pressing the locking ring (13) down when the wheels are positioned straight forward.
• The wheels can rotate freely 360 degrees by pulling the locking ring up.

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Folding the chassis

• Start by making sure that the brake is engaged.
• Lower the backrest/seat unit into its lowest position by pulling the backrest lever and lowering the seat unit down to it's lowest position before it is folded.

IMPORTANT!

• The backrest/seat unit should always be in its lowest position (fully reclined) before the pram is folded. Please note! The lowest recline position should only be used when folding the stroller.
• Ensure the front wheels ar in the swivel position by pulling the locking ring up.
• Fold the chassis by first pressing in the buttons (14) at the same time and pull the two main locking devices, one on each side upwards (15).

Assembly and usage of chassis

11

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the number 16 (no visible text or symbols)

- Lift the center locking device (16).

12

Close-up of a hand using a mechanical tool to adjust a component, with a 17-degree rotation indicator (no text or symbols visible)

• Lift the secondary locking device (17) and fold the handle forward.
• If you need to make more space you can remove the wheels by pressing in the hub cap's release mechanism and pulling the wheel off the axle.
• Wipe off any dirt or grease from the axles before you replace the wheels.
• Push the handle bar forward and let the chassis slowly fold.

13

Person walking beside a baby stroller with a person standing beside it (no visible text or symbols)

WARNING

- Never pull a pram with swivel front wheels behind you. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

14

Close-up of a hand adjusting a black bicycle frame with a handle (no visible text or symbols)

Transport clip

A transport clip is attached to the chassis.

- Fold the chassis and snap the clip over the chassis frame to secure it in place.

Assembly and usage of seat unit

1

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Removing and assembling the seat-fabrics

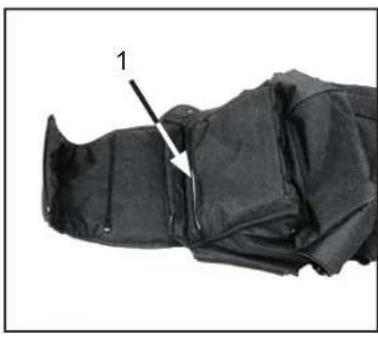

• The fabrics of the pram are assembled at delivery, but can be removed to be washed.
• Before washing, remove the wooden seat plate which you will find within the seat unit fabrics. Open with the aid of the zipper (1).

IMPORTANT

- Follow the washing instructions in this instruction manual's section for care and maintenance.

2

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

• To assemble the seat unit fabrics, open all of the zippers on the seat-fabrics. Insert the wooden seat plate. Insert the seat unit's aluminium frame into the fabric as shown in the picture (2).
• The black plastic strap on the seat unit frame (3) should be placed on the outside of the fabric.

3

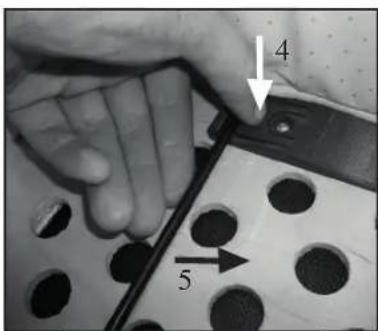

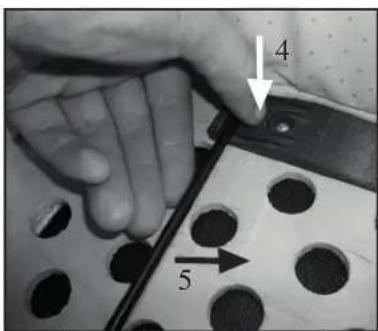

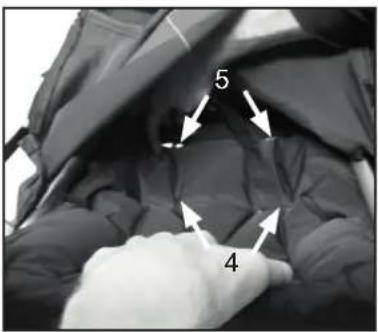

- Place the shoulder harness straps through the holes – (4) or (5) depending on the size of the child – in the backrest of the seat fabric.

- Put the shoulder harness protection pads back on the harness.

4

- Place the crutch strap through the holes – (6) or (7) in the seat fabric and the wooden seat plate.

5

Close-up of a person adjusting a backpack with straps and cable (no visible text or symbols)

- Secure the black plastic strap to the seat fabric with the aid of the two Velcro straps on the fabrics.

Manual Double Viking v. 2.0

Assembly and usage of seat unit

6

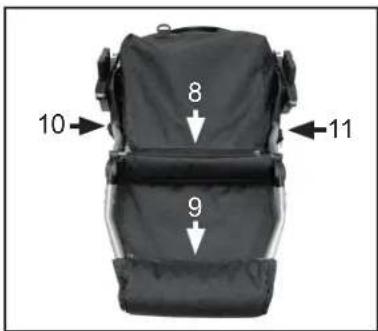

- Check that all zips are attached, (five in total):

- For the wooden plate

- 1 pc under the seat (8)

- 1 pc under the footrest (9)

- 1 on each side of the seat along the black plastic Easy fix attachment points (10 and 11).

WARNING

- Before you use the pram, make sure that the seat fabrics are correctly attached and that all 5 zippers are correctly fastened.

7

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Assembly of the hood

• Affix both the hood clips on the side of the seat unit.

WARNING

• The hood should be assembled when the pram is in use.

Height adjustment of the hood

- The height of the hood can be adjusted by sliding the hood up and down on the frame of the seat unit.

8

Close-up of a backpack with visible straps and straps (no text or symbols)

Removing the hood fabric

- Open the zipper and remove the fabric.

9

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

WARNING

• Shearing and Compression points

Note the following when assembling a hood fabric on the aluminium hood frame. Make sure that the hood frame is assembled as shown in pictures 9 and 10. Incorrect assembly as shown in picture 11 and 12 can cause shearing and compression points.

This is both for disassembling to wash and changing the hood fabric.

10

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

66

Assembly and usage of seat unit

11

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the car itself)

12

Close-up of a person wearing a white safety vest with a black handle, against a plain background (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a belt buckle with a white arrow pointing to the belt (no text or symbols visible)

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to it (no visible text or symbols)

Manual Double Viking v. 2.0

Assembly of the bumper bar

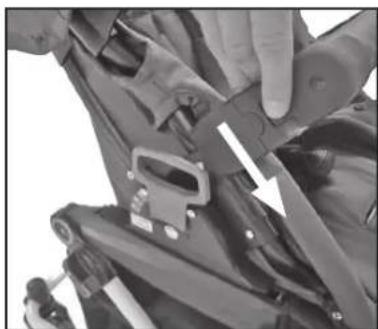

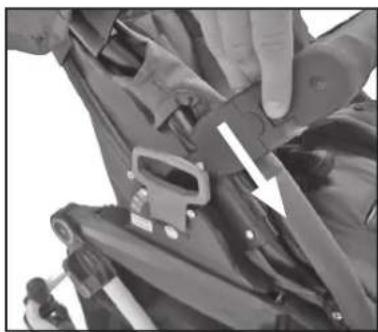

• Slot both attachments pieces located at each end of the bumper bar, on to the plastic pieces on the seat unit.
• The crutch strap is assembled around the bumper bar with the popper.

WARNING

- Make sure that the bumper bar is attached when the child is placed in the pram.

Open the bumper bar

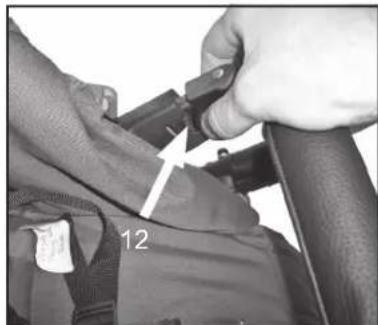

• Press the button (12) and open the bumper bar.
• The complete bumper bar can be removed by opening the bumper bar on both sides.

WARNING

- Make sure that the bumper bar is attached when the child is placed in the pram.

Repositioning of the bumper bar

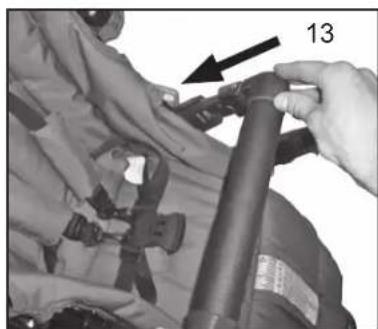

- Lower the bumper bar and press it back into the reciever (13).

WARNING

• The bumper bar shall always be assembled when using the pram.
- Before use, make sure that the bumper bar is securely attached to the seat unit.

Assembly and usage of seat unit

16

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

19

20

68

Attaching and releasing the seat-unit.

• Attaching the seat-unit: Engage the parking device: Lift the seat unit and push the Easy Fix pieces (14) into the receivers on both sides of the chassis (15) until it locks into position with an audible "click".
  • The seat-unit can be attached in both driving directions.

WARNING

• Make sure that the seat-unit is correctly assembled on the chassis before usage.
• To release the seat-unit: Start by engaging the parking device. Press the handles upwards (16) on both sides at the same time and then lift the seat-unit straight up.

WARNING

• Don't allow any child to be placed in the vehicle when it is being folded/unfolded.
• Hold the handles steadily until the seat unit is in place.

IMPORTANT

• Make sure that the seat-unit is in place, before you start to use the vehicle.
- Never lift the top part when it is assembled onto the chassis.

Adjusting the hood

- Adjust the hood by gently pulling the front backwards/forwards (17) until it reaches the desired position.

IMPORTANT!

• Never lift the stroller by holding on to the hood.
• Never lift the top part when it is assembled on the chassis.

Note

- If the hood is moved up and down on the handlebar legs scratches can occur on the paint. Keep the handlebar legs clean from dirt and dust.

Sun Canopy

- The hood can be pulled forward to provide sun protection.

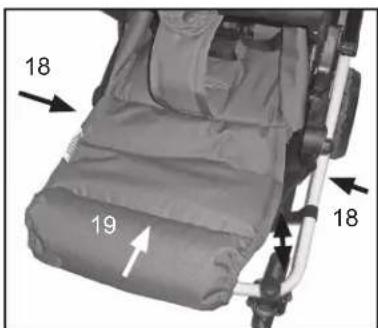

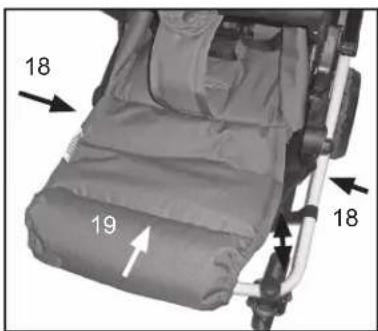

Adjusting the footrest

• The footrest can be adjusted into different positions. Adjust the footrest to the down position by pushing in the release buttons (18) on each side. Keep the release buttons pushed in and adjust (19) into the desired position.
  • To adjust into the horizontal position lift the footrest upwards.
• The stroller features an automatic adjustment of the footrest into the horizontal position which is required for folding.

WARNING

- Do not let the child/children stand on the footrest.

Positioning of the shoulder straps

Moving from the lowest to the highest position.

• In order to move the shoulder straps to the highest position. Remove the shoulder harness protection pads
• Open all the zippers to enable to access the backrest of the seat unit.

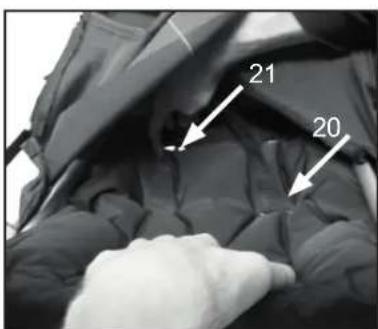

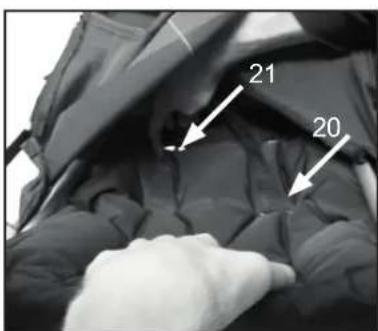

• Move the straps from the lower holes (20) to the higher position (21).

Moving from the highest to the lowest position.

- In order to move the shoulder straps from the highest to the lowest position, follow the same steps as above.

Assembly and usage of seat unit

21

22

23

24

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the diagram itself)

25

Illustration of a baby stroller with a curved arrow labeled '32' indicating motion or direction (no text or symbols beyond the number)

Manual Double Viking v. 2.0

Positioning of the crutch strap

Moving from the inner to the outer position.

• In order to move the crutch strap from the inner to the outer hole, open the zipper (22) to access the bottom of the seat unit.
• Pull out the strap from the under side (23) and insert the strap in the outer hole through the fabrics and the wooden seat plate (24).
• Close the zipper (22).

Moving from the outer to the inner position.

- In order to move the crutch strap from the outer to the inner hole, follow the same steps as above.

WARNING

- Before you use the pram, make sure that the seat fabrics are correctly attached and that all 5 zippers are correctly fastened

Adjust the 5-point harness

• Bring crutch strap (25) forward between the child's legs and up toward the front of the waist. Insert the waist straps (26) into the harness buckle until they "click" into place. Make sure the waist straps are fastened securely.
• Adjust all sliders (27) on the waist and shoulder strap so that the straps fit snugly around the child.
• To release the shoulder and waist straps, press the buttons (28) in the centre of the harness buckle.
• Attachment points are provided at the ends of each waist strap for a separate harness complying with BS 6684

WARNING

- Always fasten the child in with the harness when they are placed in the pram. Make sure that all attachment points are correctly fastened and that the harness is assembled in the pram.

Adjusting the backrest/seat unit

- Pull the backrest lever (plastic strap) (29) and lower/ raise the backrest/seat unit into the desired position (30).

WARNING

- Make sure that the backrest/seat unit is locked into one of its 4 positions by pushing the backrest/seat unit backwards until it locks into one of its positions. Please note! The lowest recline position should only be used when folding the stroller.

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Folding of the chassis

- Apply the brake on the pram. Push back the hood (31) towards the backrest.

WARNING

• Always remove the child before you fold or unfold the vehicle.
- Keep children away when folding or unfolding the vehicle.
- Lower the backrest/seat unit into its lowest position by pulling the backrest lever and lowering the seat unit down to its lowest position before it is folded (32).

IMPORTANT!

• The backrest/seat unit should always be in its lowest position (fully reclined) before the pram is folded. Please note! The lowest recline position should only be used when folding the stroller.
• Fold the chassis according to the instructions accompanying picture 9-10.
• To make the pram more compact when folding, the bumper can be removed according to the instructions in accompanying pictures 4-5.

Assembly and usage of carrycot

1

2

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a textured, curved object with a numbered label '6' and an arrow pointing to it (no readable text or symbols)

5

Assembly of pram body

- Remove plastic covers from mattress and fabrics and discard. The bottom of the carrycot is made out of wood.

WARNING

- Risk of suffocation. Do not let your children play with the plastic bag.

Assembly of pram body

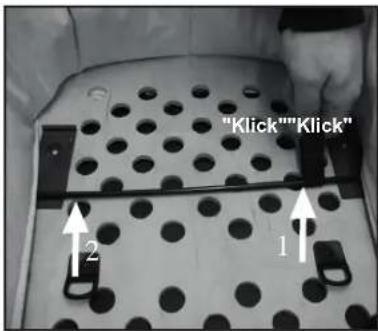

• In order to extend the pram body, slide the metal bar along the carrycot base until it clicks into one of the plastic receivers.
• Pull one side of each metal bar into position (1) and then the other side (2) so that both sides clicks into the plastic recievers (3).
• Repeat the same steps with the metal bar on the other side of the pram body.

WARNING

- Before using the carrycot, make sure that the metal bars have clicked into all four plastic receivers (3) so that the frame of the pram body is held firmly in place.

Folding the carrycot

• Lift the mattress.
• Push down the button on the plastic part (4).
• Push the metal bar past the button (5).
• Repeat same steps on all four corners on the carrycot base.
• Slide the metal bars along the bottom and fold the carrycot base.

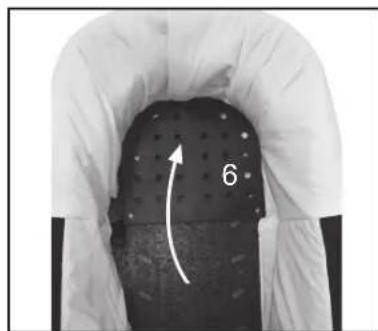

- Turn over the backrest (6) to its layback position. (Available on certain models only)

Adjusting the Backrest (Available on certain models only)

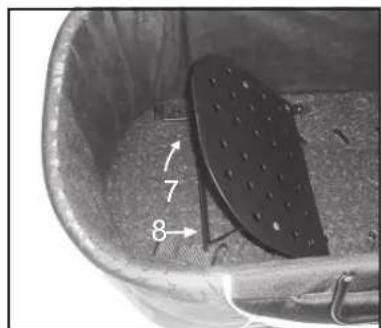

- Raise the backrest (7), push the plastic legs (8) so that it rests against the metal support bars.

Assembly and usage of carrycot

6

- Insert the mattress (9)

WARNING

- Do not place any additional mattresses in the carrycot. Only use the original Emmaljunga mattress that is included with the product.

7

Close-up of a fabric or material sample with a numbered arrow and label '10' (no readable text or symbols beyond the number)

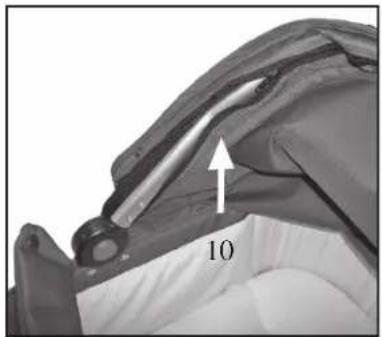

Removing the hood fabric

- Open the zipper (10) and remove the fabric.

8

Black and gray patterned object resembling a vehicle or cushion device, with no visible text or symbols

Attach the hood

- Attach the velcro to the exterior of the carrycot (11).

9

Adjust the hood

- Press both buttons (12) on the inside of the hood before adjusting the hood (13).

IMPORTANT

- Never lift the carrycot when it is assembled onto the chassis.

10

Close-up of a baby stroller seat with a numbered label '14' pointing to the seat area (no other text or symbols visible)

Attachment of the carrycot

- Engage the parking device: Lift the carrycot by the handles and push the Easy Fix attachments into the receivers (14) on both sides of the chassis until it locks into its position.

WARNING

- Make sure that the top part is in locked into position on both sides.

Assembly and usage of carrycot

11

Remove the carrycot

• Engage the parking device.
• Push in the button and pull the lever on the underside of the carrycot (15). Lift the carrycot (16). Depending on the position of the child lift the carrycot with the handle in one of the two lift positions as shown in the pictures 12 and 13. This is very important, never lift the carrycot in any other position than these two!

12

Close-up of a mechanical component with a curved base and a vertical panel, labeled '17' in the top-left corner (no other text or symbols visible)

WARNING

• Always carry the carrycot with the handle (17) as shown in the pictures 12 and 13 depending on the position of the child.
- Only carry the carrycot with the lifting handle in one of these two positions. This is very important.

13

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

WARNING

• Never place pram body near stairs, on top of tables or in other areas where it might fall down.
• Never use the carrycot as a cradle outdoors or on uneven surfaces.
• Never use the carrycot as a permanent bed for your child.
• For models without mosquito net. To prevent the child from grabbing and pulling the net, only use a mosquito net that is appropriate for the pram and that can be secured to the carrycot.

Care and maintenance

General care advice

• Never expose your vehicle to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your vehicle in cold and/or damp places. In order to avoid mould it is important that you make sure that it is completely dried in room temperature after use.
• Should the chassis become wet, dry it off promptly. Make sure the vehicle is completely dry before storing.
• Rinse and dry off the pram, if you have used the pram close to the sea or on salted roads or pavements.
• Take care when transporting or storing the chassis. The chassis surface is delicate. Scratches to the chassis surface, that arise after purchase are not cause for a valid complaint.

Routine Inspection

• Regularly clean the chassis and metal parts of the vehicle -dry off and lubricate all joints of the chassis. When the pram is used during the winter time, cleaning of the pram should be done at least once a week. Lack of maintenance could cause corrosion. Should corrosion on the surface occur, which is a possibility, you are required to remove this with car wax in order to avoid rust. (never use a corrosion cleaning agent on the wheels)
• It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check regularly that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken or damaged.
• all plastic parts are not cracked or broken.
  • the wheel bushings are in a good condition.
• both velcros are securely fastened around the plastic strap on the backrest/seat unit
• all elastic straps are in a good condition.
• the secondary locking mechanism is intact and can move freely.
  • the brake works and the brake cogs are intact
• the tyre air pressure is correct (only air tyre) (see marking on tyre: 28 P.S.I. = 1,8 bar; 35 PSI = 2,5 bar)
• check the handle regularly and the bottom of the carry-cot/lift for damage or wear and tear.

PLEASE OBSERVE

• When in need of servicing with original parts and other technical issues that require a professional decision, always get in touch with your retailer where your Emmaljunga product was purchased.
• The product that you have chosen follows the guarantee regulations valid from the 1st of July 2002 (SFS 2002:587) You have a right to demand this information when you purchase your pram at your retailer.

WARNING

- Tyres can when in contact with PVC-floor or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Two automotive components: a wheel rim and a gas cylinder (no text or symbols visible)

Manual Double Viking v. 2.0

• The parking brake consists of moving parts and requires regular maintenance for correct function.
• To ensure effective functioning always make sure that the parking brake is well lubricated. Immediately remove sand, snow, ice and dirt from any moving part of the braking system.
• Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the parking brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.
• If you use your Emmaljunga pram/stroller on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

Care and maintenance

Washing instructions

- Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with lukewarm water. Use mild liquid soap as detergent. Cleanse it thoroughly. Drip dry the fully extended hood.

- Seat fabric and 5-point harness:

Remove the seat fabric from the chassis and remove the wooden seat board from the seat unit fabrics. Hand wash seat fabrics in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. Only wipe the nylon straps and plastic parts clean with a damp cloth. Do not hand wash. Make sure the harness is dry before reassembly.

• Bumper bar padding:

Remove the bumper bar fabric from the bumper bar. Handwash in lukewarm water. Use mild liquid soap as detergent on the surface of the exterior fabric. Handle non-woven interior material with care. Drip-dry.

- Carrycot:

Remove hood and mattress. Wipe the exterior fabric and the interior nonwoven material, clean with a damp cloth. Do not hand wash. Dry the pram body in its fully extended position. Make sure the wooden base is protected from any water.

General Information

- Ironing:

If any fabric part needs to be ironed, always use a 100 % cotton cloth in-between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 %) polyester and the interior fabrics on gentle heat (110°C on the iron).
- Make sure all parts are completely dry before reassembly. Check the trimmings and the seam on the seat fabric underneath the backrest-pocket.
- You may apply a material protector on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place your child/children in the stroller for at least 24 hours after applying a material protector.

Reassembly after washing

WARNING

- Make sure all parts are assembled correctly according to the instructions in this manual.

- Make sure the seat base board is correctly positioned before reassembly and use.

IMPORTANT

Washing advice for leatherette fabrics

- Fabrics made of leatherette must not be washed according to the above instructions. Leatherette fabrics must only be cleaned with a drop of uncoloured washing up detergent and wiped down with a damp cloth, dry at room temperature.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements. In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

Double Viking Chassis

☐ 1 pc folded chassis with 2 trays
□ 2 pc wheel 300 mm
☐ 2 pcs Swivel front wheels incl. Mudguards
□ 1 pc Instruction manual

Viking Seat Unit

☐ 1 pc seat unit incl 5-point harness
□ 1 set shoulder harness pads
□ 1 pc hood
1 pc seat-unit fabrics
1 pc bumper bar cover

Viking Bassinet

□ 1 pc bassinet
□ 1 pc hood fabric
□ 1 pc apron
□ 1 pc mattress

2. Check the functions of the chassis.

Unfold the chassis.

□ Check that the chassis locks function on both sides.
☐ Check that the safety catch/safety buttons function correctly by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.
☐ Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.
☐ Check the harness function on the seat unit by locking and unlocking the harness.
☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
☐ Check that the backrest can be adjusted and locks securely into each of its four positions.
☐ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
☐ Check that the parking device locks both rear wheels when engaged.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible differences on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check the chassis locks function on both sides.

Check the safety catch/safety buttons function by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.

Check the safety catch/safety buttons function by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Check that the brakes lock both rear wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

Indholdsfortegnelse

Afsnit

Kassens indhold.... 78

Emmaljunga Original-tilbehør.... 78

Product photo of a baby stroller with black wheels and gray cabinetry (no visible text or symbols)

To klapvognssæder

Black and white photo of a baby stroller with a canopy cover, no visible text or symbols

Black and white photo of a two-wheeled baby stroller with cream cover (no text or symbols visible)

Black and white baby stroller with two covers, no visible text or symbols

To Bag's

• To Bag's, begge bagud rettet

5

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Black and white photo of a baby stroller with two large boxes, no visible text or symbols

Black stroller with a white cross symbol on the front, no text or symbols present

ADVARSEL

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle rear lunge seat with metal frame and wheels (no visible text or symbols)

Manual Double Viking v. 2.0

ADVARSEL

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle tire with a metal handle, showing the wheel and seat (no text or symbols visible)

10

Anvend bremsen

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

• Løft centrums-stellås (16)

Close-up of a hand using a power tool to adjust or install a component, with no visible text or symbols.

ADVARSEL

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

Transport klips

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Afmontering af kalechestoffet

Black-and-white photo of a robotic arm holding a tool, with a large checkmark symbol above (no text or symbols on the robot or background)

ADVARSEL

• Klemrisiko

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols on the device itself)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a mechanical device with a handle and mounting bracket, no visible text or symbols

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand using a tool to adjust or install a dark object, with no visible text or symbols.

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

90

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

• Afmontering: Start med at bremse vognen. Tryk op i håndtagene (16) på begge sider samtidig og løft op i overdelen.
  • Overdelen kan monteres i begge retninger.

ADVARSEL!

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

Manual Double Viking v. 2.0

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

92

Close-up of a mechanical component with a black bracket and circular holes, labeled '3' (no text or symbols beyond the number)

3

4

Close-up of a textured, curved object with a white arrow and number 6, possibly part of a device or component (no readable text or symbols)

5

Manual Double Viking v. 2.0

Montering af barnevogns overdel

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Afmontering af kalechestoffet

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

VIGTIGT

• Løft aldrig i overdelen när den er monteret på stellet

Close-up of a mechanical component with a textured surface and a labeled part '17' (no readable text or symbols)

ADVARSEL

Open gray fabric or cushion device with a labeled number 17, no visible text or symbols on the device itself.

ADVARSEL

Close-up of a robotic arm handling a metallic cylindrical device with a tool, no visible text or symbols

Product photo of a car wheel and a gas cylinder (no text or symbols visible)

Product photo of a baby stroller with two shades of gray and black design (no visible text or symbols)

To sportsvognsdeler

• To sportsvognsdeler, begge bakovervendt.

2

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with cream cover (no text or symbols visible)

• To sportsvognsdeler, begge framovervendt.

4

Black and white baby stroller with two covers, no visible text or symbols

To Bager

• To bager, begge bakovervendt.

5

Product photo of a baby stroller with two canopy cover, black frame, and black wheels (no text or symbols visible)

Black and white photo of a baby stroller with two large covers, no visible text or symbols

Black baby stroller with a white cross symbol on the front, isolated on white background (no text or symbols)

ADVARSEL

- Bruk aldri vognen med kun en bag eller sportsvognsdel. Vognen skal aldri brukes med en plass tom.

8

Black and white photo of a baby stroller with no visible text or symbols

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

Close-up of a black bicycle saddle with metal frame and wheels, no visible text or symbols

Manual Double Viking v. 2.0

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

Bruk av bremsen

Close-up of a hand holding a black bicycle tire with a metal handle, showing the wheel and seat (no text or symbols visible)

Framhjulene kan låses fast eller rotere i 360 grader.

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand using a power crimping tool with a 17-degree angle indicator (no text or symbols on the tool itself)

ADVARSEL

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black mechanical component on a surface (no visible text or symbols)

Sammenslåings lås

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ADVARSEL

- Rakning og klemmerker Merk følgende ved montering av en kalesjetekstil på en aluminium-sramme. Forsikre deg om at kalesjerammen er montert som vist på bildene 9 og 10. Ukorrekt montering som vist på bildene 11 og 12 kan forårsake raking og klemmerker.

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a mechanical device with a handle and mounting bracket, no visible text or symbols

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand using a tool to adjust or install a dark object, with no visible text or symbols.

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a person adjusting a bicycle seatbelt device with numbered labels (14 and 15) on the handle (no text or symbols on the device itself)

Close-up of a person using a bicycle pedal device with a hand adjusting the pedal (no visible text or symbols)

- Avmontering: Brems vognen. Trekk samtidig handtakene (16) (et på hver side) opp, og løft samtidig sportsvogndelen opp.

ADVARSEL

Close-up of a mechanical component with a triangular cover and arrow indicating 17 degrees (no text or symbols)

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

116

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a perforated cover and arrow indicating a specific area (no text or symbols present)

5

Manual Double Viking v. 2.0

Montering av Bagen

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Feste kalesjen

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

Montering av bagen på understellet

Close-up of a gray fabric or cushion with a vertical seam and label '17' (no other text or symbols visible)

ADVARSEL

Open gray cylindrical device with internal structure, labeled '17' (no text or symbols on device)

ADVARSEL

• Plasser aldri bagen i nærheten av trapper, oppe på bord eller på andre steder der den kan falle ned.
• Bruk ikke bagen som vugge utomhus eller på ujevne underlag
• Bruk ikke bagen som seng til ditt barn.
• Modeller som ikke har myggnett: Bruk kun myggnett som passer vognen og som sitter slik fast at barnet ikke kan komme til å trekke i det.

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas can beside it (no text or symbols visible)

Product photo of a baby stroller with two shades of gray and black design (no visible text or symbols)

Kaksi istuinosaa

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with cream cover (no text or symbols visible)

Black and white baby stroller with two covers, no visible text or symbols

Kaksi koppaa

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with a large canopy (no text or symbols visible)

Black baby stroller with a white cross symbol on the front, isolated on white background (no text or symbols)

VAROITUS

Black and white photo of a baby stroller with no visible text or symbols

Close-up of a hand using a tool to adjust or install a small object on a black wheeled cart (no visible text or symbols)

3

4

5

Close-up of a black llimo/junge bicycle saddle with metal frame and wheels (no visible text or symbols)

Manual Double Viking v. 2.0

VAROITUS

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a bicycle tire with a curved handle, showing measurement annotation (no text or symbols on the object itself)

10

Jarrun käyttö

Eturenkaiden irrotus.

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand using a power tool to adjust or install a component, with no visible text or symbols.

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component on a surface (no visible text or symbols)

Kuljetuslukko

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Kuomun kasaaminen

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

VAROITUS

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a mechanical device with a handle and mounting bracket, no visible text or symbols

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand using a tool to adjust or install a dark object, with no visible text or symbols.

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Turvakaaren asennus

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

19

20

Manual Double Viking v. 2.0

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

140

Close-up of a mechanical component with a black bracket and circular holes, labeled '3' (no text or symbols on the main subject)

Close-up of a textured, curved surface with a numbered arrow and dot pattern (no readable text or symbols)

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray patterned object resembling a vehicle or cushion device, with no visible text or symbols

Kuomun kiinnitys

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

TÄRKEÄÄ

Close-up of a gray fabric or cushion with a vertical seam and label '17' (no other text or symbols visible)

VAROITUS

Open gray fabric bag with visible internal structure and label '17' (no text or symbols on the bag itself)

VAROITUS

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive components: a black wheel with metallic blades and a gas cylinder (no text or symbols visible)

Oluline ohutusalane teave

Oluline ohutusalane teave

Oluline ohutusalane teave

Oluline ohutusalane teave

Product photo of a baby stroller with black wheels and gray cabinetry (no visible text or symbols)

Kaks isteosa

Black and white photo of a baby stroller with a canopy cover, no visible text or symbols

Black and white baby stroller with two shades of cream, no visible text or symbols

Black and white baby stroller with two covers, no visible text or symbols

Kaks korvi

Product photo of a baby stroller with two shades of gray cabinetry (no text or symbols visible)

Black and white photo of a baby stroller with two large boxes, no visible text or symbols

Black stroller with white cross symbol on body, no text or symbols present

HOIATUS!

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle saddle with silver railings and wheels, no visible text or symbols

Manual Double Viking v. 2.0

HOIATUS!

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle tire with a metal handle, showing the wheel and seat (no text or symbols visible)

10

Seisupiduri rakendamine

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand using a power crimping tool with a 17-degree angle indicator (no text or symbols on the tool itself)

Side view of a baby stroller with a person walking nearby (no text or symbols visible)

HOIATUS!

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a hand adjusting a dark-colored backpack with attached straps and cables (no visible text or symbols)

- Kinnitage musta värvi plastrihm isteosa riidest kattele kahe Velcro rihma abil.

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Katte paigaldamine

- Vajutage katte kaks plastist jalandit isteosa plastist pesadesse (üks kummalgi küljel).

HOIATUS!

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

HOIATUS

• Katuse alumiiniumkarkassi kinnitus.

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a mechanical device with a handle and mounting bracket, no visible text or symbols

13

Close-up of hands adjusting a mechanical component with an arrow indicating a detail (no visible text or symbols)

14

Close-up of a hand using a tool to adjust or install a dark object, with no visible text or symbols.

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Katte reguleerimine

Mechanical component with a triangular hood and arrow indicating 17-degree rotation (no text or symbols)

Jalatoe reguleerimine

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

164

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a numbered arrow pointing to a textured surface (no visible text or symbols)

5

Manual Double Viking v. 2.0

Vankri monteerimine

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Paigaldage korvile kaarvari-katus

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

TÄHELEPANU!

Close-up of a gray mechanical component with a visible internal structure and label '17' (no text or symbols on the object itself)

HOIATUS!

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

HOIATUS!

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

BRĪDINĀJUMS: Sargāt no uguns.

Product photo of a baby stroller with two shades of gray and black design (no visible text or symbols)

Divi sēdekli

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

Black and white baby stroller with two shades of gray cabin, no visible text or symbols

Black and white photo of a baby stroller with two covers, no visible text or symbols

Divas kulbas

• Divas atmuguriskas kulbas.

5

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Viens sēdeklis un viena kulba

Black and white photo of a baby stroller with two large covers, no visible text or symbols

Black stroller with white cross symbol crossed, no text or symbols present

BRĪDINĀJUMS

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle rear lunge seat with metal frame and wheels (no visible text or symbols)

BRĪDINĀJUMS

- Attach the shopping tray to the chassis according to the included instruction.

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle buckle with a metal handle, showing the wheel and seat (no text or symbols visible)

10

Manual Double Viking v. 2.0

Close-up of a hand adjusting a metal hose component on a motorcycle (no visible text or symbols)

Close-up of a hand using a mechanical tool to adjust or press a component, with a 17-degree rotation indicator (no visible text or symbols)

Person walking beside a baby stroller with a person standing beside it (no visible text or symbols)

BRĪDINĀJUMS

Close-up of a hand adjusting a black bicycle frame (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a hand adjusting a backpack with straps and clips (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

8

Close-up of a backpack with visible straps and straps (no text or symbols)

9

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

10

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

186

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the car itself)

12

Close-up of a person wearing a white safety vest with a black handle, against a plain background (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing or adjusting a cylindrical pipe component, with a numbered arrow pointing to the pipe (no text or symbols visible)

Manual Double Viking v. 2.0

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Pârsega pielâgošana

Close-up of a mechanical device with a triangular cover and arrow indicating rotation (no text or symbols)

Illustration of a baby stroller with a numbered arrow indicating '31' (no text or symbols on the device itself)

25

Manual Double Viking v. 2.0

Close-up of a mechanical component with a labeled part '3' and circular holes (no text or symbols beyond the number)

Close-up of a textured, curved object with a white arrow and number 6, possibly part of a device or component (no readable text or symbols)

Close-up of a textured fabric or material surface with a numbered annotation '10' and an arrow pointing to a feature (no readable text or symbols beyond the number)

Black and gray patterned object resembling a stylized backpack or cushion, with no visible text or symbols.

Close-up of a small car seat with a numbered label '14' pointing to the seat area (no other text or symbols visible)

SVARİGI

Close-up of a mechanical component with a curved surface and a labeled part '17' (no text or symbols on the main subject)

BRĪDINĀJUMS

Exterior view of a gray cylindrical device with a lid open, showing internal structure and no visible text or symbols.

BRĪDINĀJUMS

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a white background (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Grid of empty rectangular boxes arranged in 4 rows and 5 columns (no text or symbols)

Grid of empty rectangular boxes arranged in 3x3 pattern (no text or symbols)

Riteni un bremzes

Grid of eight empty rectangular boxes arranged in two rows and three columns (no text or symbols)

Vizuālā pārbaude

Grid of empty rectangular boxes arranged in 3x3 pattern (no text or symbols)

Ellošana

Product photo of a baby stroller with two shades of gray and black design (no visible text or symbols)

Dvi sédynès

• Dvi sédynès, abi atsuktos atgal.

2

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

• Dvi sédynès, viena atsukta i priekj, viena atgal.

3

Black and white baby stroller with two shades of gray cabin, no visible text or symbols

• Dvi sédynès, abi atsuktos i priekj.

4

Black and white photo of a baby stroller with two covers, no visible text or symbols

Du lopšiai

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Black and white photo of a baby stroller with two large covers, no visible text or symbols

Black stroller with white cross symbol crossed, no text or symbols present

ISPĖJIMAS

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand pressing down on a black wheeled cart component (no visible text or symbols)

3

4

Close-up of hands using a bicycle to adjust the wheel rim (no text or symbols visible)

5

Close-up of a black athletic bag with white trim and metal railings, no visible text or symbols

ISPÉJIMAS

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand adjusting a small wheeled bicycle wheel, with a 13-inch angle indicator (no text or symbols on the wheel itself)

10

Manual Double Viking v. 2.0

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the number 16 (no visible text or symbols)

Close-up of a hand using a power tool to adjust or press a component, with a 17-degree rotation arrow visible (no text or symbols on the tool itself)

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

ISPÉJIMAS

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Transportavimo rankena

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Sédynès apvalkalo nuèmimas ir uždéjimas

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a person adjusting a backpack with straps and cable (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Gaubto montavimas

Close-up of a backpack with visible straps and straps (no text or symbols)

Gaubto audinio nuèmimas

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ISPÉJIMAS

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

210

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a person wearing a white safety vest with a metal bracket, against a plain background (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a car seatbelt with a clip, showing no text or symbols

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

Manual Double Viking v. 2.0

Close-up of a person using a PECO-branded exercise machine, no visible text or symbols on the device itself

- Sédynés atleidimas: Pirmiausia junkite stovéjimo mechanizmą. Spauskite rankenas (14) abiejose pusése vienu metu, tada kelkite sédynę tiesiai aukstyn.

ISPÈJIMAS

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Gaubto reguliavimas

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

Pakojo reguliavimas

Illustration of a stroller with a bag and seat, showing body positioning and a dotted arrow indicating direction (no text or symbols)

25

Illustration of a baby stroller with a dotted arc indicating measurement (no text or symbols present)

Manual Double Viking v. 2.0

Close-up of a mechanical component with two circular holes and a central hole, labeled '3' (no text or symbols beyond the number)

Close-up of a textured, curved object with a numbered arrow and dotted pattern, possibly a device or component (no readable text or symbols)

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Gaubto apvalkalo nuémimas

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Gaubto tvirtinimas

Close-up of a small car seatbelt with a numbered arrow pointing to the seat area (no text or symbols visible)

Close-up of a mechanical component with a curved base and a vertical panel, labeled '17' in the top-left corner (no other text or symbols visible)

ISPÉJIMAS

Open gray cylindrical device with a labeled part '17' (no visible text or symbols on the device itself)

ISPÉJIMAS

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas can beside it (no text or symbols visible)

Product photo of a baby stroller with black wheels and gray cabinetry (no visible text or symbols)

Black and white photo of a baby stroller with a canopy cover, no visible text or symbols

Black and white photo of a two-wheeled baby stroller with two shades of gray cabin (no text or symbols visible)

Black and white baby stroller with two covers, no visible text or symbols

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with a large canopy (no text or symbols visible)

Black stroller with a white cross symbol on the front, no text or symbols present

OSTRZEŻENIE

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle rear lunge seat with metal frame and wheels (no visible text or symbols)

Manual Double Viking v. 2.0

OSTRZEŻENIE

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle buckle with a curved handle, showing the wheel and seat (no text or symbols visible)

10

232

Manual Double Viking v. 2.0

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand using a power tool to adjust or install a component, with no visible text or symbols.

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

OSTRZEŻENIE

Close-up of a hand adjusting a black bicycle frame component (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a hand adjusting a dark fabric bag with attached straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

8

Close-up of a backpack with visible straps and straps (no text or symbols)

9

Black-and-white photo of a robotic arm holding a tool, with a large checkmark symbol above (no text or symbols on the robot itself)

10

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols on the device itself)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a person in a white chair with a large X symbol on the backrest (no text or symbols present)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a car seatbelt with a clip, showing no text or symbols

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to a detail (no visible text or symbols)

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

Manual Double Viking v. 2.0

Illustration of a baby stroller with a numbered arrow indicating '31' (no text or symbols on the device itself)

25

238

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a textured, curved object with a white arrow and number 6, possibly part of a device or component (no readable text or symbols)

5

Manual Double Viking v. 2.0

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Mocowanie budki

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

WAŻNA INFORMACJA

Close-up of a mechanical component with a textured surface and a labeled part '17' (no readable text or symbols)

OSTRZEŻENIE

Open cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

OSTRZEŻENIE

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Black and white photo of a baby stroller with two canopy cover, no visible text or symbols

Два сиденья

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with twin canopy (no text or symbols visible)

Black and white baby stroller with two covers, no visible text or symbols

Две люльки

Product photo of a baby stroller with two canopy cover, black frame, and white wheels (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with a large canopy (no text or symbols visible)

Black baby stroller with a white cross symbol on the front, isolated on white background (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Black and white photo of a two-wheeled stroller with black seats and wheels (no text or symbols visible)

2

Close-up of a hand adjusting a black stroller with a handle, no visible text or symbols

3

4

5

Close-up of a black bicycle saddle with metal frame and wheels, no visible text or symbols

Manual Double Viking v. 2.0

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle buckle with a handle, showing the number 13 (no text or symbols on the device itself)

10

258

Manual Double Viking v. 2.0

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Close-up of a hand using a mechanical tool to adjust or press a component, with a 17-degree rotation indicator (no text or symbols visible)

Person walking beside a baby stroller with a backpack (no visible text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a hand adjusting a black bicycle skis with wheels (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a hand adjusting a dark fabric bag with attached straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Установка капюшона

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the car itself)

12

Close-up of a mechanical device with a handle and mounting bracket, no visible text or symbols

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand using a tool to adjust or install a dark fabric item, with no visible text or symbols.

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Mechanical component with a triangular hood and arrow indicating rotation (no text or symbols)

19

20

Manual Double Viking v. 2.0

Illustration of a stroller with a bag and seat, showing a 31-degree angle indicator (no text or symbols on the device itself)

25

264

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a numbered component and arrow indicating direction (no text or symbols)

5

Manual Double Viking v. 2.0

Сборка люльки

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Крепление капюшона

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

Крепление люльки

Close-up of a gray mechanical component with a visible part labeled '17' (no text or symbols on the object itself)

ПРЕДУПРЕЖДЕНИЕ

Open gray fabric bag with visible internal structure and label '17' (no text or symbols on the bag itself)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive wheel components: a black and silver tire and a gas cylinder (no text or symbols visible)

Manual Double Viking v. 2.0

Product photo of a baby stroller with two shades of gray and black design (no visible text or symbols)

Black and white photo of a two-wheeled baby stroller with a canopy cover (no text or symbols visible)

Black and white baby stroller with two shades of cream, no visible text or symbols

Black and white baby stroller with two covers, no visible text or symbols

Dva dětské koše

Product photo of a baby stroller with two shades of gray cabin and black wheels (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with a large canopy (no text or symbols visible)

Black stroller with a white cross symbol on the front, no text or symbols present

VAROVÁNÍ

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle rear lunge with visible tracks and wheels (no text or symbols)

Manual Double Viking v. 2.0

VAROVÁNÍ

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle buckle with a curved handle, showing the wheel and seat (no text or symbols visible)

10

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Close-up of a hand using a mechanical tool to adjust or install a component, with no visible text or symbols.

Person walking beside a baby stroller with a person standing beside it (no visible text or symbols)

VAROVÁNÍ

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

Přepravní úchyt

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Montáž stříšky

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

VAROVÁNÍ

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols on the object itself)

12

Close-up of a mechanical device with a handle and mounting bracket, no visible text or symbols

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand using a tool to adjust or install a dark cable or cable component, with no visible text or symbols.

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Montáž madla

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Mechanical component with a triangular hood and arrow indicating rotation (no text or symbols)

19

20

Manual Double Viking v. 2.0

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

VAROVÁNÍ

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

Close-up of a mechanical component with a black bracket and circular holes, labeled '3' (no text or symbols beyond label)

3

4

Close-up of a textured, curved surface with a numbered arrow and dot pattern (no readable text or symbols)

5

Manual Double Viking v. 2.0

Montáž korbičky

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Připevnění stříšky

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Nastavení stříšky

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

DÜLEŽITÉ

Close-up of a mechanical component with a lid and handle, no visible text or symbols

VAROVÁNÍ

Open gray fabric bag with visible internal structure and label '17' (no text or symbols on the bag itself)

VAROVÁNÍ

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Product photo of a baby stroller with black wheels and gray cabinetry (no visible text or symbols)

Dos asientos

Black and white photo of a baby stroller with a canopy cover, no visible text or symbols

Black and white baby stroller with two shades of cream, no visible text or symbols

Black and white baby stroller with two covers, no visible text or symbols

Dos capazos

Product photo of a baby stroller with two shades of gray cabinetry (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with a large canopy (no text or symbols visible)

Black baby stroller with a white cross symbol on the front, isolated on white background (no text or symbols)

ADVERTENCIA

Black and white photo of a baby stroller with no visible text or symbols

2

Close-up of a hand adjusting a black stroller with a handle, showing mechanical components and a numbered label (4) — no readable text or symbols present.

3

4

5

Close-up of a black bicycle saddle with silver railings and wheels, no visible text or symbols

Manual Double Viking v. 2.0

ADVERTENCIA

Mechanical assembly diagram showing a wheel and shaft with labeled component '8' (no text or symbols beyond label)

7

8

9

Close-up of a hand holding a black bicycle buckle with a handle, showing the number 13 (no text or symbols on the device itself)

10

308

Manual Double Viking v. 2.0

Close-up of a hand adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

12

Close-up of a hand using a mechanical tool to adjust a component, with a 17-degree rotation indicator (no text or symbols visible)

13

Person pushing a baby stroller with a person standing beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle skis with wheels (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a hand adjusting a dark fabric bag with attached straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Close-up of a person's backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ADVERTENCIA

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Manual Double Viking v. 2.0

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a person in a white chair with a large X symbol on the backrest (no text or symbols present)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a car seatbelt with a white arrow pointing to the belt (no text or symbols visible)

15

Close-up of hands adjusting a mechanical component with a numbered arrow pointing to a detail (no visible text or symbols)

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and attached equipment, no visible text or symbols

19

20

Manual Double Viking v. 2.0

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

314

Manual Double Viking v. 2.0

Close-up of a mechanical component with a black bracket and circular holes, labeled '3' (no text or symbols on the main subject)

3

4

Close-up of a medical device with a numbered arrow pointing to a textured surface (no visible text or symbols)

5

Manual Double Viking v. 2.0

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Extraer la tela de la capota

- Abra la cremallera (10) y extraiga la tela.

8

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Colocar la capota

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

IMPORTANTE

Close-up of a mechanical component with a curved surface and a label '17' (no readable text or symbols)

ADVERTENCIA

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

ADVERTENCIA

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Product photo of a car wheel and a gas cylinder (no text or symbols visible)
