USER MANUAL CE 4500 - QUICK INSTALLATION GUIDE SOLAC

Solac is a registered Trade Mark 04/08

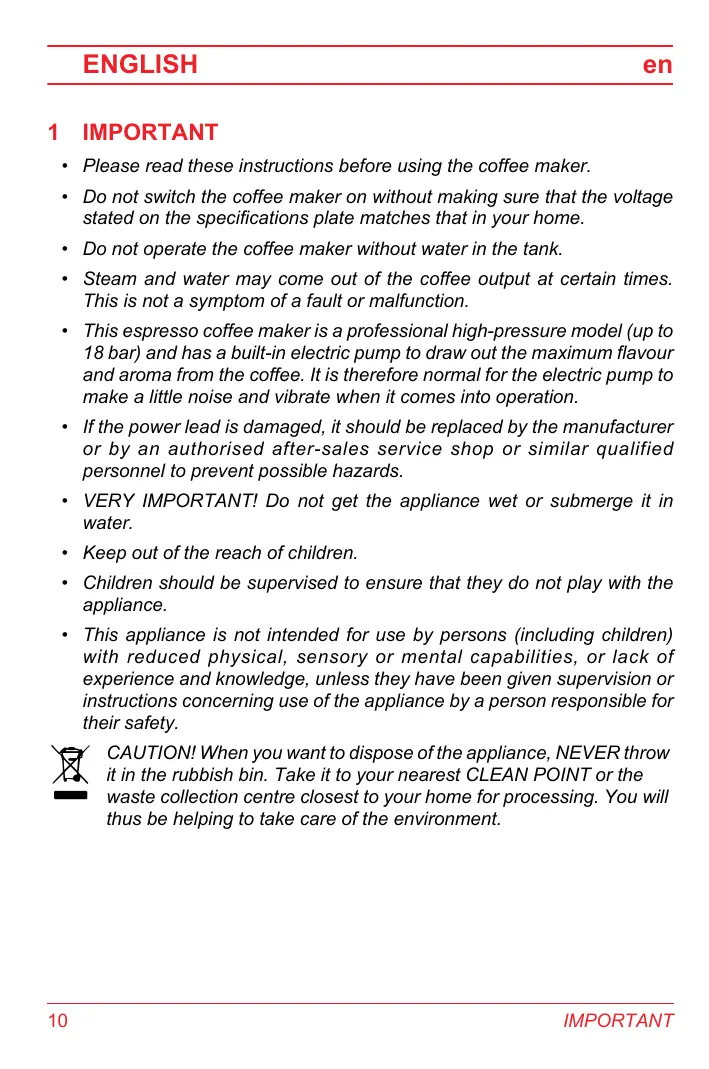

ENGLISH en IMPORTANT Please read these instructions before using the coffee maker. Do not switch the coffee maker on without making sure that the voltage stated on the specifications plate matches that in your home. Do not operate the coffee maker without water in the tank. Steam and water may come out of the coffee output at certain times. This is not a symptom of a fault or malfunction. This espresso coffee maker is a professional high-pressure model (up to 18 bar) and has a built-in electric pump to draw out the maximum flavour and aroma from the coffee. It is therefore normal for the electric pump to make a little noise and vibrate when it comes into operation. Ifthe power lead is damaged, it should be replaced by the manufacturer or by an authorised after-sales service shop or similar qualified personnel to prevent possible hazards. VERY IMPORTANT! Do not get the appliance wet or submerge it in water. Keep out of the reach of children. Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. CAUTION! When you want to dispose ofthe appliance, NEVER throw it in the rubbish bin. Take it to your nearest CLEAN POINT or the = waste collection centre closest to your home for processing. You will thus be helping to take care of the environment.

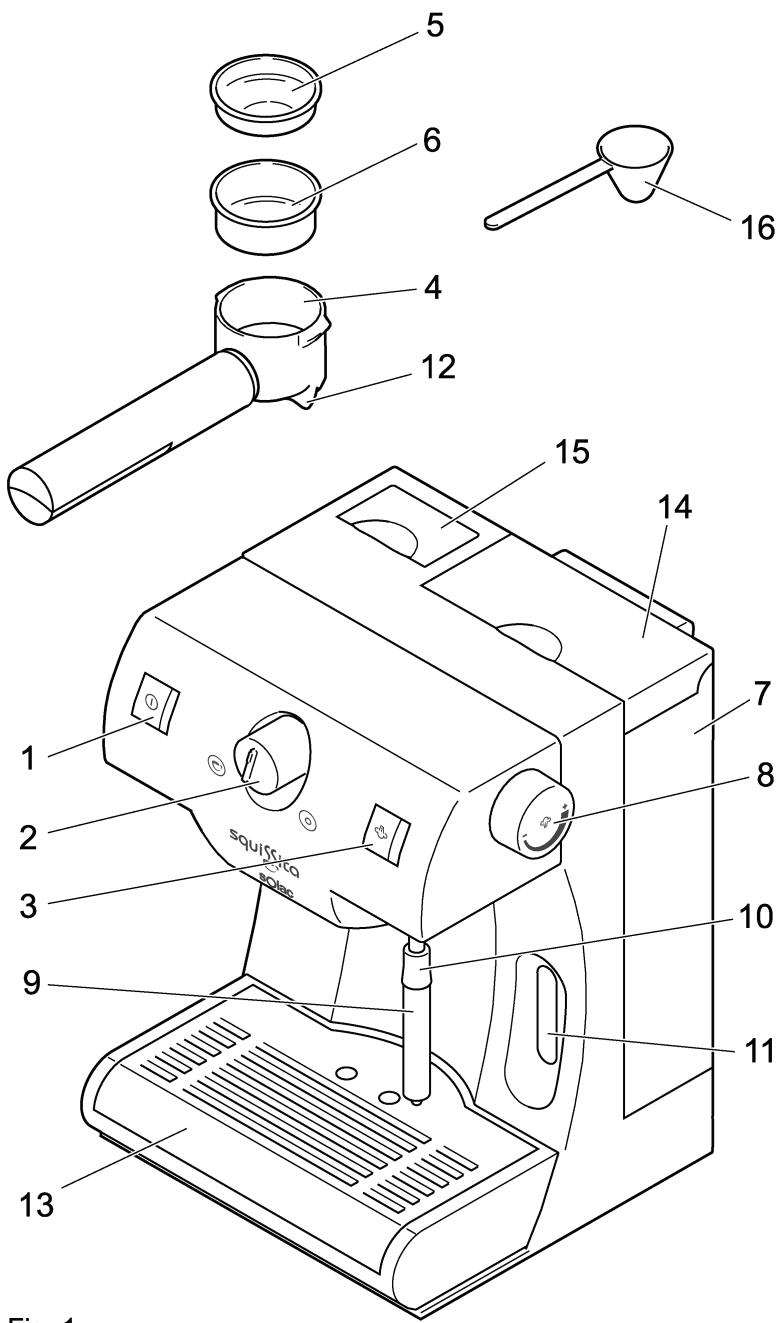

2 MAIN COMPONENTS Fig. 1 Switch with mains pilot light Coffee extraction and de-pressurisation selector Switch with steam warning light Filter holder 1-cup filter (and for single-dose pod) 2-cups filter Water tank Steam nozzle control Steam nozzle 10 Steam nozzle protector 11 Water level viewer 12 Coffee outlet holes 13 Cup-holder tray 14 Tanklid 15 Filter container 16 Dispenser spoon CCRERCENNEN 3 TIPS + Before using the coffee machine for the first time, we recommend allowing the equivalent of 8-10 cups of water to run through the filter holder (with no coffee in the filter). This completely cleans the entire system. + Use the dispenser spoon (16) to adjust the correct amount of coffee. One spoonful is equivalent to one cup of coffee. +_Ifthe coffee seems to be coming out too slowly, the grind is too fine. We recommend that you avoid using extra-fine ground coffee. 4 OPERATION A. COFFEE a. Preparing coffee 1 Fillthe water tank. To do this, remove the tank (7) from the rear of the coffee maker or open the lid (14) and pour the water in. 2 Plug the coffee maker into the mains and press the switch (1). The orange pilot light will come on and change to green once the appliance is ready to make the coffee. MAIN COMPONENTS Fig. 1 11

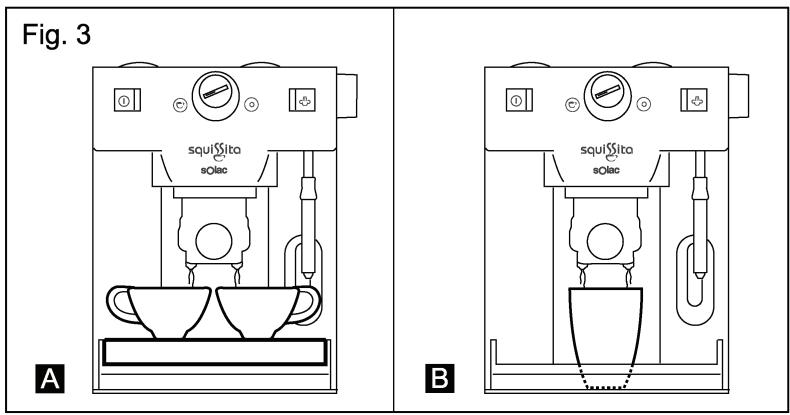

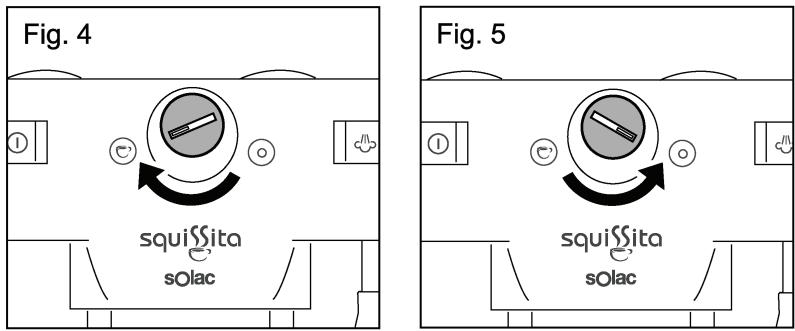

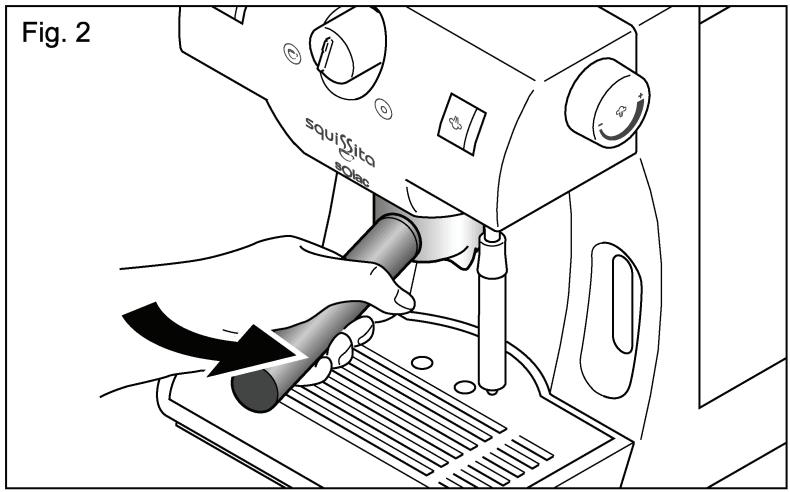

3 1f you want to make sure your first cup of coffee is hot, insert the filter- holder without coffee in it and let one or two cups of hot water run out in order to warm the components of the coffee-maker. 4 Fit the filter you want to use, for 1 or 2 cups (5 or 6), in the filter holder (4). Use the spoon to dispense the coffee. Its capacity is the recommended dose for one coffee. Press the filter coffee down lightly. 5 If you would like to use coffee tablets, open the single-serving bag. Put the 1-cup filter (5) on the filter holder (4). Put the tablet in the filter holder. b. Starting the coffee maker 6 Next, place the filter holder (4) in the coffee-maker. 7 Make sure the filter holder is securely closed, pushing the handle firmly from left to right, as it may drip otherwise (Fig. 2). 8 Install the cup-holder tray (13) according to the size of the cups you are going to use (fig. 3): A. Small cups B. Large cups 9 Place one or two cups under the coffee outlet holes (12). 10 When the mains pilot light (1) turns green, turn the coffee extraction selector (2) to the left until the selector mark points to the cup icon (fig.4). The coffee will start to come out. 11 Once the required amount of coffee has come out, turn the selector (2) back in the opposite direction to the de-pressurisation position (fig. 5) to stop the coffee from coming out and vent the residual pressure in the filter holder. c. Cleaning +_ If you have used ground coffee, clean the grounds by placing the filter holder under running water. +_ If you used a single-dose pod, remove the bag and put it in the rubbish. B. STEAM # To heat any type of liquid using the steam nozzle (9): 1 Plug the coffee maker into the mains and press the switch (1). The orange pilot light will come on and change to green once the appliance is ready to make the coffee. 2 Next, press the steam switch (3) and wait until its pilot light comes on. 12 OPERATION

3 When the pilot light comes on, insert the steamer (9) into the liquid to be heated and gradually open the steam nozzle control (8). Always handle the steam nozzle (9) by the protective handle (10), to avoid potential burns. 4 After using, we recommend you clean any traces of dirt on the inside. To do this: 5 Place an empty container beneath it, turn on the steamer switch (8) again and let the steam out. 6 Turn off the steam switch (3). 7_lf you are going to use the steamer (9) continually to heat a large amount of liquid (more than around 100 ml), proceed as follows: once the steam has lost pressure (there is no force), close the steam nozzle (8) control and turn the coffee extraction selector (2) until a little water comes out of [en | the coffee outlet area. Then, wait until the steam switch pilot light (3) comes back on. Repeat these steps as often as you consider necessary. 8 If you want to make coffee after using the steam nozzle, it is advisable to allow two cups of water to run out through the filter holder (with no coffee in the filter) to ensure that the next cup of coffee comes out at the right temperature. +_The maximum steam draw-off time is about 1 min.

5 CLEANING AND MAINTENANCE

FN Unplug the coffee maker from the mains. 5 Clean the tank and filter holder regularly. # Do not use alcohol, solvents or abrasive products to clean the coffee maker or tray, just a soft damp cloth. +_ If you use the steam nozzle to heat milk, clean it as soon as possible for easy cleaning. Wait for the steam nozzle to cool down and wipe it with a damp cloth. + Every now and again, for more thorough cleaning of the steamer, proceed as follows: wait until the steamer cools down and unscrew its cylindrical part anticlockwise. Wipe the steamer spindle with a damp cloth and soap the cylindrical part. Make sure that the small hole at the top of the steamer is clean before refitting the part. Fit the steamer on its spindle, screwing it clockwise. # The appliance has an automatic de-pressurising system that channels some of the water from the dregs into the tray. It is advisable to remove the water from the cup-holder tray regularly.

LIMESCALE REMOVAL # We recommend de-scaling the appliance once a year using a special product for coffee machines so as to maintain the coffee maker in perfect condition. We recommend the Solac de-scaling agent. Follow the instructions that come with the de-scaling product. To flush out the circuits, fill the tank again with water only, switch on the coffee maker, fit the filter holder without coffee, and carry out all the steps described in the ‘Operation’ section twice. During this process, press the switch (3) and let steam out for 1 minute.
