USER MANUAL Taste Slim Black CE4510 SOLAC

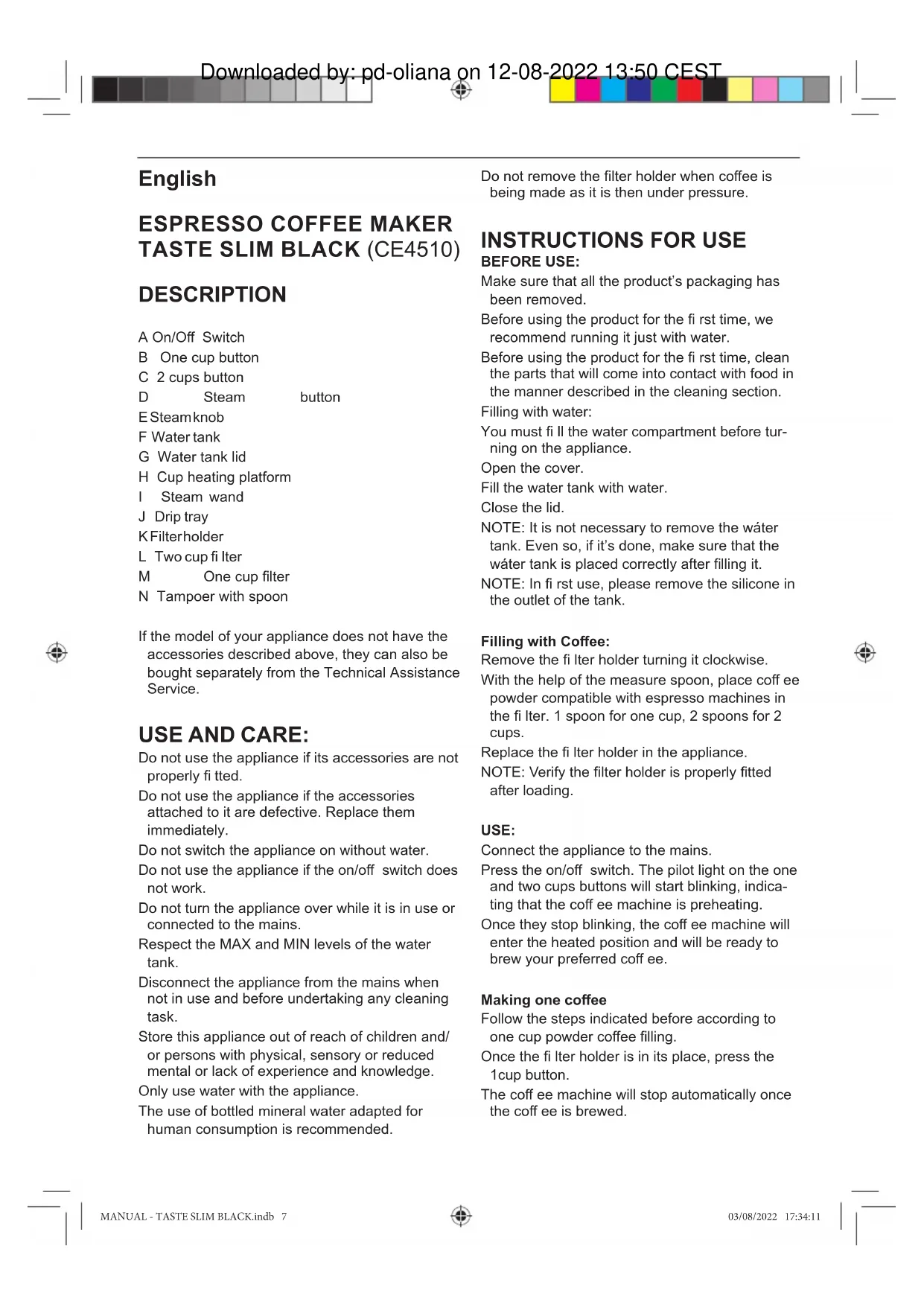

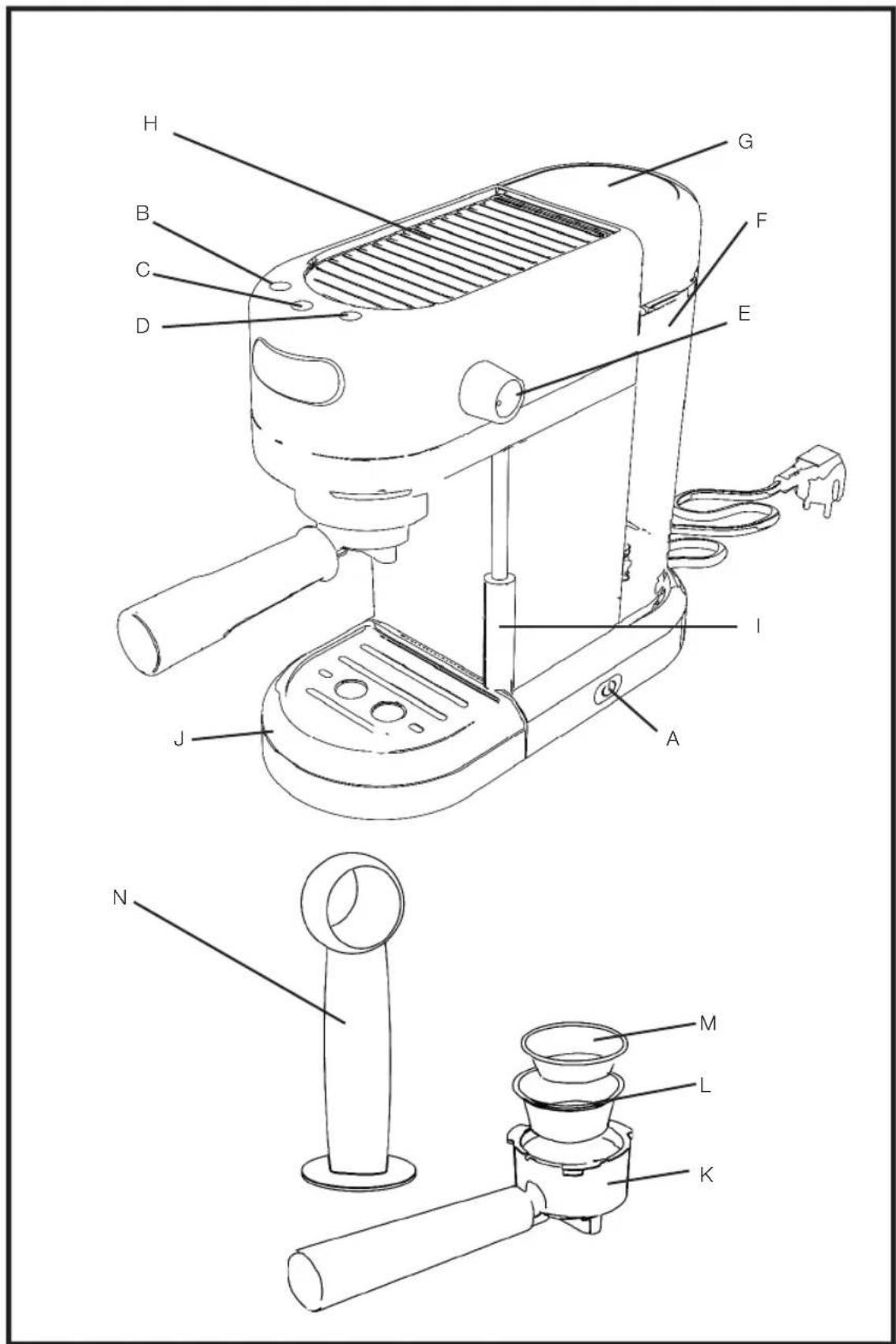

TASTE SLIM BLACK (CE4510) DESCRIPTION A On/Off Switch B One cup button C 2 cups button D Steam button E Steam knob F Water tank G Water tank lid H Cup heating platform I Steam wand J Drip tray K Filter holder L Two cup fi lter M One cup fi lter N Tampoer with spoon If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service. USE AND CARE: Do not use the appliance if its accessories are not properly fi tted. Do not use the appliance if the accessories attached to it are defective. Replace them immediately. Do not switch the appliance on without water. Do not use the appliance if the on/off switch does not work. Do not turn the appliance over while it is in use or connected to the mains. Respect the MAX and MIN levels of the water tank. Disconnect the appliance from the mains when not in use and before undertaking any cleaning task. Store this appliance out of reach of children and/ or persons with physical, sensory or reduced mental or lack of experience and knowledge. Only use water with the appliance. The use of bottled mineral water adapted for human consumption is recommended. Do not remove the fi lter holder when coff ee is being made as it is then under pressure.

INSTRUCTIONS FOR USE

BEFORE USE: Make sure that all the product’s packaging has been removed. Before using the product for the fi rst time, we recommend running it just with water. Before using the product for the fi rst time, clean the parts that will come into contact with food in the manner described in the cleaning section. Filling with water: You must fi ll the water compartment before tur- ning on the appliance. Open the cover. Fill the water tank with water. Close the lid. NOTE: It is not necessary to remove the wáter tank. Even so, if it’s done, make sure that the wáter tank is placed correctly after fi lling it. NOTE: In fi rst use, please remove the silicone in the outlet of the tank. Filling with Coff ee: Remove the fi lter holder turning it clockwise. With the help of the measure spoon, place coff ee powder compatible with espresso machines in the fi lter. 1 spoon for one cup, 2 spoons for 2 cups. Replace the fi lter holder in the appliance. NOTE: Verify the fi lter holder is properly fi tted after loading. USE: Connect the appliance to the mains. Press the on/off switch. The pilot light on the one and two cups buttons will start blinking, indica- ting that the coff ee machine is preheating. Once they stop blinking, the coff ee machine will enter the heated position and will be ready to brew your preferred coff ee. Making one coff ee Follow the steps indicated before according to one cup powder coff ee fi lling. Once the fi lter holder is in its place, press the 1cup button. The coff ee machine will stop automatically once the coff ee is brewed. MANUAL - TASTE SLIM BLACK.indb 7MANUAL - TASTE SLIM BLACK.indb 7 03/08/2022 17:34:1103/08/2022 17:34:11 Downloaded by: pd-oliana on 12-08-2022 13:50 CESTMaking two coff ees Follow the steps indicated before according to two cups powder coff ee fi lling. Once the fi lter holder is in its place, press the 2 cups button. The coff ee machine will stop automatically once both coff ees are brewed. Making ESE pods coff ee Follow the steps indicated before according to one cup powder coff ee fi lling BUT instead of placing powder coff ee, place the ESE pod in the fi lter. Once the fi lter holder is in its place, press the 1cup button. The coff ee machine will stop automatically once the coff ee is brewed. NOTE: The coff ee brewed can be slightly diff erent from a pods dedicated machine Hot Water From heated position, place a cup under the steam tube. Open the steam knob turning it forward. Hot water will start coming out. To end, close the water system by turning the knob in reverse. Milk frothing From heated position, press the steam button. It will start blinking. Once the button stops blinking, the machine will be ready to make dry steam. Place a vase with milk under the steam wand and introduce the steam tube until the outlet is nearly at the bottom of the vase. Open the steam knob turning it forward. The noi- se of the steam coming out will be heard. Regulate the temperature by the touch with the vase and when you see it ready, close the steam knob. NOTE: Once the steam is done, if we want to return to the coff ee extraction, we must press the button for one or two coff ees and release pressure following the steps of HOT WATER in this manual. Releasing a little water will lower the temperature and release the pressure.

SETTING UP THE COFFEE QUANTITY

To do this, prepare the machine according to the function you wish to set up (make 1 coff ee, make 2 coff ees). Press and hold the button of the function you want to program. When it reaches to desired quantity, release e the button. The setting will be stored in the machine and be kept in memory even after it is switch off and unplugged. To cancel the individual coff ee quantity setting, press button for one coff ee at the same time with Steam button for 3 seconds (an acoustic signal sounds). The coff ee machine returns to the factory setting. In the two electronic functions of this coff ee maker (make one coff ee or two coff ees) you can set up their duration. NOTE: You can confi gure this step until 60 seconds. STAND-BY FUNCTION: In order to save energy, the appliance passes to stand-by after 30 minutes/seconds if the user does not use it. When the appliance enters to StandBy function, the on/off button will keep blinking slowly.

ONCE YOU HAVE FINISHED USING THE

APPLIANCE: Turn the appliance off , using the on/off switch. Unplug the appliance from the mains. Let the appliance to cool down. Clean the appliance. CLEANING Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task. Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry. Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance. Neither parts of this appliance are suitable for cleaning in the dishwasher. The draining/drying position of the articles washa- ble in the dishwasher or in the sink must allow the water to drain away easily (Fig.?). Then dry all parts before its assembly and stora- ge. MANUAL - TASTE SLIM BLACK.indb 8MANUAL - TASTE SLIM BLACK.indb 8 03/08/2022 17:34:1103/08/2022 17:34:11 Downloaded by: pd-oliana on 12-08-2022 13:50 CESTHOW TO DEAL WITH LIME SCALE INCRUSTA- TIONS: For the appliance to work correctly it should be kept free of limescale or magnesium incrusta- tions caused by the use of hard water. To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation. This coff ee maker is prepared to remind you to descale the machine after 500 cycles. This time is a guideline and we recommend the following: Every 10 weeks if the water is “very hard”. Every 17 weeks if the water is “hard”. Homemade solutions are not recommended in the decaling of this appliance, such as the use of vinegar.

LED LIGHT INDICATOR GUIDE

Single-cup Coff ee Indicator Double-cup Coff ee Indicator Steam Indicator Cause Solution Flashing Flashing Flashing Coff ee and hot water is pre-heating

Lights on Lights on Lights on Coff ee and hot water pre-heating fi nished

Breathing light on Lights off Lights off Making single cup coff ee or water

Lights off Breathing light on Lights off Making double cup coff ee

Lights off Lights off Flashing Steam is pre-heating / Lights off Lights off Lights on Steam pre-heating fi nished

Lights off Lights off Breathing light on Making steam / Lights off Lights off Lights on Steam fi nished / Flashing quickly Flashing quickly Flashing quickly Temperature sensor short circuit or open circuit Please contact with authorized service facility for repairing. Flashing quickly Flashing quickly Lights off After making the steam, touch the steam switch (the temperature is too high) Wait temperature naturally fall or open steam button to making hot water quick cooling Lights off Lights off Lights off Turn off / Lights off Lights off Lights off Breathing light on Lights off Lights off Thermal fuse open circuit Please contact with authorized service facility for repairing Standby Touch display switch MANUAL - TASTE SLIM BLACK.indb 9MANUAL - TASTE SLIM BLACK.indb 9 03/08/2022 17:34:1103/08/2022 17:34:11 Downloaded by: pd-oliana on 12-08-2022 13:50 CESTTROUBLESHOOTING Problem Cause/Result Solution No water comes out Water tank is empty Pour water in water tank The input voltage or frequency is inconsistent with nameplate Make sure the voltage and frequency is consistent with the nameplate Machine malfunctions Please contact with the authorized service No steam is generated Steam nozzle clogged Clean steam nozzle Water tank is empty Pour water in water tank Machine malfunctions Please contact with the authorized service Coff ee runs out around the edge of the fi lter holder Too much powder in the fi lter Turn off the machine and wait for it cool down, clean the fi lter, then pour appropriate coff ee powder There is powder in the seal ring under group head Implementation of the above operation problems still exist Please contact with the authorized service Coff ee comes out too slow or no coff ee comes out Coff ee powder is too fi ne, and clogged fi lter Use thicker coff ee powder Filter holes are blocked Brush / clean the fi lter Water tank is not inserted Insert the water tank in place Water leakage on the bottom of machine Drip tray is fi lled up Please clean the drip tray Machine malfunctions Please contact with the authorized service Machine is not working The power cord is not plugged well. Plug the power cord into a wall outlet correctly, NTC is short circuit Please contact with the authorized service Machine malfunctions The steam cannot froth. Steam indicator not light on Wait steam indicator lights on. The container is too big or the shape is not fi t Use high and narrow cup or garland cup Used skimmed milk Use whole milk MANUAL - TASTE SLIM BLACK.indb 10MANUAL - TASTE SLIM BLACK.indb 10 03/08/2022 17:34:1103/08/2022 17:34:11 Downloaded by: pd-oliana on 12-08-2022 13:50 CESTFrench

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our offi cial technical assistance services. You can fi nd the closest one by accessing the following web link: http://www.solac.com/ You can also request related information by contacting us. You can download this instruction manual and its updates at http://www.solac.com/ Français
