USER MANUAL GAA 12V-21 Professional BOSCH

Illustration of a portable vacuum cleaner with ventilation slots and control panel (no text or symbols)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 53X (2019.04) T/189

1 609 92A 53X

GAA 12V-21 Professional

BOSCH

de Originalbetriebsanleitung
en Original instructions
fr Notice originale
es Manual original
pt Manual original
it Istruzioni originali
nl Oorspronkelijke gebruiksaanwijzing
da Original brugsanvisning
sv Bruksanvisning i original
no Original driftsinstruks
fi Alkuperäiset ohjeet
el Πρωτότυπο οδηγιών χρήσης
tr Orijinal işletme talimatı
pl Instrukcja oryginalna
cs Původní návod k používání
sk Pôvodný návod na použitie

Deutsch

Sicherheitshinweise

Read all the safety information and general instructions. Failure to observe the safety information and general instructions may result in electric shock, fire and/or serious injury.

Keep all the safety information and general instructions for future reference.

Safety instructions for dealing with batteries

▶ Do not open the battery. There is a risk of short-circuiting.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
▶ Only charge the batteries using chargers recommended by the manufacturer. A charger that is suitable for one type of battery may pose a fire risk when used with a different battery.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

▶ Do not insert the battery into the battery adapter if the release buttons are broken or faulty. The battery may fall out during operation.
▶ Used batteries should be recycled in an environmentally friendly manner. Observe the instructions for this in the "Transport" and "Disposal" sections.

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The battery adapter is intended for use with a Bosch 10.8 or 12 V lithium-ion battery as the power source. The battery adapter can be used to power a maximum of one USB device and one heating element for heated workwear at any one time.

Product Features

The numbering of the components shown refers to the illustrations on the graphic pages.

(1) Battery adapter
(2) USB port
(3) Socket for connector plug of heating element for heated workwear
(4) Battery ^A)
(5) Battery release button
(6) Belt clip
(7) Activation button for USB connection
(8) Connector plug

A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Battery adapter GAA 12V-21

Article number 1 600 A01 433
USB port Type A

Bosch Power Tools 1 609 92A 53X | (25.04.2019)

14 | English

Battery adapter GAA 12V-21

- Charging voltage V= 5
- Charging current (max.) A)	A 2.1
Connection for heating element Heated workwear
- Charging voltage V= 12
- Charging current (max.) B)	A 1.2
Max. permitted length of USB cable m 1.5
Permitted ambient temperature
- during charging °C 0 to +45
- during operation C) and during storage °C	-20 to +50
Recommended batteries GBA 10,8V...	GBA 12V...
Recommended chargers GAL 12...	GAX 18...

A) The actual charging current depends on the USB device connected.
B) The actual charging current depends on the configuration of the heated workwear.
C) Limited performance at temperatures <0^ C
Technical data determined using the battery that comes with the product.

Operation

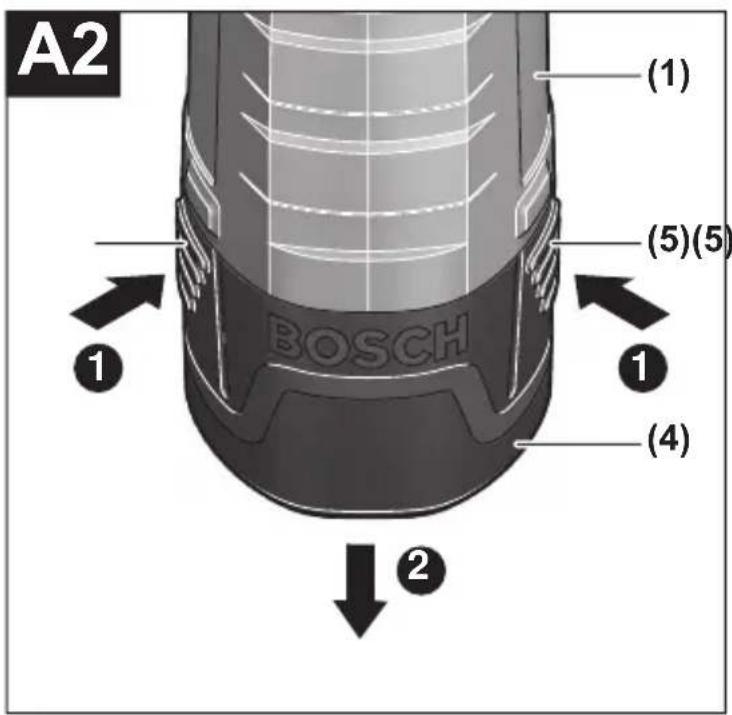

Inserting and Removing the Battery (see figures A1-A2)

▶ Do not use force to insert the battery. The battery is designed in such a way that it can only be inserted into the battery adapter when it is in the right position.

To insert the battery (4), push it all the way into the battery adapter (1).

To remove the battery (4), press the release buttons (5) on the battery and pull it out of the battery adapter (1).

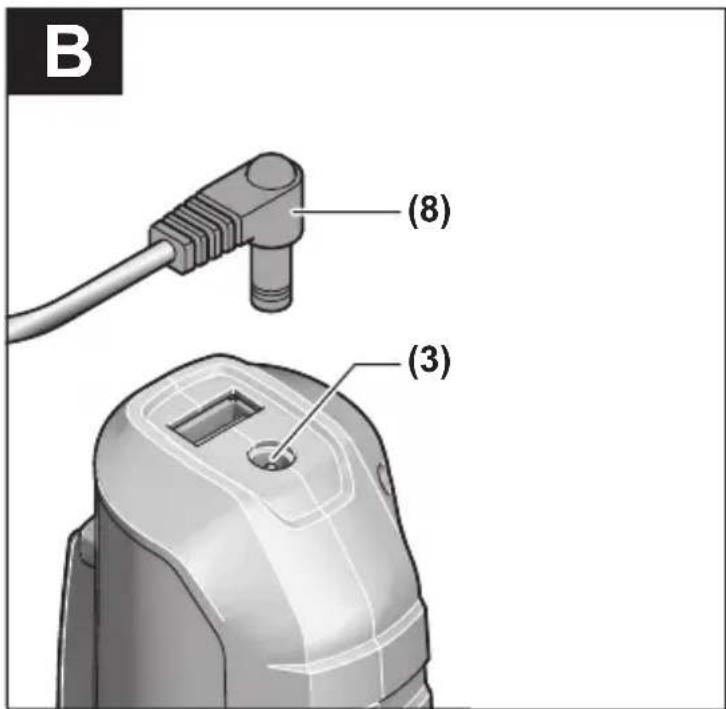

Connecting Heating Elements (see figure B)

Plug the connector plug (8) into the socket (3) on the battery adapter.

Slide the battery adapter (1) into the pocket provided in the garment or attach the battery adapter to your belt using the belt clip (6).

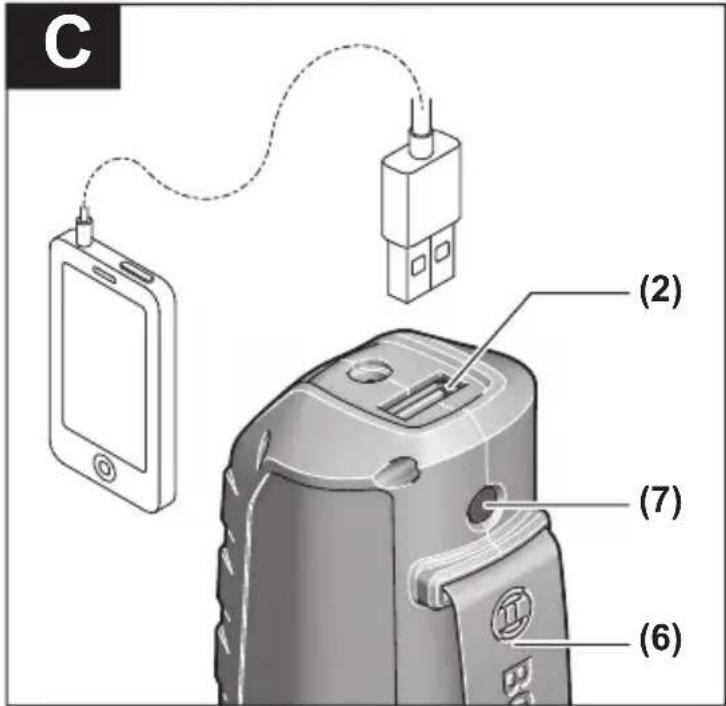

Charging External USB Devices (see figure C)

You can use the USB port on the battery adapter to increase the battery runtime of various battery-operated USB devices, e.g. mobile phones or MP3 players. This can also be done whilst the garment is being heated.

▶ Ensure that your external USB device can be charged using the USB port on the battery adapter. Refer to the specifications related to this topic in "Technical data".

Connect the charging cable of your USB device to the USB socket (2) on the battery adapter (1).

Press the activation button (7) for approx. three seconds. The connected USB device will be charged.

To save energy, the USB port is automatically deactivated after approx. 2 hours. If no charging cable is connected, the USB port is automatically deactivated after 30 seconds.

Rectifying Faults

Problem Corrective measures
Heating element does not warm up. Charge the battery.

	Connect the connector plug (8) correctly.
External USB device cannot be charged using the USB port.	Charge the battery.
	Connect the charging cable of the external USB device to the USB socket (2) on the battery adapter (1).
	Press the activation button (7) for approx. three seconds.
	The external USB device cannot be charged using the USB port on the battery adapter (refer to specifications in "Technical data"A).

A) Some external USB devices cannot be charged with this battery adapter despite being consistent with the technical data.

16 | English

Maintenance and Service

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

English | 17

Inside New Zealand:

Phone: [phone]

Fax:[phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax:[phone]

E-mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

18 | English

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further restrictions.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU, power tools that are no longer usable, and according to the Directive 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 18).

Français

Robert Bosch (France) S.A.S.

Calle Robert Bosch No. 405

Akku-adapter GAA 12V-21

Anbefalede ladere GAL 12...

GAX 18...

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

1 609 92A 53X | (25.04.2019) Bosch Power Tools
