KI52FSDF0 - Fridge SIEMENS - Free user manual and instructions

Product type	Refrigerator
Brand	Siemens
Model	KI52FSDF0
Interior lighting	Side LED and LED spotlight
Cool-Fresh compartment	Yes, with specific drawer
Fruit and vegetable drawer	Yes, with cover and glass divider
Shelves	Standard shelf and telescopic shelf
Door shelves	Yes, removable
Door	Replaceable seal, adjustable flat hinges
Electrical safety	VDE 0701 test required after repair
Repairability	Original spare parts available, repair guided by manual
Required tools	Torx TX20 bit, suction cup, special tool, flat-head screwdriver
Protection during repair	Gloves, safety shoes, disconnect from mains 60s
Documentation	User manual and instruction manual free (PDF, 481 pages)
Available languages	French, English, German, Spanish, Italian, etc.

Frequently Asked Questions - KI52FSDF0 SIEMENS

How to replace the door seal?

Remove the old seal by pulling it out of the grooves. Install the new seal by heating slightly if necessary. Check for damage in the grooves. Refer to section 4.1 of the manual.

How to change the side LED lighting?

Disconnect the appliance 60 seconds before. Use a suction cup to remove the side lighting. Disconnect the electrical connector and reassemble in reverse order. Caution: The LED lighting does not require maintenance; repair is reserved for customer service or specialists.

How to remove the fruit and vegetable drawer?

Open the door, pull the drawer completely outward, then lift it to remove. Assembly is done in reverse order. See section 4.6.

What safety precautions before a repair?

Disconnect the appliance from the mains at least 60 seconds before any repair. Wear protective gloves and safety shoes. After repair, carry out a safety test according to VDE 0701 or national regulations.

Where to find spare parts for this refrigerator?

Only use original Siemens spare parts. Contact customer service or refer to the manual for references (e.g., [00342013] for protective cloth).

How to remove the telescopic shelf?

Pull the shelf until the locking tab releases, lower it and pivot it to the side. Remove it completely. Assembly is the reverse. See section 4.5.

How to disassemble the LED spotlight?

Disconnect the appliance. Use a special tool and a flat-head screwdriver to undo the cover, then the LED spotlight module. Disconnect the electrical connector. Reverse assembly. Caution: repair reserved for specialists.

How to clean the refrigerator?

Disconnect the appliance before cleaning. Use a soft cloth and warm water with a mild detergent. Do not use steam cleaners or abrasive products. Dry thoroughly. Refer to the manual for more details.

What to do in case of lighting failure?

First check the power supply. If the LED lighting does not work, contact customer service. LED repair is reserved for qualified technicians due to the risk of electric shock.

Is the refrigerator easy to repair yourself?

Yes, for some parts like the door seal, shelves or drawers, repairs are guided by the manual. However, for electrical components (LED, spotlight), it is recommended to call a Siemens authorized specialist.

USER MANUAL KI52FSDF0 SIEMENS

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Illustration of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Ремонт

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Ремонт

Пантите са свалени.

Diagram of a two-panel door handle assembly with arrows indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a door, shelf, and a circular component with an arrow pointing to the door (no text or symbols visible)

Ремонт

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Ремонт

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Popravak

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Technical line drawing of a refrigerator door with mounting brackets and internal components (no text or symbols)

Popravak

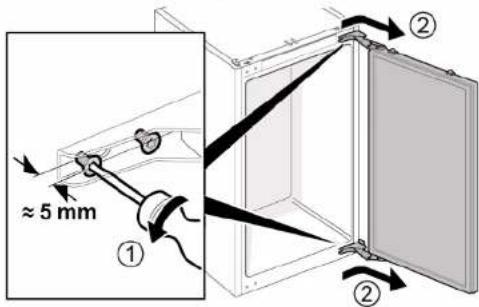

1. 1. Otpustite četiri vijka (1).

2. Gurnite vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi su uklonjeni.

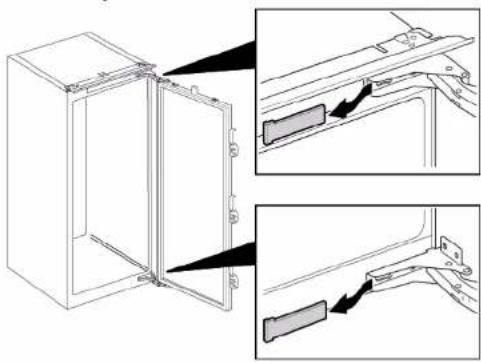

4.2.2 Postavljanje ravnog zgloba

Diagram of a two-tiered plastic container with upward arrows indicating movement or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside (no text or symbols)

1. Spustite izvlačnu policu i zaokrenite je bočno.

2. ➞ Izvlačna je polica uklonjena.

4.5.2 Postavljanje izvlačne police

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena spremnika za voće i povrće

Zahtjev:

Vrata su otvorena.

→ Spremnik je uklonjen.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Uklonite spremnik za voće i povrće.→35

2. 1. Pritisnite polugu ispod obje strane pregrade (1).
3. Povucite pregradu prema naprijed (2).

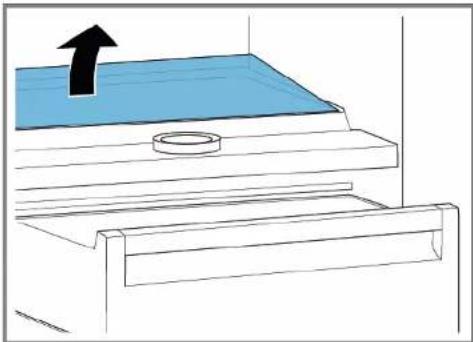

1. Podignite pregradu i zaokrenite je bočno prema van.

Pregrada je uklonjena.

Spremnik za održavanje svježine je uklonjen.

4.8.2 Postavljanje spremnika za održavanje svježine

Close-up of a refrigerator interior showing a glass door and adjacent shelf (no text or symbols visible)

Popravak

Interior view of a refrigerator showing the door, shelves, and a circular dial (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Popravak

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red panel and white circular elements (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with mounting brackets and internal compartments (no text or symbols)

Oprava

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Oprava

Close-up of a refrigerator interior showing glass doors and a circular door with a black arrow pointing to the door (no text or symbols visible)

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Oprava

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

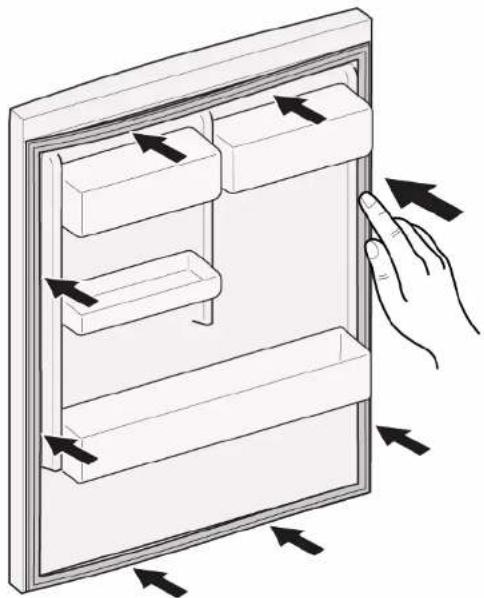

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

→ Beholderen er fjernet.

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparation

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Reparation

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular device mounted on a wall with a red panel attached, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparatie

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparatie

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Interior view of a refrigerator showing a glass door and adjacent shelf (no text or symbols visible)

Reparatie

Close-up of a refrigerator interior showing glass doors and a circular door with a black arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparatie

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

1.2 Explanation of symbols 103

1.2.1 Danger levels.... 103

1.2.2 Hazard symbols 103

1.2.3 Structure of the warnings.... 104

1.2.4 General symbols.... 104

Safety.... 105

2.1 General Safety instructions 105

2.1.1 All domestic appliances 105

Tools and aids.... 106

Repair 107

4.3 Replacing door rack....112

4.6 Replacing fruit and vegetable container 115

4.6.1 Removing fruit and vegetable container.... 115

4.6.2 Installing fruit and vegetable container.... 115

4.7 Replacing partition and cover of fruit and vegetable container 116

4.7.1 Removing partition and cover of fruit and vegetable container ..... 116

4.7.2 Installing partition and cover of fruit and vegetable container 116

4.8 Replacing cool-fresh container.... 117

4.8.1 Removing cool-fresh container 117

4.8.2 Installing cool-fresh container 117

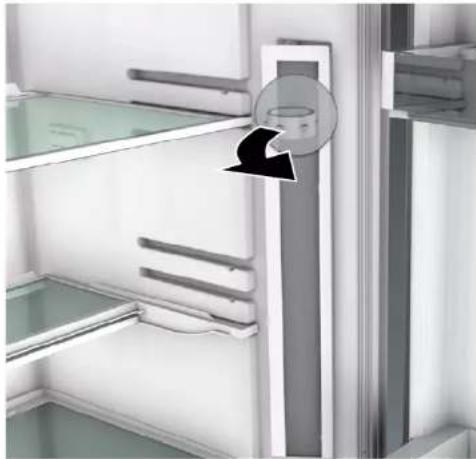

4.9 Replacing LED side bar light.... 118

4.9.1 Removing LED side bar light 118

4.9.2 Installing LED side bar light 119

4.10 Replacing LED spot light 120

4.10.1 Removing LED spot light.... 120

4.10.2 Installing LED spot light 121

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Suction cup[00342224]	∅50 mm
Special tool[00342180]
Torx Bit TX20[00340865]	6,3 mm (1/4")

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

1. If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing flat hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door is removed. See Installation Instruction.
Door is open.

1. Remove two hinge covers.


Technical line drawing of a refrigerator door with mounting brackets and internal compartments, shown in two views (no text or symbols)

Repair

1. 1. Loosen four screws (1).

2. Slide out and remove door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Hinges are removed.

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.4 Replacing shelf

Prerequisite:

Door is open.

4.4.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Shelf is removed.

4.4.2 Installing shelf

▶ Install in reverse order.

Repair

4.5 Replacing extendable shelf

Prerequisite:

√ Door is open.

4.5.1 Removing extendable shelf

1. Pull out extendable shelf until the locking catch is released.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Lower extendable shelf and swing it out to the side.

2. ➕ Extendable shelf is removed.

4.5.2 Installing extendable shelf

▶ Install in reverse order.

Repair

4.6 Replacing fruit and vegetable container

Prerequisite:

√ Door is open.

4.6.1 Removing fruit and vegetable container

▶ 1. Pull container out all the way (1).

1. Remove container (2).

→ Container is removed.

4.6.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.7 Replacing partition and cover of fruit and vegetable container

Prerequisite:

Door is open.

4.7.1 Removing partition and cover of fruit and vegetable container

1. Remove glass plate from partition.

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

1. Remove fruit and vegetable container.→ Page 115

2. 1. Press lever on the underside on both partition sides (1).
3. Pull the partition forwards (2).

1. Lift the partition and swivel it out to the side.

Partition is removed.

1. 1. Lift the cover of fruit and vegetable container.

2. Pull cover of fruit and vegetable container forwards and swivel it out to the side.

Cover of fruit and vegetable container is removed.

4.7.2 Installing partition and cover of fruit and vegetable container

▶ Install in reverse order.

Repair

4.8 Replacing cool-fresh container

Prerequisite:

√ Door is open.

4.8.1 Removing cool-fresh container

▶ 1. Tilt cool-fresh container forwards (1).
2. Remove cool-fresh container (2).

Cool-fresh container is removed.

4.8.2 Installing cool-fresh container

▶ Install in reverse order.

Repair

4.9 Replacing LED side bar light

Required tools:

Suction cup ∅50 mm [00342224]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Danger

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Fridge compartment shelves are removed.

4.9.1 Removing LED side bar light

1. Stick the suction cup on the upper third of LED side bar light.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Repair

1. Pull suction cup with forward LED side bar light in one rotary movement.

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

1. Disconnect electrical connection of LED side bar light.

LED side bar light is removed.

4.9.2 Installing LED side bar light

1. Connect electrical connection of LED side bar light.
2. Fix LED side bar light into it's location on compartment wall (hooks click).
   LED side bar light is installed.

Repair

4.10 Replacing LED spot light

Required tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.10.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Repair

1. Detach LED spot light module.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

LED spot light is removed.

4.10.2 Installing LED spot light

▶ Install in reverse order.

Remonditeave - Külmik

i Selle dokumendiga seoses 123

1.1 Tähtis teave 123

1.1.1 Eesmärk 123

1.2 Sümbolite selgitus 123

1.2.1 Ohutasemed.... 123

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Remont

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Remont

Interior view of a refrigerator showing the door, shelves, and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a document icon and two arrows pointing right, no text or symbols present

Remont

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and tray (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Korjaus

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Cool-fresh-lokero on poistettu.

4.8.2 Cool-fresh-lokeron asennus

Imukuppi ∅50 mm [00342224]

Close-up of a refrigerator interior showing the door, glass panel, and lid (no text or symbols visible)

Korjaus

Close-up of a refrigerator interior showing glass doors and a hanging door (no text or symbols visible)

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Réparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or architectural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Interior view of a refrigerator showing the door, glass panel, and shelf (no text or symbols visible)

Réparation

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

Abstract 3D diagram with two arrows pointing to a rectangular block, no text or symbols present

Réparation

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Instandsetzen

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Instandsetzen

Interior view of a refrigerator showing the door and shelf, with a circular dial indicator highlighting a specific area (no text or symbols present)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Instandsetzen

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device mounted on a wall with a red panel attached, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Επισκευή

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside, no text or symbols present.

Diagram of a mechanical assembly with a blue top layer and a black upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Επισκευή

Interior view of a refrigerator showing the door, shelves, and a circular dial (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Επισκευή

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Javítás

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Javítás

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Javítás

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Javítás

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Riparazione

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top layer and a black upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Riparazione

Interior view of a refrigerator showing the door and shelf, with a circular dial indicator highlighting a specific area (no text or symbols present)

Abstract 3D diagram with two arrows pointing to a rectangular object on a dark surface, no text or symbols present

Riparazione

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Remonts

Viras ir nonemtas.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Tvertne ir iznemta.

4.6.2 Auglu un dârzenu tvertnes uzstâdîsana

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Iznemiet auglu un dârzenu tvertni.→275

2. 1. Nospiediet sviru starplikas apakšā abās pusēs (1).
3. Velciet starpliku uz priekšu (2).

1. Starpliku paceliet un sagaziet uz sāniem, lai iznemtu.

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Remonts

Close-up of a refrigerator interior showing glass panels and a circular door (no text or symbols visible)

1. Atvienojiet sānu LED apgaismes joslas elektriskos savienojumus.

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Remonts

1. Atvienojiet LED starmeša moduli.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

LED starmetis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Remontas

Vyriai nuimti.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Talpykla išimta.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a door, shelf, and a circular component with an arrow pointing to the door (no text or symbols visible)

Remontas

Interior view of a refrigerator showing the door, shelves, and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Remontas

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Reparasjon

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

→ Beholderen er demontert.

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Cool-Fresh-beholderen er demontert.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparasjon

1. Trekk sugekoppen forover med LED-lampen i sidelisten i en roterende bevegelse.

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

1. Koble fra den elektriske tilkoblingen for LED-lampen i sidelisten.

LED-lampen i sidelisten er demontert.

4.9.2 Montering av LED-lampe i sidelist

1. Koble til den elektriske tilkoblingen for LED-lampen i sidelisten.
2. Fest LED-lampen i sidelisten på rett sted på veggen i apparatrommet (krokene klikker på plass).
   LED-lampen i sidelisten er montert.

Reparasjon

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Reparasjon

1. Løsne LED -spotlightmodulen.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

LED-spotlight er demontert.

Illustration of hands connecting a cable to a refrigerator panel with shelves and doors (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Naprawy

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.4.2 Montaż półki

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside, no text or symbols present.

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a door, glass panel, and a circular component with an arrow pointing to the door (no text or symbols visible)

Naprawy

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with a rectangular block and two arrows pointing outward, no text or symbols present

Naprawy

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Reparação

Interior view of a refrigerator showing the door and shelf, with a circular dial indicator highlighting a specific area (no text or symbols present)

Abstract graphic with a rectangular object and two black arrows pointing outward, set against a dark gray background (no text or symbols)

Reparação

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Cap torx TX20 6.3 mm (1/4") [00340865]

Technical line drawing of a refrigerator door with mounting brackets and internal components (no text or symbols)

Repararea

Balamalele sunt demontate.

4.2.2 Montarea balamalei plate

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Repararea

Close-up of a refrigerator interior showing glass doors and a circular door with a black arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with two black arrows pointing toward a rectangular block, no text or symbols present

Repararea

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Tesnenie dvierok je namontované.

Oprava

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Oprava

Závesy sú odobraté.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.3.2 Montáž poličky do dvierok

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Nádoba je odobratá.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Odoberte nádobu na ovocie a zeleninu.→395

2. 1. Stlačte páčku na spodnej strane oboch strán priehradky (1).
3. Potiahnite priehradku dopredu (2).

1. Zdvihnite priehradku a vyklopte ju nabok.

Priehradka je odobratá.

Nádoba cool-fresh je odobratá.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Oprava

Interior view of a refrigerator showing the door, shelves, and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Popravilo

Diagram of a two-panel door handle assembly with arrows indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.4.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

1. Odstranite predal za sadje in zelenjavo.→415

2. 1. Pritisnite pritrdila na spodnji strani steklene plošče (1).
3. Pregrado potegnite k sebi (2).

1. Pregrado dvignite in jo z obračanjem na stran odstranite. → Pregrada je odstranjena.

2. 1. Dvignite polico nad predalom za sadje in zelenjavo.
3. Polico nad predalom za sadje in zelenjavo potegnite k sebi in jo z obračanjem na stran odstranite. Polica nad predalom za sadje in zelenjavo je odstranjena.

4.7.2 Namestitev pregrade in police nad predalom za sadje in zelenjavo

▶ Namestite v obratnem vrstnem redu.

Popravilo

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Popravilo

Close-up of a refrigerator interior showing glass panels and a circular door (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Popravilo

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparación

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparación

Interior view of a refrigerator with a circular dial and a black arrow pointing to the door (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparación

Illustration of a hand holding a rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Cool fresh-facket har tagits bort.

4.8.2 Montera cool fresh-fack

Sugkopp ∅50 mm [00342224]

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparation

Close-up of a refrigerator interior showing glass panels and a circular door (no text or symbols visible)

1. Lossa elanslutningen till LED-sidoramplampan.

LED-sidoramplampan har tagits bort.

4.9.2 Montera LED-sidoramplampa

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparation

1. Ta loss LED-spotlightmodulen.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a device with a rectangular panel and attached red panel, against a gray background (no text or symbols visible)

LED-spotlighten har tagits bort.

4.10.2 Montera LED-spotlight

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Onarim

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Kap çıkartılmıştır.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Onarim

Interior view of a refrigerator showing the door, shelves, and a circular dial (no text or symbols visible)

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with a rectangular object and two arrows pointing outward, set against a dark gray background (no text or symbols)

Onarim

Illustration of a hand holding a rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols
