R1050 - Dash cam Navitel - Free user manual and instructions

Product Type	Dash Cam
Brand	Navitel
Model	R1050
Video Resolution	1920x1080 Full HD
Frame Rate	30 fps
Lens Angle	140°
Display	2.0" TFT LCD
GPS	Built-in GPS module
G-sensor	Yes
Loop Recording	Yes
Parking Mode	Yes
Memory Card Support	microSD up to 32 GB
Battery	Lithium-polymer, 200 mAh
Power Input	12V DC car charger
Dimensions	Approx 65 x 55 x 30 mm
Weight	Approx 70 g
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 70°C
Language Support	English, French, German, Italian, etc.
Mounting	Suction cup mount
PC Connection	USB 2.0
Maintenance	Clean lens with soft cloth; avoid solvents.
Safety	Do not disassemble; use original charger.
Spare Parts	Not user-serviceable; contact support.
General Info	Complies with CE, RoHS.

Frequently Asked Questions - R1050 Navitel

How do I install the dash cam?

Mount the camera on the windshield using the suction cup mount, adjust the angle, and plug the power cable into the 12V car charger.

What memory card should I use?

Use a microSD card Class 10 or higher, up to 32 GB. Format it in the camera before first use.

How to format the memory card?

Go to Settings > Format and confirm. This will erase all data on the card.

How to enable parking mode?

Parking mode activates automatically when the vehicle is off. Ensure the camera is hardwired or connected via the OBD port (not included).

How does the GPS function work?

The built-in GPS records your speed and location. Data is embedded in the video file and can be viewed using compatible software.

Why does the camera keep turning off?

Check the power connection. The internal battery may be low; the camera requires continuous power. Ensure the charger is securely plugged in.

How to update the firmware?

Download the latest firmware from the Navitel website onto a microSD card, insert into the camera, and follow the update instructions in the manual.

How to view footage on a PC?

Connect the camera to your PC via USB or remove the microSD card. Use a media player to play the MP4 files.

How to reset the device?

Press and hold the reset button (small hole) with a pin for 5 seconds until the device restarts.

Is the device waterproof?

No, the Navitel R1050 is not waterproof. Avoid exposure to rain or moisture. It is designed for indoor vehicle use only.

USER MANUAL R1050 Navitel

Black and white photo of a car rear camera with lens and head (no visible text or symbols)

NAVITEL R1050

Portable Video Recorder

Úvod

Vážený zákazníku!

Pure circular diagram with no text, numbers, or symbols

Opatření

Pure circular diagram with no text, numbers, or symbols

Hinweise

Pure circular diagram with no text, numbers, or symbols

1. Toide
2. Mikrofon
3. LED-indikaator
4. Menüü
5. Üles
6. Alla
7. OK
8. Ühenduselement
9. Ekraan
10. Reset
11. MicroSD-kaardi ava
12. Mini-USB ava
13. GPS-antenni sisend (mini-USB)
14. Magnetiga paigalduselement GPS-antenniga

Spetsifikatsioonid

Protsessor MSTAR 8328
Ekraan 1.2", IPS, 240×204
Kaamera SONY IMX323
Salvestusformaat MOV
Video resolutsioon 1920×1080, 30 fps
Pildiformaat JPG
Pildi resolutsioon 2 MP
Vaatenurk 165°
Objektiivi tüüp 4-kihiline klaas
Salvestamine MicroSD kaart
SD kaardi maht Max. 64 GB

Ettevaatusabinõud

Thank you for purchasing this NAVITEL® product.

NAVITEL R1050 is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

EN

Device layout

Pure circular diagram with no text, numbers, or symbols

1. Power
2. Microphone
3. LED indicator
4. Menu
5. Up
6. Down
7. OK
8. Mount connector
9. Display
10. Reset
11. MicroSD slot
12. Mini-USB port
13. GPS antenna input (mini-USB)
14. Magnetic mount with GPS antenna

Specifications

Processor MSTAR 8328
Display 1.2", IPS, 240×204
Camera SONY IMX323
Recording format MOV
Video resolution 1920×1080, 30 fps
Image format JPG
Image resolution 2 MP
View angle 165°
Lens 4-layer glass
Storage MicroSD card
MicroSD card capacity Max. 64 GB

USB mini-USB
Battery 180 mAh
Power 5 V, 1.5 A
Wi-fi	Yes
GPS-alert	cameras / warnings / speed
Language	Chinese simplified, Chinese traditional, Czech, English, French, German, Italian, Japanese, Korean, Latvian, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian

Note: the specifications may change due to upgrades.

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class10 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the DVR on the windshield with the mount.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the GPS antenna input (mini-USB). When connecting the car charger directly to the DVR mini-USB port, the GPS operation is not available.
• Adjust the DVR position.
• Turn the power on; check whether the DVR is installed correctly. If the DVR is installed correctly, the indicator will glow red; the DVR will start up and begin recording (indicated by flashing blue light).

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
  • Permissible device temperature in operating mode: 0 to +60 °C. Storage temperature: -10 to +70 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

Buttons

Button Functions
Power	Press shortly to turn the device on.Press and hold for 2 seconds to turn the device off.Press to switch between Record (STBY), Capture, Video and Photo modes.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).In Menu, press to exit any Menu or list of functions.
Menu	Press to enter Menu mode.In Menu, press to choose the next Menu section.
Up / Down	In Record mode, press Down to turn the microphone on / off.In Capture mode, press to zoom in / out.In Video / Photo mode, press to select the previous / next file.In Menu, press to select the previous / next Menu item.
OK	In Record mode (STBY), press to start recording.In Record mode (REC), press shortly to stop recording.In Capture mode, press to take a picture.In Video mode, press to select a file, or pause / resume video.In Photo mode, press to select a file.In Menu, press to select a Menu item.
Reset If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the OK button to stop recording (the blue light will become steady). Press OK again to record another video. Each video will be saved automatically.
Capture	In Record mode (STBY), press the Power button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).
Video	In Record mode (STBY), press the Power button twice to enter Video mode; press the Up and Down buttons to select a file; press the OK button to play a file. During playback, press OK to pause/unpause; press the Up and Down keys to fast forward/rewind.
Photo	In Capture mode, press the Power button twice to enter Photo mode; press the Up and Down buttons to select a file; press the OK button to play a file.
Record audio Record	video with or without sound.
Lock file	In Record mode (REC), press Power to protect the current recording. A key symbol will appear at the bottom of the screen. In Video / Photo mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor In shutdown state, if vibration is detected, the device will turn on automatically and start recording.
Motion detection When an object is moving the device will automatically start recording.
Stamp This function adds date stamp to the record.
Battery	Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light will gradually dim; the red light going out means the battery is full.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.
GPS location	Device supports built-in GPS chipset and GPS antenna, it can show longitude, latitude and other information on your current location. Press GPS Status to check GPS dates. Press On in the GPS Stamp menu to add GPS information to your files.
APP support	You can see and share your videos and photos, taken by DVR, in your mobile phone through special app. The app is connecting via Wi-Fi network and should be installed on your mobile phone.
USB-connection *	When connecting the device to a PC using a USB cable, two connection options will appear:1) Mass Storage: play, copy and delete files.2) Record: standard mode.

* This function is available only in firmware version 3.5.48 and higher.

Navitel DVR Center app installation

1. Download and install Navitel DVR Center to your cell phone or tablet, follow your mobile device instructions. You can download application by scan QR code in DVR's Menu (App QR Code) with your cell phone. Choose Wifi in Settings menu, press On.
2. Turn on a Wi-Fi in DVR's Menu (Wi-Fi) and in your mobile device settings.
3. Run the app. Choose your DVR in the list. The DVR's information is in DVR's Menu (Wi-Fi Navitel)..
4. Connect your mobile device to the DVR through Wi-Fi. If necessary use the password. You can change it in DVR's Menu (Wi-Fi password).

5. Using the Navitel DVR Center you can:

6. update DVR's firmware;
   • control DVR functions in Settings menu: configure parking mode, impact sensor, video mode and format your SD card;

7. save, view, delete and send videos and photos as well as watch DVR's video in real time on the mobile device screen.

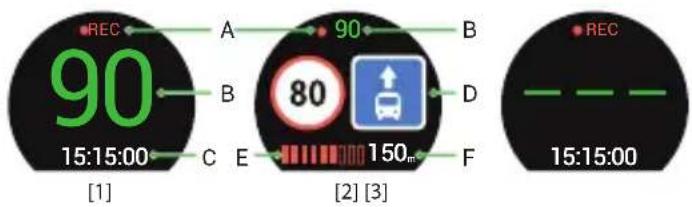

Digital Speed & Camera Info

The Digital speed feature is used to display time and vehicle speed calculated with the help of GPS signal [1]. Modes:

• Speed – current speed is displayed constantly [B],
• Speed + time - current speed [B] and time [C] are displayed.

The Camera info feature notifies the driver about cameras and warnings (hereinafter – Cameras) along the way. When you turn on the Camera info, the current speed and time are displayed. With the approach to the nearest camera the following information is displayed [2]:

• current speed [B],
• camera icon [D],
• dynamic progress bar indicating approach to the nearest camera [E],
  • distance to the camera [F].

All information is displayed on a black screen.

In Record mode (REC), ●REC or ● are displayed [A].

If the vehicle is still, 0 is displayed.

If there is no GPS-signal, -- - [3] is displayed.

Note. A weak GPS signal may be caused by bad weather conditions and other external factors. Please consult your vehicle speedometer.

Bevezetés

Tisztelt Ügyfelünk!

Pure circular diagram with no text, numbers, or symbols

HU

Gombok

Ivadas

Gerbiamas, Kliente!

Dékojame, kad jsigijote NAVITEL® irengini.

Pure circular diagram with no text, numbers, or symbols

1. Galia
2. Mikrofonas
3. Šviesos diodo indikatorius
4. Meniu
5. Aukštyn
6. Žemyn
7. Gerai
8. Atramos jungtis
9. Ekranas
10. Atkurti
11. MicroSD kortelés lizdas
12. Mini-USB lizdas
13. GPS antenos jvestis (mini-USB)
14. Magnetinis laikiklissu GPS antena

Specifikacijos

Mygtukai

levads

Cienītais klient!

Pure circular diagram with no text, numbers, or symbols

LV

PL

Introducere

Dragă client!

Simple line drawing of a circular mechanical component with no text or symbols

1. Buton Power
2. Microfon
3. Indicator LED
4. Buton Meniu
5. Buton Sus
6. Buton Jos
7. Buton OK
8. Montare
9. Ecran
10. Resetare
11. Slot card microSD
12. Port mini-USB
13. Intrare antenă GPS (mini-USB)
14. Montură magnetic cu antena GPS

Specificații

Butoane

Simple line drawing of a circular ring or washer with no text or symbols

Simple line drawing of a circular ring or washer with no text or symbols

Вступ

Шановний покупець!

Pure circular diagram with no text, numbers, or symbols

Кнопки

Pure circular diagram with no text, numbers, or symbols

Đế phòng

Green globe with orbiting rings and star highlights (no text or symbols)

NAVITEL
