IMIX R105 - Food processor Eldom - Free user manual and instructions

Product Type	Food processor (hand mixer with blender attachment)
Brand	Eldom
Model	IMIX R105
Power	200 W
Voltage	220-240 V ~ 50 Hz
Max Continuous Operation (Whisking/Mixing)	5 minutes
Interval Before Next Cycle (Whisking/Mixing)	10 minutes
Max Continuous Operation (Blender)	30 seconds
Interval Before Next Cycle (Blender)	3 minutes
Attachments Included	Dough hooks (2), beaters (2), blender (shredder) with knife
Speed Settings	5 positions + pulse (blender button)
Release Button	Yes, for ejecting dough hooks/beaters
Safety Lock	Prevents simultaneous installation of beaters/hooks and blender
Body Material	Plastic (white)
Cleaning	Hand wash only; body wiped with damp cloth; blender knife cleaned with brush; do not immerse body or blender fully
Dishwasher Safe	No
Warranty	Domestic use only; professional use voids warranty
Disposal	Recycle at WEEE collection point

Frequently Asked Questions - IMIX R105 Eldom

How do I assemble the beaters or dough hooks?

Ensure the appliance is unplugged and the switch is set to '0'. Insert the beaters or dough hooks into the corresponding sockets on the bottom of the mixer body (see photo 2). They must be installed in pairs (two of the same type). Make sure they are properly secured before use.

How do I attach the blender (shredder)?

Make sure the appliance is unplugged and the switch is on '0'. Ensure no beaters or dough hooks are installed. Insert the blender into the socket (see photo 3) and turn clockwise to lock. Then plug in and use button (3) to operate.

What is the maximum continuous operation time?

For whisking or mixing: up to 5 minutes, then a 10-minute break is required. For the blender (shredder): up to 30 seconds, then a 3-minute break. Exceeding these times may damage the motor and void warranty.

Can I use the mixer to knead heavy dough?

Yes, the dough hooks are designed for kneading. However, do not exceed the maximum continuous operation time of 5 minutes. If the motor slows down, stop and let it rest. For very stiff dough, consider taking breaks or liquefying ingredients if possible.

Is the blender knife covered by warranty?

No, the blender knife is an operating component and is not covered by the warranty. Handle with care and replace if it becomes dull or damaged.

How should I clean the appliance?

Unplug the appliance before cleaning. Do not immerse the body (4) in water; wipe it with a damp cloth. The attachments (beaters, dough hooks, blender) can be washed in warm water with dishwashing liquid. Do not clean the blender knife with bare hands – use a brush. Never use abrasive sponges. Do not put any parts in the dishwasher.

Can children use this appliance?

Children aged 8 years and older may use the appliance if supervised or instructed on safe use and risks. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision. Keep the appliance and cord away from children under 8.

What should I do if the appliance stops working during use?

Immediately unplug the appliance and wait for the attachments to stop spinning. Check if the continuous operation time has been exceeded; if so, allow the required break before restarting. If the problem persists, contact an authorized service point.

Can I blend hot liquids?

No, the manual states that liquids should not exceed 50°C. Hot liquids can damage the blender and pose a safety risk.

How do I remove the attachments?

After use, set the switch to '0' and unplug the mixer. Press the release button (1) at the top of the mixer and pull the beaters or dough hooks out of their sockets. For the blender, unscrew it counter-clockwise to remove.

USER MANUAL IMIX R105 Eldom

White electric mixer with a black whisk, no visible text or symbols

_

| _

一

1

Close-up of a white object with metallic clips and a label 'fot. 2' (no other text or symbols visible)

/PL/

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/CZ/

Please read all these instructions carefully before using this appliance.

1. Before the first use, read this entire user manual.
2. Plug in the connecting cable to an outlet with parameters specified in the manual.
3. Do not immerse the cable or the appliance in water.
4. Do not use in open air.
5. Do not place the appliance near heat sources.
6. Do not leave unattended children near the appliance.
7. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
8. Before turning the appliance on, make sure that all its components are properly mounted.
9. The appliance cannot be used with a damaged shredder knife.
10. Do not sharpen the blades of the shredder knife. They should be replaced if they do not cut properly or are worn out.
11. Do not grab the appliance with wet hands.
12. Always unplug the appliance if it is unattended, before the assembly or disassembly of attachments and before cleaning.
13. Do not touch the dough hooks or beaters when the appliance is in operation, and after turning it off they can be touched only when they have stopped.
14. Do not use liquids of temperature higher than 50^ C.

15. Do not exceed the maximum time of continuous operation.

16. Do not use when the power cable is damaged, when the appliance was dropped or damaged in a different manner. Repairs of the equipment can only be performed by an authorized servicing point; a list of servicing points is in the appendix and on the website www.eldom.eu.

17. Use the appliance only with original accessories supplied with it.
18. Any modernizations or the use of non-original spare parts or components of the appliance are prohibited and may cause a serious hazard to the user.
19. The company Eldom sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance. Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.

EN

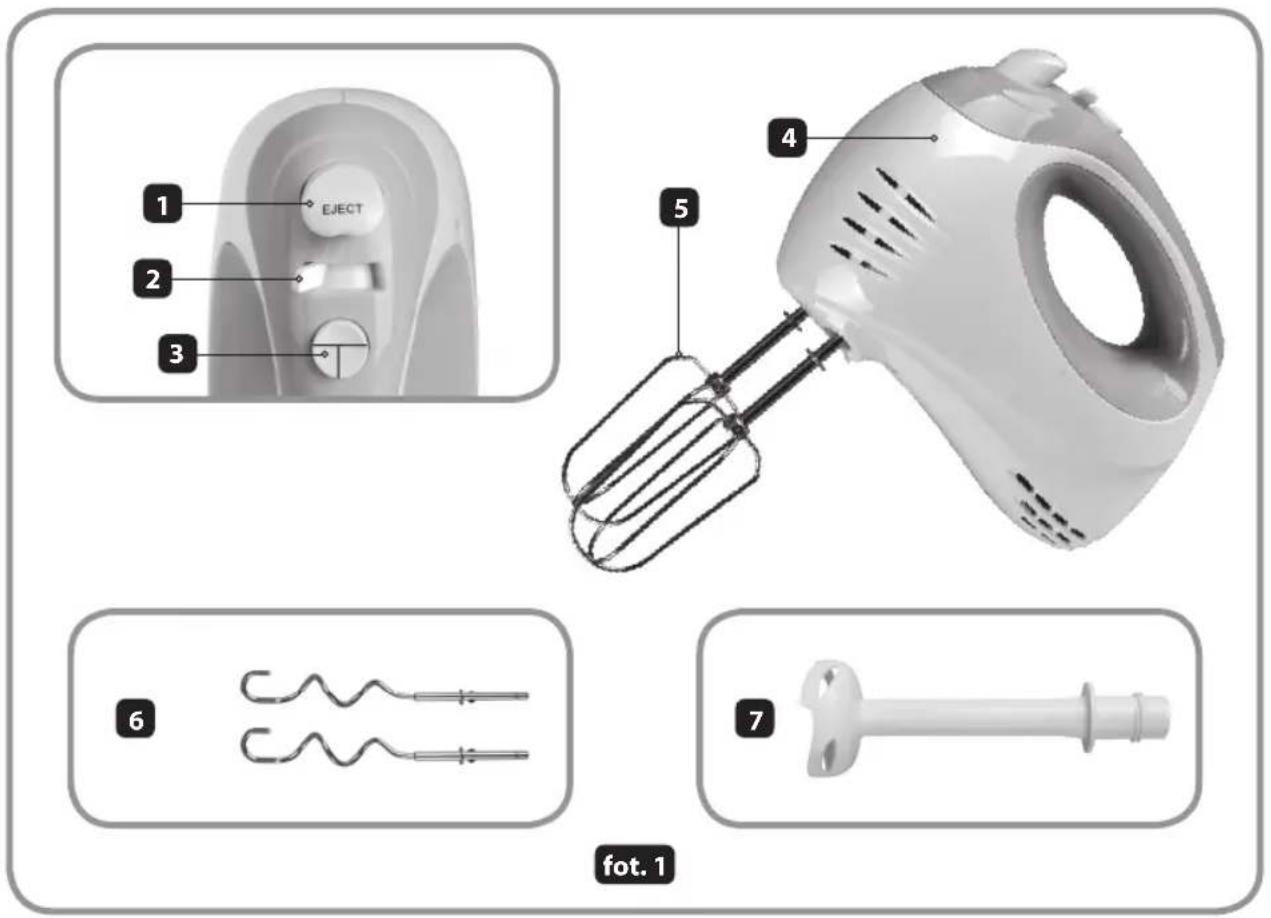

1. Dough hooks and beaters release button.
2. Switch and speed control (5 settings).
3. Blender button.
4. Body of the mixer.
5. Beaters.
6. Dough hooks.
7. Blender.
8. Socket.

TECHNICAL DATA

• Power: 200 W.
• Supply voltage: 220-240 V \~ 50 Hz.
• Maximum continuous operation with whipping and mixing accessories: 5 minutes.
• Interval before another cycle of peration: 10 minutes.
• Maximum continuous operation with the grinder: 30 seconds.
• Interval before another cycle of operation: 3 minutes.

APPLIANCE OPERATION

Before the first use wash the dough hooks (6), beaters (5) and blender (7) (see chapter: CLEANING AND MAINTENANCE).

NOTE

The attachments (5 or 6) and the shredder (7) cannot be installed in the unit simultaneously. The built-in lock prevents the attachments (5 or 6) from being installed when the shredder (7) is installed. Installing the shredder when the attachments (5 or 6) are installed will damage the lock.

ASSEMBLY

• Make sure the appliance is unplugged, and the switch (2) is set in the position "0"
• Make sure that the attachments (7) are not installed.

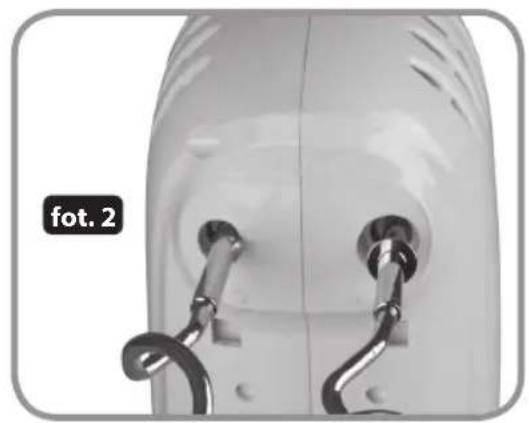

• place the dough hooks (6) or beaters (5) in proper sockets on the bottom part of the mixer (4), photo 2. Attachments need to be assembled in pairs - two dough hooks (6) or two beaters (5). Assemble the attachments in the order shown in the photo 2.
• Before the operation make sure that all the components were assembled properly.
• Plug in the appliance.
• The mixer starts its operation after a proper speed is selected with the switch (2).

When whisking or mixing is finished, one should:

• Slide the switch (2) to "0" position and unplug the mixer.
• Pull the attachments from the sockets by pressing the button (1).

CAUTION

Watch the continuous operation time of the appliance. The extended operation time and the lack of breaks may lead to the irreversible damage to the engine and loss of warranty. In the case of stopping the appliance while operation, before cleaning, unplug it and wait till the attachments stop to whirl. If the appliance slows down while operation it needs a break and, if possible, liquefying ingredients.

SHREDDER OPERATION

• Before connecting the shredder (7), make sure that the unit is disconnected from the mains and that the power switch (2) is set to 0.
• Make sure that the attachments (5 or 6) are not installed.

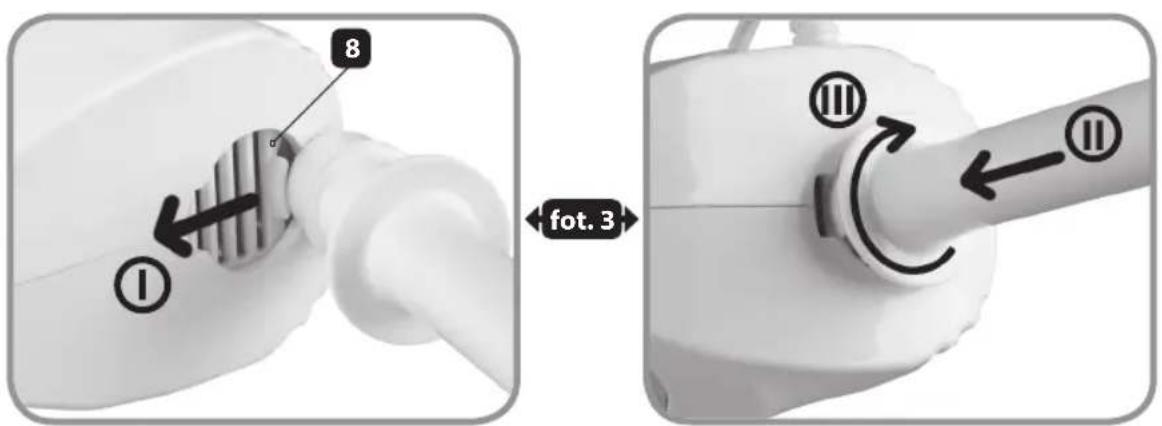

• Install the shredder (7) in the socket (8) photo 3.
• Connect the appliance to a power supply.
• Move the switch (2) to positions 1 to 5.
• Slide the shredder attachment into the container with products.
• The appliance starts working after pressing the button (3).
• When the operation is finished, set the switch (2) to 0 and disconnect it from the mains.
• Remove the shredder (7) by unscrewing it counter-clockwise.

Blender knife is an operating component and is not covered by the warranty

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance.

Do not wash the appliance in a dish-washer machine.

Do not immerse the body (4) in water.

Clean with a damp cloth or towel.

Do not immerse completely the blender (7) in water.

Only the ending with the knife can be immersed.

Complete immersion of the blender (7) may result in the knife seizure and the warranty loss.

Do not clean the knife with bare hands. Use a brush for cleaning. Other components of the appliance can be washed in warm water with a dishwashing liquid.

Do not clean the appliance with sharp, abrasive cloths or sponges as it may destroy the appliance.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.
