Product Type	Multifunctional Food Processor
Brand	Eldom
Model	Perfect Mix 2 MFC2506
Power Supply	220-240V, 50Hz
Heating Power	1000W
Motor Power	600W
Total Power (Heating + Mixing)	1300W
Bowl Capacity (Working)	2.0L
Bowl Capacity (Maximum)	3.5L
Control Type	Digital display with knob and touch buttons
Main Functions	Mixing, chopping, kneading, steaming, shredding, slicing, blending, frying, autowash, weighing
Automatic Programs	Kneading, steaming, stewing, cooking, shredding, chopping, turbo, frying, autowash
Speed Range	0-12 (right rotation), 0-3 (reverse)
Temperature Range	37-120°C (in 5°C increments)
Timer Range	0-90 minutes
Weighing Function	Up to 5 kg, 5 g intervals
Accessories Included	Stopper, lid, lid seal, beater attachment, mixing attachment, blade, steaming basket (deep and shallow), steaming basket cover, shredder drive shaft, discs for slices/shreds, shredder cover, pusher, spatula, measuring cup
Material	Plastic body, stainless steel blade
Safety Features	Thermal breaker, hot surface marking, child safety lock (lid), overfill protection
Cleaning	Bowl and body not dishwasher safe; hand wash only. Body clean with damp cloth. Accessories dishwasher safe (except blade).
Warranty	Standard manufacturer warranty (details in warranty card)
Repairability	Repairs only by manufacturer's service center; original spare parts only

Frequently Asked Questions - Perfect Mix 2 MFC2506 Eldom

What is the maximum capacity of the bowl?

The working capacity is 2.0L, and the maximum capacity is 3.5L.

What attachments are included with the Perfect Mix 2 MFC2506?

The package includes a beater attachment, mixing attachment, blade, steaming baskets (deep and shallow), steaming basket cover, shredder drive shaft, discs for slicing and shredding, shredder cover, pusher, spatula, and measuring cup.

Can I wash the bowl and body in the dishwasher?

No, the bowl and body are not dishwasher safe. They must be hand washed. Only the accessories (except the blade) are dishwasher safe.

What is the maximum continuous operation time?

For very hard products, the maximum continuous operation is 40 seconds, followed by a 5-minute break. For normal use, follow the specific program times.

How do I reset the thermal breaker?

If the appliance overheats, it will automatically switch off. Let it cool down, then press the reset button located at the bottom of the container.

Can I use the appliance without food inside?

No, never switch on the appliance without food products, as it may damage the appliance and pose a safety risk.

What is the maximum load for the mixing function?

The maximum load is 920 g of carrots with 1380 g of water, as per the manual.

How do I clean the blade safely?

The blade is very sharp. Clean it carefully by hand with warm water and washing-up liquid. Use a cleaning brush to remove stubborn deposits. Never clean with sharp objects.

What does the indicator light around the knob mean?

In stand-by mode, the light is white and red. During operation, it is red when temperature above 60°C and white when below 60°C.

Can I use the appliance to crush ice?

Yes, use the blade attachment at speed 8-12 for 10-20 seconds. Maximum capacity is 6600 g of ice cubes.

USER MANUAL Perfect Mix 2 MFC2506 Eldom

/ EN / MULTIFUNCTIONAL KITCHEN APPLIANCE

perfect mix

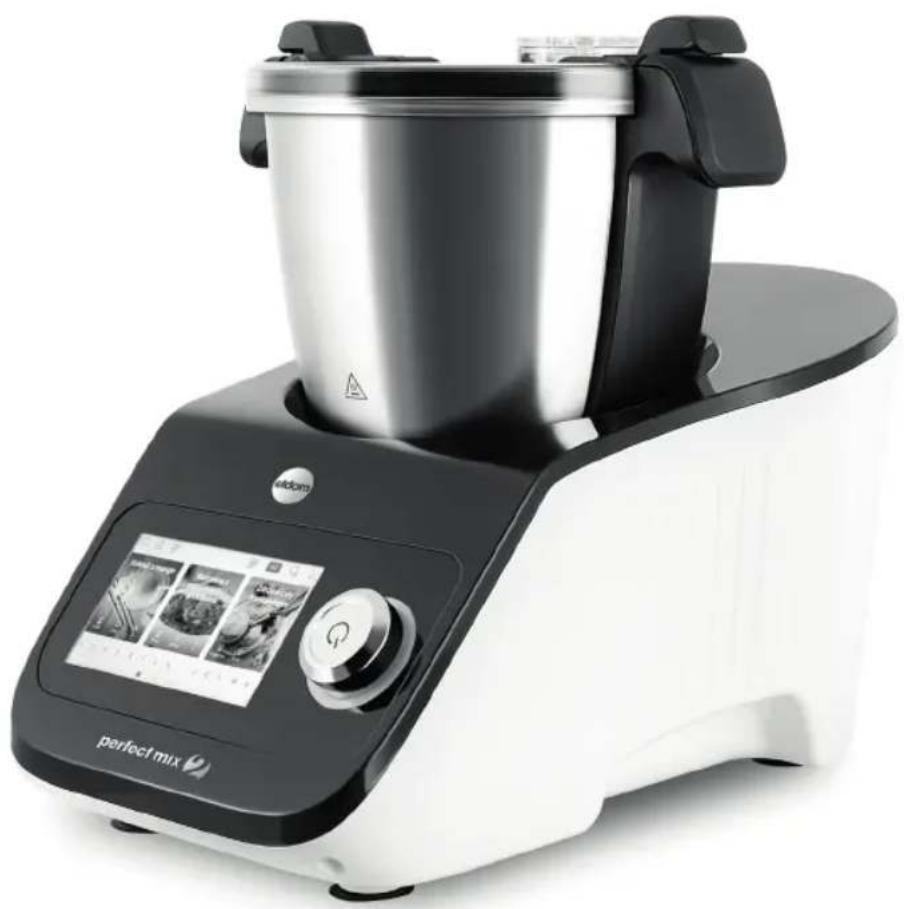

Modern kitchen mixer with black and white design, digital display, and control panel (no visible text or symbols)

_

| _

一

1

SAFETY INSTRUCTIONS

Read the entire instructions manual carefully before using the appliance for the first time. Keep the instructions manual for future reference.

1. This appliance may be used by children of at least 8 years of age and persons with reduced physical, mental abilities, and persons with no experience or knowledge of the equipment, if supervised or instructed on its safe use so that the risks associated with it are understood. Children should not play with the appliance. Unattended children should not be allowed to perform the cleaning and maintenance of the appliance. Do not allow the power cord to hang in a place where a child can catch it

2. The appliance is intended for household use only; industrial use, use not with its intended use, or use non-compliant with this instructions manual will lead to the expiry of warranty rights.

3. The appliance can be used only with the accessories included.

4. The power cord should be connected to a socket with an earth pin.

5. Caution: To avoid the danger of accidentally resetting the thermal breaker, this appliance must not be powered through an external switching device, such as a clock, or connected to a circuit that is regularly turned on and off by the tool.

6. Make sure not to connect too many receivers to a single current circuit.

7. Before disconnecting the plug from the socket, switch off the appliance with the power switch (9).

8. The appliance should always be disconnected from

the power mains by pulling the plug and never the power cord.

1. Always disconnect the appliance from the power supply, if left unattended, before assembling, disassembling or cleaning.
2. Always keep the appliance within sight, especially if there are children nearby. Switch off the appliance upon leaving the room in which it is located.
3. The appliance can be placed only on a flat, stable and heat resistant surface. 5
4. Before switching on the appliance, make sure that all its elements are assembled appropriately.
5. Do not move the appliance body when it is operating.
6. Do not hold the appliance (11) with wet hands.
7. To ensure the safe use of the appliance, do not fill the container (8) above the maximum level marked. Overfilling may result in uncontrolled outflow of hot products posing a health risk to the user or damage to the appliance.
8. Never insert fingers in the opening in the lid (2) when the appliance is operating.
9. Do not put materials such as paper, cardboard, plastic, metal, etc. inside the container.
10. Do not place the appliance or lead its power cord near heat sources.
11. Put the appliance on an appropriate height to provide free and safe access to it.
12. Do not use outdoors.
13. Do not switch on the appliance without food products.
14. Do not submerge the appliance's power cord or body (11) in water.

15. Do not use the appliance when the power cord or the appliance itself are damaged.

16. In case the power cord is damaged, it must be replaced by the manufacturer's service centre to prevent any danger.

17. Do not disassemble the base unit or the container handles (8) — the container (8) is not intended for maintenance by the user.
18. The appliance can be repaired only by the manufacturer's service centre (the address is indicated on the warranty card and website www.eldom.eu). Making any modernisations or using spare parts or an appliance elements other than the original ones is prohibited and poses a threat to the safety of use.
19. Eldom Sp. z o. o. shall not be liable for any potential damage resulting from the improper use of the appliance.

WARNINGS

CAUTION The appliance has a visible "hot surface" marking. This marking indicates that the element may be hot and should not be touched with bare hands.

1. Do not touch the blade (6) when the appliance is switched on; you may only touch it after switching off the appliance when it has stopped.
2. The stopper (1) should always be closed during mixing.
3. Do not use the appliance with a damaged drive shaft or attachments (4, 5, 6).
4. Insert the drive shaft and the seal in the opening at the bottom of the container and lock it with the fixing nut. The seal must be placed under the shaft. The absence of the seal may lead to the processed products leaking from the container (8), posing a health risk to the user and causing damage to the appliance.

5. Do not use the appliance for fragmenting bones or other very hard products.

6. The blade (6) is a consumable and subject to natural wear. Do not sharpen the blade (6). In case the blade (6) is blunt or damaged, replace it.

7. The permitted continuous operation time in case of fragmenting very hard products is 40 s. Interval before the further operation: 5 min.
8. The maximum load of the mixing function is: 920 g carrots / 1380 g water

Eldom Sp. z o.o., 40-238 Katowice, ul. Pawła Chromika 5a, hereby declares that the following product: Multifunctional Appliance MFC2500 conforms to Directive 2014/53/EU. Full text of the EU Declaration of Conformity is available at: https://www.eldom.eu/wsparcie/deklaracje/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

GENERAL DESCRIPTION

CONTROL PANEL

AUTOMATIC PROGRAMMES

1. Stopper

2. Container lid

3. Container lid seal

4. Beater attachment

5. Mixing attachment

6. Blade

7. Steaming basket

8. Container

9. Main switch

10. Power cord

11. Body

12. Knob

13. Screen

14. Spatula

15. Measuring cup

16. Deep steaming basket seal

17. Steaming basket – deep

18. Steaming basket – shallow

19. Steaming basket cover

20. Shredder drive shaft

21. Discs: for slices / chips + for rubbing

22. Shredder cover seal

23. Shredder cover

24. Pusher

25. Temperature settings

26. Timer settings

27. Speed settings

28. Start/pause/stop buttons

29. Interface change buttons

30. Configuration button

31. Home button
32. Weight button

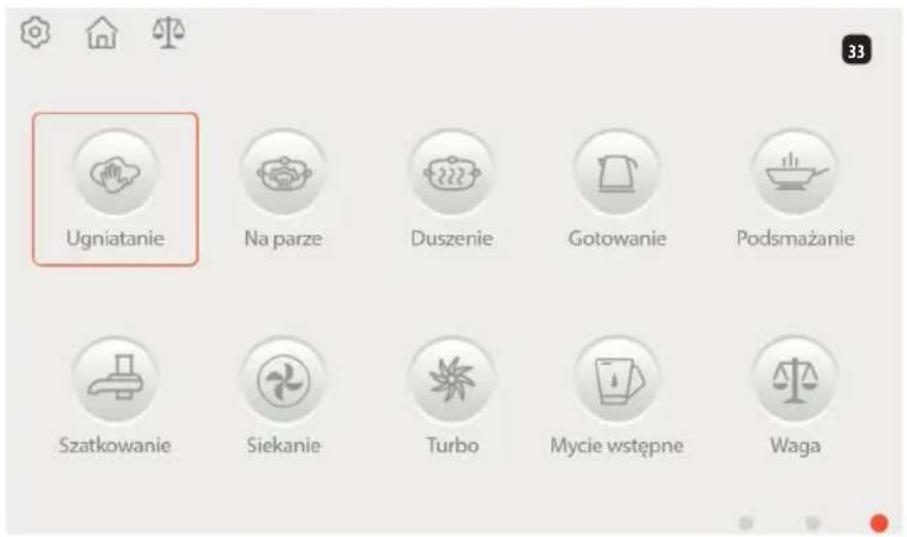

33. Function buttons
34. Sort button – changing the way recipes are displayed
35. A-Z Button – changing the way the recipes are displayed
36. Search button
37. Additional settings selection button
38. Recipes search buttons - A-Z
39. User interface configuration
40. Saved recipes
41. Manual settings
42. Automatic programmes
43. Downloading new recipes

TECHNICAL DATA
Model MFC2500
Voltage 220-240V, 50Hz
Heating power 1000W
Motor power 600W
Power (heating + mixing) 1300W
Bowl capacityworkingmaimum	2,0l3,5l

In stand-by mode, the indicator light around the knob (12) lights up white and red.

During operation, the indicator light lights red when the temperature is above 60^ C and white when the temperature is below 60^ C.

No Icon Functionality description
12 KNOB		Setting temperature, time, speed, or switching between interfaces: user interfaces, automatic programmes, saved recipes.[DP6]Pressing the knob after setting the time, speed and temperature switches on the appliance.Pressing the knob during operation stops the appliance; pressing it again restarts the operation.A long press of the knob during operation interrupts the process.A long press of the knob when setting the parameters cancels the set parameters.Pressing the knob at the end of the cooking process makes the appliance enter the stand-by mode.
26		Display of the set time: 0–90 minutes Display of the operating time: 0–90 minutes
25.1		Display of the set temperature Temperature range: 37–120°CInformation about temperature above 40°C, in 5°C intervals
25.2		Icon indicating the cooking process / opening the lid
25.3		Information about the temperature of the food / ingredients,Above 40°C, the information is given at 5°C intervals
27.1		Icon indicating that reverse rotation is activatedSpeed range: 1–3
27.2		Speed setting - after pressing, the appliance will change the blade rotation direction.Speed range: 0–12 - blade rotation to the rightSpeed range: 0–3 - blade rotation to the left (reverse rotation)
28		Buttons: start, pause, stop
30		Configuration button: set or check appliance information, including: Wi-Fi, system version, language, etc.
31		Home page button: home page
32		Weight activation button
33.1		Kneading: Time: 3 – range: 2–4minutes Temperature: 000 – range:000-37°C Speed: 1 – range: 1–2
33.2 Steaming: Time: 20 (Range: 1-60) minutes
		Steam flow: fast / medium / slow[DP7]The time countdown starts with 95°C
33.3	[IMAGE]	Stewing Time: 60 - range: 10-90 minutes Temperature:100 - range: 60-100°CSpeed: 1 - range: 1-3
33.4	[IMAGE]	Cooking Temperature: 100 - range: 60-100°C
33.5	[IMAGE]	Shredding Time: 30 - range: 10-60 sSpeed: 4 - range: 4-7
33.6	[IMAGE]	Chopping Time: 10 s - range: 10 s - 4 minutes Speed:6 - range: 1-12
33.7	[IMAGE]	Turbo Time: 60 s Speed: 12 To switch onpress and hold the button - the appliance will stop whenthe button is releasedpress the knob - the appliance will stop when the knob ispressed again
33.8	[IMAGE]	Weighing Maximum load: 5 kg interval 5 g
33.8.1	[IMAGE]	Zero
33.8.2	End[IMAGE]	End weighing
33.9	[IMAGE]	Frying Time: 5 min. rqnge: 1-20 minutesTemperature: 90 range: 90-120°C Speed: 1 - range: 1-3
33.10	[IMAGE]	Autowash: Blade Phase 1: 45°C / 1min / speed 3. It is warm-up forwash; Phase 2: speed 10 for 1 minute.
34		List of recipes
35	[IMAGE]	Recipes displayed in alphabetical order
36	[IMAGE]	Search
37	[IMAGE]	More. Including your favourites and history
44	[IMAGE]	Exit
45	[IMAGE][IMAGE]	Favourites / history
46	[IMAGE]	List of ingredients in the recipe
47	[IMAGE]	List of cooking stages
48	[6HWA][IMAGE]	Tips
49	[IMAGE]	List of required accessories
50	[IMAGE]	Information on the recipe

Time range: 0–90 minutes. To set the time, click the icon 26, then move the dot on the icon or click on the "min" or "sec" field or turn the knob,

Setting the temperature

Temperature range: 37-120°C, with 5°C intervals. To set the temperature, click the icon 25, then move the dot on the icon or turn the knob.

Setting the speed

Speed range: 0–12. To set the speed, click the icon Ⓧ, then move the dot on the icon or rotate the knob.

Reverse rotation

To set the reverse rotation, click on the icon 27, the speed range will appear :1-3.

Attachments - permissible operation speed

speed 1-3: L speed 1-4: B speed 1-12: ★

Information on the possible attachments that can be used depending on the temperature and speed settings are displayed on the icon 27.

Steaming basket - removing the basket from the container

Place the measuring cup (15) on the basket, rotate to lock it, and then remove the entire set.

Diagram showing a cooking process: adding a lid to a steamer with a curved arrow indicating rotation (no text or symbols)

Thermal breaker

At the bottom of the container (8) there is a thermal sensor that automatically switches off the appliance if the temperature is exceeded. Once the container has cooled down, you can press the button (figure below) to reset the sensor.

• OVERVIEW OF ACCESSORIES

Accessory Intended use Speed Time Temp. °C
	Beater attachment	Egg white foam 4 2-4 minutes --
		Whipped cream 3 3-5 minutes --
	Mixing attachment	Soup 1-2 1-90 minutes 100°C
		Other ingredients that need heating	1-2 As	required	As required
	Blade Meat chopping 8-12 30-60s --
			Ice crushing, sugar grinding	8-12 10-20s --
			Blender 8-12 1-2 minutes --
			Chopping (onion, shallot, celery, etc.)	5-7 15-60s --
			Beans, soy beans, nuts, peanuts, coffee beans, almonds	12 2-3 minutyes --
			Kneading 1 1-2 minutes
	Steaming basket	Rice etc. -- 20-30 minut 100-110°C
	Grater discs Slices, shreds 5-6 30-60s --
	Steaming set	Fish, vegetables, etc.	-- 10-60	minutes	110-120°C

SUGGESTED USE

Process	Accessories	Speed	Time	Maximum amount of ingredients at a time
Meat chopping	Blade	8-12	30s-60s	600 g beef / boneless pork / tendons
Ice crushing	Blade	8-12	10-20s	6600 g of ice cubes
Blending	Blade	12	1 min	Maximum capacity: 2300 ml (920 g carrots 1380 g water)
Chopping (vegetables, etc.)	Blade	5	15s-30s	500g
Kneading	Blade	1	2 min	500 g of flour + 250 g of water + 20 g of oil
Shredding - slices/shreds (vegetables, etc.)	Grater disc	5-6	30s	500 g of the products
Friction (vegetables, etc.)	A disc for friction	5-6	30s	500 g of the products
Cooking	Mixing attachment	1	Custom settings	Maximum capacity 2000 ml

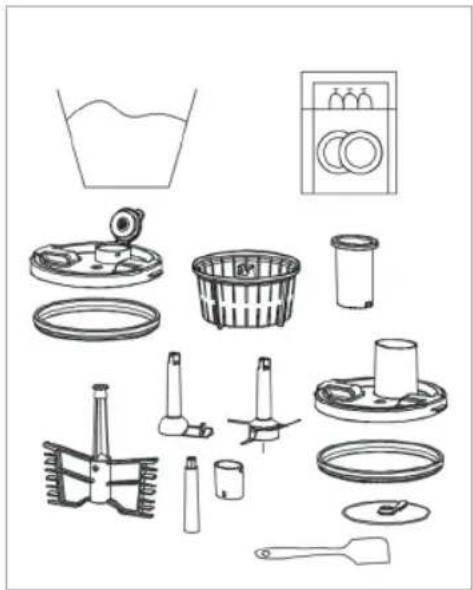

CLEANING AND MAINTENANCE

• The body (11) and the container (8) are not dishwasher-safe.
- Before cleaning, switch off the appliance with the power switch (9) and disconnect it from the power supply.
• After the container (8) has cooled down, remove the attachments.

• The blade (6) and the disc (21) are very sharp. Take special care when cleaning them.
• Clean the container (8) inside and outside. The contacts at the bottom of the container (8) must always be clean and dry. They can only be cleaned with a damp cloth. Do not use sharp-edged or sharp objects to clean the appliance, as they may damage functional parts or violate the safety of the appliance.
• Remove product residue using a spatula.
• When cleaning heavy soiling, fill the container (8) with warm water with washing-up liquid and leave it to soak. Use the cleaning brush to remove any stubborn deposits.
• Discolouration of the appliance elements after contact with food is not a defect and does not impact its operation.
• If there are burned products at the bottom of the container, pour water with citric acid into the container, heat up for 5-7 minutes up to 50°C and then remove the residue with a dish sponge. All moving parts should be cleaned with warm water and washing-up liquid. It is best to clean them directly after use. After rinsing with clean hot water, they must be dried immediately. We recommend lubricating the blade with a little vegetable oil. Never immerse the body (11) in water or rinse under running water. Clean the appliance body (11) using a damp cloth.
• Use a dry and soft cloth to clean the power cord.

Exploded view diagram of cleaning and cleaning tools including buckets, washers, and tools (no text or labels)

DISHWASHER-SAFE ACCESSORIES

_

| _

一

1

perfect mix
