Product Type	Food Processor (Planetary Mixer)
Brand	Eldom
Model	Chef WRK1250
Power Consumption	800 W (Max motor block power: 1500 W)
Supply Voltage	220-240 V ~50 Hz
Bowl Capacity	5 L
Number of Speeds	8 + Pulse (P)
Maximum Continuous Operation	10 minutes
Required Idle Time	15 minutes
Included Accessories	Flat beater, dough hook, whisk, spatula, cover with dispensing opening
Safety Features	Lock button, arm safety switch, slow start, overload protection
Cleaning	Removable parts dishwasher safe; base and arm wipe with damp cloth
Dimensions (Approx.)	40 x 25 x 35 cm
Weight (Approx.)	6 kg
Cord Length	Short (to reduce tripping risk)
Housing Material	Plastic with metal attachments
Bowl Material	Stainless steel (typical for food processors)
Intended Use	Domestic only; not for professional use
Warranty	2 years (subject to proper use)
User Manual Languages	EN, DE, ES, PL, RU, and others available on request

Frequently Asked Questions - Chef WRK1250 Eldom

What is the maximum continuous operating time for the Eldom Chef WRK1250?

The maximum continuous operation time is 10 minutes. After that, you must let the device idle for at least 15 minutes before restarting to prevent engine damage.

How do I use the pulse function?

Turn the selector switch to the "P" position for pulsed operation. The device will run only while you hold the switch; releasing it returns to "0".

Can I add ingredients while the food processor is running?

Yes, you can add ingredients through the dispensing opening in the cover while the device is operating.

What happens if I raise the mixer arm during operation?

The device will stop automatically. To resume, lower the arm, set the speed knob to "0", then select the desired speed.

How should I clean the Eldom Chef WRK1250?

Disconnect the device first. Removable parts (bowl, attachments, cover) are dishwasher safe. Clean the base and arm with a damp cloth; never immerse them in water.

What attachments are included with the WRK1250?

The package includes a flat beater (mixing), dough hook (kneading), whisk, spatula, and a cover with dispensing opening.

Why won't my food processor start?

Ensure the mixer arm is fully lowered and locked and the speed knob is at "0" before selecting a speed. If the arm was raised during operation, reset the knob to "0" and try again.

What is the bowl capacity of the WRK1250?

The bowl has a capacity of 5 litres. Do not fill above 2/3 full to prevent spillage during mixing.

Can I use the food processor for kneading bread dough?

Yes, use the dough hook attachment. The recommended speed is 1-2 for kneading. Do not exceed the maximum continuous operation time of 10 minutes.

Is the Eldom Chef WRK1250 suitable for commercial use?

No, this appliance is designed for domestic use only. Professional or improper use will void the warranty.

USER MANUAL Chef WRK1250 Eldom

Line drawing of a kitchen mixer with control panel and side-mounted stand (no text or symbols)

_

| _

一

1

/EN/ Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

Technical line drawing of a mechanical component with radial arms and a central hub (no text or symbols)

8

7

Simple line drawing of a laboratory flask with three internal compartments (no text or labels)

10

Line drawing of a flat tool or plunger (no text or symbols)

Line drawing of a banana-shaped object with a black square label containing the number 11 (no text or symbols on the object itself)

PULSE 1-8

1-5 1-2

fot. 1

Close-up of a mechanical tool with an arrow indicating motion, no visible text or symbols

Close-up of a transparent plastic bowl with a spoon, partially covered by a white cup (no text or symbols visible)

WSKAZÓWKI BEZPIECZEŃSTWA

ROBOT PLANETARNY WRK1200 / WRK1250

PL

OPIS OGÓLNY

IMPORTANT. When using an electrical appliance, always observe the basic safety principles to reduce the risk of fire, electric shock, or injury, including:

• Before using the appliance for the first time, please read carefully these Instructions for Use.
• The appliance should be connected to sockets compliant with current parameters given on the casing.
• The appliance must always be disconnected before cleaning and maintenance as well as in case of malfunction or after operation.
• The appliance should be disconnected by pulling the plug, not the power cord.
• Do not use in the open air.
• Do not touch the appliance with wet or moist hands or feet.
• The appliance must not be immersed in or sprinkled with water.
• Keep out of children's and animals' reach.
• In no case do press the release button for whisks and dough hooks during the operation.
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• When in operation, do not leave the appliance unattended.
• Do not exceed the maximum time of continuous operation of the appliance.
• Before switching the appliance on, make sure all its elements are installed correctly.

• Do not switch the appliance on without any products.

• Do not raise the mixer head (5) while operation

• Do not use the appliance, if the knife is damaged.
• Do not sharpen blades. Replace them, if they do not cut properly or if they are worn out.
• Do not touch the knife when the appliance is in operation. When the appliance is unplugged, wait until the knife stops revolving before touching it.
• Use only with the originally included accessories.
• The power cord and the whole appliance should be regularly checked for damage. Do not switch the appliance on, if any damage has been found.
• Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.
• The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
• Remove and safely dispose of the packaging materials and the labels before first using the appliance
• To eliminate the risk of small children's choking, remove and safely dispose of the protective cover on the appliance's power plug
• Do not place the appliance near benches or table edges when it is operating. Make sure that the surfaces are even, clean and free from water and other substances. Vibration during operation can cause the appliance to move
• Do not use the appliance on a draining board
• Take special care when taking out food from the bowl, making sure that the motor and flat beater, whisk, or dough hook have completely stopped. Make sure that the rotational-speed knob is in the "0" position, and remove the power plug from the wall socket, before unlocking the mixer head and placing it in the raised position (vertical). The flat beater, whisk, or dough hook should

be removed from the mixer head before taking out the food from the bowl.

• Before changing accessories, leaving the appliance unattended, cleaning, or approaching moving parts, switch off the appliance and disconnect it from the power supply
• Always make sure that the rotational speed knob is in the "0" position, and remove the plug from the power socket, before attempting to move the appliance before assembling or disassembling it when not in use, and cleaning or storing it
• Make sure that the mixer head is locked in the closed (horizontal) position when not in use, and before storage
  • Always remove the flat beater, whisk, or dough hook from the appliance before cleaning.
• Do not put any part of the appliance in a microwave oven
• Do not leave the appliance unattended when in use. Children should be supervised to ensure that they do not play with the appliance
• Do not use the appliance for purposes other than those described in the instructions manual, to avoid injury resulting from misuse
  • Completely stretch the power cord before use
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

CAUTION:

BEFORE INSTALLING THE ATTACHMENTS, MAKE SURE THAT THE ROTATIONAL-SPEED KNOB IS IN THE "0" POSITION, AND THE POWER CORD IS DISCONNECTED FROM THE POWER SOCKET.

INSTRUCTIONS MANUAL FOR SPECIAL-CORDS SET

The appliance is equipped with a short power cord to reduce the risk of its getting tangled up or people's tripping over a longer cord.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

EN

OPERATING INSTRUCTION FOOD PROCESSOR WRK1200 / WRK1250

GENERAL DESCRIPTION

1. Basics
2. Variable speed switch
3. Lock button
4. Base arm
5. Bowl
6. Head
7. Mixing attachment
8. Kneading attachment
9. Whisking attachment

10. Spatula

11. Cover with a dispensing opening

TECHNICAL DATA

• power: 800 W
• MBP - motor block power: 1500 W
• supply voltage: 220-240 V \~50 Hz
• max. time of continuous operation: 10 minutes
• idle time before recommencing operation: 15 minutes
• bowl capacity 5 litres

Recommended speed of operation for various attachments - fot. 1.

- INTENDED PURPOSE OF WRK1200/1250 FOOD PROCESSOR

Different speeds, attachments for kneading and mixing dough, and for whisking make this food processor an indispensable aid in many time-consuming and cumbersome kitchen tasks. The processor is efficient, durable, easy to use and to keep clean, as well as safe, provided that the SAFETY TIPS are observed.

BEFORE USE

Before starting the food processor for the first time: read this instruction

• make sure that no components are damaged
• clean the parts that come into contact with food
• place the device on a flat, hard and stable surface

INSTALLATION

• make sure that the device is disconnected from the mains, and the selector switch (2) is set to "0"

• press the lock button (3) and swing out the base arm (4) until it locks

• place the bowl (5) on the base (1) in its intended place and lock the bowl by turning it right

• fix one of the attachments (7,8,9) into the head (6). by inserting the attachment in the head and locking it by turning it left fot. 2
• press the button (3) and lower the base arm (4)

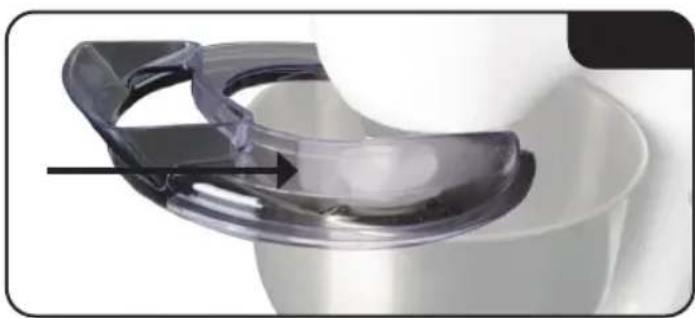

• place the cover (11) by sliding it onto the bowl (5) fot. 3

HOW TO USE

• before starting the device, make sure that all the components are properly installed
• connect the device to the mains
• to start the food processor use the selector switch (2). To choose one of 8 different speeds of operation change the position of the selector switch (2).
• the device is equipped with the "slow start" function – it reaches the desired speed after a few seconds.
• to activate pulsed operation turn the selector switch (2) in position "P". Releasing the selector switch automatically returns it to position "0".
• the ingredients may be added both before mounting the bowl on the base, and during the operation of the device via the opening in the cover (11)

NOTE:

Choose the speed adequate for the type of the attachment fot. 1

The speed should be also adjusted to the consistency of the processed ingredients.

After use carry out the following:

• set the selector switch (2) in position "0" and wait until the attachment stops moving
• remove the cover (11)
• swing out the base arm (4) by pressing the lock button (3)

Exercise caution when opening the base arm (4). It is recommended to hold it from top so as not to open it too rapidly

• remove the attachment by turning it right
• unlock the bowl (5) by turning it left and remove it from the base (1)

NOTE

The device will not start if the base arm (4) is not lowered and locked.

The device will also not start if the selector switch (4) is not set to "0" when the arm (4) is being lowered. To start the device in this case, after releasing the arm, turn the selector switch (2) to "0", and then select the speed.

If the base arm (4) is raised during the operation, the device will stop. To resume the operation of the device, lower the arm (4), turn the selector switch (2) to "0", and then select the speed.

NOTE

Do not exceed the maximum time of continuous operation of the device. Any failure to comply with the above, as well as any failure to keep the device idle for the required time may irreparably damage the engine and render the warranty void.

If the device blocks during operation, before cleaning, disconnect it from the mains and wait until the attachment stops moving.

If the device slows down during mixing or whisking, stop the operation and thin the mixed or whisked product. To prevent the ingredients from flowing out of the bowl during mixing, do not fill the bowl above 2/3 of its volume.

Place the device on a flat, hard and stable surface.

• CLEANING AND MAINTENANCE

Before cleaning, disconnect the device from the mains.

The device is easiest to clean immediately after use. All the removable parts can be washed in a dishwasher. Clean the base (1) and the base arm (4) with a damp cloth. Never immerse the base (1) nor the base arm (4) in water nor rinse them with running water. These elements should be cleaned with a damp cloth or towel.
