Product Type	Cyclone Vacuum Cleaner
Model Number	VCE-108278.21
Brand	Emerio
Rated Voltage	220-240 V ~ 50/60 Hz
Rated Power	899 W
Filter Type	HEPA pre-motor filter, dust filter, and air outlet HEPA filter
Dust Capacity	1.5 L (estimated)
Cord Length	Approx. 5 m (yellow and red marks indicate ideal and maximum lengths)
Noise Level	< 80 dB (estimated)
Weight	Approx. 4.5 kg (estimated)
Dimensions (L x W x H)	Approx. 35 x 25 x 30 cm (estimated)
Body Material	Plastic (estimated)
Cleaning Type	Dry vacuuming for floors, carpets, and upholstery
Accessories Included	Flexible hose, extension tube, floor brush, crevice tool (assumed)
Safety Features	Safety switch that reduces suction if vacuum is too high; thermal overload protection
Power Cord Rewind	Yes, with button and manual guide
Filter Maintenance	Clean pre-motor HEPA filter every 6 months; rinse and dry 24 hours; replace if damaged

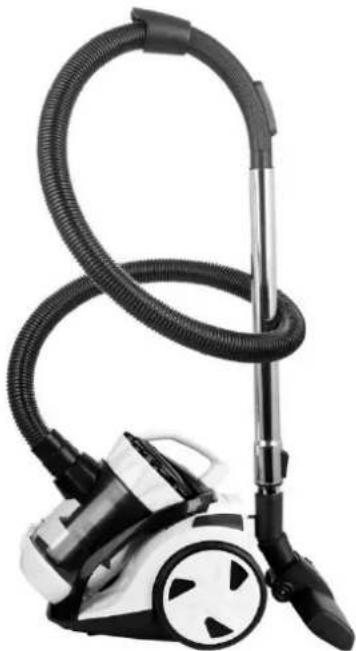

Parking Feature	Yes, for space-saving storage
Guarantee	2 years from date of purchase
Customer Service	Emerio B.V., Oudeweg 115, 2031 CC Haarlem, Netherlands; [phone]
Spare Parts	Available at https://spareparts.emerio.eu

Frequently Asked Questions - VCE-108278.21 Emerio

How do I assemble the vacuum cleaner for the first time?

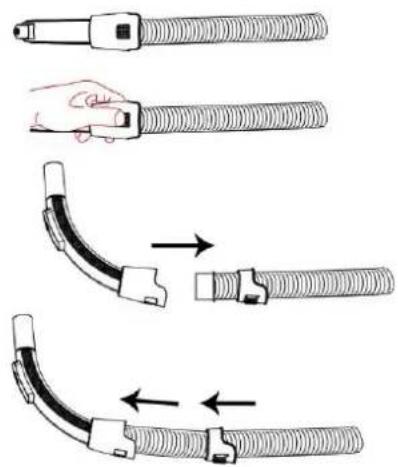

First, connect the flexible hose into the air intake duct until you hear a click. Then attach the tube to the curved wand/hose extension, and finally fit the floor brush to the tube. Ensure the power cord is unwound to at least the yellow mark before plugging in.

How often should I clean the filters?

The HEPA pre-motor filter and dust filter should be checked after each cleaning task and cleaned when suction power drops. Rinse the dust filter with clean water and dry thoroughly. The HEPA filter should be rinsed every six months or when suction is obviously reduced.

What should I do if the suction power decreases?

First, unplug the vacuum. Check the hose for blockages by pressing the square part on the hose handle to open it. Remove any obstacles. Also, clean all filters (pre-motor, dust, and outlet) as described in the manual.

Can I use the vacuum cleaner to pick up liquids?

No, this is a dry vacuum cleaner only. Do not pick up water or other liquids as it may cause electric shock and damage the appliance.

How do I rewind the power cord safely?

Press the cord rewind button with one hand while guiding the cord with the other hand to prevent whipping. Do not allow the cord to snap back.

What does the safety switch do?

The vacuum has a safety switch that activates if the suction is too high. It minimizes the vacuum rate to protect the motor from damage. This is normal.

Are spare parts available for this model?

Yes, spare parts can be ordered from https://spareparts.emerio.eu or through customer service.

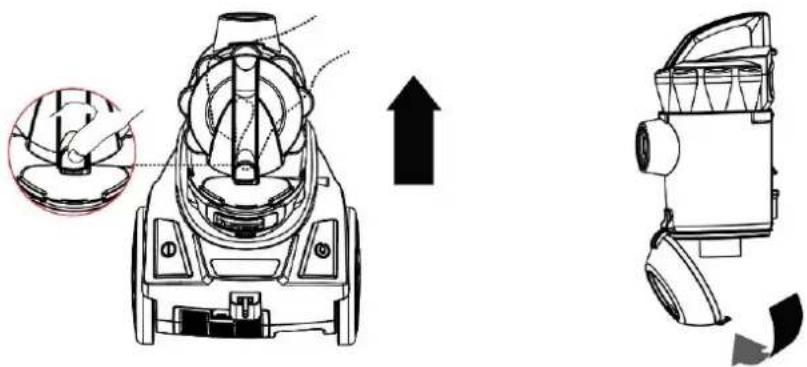

How should I clean the dust barrel?

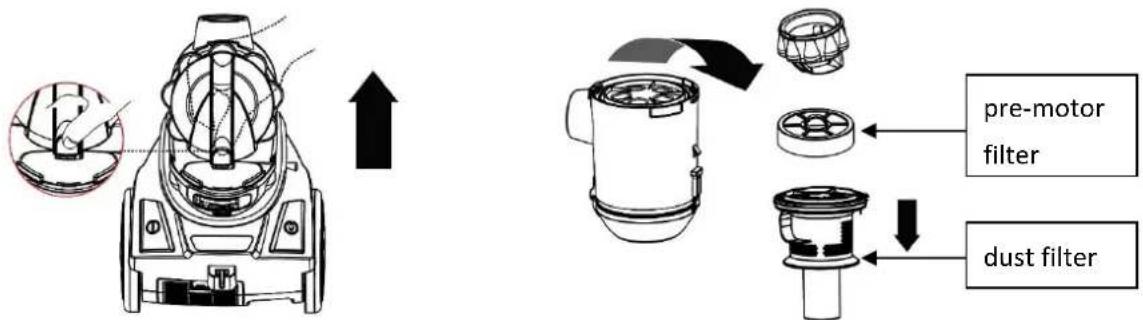

Press the knob on the dust cup arm to lift the dust barrel. Then press the knob at the lower end to open the cover and empty the contents. You can detach the upper part by turning it anti-clockwise to unlock.

What should I not vacuum with this appliance?

Do not vacuum flammable or combustible materials (e.g., gasoline, lighter fluid), hard or sharp objects, hot ashes, cigarettes, or toxic substances like bleach or ammonia.

The vacuum makes a squeaking sound, what should I do?

Stop the machine immediately. Unplug it and check the filters and hose for blockages. Clean all filters as per the manual. The squeaking may indicate a blockage or dirty filter.

USER MANUAL VCE-108278.21 Emerio

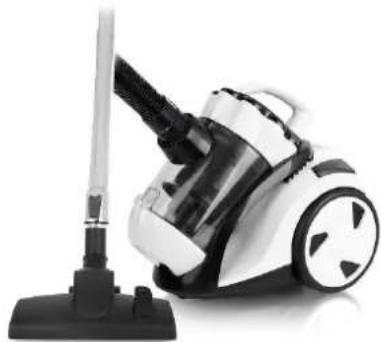

Black and white photo of a vacuum cleaner with a black handle and white body, no visible text or symbols.

Cyclone vacuum cleaner (EN)

Inhalt – Inhoud – Contenido – Índice – Contenuto – Obsah – Vsebina – Treść – Cuprins – Sadržaj – Obsah – Съдържание – Tartalom – Content

Instruction manual – English (EN) ...... - 76 -

Black and white photo of a vacuum cleaner with handle and control panel (no visible text or symbols)

Technical diagram of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic device with internal components and a separate panel, showing no text or symbols.

Wichtig:

Black and white photo of a vacuum cleaner with coiled hose and control lever (no visible text or symbols)

TECHNISCHE DATEN

Looking for spare parts? Have a look at https://spareparts.emerio.eu

KUNDENDIENST

ERSATZTEILE

Black and white photo of a vacuum cleaner with handle and spool (no visible text or symbols)

Technical illustration of a mechanical device with exploded view and side-view assembly (no text or symbols)

Line drawing of a robotic device with internal components and a separate panel, showing no text or symbols.

Opmerking:

Belangrijk:

Black and white photo of a vacuum cleaner with coiled hose and handle (no visible text or symbols)

TECHNISCHE GEGEVENS

Looking for spare parts? Have a look at https://spareparts.emerio.eu

KLANTENSERVICE

RESERVEONDERDELEN

Manual de Instrucciones – Spanish (E)

Black and white photo of a vacuum cleaner with a brush, no visible text or symbols

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Line drawing of a vacuum cleaner with internal components and a battery pack (no text or symbols)

Recuerde:

Importante:

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

DATOS TÉCNICOS

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Black and white photo of a vacuum cleaner with a black handle and black base (no text or symbols visible)

Technical diagram of a mechanical device with an inset showing a cross-section view (no text or labels)

Line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with an inset showing a hand operating a component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with internal components and a battery, showing no text or symbols.

Tenha em conta:

Importante:

Black and white photo of a vacuum cleaner with coiled hose and handle (no text or symbols visible)

CARACTERÍSTICAS TÉCNICAS

Looking for spare parts? Have a look at https://spareparts.emerio.eu

SERVIÇO DE APOIO AO CLIENTE

PEÇAS SOBRESSELENTES

Black and white photo of a vacuum cleaner with a black handle and black base (no text or symbols visible)

Technical line drawing of a mechanical device with exploded view and side-view assembly (no text or symbols)

Line drawing of a robotic device with internal components and a separate panel, showing no text or symbols.

Nota

Importante!

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

DATI TECNICI

Looking for spare parts? Have a look at https://spareparts.emerio.eu

ASSISTENZA CLIENTI

PARTI DI RICAMBIO

Black and white photo of a vacuum cleaner with a handle and base mount (no visible text or symbols)

Technical diagram of a mechanical device with an inset showing a cross-section view of internal components (no text or labels)

Line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)


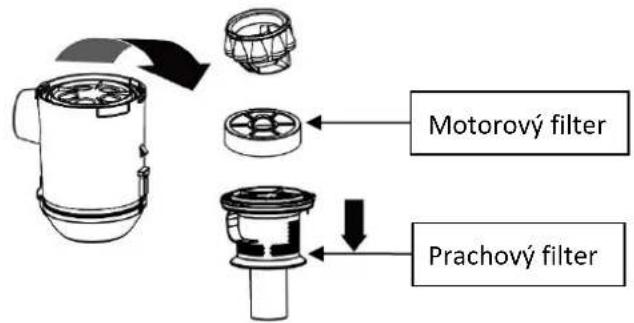

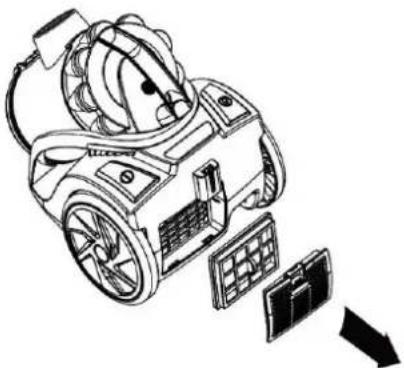

b. Výstupný filter

Line drawing of a small electric vehicle with attached components and a battery, showing internal wiring and mounting points (no text or symbols)

Dôležité:

Black and white photo of a vacuum cleaner with coiled hose and handle (no text or symbols visible)

TECHNICKÉ ÚDAJE

ZÁKAZNÍCKY SERVIS

NÁHRADNÉ DIELY

Navodila za uporabo – Slovenian (SLO)

VARNOSTNA OPOZORILA

Black and white photo of a vacuum cleaner with a brush, no visible text or symbols

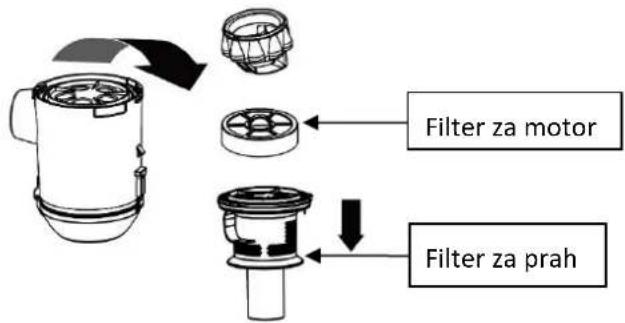

Technical illustration of a mechanical device with an inset showing a component being inserted (no text or symbols present)

Line drawing of a vacuum cleaner with attached circuit board and battery, showing internal components and airflow direction (no text or symbols)

Pomembno:

Black and white photo of a vacuum cleaner with coiled hose and control lever (no text or symbols visible)

TEHNIČNI PODATKI

Delovna napetost: 220-240V\~ 50-60Hz

Moč: 899W

GARANCIJA IN SERVIS

PODPORA ZA STRANKE

REZERVNI DELI

INSTRUKCJE DOTYCZĄCE BEZPIECZEŃSTWA

White and black compact vacuum cleaner with a brush, shown against a plain background (no text or symbols visible)

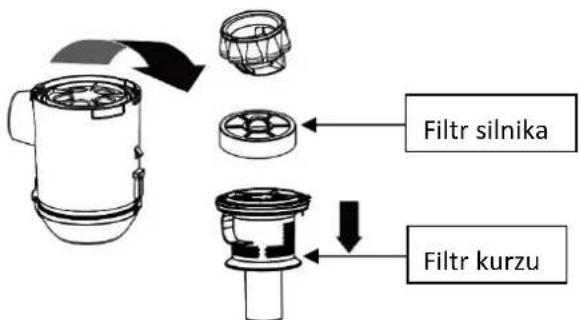

Technical diagram of a mechanical device with an inset showing a close-up view of internal components (no text or labels)

Line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Line drawing of a robotic device with internal components and a separate panel, showing no text or symbols.

Ważne:

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

DANE TECHNICZNE

Looking for spare parts? Have a look at https://spareparts.emerio.eu

OBSŁUGA KLIENTA

CZEŚCI ZAMIENNE

Manual de utilizare – Romanian (RO)

INSTRUCTIUNI DE SIGURANTĂ

White and black compact vacuum cleaner with a brush, shown against a plain white background (no text or symbols visible)

Technical diagram of a mechanical device with internal components and an inset showing a cross-section view (no text or labels)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic vacuum cleaner with attached circuit board and battery, showing internal components and airflow direction (no text or symbols)

Important:

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

DATE TEHNICE

Tensiunea de functionare: 220-240V\~ 50-60Hz

Looking for spare parts? Have a look at https://spareparts.emerio.eu

SERVICIUL CLIENTI

PIESE DE SCHIMB

Uputa za korištenje – Croatian (HR)

SIGURNOSNE NAPOMENE

Black and white photo of a vacuum cleaner with a handle and base mount (no visible text or symbols)

Napomena: Prije stavljanja ili uklanjanja dijelova pribora izvucite utikač iz utičnice.

Technical line drawing of a mechanical device with an inset showing a hand operating a component (no text or symbols present)

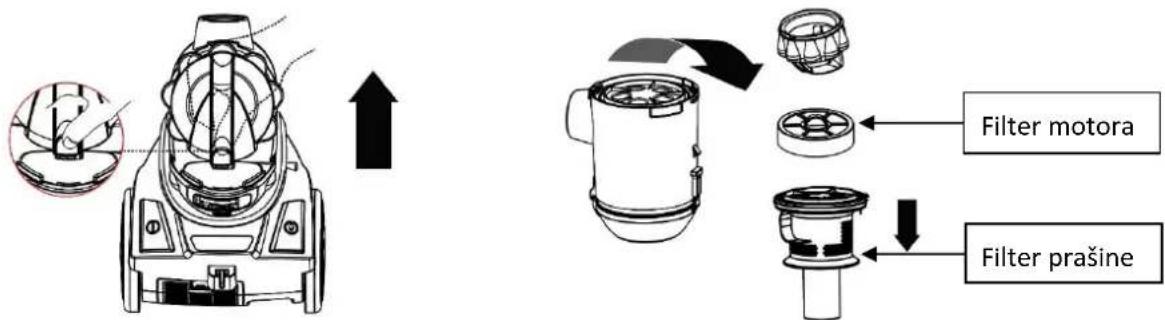

Uklanjanje i čišćenje filtera motora (hepafiltera), filtera za prašinu i filtera za izlaz zraka (hepafilteri) Upozorenje: Uvijek izvucite utikač iz struje prije uklanjanja spremnika za prašinu.

a. Filter motora i filter prašine

1. Pritisnite gumb na ručici spremnika za prašinu. Podignite spremnik za prašinu prema gore i izvadite ga.

2. Izvadite filter motora za čišćenje i zamjenu.

3. Izvadite filter za prašinu i očistite ga mekom četkom. Isperite čistom vodom, a zatim temeljito osušite prije ponovnog stavljanja.

Molimo obratite pažnju na sljedeće: Uklonite predfilter motora prije ispiranja filtera za prašinu.

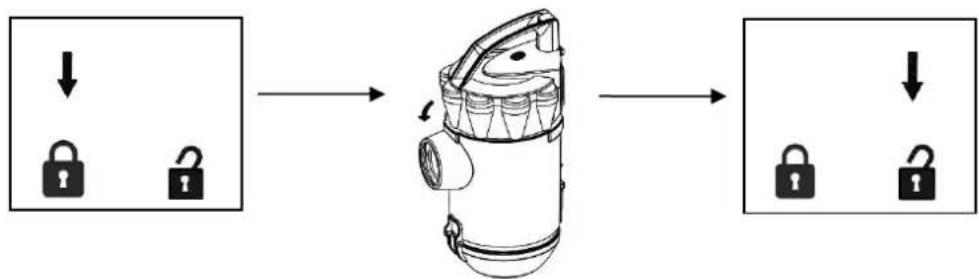

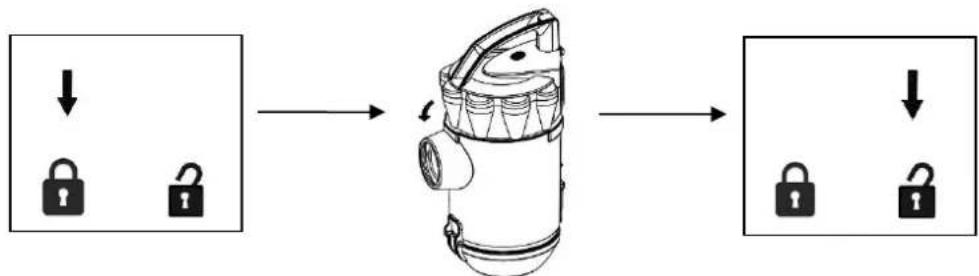

Savjeti: Kako ukloniti gornji dio spremnika:

1. Pronadite simbole za zaključavanje na bočnoj strani spremnika. Strelica pokazuje na simbol zatvorene brave.
2. Zakrenite gornji dio u smjeru suprotnom od kazaljke na satu; strelica sada pokazuje na simbol zaključane brave. Sada možete podići gornji dio.

Line drawing of a robotic vacuum cleaner with internal components and a separate panel, showing no text or symbols.

Molimo obratite pažnju na sljedeće:

S vremenom hepa filteri u usisivaču postaju prašnjavi. To je normalno i neće utjecati na performanse filtera. Ako je hepa filter toliko prašnjav da usisna snaga više ne doseže 100%, preporučujemo uklanjanje filtera i ispiranje pod tekućom vodom. Zatim ga ostavite na zraku da se suši 24 sata dalje od vatre ili vrućih predmeta prije nego što ga vratite u usisavač. To bi trebalo činiti svakih šest mjeseci ili kada je očito smanjena usisna snaga.

Važno: Imajte na umu da se u usisavaču nalazi sigurnosni prekidač koji sprječava rad uređaja s visokom usisnom snagom. Ako je usisna snaga previsoka, aktivira se sigurnosni prekidač. U tom se slučaju usisna snaga smanjuje radi zaštite motora od oštećenja.

Napomena:

Važno:

Black and white photo of a vacuum cleaner with coiled hose and control knobs (no visible text or symbols)

TEHNIČKI PODACI

Nazivni napon: 220-240V\~ 50-60Hz

Nazivna snaga: 899W

JAMSTVO I SERVIS

Naši uređaji prije isporuke prolaze strogu kontrolu kvalitete. Ako su unatoč pažnji za vrijeme proizvodnje i transporta nastale štete, molimo da uređaj pošaljete natrag prodavaču.

Looking for spare parts? Have a look at https://spareparts.emerio.eu

SLUŽBA ZA KORISNIKE

REZERVNI DIJELOVI

Black and white photo of a vacuum cleaner with a black handle and black base (no text or symbols visible)

Technical diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with internal components and a battery pack, showing no text or symbols

Důležité:

Black and white photo of a vacuum cleaner with coiled hose and control knobs (no visible text or symbols)

TECHNICKÉ ÚDAJE

Looking for spare parts? Have a look at https://spareparts.emerio.eu

ZÁKAZNICKÝ SERVIS

NÁHRADNÍ DÍLY

Ръководство с инструкции – Bulgaria (BG)

White and black vacuum cleaner with a brush, shown against a plain white background (no text or symbols visible)

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

Line drawing of a robotic vacuum cleaner with internal components and a battery stack (no text or symbols)

Важно:

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

ТЕХНИЧЕСКИ ДАННИ

Looking for spare parts? Have a look at https://spareparts.emerio.eu

КЛИЕНТСКИ СЕРВИЗ

РЕЗЕРВНИ ЧАСТИ

Black and white photo of a vacuum cleaner with a brush, no visible text or symbols

Technical diagram of a mechanical device with an inset showing internal components and an upward arrow (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic device with attached components and a small panel, showing no text or symbols.

Fontos:

Black and white photo of a vacuum cleaner with coiled hose and handle (no visible text or symbols)

TECHNIKAI ADATOK

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Ü GYFÉLSZOLGÁLA

PÓ TALKATRÉSZEK

Instruction manual – English (EN)

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

13. Never leave the appliance unattended during use.

14. This appliance is not designed for commercial use.

15. Do not use the appliance for other than intended use.

16. Do not wind the cord around the appliance and do not bend it.

17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.

19. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.

20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.

21. Do not use this appliance without filters in place.

22. Use extra care when vacuuming on stairs.

23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.

24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).

25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.

26. Keep your work area well dry.

27. Do not use the cleaner to clean your pets or any animal.

28. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters.

29. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

The general purpose vacuum cleaner (model VCE-108278.21), has been tested according to EN 60312-1 and complies with the essential requirements of regulation (EU) 666/2013 for vacuum cleaners.

USE AND FUNCTION

Assembling vacuum cleaner

White and black vacuum cleaner with a brush, shown against a white background (no text or symbols visible)

Note: Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Attaching the flexible hose into the vacuum. Connect the flexible hose into the air intake duct; push in until you hear a "click" sound, indicating it is in its locked position.
2. Fitting the tube to the curved wand/hose extension.
3. Fitting the floor brush to the tube. Push the tube into the floor brush. Adjust the tube to the desired length.

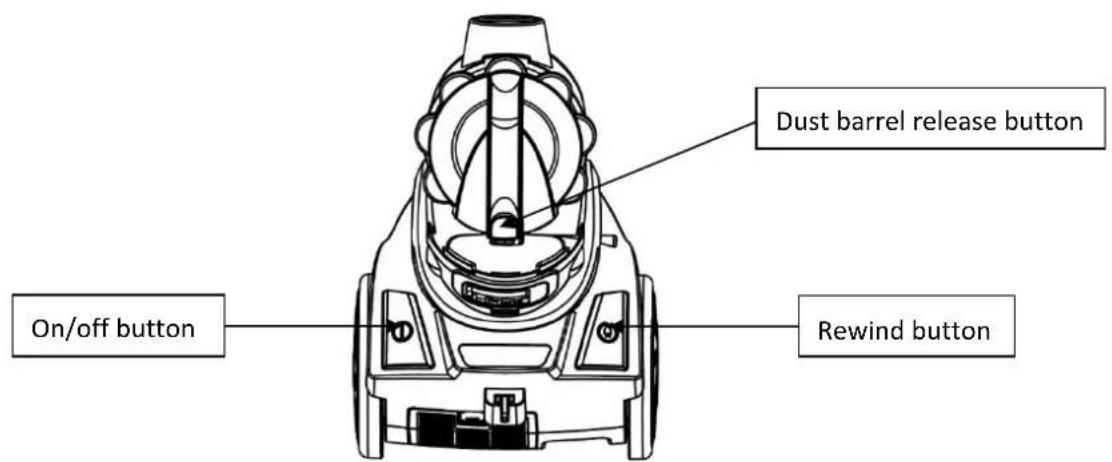

BUTTON FUNCTION INTRODUCTION

Note:

Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark.

1. Insert the power plug into the wall outlet.
2. Press the power on/off button located on the unit to turn the vacuum cleaner "on".
3. To rewind the power cord, press the cord rewind button with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

CLEAN THE DUST BARREL

1. Press the knob on the dust cup arm. Lift dust barrel up.
2. Press the knob on the lower end of dust barrel to open the dust barrel cover.

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Removing & cleaning the pre-motor filter (Hepa filter), dust filter, and air outlet filter (Hepa filter) Warning: Always unplug the unit from electrical outlet before getting out the dust barrel.

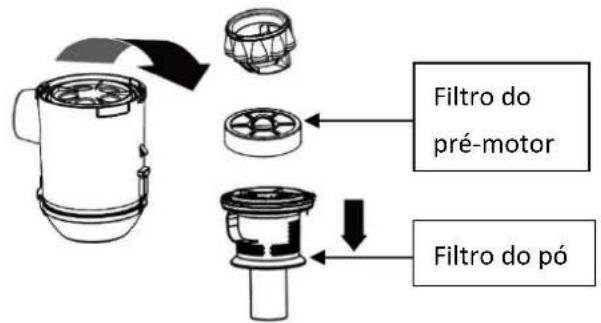

a. Pre-motor filter & dust filter

1. Press the knob on the dust cup arm. Lift dust barrel up.

2. Take out the pre-motor filter for cleaning and changing.

3. Take out the dust filter and use a soft brush to clean it. Rinse with clean water and then dry thoroughly before replace it.

Note: please take the pre-motor filter out before rinse the dust filter.

Tips: how to detach the upper part from the reservoir

1. Find the lock icons on the side of the reservoir. The arrow is pointing at the locked one.

2. Turn the upper part anti-clockwise and the arrow will be pointing at the unlocked one; then lift.

b. Air outlet filter

1. Take out the air outlet filter for cleaning and changing.

Line drawing of a robotic device with internal components and external components, showing no text or symbols.

Please note:

The Hepa filter in the cleaner will become dusty over time. This is normal and will not affect the performance of the filter. If the Hepa filter is so dusty that suction does not return to 100%, we suggest that the filter be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the fire or some high temperature objects before refitting into the vacuum. This should be done once six months or when suction power appears to be reduced obviously.

Important: Please note that there is a safety switch inside the vacuum to prevent the unit from being run with high vacuum rate. If the vacuum is too high, the safety switch will be turned on. In this case, it can minimize the vacuum rate and protect the motor from being broken.

Note:

The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

If the suction power of the vacuum cleaner gets low please check the hose for obstacles. You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles. To assemble the hose again first press the flexible hose into the handle and then click in the connection part.

Important:

All filters should be checked regularly for signs of damage, preferably after each cleaning task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the filters.

Parking:

This vacuum cleaner can be parked as below style to save your room space.

Black and white photo of a vacuum cleaner with coiled hose and circular vent (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V\~ 50-60Hz

Power: 899W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

Electrical and electronic devices/ information for private households

The Directive 2012/19/EU on waste electrical and electronic equipment contains a large number of requirements for handling electrical and electronic equipment. The most important are compiled here.

1. Separate collection of waste electrical and electronic equipment

Electrical and electronic equipment that has become waste is referred to as waste electrical and electronic equipment (WEEE). Owners of WEEE must collect them separately from unsorted municipal waste. WEEE do not belong in household waste, but in special collection and return systems.

2. Batteries, accumulators and lamps

Owners of WEEE must hand over them in complete condition. However, owners of WEEE have to separate old batteries and accumulators which are not enclosed by the WEEE, as well as lamps which can be removed, from the WEEE without destroying it before handing it over to a collection point.

3. Ways to return the WEEE

Owners of WEEE from private households can hand them in free of charge at the designated collection points of the public waste disposal authorities or at the take-back points set up by manufacturers or distributors in terms of the Directive 2012/19/EU.

4. Privacy Protection Notice

WEEE often contain sensitive personal data. This applies especially to information and telecommunications technology devices such as computers and smartphones. In your own interest, please note that each end user is responsible for deleting the data on the WEEE before disposing it.

5. Potential environmental impact

WEEE contain substances that may have a negative impact on the environment and human health if their collection, hand-over, re-use or material recovery is not done in compliance with respective legislation.

6. Your role in WEEE waste treatment

By fulfilling these obligations and especially by fulfilling the obligation to collect WEEE separately, not to dispose it together with unsorted municipal waste and to hand it over to at collection points, you as the end user contribute to the re-use and material recovery of WEEE.

7. Meaning of the crossed-out dustbin symbol

The crossed-out dustbin, which is regularly displayed on electrical and electronic equipment, indicates that the respective device must be collected separately from unsorted municipal waste at the end of its life cycle.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at https://spareparts.emerio.eu

CUSTOMER SERVICE

SPARE PARTS
