Type	Cylinder vacuum cleaner
Brand	Emerio
Model	VE-109959.4
Dimensions (L x W x H)	30 x 25 x 25 cm
Weight	4 kg
Power consumption	700 W
Suction power	200 Air Watts
Dust capacity	1.5 L bagless
Filtration system	HEPA H13
Noise level	75 dB
Cord length	5 m
Operating radius	8 m
Power cord type	Retractable
Vacuum cleaner type	Dry
Floor types	Hard floors, carpets, rugs
Included accessories	Crevice tool, upholstery brush, combination brush
Handle type	Ergonomic handle
Wheels	2 large rear wheels, 1 front swivel
Dust bag indicator	Yes
Overheating protection	Yes, automatic shut-off
Filter maintenance	Washable and reusable
Nozzle width	30 cm
Warranty	2 years

Frequently Asked Questions - VE-109959.4 Emerio

How often should I clean or replace the filter?

To maintain optimal suction, clean the HEPA filter every 1-2 months. Rinse with water and dry completely before reusing. Replace the filter every 6 months or if damaged.

The vacuum cleaner loses suction, what should I do?

Check for blockages in the hose, tube, or nozzle. Empty the dust container if full. Clean or replace the filter. Ensure the dust container is properly installed and sealed.

Can I use this vacuum cleaner on hardwood floors?

Yes, the vacuum is suitable for hard floors. Use the appropriate brush setting to avoid scratches. The included combination brush works well on delicate surfaces.

How do I empty the dust container?

Press the release button to detach the dust container from the main unit. Hold it over a trash bin, press the bottom lid release to empty. Tap the container to remove residual dust. Wash with mild soap if needed and dry thoroughly.

The cord does not retract fully. What can I do?

Make sure the cord is not twisted or jammed. Gently pull out a few inches of cord and press the retract button again. If the issue persists, check for obstructions in the cord housing.

What is the maximum noise level?

The vacuum cleaner operates at a noise level of approximately 75 dB, which is standard for this category. Use ear protection if sensitive to noise.

Can I use extension tubes?

Yes, the vacuum includes a telescopic tube that can be adjusted for height. You can also purchase compatible extension tubes from Emerio, but ensure they fit the 32 mm diameter connections.

The vacuum stops working suddenly. What should I do?

This may be due to overheating protection. Turn off the vacuum and unplug it. Check for blockages or a full dust container. Allow the motor to cool for 30 minutes before restarting.

How do I maintain the brush roll?

Regularly remove hair and debris from the brush roll using scissors or a seam ripper. Clean the brush compartment with a damp cloth. Replace the brush roll if bristles are worn.

Where can I find spare parts for this model?

Spare parts such as filters, brush rolls, and hoses are available on the Emerio website or through authorized retailers. Use the model number VE-109959.4 when ordering.

USER MANUAL VE-109959.4 Emerio

Exterior view of a black vacuum cleaner with attached pipe and mesh cover (no text or symbols visible)

Vacuum Cleaner (EN)

Staubsauger (DE)

Dammsugare (SE)

Stofzuiger (NL)

Pölynimuri (FI)

Støvsuger (NOR)

Støvsuger (DK)

CE

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
19. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without dust bag or filters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).

25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.

26. Keep your work area well dry.

27. Do not use the cleaner to clean your pets or any animal.
28. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters and change the dust bag.
29. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

The general purpose vacuum cleaner (model VE-109959.4), has been tested according to EN 60312-1 and complies with the essential requirements of regulation (EU) 666/2013 for vacuum cleaners.

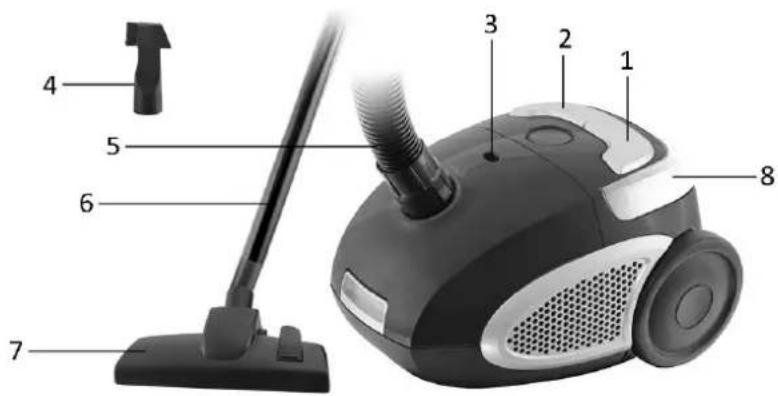

PARTS AND ACCESSORIES

1. On/off switch pedal
2. Cord rewinder pedal
3. Dust full indicator
4. Combi nozzle
5. Hose
6. Tube
7. Floor brush
8. Handle

OPERATING MODE

1. Connect the hose accessories:

Press the adaptors at both side of the hose end, and insert the hose into the hose socket.

1. Connect the tube to the curved hose end.

Connect the different nozzle tools/floor brush to the tube for different cleaning purposes. The floor brush has two positions, one for hard and one for soft/textile surfaces – Choose the right one.

1. Turn on the appliance:

Hold the plug and pull out the cord, then insert the plug into the power socket. Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power.

1. Turn off the appliance:

After using, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket; press the cord pedal, the power cord will be drawn in.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

MAINTENANCE

When the dust full indicator turns to red, it is time to clean the dust bag or replace with a new bag. To do that, please follow the instructions:

a) Open the front cover by pressing the lock clip.
b) Remove the dust bag.
c) Then take a new one, insert it into the bag holder.
d) Close the front cover.

NOTE:

1. The front cover cannot be closed unless the dust bag is installed in right position.

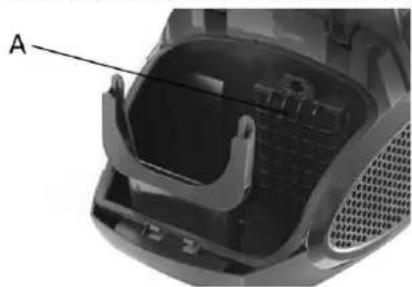

2. The motor protection filter (A) should be removed and rinsed twice a year or whenever it is visibly clogged. If the filter is damaged, a new filter should be replaced.

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

1. If the suction power of the vacuum cleaner gets low please check the hose for obstacles.

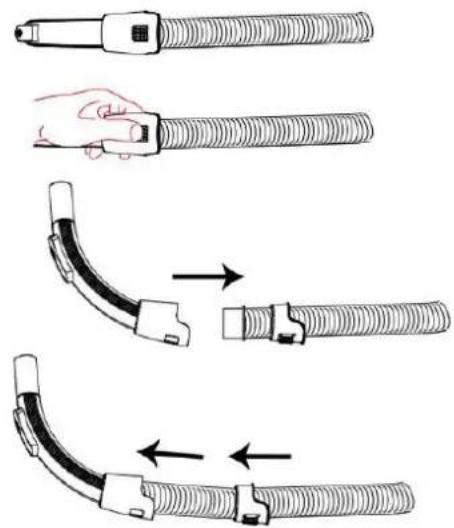

You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles.

To assemble the hose again first press the flexible hose into the handle and then click in the connection part.

Power Cord Marking

NOTE: Do not exceed the red mark when pulling out the cord. The yellow mark shows the ideal cable length. WARNING: the plug must be removed from the power socket before any maintenance or replacement.

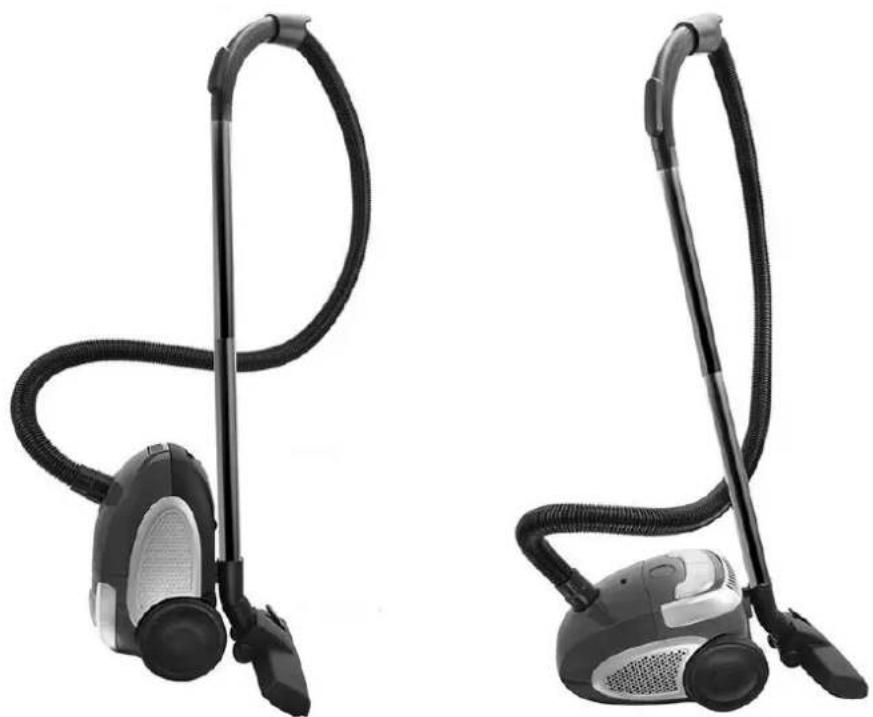

Parking:

This vacuum cleaner can be parked as below style to save you room space.

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Power: 800W

Suitable dust bag: Swirl ^® dust bag Y50 ^®

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

FUNKTIONSWEISE

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

Two black vacuum cleaner units shown from different angles (no text or symbols visible)

TECHNISCHE DATEN

ANVÄNDNING AV DAMMSUGAREN:

Close-up of a vacuum cleaner's internal structure, labeled with component A (no text or symbols beyond label)

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TEKNISKA DATA

Driftspänning: 220-240V \~ 50/60Hz

Effekt: 800W

BEDIENINGSWIJZE

Close-up of a vacuum cleaner's head panel showing internal components and ventilation slots (no text or symbols visible)

Markering Op De Voedingskabel

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TECHNISCHE GEGEVENS

TOIMINTOTILA

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TEKNISET TIEDOT

DRIFTSMODUS

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

Two black vacuum cleaner units shown side by side, no text or symbols visible

TEKNISKE DATA

Driftsspenning: 220-240V\~ 50/60Hz

Strømforbruk: 800W

Egnet støvpose: Swirl® støvpose Y50®

GARANTI OG KUNDESERVICE

BRUG

1. Tilslut slangen:

Close-up of a mechanical component with labeled section A, showing internal structure and mounting brackets (no text or symbols beyond label)

Two black vacuum cleaner units with coiled tubing, shown from different angles (no text or symbols visible)

TEKNISKE DATA

Driftsspæ nding: 220-240V \~ 50/60Hz

Strømforbrug: 800W

Egnede støvsugerposer: Swirl® støvsugerpose Y50®

GARANTI OG KUNDESERVICE
