SC-122953 - Vacuum Cleaner Emerio - Free user manual and instructions

Product Type	Sous-Vide Circulator
Brand	Emerio
Model	SC-122953
Power Consumption	1300W
Voltage	220-240V ~ 50-60Hz
Protection Class	IPX7
Temperature Range	30°C to 95°C (adjustable in 0.1°C increments)
Timer Range	00:00 to 99h59m (adjustable in 1 minute increments)
Water Level Indicators	MIN and MAX lines on appliance
Heating Element	Built-in, located in skirt (immersion part)
Control Panel	Digital display with buttons for temperature, timer, start/stop, and reset
Memory Function	Returns to last set temperature and time when powered on again (unless unplugged)
Safety Features	Low water warning (Er1), overheat protection (Er2), auto shut-off on low water
Cleaning	Wipe with damp cloth; descale with citric acid solution at 80°C
Clamp	Fixing clamp for secure attachment to container side
Power Cord	Non-replaceable; do not immerse
Accessories Required (Not Included)	Pot, vacuum sealer, heat-resistant vacuum bags
Warranty	2 years from date of purchase

Frequently Asked Questions - SC-122953 Emerio

What does the error code 'Er1' mean?

Error 'Er1' indicates low water level. The water level is below the 'MIN' mark. Add water so that it fills between the 'MIN' and 'MAX' lines before plugging in again.

How do I descale the sous-vide circulator?

To descale, lock the appliance onto a container, fill water to the 'MAX' level, set temperature to 80°C, add 1/4 cup of citric acid powder per gallon of water, circulate for 20 minutes after reaching temperature, then turn off, cool, rinse with cold water, and dry.

Can I use the appliance without a vacuum bag?

No, food must be vacuum-packed in special heat-resistant bags or sealed in jars to ensure proper sous-vide cooking. The appliance should not come into direct contact with food.

What is the maximum water level?

The maximum water level is indicated by the 'MAX' line on the appliance. Do not fill above this line as the water level will rise when food is added.

How do I set the timer?

Press the key with the timer icon until it flashes, then use the '+' or '-' keys to adjust the time from 00:00 to 99 hours and 59 minutes. Each press changes by 1 minute. Long press for continuous change.

Why is the appliance not heating?

Check that the water level is between 'MIN' and 'MAX'. If the error 'Er2' appears, the appliance may be overheating. Allow it to cool and ensure sufficient water. Also verify the power cord is properly connected.

Can I leave the appliance unattended?

Yes, the appliance is designed for safe unattended use with automatic shut-off if water is too low or overheating occurs. However, always follow safety instructions and do not cover the appliance.

What containers can I use with this circulator?

Use a heat-resistant container (e.g., stainless steel or plastic) that can withstand high temperatures. The container edge must be above the 'MAX' line on the appliance to secure the clamp.

How do I clean the appliance after use?

Unplug and allow to cool. Wipe the entire appliance with a damp cloth. For greasy immersed parts, circulate water at 65°C with dishwashing liquid for 10 minutes, then rinse and dry.

What is the default temperature and timer after power loss?

If the appliance is unplugged, it will reset to default temperature 50.0°C and timer 03:00. If only switched off but still plugged in, it remembers the last settings.

USER MANUAL SC-122953 Emerio

Close-up of a black and silver digital kitchen tool with a knob (no visible text or symbols)

Sous-Vide Circulator (EN)

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Children shall not play with the appliance.
4. The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
5. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “CLEAN AND MAINTENANCE” of the manual.
6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. After unplugging, the heating element will remain hot and should not be touched or placed on combustible surfaces.
8. Do not operate the appliance if the cord has been damaged, or if the appliance malfunctions or is damaged in any way. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
9. Any use of accessory attachments not recommended by the manufacturer may cause hazards.
10. Do not use outdoors.

11. Do not let cord dangle or hang over the edge of table or counter tops, or allow it to touch hot surfaces.

12. Do not place the appliance on or near gas or electric burners, on a stovetop or in an oven.

13. Do not use this appliance for any other purpose but its intended use.

14. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

15. The appliance should not come into direct contact with food. Use approved boilable bags.

16. Food products like juice, soup or milk products still need to be bagged or sealed in jars for cooking.

17. Operate the appliance in water only. Keep the water level between the “MIN” and “MAX” levels indicated on the appliance. Do not use the appliance for other than intended purposes.

18. Keep the appliance dry. Never operate the appliance unless the water level is between the indicated “MIN” and “MAX” levels on the appliance. Only the heater and impeller portion should be underwater. Do not immerse the cord or upper portion of the appliance into liquid. If the appliance or any of its parts become submerged, unplug it immediately.

19. Unplug the appliance before moving it, cleaning and when not in use. Allow the appliance to cool before lifting or storing.

20. Wait for the appliance to cool before moving. Do not touch hot surface.

21. Remember circulated water can be very hot. Use a trivet to protect your countertop from any container being used with the appliance. Use tongs to reach anything inside the water bath. Extreme caution must be used when moving containers of hot water.

22. Cover the water bath. Energy can be saved by covering the water bath with cling wrap when cooking. Do not cover any part of the appliance with cling wrap.

What does sous-vide mean?

Sous-vide (French for “Under vacuum”) is a method of cooking in which the food is first vacuum-packed in special plastic bags and then cooked at a low temperature in a water bath. The cooking temperatures remain under 95°C. The low temperatures change the products more slowly at a molecular level, making the cooking results more tender and juicy.

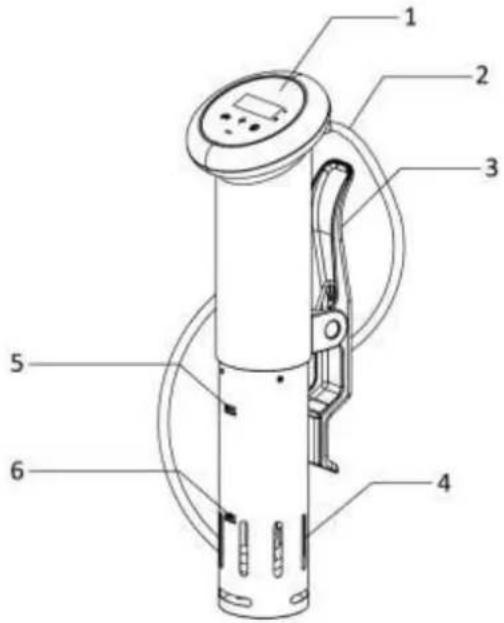

PARTS DESCRIPTION

1. Control panel
2. Power cord
3. Fixing clamp
4. Skirt (with heater and impeller inside)
5. Maximum water level
6. Minimum water level

Control panel

a. Digital display
b. Temperature unit icon
c. Timer icon
d. The key to set the working temperature or time
e. The key to start/stop the appliance
f. The key to increase the working temperature or time
g. The key to decrease the working temperature or time

OPERATION

Caution: During use, the part above the "MAX" line must not be immersed into the liquid.

1. Firmly lock the appliance by clamping it on the side of the container. The container's upper edge should be above the MAX line on the appliance. Place the container on a flat, dry and heat resistant surface.
2. Add water to the container. The water level should be set between the "MIN" and "MAX" lines on the appliance. The water level will rise when you add food to the container, so do not fill it up too high.
3. Plug the appliance into a suitable power outlet. A beep sound will be heard. All the indicators illuminate and then extinguish while the indicator of the key keeps on in red. The appliance is standby.
4. Press the key “☑”, its indicator flashes in red and the icon “°C” flashes too. Now you can set your desired working temperature. Press the key “+” or “-” to adjust the temperature between 30^ C to 95^ C. Every press with a beep sound changes 0.1^ C. Long press the key “+” or “-”, the temperature is changed without stop until the key is released.

1. Press the key “&” to have the icon “☐” flashing. Now you can set your desired working time. Press the key “+” or “-” to adjust the timer between 00:00 to 99(h):59(m). Every press with a beep sound changes 1 minute. Long press the “+” or “-”, the time is changed without stop until the key is released.
2. After setting is finished, press the key “▶” to let the appliance start heating. The indicator of “▶” will turn to continuously illuminated from flashing.
3. When the set temperature is reached, the appliance will send out a long beep and the time starts to count down.
4. Add your food into the container and let the appliance do its work. Three beeps would be heard when the countdown is finished. The appliance will enter into standby.
5. Remove the cooked food. CAUTION: The skirt part will become very hot during working or after working, please do not touch it unless it is cooled down completely.
6. Unplug the appliance and clean it by following the section "cleaning and maintenance".

Note:

1. During use, you can press the key “#” to check the set temperature and time. You can also reset the temperature and time by pressing the key “#” (to have its indicator flashing) and then following the above operation. Press the key “#” again after reset, its indicator will turn to continuously illuminated from flashing. The appliance will work based on the reset settings. Please note the resetting shall be finished within 3 seconds, otherwise the resetting will be invalid and the appliance will still work based on the current settings.
2. During use, you can long press the key "▶" to make the appliance stop working and enter into standby mode.
3. This appliance is equipped with memory function, which means the appliance will work according to the last setting temperature/time after being powered on again under standby mode. However, if the appliance is unplugged, the memory function will not be available. The appliance will display the default temperature "50.0" and timer "03:00" respectively after being turned on again.

CLEANING AND MAINTENANCE

CAUTION: The whole appliance cannot be put into the dishwasher for cleaning. Allow the appliance to cool down to room temperature and then wipe it down carefully with a damp cloth and dry before storing. If the immersed parts become greasy or need more cleaning:

1. Lock the appliance onto a container and fill the container with water to the "MAX" level indicated on the appliance.
2. Set the temperature to 65°C.
3. Add 1/2 tablespoon non-foaming dishwashing liquid per gallon of water used.
4. Allow the water to circulate for 10 minutes after 65°C is reached.
5. Turn off and unplug the appliance.
6. When the appliance is cooled down, rinse the bottom with cold water and dry before storing.

Descaling

With frequent use, descaling should be done every month or more often in regions with hard water. To descale:

1. Lock the appliance onto a container and fill the container with water to the "MAX" level indicated on the appliance.
2. Set the temperature to 80°C.

3. Add 1/4 cup of citric acid powder per gallon of water used.

4. Allow the water to circulate for 20 minutes after 80^ C is reached.

5. Turn off and unplug the appliance.
6. When the appliance is cooled down, rinse the bottom with cold water and dry before storing.

You will need the following accessories (not supplied) to cook using the sous-vide method:

- Pot;

- Vacuum sealer;

- Special vacuum bag or plastic bags that are heat-resistant and do not release any plasticizers or similar material.

TROUBLESHOOTING

Problem	Solution
Low water - If the water level is below the “MIN” level, a low water warning “Er1” will appear.	Add water so that it fills between the “MIN” and “MAX” as indicated before plugging in the appliance again.
Overheat - If the appliance gets too hot, an overheating warning “Er2” will appear.	It may be necessary to add water to the container. Wait a few minutes for the appliance to cool down before restarting.

RECOMMENDED COOKING TEMPERATURES AND TIMES

FOOD	THICKNESS^1		TEMPERATURE		TIME
	inch	cm	°F	°C	min	max
BEEF, VEAL, LAMB, GAME
Tender Cuts	1	2.5	134 or higher	56.5 or higher	1 hr	4 hrs
Tenderloin, Rib-eye, T-bone, Chops, Cutlets	2	5	134 or higher	56.5 or higher	3 hrs	6 hrs
Tough Cuts and Grassfed ^2 Bison, Game	1	2.5	134 or higher	56.5 or higher	8-10 hrs	12-24 hrs
Lamb Roast or Leg	2.75	7	134 or higher	56.5 or higher	10 hrs	24-48 hrs
Spare Ribs	2	5	134 or higher	56.5 or higher	24 hrs	48-72 hrs
Flank Steak, Brisket	1	2.5	134 or higher	56.5 or higher	8 hrs	24 hrs
	2	5	134 or higher	56.5 or higher	12 hrs	30 hrs
PORK
Tenderloin	1.5	4	134 or higher	56.5 or higher	90 min	6-8 hrs
Baby Back Ribs			165	74	4-8 hrs	24 hrs
Chops, Cutlets	1	2.5	134 or higher	56.5 or higher	2-4 hrs	6-8 hrs
	2	5	134 or higher	56.5 or higher	4-6 hrs	8-10 hrs
Roast	2.75	7	160-176	71-80	12 hrs	30 hrs
Spare Ribs	2.75	7	160-176	71-80	12 hrs	30 hrs
Belly (quick)	2	5	185	85	5 hrs	8 hrs
Belly (slow)	2	5	167	75	24 hrs	48-72 hrs
POULTRY
White MeatChicken Breast, bone in	2	5	146 or higher	63.5 or higher	2.5 hrs	4-6 hrs
Chicken Breast, boneless	1	2.5	146 or higher	63.5 or higher	1 hr	2-4 hrs
Turkey Breast, bone in	2.75	7	146 or higher	63.5 or higher	4 hrs	6-8 hrs
Turkey Breast, boneless	2	5	146 or higher	63.5 or higher	2.5 hrs	4-6 hrs
Duck Breast	1	2.5	146 or higher	63.5 or higher	90 min	4-6 hrs
Dark MeatChicken Leg or Thigh, bone in			165-176	74-80	4 hrs	6-8 hrs
Chicken Thigh, boneless	1	2.5	165-176	74-80	2 hrs	4-6 hrs
Turkey Leg or Thigh			165-176	74-80	8 hrs	10 hrs
Duck Leg			165-176	74-80	8 hrs	18 hrs
Split Game Hen	2.75	7	150 or higher	65.5 or higher	6 hrs	8 hrs
SEAFOOD
FishTuna, Halibut, Snapper, Sole, Salmon, Trout, Mackerel	0.5-1	1.25-2.5	126 or higher	52 or higher	20 min	30 min
	1-2	2.5-5	126 or higher	52 or higher	30 min	40 min
Crustaceans, MollusksLobster	1	2.5	140	60	45 min	60 min
Scallops	1	2.5	140	60	40 min	60 min
Shrimp	jumbo	jumbo	140	60	30 min	40 min
VEGETABLES
RootCarrots, Parsnips, Potato, Turnips, Celery Root, Beets	up to 1	up to 2.5	183	84	1-2 hrs	4 hrs
	1-2	2.5-5	183	84	2.5 hrs	4 hrs
TenderAsparagus, Broccoli, Corn, Cauliflowers, Eggplant, Onions, Green Beans, Fennel, Squash, Fresh Peas	up to 1	up to 2.5	183	84	30 min	1.5 hrs
FRUIT
FirmApple, Pear	up to 1	up to 2.5	183	84	45 min	2 hrs
SoftPeach, Apricot, Plum, Mango, Papaya, Nectarine, Berries	up to 1	up to 2.5	183	84	30 min	1 hr
EGGS^3
Soft-cooked in shell (quick)	large	large	167	75	15 min	18 min
Soft-cooked in shell (slow)	large	large	146	63.5	45 min	1.5 hrs
Hard-cooked in shell	large	large	160	71	45 min	1.5 hrs
Pasteurized in shell	large	large	135	57	1.25 hrs	2 hrs
Scrambled (5 eggs)	large	large	167	75	20 min	20 min

^1 Thickness measurements are based on the thickest section of the food and measured through the vacuum-sealed pouch. Cooking times are for foods starting at refrigerator temperature. Add 15 minutes if starting from frozen.

^2 Tough cuts of meat will heat through to serving temperature in the same time as tender cuts. We recommend longer cooking times for lean, tough cuts to tenderize them.

^3 Eggs cooked in the shell should not be sealed in cooking pouches.

TECHNICAL DATA

Voltage: 220-240V \~ 50-60Hz

Power: 1300W

Protection class: IPX7

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
