23Z011 - Air-conditioner Zelmer - Free user manual and instructions

Product Type	Portable Air Conditioner
Model	23Z011
Brand	Zelmer
Cooling Capacity	9000 BTU/h (approx.)
Power Supply	220-240 V~, 50 Hz
Power Consumption (Cooling)	1050 W (approx.)
Refrigerant	R290 (propane) / R410A (not specified, assumed R290 for portable units)
Airflow (Max)	350 m³/h (approx.)
Noise Level	≤ 65 dB(A) (approx.)
Dimensions (W x H x D)	48 x 84.5 x 45 cm
Net Weight	28 kg (approx.)
Temperature Range (Cooling)	17°C - 31°C
Temperature Range (Dehumidifying)	20°C - 31°C
Operating Modes	Cool, Dry, Fan
Fan Speeds	High, Medium, Low
Timer	1-12 hours auto on/off
Remote Control	Yes (range 8m)
Water Drainage	Automatic pump or manual drain
Air Filter	Washable (clean every 2 weeks)
Caster Wheels	Yes
Hose Length (Exhaust)	50-200 cm (recommended max 180 cm)
Window Slider Kit	67.5-123 cm
Safety Class	Class I (grounded plug)
Certifications	CE, LVD, EMC
Included Accessories	Flexible hose with adaptor, window adaptor, window slider kit

Frequently Asked Questions - 23Z011 Zelmer

How do I install the exhaust hose correctly?

Attach one end of the exhaust duct to the adaptor on the air conditioner and twist it tight with 2-3 full turns. Keep the duct as short as possible (between 60 and 180 cm) and in a horizontal position. Do not bend it sharply or extend it beyond 200 cm.

Why does the 'WATER FULL' light come on and how do I drain the water?

The 'WATER FULL' light indicates the water container is full. The unit will stop and display error code E5. For automatic drainage, the pump will run for 10 minutes. For manual drainage, press SWING and TIMER buttons simultaneously for 2 seconds to start draining. Empty the container through the release stopper.

How often should I clean the air filter?

Clean the air filter every two weeks. Remove it by pulling upward, wash with warm water (around 40°C) and mild detergent, rinse, and dry in a shady place before reinstalling.

Can I use the air conditioner without the exhaust hose?

Only in dehumidifying (DRY) mode can the air conditioner operate without the exhaust hose. For cooling (COOL) and ventilation (FAN) modes, the hose must be connected to an outside opening to expel hot air.

What do the error codes on the display mean?

E2: Sucked air temperature sensor failure. E3: Appliance operating at too high temperature. E4: Appliance protection against irregularities. E5: Water level too high (drain required). If problems persist, contact an authorized service center.

How do I set the timer for automatic on/off?

On the control panel, press TIMER repeatedly to set the delay (1-12 hours). The display shows '⊕→ON' for auto-on or 'OFF' for auto-off. On the remote, press TIMER then use HOUR to adjust. Confirm by pressing ON/OFF.

What are the minimum clearances required around the unit?

Maintain at least 50 cm clearance from walls or obstacles on all sides to ensure proper airflow.

Why is the cooling effect weak?

Check if air inlets/outlets are blocked, if the air filter is dirty, if the room has other heat sources, if the temperature setting is correct, or if fan speed is too low. Ensure the exhaust hose is properly installed and not bent.

Can I use an extension cord with the air conditioner?

No. Plug the air conditioner directly into a grounded AC outlet. Do not use a multiple socket outlet or extension cord as it may cause overheating or fire.

How should I store the air conditioner at the end of the season?

Unplug and clean the filter. Drain all water by removing the release stopper. Run the fan mode for half a day to dry the interior. Store the unit upright in a dry, covered place.

USER MANUAL 23Z011 Zelmer

Diagram of an air conditioner unit connected to a curved duct with a black X symbol (no text or labels)

PANEL STEROWANIA

FUNKCJE KLIMATYZATORA

Diagram of a portable air conditioner unit connected to a curved duct with a black X mark, no text or symbols present.

OVLÁDACÍ PANEL

PRAVIDELNÉ PROHLÍDKY PŘÍSTROJE

Diagram of a portable air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

OVLÁDACÍ PANEL

Diagram of an air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

KEZELÓPANEL

LCD KIJELZŐ

Diagram of an air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

PANOU DE COMANDĂ

DISPLAY LCD

Diagram of a portable air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

ПАНЕЛЬ УПРАВЛЕНИЯ

Diagram of a portable air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

КОНТРОЛЕН ПАНЕЛ

Line drawing of a portable air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

ПАНЕЛЬ УПРАВЛІННЯ

LCD - ДИСПЛЕЙ

Safety instructions 58

Technical parameters 58

Installation 59

Appliance features 61

Names of parts 61

Control panel 61

LCD display 61

Remote controller 62

Air conditioner functions 62

Automatic switch on/ switch off using the control panel 63

Automatic switch on / switch off using the remote controller 63

Water drainage methods 63

Cleaning and maintenance 63

Before the start of the season 63

Before the end of the season 64

Troubleshooting 64

Periodic inspection of the appliance 64

Ecology – Environmental protection 64

Dear Customers!

Please read this instruction manual carefully. Pay special attention to important safety instructions in order to prevent accidents and/or avoid damage to the appliance. Keep this instruction manual for future reference.

INTRODUCTION

• A portable air conditioner is an expensive appliance, therefore it is recommended that the appliance is installed by an experienced installer. Otherwise not only material damage may occur, but the air conditioner may also function improperly and its efficiency may be decreased.
  – Zelmer S.A. shall not be held liable for failures of air conditioners that have not been properly installed.

SAFETY INSTRUCTIONS

• Please read the whole instruction manual before operating the air conditioner.
  – Plug the air conditioner only to a grounded AC electrical outlet with a voltage in accordance with the voltage provided on the rating label.

Always place the appliance on a flat, even surface. -

Unplug the air conditioner when not in use and before cleaning. -

- Do not unplug by pulling on cord.

- Never operate the air conditioner if it has a damaged cord or if the housing of the heating assembly is visibly damaged.

If the supply cord is damaged, it must be replaced by a qualified service agent in order to avoid a hazard.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact an authorized service center.

Do not use the appliance in the following locations: -

• next to a source of water or in an area where the appliance may have direct contact with water,
  • in an area where oil is likely to splash,
  • in an area exposed to direct sunlight,
  • in the greenhouse.

– Never insert your fingers or any foreign objects into the air outlet. Take special care to warn children of these dangers.
– Always store the unit upright in order to maintain the compressor in a proper condition.
– There is a risk of overheat if the appliance is covered. Never block the ventilation openings during operation.
- Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the heating assembly housing. They may remove the graphic information symbols such as: as scales, marks, warning signs etc.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
– Children should be supervised to ensure that they do not play with the appliance.

Instructions concerning the remote controller

• Be sure there are no objects between the remote controller and the receiver of the unit. Otherwise the air conditioner will not operate.
• Keep the remote controller away from all liquids.
• Protect the remote controller from high temperatures and exposure to radiation.
• Keep the remote controller away from electromagnetic interference supplied by other household appliances.

Make sure the above instructions have been understood.

TECHNICAL PARAMETERS

The technical parameters are indicated on the rating label.

The air conditioner is a class I appliance equipped with a cord with a grounding wire and a grounding plug.

The air conditioner fulfills the requirements of the existing norms.

The appliance is in conformity with the requirements of the directives:

- Low voltage appliance (LVD) – 2006/95/EC.

– Electromagnetic compatibility (EMC) – 2004/108/EC.

The appliance was marked by the CE sign on the rating label.

INSTALLATION

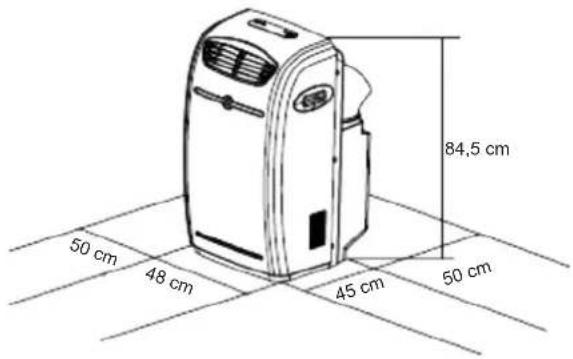

The selection of the location

Install the air conditioner on a plat surface where the air outlets will not be covered. A minimum clearance of 50 cm from a wall or other obstacles should be kept.

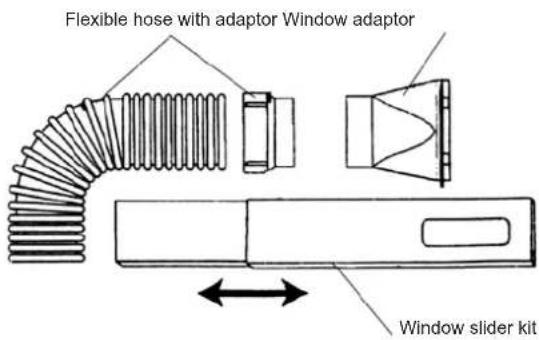

Installation accessories

Flexible hose with adaptor 1 set, 4 elements

Hose length from 50 cm to 200 cm

Window adaptor 2 sets 2 elements

Window slider kit 1 set, 2 elements

Dimensions from 67.5 cm to 123 cm

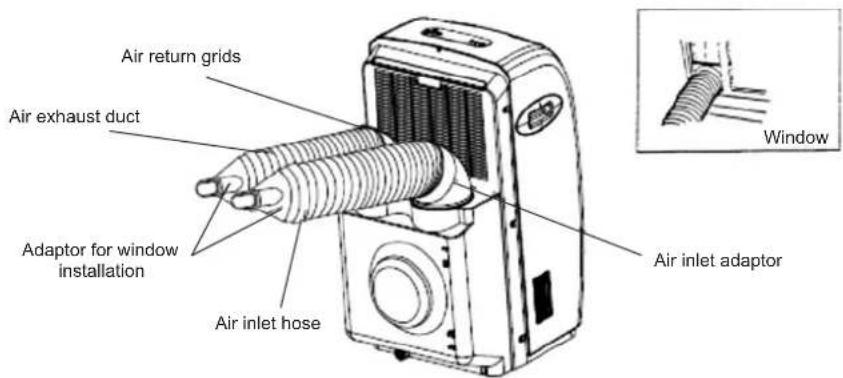

Air inlet and exhaust duct installation

1. Fix one end of the air exhaust duct to the adaptor in the air conditioner and twist on the exhaust duct with 2–3 full turns.
2. Put the other end of the duct /outlet/ to a nearby window.
3. Fix the air inlet duct in the same way.

ATTENTION: The duct can be compressed or extended between 60 cm and 180 cm. It is recommended to keep the duct length to a minimum.

Keep the duct in a horizontal position during installation, do not extend the duct or attach other air outlets. Failure risk.

Duct installation instruction

Reattach the air exhaust duct if it is not tight. Twist off the end of the duct with three full turns and then screw the ending on as shown in the picture below.3

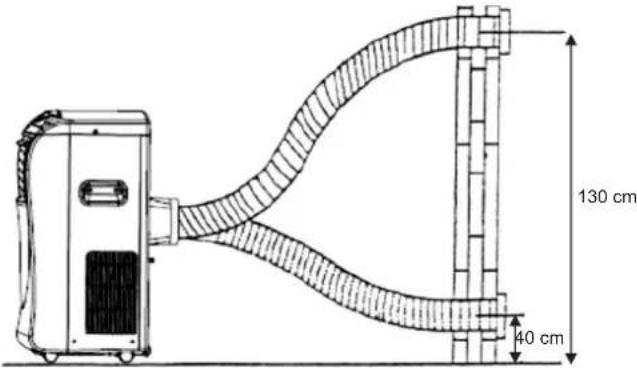

Properly installed ducts are shown in the picture below (if you install the ducts onto a wall, the height of the installation should be between 40 and 130 cm).

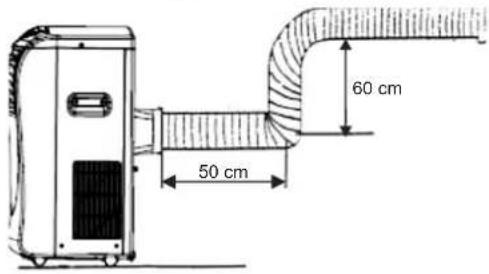

If the duct needs to be bent, please follow the instructions in the pictures below during installation.

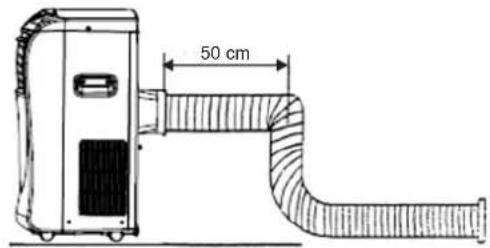

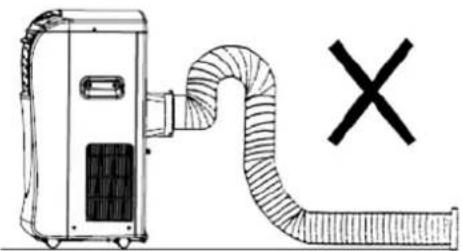

An example of an improperly installed duct. This may cause failure of the air conditioner or its improper functioning.

Diagram of a portable air conditioner unit connected to a coiled hose with a black X symbol (no text or labels)

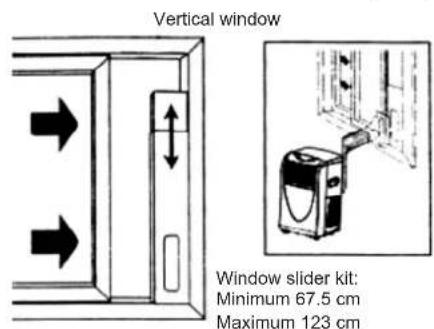

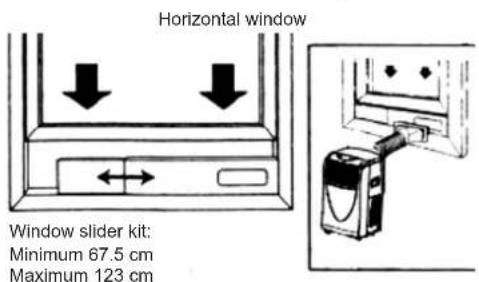

Window installation kit

The air conditioner set is equipped with a window slider designed to fit "vertical" or "horizontal" window applications. It facilitates the installation of air inlet/outlet ducts. However, it may be necessary to modify some aspects of the installation procedure for certain types of windows. Please follow the instructions in the pictures below concerning the minimum and maximum window openings.

Attach the window slider to the slat using two screws (see picture below)

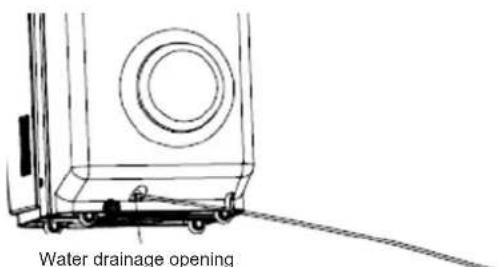

The installation of the water drainage hose

Install the water drainage hose in the opening on the back of the appliance. Make sure the drainage hose is correctly positioned in order to avoid the improper functioning of the eclectic control (see picture below).

APPLIANCE FEATURES

The portable air conditioner enables to maintain the desired temperature and to lower the air humidity. Thanks to its flexible features it can be used on various occasions and in various rooms. Its multiple functions include to cooling, dehumidifying, fanning ventilation. This model has been specially designed for household or office use.

It is recommended to use the air conditioner in rooms with the temperature ranging between 17°C and 35°C.

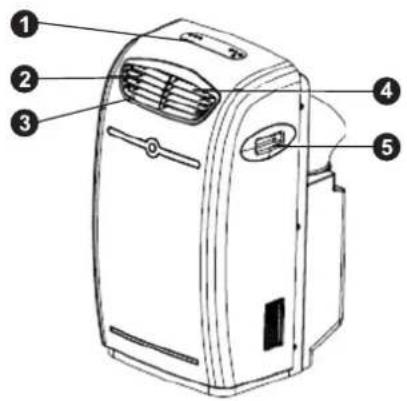

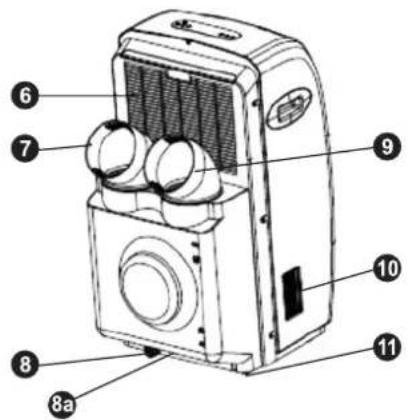

NAMES OF PARTS

1. Control panel with display.
2. Left/right swinging fins (automatically adjusted).
3. Ventilation opening.
4. Upper/lower swinging fins (manually adjusted).
5. Carrying handle.
6. Air inlet grill with filter.
7. Air outlet.
8. Water release stopper 8a Water drainage hose opening.
9. Air inlet.
10. Air switch (upper position - ON, lower position OFF.
11. Caster.

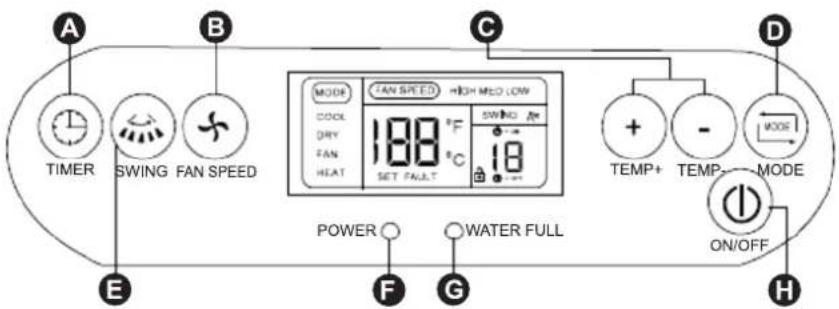

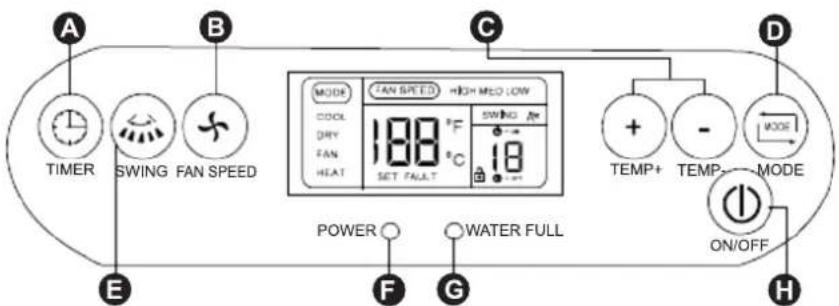

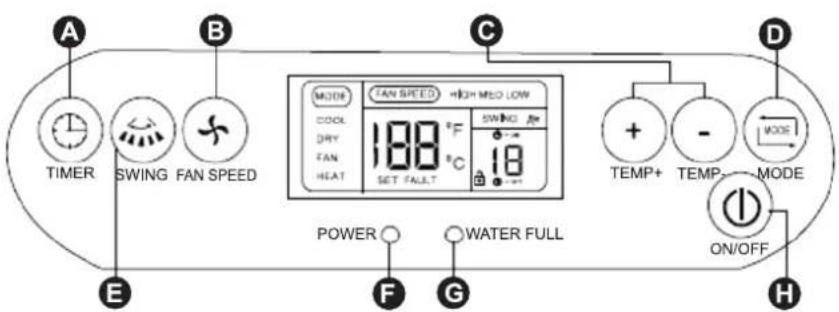

CONTROL PANEL

A - TIMER button. Used to set the time of the switch on / switch off or to cancel the settings.
B – FAN SPEED button changes the speed of air delivery. Used to change the speed settings of the air conditioner: HIGH, MED and LOW.
H - TEMP+, TEMP- buttons. Used to set the desired temperature in the room.
D - MODE selection button. Used to select the desired operation mode: COOL, DRY, and FAN.
E - SWING button. Used to set the swinging mode or the fixed direction mode of the air delivery.
F - POWER indication lamp.
C - WATER FULL indication lamp.
H - ON/OFF button.

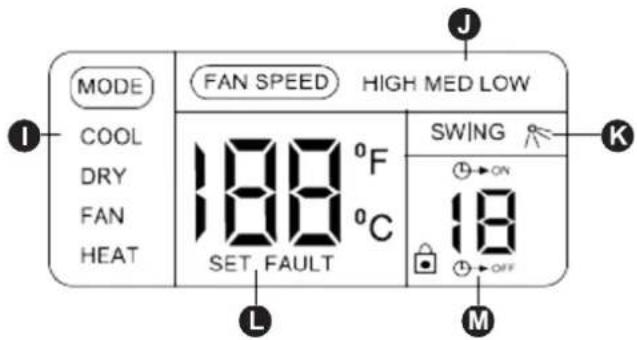

LCD DISPLAY

I – Operation mode indicator: COOL, DRY, FAN HEAT – heating is inactive in this model.
J - Fan speed indicator: HIGH, MED, LOW.
K - Swinging indicator (right-left).
M – Display of time setting. The displayed digits indicate the remaining time of the ON/OFF operation.
L - Display of preset temperature - SET and failure code - FAULT. When SET is displayed, the displayed digits indicate the preset temperature. When FAULT is displayed, the displayed digits indicate the code of failure (see chapter: Self-diagnosis function). Room temperature is displayed when the SET and FAULT indicators are not displayed.

ATTENTION: The above digits on the LCD display are only for the purpose of explanation. Practically only the pertinent digits are displayed.

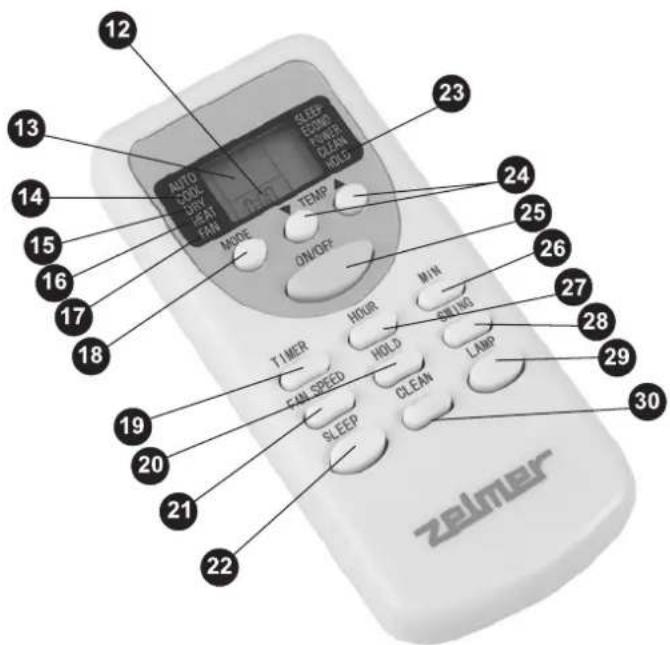

REMOTE CONTROLLER

1. Set on/off time indicator or current time.
2. Preset temperature indicator.
3. Cooling mode: COOL
4. Dehumidifying mode: DRY.
5. Heating mode: HEAT- inactive in this model
6. Ventilation mode FAN.
7. Mode selection button. Each time you press the button the mode will change in the following order: COOL, DRY, FAN.
8. TIMER button.

Used to set the time of the automatic switch on / switch off of the appliance. When pressed together with the HOUR (27) button, allows to set the time in the 1–12 hour range with an hourly break.

1. Keypad HOLD button.
2. FAN SPEED button. Changes the fan speed from HIGH, MED to LOW.
3. SLEEP button – inactive in this model.
4. HOLD indicator.
5. TEMP button. Each time you press the button the temperature will change by 1°C.
6. ON/OFF button.
7. MIN button. Used to set the current time in minutes.
8. HOUR button. Used to set the current time in hours and the automatic switch on/switch off time in hours.
9. SWING button. Used to set the air delivery swing mode (left-right) or the fixed direction mode of air delivery.
10. LAMP button – inactive in this model.
11. CLEAN button - inactive in this model.

Technical specification of the remote controller

Rated voltage 3,0 V
Lowest voltage of CPU emitting signal 2,0 V
Signal receiving range 8 m

Setting the current time

Properly insert two AAA batteries in the battery compartment on the back of the remote controller (see picture).

After installing the batteries the remote controller will automatically set the time to: 0:00.

For instruction purposes, the time will be set to 10:15.

1. Press and hold the HOUR (27) for about 3 seconds. The time indicator will begin to flash.
2. Keep pressing the HOUR (27) button until 10 a.m. is set.
3. Press the MIN (26) button, the minute indicator will begin to flash. Keep pressing the button until it is set to 15.
4. Press the ON/OFF (25) button to confirm the set time. The set time will be automatically cancelled if the ON/OFF (25) button is not pressed within 15 seconds.

AIR CONDITIONER FUNCTIONS

The air conditioner has three functions: COOL, DRY and FAN ventilation.

The temperature range for the cooling mode is from 17°C to 31°C, and for the dehumidifying mode is from 20°C to 31°C.

Power source

• Plug the appliance only to a grounded AC socket connected to a protection circuit.
• Do not connect the appliance to a multiple socket outlet which is also being used for other electrical appliances.
• Insert the plug into a power source. After 2 seconds you will hear a beep. Press the ON/OFF (H) button on the control panel or the ON/OFF (25) button on the remote controller for the appliance to start operating.

Cooling operation

1. Repeatedly press the MODE (D) button on the control panel or the MODE (18) button on the remote controller and choose the cooling mode. The LCD display should show the COOL indicator. During the cooling operation always place the air inlet and hot air exhaust hose outside the room e.g. through an open window.
2. Repeatedly press TEMP+ or TEMP- (C) button on the control panel or the TEMP (24) button on the remote controller to select the desired room temperature at 17 – 31.
3. Press the FAN SPEED (B) button on the control panel or the FAN SPEED (21) button on the remote controller to select the desired fan speed: HIGH, MED, or LOW.
4. Press the SWING (E) button on the control panel or the SWING (28) button on the remote controller to adjust the air delivery direction.

When the LCD display shows the symbol SWING ; the swing mode is set (left-right). Otherwise the fixed direction mode of air delivery will be set.

The upper and lower swinging fins (4) can be manually adjusted before the start of operation.

ATTENTION: In order to improve the cooling efficiency follow the instructions below:

1. Draw the curtains if the room is directly exposed to the sun.
2. Do not place the air conditioner near other heat sources.

Dehumidifying operation

1. Keep the windows and doors closed for an effective dehumidifying operation.
2. Repeatedly press the MODE (D) button on the control panel or the MODE (18) button on the remote controller and choose the dehumidifying mode. The LCD display will show the DRY indicator. During the dehumidifying mode the fan speed cannot be adjusted. (The FAN SPEED button is inactive).
3. While using the dehumidifying mode the air conditioner can operate without the air outlet hose.

Ventilation

1. During the ventilation mode the appliance will only adjust the air flow which means that the air flowing into the room will not be cooled or dehumidified.
2. Repeatedly press the MODE (D) button on the control panel or the MODE (18) button on the remote controller and choose the ventilation mode. The LCD display should show the FAN indicator. During the ventilation operation always place the air inlet and exhaust hose outside the room e.g. through an open window.
3. The appliance cannot operate as a ventilator in a closed circulation without receiving air from the outside, therefore it is necessary to install the air inlet duct.
4. Press the FAN SPEED (B) button on the control panel or the FAN SPEED (21) button on the remote controller to select the desired fan speed: HIGH, MED, or LOW.

AUTOMATIC SWITCH ON / SWITCH OFF USING THE CONTROL PANEL

In order to set the automatic switch on press the TIMER (A) button, the LCD display will show the symbol „⊕→ON”. Repeatedly pressing the TIMER (A) button set the time after which the air conditioner is to switch on. Each time you press the TIMER (A) button, the value will increase by one hour. The setting range is 1–12 hours.

In order to set the automatic switch off of an operating appliance, press the TIMER (A) button, the LCD display will show the symbol „ OFF ”. Repeatedly pressing the TIMER (A) button set the time after which the air conditioner is to switch off. Each time you press the TIMER (A) button, the value will increase by one hour. The setting range is 1–12 hours.

Note: Pressing the TEMP+ and TEMP- together for more than 2 seconds will lock the buttons. The LCD display will show the symbol ☑Press both buttons together again to unlock the buttons. The symbol will disappear from the display.

AUTOMATIC SWITCH ON / SWITCH OFF USING THE REMOTE CONTROLLER

In order to set the automatic switch on time press the TIMER (19) button. The LCD display of the remote controller will display the „ON” symbol and the last used switch on time in the 1–12H format. Example: „4H” means that the appliance will automatically switch on in 4 hours.

In order to set / adjust the automatic switch on time press the HOUR (27) button. Each time you press the HOUR (27) button, the value will increase by one hour in the range from 1 to 12. When 12 is reached, the value will return to 1 the next time you press the HOUR (27) button. In order to set the automatic switch off of an operating appliance using the remote controller, press the TIMER (19) button, the LCD display will show the symbol „OFF” and the last used switch off time in the 1–12H format. Example: „4H” means that the appliance will automatically switch off in 4 hours.

In order to set / adjust the automatic switch off time press the HOUR (27) button. Each time you press the HOUR (27) button, the value will increase by one hour in the range from 1 to 12. When 12 is reached, the value will return to 1 the next time you press the HOUR (27) button.

WATER DRAINAGE METHODS

ATTENTION: One of the following drainage methods is suitable for your unit. Please check to refer the identical one and drain the water to proper position.

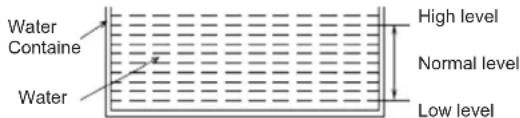

Method 1: Water drainage pump function – automatic water drainage

1. Under random mode if the water level in the water container is LOW, the water pump and recycle pump will not work, the air conditioner operates in the set operation mode.
2. If the water level in the water container is NORMAL, the recycle pump will work, water pump will not work and the he air conditioner operates in the set operation mode.
3. If the water level in the water container is HIGH, the water pump will work for 10 minutes. After that if the water level is on LOW/NORMAL level, the appliance will continue to operate in the set mode. If the water level continues to be on a HIGH level, the water pump will stop working and the appliance will switch off. The WATER FULL (G) control lamp on the control panel will illuminate and the LCD display will show failure code E5. Twist off the release stopper and empty the water container.

Method 2: Manual water drainage

When the water level in the water container is on HIGH level, the appliance will stop working and the WATER FULL (G) control lamp will illuminate on the control panel. The LCD display will show failure code E5. Simultaneously press the SWING (E) and TIMER (A) buttons for more than 2 seconds. The water will be drained out by the drainage hose on the back of the appliance. When the water level drops to LOW, the appliance will stop draining water. Press the ON/OFF (H) button to continue former operation mode.

CLEANING AND MAINTENANCE

1. Unplug the appliance before cleaning.
2. Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the housing. They may remove the graphic information symbols.
3. Wipe the housing with a damp cloth.
4. If the air filter is blocked with a large amount of dust, the air flow volume will be reduced. Clean the air filter every two weeks.

Opening and cleaning the air filter

1. Pull the filter directly upwards – see picture.
2. Wash the air filter by immersing it gently in warm water (about 40°C) with a neutral detergent.
3. Rinse the filter and dry in a shady place.
4. Attach the filter back to the appliance.

BEFORE THE START OF THE SEASON

1. Check if the air inlets and outlets are not blocked.
2. Make sure the air filter is properly installed before operating the air conditioner. If the air filter is removed, dust and other foreign objects may cause the improper functioning of the appliance.

BEFORE THE END OF THE SEASON

1. Switch off and unplug the air conditioner.
2. Clean the air filter and other parts.
3. Twist off the release stopper and remove the water. Run the air conditioner in the ventilation mode for about half a day for the unit to dry thoroughly.
4. Cover the appliance to protect it from dust and dirt.

TROUBLESHOOTING

Please check the table below before contacting the service center.

Problem Check Solution
The air conditioner does not operate.	Is the power on?Is the appliance unplugged?Has the fuse blown?Is the water container indicator illuminated?Is the water container properly installed?Is the operating time properly set?	Plug in the appliance.Change the fuse.Empty the water container.Correctly install the water container.Change the time settings.
Weak cooling effect Is the air inlet	or outlet clogged?Is there another heat source in the room?Are the air filters dirty?Is the temperature correctly set?Is the fan speed appropriate?	Unblock the airflow.Remove the heat source from the room.Clean the filter.Change the set temperature.Change the fan speed to high.
Noise and vibration	Is the air conditioner standing on a flat, even surface?	Place the air conditioner on a flat, even surface.
The air conditioner automatically switches on and off.	Is the voltage in the power source appropriate?Is the exhaust duct bent or clogged?Is there an additional air outlet independently installed?	Check the power source.Make sure the exhaust duct is in a horizontal position.Check if hot air is correctly channeled.

ATTENTION: If the air conditioner still does not work, immediately unplug the appliance and contact an authorized service center.

SELF-DIAGNOSIS FUNCTION

The air conditioner has a built-in diagnosis system which informs the user about the improper functioning of the appliance.

Failure code Failure diagnosis

E2 Sucked air temperature measurement failure.

E3 Appliance operating at a too high temperature.

E4 Appliance protection against irregularities.

E5 The water level is too high.

PERIODIC INSPECTION OF THE APPLIANCE

1. Systematically perform obligatory inspections of the appliance every 10–14 months.
2. Report the appliance for inspection in the authorized service center.
3. The cost of the inspection is covered by the owner of the appliance.

ECOLOGY - ENVIRONMENTAL PROTECTION

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The terms and conditions of the warranty are pursuant to the regulations in force in the country the product is sold.

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling. The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.
