USER MANUAL CHEF KENWOOD

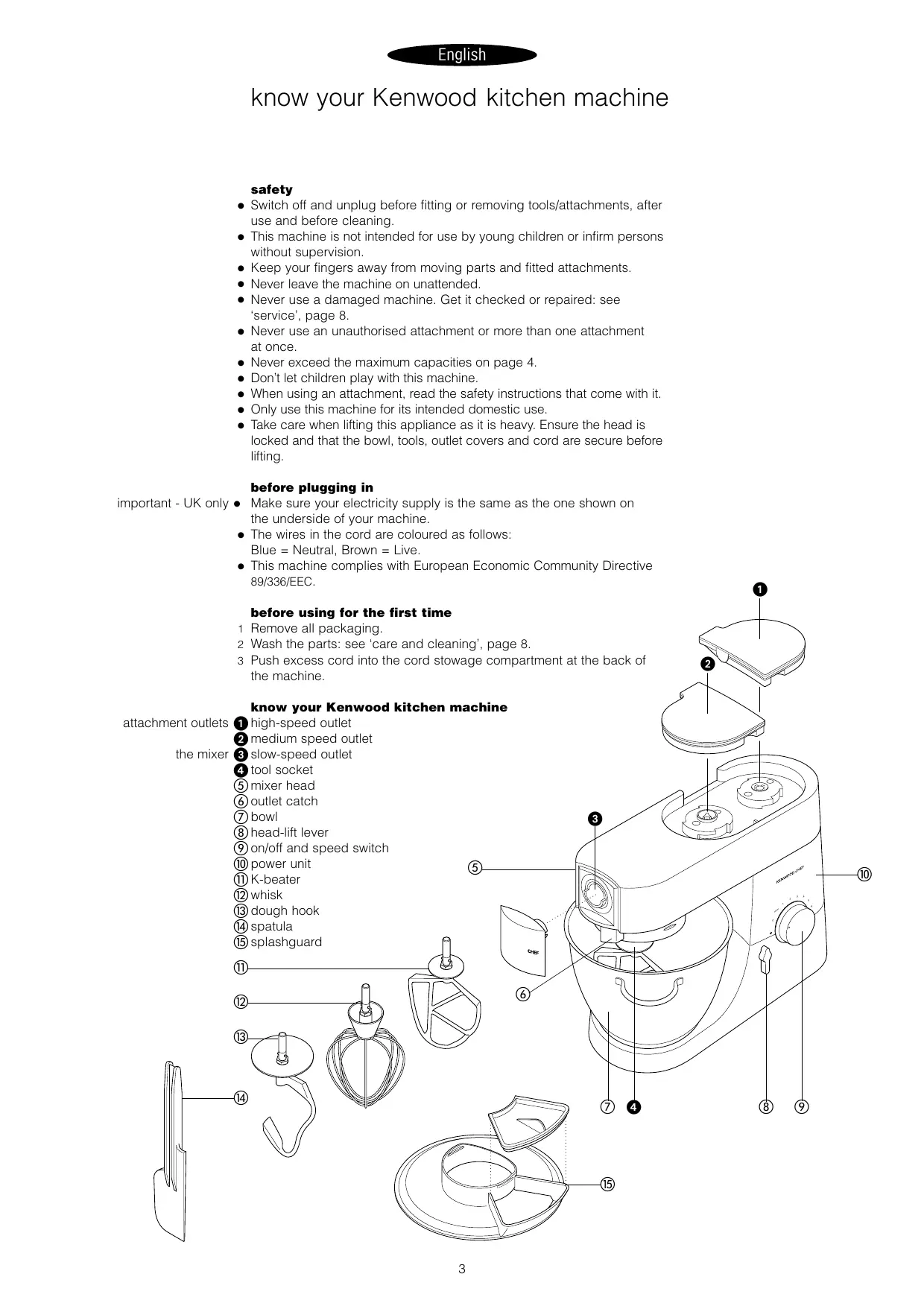

know your Kenwood kitchen machine satety Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning This machine is not intended for use by young children or infirm persons without supervision. e Keep your fingers away from moving parts and fitted attachments + Never leave the machine on unattended + Never use a damaged machine. Get it checked or repaired: see service’, page 8. e Never use an unauthorised attachment or more than one attachment at once. Never exceed the maximum capacities on page 4 Don't let children play with this machine When using an attachment, read the safety instructions that come with it. Only use this machine for its intended domestic use. Take care when lifting this appliance as it is heavy. Ensure the head is locked and that the bou, tools, outlet covers and cord are secure before lifting before plugging in important - UK only Make sure your electricity supply is the same as the one shown on the underside of your machine The wires in the cord are coloured as follows: Blue = Neutral, Brown = Live This machine complies with European Economic Community Directive 89/336/EEC. before using for the first time Remove all packaging Wash the parts: see ‘care and cleaning', page 8 Push excess cord into the cord stowage compartment at the back of the machine. & D = know your Kenwood kitchen machine attachment outlets @ high-speed outlet @ medium speed outlet the mixer @ slow-speed outlet @too! socket @ mixer head @)outlet catch @bowl head-lift lever @ on/off and speed switch @À power unit D K-beater @whisk @ dough hook @ spatula @® splashguard

K-beater whisk dough hook to insert a tool to remove a tool hints important shortcrust pastry stiff yeast dough British type soft yeast dough continental type fruit cake mix egg whites K-beater whisk dough hook s&nN 2

the mixer the mixing tools and some of their uses For making cakes, biscuits, pastry, icing, filings, éclairs and mashed potato. For eggs, cream, batters, fatless sponges, meringues, cheesecakes, mousses, soufflés. Don't use the whisk for heavy mixtures (eg creaming fat and sugar) - you could damage it For yeast mixtures. to use your mixer Turn the head-lft lever clockwise @ and raise the mixer head till it locks. Turn till it stops @ then push Fit the bowl onto the base - press down and turn clockwise @ To lower the mixer head, raise it slightiy, then turn the head lift lever clockwise. Lower into the locked position Switch on and turn the speed switch to the desired setting Switch to pulse @ for short bursts, Unscrew. Switch off and scrape the bowl with the spatula frequentiy. Eggs at room temperature are best for whisking Before whisking egg whites, make sure there's no grease or egg yolk on the whisk or bowi Use cold ingredients for pastry unless your recipe says otherwise points for bread making Never exceed the maximum capacities below - you'll overload the machine If you hear the machine labouring, switch off, remove half the dough and do each half separately. The ingredients mix best if you put the liquid in first maximum capacities CHEF MAJOR Flour weight: 680g - lb 802 Flour weight: 910g - 2lb Flour weight: 1.36kg - 8lb Flour weight: 1.5kg - lb 50z Total weight: 2.18kg - 4lb 1302 Total weight: 2.4kg - 5lb 50z Flour weight: 1.3kg - 21b 1402 Flour weight: 2.6kg - 5lb 120z Total weight: 2.5kg - 5b 80z Total weight: 5kg - 111b Total weight: 2.72kg - 6lb Total weight: 4.55kg - 10Ib

speed switch Q creaming fat and sugar start on min, gradually increasing to ‘max’ beating eggs into creamed mixtures 4 -‘max' folding in flour, fruit ete Min - 1 all in one cakes start on min speed, gradually increase to max rubbing fat into flour min - 2 Gradually increase to ‘max’ Start on ‘min', gradually increasing to 1 for cleaning see page 8

troubleshooting problem The whisk or K-beater knocks against the bottom of the bowl or isn't reaching the ingredients in the bottom of the bowl solution + Adjust the height. Here's how: Unplug. Raise the mixer head and insert the whisk or beater. Hold it, then loosen the nut @ Lower the mixer head. Adjust the height by turning the shaft. Ideally the whisk/K-beater should be almost touching the bottom of the bowl @ Raise the head, hold the whisk/K-beater and tighten the nut uw 8 ww =

problem e The mixer stops during operation: solution Your mixer is fitted with an overload protection device and will stop if overloaded to protect the machine. If this happens, switch off and unplug the mixer. Remove some of the ingredients to reduce the load, and allow the mixer to stand for a few minutes. Plug in and reselect the speed. If the mixer does not restart immediately allow to stand for additional time. to fit and use your splashguard Raïse the mixer head until it locks. Fit the bowl onto the base Push the splashguard onto the underside of the mixer head @ until fully located. The food chute should be positioned as shown. Insert required tool. Lower the mixer head. Fit the food chute cover @. During mixing the chute cover can be removed and ingredients added directly to the bowl @. You do not need to remove the splashguard to change tools Remove the splashguard by raising the mixer head and sliding it down.

the attachments available To buy an attachment not included in your pack, call your KENWOOD repairer. attachment _attachment code flat pasta maker (D) «970 additional pasta attachments A971 tagliatelle ) {not shown) used in conjunction A972 tagliolini with A970 ae73 trenette A974 spaghetti pasta maker (2) 4936 comes with 6 screens slow speed slicer/shredder (3) 948 comes with 4 drums super mincer (4) 950 comes with a large sausage nozzle b small sausage nozzle c kebbe maker grain mill ) a941 citrus juicer (6) A960 food processing attachment (7 4980 includes 8 cutting plates as standard and a knife blade high speed slicer/shredder (8) a998 includes 3 cutting plates as standard optional plates for A980 & A998 a extra coarse shredder part number 639021 b_rasping plate part number 639150 c_ standard chipper part number 639083 liquidiser (9) 1.2 | acrylic A998A, 1.2 | glass 19944,

cleaning and service care and cleaning Always switch off and unplug before cleaning A little grease may appear at outlet @ when you first use it. This is normal - just wipe it off power unit, outlet covers + Wipe with a damp cloth, then dry. + Never use abrasives or immerse in water. bowl_e Wash by hand, then dry thoroughly or wash in the dishwasher. e Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale + Keep away from heat (cooker tops, ovens, microwaves) tools + Stainless steel tools can be washed by hand or in a dishwasher. + Non stainless steel tools (coated) should only be washed by hand, then dried thoroughiy. splashguard + Wash by hand, then dry thoroughly. service and customer care Ifthe cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer. UK If you need help with: «using your machine « servicing or repairs (in or out of guarantee) & call KENWOOD Customer Care on 023 92392333. Have your model number ready - its on the underside of the mixer. e spares and attachments & call 0870 2413653 Eire + See our advertisement in Golden Pages. other countries e Contact the shop where you bought your machine: guarantee UK only If your machine goes wrong within one year from the date you bought it, we will repair or replace it free of charge provided: you have not misused, neglected or damaged it: it has not been modified: itis not second-handi it has not been used commercially: you have not fitted a plug incorrectiy; and you supply your receipt to show when you boughit it. This guarantee does not affect your statutory rights.

Ci) recipes See important points for bread making on page 4. white bread stiff British-type dough 1.36kg (lb) strong plain flour 15ml (8tsp) salt 25g (102) fresh yeast: or 15g/20m (402) dried yeast + 5ml (1tsp) sugar 750ml (1#pts) warm water: 43°C (110°F). Use a thermometer or add 250mi (9floz) boiling water to 500ml (18floz) cold water 25g (102) lard dried yeast (the type that needs reconstituting): pour the warm water into the bowl. Then add the yeast and the sugar and leave to stand for about 10 minutes until frothy. fresh yeast: crumble into the flour. other types of yeast: follow the manufacturers instructions. Pour the liquid into the bowl. Then add the flour (with fresh yeast if used), salt and lard Knead at minimum speed for 45 - 60 seconds. Then increase to speed 1, adding more flour if necessary, until a dough has formed. Knead for 3 - 4 more minutes at speed 1 until the dough is smooth, elastic and leaves the sides of the bowl clean. Put the dough into a greased polythene bag or a bowl covered with a tea towel. Then leave somewhere warm until doubled in size. Re-knead for 2 minutes at speed 1. Ha fill four 450g (11b) greased tins with the dough, or shape it into rolls. Then cover with a tea towel and leave somewhere warm until doubled in size. Bake at 230'C/450°F/Gas Mark 8 for 30 - 35 minutes for loaves or 10 - 15 minutes for rolls. When ready, the bread should sound hollow when tapped on the base. shortcrust pastry 450g (11b) flour, sieved with the salt 5m (1tsp) salt 225g (802) fat (mix lard and margarine straight from the fridge) About 80m (4tbsp) water Don't overmix Put the flour into the bowl. Chop the fat up roughiy and add to the flour. Mix at speed 1 until it resembles breadcrumbs. Stop before it looks greasy. Add the water and mix at minimum speed. Stop as soon as the water is incorporated. Cook at around 200°C/400'F/Gas Mark 6, depending on the filling pavlova 3 large egg whites 175g (60z) caster sugar 275ml (10 fl.0z.) double cream fresh fruit eg raspberries, strawberries, grapes, kiwi fruit Whisk the egg whites on a high speed until they form ‘soft peaks’. With the whisk operating on speed 5, gradually add the sugar one tablespoon at a time, whisking after each addition. Line a baking tray with silicone paper, then spoon the meringue onto the paper forming a nest approximately 20cm/8" in diameter. Place the baking tray into an oven preheated to 150°C/300°F/Gas Mark 2, then immediately reduce the temperature to 140°C/275'F/Gas Mark 1 and bake for 1 hour. Turn the heat off but leave the pavlova in the oven to cool down. When ready to serve, peel off the silicone paper and place on a serving dish. Whip the cream until soft peaks form then spread over the top of the pavlova and decorate with the fruit.

recipes continued scrumptious chocolate cake 225g (80z) butter, softened 250g (90z) caster sugar 4 eggs 5m (ftsp) instant coffee dissoived in 15m (1tbsp) hot water 30m (2tbsp) milk 5m (ftsp) almond essence 50g (20z) ground almonds 100g (40z) self raising #lour 5m (ftsp) baking powder 50g (20z) unsweetened cocoa powder Cream the butter and sugar on a low speed gradually increasing to a higher speed until the mixture is light and fluffy. Scrape down the bowl and beater. Beat the eggs in a jug and whilst the mixer is operating on a high speed, gradually add the egg a little at a time until incorporated. Switch off and scrape down Incorporate the dissolved coffee, milk and aimond essence on a low speed. Add the ground almonds, sieved flour, baking powder and cocoa. Mix on a low speed to incorporate. Divide the mixture between two 20cm/8" cakes tins that have been lined with greased greaseproof paper. Level the tops then bake at 180°C/350'F/Gas Mark 4 for approximately 30 minutes until springy to the touch. Turn out and cool on a wire rack. chocolate mousseline filling 275g (1002) plain chocolate, broken into pieces 225ml (8 fl.0z.) double cream Melt the chocolate by placing in a bowl over a pan of barely simmering water. Whisk the cream starting on a low speed gradually increasing to a higher speed until it forms soft peaks. When the chocolate has melted remove the bowi from the heat and, using a large spoon fold into the cream: Spread the chocolate filing between the cooled cakes: carrot and coriander soup 25g (102) butter 1 onion chopped 1 clove garlic crushed 600g (11b 6oz) carrot cut into 2.5cm cubes cold chicken stock 10-15ml (2-3tsp) ground coriander salt and pepper Melt the butter in a pan, add the onion and garlic and fry until soft. Place the carrot into the liquidiser, add the onion and garlic. Add suffcient stock to reach the 1.2 level marked on the gobet. Fit the lid and filler cap. Blend on maximum speed for 5 seconds for a coarse soup or longer for a finer result. Transfer the mixture to a saucepan, add the coriander and seasoning and simmer the soup for 30 to 35 minutes or until cooked Adjust the seasoning as necessary and add extra liquid if required.

NOUCK U YCTPAHEHUE HEUCTPABHOCTEU
