MSR500 - Dash cam Navitel - Free user manual and instructions

Product Type	Dashboard Camera (Dash Cam)
Brand	Navitel
Model	MSR500
Display	2.7" TFT LCD, 960x240 resolution
Processor	MSTAR MSC8328
Video Resolution	1080p Full HD (1920x1080) at 30 fps
Recording Format	MOV (H.264)
Image Resolution	3 MP (JPG)
Lens	4-element glass lens
Storage	microSD card (Class 6 or above, 8-64 GB)
Battery	110 mAh rechargeable lithium-ion, 3.7 V
Power Supply	DC 5V 1.5A via mini-USB (car charger included)
Working Current	700 mA
Frequency	50/60 Hz
Microphone/Speaker	Built-in
Loop Recording	Yes, with selectable clip duration
G-Sensor	Yes, automatically locks video on impact
Parking Monitor	Yes, automatic recording on vibration detection
Motion Detection	Yes, in Parking mode ("Motion event REC")
Night Light	Yes, improves brightness in low light
Screen Saver	Yes, configurable time interval
Stamp	Date/time stamp or logo overlay
Languages Supported	English, French, German, Italian, Spanish, Czech, Slovak, Polish, Russian, Ukrainian, Romanian, Latvian, Portuguese, Korean, Japanese, Chinese (Simplified/Traditional)
Operating Temperature	0°C to +35°C (ambient)
Storage Temperature	+5°C to +45°C
Dimensions	Approximately 110 x 60 x 30 mm (estimated)
Weight	Approximately 80 g (estimated)
Maintenance	Keep lens clean; do not disassemble; use original charger
Safety	CE compliant (EMC 2014/30/EU); follow local traffic laws

Frequently Asked Questions - MSR500 Navitel

How do I turn on the Navitel MSR500?

Press and hold the Power button for 3 seconds to turn the device on or off.

How to format the microSD card?

Insert a high-speed microSD card (Class 6 or above, 8-64 GB) into the slot. Go to Menu > Format SD-card and confirm. Always format the card inside the DVR before first use.

Why does the camera stop recording automatically?

The device may stop if the memory card is full. With loop recording enabled, older unprotected files are overwritten. Also, the battery is designed only for short parking mode recordings; connect to constant power for full operation.

How do I protect a video from being deleted?

During video recording, press the Power button to lock the current file (a key icon appears). In Playback mode, select a file, press Menu, choose Protect, then Lock Current or Lock All.

What is the G-sensor and how does it work?

The G-sensor detects sudden impacts or collisions. When triggered, it automatically locks the current video file to prevent overwriting.

Can I record audio?

Yes. By default, audio is recorded. In Video Recording mode, press the Down button to toggle the microphone on/off.

How to install the dash cam properly?

Stop the engine. Insert a microSD card. Secure the mount on the windshield. Connect the car charger to the cigarette lighter and the mini-USB to the device. Route the cable along the windshield edge. Adjust the camera lens parallel to the ground. Start the engine to confirm operation.

What should I do if the device freezes?

Use a paperclip to press the Reset button located near the speaker. This will restart the device.

How does the parking monitor work?

When the device is in standby mode, it detects vibrations. If vibration is detected, it automatically starts recording. If no vibration occurs for 1 minute, it returns to standby mode.

What is the maximum microSD card capacity?

The device supports microSD cards up to 64 GB. Use a high-speed card (Class 6 or above) for best performance.

USER MANUAL MSR500 Navitel

Black digital camera with a lens and digital display showing 'Full HD 1080' and 'NAVITEL' logo (no additional text or symbols)

NAVITEL MSR500 Portable Video Recorder

Úvod

Vážený zákazníku!

Thank you for purchasing this NAVITEL® product.

NAVITEL MSR500 is a multifunctional high-definition DVR with many functions and features that are described in this User Manual.

Please read the manual carefully before using the device and keep it for future reference.

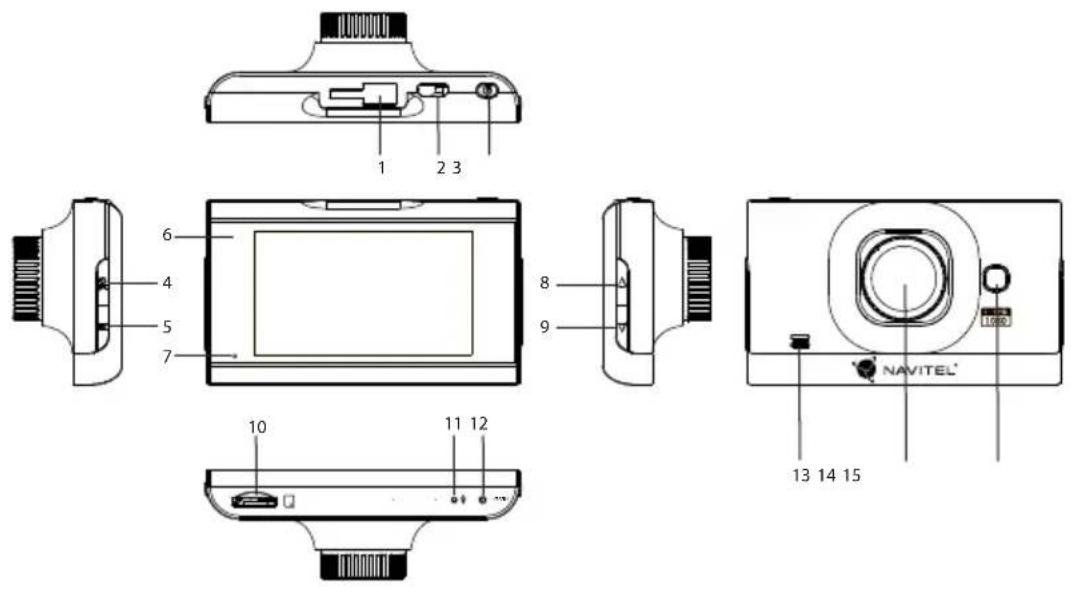

Device layout

EN

1. Mount port
2. Port mini-USB
3. Power
4. OK
5. Menu
6. LCD screen
7. LED indicator
8. Up
9. Down
10. microSD slot
11. Microphone
12. Reset
13. Speaker
14. Camera
15. Night light

NAVITEL

Buttons

Button Functions
Ok	In Video Recording mode, press to start recording; press again to stop recording.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause/resume video.In Menu mode, press to select a menu item or file.
Menu	Press to enter Settings menu.Press again to exit any menu or list of functions.
Power	Press and hold for 3 seconds to turn the device on/off.Press shortly to switch between Video Recording, Capture, and Playback modes.In Menu mode, press to choose the next menu section.In Video Recording mode, press to lock a file (protected file cannot be deleted or overwritten).
Up/Down	In Menu mode, press to select the previous/next menu item or file.In Video Recording mode, press Down to turn the microphone on/off.In Capture mode, press to zoom in/out.
Reset If the device is not responding, press to reset.

Note: The built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off. For the full operation of the device in any mode, a constant power connection is required.

NAVITEL s.r.o. hereby declares that the device NAVITEL MSR500 is compatible with the European directive EMC 2014/30/EU. The full text of Declaration of conformity is available at the following internet address: www.navitel.cz/en/declaration_of_conformity/msr500

Device functions

Format SD-card

Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

Video Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the OK button to stop recording (the blue light will become steady). Press OK again to record another video. Each video will be saved automatically.

Photo In Video Recording mode, press the Menu button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).

Playback In Video Recording mode, press the Menu button twice to enter Playback mode; press the Up and Down buttons to select a file; press the OK button to play a file. During playback, press OK to pause/un pause; press the Up and Down keys to fast forward/rewind.

Lock file In Video Recording mode, press Power to protect the current recording. A key symbol will appear at the bottom of the screen. In Playback mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.

Record audio Record video with or without sound.

Loop recording

This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.

G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.

Night light Turn on when it's dark to improve image brightness.

Stamp This function adds date stamp or device logo to the record. Click "OK" to select type of stamp or to switch the function off.

Parking monitor When the device in the standby mode will detect the vibration, it will automatically start recording. If for one minute vibration will not happen again, the device goes into standby mode.

Motion detection function is available in the Parking mode (disabled by default). In the Video recording mode, select "Motion event REC". When an object is moving the device will automatically start recording. If the object does not move for more than 10 seconds, recording stops.

Battery Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light will gradually dim; the red light going out means the battery is full.

Screen saver The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.

Installation

1. Stop the car engine.
2. Put the microSD card into the DVR.

Note: use a high-speed SD card (Class 6 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the bracket.

• Connect the car charger to the cigarette lighter socket.
• Connect the mini-USB interface to the car charger with the charger extension cord.

Note: charger extension cord can be placed along the edge of the windscreen.

1. Adjust the camera position; make sure the lens is facing parallel to the ground.
2. Start the engine; check whether the device is installed correctly.

Note: if the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing blue light).

Precautions

1. Use only the original charger adapter. Using another adapter may negatively affect the device's battery.
2. Do not use the device in humid or hot environment.
3. Keep the lens clean.
4. Do not disassemble the device and do not perform repairs by yourself.
5. Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
6. Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).

NAVITEL

Specifications

Processor MSTAR MSC8328
Display 2.7", 960×240, TN
Recording format MOV (H.264)
Video resolution	1080 FHD 1920x1080P/30 fps
Image format JPG
Image resolution 3 MP
Storage microSD card
microSD card capacity 64 GB max
USB mini-USB 2.0

Note: the specifications may change due to upgrades.

Power DC 5 V 1.5 A
Lens 4
Frequency 50 Hz/60 Hz
Battery	110 mAh 3.7 V Rechargeable battery
Working current 700 mA
Microphone/speaker	Supported
Language	Chinese simplified, Chinese traditional, Czech, English, French, German, Italian, Japanese, Korean, Latvian, Polish, Portuguese, Romanian, Russian, Slovak, Spanish, Ukrainian
