Product Type	HD 720p Webcam
Dimensions (LxWxH)	10 x 5 x 5 cm
Weight	150 g
Power Supply	USB
Video Resolution	720p HD (1280 x 720)
Photo Resolution	5 Megapixels
Microphone	Built-in
Field of View	60°
Focus	Automatic
RightLight Technology	Yes
Face Tracking	Yes
Motion Detection	Yes
Digital Zoom	Yes
Compatibility	Windows 8, 7, Vista, macOS
Connection	USB 2.0
Cable Length	1.5 m
Care	Clean the lens with a dry soft cloth. Avoid moisture.
Safety	No special hazards. Use at room temperature.
Repairability	User-replaceable parts not available. Contact support.
Warranty	2 years

Frequently Asked Questions - C615 LOGITECH

How to install the Logitech C615 webcam?

Plug the webcam into a USB port. On Windows 8, the software installs automatically. On Windows 7 or Vista, download Logitech Webcam Software from the Logitech website.

Does the C615 webcam work with macOS?

Yes, the C615 webcam is compatible with macOS. You can use your preferred video conferencing application (Skype, FaceTime, etc.). No specific driver is needed.

How to use the Logitech Webcam Software?

Launch the software from the Start menu (Windows). You can capture photos and videos, adjust settings like zoom, face tracking, and enable motion detection.

What to do if the webcam is not detected by the computer?

Check the USB connection, try another port. Restart the computer. If the problem persists, reinstall Logitech Camera Controller software from the Windows Store (on Windows 8) or download the drivers from the Logitech website.

How to enable face tracking?

In Logitech Webcam Software, open the advanced settings. Enable the Follow my face option. The webcam will track your movements to keep you centered in the frame.

How to use motion detection?

In Logitech Webcam Software, select the Motion Detection option. Set the recording duration and sensitivity. The webcam will automatically record a video when motion is detected.

How to zoom with the C615 webcam?

Use the digital zoom in Logitech Webcam Software. In the settings tab, you can zoom in or out. Drag the white area to adjust panning.

Does the C615 webcam have a built-in microphone?

Yes, it has a built-in microphone to capture sound during video calls or recordings.

How to take a photo with the webcam?

On Windows 8, use the Camera app. On Windows 7, open Logitech Webcam Software and click the capture button. You can also use Skype or other applications.

Where to download the Logitech Webcam Software?

Download the software from the official Logitech website: logitech.com/downloads. On Windows 8, search for 'Logitech Camera Controller' in the Windows Store.

USER MANUAL C615 LOGITECH

Getting started with

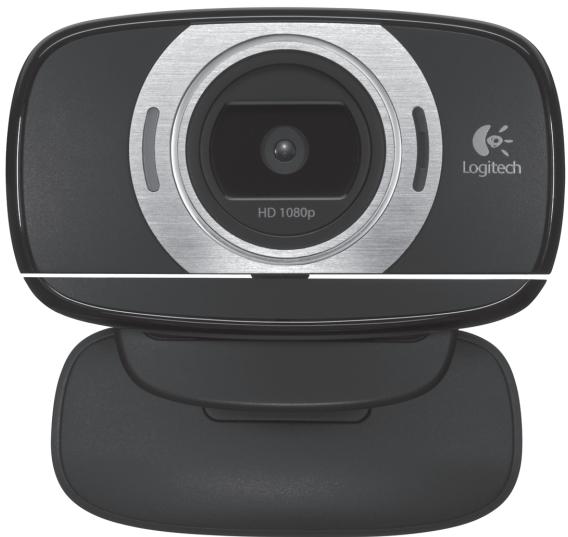

Logitech® HD Webcam C615

Logitech.

Contents

English 3

German 12

French 21

Italian 30

Spanish 39

Dutch 48

Swedish 57

Danish 66

Norwegian 75

Finnish 84

Portuguese 93

Eayniká 102

Türkce 111

121 1

www.logitech.com/support. 131

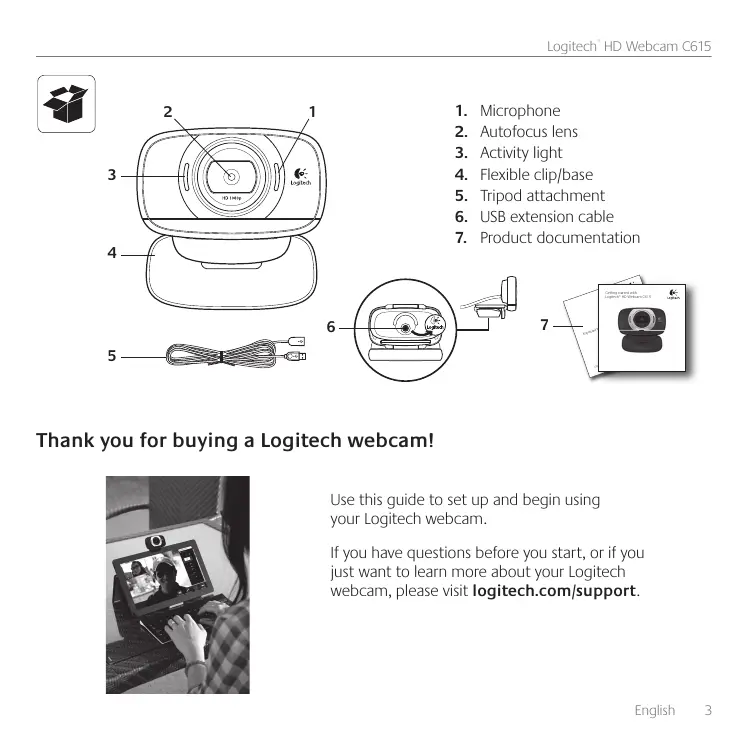

Thank you for buying a Logitech webcam!

Use this guide to set up and begin using your Logitech webcam.

If you have questions before you start, or if you just want to learn more about your Logitech webcam, please visit logitech.com/support.

Setting up your webcam

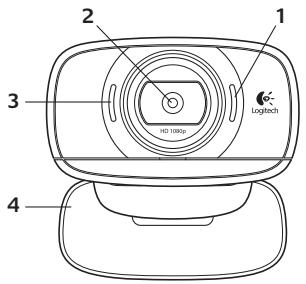

1 Unfold your webcam

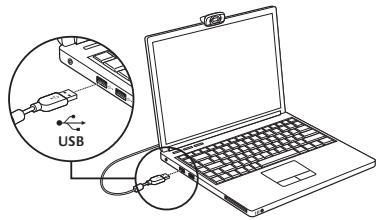

3 Connect your webcam

2 Place your webcam

4 Install software

If you're using your webcam with Windows 8, the software required is downloaded automatically when you connect your webcam for the first time, and installed silently in the background.

Important: Make sure you're connected to the Internet, so the software can be downloaded.

If you're using your webcam with Windows 7 or Windows Vista, you must install the Logitech Webcam Software, available from:

logitech.com/downloads

Folding up the camera for travel or storage

1

2

3

4

Getting started with video calling

Your Logitech HD Webcam c615 provides Fluid HD 720p video calling.

To take advantage of video calling both you and the person you call must install Skype™, or use a different video-calling application such as Yahoo! Messenger, Windows Live Messenger or Gmail.

Learn more: skype.com

As well as a webcam and video calling application, both callers need:

• A computer with speakers (or a headset) and a microphone; your Logitech HD Webcam c615 has a built-in microphone.
• A broadband Internet connection (e.g., DSL, T1, or cable).

Using your webcam with Windows 8

Use the Camera app, available from the Windows 8 Start screen, to operate and control your webcam.

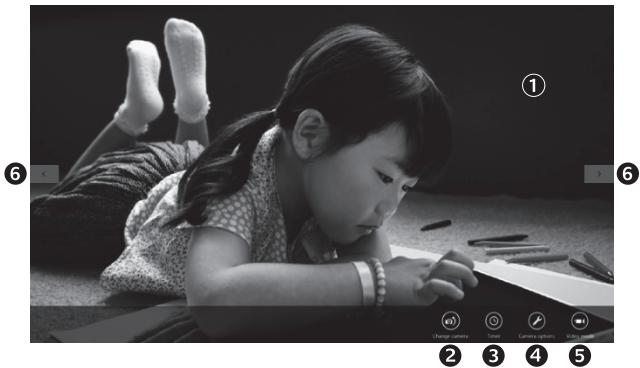

Understanding the Camera app

1. Preview window. Click or tap to capture photos or videos (depending on whether Video Mode is selected).
2. Change webcams (when you have more than one). The face of your Logitech webcam illuminates when selected.
3. Adjust your camera settings.
4. Activate or deactivate the Timer feature. When activated, there is a three second countdown to capturing a photo or video.
5. Turn Video Mode on (to record videos) or off (to take photos).
6. Click or tap on the arrows to scroll through the photos and videos you have captured.

Videos are denoted by a timer and play button in the bottom right-hand corner:

00:03

Tip: The Camera app lets you use your webcam's most popular features quickly and easily. If you want to take advantage of the enhanced features your webcam offers, such as motion detection, use the Logitech Webcam Software available from logitech.com/downloads.

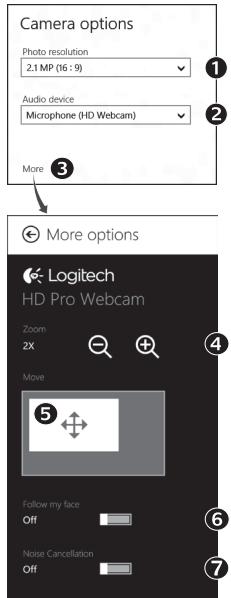

Adjusting your Camera settings

The Logitech software optimizes the settings for your environment automatically. To adjust any of your settings, choose Camera options. This is available from the Camera app (see the previous page) and from within Metro apps that support webcams.

1. Choose your required resolution for photo capture, or video capture when in Video Mode.
2. Choose the microphone you want to use to record sound in your videos, if you have more than one available.
3. Access More Options to benefit from enhanced features such as digital Zoom and Move.

If the More Options pane doesn't show the Logitech logo and offer enhanced options, it is likely that the Logitech software didn't install correctly when you first connected your camera. To reinstall it, go to the Windows Store and look for Logitech Camera Controller.

1. Zoom in or out to include or exclude your surroundings.
2. Having zoomed in, drag the white box to pan (adjust the focus area of your webcam).
3. Use Follow my face so you're always in the picture.
4. Enjoy clear conversations without annoying background noise.

Depending on the features available with your camera, you can access further advanced settings by scrolling.

Sharing your photos and videos

You can share your photos and videos via e-mail, Twitter, Facebook®, YouTube®, or Microsoft SkyDrive®. Follow these steps:

1. In the Camera app, scroll to the photo or video you want to share.
2. Select Share in the Charms bar (or press H).

1. Choose the media through which you want to share the photo or video.

Using your webcam with Windows 7 and Windows Vista

The Logitech Webcam Software provides everything you need to use and control your webcam. Launch the software from the Windows Start menu, or by right-clicking on the camera icon in the Windows taskbar.

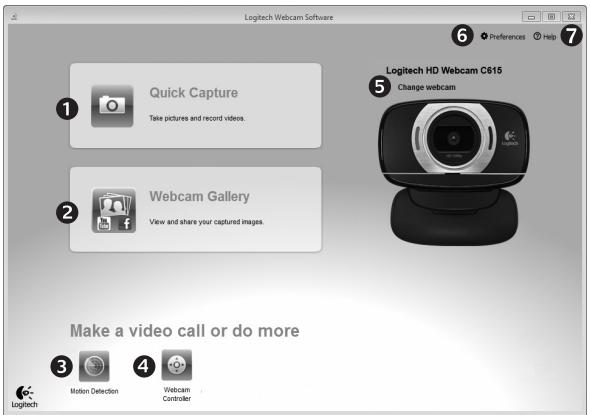

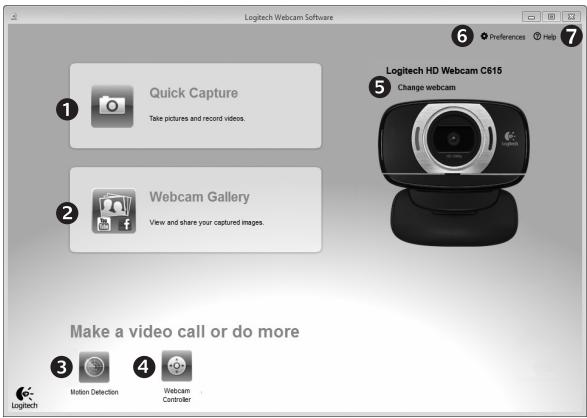

Understanding the Logitech Webcam Software

1. Capture pictures and videos.
2. View captured images and share via e-mail, Facebook, or YouTube.
3. Capture videos triggered by detected motion.
4. Control your webcam while on a video call.
5. Change webcams (when you have more than one).
6. Open Logitech Webcam Software settings.
7. Open help dashboard.

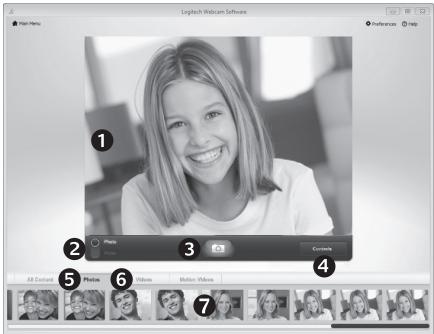

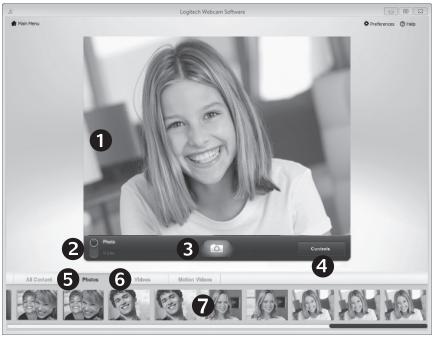

Capturing video and snapping pictures

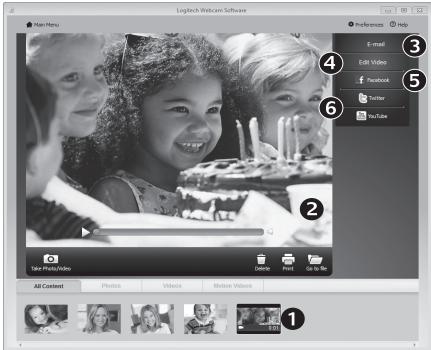

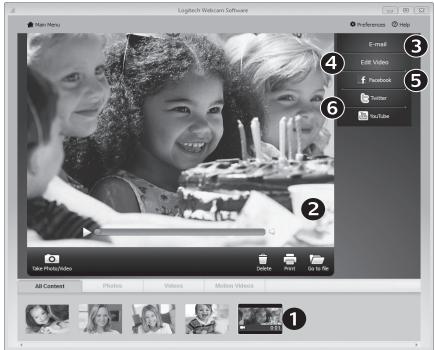

The gallery: viewing and sharing

Quick Capture allows you to take photos and record videos easily.

You have quick access to webcam controls and settings:

1. Preview window
2. Photo thumbnails
3. Capture mode: photo/video
4. Video thumbnails
5. Capture button
6. Click a thumbnail to enter the gallery
7. Webcam controls

Clicking on an image thumbnail in the webcam gallery (1) opens the video or photo in the review window (2). You can then:

• Attach the video or picture file to an e-mail (3)
• Edit the photo or splice together video (4)
• Upload the picture or video to Facebook (5)
• Upload the video to Twitter or YouTube (6)

You can also drag and drop a gallery image onto one of the function tiles (items 3-6) to launch an editing application or to attach or upload.

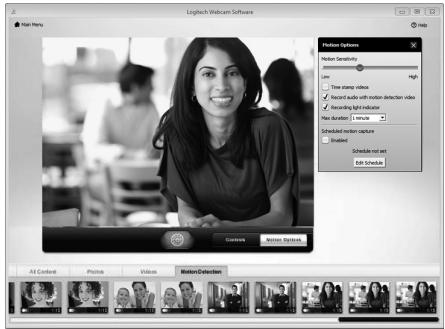

Using motion detection

• Set up your webcam to record video when it detects movement.
• Adjust captured video duration and detection sensitivity.
• Captured video is automatically saved to your computer. View content in the Gallery or upload it using the One-touch Upload window.

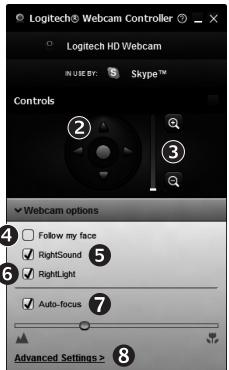

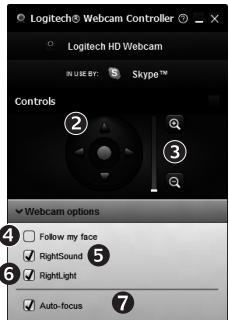

Fine tuning your webcam during a video call

1. Launch the webcam controller when on a video call.
2. Use pan and tilt to find the best angle.
3. Zoom in or out to include/exclude your surroundings.
4. Use Follow my face so you're always in the picture.
5. Enjoy clear conversations without annoying background noise.
6. Correct for poor lighting environments using RightLight.
7. Choose between auto- or manual focus.
8. Access advanced webcam settings.

logitech.com/downloads

logitech.com/downloads

logitech.com/downloads

4 Installer software

logitech.com/downloads

logitech.com/downloads

Then pack the camera away for storage or transport.

1

2

3

4

Getting started with video calls

logitech.com/downloads

Close the camera cover for transport or storage

1

2

3

4

. logitech.com/support

Windows 8

i 1

1

Jlll lll lll lllllllllllllllllllllllllllllll

DSL (J) jail

(1)S T1

（）clcawj）clawjjss

Logitech HD

Webcam c615

skype

YouTube Facebook Twitter

Microsoft SkyDrive

1

1545 1545 Metro Cldt 1545 (aillll aall l) 1545

.1

1.20g 2.20g

aill lallll J Logitech 1

Logitech Camera Controller

(1) 5

.6

.7

y 1 y

J .5 Preview window) .1

jill 6

1

J 3

1yds spsill ydlic .4

Therefore, the area of triangle ACD is equal to the area of triangle COD plus the area of triangle CDA.

(3)

(4)

Facebook (5)

YouTube (6) Twitter

1 1

Windows Vista 9 Windows 7

Logitech Webcam Software Logitech Motion Detection

Webcam Controller

y 5 .5

(s)

Webcam Software

2

YouTube | Facebook

4

One-touch Upload

Webcam Controller

www.logitech.com/support

Belgium/Dutch: [phone] French: [phone]

Czech Republic [phone]

Italy [phone]

© 2012 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

620-003225.005
