Product Type	Electric Scooter
Brand	Blaupunkt
Model	ESC505
Dimensions (Unfolded)	Approx. 1100 x 450 x 1100 mm
Weight	12 kg
Max Load Capacity	100 kg
Motor Power	250 W (nominal)
Battery Type	Lithium-ion, 36 V, 7.5 Ah
Charging Time	4–6 hours
Range	Up to 25 km (on flat road)
Max Speed	25 km/h
Tire Size	8.5 inches (pneumatic)
Braking System	Electronic brake + rear foot brake
Lights	LED headlight and rear reflector
Folding	Yes, collapsible handlebar and stem
Water Resistance	IPX4 (splash resistant)
Display	LED speedometer and battery indicator
Maintenance	Regular tire pressure check, brake adjustment, battery care
Spare Parts Available	Through authorized service centers
Repair Index	5/10 (moderately repairable)

Frequently Asked Questions - ESC505 BLAUPUNKT

How do I charge the Blaupunkt ESC505 scooter?

Connect the charger to the charging port on the scooter and then to a wall outlet. Charge fully for 4–6 hours. Use only the provided charger. Avoid charging overnight unattended.

What is the maximum weight capacity?

The maximum load is 100 kg. Exceeding this may affect performance and safety.

How fast can the ESC505 go?

The maximum speed is 25 km/h (15.5 mph), compliant with regulations for electric scooters in many regions.

What tire pressure should I use?

Recommended tire pressure is 2.5–3.0 bar (36–43 psi). Check periodically and inflate as needed.

Is the scooter waterproof?

It has IPX4 rating, meaning it is splash-resistant. Do not ride in heavy rain or submerge in water.

How long does the battery last?

The lithium-ion battery has a lifespan of about 300–500 charge cycles. Replace when range significantly decreases.

How do I maintain the scooter?

Regularly check tire pressure, tighten bolts, lubricate moving parts, clean with a damp cloth, and store in a dry place. Have brakes inspected periodically.

Can I get spare parts for the ESC505?

Yes, spare parts such as tires, brakes, and batteries are available through Blaupunkt's authorized service centers or online.

Is the manual available in other languages?

The manual is available in multiple languages on the notice-facile.com website. You can request a translated version by selecting your language and providing your email.

What is the warranty period?

The standard warranty is 2 years for manufacturing defects. Check your local warranty terms and keep the purchase receipt.

USER MANUAL ESC505 BLAUPUNKT

Black BYLA PUNKT scooter with visible wheels and handle (no text or symbols on body)

Enjoy it.

• Familiarize yourself with and comply with the local road traffic regulations.
  • Always wear an approved helmet and other elbow, knee, and wrist protectors.
• Check the battery charge status when the scooter is turned on. If the battery charge is less than 25%, do not drive for a long time.
• Check the appearance and condition of your electric scooter. Make sure that no parts are loose and that there are no abnormal noises.
• The user should be healthy, rested, sober and not take any sedatives or psychotropic drugs before driving.
• Remember that you are 7cm taller when driving, so be careful when driving through the door, beware of signs, branches and other upper obstacles to protect your head from injury.
• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

• If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

• Unplug the AC adapter from the electrical outlet when not in use.
• Do not connect or disconnect the adaptor from the power source with wet hands.

Completely prohibited

• Do not ride a scooter in areas prohibited by local or national law.
• It is forbidden to move on slopes whose angle of inclination exceeds 17 degrees, do not enter puddles or water reservoirs whose depth is greater than 5 cm.
• Do not ride a scooter on the stairs.
• It is not allowed to ride on roads intended for cars, roadsides or roads on which it is forbidden to ride.
• It is forbidden to move several people on the scooter or to transport children, also in appropriate carrying slings.
• It is forbidden to move on the scooter without holding the handlebar.
• It is forbidden for children under 14 or for people over 60 to move on their own on the scooter. They must be accompanied by other family members or carers. It is forbidden to ride on the scooter for pregnant women, drunk people, people with mental disorders or disabled people with limited steering abilities.
• Do not ride a scooter in dangerous or explosive locations.
• Do not make phone calls while driving the scooter.
• Avoid driving in bad weather such as heavy rain, snow, strong wind and on icy, slippery or muddy roads.

Instruction manual

Thank you for purchasing our BLAUPUNKT ESC505 electric scooter. Please read this manual and keep it for future reference. The information contained in this manual will help you get acquainted with the following issues:

• Basic operation and learning how to drive on an electric scooter.
• Safety when driving on an electric scooter.
• Construction and maintenance of an electric scooter.

The device complies with the requirements of the following European Union directives:

• Low-voltage electrical equipment - Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)

The product is CE-marked on name plate

If a crossed-out waste bin symbol appears on the appliance, this indicates that the product is covered by European Directive 2012/19/EU. Familiarise yourself with the requirements of your local electrical and electronic waste collection system. Follow your local regulations. Do not dispose of this product with household waste. Proper disposal of the old product will prevent potential negative effects on the environment and human health.

The device is equipped with batteries covered by the European Directive 2006/66/EC. Do not dispose of batteries with household waste. Please refer to your local regulations for separate collection of batteries, as proper disposal will prevent potential negative consequences for the environment and human health.

Information on environmental protection

The packaging contains only the necessary elements. Every effort has been made to ensure that the three packaging materials are easy to separate: cardboard (box), polystyrene foam (internal protection) and polyethylene (handbags, protective sheet). The device is manufactured from recyclable materials and can be used again after its disassembly by a specialized company. Observe local regulations for the disposal of packaging materials, waste batteries and unnecessary equipment.

The product is manufactured from high quality materials and components that can be recycled and reused.

Main features of the electric scooter:

The Blaupunkt ESC505 is an innovative folding electric scooter. The user can stand on the scooter's platform and adjust the speed using the appropriate handle on the handlebar.

• The front and rear wheels are symmetrical and the front-wheel drive provides greater mobility safety. 5" pneumatic tyre wheels reduce maintenance and service costs.
• E-ABS and an additional brake on the rear wheel provide the shortest braking distance, and can better protect the driver.
• The device uses a lithium-ion battery, maximum discharge current is more than 10A, high power without charging memory effect, no contamination.
• The total weight of the device is only 7.5kg. The foldable design with one key ensures an easy handling and storage.

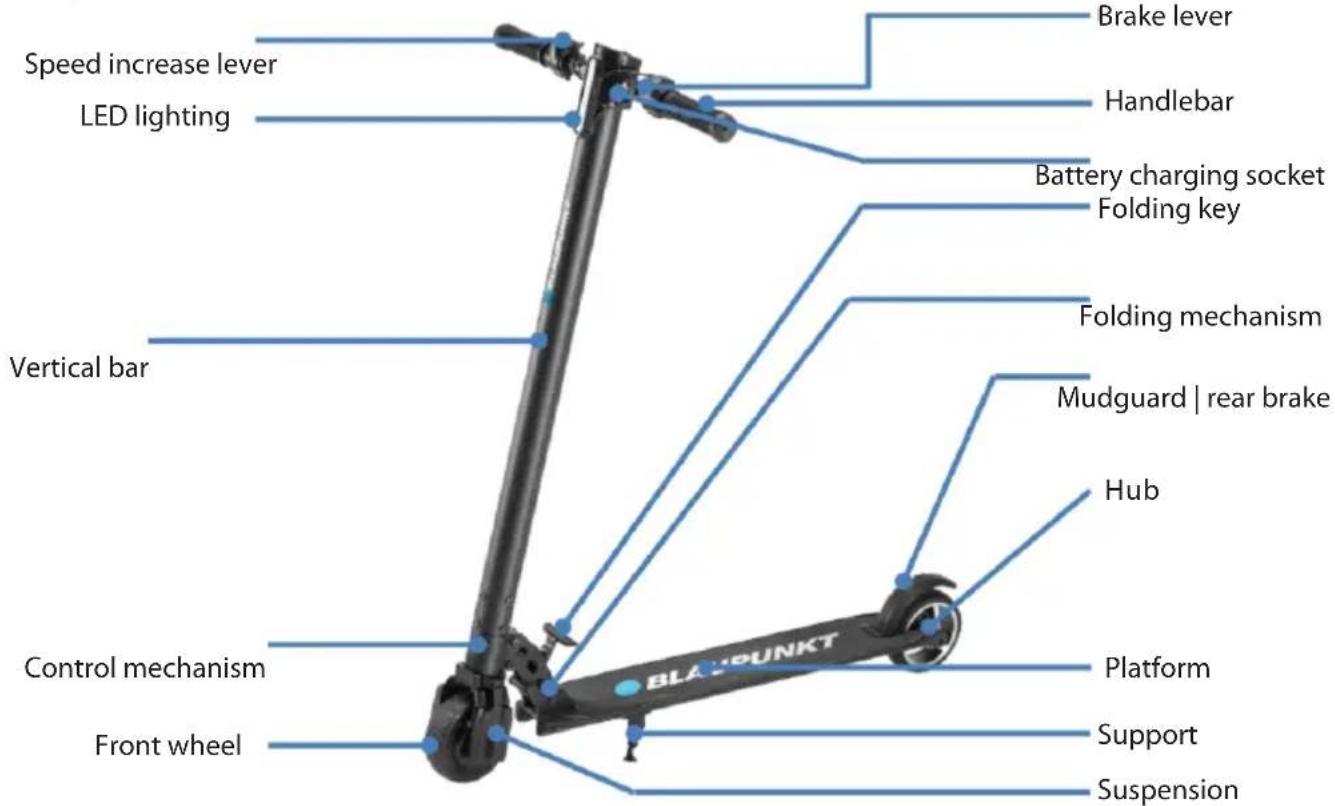

Design of an electric scooter:

Unpacking

After opening the cardboard box, first remove the scooter and make sure that all parts are complete. If anything is missing, contact your dealer. Check the condition of the unit and its appearance to ensure that the folding system is stable enough and that the platform is free from cracks. Check also that the display screen is not damaged.

Installation

After unpacking and checking the condition of all components, you can start assembling the scooter. Follow the picture below:

pc 21

例2-2

1. Unfold the handlebars and lock them by twisting them accordingly.
2. Press the folding mechanism key to release the lock and unfold the electric scooter.

Exterior view of a white electric scooter with black suspension components (no text or symbols visible)

Mechanical device with articulated arm and wheels (no visible text or symbols)

1. Once the scooter has been unfolded, make sure that the folding mechanism key is locked properly (standing in front of the scooter pull the locking key up to the top) to prevent the scooter from folding down while you are riding.

2. Mount the included warning bell on the handlebar.

Do not charge the battery when handling, cleaning, or maintaining the scooter.

Guide to safe driving

The content of this chapter is very important, read it carefully and follow all safety rules and procedures. Our company is not responsible for any accidents that result in property or health damage due to the violation of this safe driving guide.

An electric scooter is not only a fun tool but also a means of transport. Following proper safety precautions while driving can protect you and others from an accident. Please note that using your scooter in the field and on public roads can lead to collisions caused by other road users, even if you follow all safety precautions. It is very important to keep a sufficient distance from other road users and from other vehicles.

Driving the scooter

• Observe the local road traffic regulations when driving on a scooter. You should guide the scooter carefully and calmly, paying attention to other people and objects in order to avoid collisions.
• Ride your scooter safely at controlled speed and at a distance from pedestrians and other vehicles. Be ready to stop at any time. Avoid sudden acceleration and braking.
• When walking on the pavement, respect pedestrians' rights, give way to them when passing through the belts, and do not frighten passers-by, especially children.
• Adjust the speed of the scooter to other road users in congested areas. If you want to overtake a group of pedestrians, make sure you have enough space and do it safely. Moving in a crowd at high speed is very dangerous.
• Do not park your scooter in a place that will make walking difficult.
• When driving the scooter, you should be relaxed, have knees slightly bent and head raised.

In the event of sudden acceleration or sudden braking while driving at high speed, the driver can easily become unbalanced and ultimately cause an accident. Try to avoid such situations.

Charging the battery

• Make sure that the electrical outlet is dry.
- Open the battery charging socket cap on the vertical bar beneath the display.
- Plug the adapter plug into the power source (110 V \~ 240 V, 50 Hz \~ 60 Hz), make sure the green charging lamp is lit, insert the other adapter plug into the scooter's charging socket.
- When the red LED on the power supply lights up, the battery is charging correctly, otherwise check all cable connections.
- When the red light turns green, the battery is fully charged. Disconnect the power supply from the power source. Long-lasting charging can shorten battery life.
- Follow the instructions for charging the battery, otherwise it will damage the battery and shorten its service life.
- The time to charge the scooter's battery is about 2 hours. The manufacturer cannot guarantee the same charging time and operation of the battery due to its wear.
- Ensure clean and dry conditions when charging the battery.
- Do not charge the battery when the power outlet is wet.

First run

Preparation

• Select the desired location. This place can be inside or outside, it must have an area of 10 × 10 meters (about 100 square meters). The place should be flat, neither wet nor slippery, without obstacles, without vehicles, children, pets or any other things that could distract your attention.
• Read this manual carefully, if you have the opportunity to do so, for advice from a person who is more experienced in safe driving.
• Wear helmet and protectors to avoid possible injuries. Move the scooter to the center of the area where you will be moving and familiarize yourself with the area. Start-up
• Switch on the scooter with the on/off button located underneath the display on the left. Press the "Mode" button to select the speed mode from three "Slow/Mid/Fast" options. It is recommended to use the "Slow" mode for the first ride.
• The lever on the right-hand side of the handlebar is used to increase the speed, the lever on the left-hand side of the handlebar is used to brake. By applying pressure to the rear wheel mudguard, an additional foot brake is achieved.
• The button next to the battery charging socket is used to switch on the LED front lights.
• The platform should be horizontal when the scooter is started. Do not stand on the platform before turning on the scooter; this is valid especially for beginners.
• Do not climb on the scooter before turning on the power or if the scooter is in a bad technical condition. This can cause imbalances and injuries.
• Do not board a scooter until the diagnostic process is complete after it has been started. Stop if you hear disturbing noises or feel vibrations from your scooter even if the display is working properly. Cleaning and storage
• Clean the scooter after each ride.
• If the rubber surfaces are difficult to clean, use a toothbrush and toothpaste and clean them with a soft cloth. This method can also remove small scratches.
• Store the scooter indoors, in a cool and dry place. Do not expose the scooter to prolonged sunlight.

When cleaning, the battery charging receptacle must be tightly closed, otherwise you may be electrocuted and the scooter may be seriously damaged. Do not wash your scooter under a high pressure water jet or immerse it in water - this may cause irreparable damage to the unit.

Battery maintenance

The battery is the most important part to maintain. To extend its service life, follow the instructions below:

• Read and follow the notes on battery marking.
• The best battery storage temperature is 0 degrees. Do not store the battery pack at temperatures below -20 degrees or above 50 degrees.
• Store the battery in a cool and dry place. A very humid place can cause condensation inside the battery, which can quickly damage the battery.

- When the display shows a low level of battery, connect the battery pack to the charger. Try to prevent the battery from draining completely. Please charge the battery fully before starting to drive. Frequent charging will not damage the battery. On the contrary, long-term storage of an uncharged battery can shorten its service life

Functions and specifications

• Motor: 350 W
• Battery: 36V 4.4Ah
  • Maximum speed: 25 km / h (3-speed adjustable)
• Range: 15-20 km (depending on load and type of surface)
  • Maximum load: 120 kg
  • Climbing slope: 15–20 degrees
• Front and rear brakes
• Front suspension
• Front LED lamp
• Warning bell
• Easy folding mechanism
• Folding handlebar
• Charging current: 42V =2A
  • Charging time: 2 hours
• Dimensions: 1050x130x220/1050mm (folded/unfolded)
• Net weight: 8 kg

TECHNICAL DATA OF ADAPTOR:

Input voltage: 110-240V\~50/60Hz

Max. Input current: 2A

Output voltage: 36v

Max output current: 15A

Sicherheitsregeln

Close-up of a black and white mechanical device with cylindrical ports (no visible text or symbols)

例2-2

Electric scooter with attached steering wheel and side-mounted wheels, shown in a close-up inset (no text or symbols visible)

Mechanical device with articulated arms and wheels (no visible text or symbols)

Exterior view of a small electric scooter with visible wheels and a side-view inset showing mechanical components (no text or symbols)

Mechanical device with articulated arms and wheels (no visible text or symbols)

Electric scooter with black seat and white body, shown in side view (no text or symbols visible)

Mechanical lever system with articulated shaft and wheel (no text or symbols visible)

Two camera mount tips labeled 'sc 2.1' and 'sc 2.2', showing mechanical assembly (no text or symbols on parts)

Two types of electric scooters shown from different angles (no text or symbols visible)

Two black-and-white diagrams showing a device with a lever mechanism, one labeled 'sic 2-1' and the other 'sic 2-2', with no visible text or symbols on the devices themselves.

Two electric scooters shown from different angles, one with a black suspension mechanism and the other a silver wheels (no text or symbols visible)

Close-up of a black and white mechanical device with a yellow clip, labeled 'pic 2-2' (no other text or symbols visible)

1. Iztegnite krmilo in ga fiksiraite tako, da ga ustrezno zavrtite.
2. Pritisnite tipko zložljivega mehanizma, da sprostite ključavnico in odprete električni skiro.

Electric scooter with wheels and a small inset showing the front wheel assembly (no text or symbols visible)

Mechanical device with articulated shaft and wheels (no visible text or symbols)

Exterior view of a scooter with wheels and a small inset showing the front wheel assembly (no text or symbols visible)

Mechanical lever system with articulated joints and wheels (no text or symbols visible)

Close-up of a black and white mechanical device with a yellow clip, labeled 'pic 2-2' (no other text or symbols visible)

Exterior view of a white electric scooter with black wheels and a small inset showing the front wheel assembly (no text or symbols visible)

Mechanical lever system with articulated joints and wheels (no text or symbols visible)

Close-up of a black and white mechanical device with a yellow clip, labeled 'pic 2-2' (no other text or symbols visible)

Side view of a white electric scooter with black wheels and a small inset showing the wheel assembly (no text or symbols visible)

Mechanical lever system with articulated joints and wheels (no text or symbols visible)

Close-up of a black and white mechanical device with a yellow clip, labeled 'pic 2-2' (no other text or symbols visible)

Electric scooter with black seat and white body, shown in side profile (no text or symbols visible)

Mechanical device with articulated shaft and wheels, no visible text or symbols

Date tehnice adaptor:

Voltaj intrare : 110-240V\~50/60Hz

Current max.intrare : 2A

Voltaj iesire:36v

Current max iesire: 15A

Saugos principai

Exterior view of a modern electric scooter with wheels and a small inset showing the front wheel assembly (no text or symbols visible)

Mechanical lever system with articulated joints and wheels (no text or symbols visible)

Electric scooter with black seat and white body, shown in side profile (no text or symbols visible)

Mechanical lever system with articulated joints and wheels (no text or symbols visible)
