USER MANUAL YT-82267 Yato
PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR
Close-up of a sewing machine needle stitching a metal clamp, no visible text or symbols


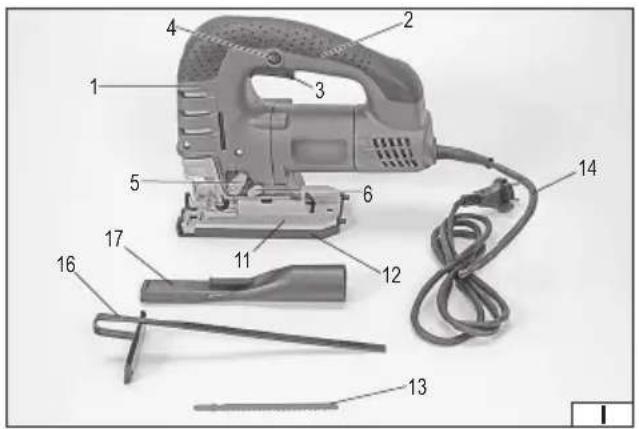

- body
- handle
3.electric power switch - power switch lock
- blade oscillation adjustment
- blow-out switch
- blade guard
- blade holder
- cutting angle adjustment
- blade roll
- base
- base cap
- blade
- power cord with a plug
- speed control knob
- guide bar
- dust extraction connector
DE
Read the operating instruction
Wear protective goggles
Wear hearing protectors
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
The jigsaw is a power tool designed for cutting wooden and wood-based surfaces, polyethylene or polypropylene panels and mild metals using blades properly selected for the type of material. The tool provides easy cutting of workpieces allowing for adjusting the cutting angle. Proper, reliable and safe operation of the tool depends on appropriate use, that is why you should:
Read the entire instructions manual before the first use of the tool and keep it for future reference.
The supplier shall not be held liable for any damage or injury resulting from improper use of the tool or failure to observe the safety regulations and recommendations of this manual. Use of the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and under statutory warranty.
EQUIPMENT
The factory packaging should contain:
- jigsaw
- guide bar
- blade
- dust extraction connector
TECHNICAL DATA
| Parameter Unit Value | ||
| Part no. YT-82267 | ||
| Mains voltage [V~] 230 – 240 | ||
| Frequency [Hz] 50 | ||
| Rated power [W] 750 | ||
| Revolutions | [min-1] 600 – 2800 | |
| Insulation class II | ||
| Max. cutting thickness | ||
| - wood [mm] | 150 | |
| - soft metals | [mm] | 10 |
| Weight | [kg] | 3.15 |
| Noise level: | ||
| - sound pressure L_pA ± K_pA | [dB(A)] | 89.0 ± 3.0 |
| - sound power L_wA ± K_wA | [dB(A)] | 100.0 ± 3.0 |
| Vibration level a_h ± K (wood/metal cutting) | [m/s2] | 8.87 ± 1.5/5.51 ± 1.5 |
| Protection rating | IP20 |
The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.
The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.
Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.
Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.
GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS
Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.
Keep all warnings and instructions for future reference.
The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.
Workplace safety
Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.
Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.
EN
Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.
Electrical safety
The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.
Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.
Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.
Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.
Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.
In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.
When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.
Personal safety
Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.
Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.
Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.
Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.
Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.
Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.
If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.
Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.
Carefree action can cause serious injuries in a fraction of a second.
Use and care of the power tool
Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.
Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.
Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.
Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool.
Many accidents are caused by incorrectly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.
Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.
Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.
Repairs
Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tooi.
SAFETY WARNINGS FOR RECIPROCATING SAWS
Hold the power tool by its insulated grip surfaces while performing operations where the cutting part may come into
EN
contact with concealed wiring or its own cable. If the cutting part comes into contact with live cable, it may cause the exposed metal parts of the power tool to become live and electrocute the operator.
Use clamps or other practical means to securely fasten and support the workpiece on a stable platform. Holding the workpiece with your hand or pressed against your body makes it unstable and can lead to loss of control.
EQUIPMENT INSTALLATION
CAUTION! Only install the equipment when the supply voltage is disconnected. Pull the plug out of the mains outlet.
The jigsaw is supplied complete. After opening the factory packaging, check that all equipment items have been packed.

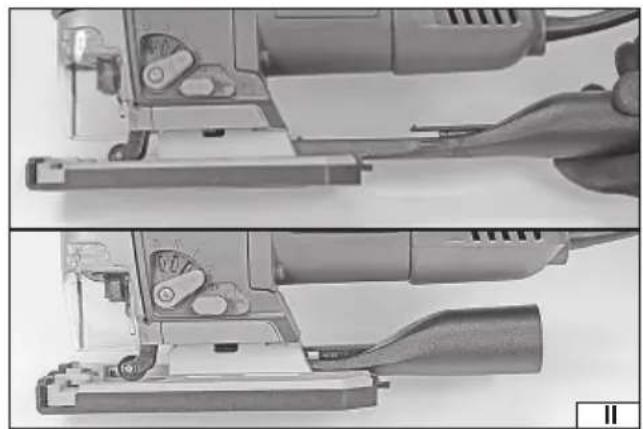

Install the dust extraction connector as shown in the figure (II). A properly installed connector can only be removed by pressing the latch and sliding it out of the base. The outlet of the connector must be connected to a dust extraction system not provided with the jigsaw.
PREPARING FOR WORK
Caution! All activities related to the assembly and replacement of saw blades, adjustment and maintenance of the power tool should be carried out with disconnected power supply to the tool. Therefore, before proceeding with these activities: Pull the plug out of the mains socket!
Dust extraction/blow out
A fan mounted in the motor generates an air draft that can be used to blow away dust generated during the work. This function can be used when it is not possible to connect the tool to an external dust extraction system. The air blast at the front of the tool allows dust to be blown out from under the blade, making cutting easier. An on/off switch on the side of the housing allows the airflow to be switched on (III). To activate the air blast from the front of the tool, turn the switch to the on – I position.
The air exhaust at the rear of the tool allows dust to be extracted via an external dust extraction system, which must be connected to the connection at the rear of the tool. If an external dust extraction system is used, refer to the information supplied with it.
Caution! If an external dust extraction system is used, do not switch on the air exhaust at the front of the tool. Before working with the dust extraction system connected, ensure that the air blast switch is in the off - O position.
It is recommended to use dust extraction wherever possible, this will reduce dust in the workplace and make it safer.

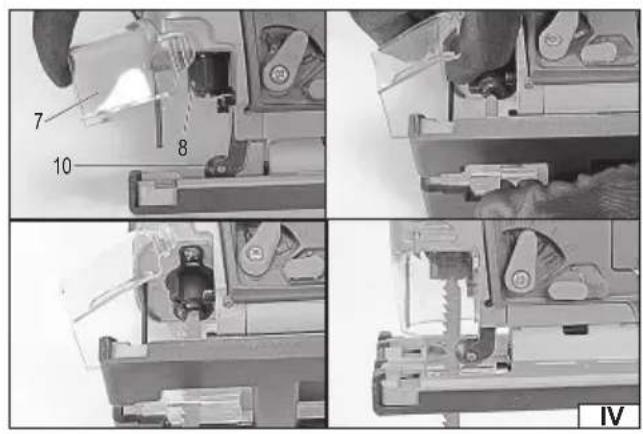

Blade installation and replacement (IV)
Check that the installed blade is not damaged or cracked, and that the cutting teeth are not broken. If any damage is found, replace the blade with a new one.
A wood cutting blade is supplied with the jigsaw. The blade should be mounted with the teeth facing forward. The saw blade should be placed in the spindle slot in such a manner that it leans against the cut-out in the roll with its back.
Caution! Wear protective gloves while fitting the blade. This will reduce the risk of injury.
Lift the blade guard.
Turn the spindle clamp and insert the blade holder into the spindle slot. Turn the clamp in the opposite direction and make sure that the blade is correctly clamped: the clamp has returned to its original position, the blade cannot be pulled out of the spindle. Lower the blade guard.
To remove the blade follow the procedure in the reverse order.

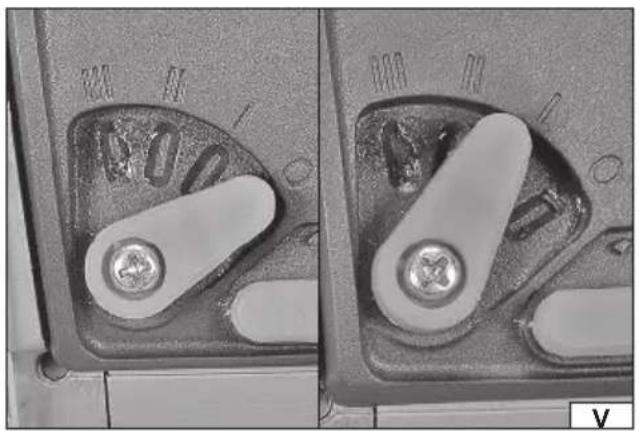

Blade oscillation setting (V)
The jigsaw has a multi-stage blade oscillation adjustment. Adjustment is possible by means of a lever. The lower the numerical setting, the lower the blade oscillation. When set to "0", the saw blade oscillation is switched off.
Saw blade oscillation makes cutting easier and the degree of oscillation should be chosen experimentally, e.g. by cutting through waste material. However, please follow the guidelines below:
- in order to obtain the smoothest possible edge of the cut, the oscillation must be set at the lowest possible degree or even switched off,
- when cutting through curved material, the oscillations must be switched off,
- when cutting thin materials (e.g. sheet metal), the oscillation must be switched off,
- when cutting through hard materials (e.g. steel, aluminium), set the oscillation rate low or even switch it off,
- when cutting through medium-hard materials (e.g. wood), the degree of oscillation should be set between I and III,
- when cutting soft materials, set the maximum degree of oscillation.

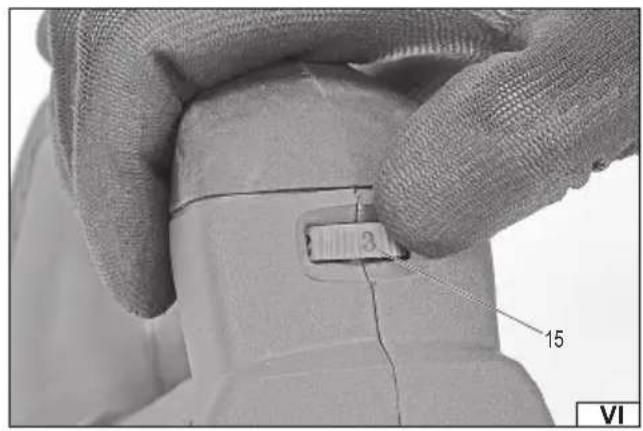

Saw blade speed adjustment (VI)
The jigsaw has a potentiometer which allows you to set the saw blade speed. By rotating the potentiometer ring, you can select the saw blade speed which is appropriate for the given type of work. The lower the numerical setting, the lower the saw blade speed.
The speed should be chosen experimentally, for example by cutting through waste material. A lower speed should be used when cutting plastics or aluminium. You should also reduce the speed if the saw blade gets jammed during cutting.
EN
Setting the cutting angle (VII)
The jigsaw's cutting angle can be adjusted between 0 and 45 degrees and the inclination can be adjusted both to the left and to the right. If necessary, remove the dust extraction connection before adjustment. Loosen the screws securing the jigsaw base, but do not remove them completely. Then move the base backwards or forwards and tilt it to set the desired cutting angle. The base can have clamps or a scale to help set the most common cutting angles. Once set, tighten the base screws and ensure that the base does not automatically change the set angle during operation.

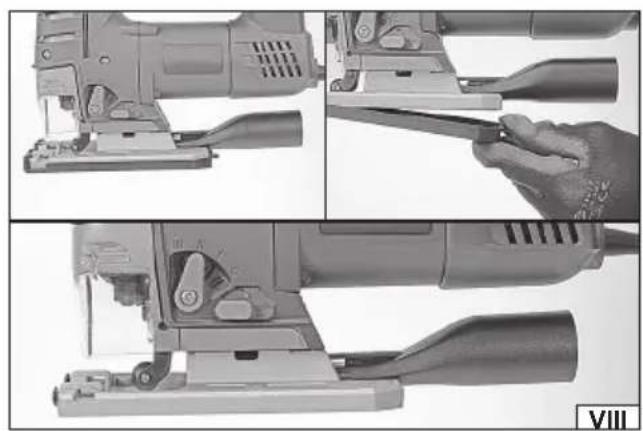

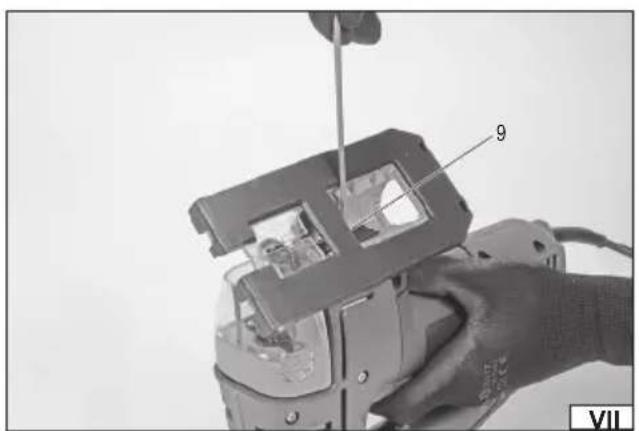

Removing the base cap (VIII)
The tool is equipped with a protective cap made of plastic, which is attached to the base of the jigsaw. The cap is designed to reduce the risk of scratching delicate surfaces (e.g. laminate) during cutting. If the surfaces to be cut do not require working with the protective cap, it should be removed. To remove the cap, pull back the retaining lugs on the back of the cap until the back of the cap is loose, then slide the front of the cap out of the jigsaw base. Reassembly of the cap should be carried out in the reverse order of removal.

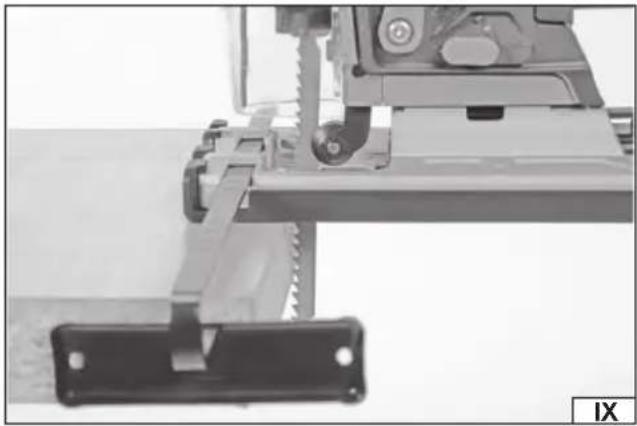

Mounting the guide (IX)
When cutting in a straight line, use a guide to move the jigsaw along the edge of the workpiece. When cutting in a straight line, avoid using only your hands to guide the jigsaw and use a guide or other tools wherever possible to make it possible to guide the tool.
Slide the guide into the base notches and secure its position with the mounting screws. Always slide the guide into both base notches, as only then will the guide feet be parallel to the jigsaw base.
USING THE TOOL
Ensure that the blade guard is fitted correctly and is lowered before starting work. Wear eye protection, hearing protection, and work gloves. Attach the workpiece to a workstation, e.g. by means of clamps, vices, etc. Never hold the workpiece only with hands or other body parts. In the case of cutting, support the material at its ends and near the cutting line. Support legs should be placed on both sides of the cutting line so that the saw blade does not jam in the cut when cutting. When cutting, the base must rest with its entire surface against the material being cut. Connect a dust extraction system to the dust extraction connection outlet.

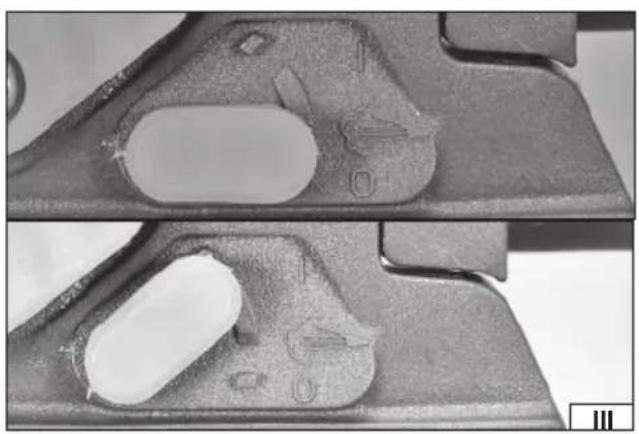

Turning the jigsaw on and off
At the workplace make sure that the surface is level, stable and free of dirt.
Adopt a firm and stable posture.
Grasp the tool by the handle. Do not lean the working parts of the tool against any item or object.
Press the switch with your finger and hold it down. Check that the blade moves freely and that the tool does not begin vibrating in a suspicious or excessive manner. There is no smoke or suspicious smell coming from it. If any deviation from correct operation is observed, switch off the jigsaw, disconnect the plug from the mains supply and take it to an authorised repair centre.
The switch is equipped with a locking device that can be used during prolonged cutting. With the switch depressed, move the lock button left or right. Releasing the lock occurs when the switch is pressed.
The tool is switched off if the pressure on the switch is unlocked and released. The blade still moves for some time after it is turned off.
Cutting the straight line
Before starting to cut, it is advisable to mark the cutting line on the material using, for example, a pencil. It is also important to ensure that the material being cut does not contain elements of different hardness. For example, the wood being cut must not contain nails, staples or other metal parts. Also, avoid electrical wires that may be hidden in the material being cut.
Rest the front of the tool base against the material to be cut so that the blade does not touch it.
Turn on the tool and allow the blade to reach the full set speed.
Start cutting by guiding the jigsaw with both hands. When cutting, press the jigsaw against the surface and at the same time guide it along the cut line in a smooth motion. Use the minimum pressure that allows correct operation. Avoid tilting the jigsaw, hitting the material being cut with the blade and changing the direction of the cut. Failure to follow these instructions may result in the blade jamming in the material being cut, damage or deterioration (breakage) of the blade or the material being cut, as well as damage to the jigsaw itself.
When cutting hard metal, e.g. steel, take frequent breaks to cool the blade.
Cutting the curved line
Follow all recommendations for cutting the straight line, but use blades adapted for cutting curves. They have a narrower blade than blades designed for cutting straight lines and facilitate cutting curved lines.
When cutting holes, mark the shape of the hole to be cut and then drill a hole at the edge with a diameter larger than the width of the blade. The wall of the drilled hole should be in contact with the line of the marked hole to be cut. Insert the jigsaw blade into the hole and start cutting.
EN
Additional notes
Do not overload the tool, the temperature of the external surface must never exceed 60°C.
When work is done, switch off the jigsaw, remove the plug from the mains socket and carry out maintenance and visual inspection.
Caution! Safety measures should be defined to protect the operator, which are based on an assessment of exposure in actual conditions of use (including all parts of the working cycle, such as the time when the tool is switched off or idling and the activation time).
MAINTENANCE AND INSPECTIONS
CAUTION! Before carrying out any adjustment, servicing or maintenance work, unplug the tool from the mains outlet. Having finished working, inspect the power tool for damage by visually checking the exterior and the body and the handles. Check the power cord with plug and its rubber gland, the action of the electric power switch, the ventilation openings for clogging, the motor brushes for sparking, the noise of the bearings and the drive transmission, and how the power tool starts and runs. During the warranty period, the user is not allowed to install any power tools or replace any components or parts, as this will void the warranty rights. Any defects noticed during the inspection or the operation signal the need for repair to be done at the service centre. After finishing work, the housing, ventilation openings, switches, auxiliary handle and covers should be cleaned e.g. with an air jet (with a pressure not exceeding 0.3 MPa), paintbrush or dry cloth without the use of chemicals and cleaning agents. Clean the tools and handles with a clean and dry cloth.
DE
GERÄTEBESCHREIBUNG
DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE
1025/YT-82267/EC/2025
We declare and guarantee with full responsibility that the following products:
meet requirements of the following European Standards / Technical Specifications:
and fulfill requirements of the following European Directives:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
Directiva privind compatibilitatea electromagnetică (EMC) (H.G. nr. 487/2016)
2011/65/EU Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
