USER MANUAL YT-85760 Yato

Black YATO 3D printer with handle and spout, no visible text or symbols on device body

CE

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR

Labeled diagram of a white spray gun with numbered parts for identification

18 17 16 9 10 11 15 14 12 13 II

Close-up of a hand holding a black electrical plug with a coiled wire, shown from two angles (no text or symbols visible)

Close-up of a black screwdriver with threaded shaft mounted on a white foam base (no text or symbols visible)

Two black plastic electronic devices: one open with a lid, the other with a threaded screw and base (no text or symbols visible)

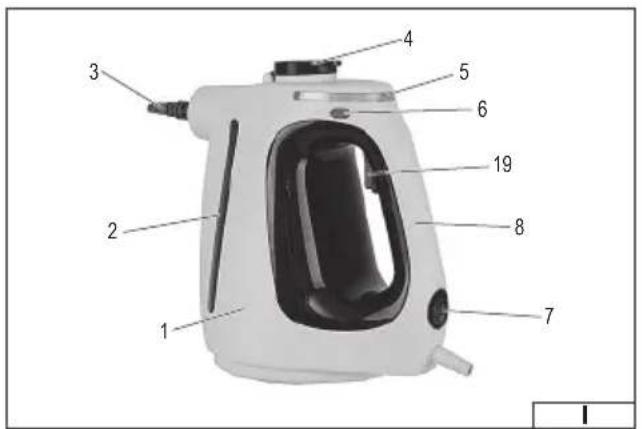

1. washer

2. water level indicator

3. nozzle mount

4. tank cover

5. indicator light

6. safety button

7. switch

8. handle

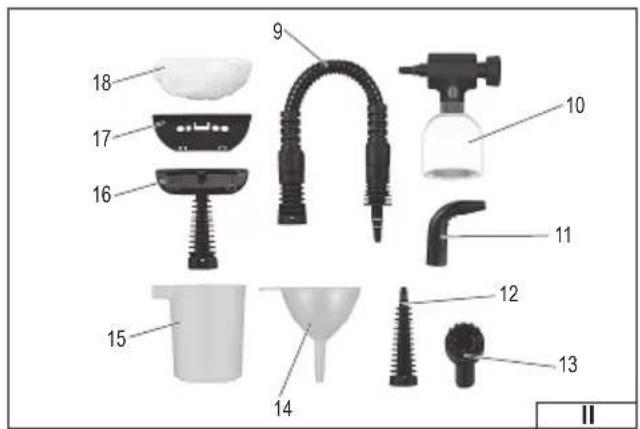

9. fl exible extension

10. tip with tank

11. angled nozzle

12. straight tip

13. nozzle with brush

14. funnel

15. measuring cup

16. fl at tip

17. cover with squeegee

18. microfi ber cover

19. steam release

DE

Read the operating instruction

Note! Hot surface. Do not touch.

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

PRODUCT CHARACTERISTICS

The steam cleaner is used to clean smooth surfaces using a stream of hot steam. The cleaner is particularly useful in bathrooms, toilets, kitchens, as well as for cleaning windows and mirrors. The product is intended for home use only and is not intended for commercial use. The correct, reliable and safe operation of the device depends on proper use, therefore:

Before using this product, please read the entire manual and keep it for future reference.

The supplier is not liable for damages resulting from failure to comply with the safety regulations and recommendations of this manual. Using the product in a manner other than for its intended purpose also results in the loss of the user's rights to the guarantee and warranty.

EQUIPMENT

The product is supplied complete, but requires preparatory activities before starting work, described later in the instructions. The product is supplied with nozzles of various shapes and purposes, as well as a measuring cup, funnel, microfiber nozzle attachment for cleaning large surfaces and a tip with a detergent tank.

SAFETY INSTRUCTIONS

Warning! Read all instructions below. Failure to follow them may result in electric shock, fire or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the product in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Before starting, check whether the product, its accessories and the connection cable have not been damaged. If any damage is noticed, it is forbidden to start using the product. Any replacement of damaged elements, including the power cable, should be performed in authorized facilities. It is forbidden to repair the product yourself. The product is intended for indoor use only. Do not expose the product to contact with precipitation or moisture. Water and moisture that gets inside the product increases the risk of electric shock. Do not immerse the product in water or other liquids. The product should only be connected to a power supply with the voltage and frequency indicated on the device's rating plate. The power cable plug must fit the mains socket. Do not modify the plug. Do not use any adapters to adapt the plug to the socket. An unmodified plug that fits the socket reduces the risk of electric shock. A product made in class I electrical insulation must always be connected to a socket equipped with a protective conductor. The power supply network should be equipped with a differential circuit breaker with a tripping current of no more than 30 mA. After each use, disconnect the power cable plug from the mains socket. Always disconnect the device from the power supply if it is left unattended and before assembling, disassembling or cleaning. The device connected to the power supply should not be left unattended. Do not overload the power supply cable. Do not use the power supply cable to carry the product, connect or disconnect the plug from the mains socket. Avoid contact of the power supply cable with heat, oils, sharp edges and moving parts. Damage to the power supply cable increases the risk of electric shock. In the event of damage to the power supply cable (e.g. cutting, melting insulation), immediately disconnect the cable plug from the socket and then return the product to an authorized repair shop. It is forbidden to use the product with a damaged power supply cable. It is forbidden to repair the power cord, the cable must be replaced with a new one at an authorized service center. Before

EN

assembling, disassembling or adjusting the product accessories, disconnect the power cord plug from the mains socket. Before starting the product, make sure that the selected accessory has been properly installed. Do not overload the product. The housing temperature must not exceed 60 °C. Overloading the product will cause its faster wear and may also cause damage and increase the risk of electric shock. The product must be supervised at all times during operation. The product is not intended for use by children. Keep the product and its cable out of the reach of children. Make sure that children do not treat the product as a toy. Children should not clean or maintain the product without supervision. Keep the device out of the reach of children when it is powered or cooling down. The product is not intended for use by persons with reduced physical, mental capabilities or persons lacking experience and knowledge of the device, unless supervision or instruction is provided regarding the use of the product in a safe manner, so that the associated risks are understood. The water tank must not be open while the appliance is in use. Do not use the appliance if it has been dropped, if there are visible signs of damage or if it is leaking. Never direct the steam jet at yourself, other people or animals. Contact with hot steam can cause serious burns. Never fill the product with any substance other than clean, cold water. In particular, do not use flammable substances such as alcohol or solvents. Do not add or pour any other substances into the water tank, e.g. detergents.

PRODUCT SERVICE

Preparing for work

Note! All actions described in this section must be performed with the product disconnected from the power supply. Make sure that the power cable plug has been removed from the power outlet.

The product should be unpacked, completely removing all packaging elements. It is recommended to keep the packaging, it can be helpful in later transport and storage of the product.

Inspect the product for damage. If any damage is found, do not use the product until the damage is repaired or the damaged parts are replaced with new ones.

Attach the nozzle for the selected type of work to the steam outlet. The nozzle should be mounted using a bayonet connector, placing it on the outlet so that the outlet pins fit into the cutouts in the nozzle mounting socket. Then the nozzle should be turned to it. Check the correct assembly, a correctly assembled nozzle cannot be dismantled by pulling it towards the steam outlet.

Dismantling the nozzle should be done in the reverse order to assembly.

The nozzle can be attached directly to the steam outlet of the device or using an extension, rigid or flexible.

Extensions are attached in the same way as nozzles or using a snap connector.

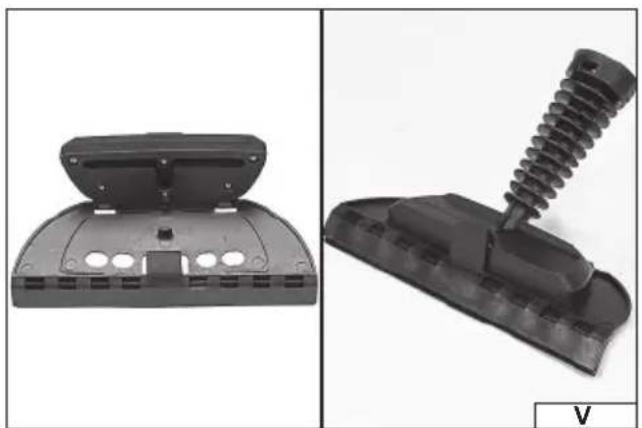

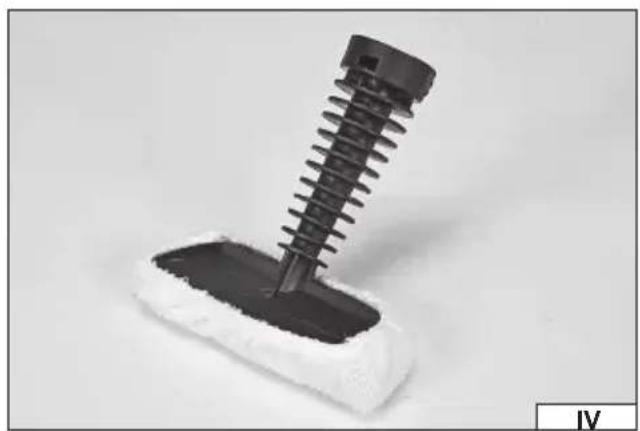

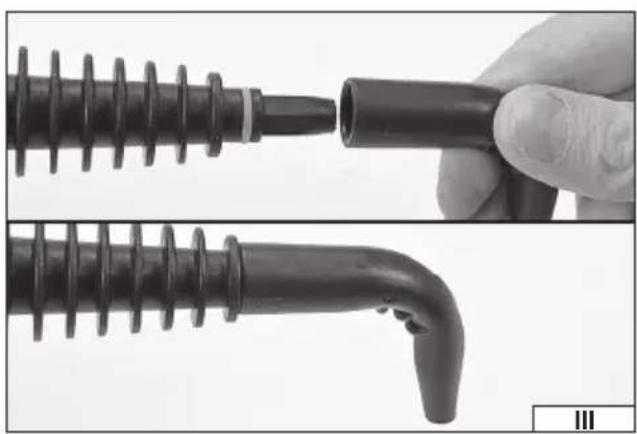

The angle nozzle and the nozzle equipped with a brush are mounted by pushing it all the way onto the steam outlet of the device (III). microfiber cover can be placed on the flat tip so that it completely covers the bottom of the nozzle (IV). Alternatively, you can attach a cover with a puller. The hooks on the cover should fit into the holes at the back of the nozzle so that they create a hinge, and then secure the front of the cover with the latch (V).

Filling and emptying water

Attention! Before filling or emptying the water, make sure that the product is disconnected from the power supply. The power cord plug is pulled out of the socket. The product and the water in it must also be cooled down.

Open the water tank cover, fill the tank with water in a volume not exceeding the nominal tank capacity given in the technical data table. This will allow you to achieve the best performance of the device.

The product comes with a measuring cup and a funnel, it is recommended to use both accessories, which will minimize the risk of water splashing when filling the tank. Splashed water should be wiped off thoroughly before connecting the device to the power supply. After filling the tank, close the tank cover tightly. It is forbidden to use the device with an open tank.

After use, disconnect the product from the power supply by removing the power cable from the socket.

Wait until the product and the water remaining in the tank have cooled down completely. Unscrew the tank cover, turn the device upside down and completely empty the tank. Screw the tank cover back on.

Warning! The lid has a safety device that prevents it from being opened if the tank is filled with steam at too high a pressure.

Opening the lid too early can cause the release of hot steam or even water, which can cause serious burns.

EN

Turning the device on and off

After installing the nozzle and filling the tank with water, place the device on a flat, hard and stable surface, and then connect the product plug to the power socket. Turn on the washer with the switch, the red indicator light will come on. This means that the water in the tank has started to heat up. After the indicator light goes out, the product is ready for use.

To start the steam cleaner, press the steam trigger, which has a safety lock to prevent accidental activation. First, press the lock button, then press and hold the steam trigger. Steam will start coming out of the nozzle.

Warning! Be careful not to place any body parts near the steam outlet. Hot steam can cause serious burns.

The device is equipped with a thermostat that automatically starts water heating if its temperature drops below the level that allows for achieving rated performance. Each time the water heating is started, the light turns on.

Releasing the pressure on the steam release stops the flow of steam. After use, place the device on a flat, hard and stable surface and disconnect the power cord from the socket. Leave the device to cool down completely, then empty the water tank.

Water quality

Only clean, cold water should be poured into the tank. If the tap water is hard, in case of lack of knowledge contact your local water supplier, use a mixture of tap and demineralized water or only demineralized water. Heating hard water causes scale to build up, which can lead to reduced efficiency or even complete clogging of the device.

Due to the brass parts in the tank and nozzles, no descaling agents can be used.

Working with the device

The nozzle outlet should be kept at a small distance from the surface being cleaned. Water vapor deposited on the surface being cleaned should be wiped off before it evaporates on its own. This can be done using a squeegee attachment, a microfiber attachment, or a cloth or paper towel.

In case of more difficult to remove dirt, cleaning should be repeated.

Warning! Do not use a window cleaner at low temperatures. Cold glass may crack when exposed to hot steam.

Do not steam clean surfaces that cannot be wet cleaned.

During operation, the amount of water in the tank should be constantly monitored. If the device's efficiency drops, it may mean that the water in the tank should be refilled. Do not allow a situation where an empty water tank is heated. This may damage the device and cause electric shock or fire.

MAINTENANCE AND STORAGE

After use, disconnect the product from the power supply by pulling out the power cable plug and wait until the water in the tank has cooled down completely. Then open the water tank cover and turn the device upside down to completely empty the tank of water. Then leave the device with the tank open until the remaining water in the tank has completely drained. After draining the tank, close the cover. microfiber cover placed on the accessories will be damp after use, they should be removed and left to dry. The covers can be washed in mechanical washing machines at a temperature of up to 60 °C, do not tumble dry and do not iron.

Clean the device housing with a slightly damp cloth and then dry or leave to air dry. Never immerse the device housing in water or any other liquid. Do not use alcohol, solvents, corrosive or abrasive agents for cleaning.

Do not use sharp objects to unclog the nozzles. Clogged nozzles must be replaced with new ones before further use.

Store the product in dry, shaded and well-ventilated places. The storage location should protect against access by unauthorized persons, especially children. It is recommended to store the product in the packaging supplied with the product.

TECHNICAL DATA

Parameter Unit of measurement Value
Part number YT-85670
Nominal voltage [V~] 220 - 240
Nominal frequency [Hz] 50 / 60
Rated power [W] 1350
Water tank capacity [l]	0,55
Steam pressure	[MPa]	0,1
Maximum steam temperature	[°C]	110
Efficiency	[g/min]	32
Degree of protection		IPX4
Insulation class		I
Mass	[kg]	1,2
