PGM-45HC-BK - Massage gun HOMEDICS - Free user manual and instructions

USER MANUAL PGM-45HC-BK HOMEDICS

Black Homedics medical device with three small accessories (no text or symbols visible)

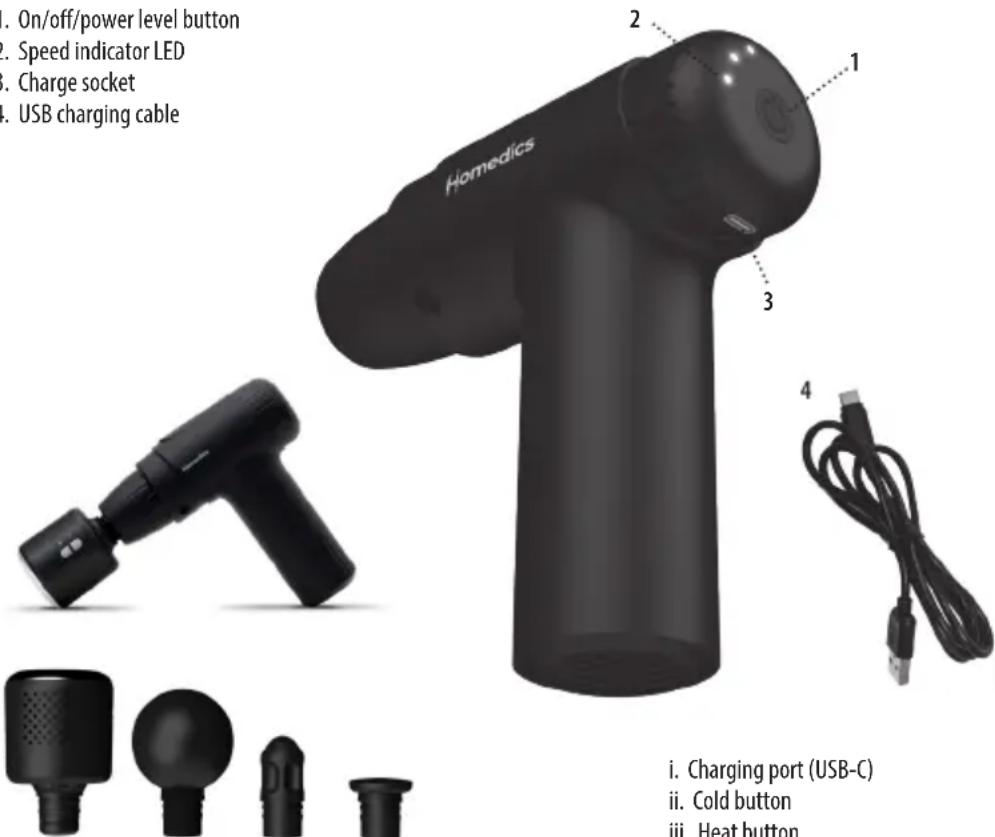

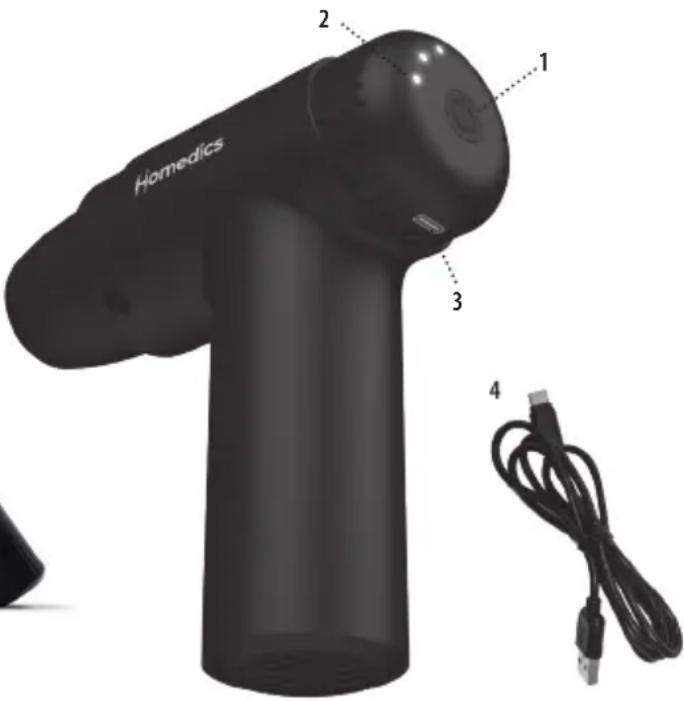

PRODUCT FEATURES:

1. On/off/power level button
2. Speed indicator LED
3. Charge socket
4. USB charging cable

. On/off/power level button . Speed indicator LED . Charge socket . USB charging cable 2 1 3 4 i. Charging port (USB-C) ii. Cold button iii. Heat button

ABCD

Fig. 2

Close-up of a black industrial device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

A. Hot & Cold head — Choose heat to warm up muscles or cold to soothe swollen muscle.
B. Round massage head — suitable for massaging arms, waist, back, buttocks, thighs and other large muscle groups.

INSTRUCTIONS FOR USE:

Charging your device

1. To charge the product, plug the charging cable into a USB socket and connect the cable to the charging socket (Fig.2).
2. Once the charging cable is connected, blue LEDs will illuminate and flash. As soon as the device is fully charged blue LEDs will stop flashing.
3. Once the product is fully charged, disconnect it from the power supply.

Using your device

1. Select the desired massage head and push firmly into the socket on the front of the massager (Fig.3). See additional instructions below for the hot/cold head.
2. Press and hold the power on/off/power level button for 3 seconds to turn the device on.
3. Pressing the on/off/power button again will cycle through the power levels.
4. Gently move the massage head over the part of the body you wish to massage at first, then gently apply more pressure as desired.

C. Bullet massage head — suitable for targeting trigger points and small specific areas such as feet.
D. Flat massage head — for muscle areas that need recovery following heavy exercise, such as deep muscle tissue.

If you are a first time user it is recommended that you start on power level 1 and press gently.

1. A long press on the on/off/power button for 1 second will turn the massager off.
2. The product cannot be used while charging

DO NOT USE THE PRODUCT FOR OVER 30 MINUTES CONTINUOUSLY. IF THE PRODUCT IS USED FOR OVER 30 MINUTES IT MAY TRIGGER THE HEAT PROTECTION FEATURE AND STOP AUTOMATICALLY. PLEASE WAIT FOR AT LEAST 30 MINUTES FOR THE PRODUCT TO COOL OFF BEFORE RE-USING.

Cleaning your device.

• Make sure the device is unplugged from any power supply and allow to cool before cleaning. Clean only with a soft, slightly damp sponge.
• Never allow water or any other liquid to come into contact with the appliance.
• Do not immerse in any liquid to clean.
• Never use abrasive cleaners, brushes, glass/furniture polish, paint thinner, etc to clean.

Using the hot & cold head attachment

• Charge the hot & cold head attachment using the UBC-C lead provided, connected to a 5V/1A USB socket or adapter. The charging time will be approx. 2 hours. Whilst charging the four red lights will run in sequence. When fully charged, the 4 blue lights will stay on constantly.
• A flashing red light indicates that the head requires charging before next use.

Attach the head to the massage gun by pushing firmly into position.

Select your hot/cold settings before activating the massage gun. Always turn the gun off before changing the hot/cold settings.

• A long press of the heat button activates the heat. Each short additional press will increase the heat level from 1 to 4 then back to 1, as indicated by the four red lights.
• A long press of the cold button activates the cooling. Each short additional press will increase the cooling level from 1 to 4 then back to 1, as indicated by the four blue lights.
• Use heat to warm up muscles before a workout and to help relieve stiffness and tension
• Use cold to soothe swollen muscle, and help alleviate sensitivity and discomfort
• Alternate between the hot and cold settings to accelerate recovery after exercise

Level HEAT COLD
1 39°C 14°C
2 41°C 12°C
3 43°C 10°C
4 45°C 8°C

*average temperatures based on an ambient temp of 18°C

READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance

• This appliance is suitable for ages 16 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.

• DO NOT reach for an appliance that has fallen in water or other liquids. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins, metallic fasteners or objects into the appliance or any opening.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.
• NEVER operate the appliance if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.
• DO NOT attempt to repair the appliance. There are no user serviceable parts. All servicing of this appliance must be performed at an authorised HoMedics Service Centre.
• Please ensure that all hair, clothing and jewellery are kept clear of moving parts of the product at all times.
• If you have any concerns regarding your health, consult a doctor before using this appliance.
• Use of this product should be pleasant and comfortable. Should pain or discomfort result, discontinue use and consult your GP.
• Pregnant women, diabetics and individuals with pacemakers should consult a doctor before using this appliance. Not recommended for use by individuals with sensory deficiencies including diabetic neuropathy.

• DO NOT use on an infant, invalid or on a sleeping or unconscious person.

• DO NOT use on insensitive skin or on a person with poor blood circulation.

• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• Do not use for longer than the recommended time.
• Only gentle force should be exerted against the mechanism in order to eliminate risk of injury.
• Use this product only on the body's soft tissue as desired without producing pain or discomfort. Do not use on the head or any hard or bony area of the body.
• Bruising can occur regardless of control setting or pressure applied. Check treatment areas frequently and immediately stop at the first sign of pain or discomfort.
• Failure to follow the above may result in the risk of fire or injury.
• This appliance contains batteries that are only replaceable by skilled persons.
• The battery must be removed from the appliance before it is scrapped;
• The appliance must be disconnected from the supply mains when removing the battery;
• The battery is to be disposed of safely.

3 YEAR GUARANTEE

FKA Brands Ltd guarantees this product from defect in material and workmanship for a period of 3 years from the date of purchase, except as noted below. This FKA Brands Ltd product guarantee does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorised accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of FKA Brands Ltd. This guarantee is effective only if the product is purchased and operated in the UK / EU. A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and / or authorised, or repair of products damaged by these modifications is not covered under this guarantee. FKA Brands Ltd shall not be responsible for any type of incidental, consequential or special damages.

To obtain guarantee service on your product, return the product post-paid to your local service centre along with your dated sales receipt (as proof of purchase). Upon receipt, FKA Brands Ltd will repair or replace, as appropriate, your product and return it to you, post-paid. Guarantee is solely through HoMedics Service Centre. Service of this product by anyone other than the HoMedics Service Centre voids the guarantee. This guarantee does not affect your statutory rights.

For your local HoMedics Service Centre, go to www.homedics.co.uk/servicecentres

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Battery directive

This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health. Please dispose of batteries in designated collection points.

Battery replacement

Your product includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery, please contact Customer Services, who will supply details of the warranty and out-of-warranty replacement battery service

FONCTIONS DU PRODUIT :

Close-up of a black industrial device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

www.homedics.co.uk/servicecentres

Explication WEEE

Close-up of a black handheld device with a small attached component (no visible text or symbols)

Abb. 3

Close-up of a black handheld device emitting a white spherical object, with an arrow indicating direction (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

www.homedics.co.uk/servicecentres

Uitleg over AEEA

Close-up of a black industrial device with a metallic clip (no visible text or symbols)

Fig. 3

Close-up of a black cylindrical object being lifted by a vertical rod, with an arrow indicating motion (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device emitting a circular component, with an arrow indicating direction (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a small attached component (no visible text or symbols)

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

www.homedics.co.uk/servicecentres

WEEE forklaring

Close-up of a black handheld device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

www.homedics.co.uk/servicecentres

WEEE forklaring

Close-up of a black handheld device with a small metallic clip (no visible text or symbols)

kuva 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

www.homedics.co.uk/servicecentres

WEEE-selitys

Close-up of a black industrial device with a metallic clip, no visible text or symbols

Fig. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a metallic clip and handle (no visible text or symbols)

Rys. 3

Close-up of a black handheld device with a circular component being pointed at, showing an arrow indicating motion (no text or symbols visible)

i ii iii iv

Close-up of a black industrial device with a metallic clip, no visible text or symbols

1. ábra


Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

Close-up of a black industrial device with a metallic clip, no visible text or symbols

obr. 3

Close-up of a black handheld device with a circular component being lifted by an arrow (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a metallic clip, no visible text or symbols

obr. 3

Close-up of a black handheld device with a circular head and arrow indicating motion (no text or symbols visible)

i ii iii iv

Close-up of a black handheld device with a metallic clip, no visible text or symbols

şekil .3

Close-up of a black handheld device emitting a circular component, with an arrow indicating direction (no text or symbols visible)

i ii iii iv

Black handheld electric shaver with a compact grip and black body (no visible text or symbols)

ABCD

Homedics 1 2 3 4

Close-up of a black handheld device with a small attached component (no visible text or symbols)

εικόνα 3

Close-up of a black handheld device emitting a spherical object, with an arrow indicating direction (no text or symbols visible)

i ii iii iv

Distributed in the UK by

FKA Brands Ltd, Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK

EU Importer

FKA Brands Ltd, 29 Earlsfort Terrace, Dublin D02AY28, Ireland

Customer Support: [e-mail]

IB-PGM45HCBK-0225-01

CE UK CA
