USER MANUAL Global HK-G 55 EINHELL

Technical line drawing of a mechanical device with a circular base and attached lever (no text or symbols)

HK-G 55

DInhaltsverzeichnis

Description, technical data,

safety instructions page 7

Operating and maintenance instructions page 8-9

Replacement parts drawing page 40

Replacement parts list page 41

Declaration of EC conformity page 42-43

Warranty certificate page 44-45

FTable des matières

Technical diagram of a mechanical device with numbered components for identification

17 16 3 5 4 15 6

Gehörschutz / Ear muffs Protection acoustique / Gehoorbescherming / Protección para los oidos / Protector dos ouvidos / Hörselskydd / Kuulosuojukset / Προστασία autùw / Dispositivo proteggiudito / Håreværn

Augenschutz / Goggles Protection des yeux / Oogbescherming / Protección para la vista / Oculos de protección / Ögonskydd / Silmäsuojukset / Öreklokker / Vernebriller / Proostancia ματών / Dispositivo proteggiocchi / Öjenværn

Atemschutz / Dust mask Protection des voies respiratoires / Adembescherming / Protección respiratoria / Máscara respiratória / Andningsskydd / Hengitystiesuojus / Støvmaske / Простація авантоюг / Dispositivo proteggivie respiratorie / Ándedraetsværn

D

Beschreibung:

Technical diagram of a mechanical device with labeled parts A, B, and numbered components 1 and 2

Parallelschnitt

Technical line drawing of a mechanical tool with a magnified inset showing a circular component detail (no text or symbols)

D

Technical line drawings of mechanical components, including a cutter and clamping device (no text or labels)

Technical diagram showing two mechanical assembly steps with labeled components

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring.

GB

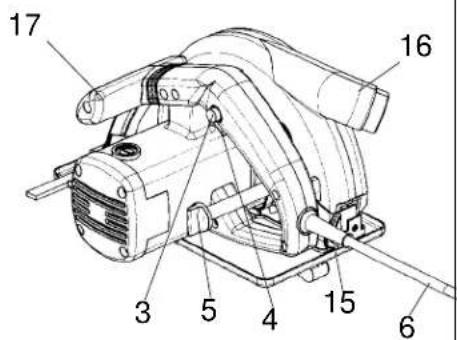

Description

1. Handle
2. Nameplate
3. On/Off switch
4. Interlock button for On/Off switch
5. Lock screw for the depth of cut setting
6. Power cable
7. Splitter
8. Hinged guard hood
9. Allen screw
10. Shoe
11. Flange
12. Saw blade
13. Parallel stop
14. Lock screw for the parallel stop
15. Lock screws for mitre cuts
16. Dust extractor connection
17. Additional handle
18. Actuator for the hinged guard hood

Please read these instructions carefully and pay particular attention to the safety regulations. Keep the instructions together with the circular saw.

Technical data

Voltage 230 V \~ 50 Hz

Power rating 1020 W

Idle speed 4000 rpm

Cutting depth at 0° 52 mm

Cutting depth at 45° 32 mm

Saw blade 160 mm dia.

Saw blade mount 20 mm dia.

Saw blade thickness 2,8 mm

Sound pressure level LPA 98 dB(A)

Sound power level LWA 101 dB(A)

Vibration a_w 3.2 m/s ^2

Weight 4.8 kg

Dimensions 33 x 22.5 x 22 cm

Totally insulated

Accessories supplied

Parallel stop

Applications

The hand-held circular saw is designed for sawing straight cuts in wood, in materials similar to wood, and in plastics.

Safety regulations

• Adjust the splitter so that it is no more than 5 mm from the tooth rim of the saw blade and its lowest point is not retracted more than 5 mm relative to the tooth rim.
• Do not use cracked or misshapen saw blades.
• Do not use saw blades made of high-alloy, high-speed steel (HSS).
  ●Never use saw blades which do not conform with the specifications quoted in these instructions.
  ●Make sure that all the moving parts of the blade guard work properly without jamming.
  ●Make sure that all devices which play a role in covering the saw blade are in proper working order.
  ●The splitter must be properly adjusted and used at all times except for plunge-cuts.
• Do not use the saw near fumes or combustible liquids.
  ●Use only sharp blades and suitable accessories.
  ●Always pull the plug out of the socket before converting, cleaning or adjusting the saw.
• Keep the power cable safe from damage. Oil and acid can cause damage to the cable.
  ●Never use saw blades with plates that are thicker or with sets that are smaller than the thickness of the splitter.
  ●Never remove the plug from the socket by pulling on the power cable and do not carry the saw by its cable.
  ●Have repairs carried out only by specialists.
• If you use a cable reel, the complete cable must be drawn off the reel. The conductor must have a minimum cross section of 1.5 ~mm^2 . Maximum fuse rating 16 A.
• Secure all workpieces sufficiently and do not overload the machine.
  ●Wear suitable clothing and goggles and use a dust mask on dusty jobs.
  ●Wear ear muffs to protect your ears!
• For lengthy jobs on wood and when cutting materials which produce a great deal of dust, the circular saw should be connected to a suitable dust extractor (observe you country's regulations regarding wood dust extraction).

GB

Working with the hand-held circular saw

●Always hold the circular saw firmly.
●The hinged guard hood will be pushed back automatically by the workpiece.
●Never apply force! Advance the circular saw gently and steadily.
●The off-cut piece should be to the right of the circular saw so that the wide part of the base plate is supported over its entire surface.
- When sawing along a marked line, guide the circular saw along the corresponding groove.
●Clamp small pieces of wood securely before sawing. Never hold them in your hand.
●Always observe the safety regulations! Wear goggles!
●Do not use defective saw blades or blades with cracks or flaws.
- Do not use flanges or flange nuts with a hole which is larger or smaller than that of the saw blade used.
●Do not try to stop the saw blade with your hand or by applying pressure to the side of the blade.
●The hinged guard must not jam and must return to its original position once work is completed.
●Before plugging in the circular saw, check that the hinged guard is functioning properly.

●Before each use, always check that the safety devices - the hinged guard, splitter, flanges and adjustment devices - are functioning properly and have been adjusted and secured correctly.
- You can connect a suitable dust extractor to the guard hood. Check that the dust extractor is fitted securely and properly.
●The hinged guard hood is not to be wedged in the retracted guard hood when sawing.

Maintenance

• Keep the cooling vents on the motor housing clean and unobstructed at all times. Blow out any dust and dirt at regular intervals.
  ●Have a specialist workshop check the carbon brushes in the event of excessive sparking.
  ●Worn carbon brushes are to be replaced only by a specialist workshop or by our Customer Service Centre.
• Keep the machine clean at all times.
  ●Never use any caustic agents to clean the plastic parts.
• If ever you discover any damage, consult the exploded drawing and parts list to determine exactly which replacement parts you need to order from our Customer Service Centre.

Important!
Wear ear muffs and goggles.

1 B A 2

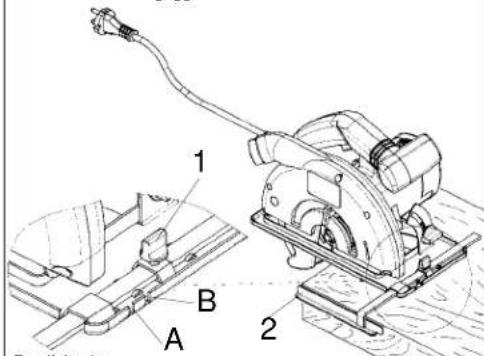

Parallel cuts

1. Release the lock screw 1.
2. For 90° cuts, adjust the parallel stop 2 using the scale on groove A, for 45° cuts adjust the parallel stop 2 using the scale on groove B. Observe the saw blade width.
3. Tighten the lock screw.

Important!

First make a trial cut.

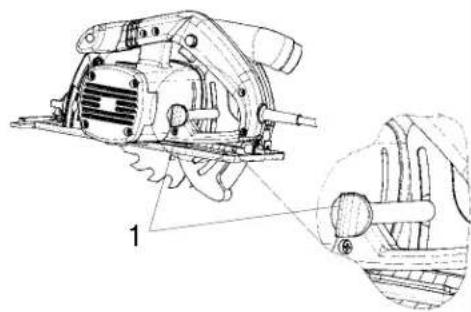

Adjustment of the cutting depth

1. Release the lock screw.
2. Swing the shoe downwards.
3. Adjust the cutting depth using the scale.
   The saw teeth must project approx. 2 mm out of the wood.
4. Tighten the lock screw.

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

GB

Technical line drawings of mechanical components, including a saw and cutting tool assembly (no text or labels)

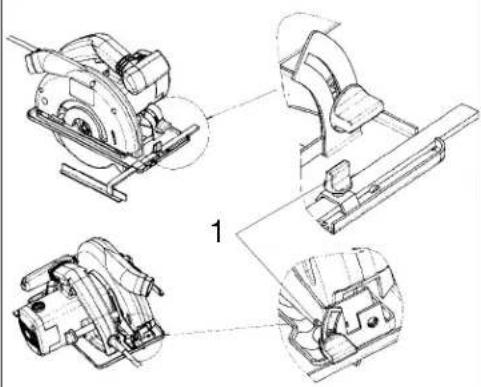

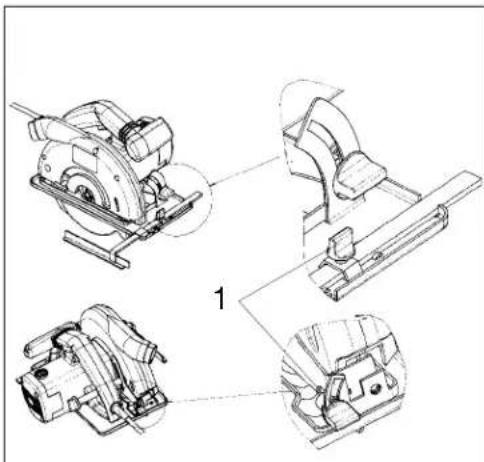

Adjustment of the shoe (cutting angle)

1. Release the 2 lock screws 1
2. Adjust the shoe to the desired angle between 0 and 45°.
3. Tighten the lock screws 1.

Important!
Pull out the plug before making any changes to the circular saw!
Switching on
Before pressing the On/Off switch, check that the saw blade is properly fitted, that the moving parts run smoothly and that the clamping screws are tight.

parts run smoothly and that the clamping screws are tight. Changing the saw blade

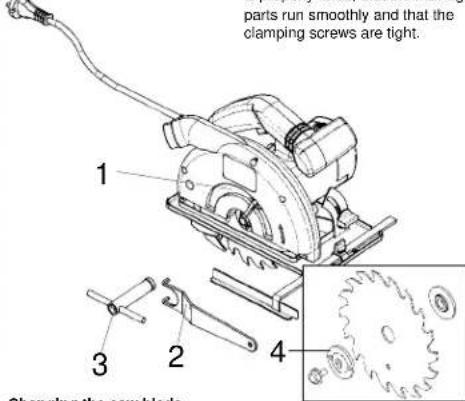

Changing the saw blade

1. Open the hinged guard hood 1 and hold.
2. Use the face spanner 2 to stop the saw blade from moving.
3. Undo the screw with the socket wrench 3.
4. Remove the flange 4 and the saw blade by dropping down and out.
5. Clean the flange and Insert a new blade. Note the direction
   of rotation (see arrow on the guard hood).
6. Tighten the screw and check for concentricity.

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely for repair or maintenance instructions.

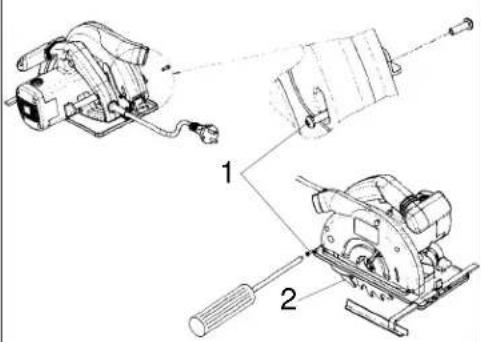

Fitting and removing the splitter

1. Undo the recessed head screws 1 and remove.
2. Pull the splitter down and out.
3. Fit in reverse order.

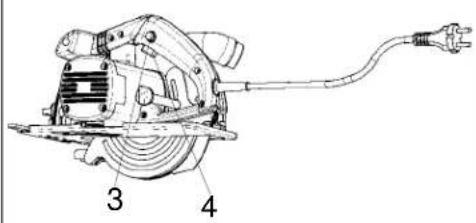

Switching on and off
To switch on: Press the interlock button 3 and the switch 4 simultaneously.
To switch off: Release the interlock button and the switch.

Technical diagram of a saw cutting machine with labeled parts 3 and 4

F

Description:

Technical line drawing of a mechanical tool with a magnified inset showing a circular component detail (no text or symbols)

F

Technical line drawings of mechanical components, including a saw and bracket assembly (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely for repair or maintenance instructions.

Technical diagram of a mechanical device with labeled parts 3 and 4, showing components like a saw blade and wiring.

NL

Beschrijving:

Technical diagram of a mechanical device with labeled parts A, B, and numbered components 1 and 2

Parallelsnede

Technical line drawing of a mechanical tool with a magnified inset showing a circular component detail (no text or symbols)

NL

Technical line drawings of mechanical components, including a saw and clamping mechanism (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely for repair or maintenance instructions.

Spleetspie demonteren/installeren

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

E

Descripción

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

E

Technical line drawing of four mechanical components with no visible text or symbols

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a tool and component details.

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

P

Descrição:

Technical line drawing of a mechanical tool with a magnified inset showing a detailed view of the blade (no text or symbols present)

P

Technical line drawings of mechanical components, including a saw and cutting tool assembly (no text or labels)

Ajuste da sapata (corte enviesado)

Technical diagram showing mechanical assembly steps with labeled parts 1 and 2

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

S

Beskrivning:

Technical diagram of a mechanical device with labeled parts A, B, and numbered components 1 and 2

Parallel skärning

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

S

Technical line drawings of mechanical components, including a saw and flatbed tool assembly (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely for repair or assembly instructions.

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

FIN

Erittely:

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

FIN

Technical line drawings of mechanical components, including a saw and cutting tool assembly (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely for assembly or maintenance instructions.

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

N

Beskrivelse:

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

N

Technical line drawings of mechanical components, including a saw and bracket assembly (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely for repair or maintenance instructions.

Technical diagram of a mechanical device with numbered parts and an inset showing a gear mechanism

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

GR

Περιγραφή:

Technical diagram of a mechanical device with labeled parts A, B, and numbered components 1 and 2

Παράλλλη κοπή

Technical line drawing of a mechanical tool with a magnified inset showing a detailed view of the component (no text or symbols present)

GR

Technical line drawings of mechanical components, including a saw and bracket assembly (no text or labels)

Technical diagram of a mechanical device with labeled parts, showing exploded and assembled views

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring.

I

Technical diagram of a mechanical device with labeled parts A, B, and numbered components 1 and 2

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

I

Technical line drawings of mechanical components, including a saw and bracket assembly (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a tool and component details.

serrate. 1 2 3 4

Technical diagram of a mechanical device with labeled parts 3 and 4, showing internal components and wiring connections.

DK

Beskrivelse:

Technical diagram of a mechanical device with labeled parts A, B, and numbered components 1 and 2

Parallelsnit

Technical line drawing of a mechanical device with a magnified inset showing a close-up view of the blade (no text or symbols present)

DK

Technical line drawings of mechanical components, including a saw and cutting tool assembly (no text or labels)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a tool and component details.

Technical diagram of a mechanical device with labeled parts 3 and 4, showing components like a saw blade and power outlet.

Exploded view diagram of a mechanical assembly with numbered parts for identification

⑤ EINHELL GARANTIBEVIS

© EINHELL-GARANTIDOKUMENT

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service provider

NL EINHELL-GARANTIE

©EINHELL GARANTIBEVIS

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

15 Warwick House Ind. Park, Banbury Road,

Sautham, Warwickshire CV 33 OPS

Technical changes subject to change
