USER MANUAL PMFW 250 A1 PARKSIDE

Translation of the original instructions

FR BE

OUTIL MULTIFONCTION

List of pictograms used . Page 38

Introduction Page 39

Intended use. Page 40

Scope of delivery . Page 40

Parts list . Page 41

Technical data. Page 41

General safety instructions . Page 43

General power tool safety warnings . Page 43

Sander safety warnings . Page 48

Vibration and noise reduction. Page 48

Behaviour in emergency situations. Page 49

Residual risks. Page 49

First use. Page 50

Accessories . Page 50

Operation. Page 51

Selecting an accessory tool . Page 51

Attaching/removing the accessory tool . . . . . Page 52

Switching on and off. Page 54

Trial run. Page 55

Working instructions . Page 55

Cleaning and maintenance . Page 56

Cleaning. Page 56

Maintenance. Page 57

Repair. Page 57

Storage. Page 58

Transportation. Page 58

Disposal. Page 58

Warranty. Page 59

Warranty claim procedure.. Page 60

Service . 61

EC declaration of conformity . Page 62

List of pictograms used The following warnings are used in this user manual, on the packaging, rating label and product labels :
This symbol means that the operating instructions must be observed when using the product.	Switch off the product and disconnect it from the mains before replacing attachments, cleaning and when not in use.
Follow the warnings and safety notes!	Lock
This mandatory sign indicates to wear suitable protective gloves! Follow the instructions of this warning to avoid hand injuries caused by objects or contact with hot or chemical materials.	Unlock
	Voltage
	Wear eye protection.
	Wear ear protection.
Wear dust mask.	CE	CE mark indicates conformity with relevant EU directives applicable for this product.
Alternating current/voltage
Symbol for a Protection Class II (double insulated) product		Safety information Instructions for use

MULTI-PURPOSE TOOL

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This MULTI-PURPOSE TOOL (hereinafter "product" or "power tool") is designed for sawing, cutting, and sanding.

The product should preferably be used for the following materials: Wood, plastic, drywall materials, light and nonferrous metals, fasteners (e.g. nails, screws). The product is particularly suitable for flush applications and applications close to the edge.

The product is not intended to work on very hard materials such as cement or concrete.

Always use the correct accessory tools according to the intended use! Observe the technical requirements of this product (see "Technical data") when purchasing and using accessory tools!

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use or for any other use.

Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Multi-purpose tool
1 Sanding pad
3 Sand paper for metal #240
1 Plunge saw blade (HCS)
1 Scaper
1 User manual

Parts list

(Fig. A, B and C)

1 Main handle
2 Clamping nut
3 Tool holder
4 Lever
5 On/Off switch
6 Sanding pad
7 Sand paper
8 Plunge saw blade
9 Scaper
10 Mains cord with mains plug

Technical data

Multi-purpose tool PMFW 250 A1

Model number: HG11604

Rated voltage U: 230V , 50 Hz

Rated power P: 250 W

Oscillation speed: 22000 min

Mains cord length: 2m

Protection class:

II / (double insulation)

Oscillation angle: 3^

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: L	pA	81.1 dB
Uncertainty: K	pA	3 dB
Sound power level L	WA	89.1 dB
Uncertainty: K	WA	3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Sanding:

Vibration emission value: a h 2.715 m/s² Uncertainty: K 1.5 m/s²

WARNING!

Wear ear protection!

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

General safety instructions

• General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Sander safety warnings

WARNING!

Dust from materials such as lead paint, some types of wood, and metal can be harmful to your health.
Contact with or inhaling this type of dust can present a danger to the user or persons nearby.

WARNING!

Wear safety glasses and a dust mask!

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

Only use the product as intended by its design and these instructions.
Ensure that the product is in good condition and well maintained.
Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles / grip surface.

• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  Plan your work schedule to spread any high vibration tool use across a longer period of time.

Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this user manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.

Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

- First use

- Accessories

To operate this product safely and correctly, the following accessories, i.e. tools and accessory tools, are necessary:

Suitable accessory tools
Suitable personal protective equipment

Accessories and accessory tools are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

NOTE

This user manual contains information and suggestions for several accessory tools and their uses. The accessory tools depicted are not included in the shipment (see "Scope of delivery"), but are meant to indicate additional possibilities for using this product.

WARNING!

Do not use accessories not recommended by Parkside. This may result in electric shock or fire.

Operation

Selecting an accessory tool

NOTE

The following accessory tools constitute the most common types.
If desired, consult specialist retailers about further accessory tools.

Plunge cut saw blade (Fig B, 8)

Materials:

Wood

Plastic
Plaster
other soft materials

Use: Cut-off cuts

Plunge cuts
Sawing close to the edge, including in hard-to-reach areas

Example: Cutting notches in light construction walls

Scaper (Fig B, 9)

Materials: Mortar/cement residue

Tile/carpet adhesive
Paint/silicone residue

Use: Removing material residue

Example: ■ Removing carpet adhesive residue on floors

Sanding paper (Fig B, 7)

Materials: Metal

Use: Sanding along edges

• Sanding along hard-to-reach areas

• Attaching/removing the accessory tool

CAUTION! RISK OF INJURY!

Accessory tools can be sharp and may become hot during use. Always wear protective gloves when handling accessory tools!

WARNING! Risk of injury due to unintentional startup!

Do not insert the mains plug 10 into the socketoutlet until the product is fully prepared for use.

CAUTION! RISK OF INJURY!

• Keep your hands away from the accessory tool when the product is in operation.

Inserting the accessory tool

(Fig. C)

1. Fold the lever 4 all the way upwards (180^)

The clamping nut 2 is lifted up and allows access to the accessory tool holder 3.

1. Inserting open end of accessory tools into the accessory tool holder 3.

NOTE

You can attach the accessory tools into the accessory tool holder 3 in any lock-in position (Fig. D).

Tightening the accessory tool

(Fig. C)

Push the tool release le4 all the way down to "LOCK" position.

Removing the accessory tool

(Fig. C)

• Fold the insert tool release le4 all the way upwards (180^) .

Pull the accessory tool out of the accessory tool holder 3.
After removing the accessory tool: Push the tool release lever 4 all the way down back to "LOCK" position.

- Switching on and off

CAUTION! RISK OF INJURY!

Always wear protective gloves when handling or working with the product.

CAUTION! RISK OF INJURY!

Always hold the product with both hands while working.

CAUTION! RISK OF INJURY!

• Keep your hands away from the accessory tool when the product is in operation.

CAUTION! HEALTH RISK!

Never work on materials containing asbestos. Asbestos is considered carcinogenic.

(Fig. E)

• Switching on: Slide the on/off swit 5 forward (I).
• Switching off: Slide the on/off swit 5 back (O).

Trial run

NOTE

Always carry out a no-load trial run before starting work and after every accessory tool replacement.

The trial run is to make sure the accessory tools are correctly locked in place and will not became loose during operation.

- Working instructions

Working principle:

The oscillating motor allows the accessory tool to oscillate back and forth 22000 times per minute. This allows for precision in the tightest of spaces.

Sawing/cutting:

Only use undamaged saw blades free from defects. Bent, dull or otherwise saw blades can break.
- Observe the law and the recommendations of the material manufacturers when cutting light construction materials.
Only soft materials such as softwood, gypsum plasterboard etc. may be processed using plunge cutting!

Sanding:

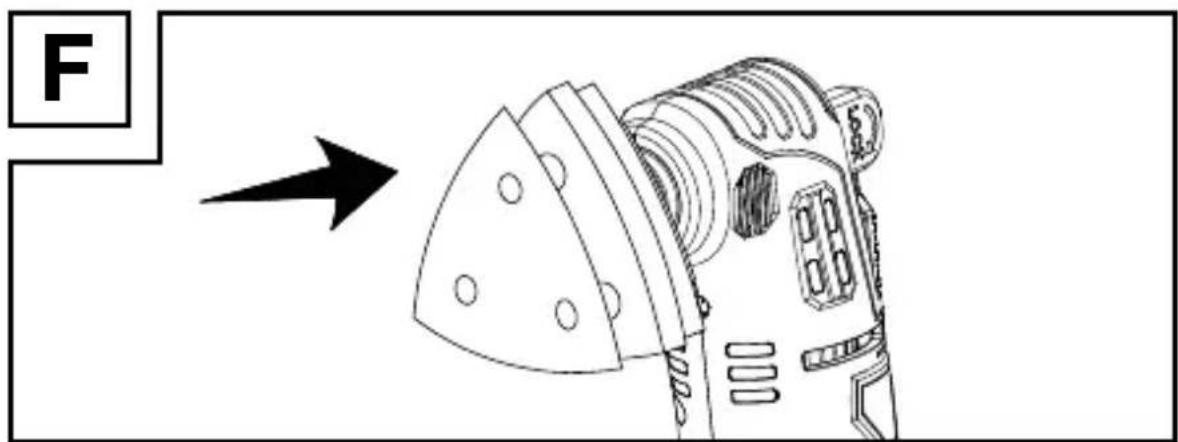

• Attaching sanding paper: Press the sanding paper 7 onto the sanding pad 6 (Fig. F).
  Removing sanding paper: Peel the sanding paper 7 from the rim of the sanding pad 6 and remove it.

Apply even pressure to extend the life of the sanding sheets.

- Cleaning and maintenance

WARNING! Risk of electric shock! Risk of injury due to unintentional start-up!

Protect yourself when performing maintenance or cleaning work. Switch off the product and remove the mains plug [10] from the socket-outlet.

Cleaning

Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.

Regular and proper cleaning will help ensure safe use and prolong the life of the product.
Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
In particular clean the air vents after every use with a cloth and soft brush.
The vents must always be clear.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

The product is maintenance-free.
Before and after each use, check the product and accessories (e.g. accessory tools) for wear and damage. If required, exchange them for new ones as described in this user manual. Observe the technical requirements (see "Technical data").
Check covers and safety devices for damages and correct installation. Replace as necessary.

Repair

WARNING! Risk of injury!

If the mains c10 is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

Clean the product as described above.
Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
Always store the product in a place that is inaccessible to children.

- Transportation

Switch the product off.
- Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Secure the product to prevent it from slipping or falling over.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (e.g., IAN 487375_2501) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 487375_2501 takes you to the operating instructions for your item.

Service

GB

Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

EC declaration of conformity

EU DECLARATION OF CONFORMITY (No 487375_2501)

IAN:487375_2501

"PARKSIDE" Multi-purpose tool

Product identification:

Model Number: HG11604

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015/A11:2022

EN 62841-2-4:2014

EN ISO 12100:2010

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A1:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm

Place

02.04.2025

Date

Authorised Signatory Authorised Signatory

EN

II / (double isolation)

Incertitude:K WA 3 dB

Productidentification:

Modelnummer: HG11604

6 Sanding pad
7 Sand paper
8 Plunge saw blade
9 Scaper
10 Mains cord with mains plug

- Technické udaje

Vibrationsemission: a 2,715 m/s²

Uvist: K 1,5 m/s²

ADVARSEL!
