USER MANUAL HG12764 SILVERCREST

List of pictograms used

Introduction 20

Intended use.
Scope of delivery. Page 20
Parts list 20
Technical data . 20

General safety instructions. Page 21

First use 25

Off mode. 25

Operation. 25

Setting the cutting width. 25
Switching on/off 26
Cutting. 26

Cleaning and maintenance.. 26

Cleaning (after each use)

Storage 27

Disposal 28

Warranty 28

Warranty claim procedure. Page 29
Service . 29

List of pictograms used The following warnings are used in this user manual and on the packaging:
This symbol means that the operating instructions must be observed before using the product.	Danger - risk of electric shock!
DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented could result in death or serious injury.	Food safe This product has no adverse effect on taste or smell.
WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.	Use the product in dry indoor spaces only.
	Alternating current/voltage
CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.	Symbol for a Protection Class II product
	CE	CE mark indicates conformity with relevant EU directives applicable for this product.
NOTE: This symbol in combination with "Note" provides additional useful information.	Safety information Instructions for use
Hz	Hertz (supply frequency) Watt	W

ELECTRIC MULTI-PURPOSE SLICER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is used for cutting suitable food, for example bread, cheese or sausages. Any use of the product not specified above is prohibited and can result in injuries and/or damage.

The product is designed for household use. The product is not suitable for commercial use.

The manufacturer accepts no liability for damages caused by improper use.

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Electric multi-purpose slicer
1 User manual
1 Collecting tray
1 Slicing carriage
1 Waste holder
1 Addendum sheet for assembling and disassembling

Parts list

(Fig. A)

1 Turning knob
Scale (Cutting thickness setting)
3 Blade lock
4 Circular blade
5 On/Off switch button
6 blade guard
7 Blade guard handle
Table
9 Slicing carriage
10 Waste holder
11 Collecting tray
12 Positioning plate
13 Foot with suction cup
14 Power cord winder
15 Power cord guide
16 Power cord with plug

Technical data

Input voltage: 220 - 240V 50 - 60Hz

Protection class: 11/

Power input: 120 W

Power consumption at

Off mode: 0 W

Dimensions: approx.

360 × 234 × 245 ~mm

Weight: approx. 3kg

Power cord length: 130cm

Individual cutting

width setting: up to 23 mm

Continuous

operation time: 5 min

NOTE: The continuous operation time of this product is 5 minutes. The continuous operation time indicates how long you may use the product before overheating and damaging the motor. After the continuous operation time, the product must remain switched off until the motor has completely cooled.

General safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with this user manual the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product must not be used by children.
- Keep the product and its power cord away from children.
This product may be used by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed regarding the safe use of the product and understand the associated risks.
Never allow children to play with this product.

Electrical safety

Always hold the power cord by positioned so nobody can step the power plug, do not pull by on or be hindered by it. There is the power cord itself. a risk of injury.
Do not place furniture or other heavy objects on the power cord and be sure not to bend it, especially at the power plug.
To avoid damaging the product, do not lay the power cord over hot or sharp places or edges.
Do not use adapter plugs or extension cables which do not meet the applicable safety standards and do not manipulate the power cord!
If the power cord is damaged it must be replaced by the manufacturer, service agent or a similarly qualified person, in order to avoid hazards.
Never make a knot in the power cord and do not tie it together with other cables.
Repairs are required if the product is damaged, liquids or objects have entered the housing, it has been exposed to rain or moisture, or if it is not working properly or has been dropped.
In the event of smoke, unusual noises or odours, immediately remove the power cord of the product from the power outlet. In these cases, discontinue use of the product and have it inspected by an expert.
Only allow the manufacturer, service agent or a similarly qualified person to carry out any repairs.
Never open the housing of the product.

The power cord should be positioned so nobody can step on or be hindered by it. There is a risk of injury.
In the event of a power outage, the product will remain switched on and resume operating after the outage. Always disconnect the product from the power outlet in case of a power outage.

• Stop using the product if the appliance or the accessories (slicing plate, slicing carriage and waste holder) are damaged.

• no direct sources of heat (e.g. heaters) are affecting the product;

• no direct sunlight or strong artificial light is hitting the product;
• contact with spraying or dripping water and aggressive liquids is avoided;
• the product is not operated near water, the product must most importantly not be submerged in liquid. Do not place objects filled with liquids, e.g. vases or beverages on or next to the product;
• no open fire sources (e.g. burning candles) are on or next to the product;

• no foreign objects have entered the product;

• the product is not exposed to excessive shock or vibration.

• the product is not exposed to extreme temperature fluctuations, as otherwise condensation can build up and lead to electrical short-circuiting. If the product is exposed to extreme temperature fluctuations, wait (approx. 2 hours) before starting it up, until it has reached room temperature.

Operation

CAUTION! Risk of injury!

-Only use the accessory components included to operate the product.
-Keep long hair, ties and items of loose clothing away from the area around the rotating blade, where they may get caught.
- Never reach towards the rotating blade with your hands.

• Switch off the product and disconnect it from supply before removing the blade 4 or approaching the moving blade 4.

• Always disconnect the product from the power outlet when leaving it unattended, before assembly, before disassembly and before cleaning.

The product is only suitable for cutting firm foods such as bread, sausages or sliceable cheese. Cutting other substances (e.g. wood) or very hard foods (e.g. bones, hard cheese, deep-frozen food) is not permissible.

The blade is very sharp. Never put your hands near the blade. After switching off the product, the mechanism will continue to move for a short time. Wait for the blade to stop! After cutting, set the cutting width to the

position.

Misuse of the product can result in injuries such as cut wound on the finger or other serious injuries.

CAUTION! Risk of injury!

Never guide small pieces of foods towards the circular blade 4 with your bare hands! Always use the waste holder 10 provided. Injuries may otherwise occur.

This product must be used with the slicing carriage 9 and waste holder 10 in position unless the size and shape of the food being cut does not allow for their use.
- Never operate the product without the circular blade. - Always keep the blade guard in position before using the product.
Never try to cut the following items:
- Packaged or frozen food
- Ice cubes
-Food with bones
-Nuts with shells

This could damage the product.

Always remove the power plug from the power outlet after use or when the product is unattended.
Place the product on a firm, level surface and do not place any objects on the product.
The product is not designed for use in very hot, humid, or dusty rooms. Refer to the operating temperature and operating humidity.

Cleaning

Always remove the power plug from the power outlet before cleaning the product.

Never submerge the produce water or hold it under running water to clean it.
Always disconnect the product from the power outlet before removing the blade.
Clean the product and its accessories after use (see "Cleaning and care").

- First use

DANGER TO LIFE FROM ELECTRIC

SHOCK! Do not use the product next to a sink full of water!

Remove the packaging.
Clean the product and its accessories (see "Cleaning and care").
Place the product on a level, clean surface. The product has feet with suction cups 13 to secure the stand.
Unwind the power c16. Guide the power cord 16 through the power cord guide.

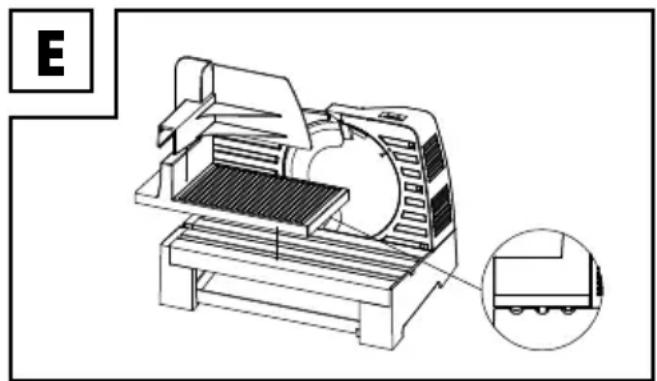

Put the slicing carrid 9 onto the table 8. Press on surface of carriage to ensure the ribs at base locked onto the guide grooves of table (see Fig. E).

Place the waste holder 10 on the slicing plate. The rectangle with the pins is facing the circular blade 4.
Take out the collecting from the base for collecting the food slices. (see Fig.C).

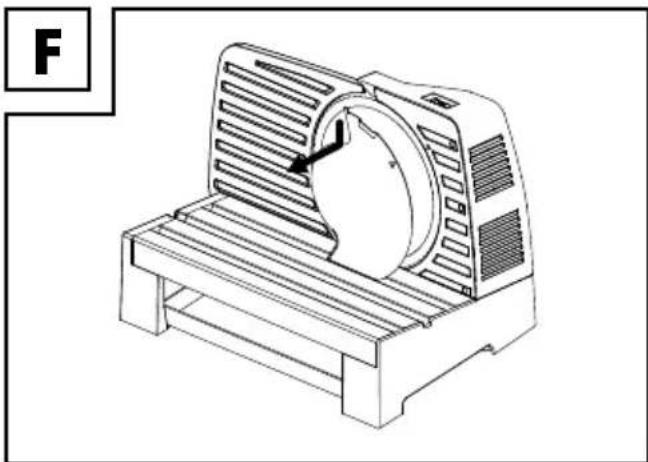

Check if the blade guard 6 is in place. If not, assembly the guard as below:

• Hold the blade guard hand and attach it on the blade. Ensure the arrow mark on blade guard pointed to arrow mark on housing.
• Press the center of blade guard until a "click" sounds.

- Off mode

The product enters off mode once plugged in without any action.
When finished using the product and turned the On/Off switch button 5 to "O" position, the product returns to off mode.

Operation

CAUTION! Risk of injury!

The circular blade 4 is very sharp. Never put your hands near the circular blade 4. After switching off the product, the circular blade 4 continues to move for a short time.
When carrying the food slicer, never hold it in the middle for avoiding touching the blade. Always hold both sides for preventing getting injured.

Setting the cutting width

NOTE: The maximum cutting width that can be selected on the scale 2 is approx. 23mm
Increasing or decreasing the cutting width - Rotate the turning knob 1:

Rotation direction Result

Counter-clockwise	Increase the cutting width
Clockwise	Decrease the cutting width

Check the cutting width on the sc2.
After cutting: Set the cutting width to the

position.

- Switching on/off

Connect the power plug 16 to a power outlet.

For momentary operation:

Turn the On/Off switch but 5 to "1" position and hold it during cutting process.
Release the On/Off switch but 5 and it will return to "O" position automatically. The blade stops rotating.

For continuous operation:

Turn the On/Off switch but 5 to "I" position. The blade keep rotating without holding the switch button.
Turn the On/Off switch bu 5 to "O" position. The blade stops rotating.

Cutting

NOTES:

Always keep the blade guard 6 installed well on the circular blade 4 before operating the product. The blade guard makes the stop longer, so the cutting material slides better and cannot be pulled along by the rotating blade. The blade guard also helped in preventing accidentally touching the circular blade during operation.

Always use the slicing carriage 9 and the waste holder 10 when cutting.
Clean the product and the circular blade 4 straight after cutting fatty foods (e.g. meat, sausages, cheese) (see "Cleaning and care").

Place the food to be cut on the slicing carriage 9.
Press the food with the waste hol10 lightly against the positioning plate 12.
Guide the food through the cutting process by lightly pushing the slicing carriage against the rotating circular blade.
After cutting: Pull the slicing carrid backwards. Repeat the process until the desired number of slices has been cut.

- Cleaning and maintenance

DANGER! Risk of electric shock!

Before cleaning or maintaining the product: Disconnect the power plug 16 from the power outlet.

DANGER! Risk of electric shock!

Do not immerse the product in water or other liquids. Never hold the product under running water.

CAUTION! Risk of injury!

The circular blade 4 is very sharp. Never hold the circular blade 4 by the cutting surface but instead by the blade lock 3

CAUTION! Risk of injury!

When removing and attaching the blade guard 6, please always hold the blade guard handle 7 and avoid touching the edges of circular blade (see Fig. F).

CAUTION! Risk of injury!

The circular blade 4 can fall out of the product if it is not properly installed. Lock the mechanism into place correctly during assembly (blade lock 3 must be horizontal!).

- Cleaning (after each use)

NOTE: Do not use any abrasive, aggressive cleaners to clean the product.

Cleaning the circular blade

NOTES:

Clean the circular blade 4 after every use with warm soapy water.

The circular blade 4 is not suitable for dishwasher.

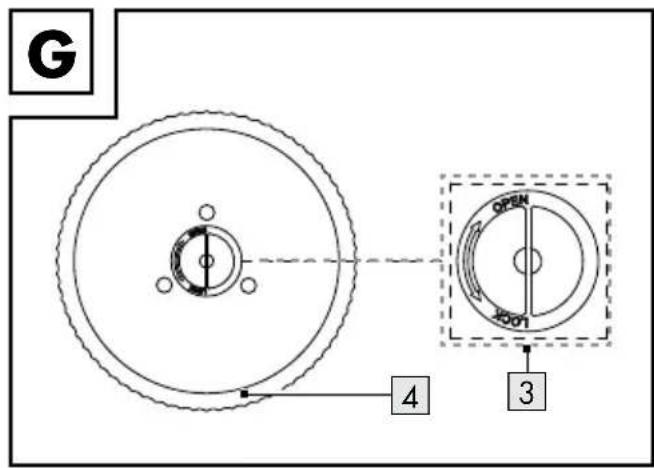

Turn the blade lock 3 clockwise and align the blade lock 3 vertically. Remove the circular blade 4 (Fig. G).

After cleaning: Allow the circular blc 4 to dry.

Cleaning the unit and accessories

Wipe the accessories with a slightly damp cloth.
Use a little mild soapy water if needed.
Wipe the slicing carric 9, the waste holder 10, collecting tray 11 and blade guard 6 with a slightly damp cloth.
Allow all parts to dry.

After cleaning: Reattach the circular blade 4. Rotate the blade lock 3 in a anticlockwise direction to reattach the circular blade 4 (Fig. H). Reattach the blade guard 6 by holding the blade guard handle 7 and install it on the circular blade. Ensure the arrow marks are pointed and a click sounds after installation.
Wipe the positioning pl12 and table 8 with a slightly damp cloth.
After cleaning: Allow all parts to dry.

Storage

Before storage: Rotate the turning knob 1 clockwise to set the cutting width at minimum position.

Wrap the power c16 around the power cord winder 14 (Fig. D). Attach the power plug to the power cord guide 15.
Hold the product at the sides when carrying the product. Do not hold the product at the cavity. Do not touch the circular blade 4 when carrying the product.
Store the product out of reach of children. There is a risk of injury from the sharp circular blade 4.
Store the product in the original packaging when it is not in use.
Store the product at a dry location.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 460157_2401) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB

Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

C

Individual indstilling of

skarebredde: op til 23 mm

Kontinuerlig driftstid: 5 min.
