USER MANUAL SMZT 260 A1 SILVERCREST

Operating instructions

DE AT CH

MULTIZERKLEINERER

Bedienungsanleitung

GR CY

ΠΟΛΥΚΟΦΤΗΣ ΧΕΙΡΟΣ

Οδηγίες χρήσης

IAN 307613

GB IE NI CY

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GR CY

GB/IE/NI/CY Operating instructions Page 1

Disposal of the packaging....3

Appliance description....3

Technical data....4

Safety information 4

Operation 7

Chopping. 7

Whipping cream 10

Cleaning and maintenance ....11

Troubleshooting 12

Appendix....12

Disposal of the appliance 12

Kompernass Handels GmbH warranty 13

Service....14

Importer....14

Read these operating instructions carefully before using the appliance for the first time, and retain them for future reference. Please pass these operating instructions on to any future owner(s) of the appliance.

Introduction

Congratulations on the purchase of your new appliance!

You have chosen a modern, high-quality product. These operating instructions are part of the product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. This product may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for the chopping of boneless foods in small amounts or for whipping cream. This appliance is intended exclusively for use in domestic households.

All other uses are deemed to be improper and may result in property damage or even in personal injury. No liability will be accepted for damages that result from improper use of the appliance. This appliance is not intended for use in companies or for other commercial uses.

Package contents

The appliance is supplied with the following components as standard:

- Mini Chopper (motor unit ①, connecting piece ④, bowl ⑧, blade holder with blade ⑤, emulsifying disc ⑥, base ⑩)

- Operating instructions

Unpacking

1) Remove all parts of the appliance and the operating instructions from the box.

2) Remove all packaging materials from the appliance.

NOTE

▶ Check the package for completeness and signs of visible damage.

If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Disposal of the packaging

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:plastics, 20-22: paper and cardboard, 80-98: composites.

NOTE

▶ If possible, keep the original packaging during the warranty period so that the appliance can be properly packed for returning in the event of a warranty claim.

Appliance description

Figure A:

① Motor unit
② Speed button I
③ Speed button II
4 Connecting piece
⑤ Blade holder
6 Emulsifying disc
⑦ Blade
8 Bowl
⑨ Bearing
10 Base

Technical data

Power supply 220–240 V ~ (AC) , 50 Hz
Rated power 260 W
Protection class	II / ☐ (double insulation)
CO time	1 minute (with emulsifying disc 6)
Bowl capacity 8	500 ml
Max. fill quantities during operation	Food products up to the 300 ml marking [IMAGE]Liquids up to the 200 ml marking
	All of the parts of this appliance that come into contact with food are food-safe.

CO TIME

The CO time (continuous operation time) is the amount of time an appliance can be operated without the motor overheating and becoming damaged. After the appliance has been operated for the given CO time, switch it off until the motor has cooled down.

Safety information

RISK OF ELECTRIC SHOCK

• Connect the appliance only to a correctly installed power socket supplying a mains power voltage of 220 - 240 V \~ at 50 Hz.
• Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.

RISK OF ELECTRIC SHOCK

In event of malfunctions and before cleaning the appliance, remove the plug from the mains power socket.
▶ Always remove the power cable from the socket by pulling on the plug, not on the power cable itself.
- Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.
- Do not expose the appliance to humidity and do not use it outdoors. If liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.
▶ Never hold the appliance, power cable or power plug with wet hands.
If the power cable or the motor unit are damaged, you must have the appliance repaired by qualified technicians before using it again. Do not attempt to open the motor unit housing. This can lead to risks and also invalidates the warranty.
▶ Disconnect the appliance from the mains power source immediately after use. The appliance is completely free of electrical power only when unplugged.

Never immerse the motor unit in liquid and do not allow any liquids to enter the casing of the motor unit.

WARNING! RISK OF INJURY!

Before changing any accessories or additional parts that move during operation, the appliance must be switched off and disconnected from mains power.

⚠ WARNING! RISK OF INJURY!

▶ Never use the appliance for purposes other than those described in these instructions.
▶ Take care when emptying the bowl! The blade is extremely sharp!
▶ Take care when cleaning the appliance! The blade is extremely sharp!
The appliance must always be disconnected from the mains when left unsupervised and before assembly, disassembly or cleaning.
This appliance may not be used by children.
The appliance and its connecting cable must be kept away from children.
This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
▶ Do not allow children to use the appliance as a plaything.
▶ Children should be supervised to ensure that they do not play with the appliance.
- Handle the extremely sharp blade with caution as it can cause injuries. Reassemble the appliance after using and/or cleaning it so that you do not injure yourself with the exposed blade. Keep the blade out of the reach of children.
▶ Never attempt to remove foodstuffs from the bowl as long as the blade is still rotating. Risk of injury!
- Wait until the blade has stopped rotating before removing the motor unit.
▶ Never try to grasp the blade if it is still rotating! Risk of injury!

⚠ WARNING! RISK OF FIRE!

▶ Do not allow the appliance to run for more than 1 minute. Afterwards, allow it to cool down.

CAUTION - APPLIANCE DAMAGE!

▶ See the table on the recommended fill quantities in the section "Chopping". Otherwise, there is a risk of contamination due to leaking contents.
- Do not clean the motor unit in the dishwasher, as this will damage it.
▶ Never fill the appliance with hot liquids! Otherwise the appliance could be damaged!

Operation

Chopping

NOTE

▶ Before first use, you must clean the appliance thoroughly as described in the section on cleaning.

1) Place the bowl ⑧ on the base ⑩.
2) Insert the blade holder ⑤ with the blade ⑦ onto the bearing ⑨.
3) Prepare the food by chopping larger pieces into smaller chunks (approx. 2 cm) that will fit better into the bowl ⑧.

4) Place the food into the bowl ⑧ as described in the following table:

Food Fill level Processing time Speed
Salami 130 g 3 x 5 sec. II
Cheese (Gouda, young, fridge temperature)	100 g 4 x 15 sec. II
Onions 100 g pulse I
Garlic 100 g pulse II
Carrots 100 g 3 x 5 sec.	I
Almonds	200 g	coarse: 1 x 15 sec. medium: 2 x 15 sec. fine: 3 x 15 sec.	II
Eggs (hard-boiled)	150 g 2 x 4 sec. II
Walnuts	50 g	2 x 8 sec. II
Ice cubes	100 g	15 x 1 sec. pulse	II

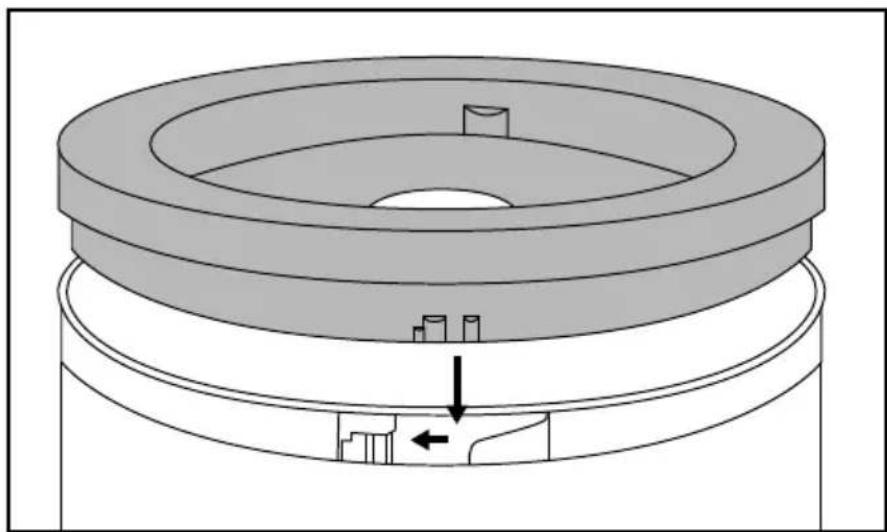

5) Close the bowl ⑧ with the connecting piece ④:

- Place it onto the bowl ⑧ so that the tabs on the outer rim of the connecting piece ④ grip into the catches on the bowl ⑧ (see figure 1).

- Then, turn the connecting piece 4 so that the tabs slide down into the catches and engage.

Technical diagram of a mechanical component with concentric rings and a central hole, showing internal structure and directional arrow (no text or symbols)

Fig. 1

6) Place the motor unit ① onto the connecting piece ④. Make sure that the tabs on the inner edge of the connecting piece ④ grip into the recesses on the motor unit ① and that the motor unit ① sits firmly in place.

7) Depending on the type of food you want to chop, press speed button I ② or speed button II ③.

NOTES

If larger pieces of food start collecting on the wall of the bowl during processing, lift the motor unit ① off the connecting piece ④. Give the bowl ⑧ a firm shake and restart the processing. Any residues can be removed with a spatula.
▶ Particularly hard foods should be cut into small pieces (approx. 2 cm) before processing. Otherwise, the motor unit could block.
Use a 'pulsing' processing method when working with hard foods. To do this, press the relevant speed button ②/③ several times briefly in succession.
If the food is not completely chopped, you can either cut it into smaller pieces or lift the motor unit ① off the connecting piece ④. Give the bowl ⑧ a firm shake and restart the processing.

8) Once the food is fully chopped, release the speed button ②/③.

9) Remove the power plug from the socket.

⚠ WARNING! - RISK OF INJURY!

▶ Never attempt to remove food from the bowl ⑧ while the blade ⑦ is still turning. There is a risk of injury and food can also spray out and make a mess.

10) Wait until the blade ⑦ has come to a complete standstill.

11) Lift the motor unit ① off the connecting piece ④.

12) Remove the connecting piece ④.

⚠ WARNING! - RISK OF INJURY!

▶ Handle the extremely sharp blade ⑦ with caution as it can cause injuries. Keep the blade ⑦ out of the reach of children.

13) Carefully pull the blade holder ⑤ with the blade ⑦ out of the bowl ⑧.

14) Remove the food.

NOTES

▶ Chopping harder, abrasive foods can cause the bowl ⑧ to take on a dull appearance after a while. This is normal and will not impair the functioning of the appliance.

▶ After you have finished processing the food, you can use the base ⑩ as a lid for the bowl ⑧ to keep the food fresh for longer.

- Remove the motor unit ① and the connecting piece ④ from the bowl ⑧.

- You can leave the blade holder ⑤ with the blade ⑦ in the bowl ⑧ if you wish.

- Remove the base 10 from the underside of the bowl 8. Turn the base 10 around. You can now place the base 10 on the bowl 8 so that it closes off the bowl 8.

Whipping cream

You can also use the appliance to whip cream with the help of the emulsifying disc ⑥:

1) Place the bowl ⑧ on the base ⑩.
2) Push the emulsifying disc ⑥ onto the blade holder ⑤:

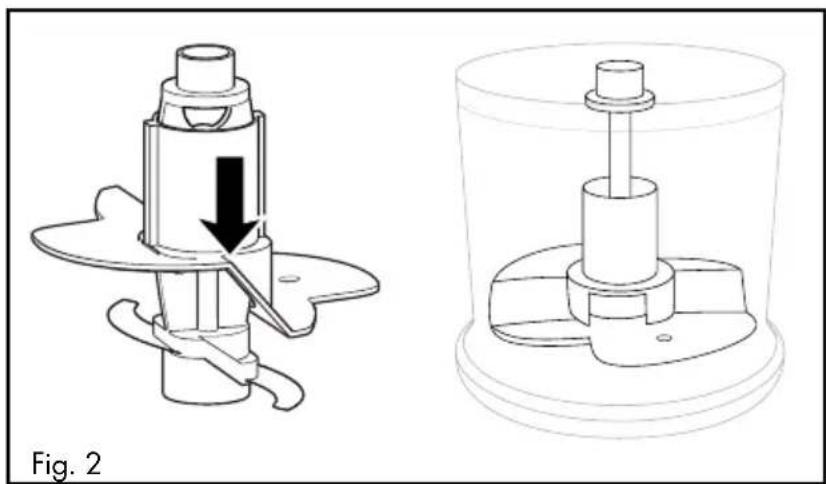

- To whip 100 ml of cream, place the emulsifying disc ⑥ onto the blade holder ⑤ so that it lies against both blades ⑦ and clicks into place (fig. 2):

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

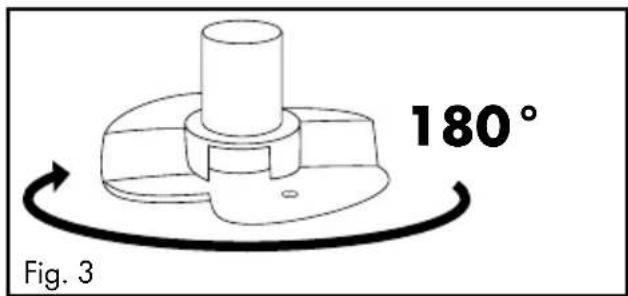

- To whip 200 ml of cream, turn the emulsifying disc ⑥ horizontally by 180° (fig. 3), so that it is in contact with only one blade ⑦ and clicks into place (fig. 4). The emulsifying disc ⑥ then churns higher through the cream.

Technical line drawing of a mechanical component, showing a disassembly or assembly process (no text or symbols present)

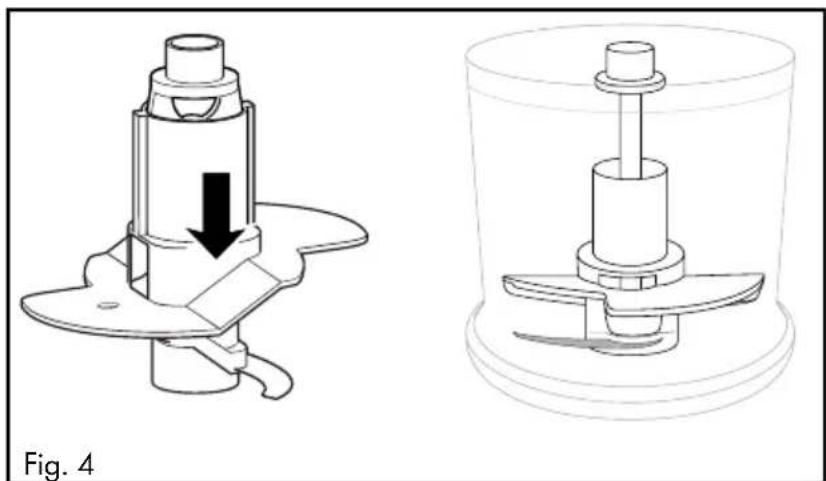

3) Insert the blade holder ⑤ with the emulsifying disc ⑥ onto the bearing ⑨.

4) Add the cream.

5) Close the bowl ⑧ with the connecting piece ④:

- Place it onto the bowl ⑧ so that the tabs on the outer rim of the connecting piece ④ grip into the catches on the bowl ⑧ (see figure 1).

- Then turn the connecting piece 4 so that the tabs slide down into the catches.

6) Place the motor unit ① onto the connecting piece ④. Make sure that the tabs on the inner edge of the connecting piece ④ grip into the recesses on the motor unit ① and that the motor unit ① sits firmly in place.

7) Press the speed button I ②.

NOTE

▶ To whip cream, you should make sure that it is well chilled before whipping (max. 8^ C/fridge temperature).
For 100 ml of cream, we recommend a whipping time of around 30 seconds at normal speed.
For 200 ml of cream, we recommend a whipping time of around 30 - 50 seconds at normal speed.
The whipping time can vary depending on certain factors, e.g. fat content or the ambient temperature. Keep an eye on the cream while you are whipping it and adjust the whipping time to fit your needs.

Cleaning and maintenance

WARNING! - RISK OF ELECTRIC SHOCK!

▶ Always remove the plug from the mains power socket before cleaning the appliance.

You must never immerse the appliance in water when cleaning it or hold it under running water.

WARNING! - RISK OF INJURY!

▶ Handle the extremely sharp blade ⑦ with caution as it can cause injuries. Reassemble the appliance after using and/or cleaning it so that you do not injure yourself with the exposed blade ⑦. Keep the blade ⑦ out of the reach of children.

CAUTION - PROPERTY DAMAGE!

Do not clean the motor unit ① in the dishwasher as this will damage it.

■ Remove the power plug from the socket.

Wipe the motor unit ① with a moist cloth. If necessary, apply a mild washing-up liquid to the cloth. Wipe off any washing-up liquid residues. Make sure the mains adapter ① has completely dried off before the next use.
Clean the bowl ⑧, the emulsifying disc ⑥, the blade holder ⑤ with blade ⑦, the connecting piece ④ and the base ⑩ in warm water with a little mild washing-up liquid. Rinse all the parts afterwards using fresh water and dry them with a tea towel.

Alternatively, you can clean all of the parts apart from the motor unit ① in the dishwasher. If possible, place the parts in the top basket of the dishwasher. Ensure that the parts cannot become jammed in any way.

Troubleshooting

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONS
The appliance is not working.	The appliance is not connected to a mains power socket.	Connect the appliance to a mains power socket.
	The appliance is damaged.	Contact the Customer Service department.
	A household fuse has blown.	Check the household fuses and replace them if necessary.
	The appliance is possibly defective.	Contact the Customer Service department.

If the malfunction cannot be corrected using one of the suggestions above, or if you have found some other kind of malfunction, please contact our Customer Service department.

Appendix

Disposal of the appliance

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

- You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN 307613

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Περιεχόμενα

Εισαγωγή....16

Technical diagram of a mechanical component with concentric rings and a base, showing internal features and a directional arrow (no text or symbols)

Eik. 1

Technical line drawing of a mechanical component with a downward arrow indicating a cut or assembly (no text or symbols present)

Technical line drawing of a mechanical component, showing a left-side assembly and a side view with a central pin (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ГЕРMANIA

www.kompernass.com

Inhaltsverzeichnis

Einleitung....32

Technical diagram of a mechanical component with concentric rings and internal cavities, showing a directional arrow (no text or symbols)

Abb. 1

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

Technical line drawing of a mechanical component, showing a disassembly or assembly process (no text or symbols present)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
