USER MANUAL SMZ 260 L5 SILVERCREST

Black-and-white photo of a kitchen blender with leafy contents, placed on a wooden surface with food items nearby (no visible text or symbols)

SilverCryst™ PDF ONLINE www.lidl-service.com

MINI CHOPPER / MULTIZERKLEINERER / HACHOIR MULTIFONCTION SMZ 260 L5

GB IE

MINI CHOPPER

Operating instructions

FR BE

HACHOIR MULTIFONCTION

Mode d'emploi

CZ

UNIVERZÁLNÍ DRTIČ

Návod k obsluze

SK

MULTIFUNKČNÝ KRÁJAČ

Návod na obsluhu

DK

MULTIHAKKER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Technical diagram of a kitchen mixer with numbered parts and a scale bar for measurement.

Contents

Introduction 2

Intended use 2

Warnings and symbols used .... 2

Package contents 2

Unpacking 2

Appliance description .... 3

Technical details 3

Safety information....3

Operation 6

Chopping 6

Whipping cream 7

Cleaning and care 8

Troubleshooting 8

Disposal....9

Disposal of the appliance 9

Disposal of the packaging 9

KompernassHandelsGmbHwarranty....9

Service 10

Importer 10

Introduction

Congratulations on the purchase of your new appliance!

You have chosen a modern, high-quality product. These operating instructions are part of the product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for the chopping of boneless foods in small amounts or for whipping cream. This appliance is intended exclusively for use in domestic households.

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation that will result in death or serious injury if not avoided.

WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation that could result in death or serious injury if not avoided.

CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.

ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided.

A note identifies additional information that facilitates the use of the appliance.

AC current/voltage

double insulation

Dishwasher-proof.

All of the parts of this appliance that come into contact with food are food-safe.

Read the instructions.

Package contents

The appliance is supplied with the following components as standard:

• Mini Chopper
• Blade holder with blade
• Whisk attachment
• Stand
• Operating instructions

Unpacking

1) Remove all parts of the appliance and the operating instructions from the box.
2) Remove all packaging materials from the appliance.

(i) Note

▶ Check the package for completeness and for signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Appliance description

Figure A:

① Speed button - level I
② Speed button - level II
③ Motor unit
4 Lid flange
5 Lid
6 Blade holder
⑦ Bowl
8 Blade
⑨ Bearing
10 Stand
⑪ Whisk attachment

Technical details

Mains voltage 220 - 240 V ~ , 50 Hz
Rated power 260 W
Protection class	II / ☐
CO time	30 sec. (with blade 8)1 minute (with whisk attachment 11)
Capacity 840 ml
Max. fillingquantity	Food products up to the300 ml marking 🌐Liquids up to the 200 mlmarking 🌐

CO time

The CO time (continuous operation time) is the amount of time an appliance can be operated without the motor overheating and becoming damaged. After the appliance has been operated for this duration of time, switch it off until the motor has cooled down.

Safety information

⚠ WARNING! RISK OF ELECTRIC SHOCK!

■ Connect the appliance only to a correctly installed power socket supplying a mains power voltage of 220 - 240 V \~, at 50 Hz.
■ To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.
In event of operating malfunctions and before cleaning the appliance, remove the power plug from the mains power socket.
■ Always remove the power cable from the socket by pulling on the plug, not on the power cable itself.
■ Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.

■ Do not expose the appliance to humidity and do not use it outdoors. If any liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.

■ Never hold the appliance, power cable or power plug with wet hands.

If the power cable or the motor unit are damaged, you must have the appliance repaired by qualified technicians before using it again. Do not attempt to open the motor unit housing. This can lead to risks and also invalidates the warranty.

■ Disconnect the appliance from the mains power source immediately after use. The appliance is completely free of electrical power only when unplugged.

Never immerse the motor unit in liquid and do not allow any liquids to enter the motor unit casing.

⚠ WARNING! RISK OF INJURY!

■ Before changing any accessories or additional parts which move during operation, the appliance must be switched off and disconnected from mains power.

■ Never use the appliance for purposes other than those described in these instructions.

■ Take care when emptying the bowl! The blade is extremely sharp!

■ Take care when cleaning the appliance! The blade is extremely sharp!

■ The appliance must always be disconnected from the mains when left unsupervised and before assembly, disassembly or cleaning.

■ This appliance may not be used by children.

■ The appliance and its connecting cable must be kept away from children.

■ This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

■ Do not allow children to use the appliance as a plaything.

■ Children should be supervised to ensure that they do not play with the appliance.

■ Handle the extremely sharp blade with caution as it can cause injuries. Reassemble the appliance after using and/or cleaning it so that you do not injure yourself with the exposed blade. Keep the blade out of the reach of children.

■ Never attempt to remove foodstuffs from the bowl for as long as the blade is still rotating. Risk of injury!

■ Wait until the blade has stopped rotating before removing the motor unit.

■ Never try to grasp the blade if it is still rotating! Risk of injury!

⚠ WARNING! RISK OF FIRE!

■ Do not operate the device for longer than 30 seconds with the blade or 1 minute with the whisk attachment. Afterwards, allow it to cool down.

CAUTION! APPLIANCE DAMAGE!

■ See the table on the recommended fill quantities in the section "Chopping". Otherwise, there is a risk of contamination due to leaking contents.

■ Do not clean the motor unit in the dishwasher, as this will damage it.

■ Never fill the appliance with hot liquids! Otherwise the appliance could be damaged!

Operation

Chopping

i Note

▶ Before first use, you must clean the appliance thoroughly as described in the section on cleaning.

1) Place the bowl ⑦ on the stand ⑩.

2) Insert the blade holder ⑥ with the blade ⑧ onto the bearing ⑨.

3) Prepare the food by chopping larger pieces into pieces (approx. 2 cm) which will fit better into the bowl ⑦.

4) Add the food to the bowl ⑦. Please note the following table: For optimum results, we recommend the following maximum filling quantities:

Food	Max. filling quantity	Processing time Speed
Onions 100 g pulse Level II
Garlic 150 g pulse Level II
Tomatoes 200 g 10 sec. Level I
Hazelnuts 200 g 3 x 8 sec. Level II
Almonds	200 g	coarse: 1 x 15 sec.medium: 2 x 15 sec.fine: 3 x 15 sec.	Level II
Cheese(Gouda, young, fridge temperature)	150 g	2 x 15 sec. Level II
Eggs(hard-boiled)	3 (150 g)	2 x 4 sec. Level II
Meat	200 g	4 x 12 sec. Level II
Ice cubes 100 g		15 x 1 sec.pulse	Level II

5) Close the bowl ⑦ with the lid ⑤: Place it onto the bowl ⑦ so that the lugs on the lid ⑤ grip into the guides on the bowl ⑦. Turn the lid ⑤ so that the lugs slide into the guides below.

6) Place the motor unit ③ on the lid flange ④.

7) Insert the plug into a mains socket.

i Note

Hold the bowl ⑦ firmly with one hand and the motor unit ③ with the other hand while processing food.

8) Press the desired speed button ①/②. The blade ⑧ rotates as long as you keep the speed button ①/② pressed. The motor stops as soon as it is released.

i Notes

If larger pieces start collecting on the wall of the bowl during processing, lift the motor unit ③ off the lid flange ④. Give the bowl ⑦ a firm shake and restart the processing. Any residues can be removed with a spatula.

Particularly hard foods should be cut into small pieces (approx. 2 cm) before processing. Otherwise, the motor unit could block. Use a 'pulsing' processing method when working with hard foods. To do this, press the relevant speed button ①/② several times. If the food is not completely chopped, you can either cut it into smaller pieces or lift the motor unit ③ off of the lid flange ④. Give the bowl ⑦ a firm shake and restart the processing.

9) Once the food is fully chopped, release the speed button ①/②.

10) Remove the power plug from the socket.

WARNING! RISK OF INJURY!

▶ Never attempt to remove food from the bowl ⑦ while the blade ⑧ is still turning. There is a risk of injury and food can also spray out and make a mess.

11) Wait until the blade ⑧ has come to a complete standstill.

12) Lift the motor unit ③ off the lid flange ④.

▶ Handle the extremely sharp blade ⑧ with caution as it can cause injuries. Keep the blade ⑧ out of the reach of children.

14) Pull the blade holder ⑥ with the blade ⑧ carefully out of the bowl ⑦.

15) Remove the food.

Notes

▶ Chopping harder, abrasive foods can cause the bowl ⑦ to take on a dull appearance. This is normal and will not impair the functioning of the appliance.

▶ After you have finished processing the food, you can use the stand ⑩ as a lid for the bowl ⑦ to keep the food fresh for longer.

- Take the motor unit ③ and the lid ⑤ off the bowl ⑦.

- Make sure that you remove the blade holder ⑥ with the blade ⑧ from the bowl ⑦ before storing the food.

- Remove the stand ⑩ from the underside of the bowl ⑦. Turn the stand ⑩. You can now place the stand ⑩ on the bowl ⑦ so that it closes off the bowl ⑦.

Whipping cream

You can also use the appliance to whip cream with the help of the whisk attachment ⑪:

1) Place the bowl ⑦ on the stand ⑩.

2) Push the whisk attachment ⑪ onto the blade holder ⑥:

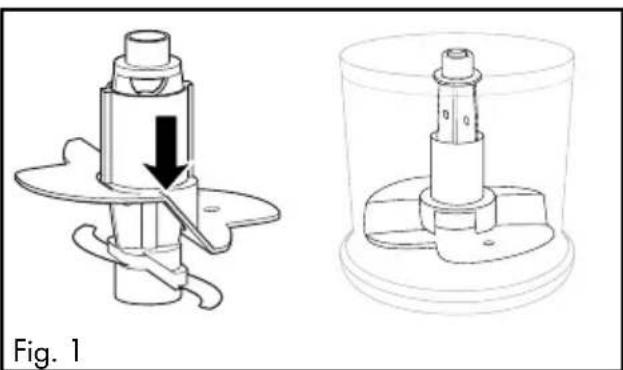

-For 100 ml of cream, place it onto the blade holder ⑥ so that the whisk attachment ⑪ is in contact with both blades ⑧ and clicks into place (fig. 1):

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

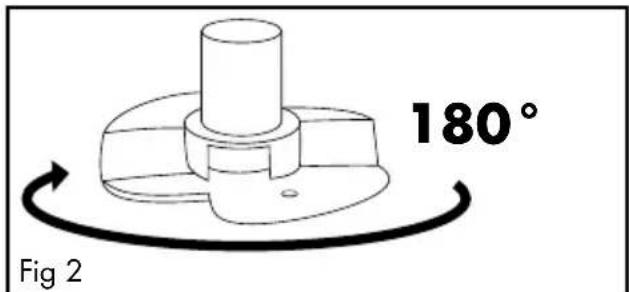

-For 200ml of cream, turn the whisk attachment ⑪ horizontally by 180^ (fig. 2), so that it is in contact with only one blade ⑧ and clicks into place (fig. 3). It then churns higher through the cream.

180° Fig 2

Technical line drawing of a mechanical component, showing a left-side assembly and a side-view view (no text or symbols)

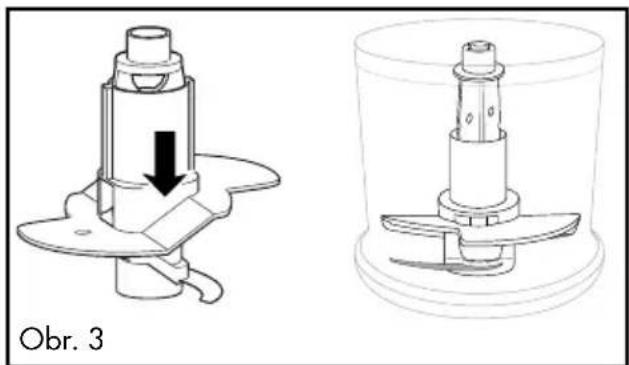

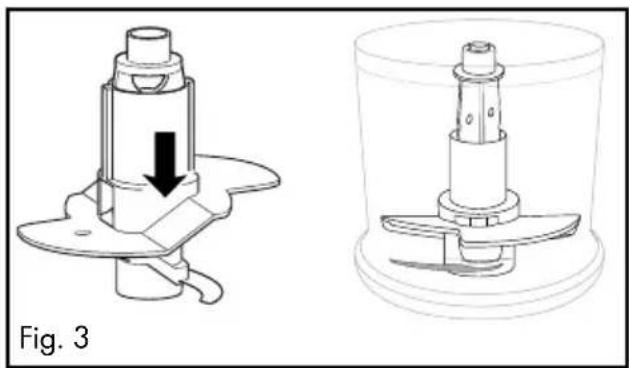

3) Attach the blade holder ⑥ together with the whisk attachment ⑪ to the bearing ⑨.

4) Add the cream.

5) Close the bowl ⑦ with the lid ⑤: Place it onto the bowl ⑦ so that the lugs on the lid ⑤ grip into the guides on the bowl ⑦. Turn the lid ⑤ so that the lugs slide into the guides below.

6) Place the motor unit ③ on the lid flange ④.

7) Insert the plug into a mains socket.

Notes

▶ To whip cream, you should make sure that it is well chilled before whipping (max. 8°C/fridge temperature).

For 100 ml of cream, we recommend a whipping time of around 30 seconds at speed level I (speed button - level I ①).

For 200 ml of cream, we recommend a whipping time of around 30-50 seconds at speed level I (speed button - level I ①).

▶ Depending on certain factors, such as fat content or the ambient temperature, the whipping time can vary. Keep an eye on the cream while you are whipping it and adjust the whipping time to fit your needs.

Cleaning and care

⚠ WARNING! RISK OF ELECTRIC SHOCK

▶ Always remove the plug from the mains power socket before cleaning the appliance.

You must never immerse the appliance in water when cleaning it or hold it under running water.

⚠ WARNING! RISK OF INJURY!

Handle the extremely sharp blade ⑧ with caution as it can cause injuries. Reassemble the appliance after using and/or cleaning it so that you do not injure yourself with the exposed blade ⑧. Keep the blade ⑧ out of the reach of children.

CAUTION! PROPERTY DAMAGE!

Do not clean the motor unit ③ in the dishwasher, as this will damage it.

■ Remove the power plug from the socket.

- Clean the motor unit ③ with a moist cloth. If necessary, add a little mild detergent onto the cloth. Wipe off with a cloth moistened only with clear water so that all detergent residues are removed.

Clean the bowl ⑦, whisk attachment ⑪, lid ⑤, stand ⑩, blade holder ⑥ with blade ⑧ in warm water with a little mild washing-up liquid. Rinse all the parts using clean water to remove any detergent residues. Dry all parts well.

Alternatively, you can clean all of the parts apart from the motor unit ③ in the dishwasher. If possible, place the parts in the top basket of the dishwasher. Ensure that the parts are not trapped in any way.

Troubleshooting

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTIONS
The appli-ance is not working.	The appliance is not connected to a mains power socket.	Connect the appliance to a mains power socket.
	The appliance is damaged.	Contact the Customer Service depart-ment.
	A household fuse has blown.	Check the household fuses and replace them if necessary.
	The appliance is possibly defective.	Contact the Customer Service depart-ment.

If the malfunction cannot be corrected using one of the suggestions above, or if you have found some other kind of malfunction, please contact our Customer Service department.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They

are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

KompernassHandels GmbHwarranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 484649_2501 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 484649_2501.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 484649_2501

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 12

⚠️ WARNUNG! BRANDGEFAHR!

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 24

Usage conforme 24

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

Technical line drawing of a mechanical component, showing a disassembly or assembly process (no text or symbols present)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 38

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! BRANDGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

Technical line drawing of a mechanical component, showing a left-side assembly and a side-view view (no text or symbols)

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....50

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

180° Obr. 2

Technical line drawing of a mechanical component, showing a left-side assembly and a side view (no text or symbols)

⚠️ POZOR! HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

W step 60

Technical line drawing of a mechanical component with a downward arrow indicating a feature, shown in two views (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating a feature, shown in two views (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....72

Technical line drawing of a mechanical component with a downward arrow indicating a feature, shown in two views (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a downward motion, labeled 'obr. 3' (no other text or symbols)

3) Nastrčte držiak noža 6 s nadstavcom na šl'ahanie 11 na ložisko 9.

4) Nalite šl'ahačku.

5) Zatvorte misu ⑦ vekom ⑤: Nasad'te ho na misu ⑦ tak, aby výstupky na veku ⑤ zapadli do žliabkov na mise ⑦. Potom otočte veko ⑤ tak, aby výstupky v žliabkoch zaskočili nadol.

6) Nasad'te blok motora ③ na nákružok veka ④.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción 84

Uso previsto 84

Technical line drawing of a mechanical component, showing a left-side assembly and a side-view view (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....96

Anvendelsesområde 96

! OBS! SKADER PÅ PRODUKTET!

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

Technical line drawing of a mechanical component, showing a left-side assembly and a side view (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....106

Technical line drawing of a mechanical component with two views: one showing a downward arrow and the other showing a cylindrical assembly (no text or symbols)

Technical line drawing of a mechanical component, showing a left-side assembly and a side view (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 118

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 • 44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

FR © FR

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
