USER MANUAL SMZE 500 A1 SILVERCREST

Close-up of a kitchen blender with a glass bowl containing leafy greens and a black lid labeled 'SALVERCASS®' (no additional text or symbols visible)

MINI CHOPPER SMZE 500 A1

HOYER Handel GmbH

Tasköprüstraße 3

DE-22761 Hamburg

GERMANY

Status of information · Version des informations · Stand van de informatie

Operating instructions

NL BE

MULTIHAKKER

Gebruiksaanwijzing

DE AT CH

MULTIZERKLEINERER

Bedienungsanleitung

FR BE

HACHOIR MULTIFONCTION

Mode d'emploi

GR CY

ΜΠΛΕΝΤΕΡ

Οδηγία χρήσης

IAN 326310_1904 IAN 326310_1904

English.... 2

Français 14

Nederlands.... 26

Ελληνικά 38

Deutsch....50

Overview / Aperçu de l'appareil / Overzicht / Επισκόπηση / Übersicht

1 2 3 4 5 6 7 8 9 10 11

A 4 5 6

B 2 3

Contents

1. Overview 2
2. Intended purpose 3
3. Safety information .... 3
4. Items supplied 6
5. How to use 6
6. Operation 7

6.1 Assembling the multi chopper.... 8
6.2 Chopping 8
6.3 Remove food and disassemble the multi chopper 8

1. Cleaning 9
2. Storage 9
3. Trouble-shooting 10
4. Disposal 10
5. Technical specifications .... 11
6. Warranty of the HOYER Handel GmbH 11

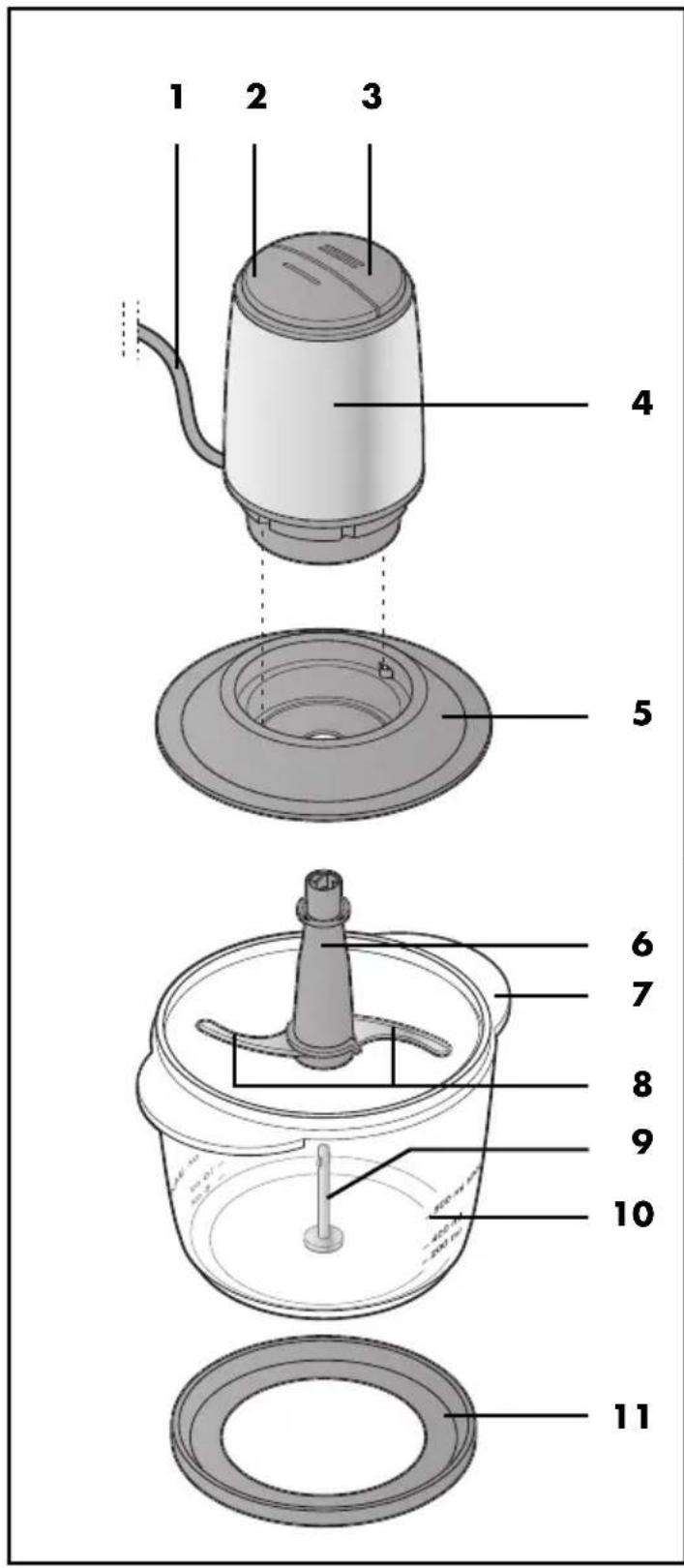

1. Overview

1 Power cable with mains plug
2 | Button for speed setting I (normal)
3 II Button for speed setting II (high)
4 Motor unit
5 Working cover
6 Blade assembly (spring-mounted)
7 Container (volume: 1200 ml)
8 Blades
9 Peg
10 MAX Marking for maximum filling level (500 ml)
11 Anti-slip mat (detachable)

Thank you for your trust!

Congratulations on your new multi chopper.

For safe handling of the device and in order to get to know the entire range of features:

• Thoroughly read these user instructions prior to initial use.
• Above all, observe the safety information!
• The device should only be used as described in this copy of the user instructions.
• Keep this copy of the user instructions for reference.
• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product.

We hope you enjoy your new multi chopper!

Symbols on your device

The symbol indicates that materials marked in this way will not change the taste or smell of food.

2. Intended purpose

The multi chopper is intended exclusively for chopping food.

The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes.

Foreseeable misuse

WARNING Risk of material damage!

- Do not use the multi chopper for processing especially hard foodstuffs, such as frozen food, bones, nutmeg, cereals or coffee beans.

3. Safety information

Warnings

If necessary, the following warnings are used in this copy of the user instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device must not be used by children.
• Children must not play with the device.
• The device and the power cable must be kept away from children.
• This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting hazards.
• If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.
• Disconnect the mains plug from the wall socket ...
  ... when it is not supervised, ... before you assemble or disassemble the device, and ... before you clean the individual parts.
• This device is not intended to be operated using an external timer or a separate remote control system.
• Improper use of the device may result in injuries.
• The blades of the blade assembly are sharp. Handle them with care, particularly when removing food from the container and during cleaning. When washing manually, the water should be sufficiently clear that you can see the blades easily.
• Please take note of the chapter on cleaning (see "Cleaning" on page 9).
• The device is designed for a maximum continuous operating time of 30 seconds. After this, the device must remain switched off until it has cooled down to room temperature.
• Fill the container at least up to the marking for 200 ml. The maximum filling level is 500 ml for liquids. For solid food, please orientate yourself on the guidelines in these instructions.

DANGER for children

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation.

- Keep the device out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a danger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device must never be operated in the vicinity of a sink full of water or similar.

- The motor unit, the power cable and the mains plug must not be immersed in water or other liquids.

- Protect the motor unit from moisture and dripping or water splashes.

- If liquid gets into the device, disconnect the mains plug immediately. Have the device checked before reusing.

- Never touch the device with wet hands.

- If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.

- Fill the container with a maximum of 500 ml of liquid in order to prevent liquid from getting into the motor unit.

DANGER! Risk of electric shock

- Only plug the mains plug into the wall socket after the device has been completely assembled.

- Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in.

- Ensure that the power cable cannot be damaged by sharp edges or hot spots.

- Even after it has been switched off, the device is not completely disconnected from the mains. In order to fully disconnect it, pull out the mains plug.

- When using the device, ensure that the power cable cannot be trapped or crushed.

- When removing the mains plug from the wall socket, always pull on the plug and never the cable.

- Disconnect the mains plug from the wall socket ...

... if there is a fault, ... when you are not using the multi chopper, ... during thunderstorms.

- Do not use the device if there is visible damage to the device or the power cable.

- In order to avoid any hazards, do not make modifications to the device.

DANGER! Risk of injury from cutting

• The blades of the blade assembly are sharp. Please be very careful when handling them. When washing manually, the water should be sufficiently clear that you can see the blades easily.
• The multi chopper must never be operated without a container.
• Never reach into the rotating blades.
• The blade assembly continues to rotate after the device is switched off. Wait for it to stop moving before you remove the working cover.

WARNING! Risk of material damage

- In order to prevent damage to the device, interrupt operation immediately if the blade assembly is either turning with difficulty or not turning at all. Pull out the mains plug and check whether there is something in the container blocking movement or whether the food is too tough or too hard. Also check that the device is assembled correctly.

- The maximum filling level is 500 ml for liquids. For solid food, please orientate yourself on the guidelines in these instructions.

- Switch off the device before you pull out the mains plug.

- Never place the device on hot surfaces (e.g. hot plates) or near to heat sources or open fire.

- Do not operate the multi chopper when it is empty, as this causes the motor to overheat which may result in it being damaged. Fill the container at least up to the marking for 200 ml.

- Only use the original accessories.

- All parts except for the motor unit are dishwasher-safe up to 70 °C.

- Do not use any astringent or abrasive cleaning agents.

The device is equipped with an anti-slip mat made from silicone. As furniture is coated with a variety of different varnishes and plastics, and is treated with different cleaning agents, it cannot be completely ruled out that components are contained in some of these substances which could damage and soften the anti-slip mat. If necessary, place a non-slip mat under the device.

4. Items supplied

1 motor unit 4
1 working cover 5
1 blade assembly 6
1 container 7
1 anti-slip mat 11
1 copy of the user instructions

5. How to use

• Remove all packing materials.
• Check to ensure that all parts are present and undamaged.
• Clean the device prior to first use! (see "Cleaning" on page 9).

6. Operation

Application area

The multi chopper is suitable for chopping solid foods, e.g. onions, carrots, cheese, nuts.

CAUTION:

Due to their exceptional hardness nutmegs may not be chopped.

Preparing food

• Fill the container 7 ...
  ... at least up to the marking for 200 ml.
  ... with a maximum of 500 ml of liquid.
  ... with solid food according to the guidelines in section "Processing table".

• Rinse or wash the food.

• Cut the food into small cubes (approx. 2 - 3 cm edge length).
• Remove the outer shell from nuts. The inner shell can be used if so desired, e.g. with almonds.
  • Free herbs from their stems.
• Separate the bones from meat and remove sinews and skin.

Processing table

Ingredients	Recommended quantity	Recommended processing time / speed setting
Garlic	50 g	Pulses approx. 5 x 1 sec. / II
Onions (quartered)	150 g	Pulses approx. 5 x 1 sec. / I
Carrots 200 g		Approx. 2 x 5 sec. / I
Almonds 200 g		1 x 5 sec. (coarse) 1 x 10 sec. (medium) 3 x 10 sec. (fine) /II
Diced lean beef (approx. 2 cm edge length)	250 g	6 x 5 sec. / II
Ice cubes	100 g	Pulses 10 x 1 sec. (coarse) 20 x 1 sec. (fine) /II

NOTE: the processing times and speeds specified here are guidelines.

• Depending on the quantities and consistency of the foods, the actual values may differ.
  • Repeatedly check the results, depending on how small you want to chop the food.
  • Work using short pulses (1 pulse: press for approx. 1 second).

6.1 Assembling the multi chopper

CAUTION:

- Depending on the hardness and consistency of the food, do not fill the container 7 up to the MAX 10 marking, as this can cause the blade assembly 6 to become blocked. Pay attention here to the guideline values for various foods in section "Processing table".

1. Place the container 7 on the anti-slip mat 11.
2. Place the blade assembly 6 on the peg 9 in the container 7.
3. Fill the prepared food into the container 7.
4. Place the working cover 5 onto the container 7 in such a way that the blade assembly 6 protrudes a little through the opening in the working cover 5.

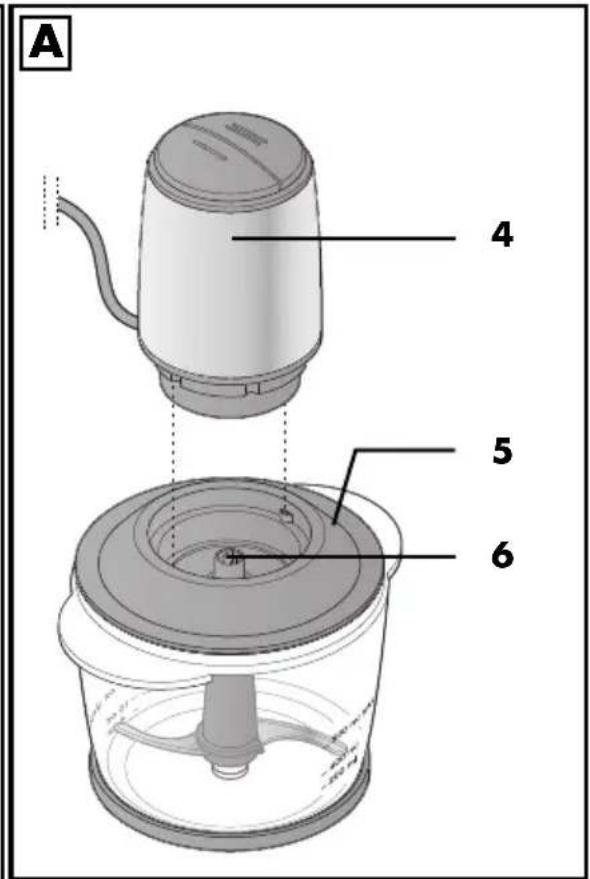

5. Figure A: place the motor unit 4 onto the working cover 5. Rotate and jiggle the motor unit 4 back and forth a little until it sits firmly on the blade assembly 6 and working cover 5.
6. Insert the mains plug 1 into a wall socket corresponding to the technical data.

6.2 Chopping

WARNING! Risk of material damage!

- The multi chopper is designed for a maximum operating time of 30 seconds without interruption. After this, the device must remain switched off until it has cooled down to room temperature.

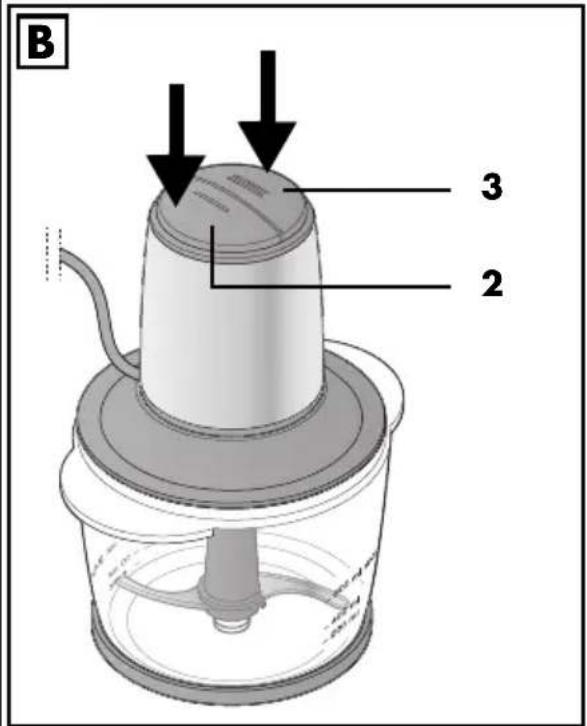

• Figure B: for chopping, hold down the button I 2 or the button II 3.
- To switch off, release the pressed button I 2 / II 3.
- Work using short pulses (1 pulse: press for approx. 1 second). The number and length of the pulses will depend on the quantity and consistency of the food. See the specifications given in section "Processing table".
• Repeatedly check the result. If the food is not being chopped evenly:
- Release the button I 2 / II 3.
- Pull out the mains plug 1.
- Thoroughly shake the container 7.
- If food is sticking to the inside wall of the container, remove the motor unit 4 and the working cover 5. Push the pieces downwards using a spatula.
- Put all the pieces back together before you reinsert the mains plug 1 into a wall socket and resume processing.

6.3 Remove food and disassemble the multi chopper

1. Disconnect the mains plug 1 from the wall socket and wait for the standstill of the blade assembly 6.
2. Remove the motor unit 4 and the working cover 5.
3. Remove the blade assembly 6 carefully from the container 7.
4. Remove the food, e.g. using a spatula.
5. Clean the device as soon as possible after use.

7. Cleaning

Clean the device prior to its first use!

DANGER! Risk of electric shock!

• The motor unit 4 and the power cable with mains plug 1 must not be immersed in water or other liquids.
• Pull out the mains plug 1 before cleaning.

DANGER! Risk of injury from cutting!

- When washing manually, the water should be sufficiently clear that you can see the blades 8 of the blade assembly 6 easily.

WARNING! Risk of material damage!

• Do not use any astringent or abrasive cleaning agents.

• All parts except for the motor unit 4 are dishwasher-safe up to 70 °C.

• Pull the mains plug 1 out of the wall socket.

• If necessary, repeatedly wipe down the motor unit 4 and the power cable 1 with a damp cloth. Ensure that no water or moisture gets into the device and that the motor unit 4 is completely dry before the next use.
• The following accessory parts can be washed by hand or in the dishwasher:
• the working cover 5
• the container 7
• the blade assembly 6

• the anti-slip mat 11

• Let all parts dry completely before you put them away or use the device again.

Cleaning advice

- Clean the device and all parts as soon as possible after use in order to prevent food remnants from drying on.

8. Storage

DANGER for children!

- Keep the device out of the reach of children.

DANGER!

- In order to avoid accidents, the mains plug 1 must never be connected to a wall socket while in storage.

• Wind the power cable 1 loosely around the motor unit 4.
• Assemble the multi chopper for storage purposes. This allows the blade assembly 6 to be stored safely.
• Select a location where neither high temperatures nor moisture can affect the device.

9. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Is the device assembled correctly?
Blade assembly 6 not turning or turning with difficulty.	Switch off immediately, remove the mains plug 1 and check the following:- Blockage in the container 7?- Food too tough or too hard?- Pieces to large?- Device not assembled correctly?

10. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates

that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances.

This recycling symbol marks e.g. an object or parts of the material as valuable for recycling. Recycling helps to reduce the consumption of raw materials and protect the env

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

11. Technical specifications

Model: SMZE 500 A1
Mains voltage:	220 – 240 V ~ 50 Hz
Protection class: II
Power rating: 500 W
Max. filling volume for liquids:	500 ml
Volume of the container:	1200 ml
Max. continuous operation (short cycle):	30 seconds

Symbols used

	Double insulation
	Certified Safety. Devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produktsicherheitsgesetz - ProdSG). (Not for UK.)
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
	Recyclable materials: cardboard (except corrugated cardboard)
	The symbol identifies parts that can be cleaned in the dishwasher.

Subject to technical modifications.

12. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 326310_1904 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

At www.lidl-service.com you can download this and many other manuals, product videos and installation software.

PDF ONLINE www.lidi-service.com

This QR code takes you directly to the Lidl Service website (www.lidl-service.com), where you can enter the article number (IAN)

326310_1904 to open your user instructions.

Service Centre

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 326310_1904

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.
