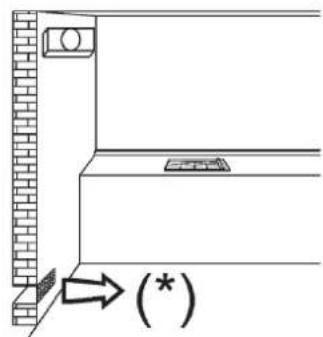

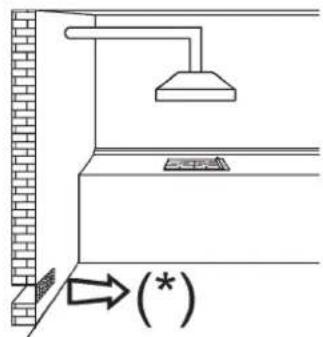

(*) entrada de aire: ver el capítulo de instalación (apartados 5 y 6)
(*) air inlet: see installation chapter (paragraphs 5 and 6)
(*)entree d'air:voir chapitre installation (paragraphes 5 et 6)
(*) εισοδος αερα: βλεπε κεφαλαιο τοποθετησης (παραγραφοι 5 και 6)
(*) entrada de ar de 100 cm2 de secção mínima (parágrafos 5 e 6)
(*) hava girişi: montajla ilgili 5 ve 6 nolu paragrafl ara bakiniz
(*) intrare aer: vezi capitolul instalare (paragrafele 5 si 6)
(*) přívod vzduchu: viz. kapitola tikající se instalace (bod 5 a 6)
(*) prívod vzduch: vid. kapitola inštalácie (paragraf 5 a 6)
(*) wlot powietrza: patrz część dotycząca instalacji (rozdział 5 i 6)
(*) entrata aria: vedi capitolo installazione (paragrafi 5 e 6)

Diagram showing a brick wall corner with a wall-mounted component and an arrow pointing to a marked point (*) (no text or symbols present)

234

Diagram showing a ceiling fixture with an air conditioner unit and a marked component (*) indicating a defect or defect.

Technical diagram showing a wall-mounted component with an arrow indicating a point (*) and a circular symbol on the wall.

C T TC AC

567

B A B A X

Line drawing of a hand using a tool to clean or inspect a circular component (no text or symbols)

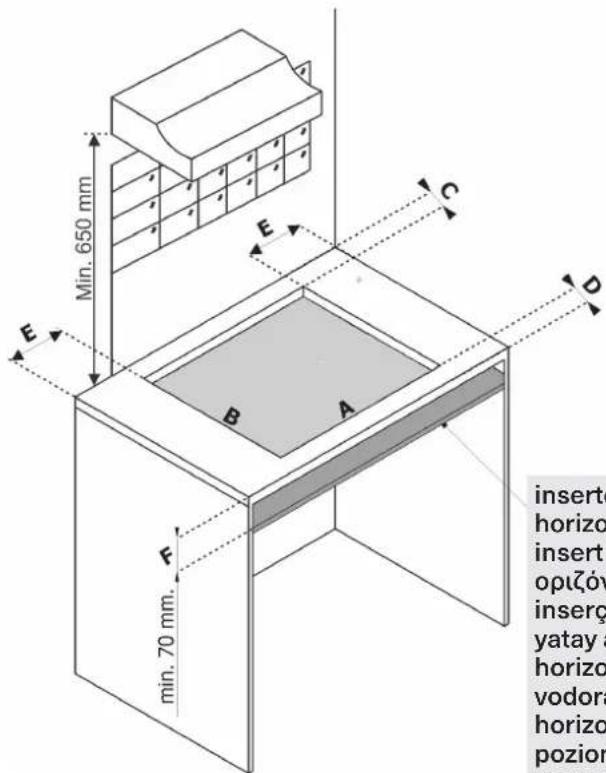

medidas que es preciso respetar (en mm) comply with the dimensions (in mm) dimensions a respecter (en mm) μεγεθη που πρεπει να τηρηθουν (σε mm) medidas a respeitar (en mm) ebatlara eş değer (mm) distante ce trebuiec respectate (în mm) rozměry, které musí bit dodrženy (v mm) záväzné miery (v mm) odległości jakie należy zachować (podane w mm) misure da rispettare (in mm)

Mod: A B C D E F
GBC 64-VGogh VB 570 480	60 60 165 70	min.
GBC 75-VGogh VB 570 480	60 60 165 70	min.
GBC 95-VGogh VB 850 480	60 60 95 70	min.

Min. 650 mm E C D B A F min. 70 mm. inserte horizo insert opiców inserç yatay a horizo vodora horizo pozion

inserto de madera horizontal horizontal wooden insert insert en bois horizontal opizovtio ξύλινο ένθετο inserção de madeira horizontal yatay ahşap uç insert orizontal din lemn horizontální dřevěná vložka vodoravni leseni vložek horizontálna drevená vložka pozioma wstawka drewniana setto separatore orizzontale

8

N C L

INSTALACIÓN - INSTALLAZIONE - INSTALLATION - EΓΚΑΤΑΣΤΑΣΗ INSTALAÇÃO - MONTAJ - INSTALARE - INSTALACE - INŠTALÁCIA

Ganchos laterales cromada Hooks Lateral chrome Crochets Cote chrome Γαντζου πλευρικός χρώμιο Ganchos Lateral cromados Kancalar Kromlu yanlar

Technical diagram showing a 3D mechanical assembly with labeled components (G, F, and part 1) and an inset view of a bracket component.

10

GBC 95-VGogh VB

ogh VB 1

G F

G F

10/B10/A

Ganchos trasero Hooks Rear Crochets Arrière Γάντζοι Πίσω πίσω Ganchos Traseiros Kancalar Arka

Cârlige Spate Háčky Zadní Háčiky Zadné Zaczepy Tylne Ganci posteriori

GBC 64-VGogh VB GBC 75-VGogh VB

Technical diagram showing a mechanical assembly with labeled components (G, F) and a magnified inset view of a component labeled '2'.

11

GBC 95-VGogh VB

VB 2

F G

F 11/A 11/B G

Correct installation of the hob

Close-up of a metallic mechanical component with a circular recess and labeled point E (no text or symbols beyond label)

12

D C M

14

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a tool or component assembly.

16

Close-up of a mechanical component with a central hub and mounting holes (no visible text or symbols)

17/A

Isometric diagram of a mechanical assembly with two labeled parts (1 and 2), no text or symbols present.

Close-up of a metallic panel with labeled points A and B, showing internal structure and mounting details (no text or symbols beyond labels)

13

D C M

15

Close-up of a mechanical component with labeled point A, showing internal parts and mounting holes (no text or symbols beyond label)

17

Simple line drawing of a curved pipe or tube with a base and a labeled point B, no text or symbols present.

18

Technical data for the appliance gas regulation

In case of adaptation of the hob to another type of gas, operate as described in the directions for the and installation use and replace the label on the bottom with the one provided in the spare bag.

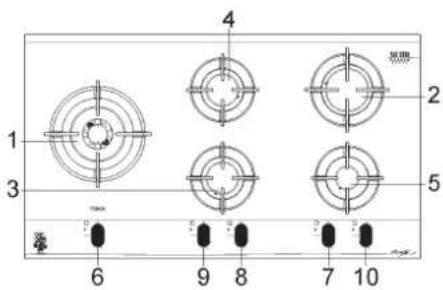

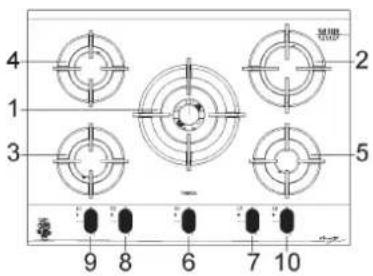

1 Ultra rapid gas burner (*DCC AFB) of 4000 W
2 Rapid gas burner of 2800 W
3 Semirapid gas burner reduced of 1400 W
4 Semirapid gas burner of 1750 W
5 Auxiliary gas burner of 1000 W
6 Burner n° 1 control knob
7 Burner n° 2 control knob
8 Burner n°3 control knob
9 Burner n° 4 control knob
10 Burner n° 5 control knob

*DCC AFB: Air From The Bottom (fi g. 17)

Attention: this appliance has been manufactured for domestic use only and it employment by private person.

IMPORTANT WARNINGS FOR THE USER

⚠ In case of adaptation of the hob to another type of gas, operate as described in the directions for the and installation use and replace the label on the bottom with the one provided in the spare bag.

⚠️ ATTENTION! The cooktop is equipped with a safety system against gas leaks, which increases safety during use.

If the burner flame goes out, the gas flow to the burner is automatically interrupted. The cooktop can only be restarted after reigniting the burner.

This cook top was designed to be used exclusively as a cooking appliance: any other use (such as heating rooms) is to be considered improper and dangerous.

⚠ WARNING:

During operation the work surfaces of the cooking area become very hot: keep children away! Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

⚠️ CAUTION: In case of hotplate glass breakage:

- shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply;

- do not touch the appliance surface;

- do not use the appliance.

IMPORTANT: the appliance must be installed following the manufacturer's instructions. The manufacturer will not be liable for injury to persons or animals or property damage caused by an incorrect installation.

If the installation requires modifications to the home's electrical system or if the socket is incompatible with the appliance's plug, have changes or replacements performed by professionally-qualified person. In particular, this person must also make sure that the section of the wires of the socket is suitable for the power absorbed by the appliance.

⚠ Use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventiladed by keeping the natural air vents clear (see fig. 2) and by activating the mechanical aeration device (suction hood or electric fan fi g. 3 and fi g. 4).

Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved by opening a window or by increasing the power of the mechanical exhausting system if installed.

⚠ Do not attempt to change the technical characteristics of the product because it can be dangerous.

⚠️ If you should not to use this appliance any more (or replace an old model), before disposing of it, make it inoperative in conformity with current law on the protection of health and the prevention of environmental pollution by making its dangerous

parts harmless, especially for children who might play on an abandoned appliance.

⚠ Do not touch the appliance with wet or damp hands or feet.

⚠ Do not use the appliance barefoot

⚠️ Never use spray near the device when it is turned on.

The manufacturer will not be liable for any damage resulting from improper, incorrect or unreasonable use.

During, and immediately after operation, some parts of the cook top are very hot: avoid touching them.

After using the cook top, make sure that the knob is in the closed position and close the main tap of the gas supply or gas cylinder.

⚠️ If the gas taps are not operating correctly, call the Service Department.

⚠️ Note: continuous use could cause the burners to change colour due to the high temperature.

⚠️ Keep the Warranty Certifi cate or the sheet of technical data with the Instructions Handbook during the appliance life. It contains important technical data.

⚠️ IMPORTANT: All our products are conform with the European Norms and relative amendments.

The product is therefore conform with the requirements of the European Directivesin force relating to:

- compatibility electromagnetic (EMC);

- electrical security (LVD);

- restriction of use of certain hazardous substances (RoHS);

- EcoDesign (ERP).

⚠️ IMPORTANT! Remember that the gas inlet connection of the device is a 1/2" male tapered gas thread according to standard EN 10226.

The appliance complies with the provisions of the sub-regulations for European Directives:

- Regulation (EU) 2016/426.

⚠ Warning! The manufacturer will not be liable for any damage caused by the alteration or odifi cation of the product or its components during the installation.

The installer will be liable for any damages or faults occurred for the incorrect assembly or installation. For any damages resulting from the installation of the product, please contact the authorized installer.

⚠️ IMPORTANT! A perfect installation, adjustment or transformation of the cook top to use other gases requires a QUALIFIED INSTALLER: a failure to follow this rule will void the warranty.

1) BURNERS

A diagram is screen-printed above each knob on the front panel. This diagram indicates to which burner the knob in question corresponds. After having opened the gas mains or gas bottle tap, light the burners as described below:

- Automatic electrical ignition

Push and turn the knob corresponding to the required burner in an anticlockwise direction until it reaches the full on position (large flame fig. 19), then depress the knob.

- Lighting burners equipped with flame failure device

The knobs of burners equipped with fl ame failure device must be turned in an anticlockwise direction until they reach the full on position (large fl ame fi g. 19) and come to a stop. Now depress the knob in question and repeat the previously indicated operations. Keep the knob depressed for about 10 seconds once the burner has ignited.

With regards to all the models, in case of accidental extinguishment of the flame, disengage the ignition by rotating the knob to the off position. Wait at least 1 minute before re-igniting the flame.

HOW TO USE THE BURNERS

Bear in mind the following indications in order to achieve maximum efficiency with the least possible gas consumption:

• use adequate pans for each burner (consult the following table and fig. 1).
• When the pan comes to the boil, set the knob to the reduced rate position (small fl ame fi g. 19).
• Always place a lid on the pans.

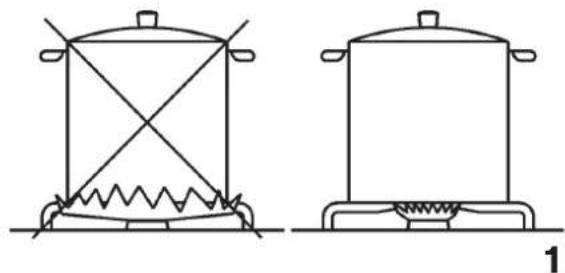

• Use only pan with a fl at bottom.

Burners Pan ∅ in cm
Ultrarapid 24 ÷ 26
Rapid	20 ÷ 22
Semirapid reduced	16 ÷ 18
Semirapid	16 ÷ 18
Auxiliary	10 ÷ 14

WARNINGS:

• Burners with flame failure device may only be ignited when the relative knob has been set to the Full on position (fi g. 19).
• Matches can be used to ignite the burners in a blackout.
• Never leave the appliance unattended when the burners are being used. Make sure there are no children in the near vicinity. Particularly make sure that the pan handles are correctly positioned and keep a check on foods requiring oil and grease to cook since these products can easily catch fi re.
• Never use aerosols near the appliance when it is operating.
• Containers wider than the unit are not recommended.

IMPORTANT:

Always disconnect the appliance from the gas and electricity mains before carrying out any cleaning operation.

Full position

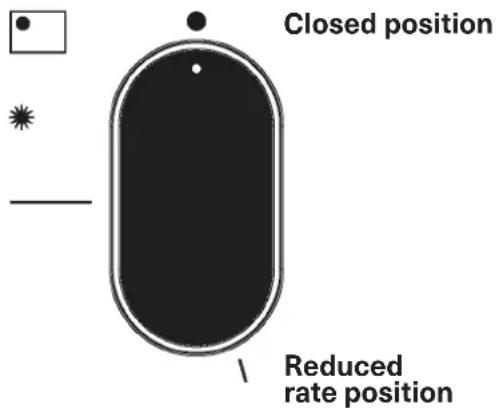

Closed position Reduced rate position

19

2) HOB

It is very important to clean the surface soon after every use, when the glass is still tepid.

Periodically wash the hot plate, the enamelled stell pan support, the enamelled burner caps "A", "B" and "C" and the burner heads "T" (see fi g. 5 - 6) with lukewarm soapy water. They should also be cleaned plugs "AC" and fl ame detection "TC" (see fi g. 5). Clean them gently with a small nylon brush as shown (see fi g. 7) and allow to dry fully.

Do not wash in the dishwasher.

Do not allow vinegar, coffee, milk, salted water, lemon or tomato juice from remaining in contact with the enamelled surfaces for long periods of time.

Do not use metallic sponges, powder abrasives or corrosive sprays.

WARNINGS:

Comply with the following instructions, before remounting the parts:

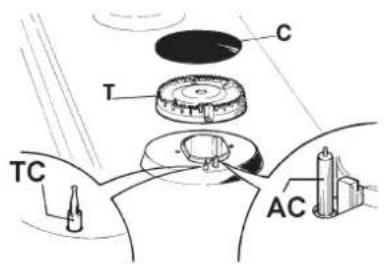

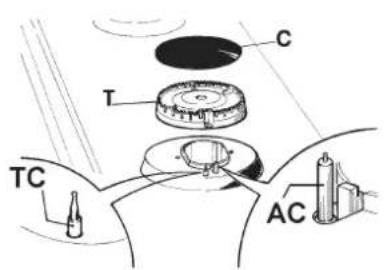

• Check that burner heads slots (see fig. 5 - 6) have not become clogged by foreign bodies.
• Check that enamelled burner cap "A - B - C" (fi g. 5 - 6) have correctly positioned on the burner head. It must be steady.
• The pan support must be placed in the appropriate centering pins.

Verifying the perfect stability.

• Do not force the taps if they are difficult open or close. Contact the technical assistance service for repairs.
• Don't use steam jets for the equipment cleaning.

TECHNICAL INFORMATION FOR THE INSTALLER

Installation, adjustments of controls and maintenance must only be carried out by a qualified engineer.

The appliance must be correctly installed in conformity with current law and the manufacturer's instructions.

Incorrect installation may cause damage to persons, animals or property for which the Manufacturer shall not be considered responsible.

During the life of the system, the automatic safety or regulating devices on the appliance may only be modified by the manufacturer or by his duly authorized dealer.

3) INSTALLING THE HOB

Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. In case of doubt, do not use the appliance and contact qualifi e personnel.

Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children's reach since they could become potential sources of danger.

The measurements of the opening made in the top of the modular cabinet and into which the hot plate will be installed are indicated in either fi g. 8. Always comp with the measurements given for the hole into which the appliance will be recessed (see fi g. 8).

CAUTION:

do not place the glass directly on the unit. The bottom of the hob must rest on the unit.

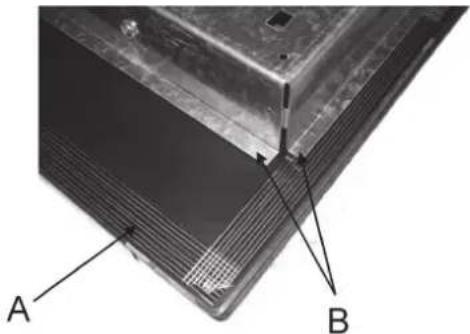

Caution: Do not allow the glass (A) lay directly on the work top. it is the metal bottom "carter" (B) that has to be in touch with the work top (see fi g. 13).

4) FIXING THE HOB

The hob has a special seal which prevents liquid from infi ltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal:

- Take off all the movable parts of the hob.

- Cut the seal in 4 parts of the necessary lenght to positioning it on the 4 edges of the crystal.

- Overturn the hot plate and correctly position seal "E" (fi g. 12) under the edge of the hot plate itself, so that the outer side of the seal perfectly matches the outer perimetral edge of the crystal. The ends of the strips must fit together without overlapping.

- Evenly and securely fi x the seal to the crystal, pressing it in place with the fingers.

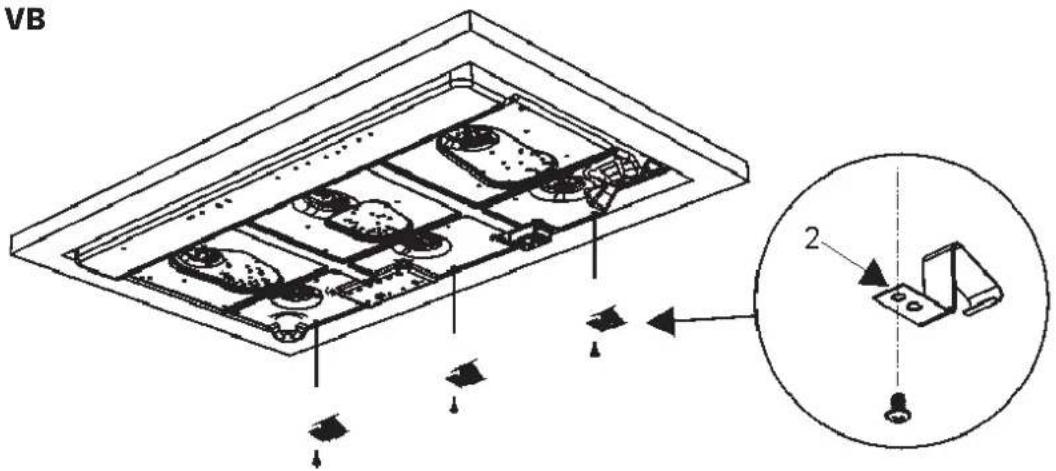

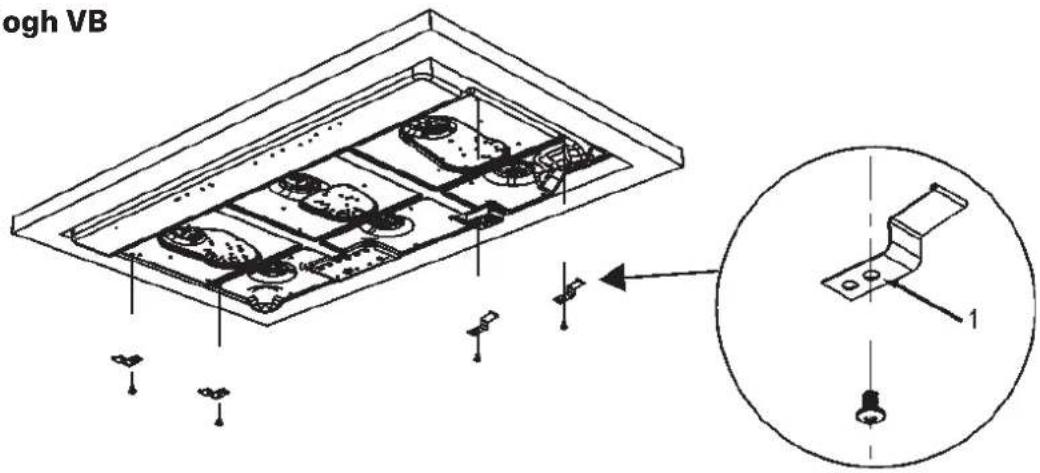

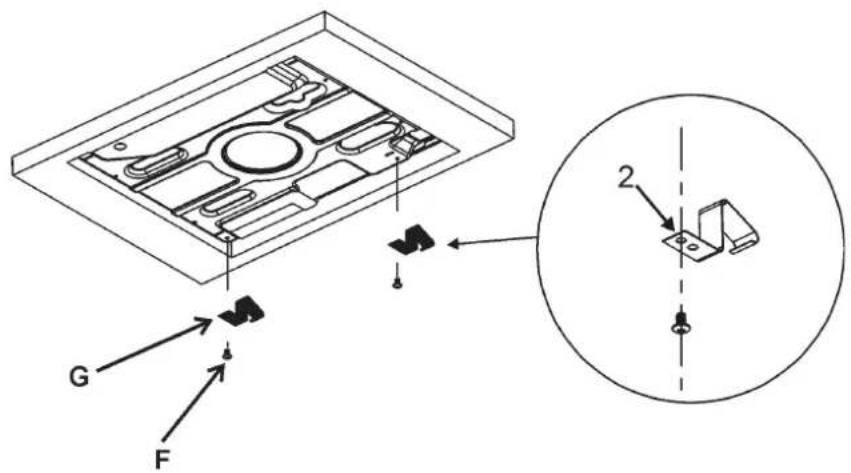

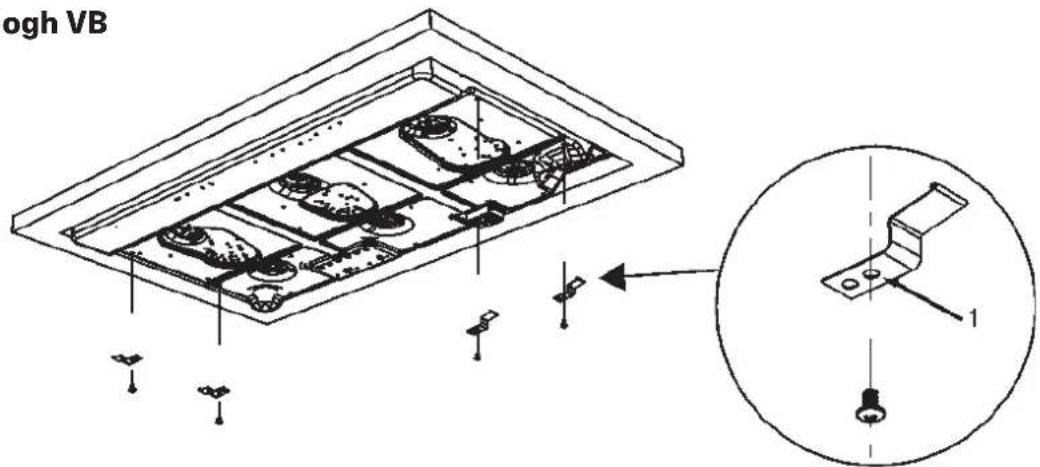

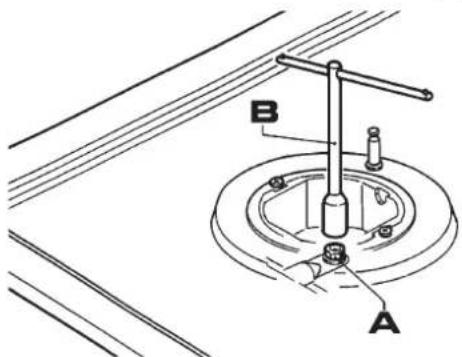

- Place the hooks in their respective positions, use the hole no. 1 as reference for position lateral (fi g. 10) and hole no. 2 for positions rear (fi g. 11).

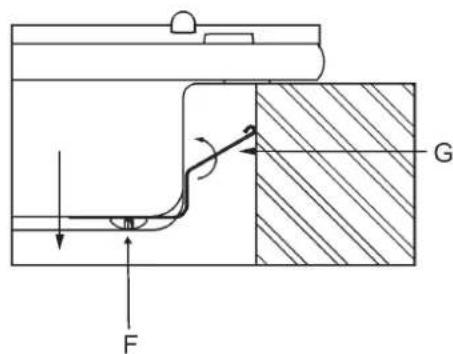

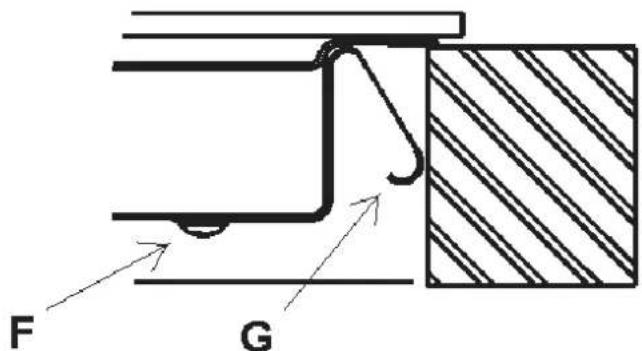

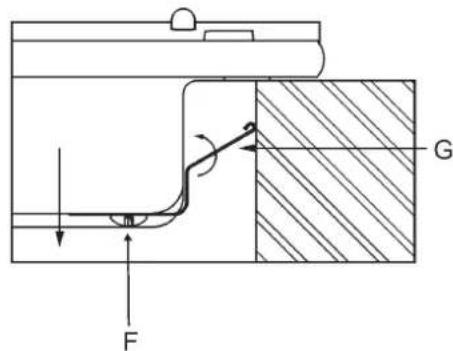

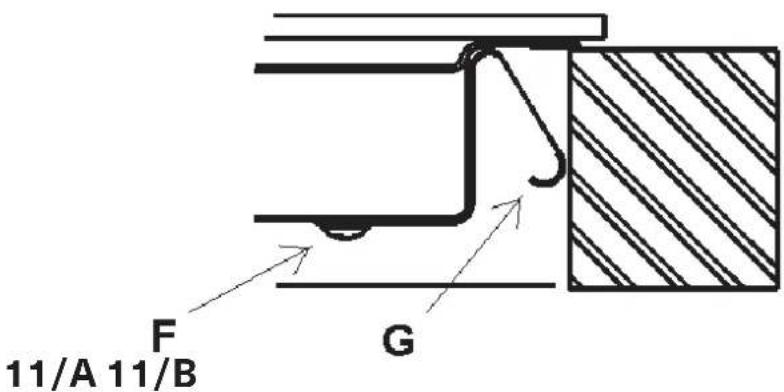

- Secure hooks "G" by means of screws "F" (fi g. 10/A for lateral, and fi g. 11/A for rear).

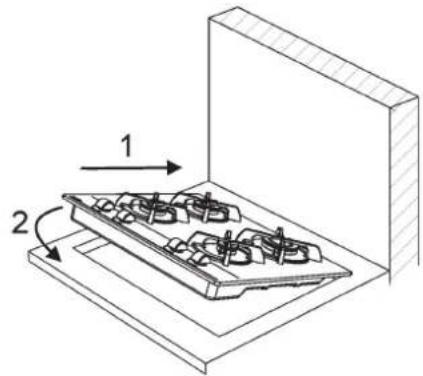

- Insert the cooking hob in the hole of the kitchen cabinet by exercising a certain level of force in order to get over the resistance of the hooks (fi g. 10/B for lateral and fi g. 11/B for rear).

- In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70 mm from the top (see fig. 8).

IMPORTANT INSTALLATION INSTRUCTIONS

The installer should note that the appliance that side walls should be no higher than the hot plate itself.

Furthermore, the rear wall, the surfaces surrounding and adjacent to the appliance must be able to withstand an temperature of 90 °C.

The adhesive used to stick the plastic laminate to the cabinet must be able to withstand a temperature of not less than 150 °C otherwise the laminate could come unstuck.

The appliance must be installed in compliance with BS 6172 1990, BS 5440 part. 2 1989 and BS 6891 1988.

This appliance is not connected to a device able to dispose of the combustion fumes. It must therefore be connected in compliance with the above mentioned installation standards. Particular care should be paid to the following provisions governing ventilation and operation.

5) ROOM VENTILATION

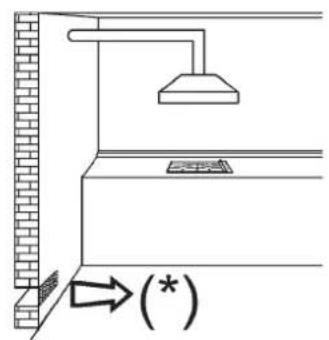

To ensure correct operation of the appliance, it is important to ensure that the room where the hot plate is installed has sufficient ventilation, as set out in BS 5440 part 2. 1989. See table below.

Natural air flow must enter directly through permanent openings in the walls of the room in question. These must open towards the outside and possess a minimum section of 100 cm ^2 (see fi g. 2). It must be impossible to obstruct these openings.

Indirect ventilation with air drawn from adjacent rooms is permitted in strict compliance with the provisions in force.

Type of appliance	Volume of room cubic metres	Min. size of vent sq. cm.	Openable window or alternative method of venting to the outside
Domestic ovens hotplates or any combinations	5 100 yes
	5 to 10 50 yes
	11 to 20	nil yes
	20 and above	nil yes

6) LOCATION AND AERATION

Gas cooking appliances must always dispose of their combustion fumes through hoods. These must be connected to flues, chimneys or straight outside (see fi g. 3). If it is not possible to install a hood, an electric fan can be installed on a window or on a wall facing outside (see fi g. 4). This must be activated at the same time as the appliance, so long as the specifications in the provisions in force are strictly complied with.

7) GAS CONNECTION

Before connecting the appliance, check that the values on the data label affi xed to the underside of the hot plate correspond to those of the gas mains in the home. aA label on the appliance indicates the regulating conditions: type of gas and working pressure.

WARNING:

a gas hot plate can only be connected by a CORGI Registered engineer.

Installations should be carried out in accordance with BS 6891 1988 and must comply with the Gas Safety Regulations.

All hot plate installations must include an isolation tap.

GAS PRESSURE TEST

Some hot plates models have a test point fitted under the control panel, to conduct a gas pressure test proceed as follows:

• Turn off the gas supply.
• Remove screw in the pressure test point, place test gauge connecting tube on test point.
• Fit a burner ring and cap onto burner assembly, replace

EN

control knob onto corresponding control tap for the burner.

- Turn on gas and ascertain working pressure.

After test, turn off control tap, turn off gas supply, disconnect test gauge connecting tube.

Replace the test point screw, turn gas back on and test for soundness. Reassemble the hotplate.

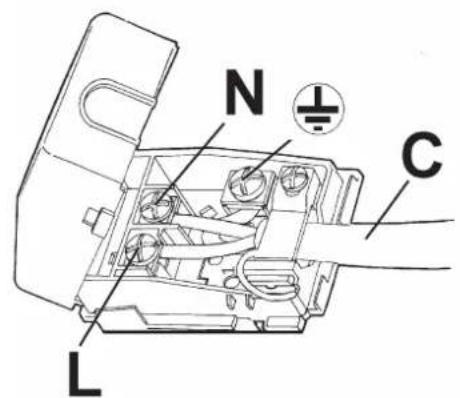

The electrical connections of the appliance must be carried out in compliance with the provisions and standards in force.

Before connecting the appliance, check that:

-the voltage matches the value shown on the specifi cation plate and the section of the wires of the electrical system can support the load, which is also indicated on the specifi cation plate.

-The electrical capacity of the mains supply and current sockets suit the maximum power rating of the appliance (consult the data label applied to the underside of the hot plate).

- The socket or system has an efficient earth connect in compliance with the provisions and standards in force. The manufacturer declines all responsibility for failing to comply with these provisions.

When the appliance is connected to the electricity main by a socket:

-Fit a standard plug "C" suited to the load indicated on the data label to the cable. Fit the wires following figure 9, taking care of respecting the following correspondences:

Letter L (live) = brown wire;

Letter N (neutral) = blue wire; earth symbol ± green - yellow wire.

-The power supply cable must be positioned so that no part of it is able to reach an temperature of 90^ .

- Never use reductions, adapters of shunts for connection since these could create false contacts and lead to dangerous overheating.

- The outlet must be accessible after the built-in.

When the appliance is connected straight to the electricity main:

- Install an omnipolar circuit-breaker between the appliance and the electricity main. This circuit-breaker should be sized, in compliance with current installation regulations.

- Remember that the earth wire must not be interrupted by the circuit-breaker.

- For optimum safety, the electrical connection may also be protected by a high sensitivity differential circuit-breaker.

You are strongly advised to fix the relative yellow-green earth wire to an efficient earthing system.

Before performing any service on the electrical part of the appliance, it must absolutely be disconnected from the electrical network.

Always disconnect the appliance from the electricity main before making any adjustments.

All seals must be replaced by the technician at the end of any adjustments or regulations.

Our burners do not require primary air adjustment.

9) TAPS

"Reduced rate" adjustment

-Switch on the burner and turn the relative knob to the "Reduced rate" position (small flame fig. 19).

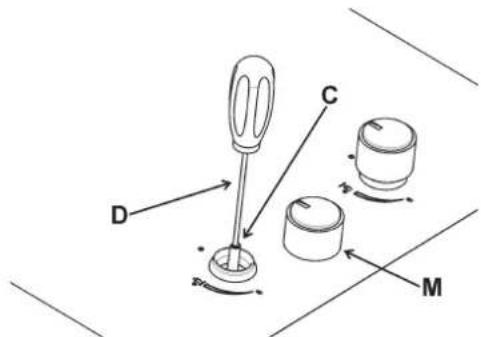

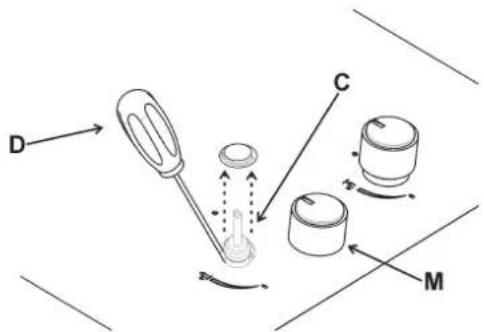

- Remove knob "M" (fi g. 14 and 15) of the tap, which is simply pressed on to its rod. The by-pass for minimal rate regulation can be: beside the tap (fi g. 14) or inside the shaft. In any case, to access to regulation, it can be done brought the insertion of a small screwdriver "D" beside the tap (fi g. 14) or in the hole "C" inside the shaft of the tap (fi g 15). Turn the throttle screw to the right or left until the burner fl ame has been adequately regulated to the "Reduced rate" position.

The fl ame should not be too low: the lowest small fl ame should be continuous and steady. Re-assemble the several components.

It is understood that only burners operating with G20 gas should be subjected to the above mentioned adjustments. The screw must be fully locked when the burners operate with G30 or G31 (turn clockwise).

TAPS LUBRIFICATION

Should a tap being blocked, do not force and ask for Technical Assistance.

10) REPLACING THE INJECTORS

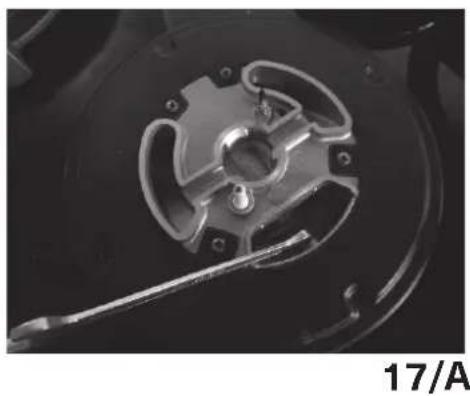

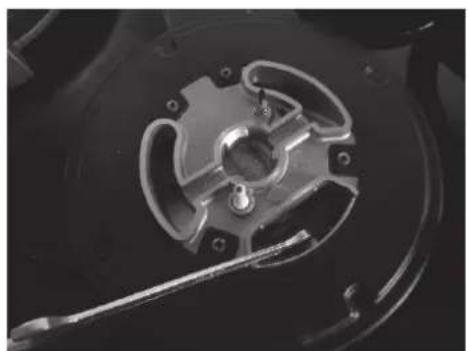

The burners can be adapted to different types of gas by mounting injectors suited to the type of gas in question. To do this, first remove the burner tops using an appropriate tool. Now unscrew injector (see fig. 16,17 and 17/A) and first a injector corresponding to the utilized type of gas in its place.

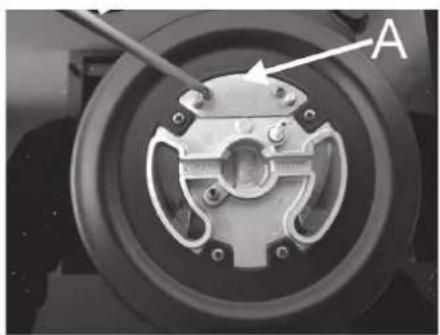

It is advisable to strongly tighten the injector in place. To access the injector, in ultra-fast burners with DCC AFB, remove the injector cover "A" (fi g. 17).

After the injectors have been replaced, the burners must be regulated as explained in paragraphs 9. The technician must reset any seals on the regulating or pre-regulating devices.

The envelope with the injectors and the labels can be included in the kit, or at disposal to the authorized customer Service Centre.

For the sake of convenience, the nominal rate table also lists the heat inputs of the burners, the diameter of the injectors and the working pressures of the various types of gas.

TABLE

BURNERS		GAS	NORMAL PRESSURE	NORMAL RATE		INJECTOR DIAMETER	NOMINAL HEAT INPUT (W)
N°	DESCRIPTION		mbar	g/h	l/h	1/100 mm	Min.	Max.	EEgasburner**
1	DUAL ULTRA RAPID DCC AFB*	G30 - BUTAN	28 - 30	291		100 H1	1800	4000	61,2 %
		G31 - PROPAN	37	286		100H1	1800	4000
		G20 - NATURAL	20		381	150 Z1	1800	4000
2	RAPID	G30 - BUTAN	28 - 30	204		83	900	2800	60,1 %
		G31 - PROPAN	37	200		83	900	2800
		G20 - NATURAL	20		267	117 S	900	2800
3	SEMIRAPID REDUCED	G30 - BUTAN	28 - 30			60	550	1400	63,8 %
		G31 - PROPAN	37	102		60	550	1400
		G20 - NATURAL	20	100	133	88 Z	550	1400
4	SEMIRAPID	G30 - BUTAN	28 - 30	127		65	550	1750	62,5 %
		G31 - PROPAN	37	125		65	550	1750
		G20 - NATURAL	20		167	97 Z	550	1750
5	AUXILIARY	G30 - BUTAN	28 - 30	73		50	450	1000	N.A.
		G31 - PROPAN	37	71		50	450	1000
		G20 - NATURAL	20		95	72 X	450	1000

*DCC AFB: Air From The Bottom (fi g. 17)
**In accordance with Regulation No. 66/2014 EU measures for the implementation of Directive 2009/125/EC, the performance (EEgas burner) was calculated according to EN 30-2-1 last review with the G20.

TYPE AND SECTION OF THE POWER CABLES

TYPE OF HOBS TYPE OF CABLE	SINGLE - PHASE POWER SUPPLY
Gas H05 RR-F section 3 x 0.75 mm ^2

WARNING: MAINTENANCE MUST ONLY BE PERFORMED BY AUTHORISED PERSONS.

ATTENTION!!!

If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fi g. 18) and comply with the recommendations given in paragraph 8.

In case of failure or cut in the cable, please move away from the cable and do not touch it. Moreover the device must be unplugged and not switched on. Call the nearest authorized service center to fix the problem.

TROUBLESHOOTING TABLE

PROBLEMS CAUSES SOLUTIONS
The gas ring burns unevenly	Burner crown maybe occluded by dirtyWrong gas regulation	Clean the burner crown with metal cleaning agentCall the assistance
Burner flame suddenly changes	Incorrect burner components assembly	Assembly the burner components correctly
Ignition of burners takes excessively long	Incorrect burner components assembly	Assembly the burner components correctly
The flame goes off after ignition	Early release of knob. Knob is not pushed in firmlyUncorrect pan dimensionThermocouple problems	Keep the knob pressed longer.Before releasing the knob, give it one final solid pushCheck the user manual and use the correct panMove the thermocouple Call the assistance
The colour of the pan support has changed	Normal situation, caused by the high temperature	Clean the pan support with metal cleaning agents
The burner fails to ignite after pressing the knob (the spark-plug emit the spark)	Lack of gas or dirty on spark-plug	Clean the spark-plug like described in the cleaning chapter on instruction manual
The burner fails to ignite after pressing the knob (the spark-plug do not emit the spark)	Spark-plug or ignition generator problems	Call the assistance
The ignition generator does not work	Lack of electricityIncorrect ignition generator assembly or break	Check that the plug is inserted.Verify that the counter is turned on.Call the assistance
The spark-plug emit continuously the spark	HumidityIncorrect micro-switch assembly or break	Remove the power for 24 hours and allow the top to dry; verify that all the bushings are mounted correctlyCall the assistance

TECHNICAL ASSISTANCE AND SPARE PARTS

Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances.

Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.

For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs or adjustments are required, specifying the type of fault and the model of the appliance in your possession.

Please also note that genuine spare parts are only available from our After Sales Service Centers and authorized retail outlets.

The above data are printed on the data label put on the inferior part of the appliance and on the packing label.

The above informations give to the technical assistant the possibility to get fi t spare parts and a heaven-sent intervention. We suggest to fi ll the table below.

MARK: ....

MODEL:

SERIES:

DESCRIPTION DES TABLES DE CUISSON

GBC 75-VGogh VBGBC 64-VGc

4 1 2 5 9 6 7 10

4 1 3 5 9 8 6 7 10 2 3 5 6 7 8 9 10

GBC 95-VGogh VB

1 3 4 5 6 9 8 7 10 2 3 4 5 6 7 8 9 10

Remonter correctement les diff érents composants.

ROBINETS LUBRIFICATION

(10) REMPLACEMENT DES BUSES

Simple black rounded rectangle shape with a small dot and star symbol, no text or labels present.

DÔLEŽITÉ POKYNY PRI INŠTALÁCII

It is very important to clean the surface soon after every use, when the glass is still tepid.

Close-up of a mechanical component with labeled point A and number 17, showing internal parts and mounting holes (no readable text or symbols beyond labels)

Close-up of a mechanical component with a central hole and threaded rod, labeled '17/A' (no other text or symbols)

Simple line drawing of a curved pipe or tube with a base and a labeled point B, no text or symbols present.

GBC 64-VGogh VB GBC 75-VGogh VB

G F 2

11

GBC 95-VGogh VB

VB 2

F G

F G

11/A 11/B

Isometric line drawing of a mechanical assembly with two labeled components (1 and 2), no text or symbols present.

N C L

9

GBC 64-VGogh VB

GBC 75-VGogh VB

Technical diagram showing a mechanical assembly with labeled components (G, F, 1) and an inset view of a bracket component.

10

GBC 95-VGogh VB

ogh VB

G F

F G

10/B10/A

Two simple line drawings of a cooking pot with a wavy base and heating elements, no text or symbols present.

Technical diagram showing a wall corner with brick wall and a marked component, including an arrow labeled (*) indicating a specific point.

2

Diagram showing a ceiling fixture with an air conditioner unit and a directional arrow labeled (*) indicating orientation.

3

Technical diagram showing a wall-mounted device with an arrow indicating (*) and a circular symbol on the wall.

4

C T TC AC

B A B A X

Line drawing of a hand using a tool to clean or inspect a circular component (no text or symbols)

Modern kitchen interior with dark wood-paneled cabinets and stainless steel appliances, featuring a 'TEKA' logo in the top-right corner (no other text or symbols visible)

AR دليل

المستخدم

مجموعة

GZC
