USER MANUAL S2 Detect MOVA

MOVA S2 Detect Cordless Stick Vacuum User Manual

Contents

EN User Manual 001

VI H asteroid dian suy dung 130

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Warning— To reduce the risk of fire, electric shock, or injury:

• This appliance is for indoor use only.
- This product can be used by children aged from 8 years and above and persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risk of hazards. Cleaning and maintenance shall not be carried out by children without supervision.
- The vacuum is not a toy. Children shall not play with or operate this product. Please exercise caution when using the vacuum near children. Do not allow children to clean or maintain the vacuum unless supervised by a parent or guardian.
- Do not use the vacuum outdoors or on wet surfaces. Only use the vacuum on dry indoor surfaces. Do not touch the plug or any part of the vacuum with wet hands.
- To reduce the risk of fire explosion, or injury, make sure that the lithium battery and supply cord are undamaged before use. Do not use the vacuum if either the lithium battery or supply cord is damaged.
- The brushes, battery, extension rod and vacuum are electrically conductive and should not be immersed in water or other liquid. Make sure to dry all filters after cleaning.
- To prevent injury caused by moving parts, turn off the vacuum before cleaning them. These parts must all be properly installed before using the vacuum.
- Do not use the vacuum to pick up flammable or combustible liquids, such as gasoline, or bleach, ammonia, drain cleaners or other Liquids.
- Do not use the vacuum to pick up drywall particles, ashes like fireplace ash, or smoking or burning materials such as coal, cigarette butts or matches.
- Check the area to be cleaned before use. To prevent the openings from being blocked, clear the larger paper; spitball, plastic cloth or sharp objects (such as glass, nails, screws, coins, etc.) and any object which is larger than openings.
- Keep hair Loose clothing, fingers and other parts of the body away from the vacuum's openings and moving parts. Do not point the hose, wand or tools at your eyes or ears or put them in your mouth.
- Do not put any object into the vacuum's openings. Do not use the vacuum with any opening blocked. Keep free of dust, lint, hair; or other items which may reduce airflow.
- Do not Lean the vacuum against a chair; table, or other unstable surface, as this may cause damage to the machine or personal injury. If the vacuum becomes damaged or is otherwise malfunctioning, please contact our authorized service department. Never attempt to disassemble the device on your own.
- ALL instructions in the manual for recharging the battery must be strictly followed. Failure to properly charge the battery within the specified temperature range could damage the battery.
- Only use accessories and replacement parts recommended by the manufacturer.
- Make sure the vacuum is off and unplugged when not used for extended periods as well as prior to performing any maintenance or repairs.

EN

- Please be extra careful when using the vacuum to clean stairs.

- Do not install, charge, or use this product outdoors, in bathrooms, or around a pool.

- Fire Hazard Warning: Do not apply any type of fragrance to the vacuum's filter. These types of products are known to contain flammable chemicals which may cause the vacuum to catch fire.

- Only use the approved battery type (Model HC-21Y-1). Do not use any non-rechargeable battery pack. Failing to do so may cause the lithium-ion battery to catch fire.

- If the battery material is released, remove personnel from area until the batteries cool down and fumes dissipate.

- Provide maximum ventilation to clear out hazardous gases and avoid skin and eye contact or inhalation of vapors.

- Remove spilled Liquid with absorbent and incinerate waste.

- Do not use and store in extremely hot or cold environments (below 5°C/41°F or above 38°C/100.4°F). Please charge the cordless vacuum in temperature above 5°C/41°F and below 38°C/100.4°F.

- The supply terminals are not to be short-circuited.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

For indoor use only

Class II equipment

time-lag miniature fuse-link where JT25A is the symbol for the time/current characteristic

We, XingKuang Innovation Technology (Suzhou) Co., Ltd. hereby, declares that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: https://www.mova.tech

For detailed e-manual, please go to https://www.mova.tech/pages/user-manuals-and-faqs

Product Overview

EN

Accessory List

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Electric cleaner headVacuumingimalinLomgtcrevice tool

Technical line drawing of a vertical mechanical component with mounting flanges and internal channels (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Electric mite removal head

Anti-collision strip

Battery pack Charger

Line drawing of a cable with a connector, no text or symbols present

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Mopping unitAttachment stor

Note: The images in this manual are for illustrative purposes only. The actual product may differ.

Product Overview

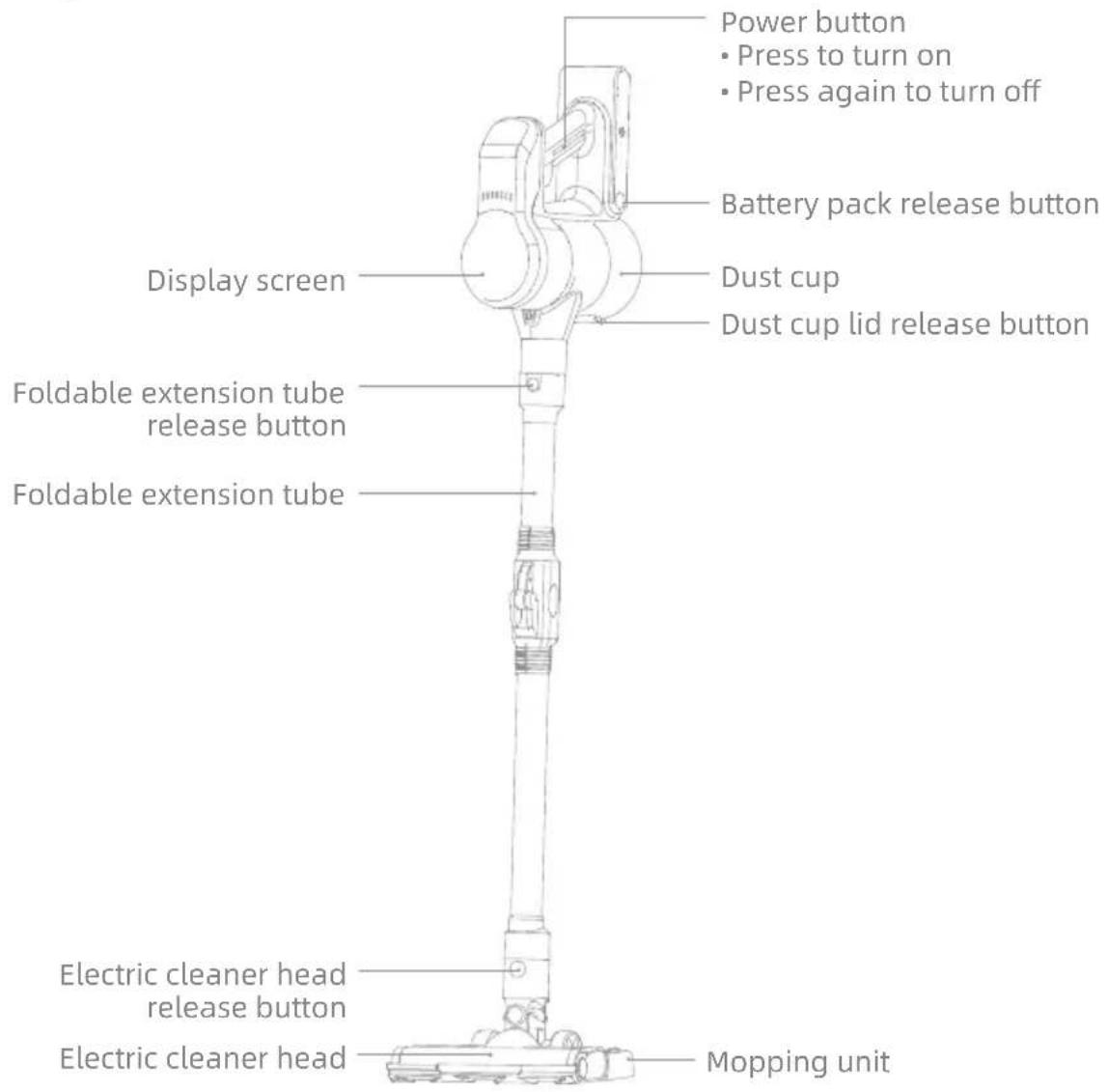

Component Names

Power button • Press to turn on • Press again to turn off Battery pack release button Display screen Dust cup Dust cup lid release button Foldable extension tube release button Foldable extension tube Electric cleaner head release button Electric cleaner head Mopping unit

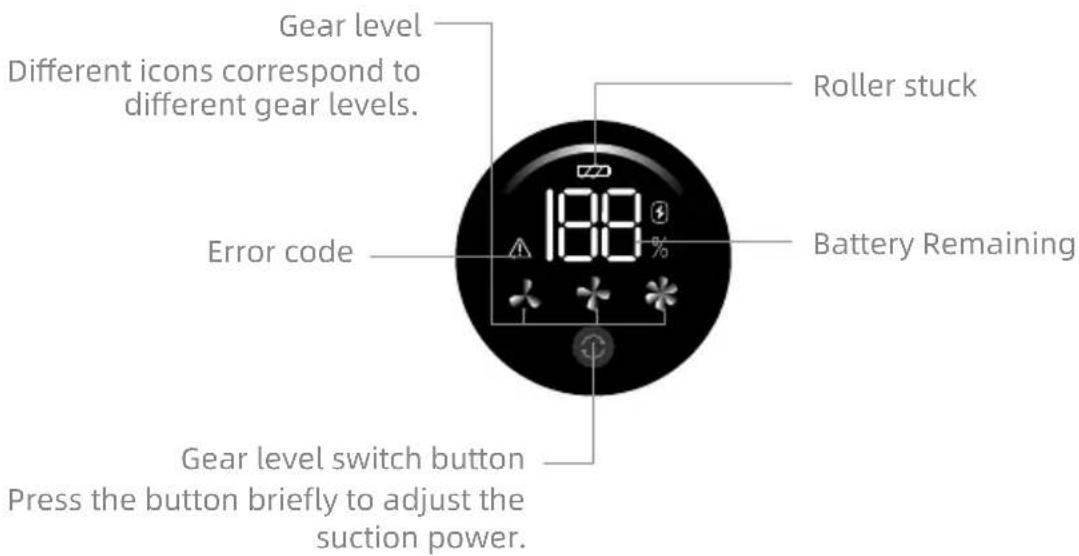

Introduction of Display Screen

Gear level Different icons correspond to different gear levels. Error code 18.8 % Roller stuck Battery Remaining Gear level switch button Press the button briefly to adjust the suction power.

Storage

EN

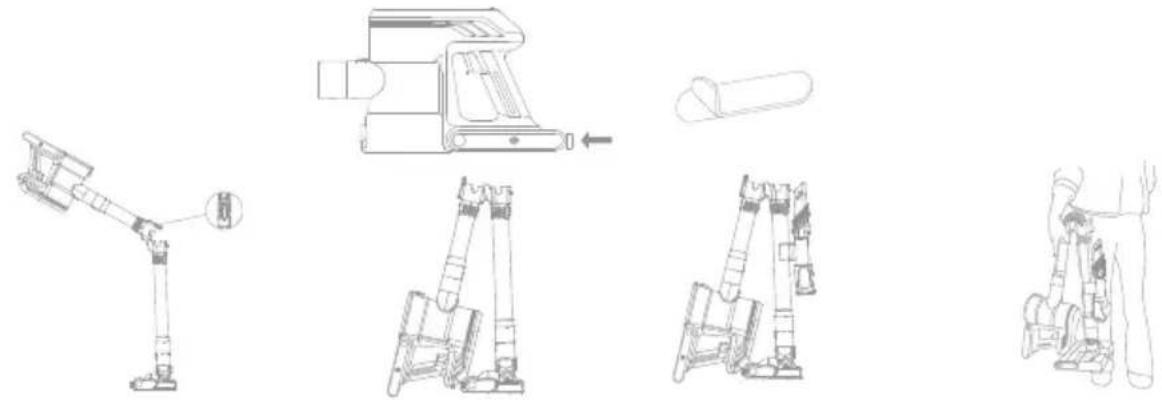

Attach the anti-collision strip to the designated position on the battery pack as shown in the diagram.

After assembling the vacuum cleaner, press the foldable extension tube latch to fold the vacuum cleaner.

Secure attachment storage clip to the illustrated position on the foldable extension tube, and then attach the electric mite removal head and 2-in-1 long crevice tool to the accessory storage clip in sequence.

Technical line drawings of a robotic arm assembly, showing exploded and assembled views (no text or symbols)

Note:

• To prevent the risk of tipping over, the product must not be placed upright.
- To avoid pinching your hands, please hold the extension tube when lifting the vacuum cleaner.

Charging

Note:

• Fully charge the vacuum before using it for the first time.
• A full charge will take approximately 4.5 hours.
- Using Turbo mode for a prolonged period will cause the battery to heat up, which increases charging time. Allow the vacuum to cool down for 30 minutes before charging it.

Charging Method

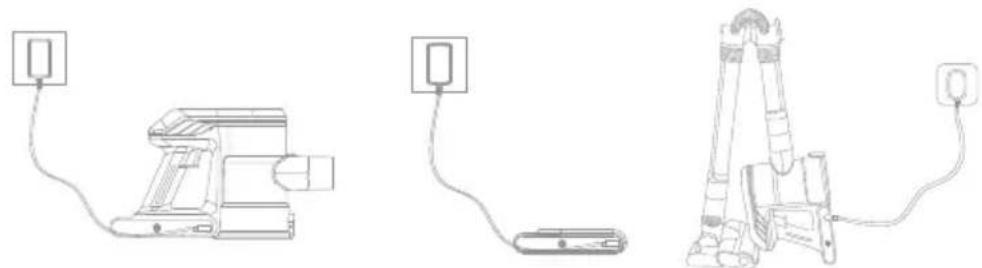

Install the battery pack on the vacuum and charge it with the charger.

The battery pack can also be charged separately.

The vacuum cleaner can also be charged while folded for storage.

Three technical line drawings of electronic devices connected by wires, showing different connection setups (no text or symbols present)

Note: The vacuum cleaner must be charged as shown in the illustration. All instructions in the manual for recharging the battery must be strictly followed. Failure to properly charge the battery within the specified temperature range could damage the battery.

How to Use

Used as a Vertical Vacuum Cleaner

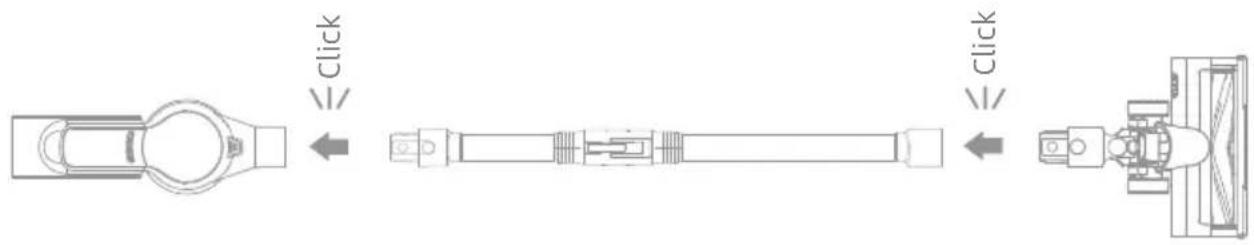

• Connect the foldable extension tube to the electric cleaner head and main vacuuming main unit until you hear a click.
• Press the power button to turn on the appliance.

Click Click

Used as a Handheld Vacuum Cleaner

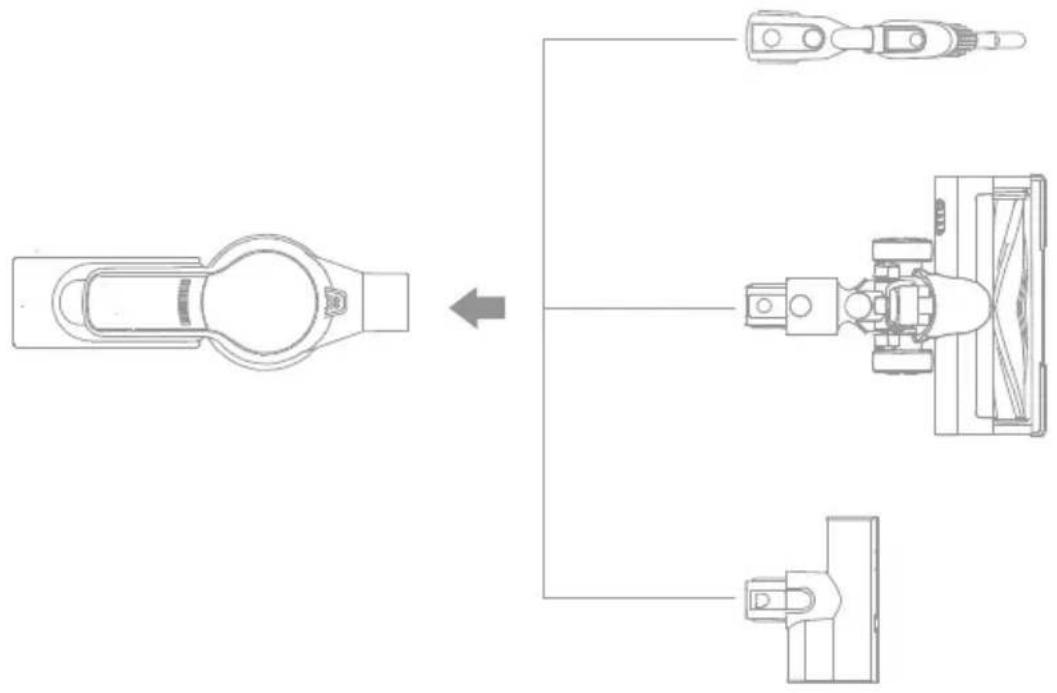

The vacuuming main unit can be directly connected with the 2-in-1 long crevice tool, electric cleaner head, or electric mite removal head.

Using Different Accessories

Electric cleaner head

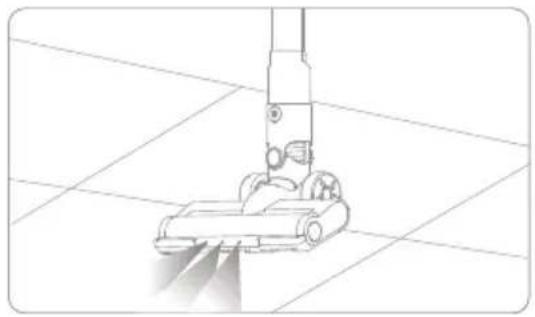

While the electric cleaner head is working, the LED light at the front end is turned on. When using the vacuum cleaner, the electric cleaner head rotates continuously at high speed. Do not stay in the same spot for too long, as this may damage the floor surface.

2-in-1 long crevice tool

It can be used to vacuum the dust from desktops, keyboards, sofa gaps, household appliances, and other surfaces.

It can be also applicable to cleaning dust at wall corners, gaps, door and window corners, and shallow and narrow places.

How to Use

EN

Electric mite removal head

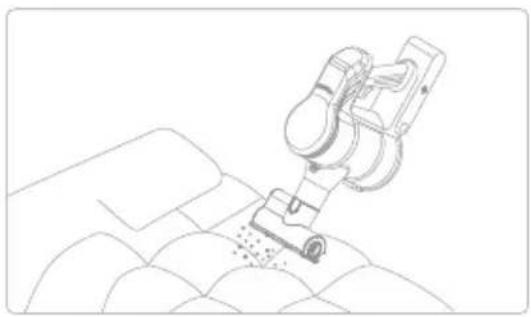

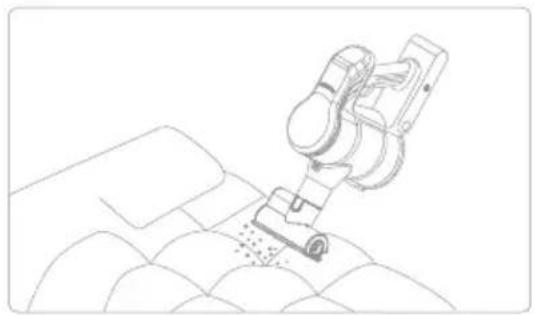

It can be used as a tool for cleaning household carpets, sofa, mattresses, etc.

Line drawing of a robotic vacuum cleaner performing a motion test on tiled floor (no text or symbols)

Line drawing of a precision tool interacting with a grid-patterned object (no text or symbols)

Line drawing of a robotic arm in a corner joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Mopping unit

1. Open the water tank plug, add an appropriate amount of clean water, close the plug, and then attach the map pad to the bottom of the water tank.
2. Align the water tank with the bottom of the electric cleaner head, and then clip it in, ensuring the water tank is in place.
3. When the water tank comes into contact with the ground, the water in the water tank will drip through the water dispenser hole to wet the mop.
4. After startup, the vacuum cleaner starts cleaning operation of vacuuming together with mopping.
5. Remove the water tank after use, open the water tank plug, pour out the remaining water, and then close the plug.

Simple line drawing of a kitchen appliance with faucet and water drop (no text or symbols)

Diagram showing a container with wavy liquid and two rectangular compartments, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with an upward arrow indicating force or movement (no text or symbols present)

Simple line drawing of a rectangular object with internal compartments and a textured base (no text or symbols)

Diagram of a boat hull with wavy bottom and rectangular side panels, no text or symbols present

Note:

• Before installing and replacing accessories, power off the vacuum cleaner.
• This product cannot keep itself upright without fixed support. For storage, the machine and the accessories shall be stably placed.

Care & Maintenance

Tips:

• Always use genuine parts to avoid voiding the warranty.
- If the filter is clogged, the vacuum cleaner will stop functioning shortly after it is turned on. Please clean up the filter to restore function. Before cleaning the dust cup, please verify that the plug has been disconnected and the power button of the vacuum cleaner has been left in the "OFF" position.
- If the vacuum cleaner is not used for a long time, please fully charge it, unplug the power cord, and store it in a cool and low-humidity environment, avoiding direct sunlight. To avoid excessive battery discharging, please charge the battery at least once every three months.

Cleaning the Dust Cup, Air Inlet Filter, and Cyclone Separator Assembly

1. Press the dust cup release button, and remove the cup from the vacuum cleaner.
2. Hold the separator, and rotate it clockwise to remove it from the vacuum cleaner.
3. Remove the air inlet filter from the cyclone separator.
4. Rinse the cyclone assembly and air inlet filter until they are clean. After cleaning, dry it by air for at least 24 hours.

Diagram showing a hand operating a device with a magnified view of the screen and directional arrow indicating motion or operation.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing a faucet, sun icon, and various mechanical components (no text or labels)

Attention:

• It is recommended to wipe the dust cup with a wrung-out cloth at least once a month.
• It is recommended to clean the pre-filter every 3 months and the components of cyclone system every 6 months.
• For the sake of your health, it is recommended that you empty the dust cup after each vacuuming session.

Installation of Dust Cup, Air Inlet Filter, and Cyclone Separator Assembly

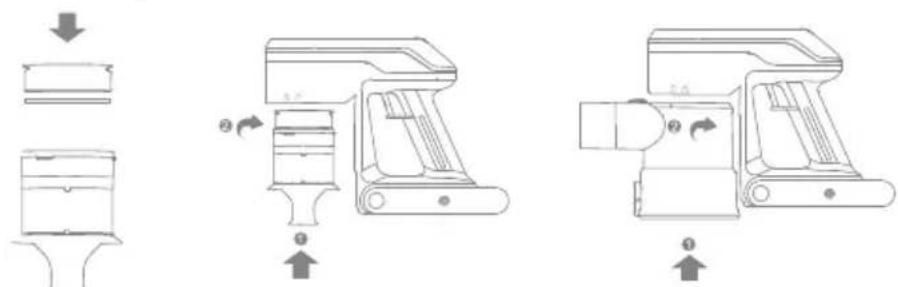

1. Put the inlet filter back into the cyclone separator.
2. Hold the cyclone separator, and rotate it counterclockwise onto the vacuum cleaner.
3. Align the dust cup with the slot on the vacuum cleaner, and rotate it slowly until the dust cup clicks into place.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Care & Maintenance

EN

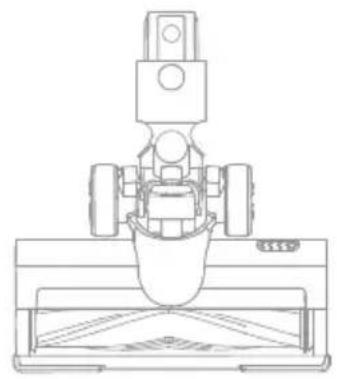

Cleaning Electric Cleaner Head

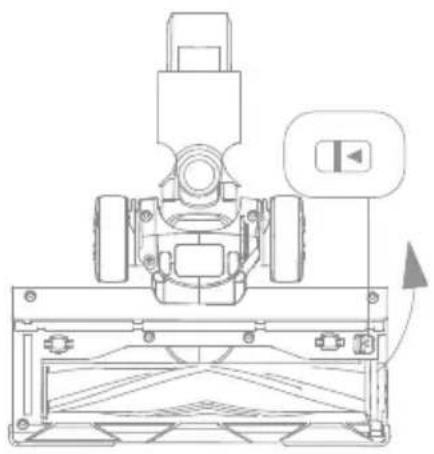

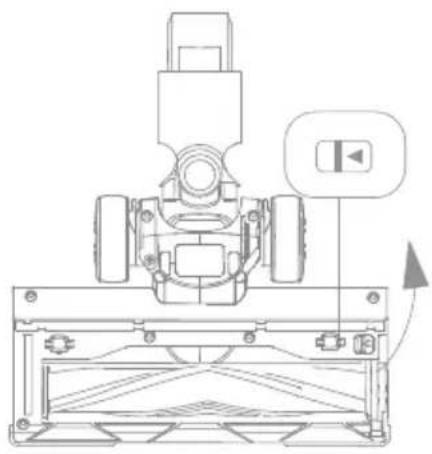

1. Toggle the lock knob of the roller brush in the arrow direction and lift the roller pressing plate at the same time, and then take out the roller brush.

Technical line drawing of a mechanical assembly with no visible text or symbols

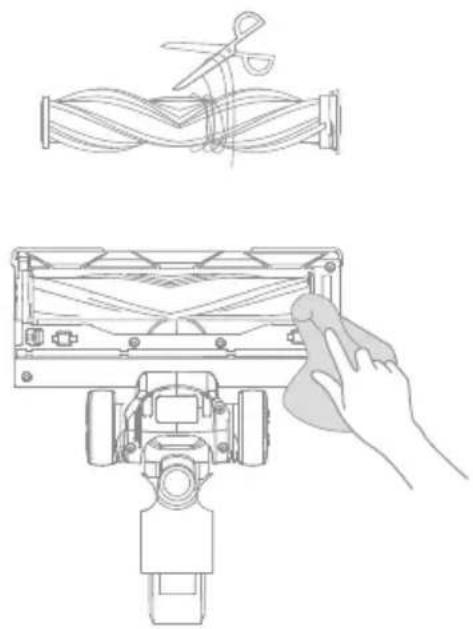

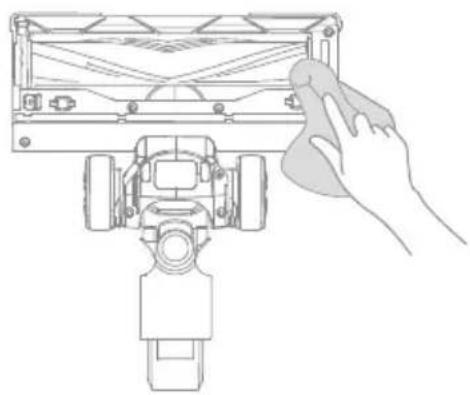

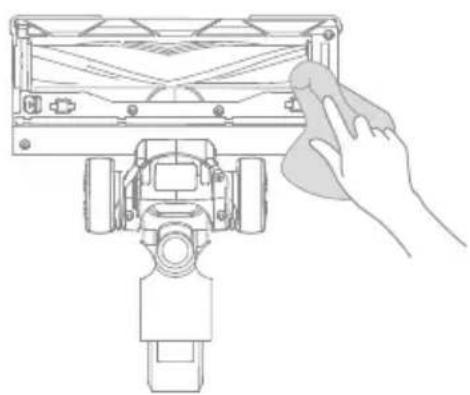

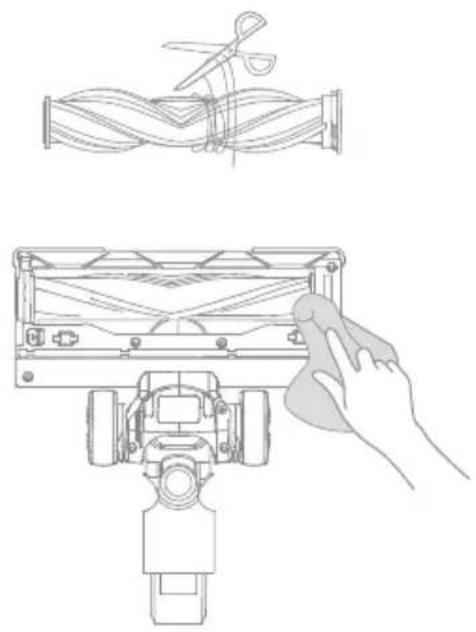

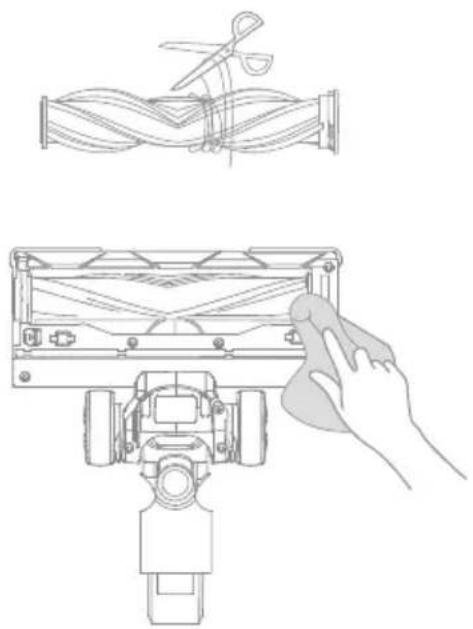

1. If any hair or thread-like materials are entangled on the roller brush, they can be cut off with scissors. Wipe up the dust from the groove and transparent cover with dry cloth or tissue. Wipe it up completely before use.

Technical line drawing of a mechanical device with a hand holding a tool, showing assembly and cleaning steps (no text or symbols)

1. Rinse the brush roller. If it is dirty, rinse with clean water until it is clean.

2. Stand the brush roller upright for at least 24 hours until it is dry completely.

Illustration of a faucet pouring liquid into a coiled pipe (no text or symbols)

24 hrs

Care & Maintenance

Cleaning Electric Mite Removal Head

1. Use a coin or other similar shaped item to turn the lock counterclockwise until you hear click, and then pull out the roller brush.

Technical line drawing showing a battery connected to a circular button with an arrow, next to a handheld device (no text or symbols present)

1. When it is dirty, rinse the roller with clean water until it is clean.

Illustration of a faucet pouring liquid into a funnel-shaped object (no text or symbols)

1. If any hair or thread-like materials are entangled on the roller brush, they can be cut off with scissors. Wipe the slot and transparent cover with dry cloth or tissue.

Line drawing of scissors cutting through a coiled tube (no text or symbols)

1. Stand the roller upright for at least 24 hours until it is completely dry.

24 hrs

Cleaning Mopping Unit

1. Remove the water tank after use, open the water tank plug, and pour out the remaining waste.

Line drawing of a room layout with furniture and a shower (no text or symbols)

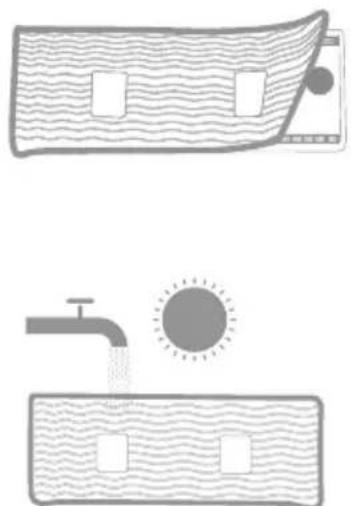

1. Please let the mop pad to dry after use.

Simple line drawing of a faucet spraying water into a container with two windows, sun above (no text or symbols)

1. Remove the mop pad from the bottom of the water tank, and rinse it with water.

Diagram of a curved object with wavy internal bands and two rectangular cutouts, no text or symbols present.

Specifications

EN

Vacuum
Model V2517 Charging Time			Approximately 4.5 hours
Rated Power 460 W Rated Voltage 25.9 V			---
Electric Cleaner Head
Model V2517
Rated Power 15 W Rated Voltage 25.9 V			---
Battery Pack
Model HC-21Y-1 Nominal Voltage	25.9 V		---
Rated Capacity 2500 mAh Nominal Capacity 2500 mAh
Energy	64.75 Wh
Electric Mite Removal Head
Model V2517
Rated Power 15 W Rated Voltage 25.9 V			---
Charger
Model	CZH015310060EUWQ
Input	100-240 V~50/60 Hz 0.5 A MAX
Output	31 V---0.6 A

The lithium-ion pack contains substances that are hazardous to the environment. Before disposing of the vacuum, please remove the battery pack, then discard or recycle it in accordance with local laws and regulations of the country or region it is used in.

The appliance must be disconnected from the power supply when removing the battery. Keep batteries out of the reach of children. Never put batteries in mouth. If swallowed, contact your physician or local poison control.

Under abusive conditions, never contact the battery from which the liquid may be ejected. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical help immediately Liquid ejected from the battery may cause irritation or burns.

Important note

When the vacuum cleaner works abnormally, please turn off the appliance and cut off the power!

Errors Possible causes Troubleshooting method
The appliance cannot start, and the power indicator light flickers for several times and then goes out automatically	Lowe battery power Charge the product
The vacuum cleaner has no suction power or little suction power	The dust cup is full	Empty the trash in the dust cup
	The dust cup or separator filter is not installed correctly	Reinstall the dust cup or separator filter properly
There is an obvious dust leak from the vacuum cleaner	The dust cup is full	Empty the trash in the dust cup
	The dust cup or separator filter is not installed correctly	Reinstall the dust cup or separator filter properly
The roller brush stops rotating, the power indicator light keeps flickering	The roller brush gets entangled or stuck, and the protection device starts up	Clean the entanglements in the electric cleaner head
The air duct or dust cup filter element is blocked, the machine stops working, the E7 indicator light and the fault warning light continue to flash, and shut down after 10 seconds	Too many or too large particles of garbage are inhaled in	Clean up the dust cup and filter element of the machine
The service time is shortened after charging	The charging time is insufficient	Please charge the product fully
	The battery is aged	Purchase an original battery to replace

Troubleshooting

EN

If the vacuum is not working properly, the screen display will show an error message. Please refer to the troubleshooting table to find your solution.

Error Icon Status Error Message	Solutions
	Blinking Red	Roller brush stuck
If one of the error codes from E2/E6/E7 appears on the display, please contact the after-sales service team for repair.E2: Motor short circuit protectionE6: Overcurrent during charging, abnormal charger voltageE7: Light load protection

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Technical line drawing of a piston-cylinder assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with a U-shaped bracket and rectangular base (no text or symbols)

Simple line drawing of a cable with a connector (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawings of robotic arm components, showing exploded and assembled views (no text or labels)

Note:

Three technical line drawings of a device with connected cables, no text or symbols present

Line drawing of a robotic vacuum cleaner operating on a tiled floor (no text or symbols)

Illustration of a robotic arm using a handheld tool to apply or install a grid-patterned component (no text or symbols visible)

Line drawing of a robotic arm positioned at the base of a corner (no text or symbols)

Line drawing of a robotic arm performing a precision work on a textured surface (no text or symbols)

Wischmopp-Einheit

Line drawing of a kitchen appliance with a faucet and door (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Diagram of a boat hull with wavy lines indicating water flow, showing a downward arrow and two rectangular cutouts (no text or symbols)

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Hinweis:

Diagram showing a hand operating a machine with a magnified view of the screen and a downward arrow indicating action.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram showing water supply, circular gauges, and cleaning components with time and duration labels

Attention:

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet pouring liquid into a coiled tube (no text or symbols)

Technical line drawing showing a mechanical assembly with a hand cleaning a component (no text or symbols)

Technical line drawing showing a mechanical device with a circular button and directional arrow, alongside a hand holding a folded component (no text or symbols)

Simple line drawing of a faucet pouring liquid into a funnel (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a room with walls, doors, and a curved ceiling (no text or symbols)

Diagram showing a sun above a water tank with a pipe and two water tanks (no text or symbols)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts (no text or symbols)

Technical line drawing of a mechanical piston assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical mechanical component with mounting flanges and a handle (no text or symbols)

Tube d'extension pliable

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a cable or wire connector with a rectangular component and terminal connectors (no text or symbols)

Simple line drawing of a rectangular device with internal components and a handle (no text or symbols)

Technical line drawings of robotic arm components including articulated arms and a cylindrical device (no text or symbols)

Remarque :

Three technical line drawings of a mechanical device with wiring, no text or symbols present

Line drawing of a robotic vacuum cleaner performing a motion test on tiled floor (no text or symbols)

Line drawing of a precision tool interacting with a grid-patterned object (no text or symbols)

Line drawing of a robotic arm in a corner joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Simple line drawing of a kitchen appliance with faucet and water drop (no text or symbols)

Diagram of a curved container with wavy internal layers and two rectangular cutouts, no text or symbols present.

Mechanical diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical diagram showing a lever mechanism with an upward arrow indicating motion (no text or symbols present)

Simple line drawing of a rectangular object with internal compartments and a textured base (no text or symbols)

Diagram of a boat hull with wavy bottom and rectangular side panels, no text or symbols present

Remarque :

Diagram showing a hand operating a device with labeled parts and directional arrows indicating process flow.

Technical line drawing of a mechanical device with a cylindrical component and a downward arrow indicating motion (no text or symbols)

Illustration of household fixtures including a faucet, sun, and sink with numbered parts (no text or symbols)

Attention:

Technical diagram showing three-step assembly process with labeled arrows and component illustrations

Entretien

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure line drawing of a coiled cable or wire with scissors, no text or symbols present

Line drawing of a robotic device with a hand holding a tool, no text or symbols present

Illustration of a faucet pouring liquid into a coiled tube (no text or symbols)

24 hrs

Technical line drawing showing a mechanical component with a circular inset view and a hand holding a folded paper (no text or symbols)

Illustration of a faucet pouring liquid into a water-filled funnel (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a vase with a sun icon and a 24-hour clock (no text or symbols on the vase itself)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a rectangular object with wavy internal lines and two rectangular cutouts, no text or symbols present.

Diagram showing a faucet spraying water into a container with two water tanks, and a sun symbol above (no text or labels)

Technical line drawing of a piston-cylinder assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a cable or wire being inserted into a plug (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawings of robotic arm components including a device, mechanical parts, and a leg (no text or symbols)

Nota:

Three technical line drawings of a device with connected cables, showing different connection points (no text or symbols present)

Clic Clic

Line drawing of a robotic arm operating a robotic vehicle on a tiled floor (no text or symbols)

Line drawing of a robotic arm operating on a grid-patterned surface (no text or symbols)

Line drawing of a robotic arm positioned at the base of a corner (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Unidad de fregado

Diagram showing a mechanical device with labeled components and directional arrow, likely illustrating a process or assembly.

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a faucet, sun, and various household fixtures including a 24-hour dial and sink (no text or symbols)

Attention:

Technical diagram of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows and a symbol (no text or labels)

Mantenimiento

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet pouring liquid into a coiled hose (no text or symbols)

Technical line drawing showing a mechanical assembly with scissors and a hand cleaning a component (no text or symbols)

Technical line drawing showing a mechanical component with a circular inset view and a hand holding a rolled document (no text or symbols present)

Simple line drawing of a faucet pouring liquid into a funnel (no text or symbols)

Line drawing of scissors cutting a coiled spring (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple line drawing of a boat hull with wavy bottom surface and two rectangular cutouts (no text or symbols)

Simple line drawing of a sun partially submerged in water with a faucet (no text or symbols)

Especificaciones

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a cable or wire connector with a rectangular head and connector (no text or symbols)

Simple line drawing of a rectangular object with internal compartments and a handle (no text or symbols)

Technical line drawings of robotic arm and mechanical components (no text or symbols)

Nota:

Three technical line drawings of mechanical devices with wiring, no text or symbols present

Clic Clic

Line drawing of a robotic arm operating on a tiled floor (no text or symbols)

Illustration of a robotic arm using a handheld tool to test a grid-patterned object (no text or symbols visible)

Technical line drawing of a robotic arm joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Unità lavapavimenti

Simple line drawing of a washing machine with faucet and door (no text or symbols)

Diagram showing a wavy patterned object with two rectangular cutouts and an arrow pointing downward (no text or symbols)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with an upward arrow indicating motion (no text or symbols)

Pure technical line drawing of a mechanical component or assembly without any text, numbers, or symbols

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Nota:

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Manutenzione

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing showing a mechanical assembly with a hand cleaning a component (no text or symbols)

Illustration of a faucet pouring liquid into a coiled tube (no text or symbols)

10 9 8 7 6 5 4 3 2 1 11 12 24 hrs

Manutenzione

Technical line drawing showing a mechanical device with a circular button and a hand holding a folded cable (no text or symbols)

Illustration of a faucet pouring liquid into a container (no text or symbols)

Line drawing of scissors cutting a coiled cable (no text or symbols)

Line drawing of a room layout with furniture and a showerhead (no text or symbols)

Simple line drawing of a curved object with horizontal wavy lines and two rectangular cutouts, no text or symbols present.

Illustration of a faucet spraying water into a container with a sun symbol above (no text or labels)

Specifiche

Technical line drawing of a mechanical component with no visible text or symbols

Korpus odkurzacza

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges and a central fastener (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a handheld device with a coiled cable and connector (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawings of robotic arm components, showing progressive assembly from base to final assembly (no text or labels)

Uwaga:

Three technical line drawings of electronic devices connected by wires, no text or symbols present

Technical line drawing of a robotic arm operating on a tiled floor (no text or symbols)

Illustration of a robotic arm interacting with a grid-patterned surface (no text or symbols)

Technical line drawing of a robotic arm joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Zespół mopa

Simple line drawing of a kitchen appliance with a faucet and control panel (no text or symbols)

Diagram showing a wavy rectangular object with internal cutouts and an arrow pointing downward (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Pure architectural line drawing of a building facade with windows and doors (no text or symbols)

Diagram of a boat hull with wavy water lines and two rectangular cutouts, no text or symbols present

Uwaga:

Technical diagram illustrating a cleaning or cleaning process with labeled components and time indicators

Attention:

Technical diagram showing three stages of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Konserwacja

Technical line drawing showing a cable connector and its assembly with a hand holding a folded cable (no text or symbols present)

Illustration of a faucet pouring liquid into a funnel (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Line drawing of a room layout with furniture and a textured floor (no text or symbols)

Simple diagram showing a faucet pouring water into a container with two water tanks, and a sun symbolizing sunlight (no text or labels)

Simple line drawing of a boat hull with wavy bottom surface and two rectangular cutouts (no text or symbols)

Dane techniczne

PL

https://www.mova.tech :הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Technical line drawing of a mechanical assembly with no visible text or symbols

בַרְשָׁה בִרְשָׁה

Technical line drawing of a mechanical component with no visible text or symbols

תְרָה בְּרָה בְּרָה

Simple line drawing of a handheld device with coiled cable and connector (no text or symbols)

|yun

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

תְקַרָה בְּרָה

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges and a handle (no text or symbols)

תְרָה בְּרָה בְּרָה

בְרַעָה בְרַעָה

הכלה

Technical line drawings of a robotic arm assembly, showing progressive assembly from base to postarm (no text or symbols)

:תַרְשָׁ

Three line drawings of connected devices: a rocket, a battery, and a printer (no text or symbols)

Technical diagram showing a vehicle's side profile with labeled components and directional arrows indicating motion or assembly.

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Illustration of a robotic arm interacting with a grid-patterned surface (no text or symbols)

Line drawing of a robotic vacuum cleaner on tiled floor (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Line drawing of a robotic arm positioned at the base of a corner (no text or symbols)

תְקַרָה בְּרָה

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Diagram of a curved container with wavy internal layers and two rectangular cutouts, no text or symbols present.

Simple line drawing of a faucet with a water level indicator (no text or symbols)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Pure architectural line drawing of a building facade with windows and doorways (no text or symbols)

Mechanical assembly diagram showing a lever and mounting bracket with an upward arrow (no text or symbols)

:תַרְשָׁ

•.הכלה
• אַרְשׁ

:D'5'0

Technical diagram illustrating the process of a washing machine with labeled components and time indicators.

:תְרַעֹה בְרַעֹה

Technical line drawing of a mechanical device with directional arrows and a numbered arrow (no text or symbols)

Technical diagram of a mechanical device with no visible text or symbols

Technical line drawing showing a mechanical assembly with scissors and a hand holding a tool, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet pouring liquid into a coiled pipe (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a boat hull with wavy bottom surface and two rectangular cutouts (no text or symbols)

Technical line drawing showing a hand holding a mechanical component and a close-up of its internal component with a circular arrow indicating rotation (no text or symbols)

Illustration of a faucet pouring liquid into a funnel (no text or symbols)

תְרַעָה בְּרַעָה

Line drawing of a room interior with furniture and a shower (no text or symbols)

Diagram showing a sun above a water tank with a pipe and two submerged blocks (no text or symbols)

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges and internal channels (no text or symbols)

Line drawings of a robotic arm assembly showing progressive assembly from base to postarm (no text or symbols)

ملاحظة:

ع مستقيم.

Three technical line drawings of connected devices: a robotic arm, a battery, and a portable device (no text or symbols present)

Technical diagram showing a vehicle's side profile with lighting and assembly components, including a highlighted section with 'Ei'

Illustration of a precision tool interacting with a grid-patterned surface (no text or symbols)

Line drawing of a robotic vacuum cleaner on tiled floor (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Technical line drawing of a robotic arm or sensor device mounted on a vertical support structure (no text or symbols)

طريقة الاستخدام

وحدة المسح

Diagram illustrating the step-by-step installation of a vacuum cleaner's internal structure, showing hand positioning and mounting details.

ملاحظة:

الكهرباتية.

• الملحقات

بشكل مستقر.

ن Cruise:

Technical diagram illustrating a cleaning or assembly process with labeled components and time indicators

تنبيه:

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing showing a mechanical assembly with scissors and a hand holding a tool (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet pouring liquid into a coiled hose (no text or symbols)

Line drawing of scissors cutting through a coiled spring (no text or symbols)

Simple line drawing of a folded fabric or panel with wavy lines and two rectangular cutouts (no text or symbols)

Technical line drawing showing a hand holding a mechanical component and a close-up of its internal components with a circular arrow indicating rotation (no text or symbols present)

Illustration of a faucet pouring liquid into a funnel (no text or symbols)

تنظيف وحدة المسح

Simple line drawing of a room with a bed, chairs, and a wall (no text or symbols)

Simple line drawing of a sun above a water tank with a faucet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Süpürme ana ünitesi

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a cable with a connector, no text or symbols present

Simple line drawing of a device casing with internal compartments and a handle (no text or symbols)

Paspaslama ünitesiAksesuar depc

Technical line drawings of robotic arm and mechanical device components (no text or symbols)

Not:

Three technical line drawings of a device with connected cables, no text or symbols present

Technical line drawing of a robotic arm operating on a tiled floor (no text or symbols)

Illustration of a robotic arm interacting with a grid-patterned device (no text or symbols visible)

Technical line drawing of a robotic arm joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Paspaslama ünitesi

Simple line drawing of a showerhead with faucet and water dispenser (no text or symbols)

Simple line drawing of a boat hull with wavy bottom and rectangular cutouts, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical diagram showing a lever mechanism with an upward arrow indicating motion (no text or symbols present)

Simple line drawing of a rectangular object with internal compartments and a curved arrow pointing downward (no text or symbols)

Diagram of a container with two compartments and an upward arrow, no text or symbols present

Not:

Diagram of a mechanical device with a magnified circular component and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a faucet, a sun, a 24-hour dial indicator, a water dispenser, and a circular component (no text or symbols)

Dikkat:

Technical diagram of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows and a small symbol below (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet pouring liquid into a coiled hose (no text or symbols)

Technical line drawing showing a mechanical assembly with a hand holding a tool, no text or symbols present

Line drawing showing a device with a circular button and a hand holding a folded cable (no text or symbols)

Simple line drawing of a faucet pouring liquid into a bulb (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple line drawing of a rectangular object with wavy internal lines and two rectangular cutouts, no text or symbols present.

Simple diagram showing a faucet pouring liquid into a container with water and two square containers, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

หัวร่องยาว 2-in-1

Technical line drawing of a vertical mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

หัวกำจัดไรไฟฟ้า

แลบป้องคันการชน

Simple line drawing of a cable and plug assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Diagram of a curved structure with wavy internal lines and two rectangular cutouts, no text or symbols present.

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a vacuum cleaner inserted into a housing (no text or symbols visible)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

หมายเหตุ:

Diagram showing a hand operating a machine with a magnified inset of the device's tip, labeled with numbers ① and ②.

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of household fixtures including a faucet, sun, and sink (no text or symbols)

ความสนใจ:

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

การปํารุงรักษา

การปํารุงรักษา

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of scissors cutting through a wavy pipe (no text or symbols)

Line drawing of a robotic device with a hand cleaning it (no text or symbols)

Illustration of a faucet pouring liquid into a coiled hose (no text or symbols)

การปํารุงรักษา

Technical line drawing showing a mechanical component with a circular inset view and a hand holding a folded cable (no text or symbols)

Illustration of a faucet pouring liquid into a glass tube (no text or symbols)

Pure technical line drawing of a mechanical component or housing with no text, numbers, or symbols

Illustration of a faucet pouring water into a container with two water tanks, and a sun symbol above (no text or labels)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a vase with a sun icon and a 24-hour clock (no text or symbols on the vase itself)

Simple line drawing of a curved object with wavy internal lines and two rectangular cutouts, no text or symbols present.

Technical line drawings of robotic arm components including a device, mechanical parts, and a tool (no text or symbols present)

Luru y:

Three technical line drawings of electronic devices connected by wires, showing different connection setups (no text or symbols present)

Line drawing of a robotic arm spraying water onto a vehicle on a tiled floor (no text or symbols)

Line drawing of a robotic arm operating on a grid-patterned surface (no text or symbols)

Technical line drawing of a robotic arm or sensor device mounted on a vertical support (no text or symbols present)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Bộ phận lau

Simple line drawing of a kitchen appliance with faucet and sink (no text or symbols)

Diagram of a container with wavy internal layers and two rectangular cutouts, no text or symbols present

Mechanical diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Lưu ý:

Diagram of a hand operating a machine with a magnified view showing a device (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of household fixtures including a faucet, sun, 24-hour dial, and sink (no text or symbols)

Chú y:

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Bảo trì

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet releasing water into a coiled hose (no text or symbols)

Technical line drawing showing a mechanical assembly with scissors and a hand holding a tool, no text or symbols present.

Technical line drawing showing a mechanical device with a circular button and a hand holding a folded cable (no text or symbols)

Simple line drawing of a faucet pouring liquid into a container (no text or symbols)

Vệ sinh bộ phận lau

Simple line drawing of a room layout with furniture and fixtures (no text or symbols)

Simple line drawing of a faucet pouring water into a container with two containers, sun above indicating sun (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a folded garment with two rectangular cutouts and a circular button (no text or symbols)

Thông số kỹ thuật

Technical line drawing of a mechanical component with no visible text or symbols

Unit utama penyedotan debu

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a handheld device with coiled cable and connector (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawings of a robotic arm and mechanical device, showing progressive assembly and alignment (no text or symbols)

Catatan:

Three technical line drawings of a robotic arm with connected cables, no text or symbols present

Line drawing of a robotic vacuum cleaner on tiled floor (no text or symbols)

Illustration of a precision tool interacting with a grid-patterned device (no text or symbols visible)

Technical line drawing of a robotic arm in a corner joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Unit pengepelan

Line drawing of a kitchen appliance with faucet and control panel (no text or symbols)

Diagram showing a curved container with wavy internal lines and two rectangular cutouts, with an arrow pointing downward (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical diagram showing a lever mechanism with an upward arrow (no text or symbols)

Simple line drawing of a rectangular object with internal compartments and a textured base (no text or symbols)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Catatan:

Diagram showing a hand operating a printer with a magnified inset of the device's tip and a downward arrow indicating action.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing household water sources and equipment including a faucet, sun, 24-hour timer, and sink components.

Perhatian:

Technical diagram of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows and a small symbol (no text or labels)

Care & Maintenance

Cleaning Electric Cleaner Head

1. Toggle the lock knob of the roller brush in the arrow direction and lift the roller pressing plate at the same time, and then take out the roller brush.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. If any hair or thread-like materials are entangled on the roller brush, they can be cut off with scissors. Wipe up the dust from the groove and transparent cover with dry cloth or tissue. Wipe it up completely before use.

Technical line drawing showing a mechanical assembly with a hand holding a tool, no text or symbols present

1. Rinse the brush roller. If it is dirty, rinse with clean water until it is clean.

Illustration of a faucet pouring liquid into a coiled pipe (no text or symbols)

1. Stand the brush roller upright for at least 24 hours until it is dry completely.

24 hrs

Pemeliharaan

Membersihkan kepala elektrik penghilang tungau

Technical line drawing showing a mechanical component with a circular inset view and a hand holding a folded paper (no text or symbols)

Illustration of a faucet pouring liquid into a water-filled trough (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Simple line drawing of a vase with a sun icon and a 24-hour clock (no text or symbols on the vase itself)

Membersihkan unit pengepelan

Line drawing of a room layout with furniture and a hanging object (no text or symbols)

Simple line drawing of a wavy rectangular object with two rectangular cutouts, resembling a device or panel (no text or symbols)

Simple line drawing of a faucet spraying water into a container with two containers, sun above (no text or symbols)

Spesifikasi

Penyedotan Debu
Model V2517	Waktu Pengisian Daya		Sekitar4,5 jam
Daya Terukur 460	W Tegangan Terukur 25,9 V		---
Kepala Pembersih Elektrik
Model V2517
Daya Terukur 15 W	Tegangan Terukur 25,9 V		---
Unit Baterai
Model HC-21Y	-1 Tegangan Nominal 25,9 V		---
Kapasitas Terukur 2500 mAh Kapasitas		Nominal 2500 mAh
Energi	64,75 Wh
Kepala Elektrik Penghilang Tungau
Model V2517
Daya Terukur 15 W	Tegangan Terukur 25,9 V		---
Pengisi Daya
Model	CZH015310060EUWQ
Input	100-240 V~50/60 Hz 0,5 A MAX
Output	31 V --- 0,6 A

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges and internal ribs (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a cable or wire being inserted into a rectangular device (no text or symbols)

Simple line drawing of a device casing with buttons and connectors (no text or symbols)

Technical line drawings of a robotic arm assembly, showing progressive assembly from base to final leg (no text or symbols)

Примітка:

Three technical line drawings of electronic devices connected by wires, no text or symbols present

Technical line drawing of a robotic arm operating on a tiled floor (no text or symbols)

Illustration of a robotic arm interacting with a grid-patterned object (no text or symbols visible)

Technical line drawing of a robotic arm joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Simple line drawing of a kitchen appliance with faucet and door (no text or symbols)

Diagram of a curved structure with wavy internal lines and two rectangular cutouts, no text or symbols present.

Mechanical diagram showing a hand operating a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Simple line drawing of a rectangular structure with internal compartments and a curved element, no text or symbols present.

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Примітка:

Technical diagram illustrating the assembly and manufacturing process of a washing machine, including pump, valve, and component layout.

Увага:

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a faucet pouring liquid into a pipe with wavy lines underneath (no text or symbols)

Technical line drawing showing a mechanical assembly with scissors and a hand cleaning a component (no text or symbols)

Line drawing showing a device with a circular button and a hand holding a folded paper (no text or symbols)

Illustration of a faucet pouring liquid into a container (no text or symbols)

Line drawing of scissors cutting through a coiled spring (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a faucet pouring water into a container with two water tanks, sun in background (no text or symbols)

Diagram of a curved structure with wavy internal patterns and two rectangular cutouts, no text or symbols present.

Technical line drawing of a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical lever or fulcrum (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Technical line drawings of robotic arm and mechanical device assembly (no text or symbols)

მენიმვნა:

Three technical line drawings of a robotic device with connected cables, no text or symbols present

Technical diagram showing a vehicle assembly with labeled parts and directional arrows indicating motion or assembly.

Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan,

Line drawing of a robotic vacuum cleaner cleaning a tiled floor (no text or symbols)

Line drawing of a precision tool interacting with a grid-patterned object (no text or symbols)

Line drawing of a robotic arm in a corner joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Mopping unit

Simple line drawing of a portable air conditioner unit with a handle and control panel (no text or symbols)

Diagram showing a container with wavy internal layers and two rectangular cutouts, with an arrow pointing downward (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with an upward arrow indicating force or movement (no text or symbols present)

Simple line drawing of a rectangular object with internal compartments and a textured base (no text or symbols)

Diagram of a boat hull with wavy bottom and rectangular side panels, no text or symbols present

∂θδη∂θ3δs:

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical process.

Technical diagram of a mechanical device with a cylindrical component and a base, showing internal structure and directional arrows (no text or symbols)

Illustration of household fixtures including a faucet, sun, 24-hour timer, and sink (no text or symbols)

aymugyng:

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of scissors cutting through a wavy pipe (no text or symbols)

Line drawing of a robotic device with a hand cleaning it (no text or symbols)

Illustration of a faucet pouring liquid into a coiled pipe with wavy lines underneath (no text or symbols)

Simple line drawings of a sun, a circular timer with '24 hrs' label, and a twisted cylindrical object (no text or symbols on objects)

Technical line drawing showing a mechanical component with a circular indicator and a hand holding a folded cable (no text or symbols present)

Illustration of a faucet pouring liquid into a pipe with a handle (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Line drawing of a room layout with furniture and a shower (no text or symbols)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Simple diagram showing a faucet pouring water into a container with two square wells, and a sun symbolizing sunlight (no text or labels)

odds funds may be a good deal with the following:

Technical line drawing of a mechanical piston assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges (no text or symbols)

Sulankstomas ilginamasis vamzdis

Technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a cable or wire being inserted into a terminal block (no text or symbols)

Pure technical line drawing of a device casing with no text or symbols

Technical line drawings of robotic arm components including a device, mechanical assembly, and support system (no text or labels)

Pastaba:

Three technical line drawings of electronic devices connected by wires, no text or symbols present

Technical line drawing of a robotic vacuum cleaner on tiled floor (no text or symbols)

Line drawing of a robotic arm interacting with a grid-patterned device (no text or symbols)

Technical line drawing of a robotic arm or sensor device mounted on a vertical support structure (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Simple line drawing of a device with a handle and control panel (no text or symbols)

Diagram of a curved object with wavy internal lines and two rectangular cutouts, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Simple line drawing of a rectangular object with internal compartments and a curved base, no text or symbols present.

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Pastaba:

Dèmesio!

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing showing a mechanical assembly with a hand cleaning a component (no text or symbols)

Illustration of a faucet pouring liquid into a coiled pipe (no text or symbols)

24 hrs

Technical line drawing showing a device with a circular button and a hand holding a mechanical component (no text or symbols)

Simple line drawing of a faucet pouring liquid into a bowl (no text or symbols)

Line drawing of scissors cutting through a coiled cable (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple diagram showing a faucet pouring water into a container with sunlight above (no text or symbols)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Techniniai duomenys

Technical line drawing of a mechanical component with no visible text or symbols

galvenais bloks

Technical line drawing of a mechanical assembly or clamp device (no text or symbols)

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges (no text or symbols)

Pure technical line drawing of a mechanical component (no text or symbols)

Simple line drawing of a cable and plug assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawings of robotic arm components, showing exploded and assembled views (no text or symbols)

Piezīme:

Three technical line drawings showing connected devices: a mobile phone, a small electronic device, and a cylindrical device with wiring (no text or symbols)

Line drawing of a robotic arm operating on a tiled floor (no text or symbols)

Illustration of a pipette dispensing liquid onto a grid-patterned surface (no text or symbols)

Line drawing of a robotic arm in a corner joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Mazgāšanas bloks

Simple line drawing of a kitchen appliance with faucet and door (no text or symbols)

Diagram showing a curved object with wavy internal lines and two rectangular cutouts, no text or symbols present.

Diagram of a vacuum cleaner's base with a downward arrow indicating motion (no text or symbols)

Line drawing of a vacuum cleaner on a base with an upward arrow indicating motion (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with internal compartments and an upward arrow, no text or symbols present.

Piezime:

Technical diagram illustrating the process of a hairdryer with labeled components and time indicators.

Uzmanību:

Technical diagram showing three-step assembly process with labeled components and directional arrows

Kopšana un apkope

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing showing a mechanical assembly with a hand holding a tool, no text or symbols present

Illustration of a faucet releasing water into a coiled pipe (no text or symbols)

24 hrs

Kopšana un apkope

Line drawing of a charging plug and its cable assembly, showing electrical connector and cable attachment (no text or symbols)

Illustration of a faucet pouring liquid into a bucket with a handle underneath (no text or symbols)

Line drawing of scissors cutting a coiled cable or wire (no text or symbols)

Line drawing of a room layout with furniture and a shower (no text or symbols)

Simple diagram showing a faucet spraying water with a sun above it, no text or symbols present.

1. Iznemiet no üdens tvertnes apakšdaļas mopa paliktni un skalojiet to ar üdeni.

Diagram of a curved structure with wavy internal lines and two rectangular cutouts, no text or symbols present.

Specifikācijas

LV

Technical line drawings of robotic arm and mechanical device assembly (no text or symbols)

Märkus.

Three technical line drawings of a device with connected cables, showing different connection points (no text or symbols present)

Technical line drawing of a robotic vacuum cleaner on tiled floor (no text or symbols)

Illustration of a robotic arm interacting with a grid-patterned device (no text or symbols visible)

Technical line drawing of a robotic arm joint (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Moppimisseade

Simple line drawing of a kitchen appliance with faucet and water drop (no text or symbols)

Diagram of a container with wavy internal layers and two rectangular cutouts, no text or symbols present

Mechanical assembly diagram showing a lever and base component with an arrow indicating downward motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Pure architectural line drawing of a building facade with windows and doors, no text or symbols present

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Märkus.

Diagram of a hand operating a machine with a magnified view showing a circular component (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of household fixtures including a faucet, sun, 24-hour timer, and cleaning cup (no text or symbols)

Tähelepanu!

Technical diagram of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows and a symbol indicating upward motion (no text or labels)

Hooldamine

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a hand cleaning it (no text or symbols)

Illustration of a faucet pouring liquid into a coiled hose (no text or symbols)

12 11 1 10 2 9 3 8 4 7 6 5 24 hrs

Hooldamine

Technical line drawing showing a mechanical component with a circular indicator and a hand holding a rolled-up cable (no text or symbols present)

Illustration of a faucet pouring liquid into a funnel (no text or symbols)

Line drawing of scissors cutting a coiled cable (no text or symbols)

Pure architectural line drawing of a building facade with windows and a curved roof (no text or symbols)

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts (no text or symbols)

Simple diagram showing a faucet pouring water into a container with a sun above (no text or symbols)

Technical line drawing of a mechanical piston assembly (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical mechanical component with mounting flanges and internal channels (no text or symbols)

Tub prelungitor pliabil

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a handheld electronic device with a coiled cable and connector (no text or symbols)

Simple line drawing of a rectangular object with internal compartments and a handle (no text or symbols)

Unitate de stergere cu mopulClip pen

Technical line drawings of robotic arm components including articulated arms and a cylindrical device (no text or symbols)

Observatie:

Three technical line drawings of electronic devices connected by wires, showing different connection setups (no text or symbols present)

Clic Clic

Line drawing of a robotic vacuum cleaner on tiled floor (no text or symbols)

Illustration of a robotic arm interacting with a grid-patterned device (no text or symbols visible)

Line drawing of a robotic arm positioned at the base of a corner (no text or symbols)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Line drawing of a kitchen appliance with faucet and control panel (no text or symbols)

Diagram showing a curved container with wavy internal layers and two rectangular cutouts, with an arrow pointing downward (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Diagram of a vacuum cleaner with a lever and mounting base, showing no text or symbols

Simple line drawing of a rectangular object with internal compartments and a curved base, no text or symbols present.

Simple line drawing of a boat hull with wavy bottom and two rectangular cutouts, no text or symbols present.

Observatie:

Technical diagram showing three-step assembly process with labeled arrows and component views

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing showing a mechanical assembly with a hand holding a tool, no text or symbols present

Illustration of a faucet pouring liquid into a coiled hose (no text or symbols)

24 hrs

Technical line drawing of a mechanical device with a circular button and a hand holding a tool (no text or symbols)

Line drawing of scissors cutting a cylindrical object (no text or symbols)

Illustration of a faucet pouring liquid into a container (no text or symbols)

24 hrs

Pure architectural line drawing of a room layout with walls and doors, no text or symbols present

Three-panel diagram showing a water tank, a sun, and a pipe with water flow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Električna glava čistačaGlavna je Dingianastavaknju 1

Technical line drawing of a vertical cylindrical mechanical component with mounting flanges and internal threading (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Električna glava za uklanjanje grinja

Protuklizna traka

Simple line drawing of a cable with a connector (no text or symbols)

Pure electrical circuit lines without any symbols

Jedinica za brisanjeKopča za pohr

Technical line drawings of a robotic arm assembly and maintenance process (no text or symbols)

Napomena:

Three technical line drawings of a device with connected cables, showing different connection points (no text or symbols present)

Technical line drawing of a robotic arm operating on a tiled floor (no text or symbols)

Line drawing of a robotic arm operating on a grid-patterned surface (no text or symbols)

Technical line drawing of a robotic arm or robotic device positioned at a corner joint (no text or symbols present)

Line drawing of a robotic arm operating on a textured surface (no text or symbols)

Jedinica za brisanje

1. Otvorite čep spremnika za vodu, dodajte prikladnu količinu čiste vode, zatvorite čep i zatim pričvrstite krpu za brisanje na donji dio spremnika za vodu.
2. Poravnajte spremnik za vodu s donjim dijelom električne glave čistača, a zatim je pričvrstite tako da spremnik za vodu dobro prianja.
3. Kada spremnik za vodu dođe u kontakt s tlom, voda u spremniku za vodu kapat će kroz rupu dozatora za vodu kako bi namočila krpu.
4. Nakon pokretanja usisavač počinje s čišćenjem koje obuhvaća usisavanje i brisanje.
5. Uklonite spremnik za vodu nakon upotrebe, otvorite čep spremnika za vodu, izlijte preostalu vodu, a zatim zatvorite čep.

Simple line drawing of a kitchen appliance with faucet and water drop (no text or symbols)

Diagram of a boat hull with wavy water layers and two rectangular cutouts, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Simple line drawing of a rectangular object with internal compartments and a curved arrow, no text or symbols present.

Diagram of a boat hull with wavy bottom surface and two rectangular cutouts, no text or symbols present

Napomena:

Technical diagram illustrating the assembly and manufacturing process of a washing machine, including components like pump, valve, and fan.

Pozor:

• Preporučuje se da pretinac za sakupljanje prašine obrišete ocijeđenom krpom barem jednom mjesečno.
• Preporučuje se da predfilter očistite svaka tri mjeseca, a komponente sustava ciklona svakih šest mjeseci.
• Radi vlastitog zdravlja preporučuje se da pretinac za sakupljanje prašine praznite nakon svake sesije usisavanja.

Montaža pretinca za sakupljanje prašine, filtra ulaznog zraka i sklopa odvajača ciklona

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Isperite valjak s četkom. Ako je prljav, isperite ga čistom vodom sve dok nije čist.

Illustration of a faucet releasing water into a coiled pipe (no text or symbols)

1. Ako se u valjak s četkom zapletu dlake ili materijali poput konaca, možete ih odrezati škarama. Obrišite prašinu s ureza i prozirnog poklopca suhom krpom ili maramicom. Potpuno ih obrišite prije upotrebe.

Technical line drawing showing a mechanical assembly with a hand cleaning a component (no text or symbols)

1. Valjak s četkom postavite u uspravan položaj i tako ga ostavite barem 24 sata dok se potpuno ne osuši.

24 hrs

Njega i održavanje

Čišćenje električne glave za uklanjanje grinja

1. Kovanicom ili sličnim predmetom okrećite bravu u smjeru suprotnom kazaljci na satu dok ne čujete „klik”, a zatim izvucite valjak s četkom.

Technical line drawing showing a mechanical device with a circular button and a hand holding a tool (no text or symbols present)

1. Kada je prljav, isperite valjak čistom vodom sve dok nije čist.

Simple line drawing of a faucet pouring liquid into a container (no text or symbols)

Line drawing of scissors cutting a coiled cable (no text or symbols)

1. Valjak postavite u uspravan položaj i tako ga ostavite barem 24 sata dok se potpuno ne osuši.

10 9 8 7 6 5 4 3 2 1 24 hrs 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Čišćenje jedinice za brisanje

1. Spremnik za vodu uklonite nakon upotrebe, otvorite čep spremnika za vodu i izlijte preostali otpad.

Simple line drawing of a room with furniture and a wall, no text or symbols present

1. Krpu za brisanje ostavite da se osuši nakon upotrebe.

Simple diagram showing a faucet pouring water into a container with sunlight above (no text or symbols)

Diagram of a curved structure with wavy internal lines and two rectangular cutouts, no text or symbols present.

Usisavač
Model V2517	Vrijeme punjenja Cca. 4,5 sati
Nazivna snaga 460	W Nazivni napon 25,9 V		—
Električna glava čistača
Model V2517
Nazivna snaga 15	W Nazivni napon 25,9 V		—
Baterijski paket
Model HC-21Y	1 Nazivni napon 25,9 V		—
Nazivni kapacitet 25	00 mAh Nazivni kapacitet 2500 mAh
Energija	64,75 Wh
Električna glava za uklanjanje grinja
Model V2517
Nazivna snaga 15	W Nazivni napon 25,9 V		—
Punjač
Model	CZH015310060EUWQ
Ulaz	100-240 V~50/60 Hz 0,5 A MAX
Izlaz	31 V—0,6 A

Litij ionski paket sadrži tvari koje su opasne za okoliš. Prije odlaganja usisavača u otpad, uklonite baterijski paket, zatim ga odbacite ili reciklirajte sukladno lokalnim zakonima i propisima zemlje ili regije u kojoj se upotrebljava.

Uređaj se mora odspojiti s napajanja kada se uklanja baterija. Baterije držite podalje od dohvata djece. Baterije nikada ne stavljajte u usta. Ako se proguta, obratite se liječniku ili lokalnoj službi za kontrolu otrova.
