USER MANUAL Aeroglass AF20 Pro MOVA

For more product information, please visit https://www.mova.tech/

The high-quality product is engineered for optimal performance.

If you have any questions on the product, please contact us:

https://global.mova-tech.com/pages/contact-us

EN User Manual 01
DE Benutzerhandbuch 13
FR Mode d'emploi 25
Manuale dell'utente 39
ES Manual de usuario 53
NL Gebruikershandleiding 67
EL Euyxεipidio xpnoTn 81
HE n/wnwnn 93

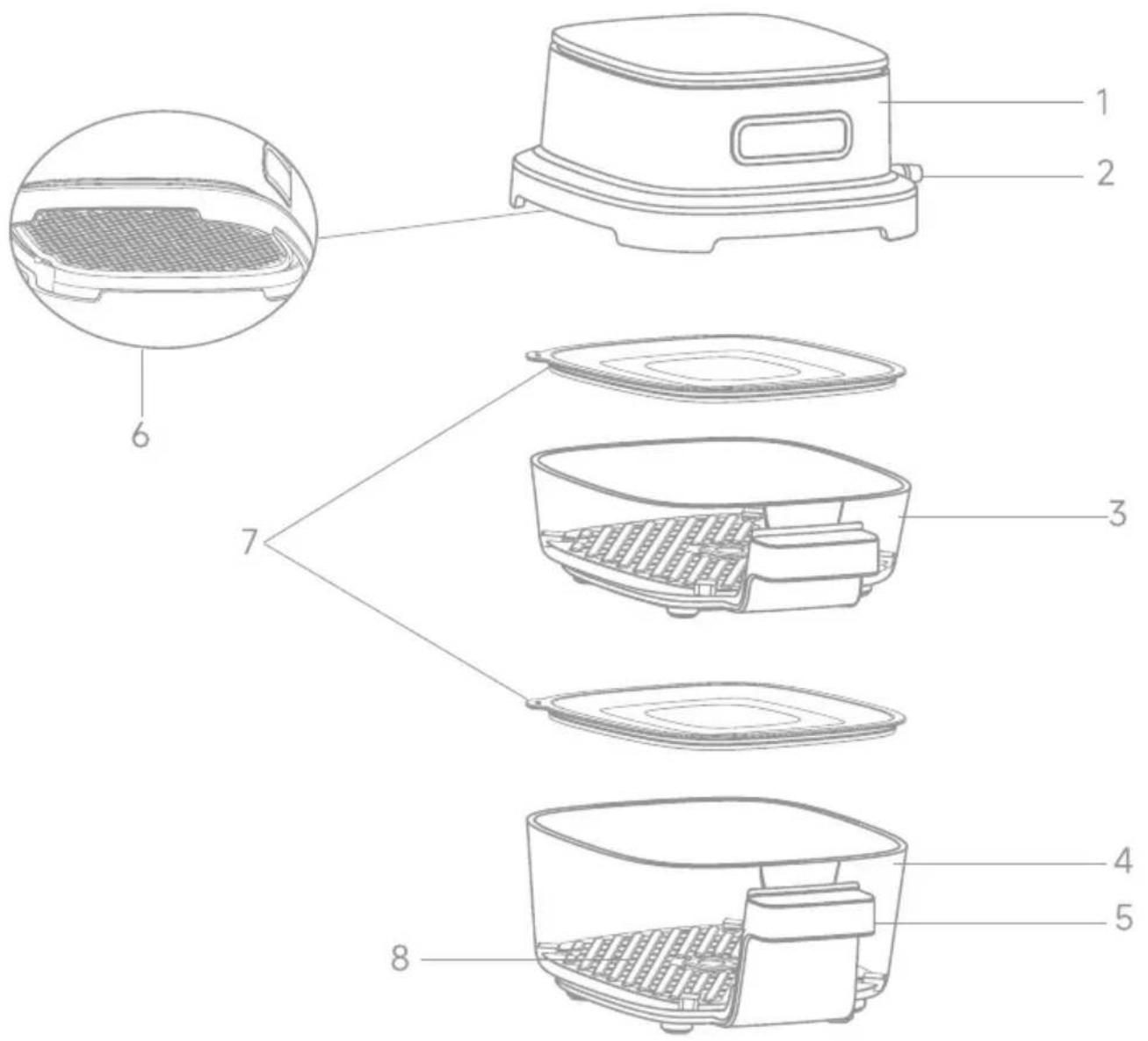

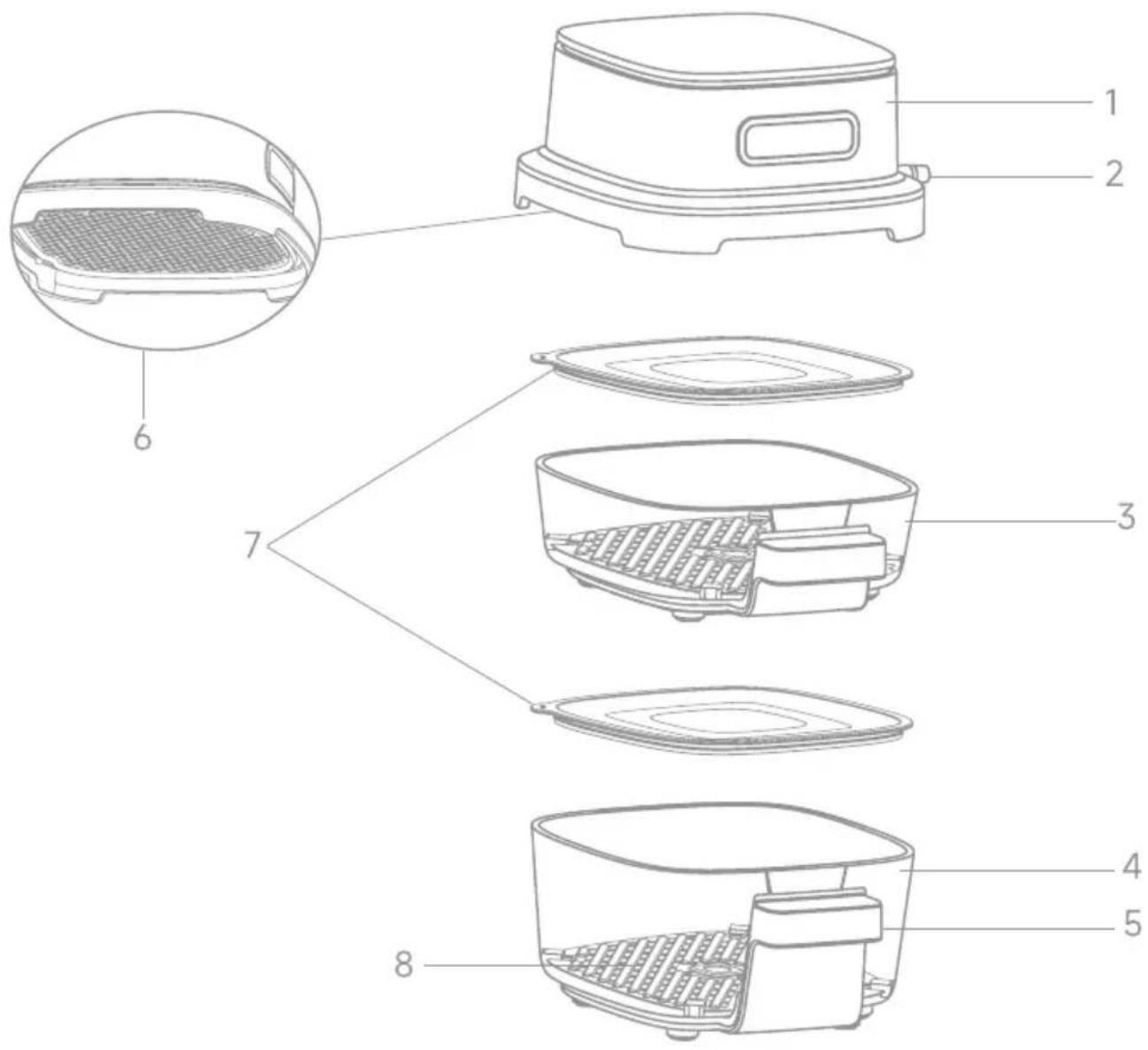

Accessories:

1. Brushless Crisp Pod
2. Power Cord
3. Small Glass Container

4. Large Glass Container

5. Handle

6. Protective Mesh
7. Container Lid
8. Grill Plate

Note:

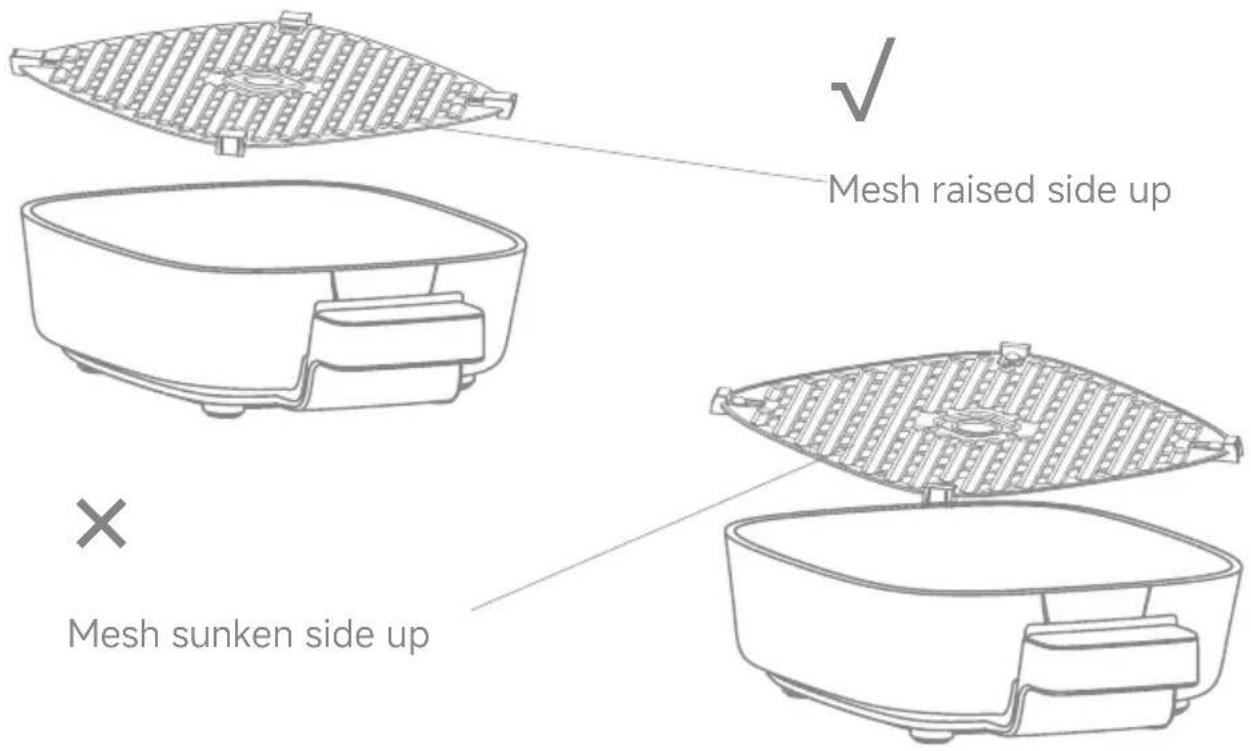

Correct Grill Plate Placement:

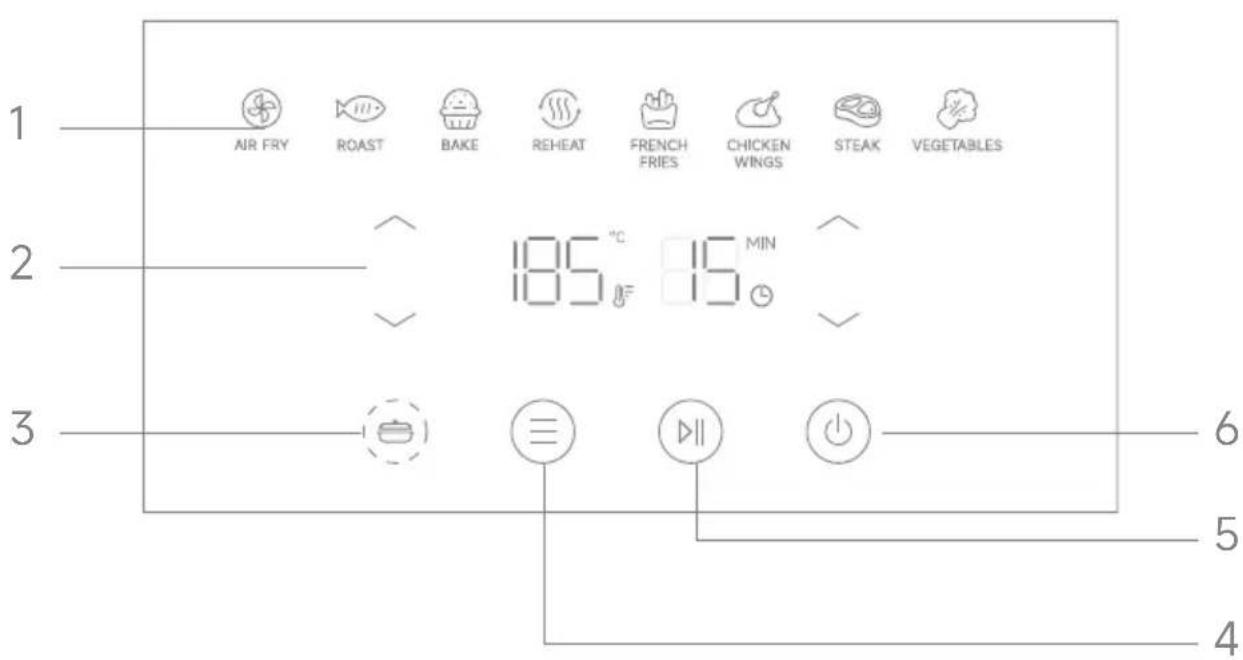

Control Panel Description

1. Symbols for preset menus
2. Temperature/time control button

3. Small pot button

4. Menu button

5. Start/Pause button
6. Power button

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Warning- To reduce the risk of fire, electric shock, or injury:

This product is for indoor use only.
- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- To avoid electric shock or fire due to short circuit, do not use the product if the power cord or plug is damaged or if the connection between the power outlet and the power plug is loose.
- If the power cord is damaged, it must be replaced by the manufacturer, its service department or similarly qualified persons to avoid a hazard.
- To avoid electric shock due to damage to the power cord and power plug, or fire due to short circuit, the following is strictly prohibited: Damaging it, altering it, exposing it to or near high heat, forcibly bending it, twisting it, pulling on it, hanging it on a corner, placing a heavy object on it, bundling it, pinching it, or dragging the power cord.
- Do not insert or unplug the power plug with wet hands. Always make sure hands are dry before handling the power plug or product.
- Do not lick the power plug.
- Do not pour water over the product, wash it directly with water, or immerse it in water (Not applicable to the glass container, grill plate).
- If water gets inside the product, Please contact after-sales service for maintenance.
- Do not alter, disassemble or repair the product by yourself For repairs, Please contact after-sales service for maintenance.
- To avoid causing burns, keep face, fingers and other parts of the body away from the exhaust port during use or just after use.
- Do not use the product for any purposes other than those described in the instruction manual.
- Mova will not be held responsible for conditions resulting from improper use or failure to follow the instruction manual.
- Do not move the product while cooking.
- Do not splash water or other liquids on the power plug.
- To avoid sharing power supply with other electrical appliances and causing a fire due to overheating, be sure to use an AC power socket with a specification of 220 V-240 V / 10 A on its own.
- Be sure to use a terminal strip of at least 10A .
- To avoid causing smoke, fire or electric shock, be sure to insert the power plug firmly all the way.

• To avoid the risk of electric shock due to failure or electric leakage, single-phase bipolar grounded power outlet should be used for this appliance to ensure reliable grounding. If grounding device is not installed, it may cause electrostatic induction of other metal parts such as housing.
• To prevent the power plug from being poorly insulated due to the accumulation of moisture and foreign objects, which may cause a fire, please clean the power plug regularly.
• Unplug the power plug and wipe it with a dry cloth.
• This product is not suitable for use by the following persons (including children): persons with reduced physical or mental abilities, or persons lacking experience and knowledge of use, unless they are supervised or instructed by a person responsible for their safety. Please be careful not to let children play with this product.
• Be sure to keep the product out of the reach of children.

• In case of abnormality or failure, please stop using it immediately and unplug the power plug.
  Abnormalities and examples of failure:

• The power plug and power cord are abnormally hot.

• The power cord is damaged or intermittent power loss occurs after the power cord is touched.
• The main body is deformed or abnormally heated.
• The main body emits smoke or burnt smell.

• The main body is cracked, loosened, or making abnormal noises.

• When cooking, there is no air coming from the exhaust port.

Please contact after-sales service for maintenance.

• To avoid causing burns or injuries due to overheating or malfunction, do not use anynon-exclusive or deformed glass container.
• To avoid electric shock, injury, burns, fire or causing discolouration, deformation, and damage to the furniture due to the heat discharged from the exhaust port, do not use this product in the following places:
• Near heat sources or in high humidity.
• On an uneven surface or non-heat-resistant mat.
• Near any walls or furniture.
• To prevent the glass container from falling out and damaging it, when moving the product, make sure that the glass container is firmly in place. Do not carry the product at an angle.
• Do not touch where the temperature is high during use or immediately after cooking. The main body has a high temperature. Especially the metal parts such as the exhaust port, glass container and protective grid.

Caution, hot surface!

• To avoid deforming the plug or causing a fire due to a short circuit, do not aim the exhaust port at the power plug.

When using this machine, it should be placed in an open area. If it is placed in a cabinet, please ensure that there is enough space for heat dissipation to avoid overheating and malfunctioning.

• Do not run the product with an empty glass container.

• It is recommended to perform a preheating for 10 minutes because a strange odor may be noticed upon first use. Some white smoke or odor may occur during the preheating process, which is a normal condition.

• To avoid malfunctioning or injuries, do not connect this product to an external timer or run it with an independent remote control system.

• To prevent the power cord from being too close to other objects which might damage it, please ensure that there is more than 8 cm of space around the product.

• To avoid causing electric shock, or fire due to short circuit, when unplugging the power plug, be sure to pull on the plug itself.

• To avoid causing burns, injuries, or electric shock, leakage, or fire due to insulation aging, always turn off and unplug the appliance when removing the glass container or when not in use.

• Please wait until the main body has cooled down sufficiently before cleaning it.

• When a power outage occurs during use, including when unplugging the power plug during cooking, the circuit breaker tripping, etc., and the power is on again within 10 minutes, the product will resume cooking. If it occurs in standby or menu mode, the product will return to being switched off after the power comes back on.

• This product is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

-farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

Take out the protective insert before operating the unit.

• Do not extend the power cord unnecessarily. Long or loose cords may pose a hazard or allow children to pull the appliance down, causing injury or damage.

How to Use

Before Use

• Remove all packing materials and stickers from the inside and outside of the air fryer.
• Gently wipe down exterior with a damp cloth or paper towel.
  WARNING: Do not use abrasive cleaning agents or scouring pads. Never immerse the air fryer or its plug in water or any other liquids.

Starting working

1. Place the air fryer on a stable, level, heat-resistant surface, away from areas that can be damaged by steam.
2. Place the grill plate inside the glass container, then position the container beneath the brushless crisp pod.
3. Connect the main plug to a home socket.
4. Definition of each state mode

4.1 Standby state

1. After powering on, all indicator lights and display light up for 1 second, and the buzzer beeps once before entering the standby mode.
2. During operation, long press the power button center standby mode
   3.In Standby Mode, only the power button light stays on; other lights are off and all buttons turn inactive.

4.2 Power-on Mode

1. Press the power button to turn on the device;
2. Before selecting a menu, default settings are 185^ and 15 minutes.

4.3 Working Mode

1. Select a cooking mode or manually set temperature and time, press the start/pause button, and the machine starts working.
2. During operation, only the selected cooking mode is shown; all other menu buttons turn off;
3. When remaining time is less than 1 minute, the display switches to a 60-second countdown (MIN icon turns off).

4.4 Pause Mode

1. During operation, press the Start/ Pause button to pause;
2. In pause mode, the digital display flashes, buttons do not flash, and both the heating element and fan stop working;
3. The device enters standby mode automatically if paused for 30 minutes without any operation.

Note: Modes can only be switched while in Pause mode. The timer will reset after switching.

4.5 Completion Mode

1. After cooking, the display shows "End" for 10 minutes unless the glass container is removed or the power button is pressed to return to standby.
2. At completion mode, the heating tube stops, and the fan cooling stops after a 60-second delay.
3. Once cooking is complete, the air fryer beeps, and "End"is shown on the digital display;

4.6 Pod Lift Mode

1. During operation, lifting the Brushless Crisp Pod pauses the cooking process.
2. Lowering the Brushless Crisp Pod resumes the previous cooking state.
3. If the pod is not placed back within 30 minutes, the appliance enters standby mode automatically.

4.7 Pod Placement Status

After the Brushless Crisp Pod is lifted and then placed back, the appliance returns to the previous state.

5. Specific function description

5.1 Button Functions

1. Except for the temperature and time adjustment buttons, which support long presses, all other buttons respond to a single press.
2. Temperature/time up/down buttons: short press is effective once, long press for 2 seconds supports continuous adjustment.
3. All button presses trigger a single beep.

5.2 Adjusting Time During Operation

After starting the cooking program, press the up/down buttons to change the cooking time. The time interval is 1 minute, and the time range is 1min to 60min.

5.3 Adjusting Temperature During Operation

After starting the cooking program, press the up/down buttons to change the cooking temperature. The temperature interval is 5^ , and the temperature range is 40^ to 185^

5.4 Pot Size Selection

Due to the different cooking temperatures and times required for the large and small glass containers, a large/small pot selection function has been implemented.

1. After powering on, the default

setting is large pot. Press the small pot button to switch to small pot.

1. During cooking setup, large/small pot can be switched at any time.
2. After starting work, the small pot button light turns off and becomes inactive.
3. When re-entering cooking setup state, the button lights up and allows selection.

5.5 Power-Off Delay Memory

If the power is disconnected and reconnected within 5 minutes, the system remembers the working mode and continues operation. If the power is off for more than 20 minutes, the memory fails, and upon restart, the machine will enter standby mode.

Care & Maintenance

Tips:

• Before cleaning, be sure to unplug the power plug and wait for the main body to cool.
• When cleaning, do not immerse the main body in water. Do not use lacquer thinner, gasoline, alcohol, cleaning powder, stiff brushes, etc. to clean.
• Do not put the power pod in the dishwasher or dryer.

• Casing exterior/Internal walls:

• Wipe with a wrung damp cloth.

• Glass container and grill plate:

• Wash with diluted dish soap and a sponge and water. Wipe any moisture off the exterior of the glass container.

• There are air channel holes in the top of the glass container. Water must not enter these air channels. Please drain the glass container promptly after cleaning if any water does enter the air channels.

• Container Lid:

Each glass bowl is equipped with a water- and dust-proof lid that is also dishwasher safe.
4. Regular inspection:
- Check it about once a month, if there is dirt, please clean it in a timely manner.

Cooking Tips

If the glass container is overfilled, food will cook unevenly.
- Adding a small amount of oil to food will make it crispier. Use no more than 2 tablespoons of oil.
- Oil sprays are excellent for applying small amounts of oil evenly to all food items.
Air frying high-fat foods will cause fat to drip to the bottom of the container. To avoid excess smoke while cooking, pour out fat drippings after cooking.
- Liquid-marinated foods create splatter and excess smoke. Pat these foods dry before air frying.

• Normally, the frozen food that is traditionally cooked in the oven can be air fried.
• Foods cook evenly when they are of similar size and thickness.
• Smaller pieces of food require less cooking time than larger pieces.
• For best results in the shortest amount of time, air fry food in small batches. Avoid stacking or layering when possible.
• Most prepackaged foods do not need to be tossed in oil before air frying. Most already contain oil and other ingredients that enhance browning and crispiness.
• Frozen appetizers air fry very well. For best results, arrange them on the tray in a single layer.
• If layering foods, be sure to shake the glass container halfway through (or flip food) to promote even cooking.
• Toss foods preparing from scratch, such as French fries or other vegetables, with a small amount of oil to promote browning and crispiness.
• When air frying fresh vegetables, make sure to pat them dry completely before tossing with oil and air frying to ensure maximum crispiness.
  Air fryers are great for reheating food, including pizza. To reheat the food, set the temperature to 150^ for up to 10 minutes.
• During the preheating phase of the Steak program, the corresponding menu indicator will flash. Once complete, beeps will sound and the indicator will remain steadily lit.

Note:

The default cooking time of the program can be adjusted as needed based on specific conditions.

Recipes

Preparation

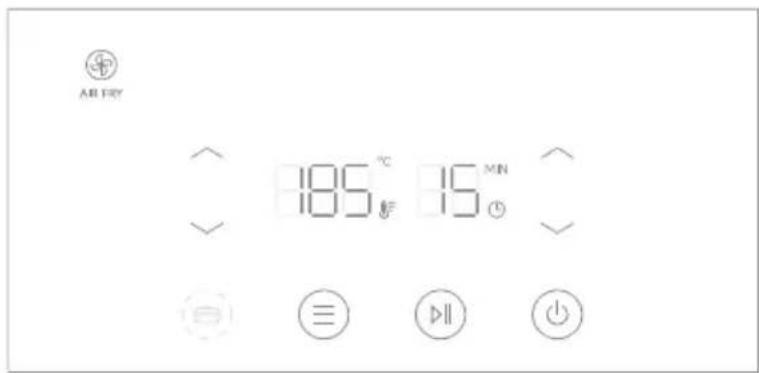

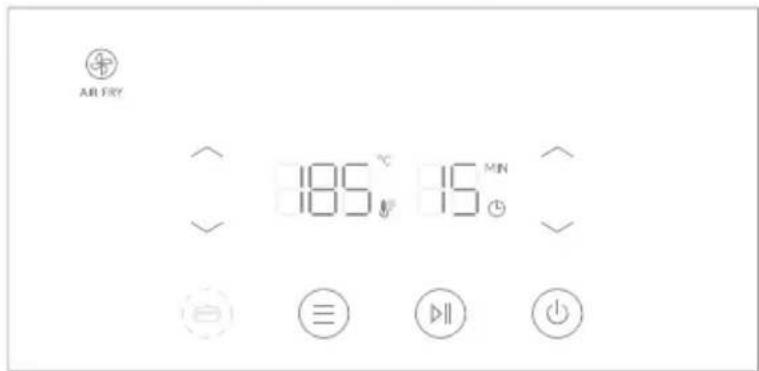

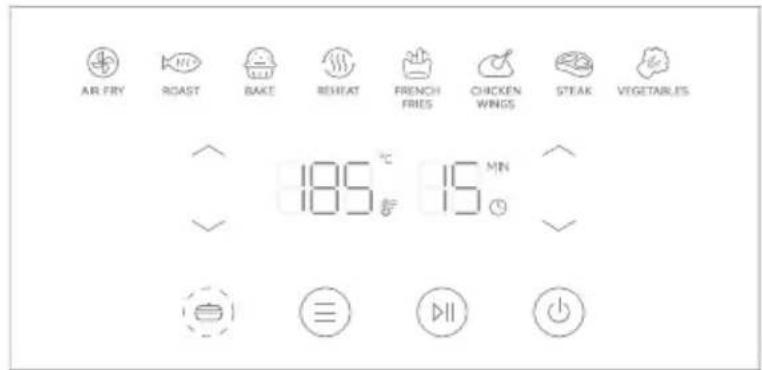

Working mode

1. Repeatedly press the menu button to manually select a menu; the selected menu flashes, unselected menus remain lit.
2. After selecting a menu, default time and temperature are displayed; manually adjust temperature/time then press start/pause to begin heating.

(During setting)

(Once operation starts)

Large Pot Menu Settings: (Temperature and time are tentative, subject to final measurement)

Menu	Default temperature	Temperature range	Default time	Time range	Fan Speed (rpm)	Recommended Solution
Air fry 160°C 40°C~200°C 14min				1-60min	3600 Crispy food
Roast 140°C	C	40°C~185°C15min 2400 8 pcs (300g~360g)	25min		2400-3600	Large cuts of meat
Bake 160°C 15min 2400 Baked goods
Reheat 185°C 10min 2600						Pizza(reduce cooking time for dough-based items)
French fries 150°C-185°C			min 3600		300g
Chicken Wings	160°C 15min		pcs (300g~360g)
Steak	preheat:185°C		3min		2400-3600	220g
	185°C		9min
Vegetables	130°C		8min		2400	Broccoli (350g)

Small Pot Menu Settings: (Temperature and time are tentative, subject to final measurement)

EN

Menu	Default temperature	Temperature range	Default time	Time range	Fan Speed (rpm)	Recommended Solution
Air fry 160°C 40°C~210°C 14min				400-36001-60min8 pcs (3	3600 Crispy food
Roast 160°C	40°C~185°C15min 28		23min 2		Large cuts of meat
Bake 160°C 13min 2400 Baked goods
Reheat 185°C 10min 2600						Pizza(reduce cooking time for dough-based items)
French fries 150°C-185°C			min 3600		250g
Chicken Wings	185°C 13min		00-3600		300g~360g)
Steak	Preheat: 185°C		3min		2400-3600	220g
	185°C		8min
Vegetables	150°C		8min		3000-3600	Broccoli (350g)
In Air fry mode, the temperature is adjustable up to 200°C (large pot) and 210°C (small pot).

Troubleshooting

The following is not a malfunction, please check before requesting repairs.

Problem	Cause	Solutions
No response when connected to power	The power plug is not inserted in place.	Plug it in again or find another outlet.
The motor does not turn or there is an abnormal sound.	There is foreign matter stuck to the fan blade or the suction port is blocked.	After power is switched off, check whether there are any foreign objects in the suction port and the inside of the main body. If there is still a fault, Please contact after-sales service for maintenance.
The see-through window is fogging or a small amount of water is leaking from the glass container below the see-through window.	The glass container is not fully drained after being cleaned and there is residual moisture in the air duct.	This is normal. Please use the product as usual.
Food is not cooking evenly.	The container is overcrowded or food is stacked.	Arrange food in a single layer and avoid overlapping. Shake the container halfway through cooking for loose ingredients like fries or vegetables.
Smoke is coming from the air fryer.	Cooking high-fat foods or residue from previous cooking.	Empty any fat drippings from the container between batches. Clean the heating element and fan area to remove food debris.
Food is too dry after cooking. Cooking time too long or insufficient oil.	Brush foods with a small amount of oil before cooking or reduce cooking temperature by 10-15°C.
Problem Cause Solutions
Fresh battered foods are not cooking properly.	Loose bread is being blown by the fan.
Display shows "End" but food isn't fully cooked.	Recipe requires longer cooking time than preset.
Screen went black suddenly. Unit entered standby mode after inactivity.	Press the power button to return the unit back on. The unit enters standby after 30 minutes of inactivity.
Air fryer beeps multiple times. Cooking completion reminders.	/
Screen went black suddenly. Unit entered standby mode after inactivity.	Press the power button to turn the unit back on. The unit enters standby after 30 minutes of inactivity.
Small/large pot button doesn't respond during cooking.	Pot size cannot be changed mid-cooking.
Food is stuck to the container and difficult to clean.	Food residue has dried on non-stick surface.
Door opened during cooking and air fryer doesn't resume.	Door not properly closed or power interruption.
Need to preheat the air fryer. For optimal crispiness, especially with frozen foods.	While not required, preheating for 3-5 minutes is recommended for best results with most recipes.
Not sure when to use the grill plate.	Different cooking needs require different accessories.
If one of the error codes from E1 to E3 appears on the display screen, please contact the after-sales service team.

Specifications

EN

Air fryer
Model AF20 Pro	Rated Power 1700W
Glass container Capacity	2.5L/4.0L Rated	Input	220-240 V~50-60 Hz

Energy Consumption and Power Management Information

Power Consumption in Off Mode: ≤slant 0.3W
Power Management Function: 10 minutes

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

DE Produktübersicht

Zubehör:

Attention, surface chaude!

n nn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn

on now, nnn

HE

.

.

·

HE

DINXN .NIN NIN INN OIN ,NIN WONWINWYN .NNNN YPN .NIPNI NINNNN YIN DIN NIN NIN DIPN PSON WNTI W,INX

yin n ,nix |iyiyiyipn" ,dpinn nn nn .

nynny pinn noyn

.8-n nnn

.

Xn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

yinnn nnnn n 10 n nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

n nn nnnn nn nnnn nn nnnn nn nnnn nn - nnnn nn

ninn nn nni 1nnnipy -

.

.

N 为切线

ypn p

T

.11P]

-

：

.

1N

nyn 4.3

y 1

biyin xin paxin,biyin nn 2

;

nTTNINNINNNWJINN.3

yINXnNnOy nnn,NNX (nMIN-n) 60

nynyn 4.4

yinbuiyiyiynnnn.1

nynnnnnnn

n'017n nnn, n"nn 2

n, nnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

1111111111111111.3

npt 30 nn nwin IN ONUNIN

n#

yynn nn nnn nn nn nn nn

nnwn 4.5

"End" 1000,1

nynbnynn nynynn in 101

nnnn

,1y5p0n nn nnn 2

nynnnn nniy npnnnn

60

11n70,wnnnnyn.3

"U"n y "End"-1,

npt20,pi57nnxyniun.4

10ynnnynnn 2 ny npt 60-1

.

wnwnn

HE

wnnn

ywnnnn nn nnnn

.71XJ1

7

-

1

IN D.

NNN NJONN

.

nTaynnnn

y

pnn, DnN Tnyy, Nyn

.

nnonnnnnnnn.2

nnnnn nn np nnn

n nn nnn

.3

1777777777.4

nnn 4.1

nnn nn n,nynn nn 1

nnn nn nnnn

n nn nnnn

nann

non nn yinb yniyn nn.2

ynnn

nann

yinnn nn nnnn nn.3

y

DyN DIn Dn

nyon 4.2

nybn nybyn nnn yinb w.1

7

nTTANNN,07N 195.2

15°C185 nnnn

5.4

y

nbn nboon ny dn

n nn nnnn nnnn nnnn nnnn

.0DOP/D17

yannnnn nn nnn,nynnnnn 1

on yinb yin b.

1.107 107

nnn n nn nn 2

y 10p/17n

n n, nyn nn.3

n

y 4

nnaa

nniin 5.5

bnn nn nn nn nn nn nn nn nn nn

nnnn nn nn nn nnnn nn, poon

yynnnn nn

.

:nnyn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnn

npiinni bio

D'DU

bnnnynn np n p 1p n

.

yannnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

，nwnwn

nniipinian,ip npax,binibx

1

n nn nn nn nn nn nn

.

:ngynn yD/011n .1

nuiinai nniunnnn

:nnn2

AIO, DIOIIOOIOIO

yixinnipnnn nni

n

bnnn nn nnnnnnnnnnnnnnn

INNNTNNTNNTNNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNT

INX 10000

Tn nnn nn pnn

1

:nnn.3

DUN NOON TINN N

nna nnuu 1

.

:nnn n4

ON.

1.1

，n

TNNN|INnBwn|inn

imn nnu nu np nnoin

wnnnn nn nnnnn

2-n

nnnnnnnnnnnnnnnnnnn

y nnnn nn nnnn

.

y nnnn nn nnnn nn nnnn nn

y. bnn nnnn nn

1

D

n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

N 11111111111111

ynn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

（
(ynnnnnnnnny)

n910 nTn7n 1900,0n nn nnnnna:

הכלה (הכלה)	הכלה (הכלה)	הכלה (הכלה)	הכלה (הכלה)	הכלה (הכלה)	הכלה (הכלה)
​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
10 185°C 40°C~185°C
2600 Np 10 185°C 40°C~185°C
15150°C-185°C 40°C~185°C
2800-3600 Np 13 185°C 40°C~185°C
2400-3600 Np 3 185°C 40°C~185°C
3000-3600 Np 8 150°C 40°C~185°C
(100°C) 210°C (100°C) 200°C TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TVON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TVon TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV-on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV-on TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV ON TV.on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV.on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV On TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV on TV On TV ON TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV On TV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONTV ONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONVONV

nipn nn

iipn npn pnn n nn n

W3.0:1nwn n 1npt 01:wnn nn n

WEEE yTn

WEE) nupn nn n no dn no dn no dn no 100 (EU/2012/19
n nn n nn n nn n nn n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
