USER MANUAL G70 Complete MOVA

Cordless Stick Vacuum G70

User Manual

EN User Manual 1
FR Manuel d'utilisation 16
DE Benutzerhandbuch 31
IT Manuale utente 47
ES Manual de usuario 62
PT Manual do utilizador 77
PL Instrukcja Obstugi 92
SV Användarmanual 107
Brukerhåndbok 122
AR دليل المستخدم 137
HE 152
TR Kullanıcı Kılavuzu 167
NL Gebruiksaanwijzing 182
EL Εγχειρίδιο χρήστη 197
คู่มือการใช้งาน 212
VI Huống Dẫn Sử Dụng 227
Panduan Pengguna 242
HU Használati útmutató 257
UK Посібник користувача 272
∂m∂b∂s∂m∂g∂m∂n∂ι υσβμ∂dΩ3sβμπm 287
İstifadəçi təlimatı 302
Korisnički priručnik 317

Safety Information

To prevent accidents including electric shock or fire caused by improper use, please read this manual carefully before use and retain it for future reference.

Warning

• This product can be used by children aged from 8 years and above and persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risk of hazards. Cleaning and maintenance shall not be carried out by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The vacuum is not a toy. Children shall not play with or operate this product. Please exercise caution when using the vacuum near children. Do not allow children to clean or maintain the vacuum unless supervised by a parent or guardian.
• Do not use the vacuum outdoors or on wet surfaces. Only use the vacuum on dry indoor surfaces. Do not touch the plug or any part of the vacuum with wet hands.
• To reduce the risk of fire, explosion, or injury, make sure that the lithium battery and charging adapter are undamaged before use. Do not use the vacuum if either the lithium battery or charger is damaged.
• The brushes, battery, extension rod and vacuum are electrically conductive and should not be immersed in water or other liquid. Make sure to dry all filters after cleaning.
• To prevent injury caused by moving parts, turn off the vacuum before cleaning them. These parts must all be properly installed before using the vacuum.
• Only use the original charging adapter. Never use an unoriginal adapter, as this may cause the lithium battery to catch fire.
• Do not use the vacuum to pick up flammable or combustible liquids, such as gasoline, or bleach, ammonia, drain cleaners or other liquids.
• Do not use the vacuum to pick up sharp or hard objects, such as glass, nails, screws, or coins, which may damage the machine. Do not use the vacuum to pick up drywall particles, ashes like fireplace ash, or smoking or burning materials such as coal, cigarette butts or matches.
• Check the area to be cleaned before use. To prevent the openings from being blocked, clear the larger paper, spitball, plastic cloth or sharp objects (such as glass, nails, screws, coins, etc.) and any object which is larger than openings.
• Keep hair, loose clothing, fingers and other parts of the body away from the vacuum's openings and moving parts. Do not point the hose, wand or tools at your eyes or ears or put them in your mouth.

• Do not put any object into the vacuum's openings. Do not use the vacuum with any opening blocked. Keep free of dust, lint, hair, or other items which may reduce airflow.

• Do not lean the vacuum against a chair, table, or other unstable surface, as this may cause damage to the machine or personal injury. If the vacuum becomes damaged or is otherwise malfunctioning, please contact our authorized service department. Never attempt to disassemble the device on your own.

• All instructions in the manual for recharging the battery must be strictly followed. Failure to properly charge the battery within the specified temperature range could damage the battery.
• Only use accessories and replacement parts recommended by the manufacturer.
• Make sure the vacuum is unplugged when not used for extended periods as well as prior to performing any maintenance or repairs.
• Please be extra careful when using the vacuum to clean stairs.
• Do not install, charge, or use this product outdoors, in bathrooms, or around a pool.
• Fire Hazard Warning: Do not apply any type of fragrance to the vacuum's filter. These types of products are known to contain flammable chemicals which may cause the vacuum to catch fire.
• Only use the original charger (ZD024M340090EU). Failing to do so may cause the lithium-ion battery to catch fire.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• Do not use non-rechargeable batteries.
• Only use the approved battery type (GB-P70-B). Failing to do so may cause the lithium-ion battery to catch fire.
• If the battery material is released, remove personnel from area until the batteries cool down and fumes dissipate.
• Provide maximum ventilation to clear out hazardous gases and avoid skin and eye contact or inhalation of vapors.
• Remove spilled liquid with absorbent and incinerate waste.
• Do not use and store in extremely hot or cold environments (below 5°C/41°F or above 38°C/100.4°F). Please charge the cordless vacuum in temperature above 5°C/41°F and below 38°C/100.4°F.
  • This product is designed for home use only.
• The supply terminals are not to be short-circuited.

Read operator's manual

Detachable supply unit

For indoor use only

We, XingKuang Innovation Technology (Suzhou) Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: https://www.mova.tech

For detailed e-manual, please go to https://www.mova.tech/pages/user-manuals-and-faqs

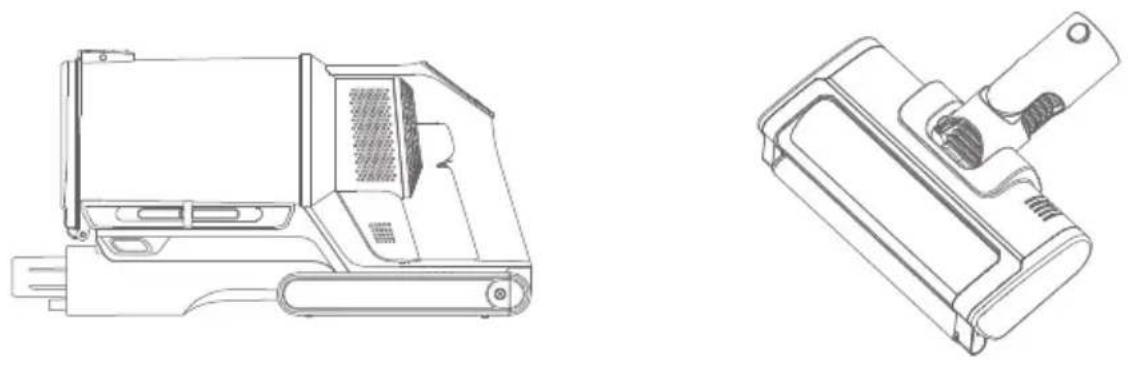

Product Overview

Accessories

Vacuum Body Multi-Surface Twin Brush

Technical line drawing of a mechanical component with a clip and mounting holes (no text or symbols)

Technical line drawing of a vertical cylindrical component with flanges and a central hub (no text or symbols)

Crevice Tool Combination Tool Motorized Brush Telescopic Wand

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Pure mechanical diagram showing a lever and three supports (no text or symbols)

Wall Mount Attachment Holders Charger

Note: The illustrations in this manual are indicative only. The actual product may differ.

Installation

Installing the Accessories

1

click

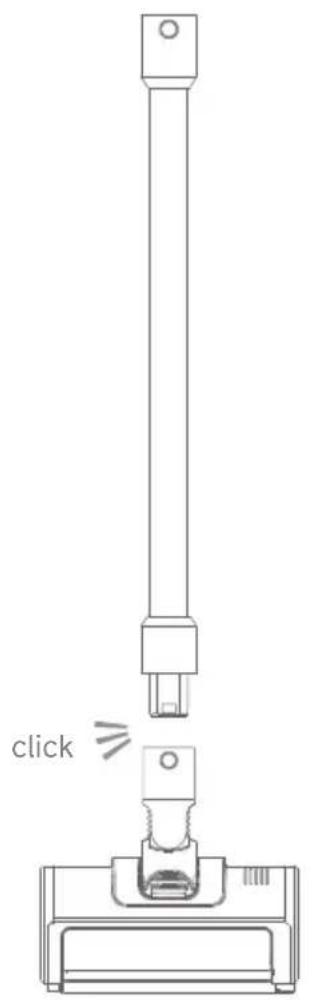

1. Insert the telescopic wand into the brush, pushing until you hear a "click."

2

click click

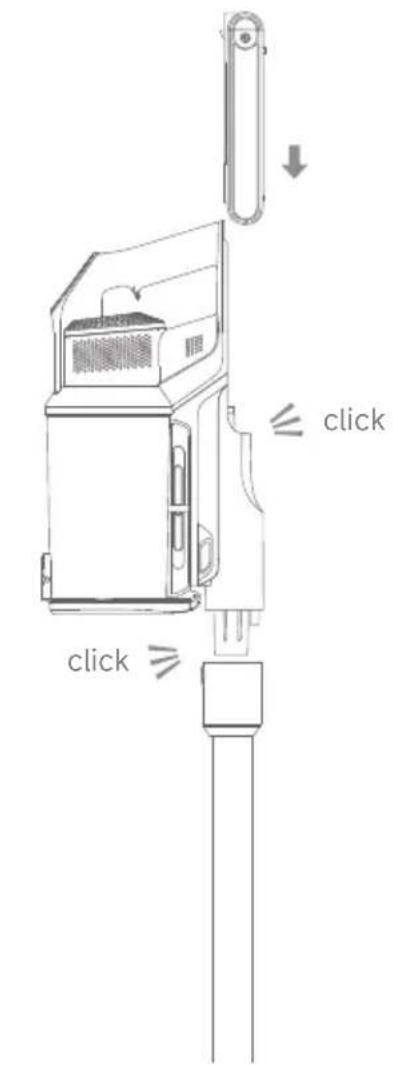

1. Insert the battery pack into the vacuum cleaner body, then insert the body into the top of the telescopic wand, pushing until you hear a "click."

Note:

Always turn off the power before assembly or disassembly!

Make sure all components are fully connected and securely in place before operation.

Installation

Installing the Accessories

click

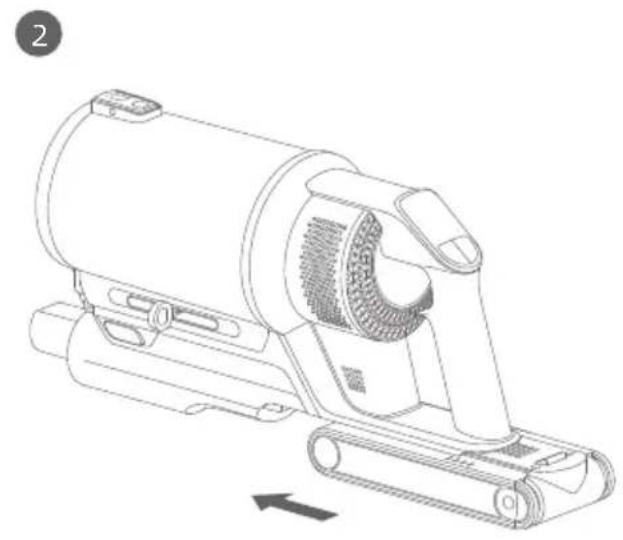

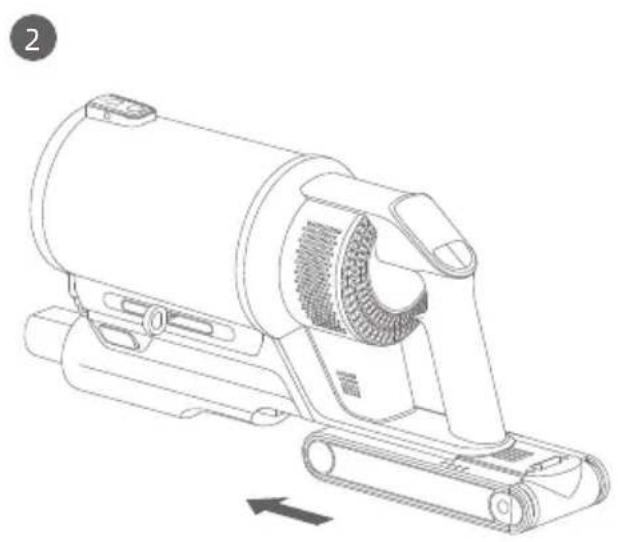

- Insert the vacuum body into the accessory, pushing until you hear a "click."

Installation

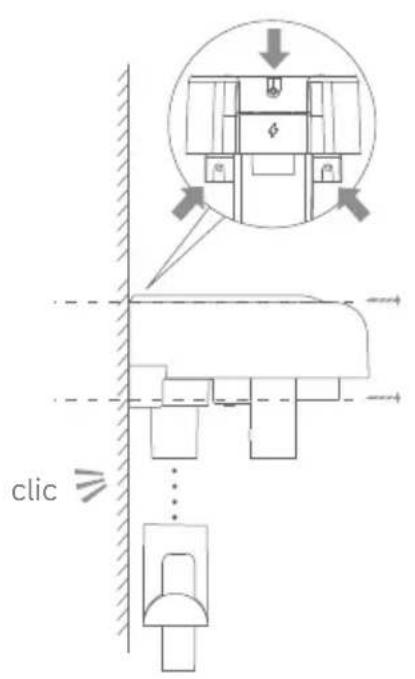

Installing the Wall Mount

1

click

1. Determine the location of the wall mount based on the size of the vacuum cleaner. Use the expansion screws to attach the wall mount to the wall, and insert the attachment holders into the bottom of the wall mount.

2

click

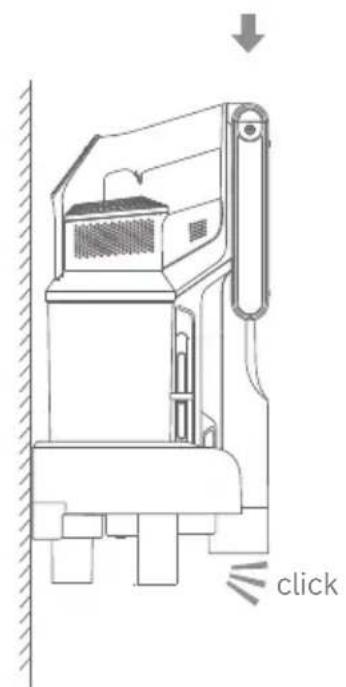

1. Align the vacuum cleaner with the wall mount, inserting it vertically into the slot until you hear a "click."

Charging Methods

1

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

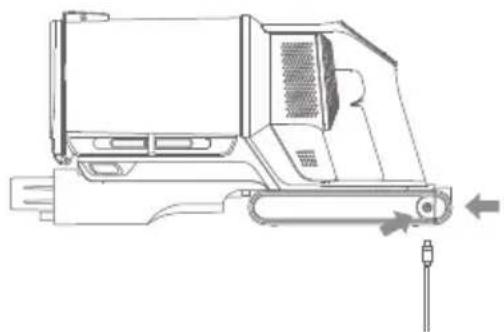

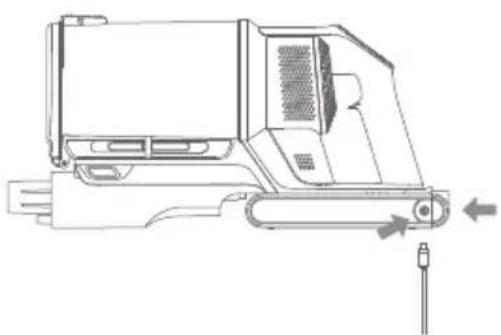

1. Press the release button on the battery pack and pull down to remove the battery. Insert the charger into the charging port on the battery to charge. (The vacuum cleaner can also be charged without removing the battery.)

2

Technical line drawing of a mechanical device with no visible text or symbols

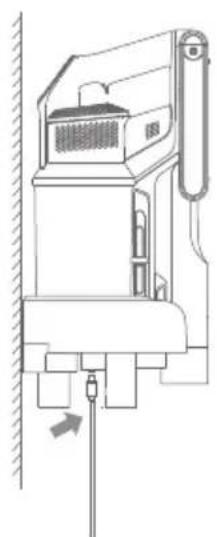

1. Insert the charger into the charging port at the bottom of the wall mount to charge.

How to Use

Getting Started

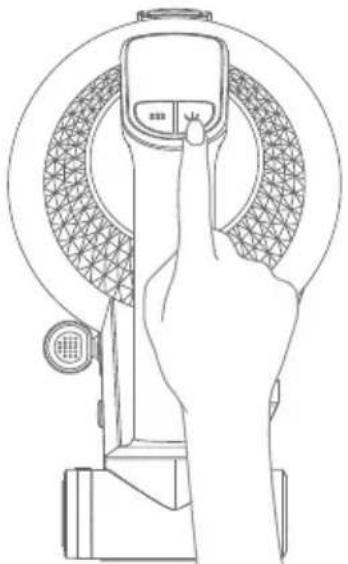

Press to turn on/off the appliance.

Press : to switch among Auto, Low,

Medium and High Mode.

Note: Make sure the battery is fully charged and properly installed before first use.

Make sure the dust cup and HEPA filter are clean and correctly in place.

Line drawing of a hand holding a handheld device with a circular ring and textured pattern (no text or symbols)

Display Screen

- Press the "Mode" button briefly to switch modes

The vacuum cleaner has 4 modes: AUTO (Automatic) Mode; Low mode; Medium mode; High mode.

Auto (Automatic) Mode Low Mode Medium Mode High Mode

Note: In any of the low, medium, or high modes, hold the "Mode" button for 2 seconds to enter AUTO mode.

• Dust alarm and HEPA filter cleaning display

After the animation is displayed alternately in a loop for three times, the shutdown screen is shown and the vacuum cleaner stops working.

Note: When this alert is displayed, please check and clean the dust cup and the HEPA filter in a timely manner to avoid affecting the normal operation.

- Brush roller blockage/High and low temperature alarm

The animation flashes for 5 seconds, then the shutdown screen is displayed and the vacuum cleaner stops working.

Rolling Brush Stuck High-temperature Alert Low-temperature Alert

Note: When these alerts are displayed, please check the vacuum cleaner, and remove any foreign objects promptly. After high or low-temperature alerts, please wait until the temperature returns to normal before continuing use to avoid affecting the normal operation.

How to Use

- Low Battery Display

A low battery alert will be shown when the battery capacity is between 9% and 5%, and when the battery capacity is between 4% and 0%, and the vacuum cleaner will shut down when the capacity reaches 0%.

Low Battery Alert

Note: When this alert is displayed, please check and charge the battery promptly to avoid affecting the normal operation. Under normal use, if the battery capacity falls below 10% and the vacuum cleaner shuts down, it cannot be turned on and must be charged before using.

- Charging Display

During charging, an icon 📂 all display, along with the battery percentage. If there are no operations for 10 minutes after the battery is fully charged, the display screen will turn off.

Note: After the battery is fully charged, please unplug the power cord promptly to avoid overcharging, which could affect the normal operation.

- Accessory Abnormality Protection

When the vacuum cleaner is on, if accessories are installed/uninstalled or not properly installed/detached, an alternating animation will display. If not addressed within 3 seconds, the shutdown screen will show, and the vacuum cleaner will stop working.

Note: After the vacuum cleaner has abnormal protection, please check the vacuum cleaner in a timely manner to avoid affecting the normal operation.

- The following three situations will trigger the alarm display:

1. The dust cup is not installed correctly.
2. The dust cup scraper has not been reset.
3. The HEPA filter is not installed correctly.

After flashing the display animation five times,

the shutdown screen will be shown and the vacuum cleaner will stop working.

Note: After the alarm is displayed, please check the vacuum cleaner in time to ensure that the dust cup and the HEPA filter are properly installed and the handle has been reset to avoid affecting normal operation.

Care & Maintenance

Cleaning the Dust Cup

1

Technical line drawing of a mechanical device with no visible text or symbols

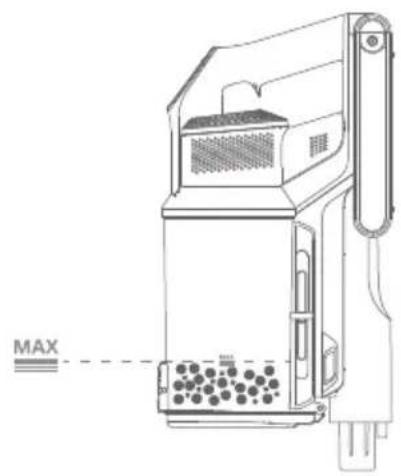

1. If the total amount of dust reaches the MAX line, or the full-dust alert pops up, be sure to clean the dust cup promptly.

2

Technical line drawing of a mechanical device with no visible text or symbols

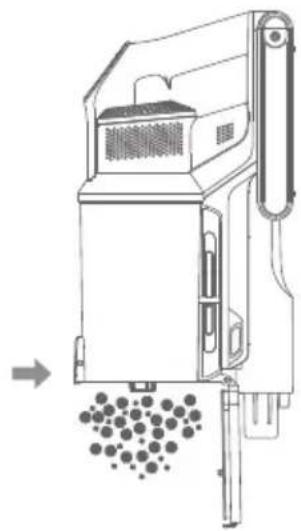

1. When cleaning the dust from the dust cup and the steel mesh, move the dust scraper back and forth. After cleaning, reset the scraper.

3

Technical line drawing of a mechanical device with internal components and a pile of circular particles (no text or symbols)

1. Press the metal tube release button, remove the vacuum cleaner body and place it in a dust disposal area, then press the dust cup bottom cover release button.

4

Technical line drawing of a mechanical device with a left-pointing arrow indicating direction (no text or symbols present)

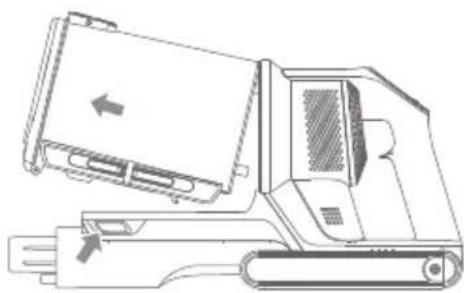

1. Press the dust cup release button and remove the dust cup diagonally upwards.

Technical line drawing of a mechanical device with an inset showing a hand inserting a clip into a clip (no text or symbols present)

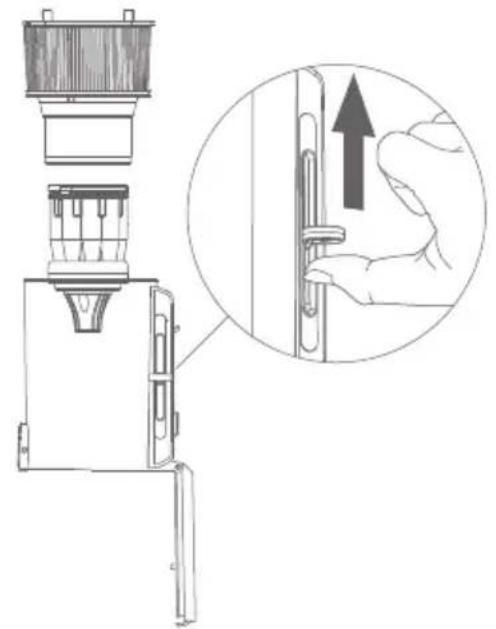

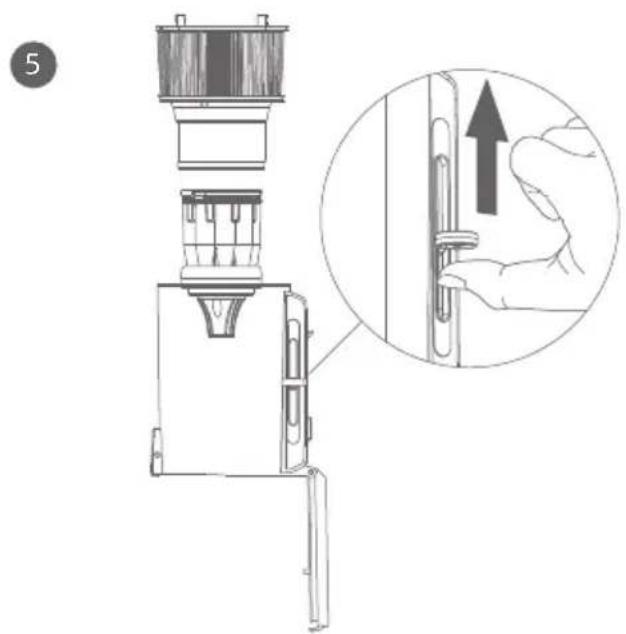

1. Push the dust scraper to the top, pull out the cyclone cone and rinse it with clean water.

Diagram of a device with a rotating arrow and an upward arrow, no text or symbols present

1. Rotate the filter counterclockwise and lift it up. After taking it out, clean the attached litter, hair and etc.

Note:

The HEPA filter can only be cleaned with water. Do not use soap or other chemical cleaners. The dust cup, cyclone cone and HEPA filter must be dried before use. It is recommended to replace the HEPA filter every six months to maintain the vacuum cleaner's optimal performance. Make sure to perform these operations with the power off!

Care & Maintenance

Battery Pack

The vacuum contains a removable rechargeable lithium-ion battery pack which has a limited number of recharge cycles. After extended use, the battery pack may no longer hold a charge. If this happens, it means the battery pack has reached the end of its life cycle and needs to be replaced.

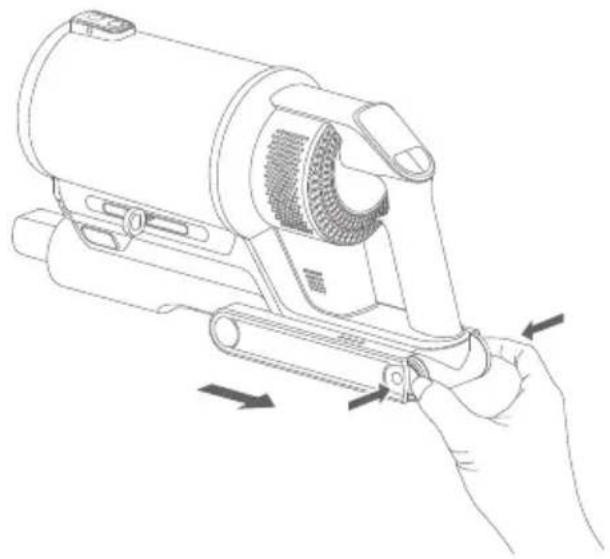

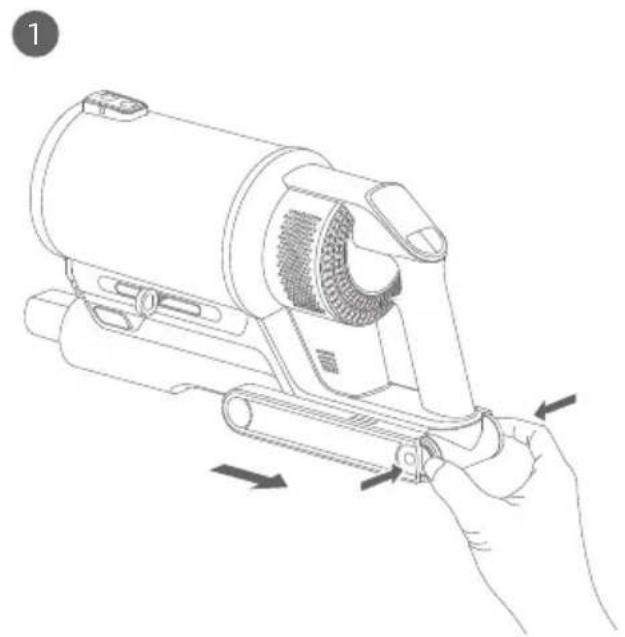

1. Press down the battery pack release button and slide the battery pack as illustrated to remove it.

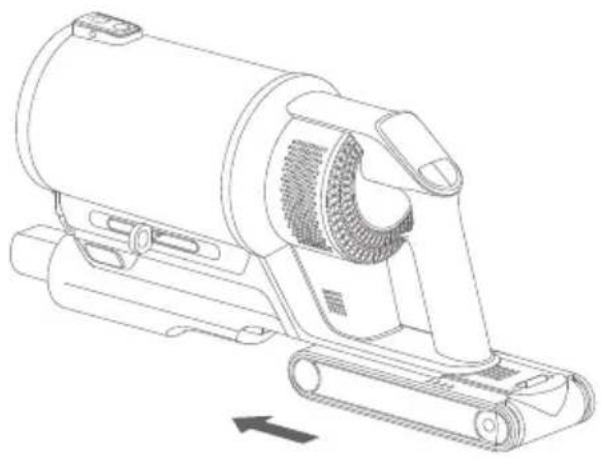

2. Install the new battery pack.

Line drawing of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

How to Handle Leaking Batteries

1. Remove the Battery: If you notice any signs of leakage, such as a foul odor, hissing sound, or visible damage, immediately remove the battery from the product.
2. Avoid Direct Contact: Do not handle leaking batteries with bare hands. Use gloves or other protective materials to prevent skin irritation.
3. Ensure Ventilation: Move the battery to a well-ventilated area to avoid inhaling any fumes released from the leakage.
4. Isolate the Battery: Place the leaking battery in a non-flammable container to eliminate any risk of combustion.
5. Do Not Dispose as Regular Trash: Lithium batteries are classified as hazardous waste and should not be discarded with everyday household garbage.

Care & Maintenance

Cleaning the Multi-Surface Twin Brush

Line drawing of a mechanical device with a handle and base, showing an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols)

Line drawing of a hand pressing down on a device component (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a person washing a bed with a faucet above, no text or symbols present

Simple line drawing of a bed with sun symbol above (no text or labels)

- Turn off the vacuum cleaner. Press the brush roller release button, rotate it clockwise to remove the brush roller. Wipe the brush with a soft dry cloth. If hair is wound around the roller, carefully remove it. Clean the roller with water.

Note: Do not wash the brush with water or soak it. Make sure to dry the roller completely before installing it for use. Make sure to perform these operations with the power off!

Tips

• Always use genuine parts to keep your warranty from being void.
- Always ensure the power is turned off and the battery removed before performing any maintenance or cleaning tasks.
- If the dust in the vacuum cleaner's dust cup reaches the MAX line or a full-dust alert is indicated, empty the dust cup promptly.
- It's recommended to check the HEPA filter once a month and replace it every six months.
• After use, store the vacuum cleaner and its components in their proper places to prevent them from being lost or damaged.
- If the vacuum cleaner is not going to be used for an extended period, fully charge the battery, unplug the power adapter, and store it in a cool, dry place. Do not leave it in direct sunlight or in a damp environment. To avoid battery over-discharge, charge it at least once every three months.

If the vacuum is not working properly, please refer to the table below. If the problem persists, please contact the after-sales service for maintenance.

Errors Solutions
Weak or No Suction	Check if any part of the vacuum cleaner, including tubes, is blocked.
	Clean the dust cup and the HEPA filter.
Unusual Noise	Check if any hard or sharp objects have been sucked into or are stuck in the dust cup or brush.
Vacuum Cleaner Not Working After Power On	Check if the vacuum cleaner's battery is sufficiently charged; charge it in a timely manner if needed.
	Check for any abnormal alerts on the display screen.
The Brush Does Not Rotate	Immediately turn off the power and check for blockages. Check if the brush's front light is on;
	If it's off, there might be a connection issue with the components.

Specifications

Vacuum Cleaner
Model V2583	Rated Power 720W
Charging Voltage 3	4 V Rated Voltage 29.6 V				---
Rated Capacity 25	00 mAh
	Off Mode (Vacuum Cleaner)	Standby Mode (Vacuum Cleaner)		Off Mode (Vacuum Cleaner+Charger)	Standby Mode (Vacuum Cleaner+Charger)
Power Consumption	< 0.5 W
Time to Enter the Condition	< 5 min
Charging Time 3.5	hours
Multi-Surface Twin Brush
Model VMBAA
Rated Power 20	W Rated Voltage 29.6 V				---
Motorized Brush
Model VMMAA
Rated Power 10 W	Rated Voltage 29.6 V				---
Charger
Model ZD024	M340090EU
Input	100-240 V ~ 50/60 Hz		Output		34 V --- 0.9 A
Average Active Efficiency	≥ 87.01%		Efficiency at Low Load (10%)		≥ 77.01%
No-load Power Consumption			0.1 W
Rechargeable Li-ion Battery
Model GB-P70-B Net Weight 550 g
Nominal Voltage	29.6 V---
Energy	74 Wh		Rated Capacity		2500 mAh

The lithium-ion pack contains substances that are hazardous to the environment. Before disposing of the vacuum, please remove the battery pack, then discard or recycle it in accordance with local laws and regulations of the country or region it is used in.

The appliance must be disconnected from the power supply when removing the battery. Keep batteries out of the reach of children. Never put batteries in mouth. If swallowed, contact your physician or local poison control.

Under abusive conditions, never contact the battery from which the liquid may be ejected. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.

Warranty

1. MOVA is liable to the consumer for any lack of conformity in material or workmanship not detectable at the time of the purchase.
2. Warranty period: please refer to the customer service office for more information. If the territory where the consumer is located has different regulations, local regulations prevail.
3. The warranty will not be applicable in the following cases:

a. Issues due to carelessness, use, or installation that does not comply with the instructions provided by MOVA.
b. Tampering and/or modifications of the product by entities or individuals not expressly authorized by MOVA.
c. Damage due to accidental causes and/or negligence on the part of the consumer, with particular reference to external parts.
d. Parts subject to wear that do not have manufacturing defects.
e. No valid purchasing document (receipt, invoice, or other) is provided to certify the date the product was purchased.
f. The model and/or numbers of the product on the purchase certificate is not consistent with the model and/or numbers shown on the product.

1. Please scan the QR code to get after-sales contact information.

2. The after-sales service (including quality warranty) in diverse regions is solely applicable to the local version of MOVA products. Please contact the after-sales service in the region where your product version originates for support.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Contact us

QR code with embedded email and telephone icon above it

Website:
https://www.mova.tech

Technical line drawing of a vertical cylindrical component with flanges and a central hub (no text or symbols)

clic clic

Installation du support mural

1

clic

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and antenna (no text or symbols)

Écran d'affichage

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with circular components and an arrow indicating motion (no text or symbols)

Technical line drawing of a device with a left-hand panel and a handle (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a hand inserting a clip into a clip (no text or symbols present)

Diagram of a device with a rotating arrow and an upward arrow, no text or symbols present

Line drawing of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols present)

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols present)

Line drawing of a hand holding a device with a handle, no text or symbols present

Pure mechanical diagram showing a shaft and threaded component with no text or symbols

Diagram showing a faucet spraying water onto a surface with visible spray (no text or symbols)

Simple line drawing of a bed with sun symbol above (no text or labels)

QR code with email and telephone icons above it, likely for contact or authentication linking

Site web : https://www.mova.tech

Sicherheitshinweise

Technical line drawing of a vertical cylindrical component with flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical device with ports and connectors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular ring and mesh pattern (no text or symbols)

Displayanzeige

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with circular components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an inset showing hand positioning and upward arrow (no text or symbols)

Diagram of a refrigerator with an open lid and directional arrows indicating rotation (no text or symbols)

Line drawing of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base, showing an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols)

Line drawing of a hand pressing down on a device component (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a person washing a bed with a faucet above, no text or symbols present

Simple line drawing of a bed with sun symbol above (no text or labels)

QR code with embedded email and telephone icon above it

Website:
https://www.mova.tech

Technical line drawing of a mechanical component with a clip and mounting holes (no text or symbols)

Technical line drawing of a vertical cylindrical component with flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Pure mechanical diagram showing a lever and three supports (no text or symbols)

Clic Clic

Technical line drawing of a mechanical device with ports and connectors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and mesh pattern (no text or symbols)

Schermo del display

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a pile of circular particles (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset showing hand positioning and upward arrow (no text or symbols)

Diagram of a refrigerator with an arrow indicating rotation and upward movement (no text or symbols)

Line drawing of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base, showing a right-hand rule (no text or symbols)

Line drawing of a mechanical device with a clamped component and a handle, no text or symbols present

Line drawing of a hand holding a device with a handle, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a faucet spraying water onto a surface with visible spray and residue (no text or symbols)

Simple line drawing of a bed with sun symbol above (no text or labels)

RACCOLTA DIFFERENZIATA

QR code with embedded email and telephone icon above it

Sito web:
https://www.mova.tech

Technical line drawing of a mechanical component with a clip and mounting holes (no text or symbols)

Technical line drawing of a vertical cylindrical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Pure mechanical diagram showing a lever and three supports (no text or symbols)

Clic Clic

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and antenna (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with granular base and directional arrow (no text or symbols)

Technical line drawing of a device with a left-pointing arrow indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing hand positioning and upward arrow (no text or symbols)

Diagram of a device with an arrow indicating rotation, showing top and front views (no text or symbols)

Line drawing of a hand operating a vacuum cleaner with directional arrows indicating motion (no text or symbols)

2

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base, showing a right-hand rule (no text or symbols)

Line drawing of a mechanical device with a clamped component and a handle, no text or symbols present

Line drawing of a hand holding a device with a handle, no text or symbols present

Pure mechanical diagram showing a shaft and flange without any text, numbers, or symbols

Diagram showing a faucet spraying water onto a surface with visible spray (no text or symbols)

Simple line drawing of a bed with sun symbol (no text or labels)

QR code with embedded email and telephone icon above it

Página web:
https://www.mova.tech

Technical line drawing of a mechanical component with a clip and mounting holes (no text or symbols)

Technical line drawing of a vertical cylindrical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Pure mechanical diagram showing a lever and three supports (no text or symbols)

clique clique

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and mesh pattern (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with granular base and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical device with an inset showing hand positioning and upward arrow (no text or symbols)

Diagram of a refrigerator with an open lid and directional arrows indicating rotation (no text or symbols)

Line drawing of a hand operating a handheld device with directional arrows indicating motion (no text or symbols)

2

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base, showing an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols)

Line drawing of a hand pressing down on a device component (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a person washing a bed with a faucet above, no text or symbols present

Simple line drawing of a bed with sun symbol above (no text or labels)

QR code with embedded email and telephone icon above it

Web site:

https://www.mova.tech

Technical line drawing of a mechanical component with a clip and mounting holes (no text or symbols)

Technical line drawing of a vertical cylindrical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Pure mechanical diagram showing a lever and three supports (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and mesh pattern (no text or symbols)

Wyświetlacz

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with granular base and directional arrow (no text or symbols)

Technical line drawing of a device with a left-pointing arrow indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing hand positioning and upward arrow (no text or symbols)

Diagram of a refrigerator with an arrow indicating rotation, showing front and back views (no text or symbols)

Line drawing of a hand operating a vacuum cleaner device with directional arrows indicating motion (no text or symbols)

2

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a handle and base, showing a step indicator (no text or symbols present)

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols)

Line drawing of a hand holding a device with a handle, no text or symbols present

Pure mechanical diagram showing a shaft and internal gear-like structure without any text or symbols

Diagram showing a person washing a bed with a faucet above, no text or symbols present

Simple line drawing of a bed with sun symbol above (no text or labels)

QR code with embedded email and telephone icon above it

https://www.mova.tech

Säkerhetsinformation

Technical line drawing of a vertical cylindrical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and mesh pattern (no text or symbols)

Bildskärm

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a pile of circular particles (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset showing hand positioning and upward arrow (no text or symbols)

Diagram of a refrigerator with an arrow indicating rotation, showing front and back views (no text or symbols)

Line drawing of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base, showing an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a clamped component and a handle, no text or symbols present

Line drawing of a hand holding a device with a handle, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a faucet spraying water onto a surface with visible spray and residue (no text or symbols)

Simple line drawing of a bed with sun symbol above (no text or labels)

QR code with embedded email and telephone icon above it

Technical line drawing of a vertical cylindrical component with flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a handheld device with a circular frame and mesh pattern (no text or symbols)

Skjerm

Technical line drawing of a portable device with labeled MAX indicator (no text or symbols on the device itself)

1. Hvis mengden i støvbeholderen när MAXlinjen, eller varselet om full støvbeholder vises, må du tømme den umiddelbart.

2

Line drawing of a handheld electronic device with ports and connectors (no text or symbols)

Technical line drawing of a mechanical device with granular material at the base (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Diagram of a refrigerator with an arrow indicating rotation and upward movement (no text or symbols)

Line drawing of a hand operating a handheld device with directional arrows indicating motion (no text or symbols)

2

Technical line drawing of a mechanical device with no visible text or symbols

Slik håndterer du lekkasje av batterimateriale

Line drawing of a mechanical device with a handle and base, showing a step indicator (no text or symbols present)

Line drawing of a mechanical device with a clamped lid and handle, showing a step indicator (no text or symbols)

Line drawing of a hand holding a device with a handle, no text or symbols present

Pure mechanical diagram showing a shaft and curved internal component without any text or symbols

Diagram showing a faucet spraying water onto a surface with visible spray and residue (no text or symbols)

Simple line drawing of a bed with sun symbol (no text or labels)

QR code with embedded email and telephone icon above it

Nettsted:
https://www.mova.tech

معلومات السلام

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a device with a monitor and keyboard (no text or symbols)

Technical line drawing of a cylindrical mechanical component with flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure mechanical diagram showing a lever and three supports (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

طرق الشحن

1

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a hand holding a handheld device with a circular mesh pattern (no text or symbols)

كيفية الاستخدام

الب ded

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with ports and a scroll (no text or symbols)

Technical line drawing of a microwave oven with cooling unit and air vent (no text or symbols)

Diagram of a refrigerator with an open door and a side-mounted cabinet, showing rotational arrow (no text or symbols)

5

Technical line drawing of a mechanical device with an inset showing a hand holding a clip (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

1

Line drawing of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand holding a device with a handle (no text or symbols)

2

Mechanical device with a handle and mounting bracket, showing a rotation arrow (no text or symbols)

1

Technical line drawing of a mechanical device with a handle and base plate (no text or symbols)

6

Simple line drawing of a bed with sun symbol above (no text or labels)

5

Simple line drawing of a faucet spraying water onto a surface (no text or symbols)

4

• في اتجاه

QR code with embedded email and telephone icon above it
