USER MANUAL Y2-90L-2-1.5kW-B3 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

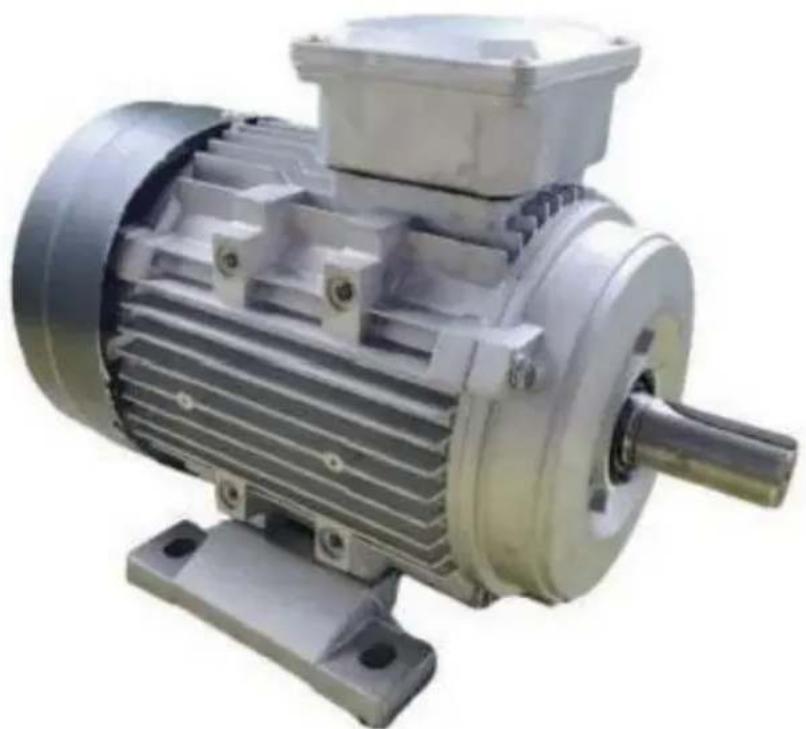

THREE-PHASE INDUCTION MOTOR
Model: Y2-90L-2-1.5kW-B3 / Y2-90L-2-2.2kW-B3
We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: Y2-90L-2-1.5KW-B3 / Y2-90L-2-2.2KW-B3
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.
SAFETY WARNINGS AND PRECAUTIONS
- Voltage, frequency and the wiring style should be consistent with the motor nameplate, power supply voltage should be maintained at plus minus 5% of the rated operating range.
- No more than 1000 meters above sea level.
- Ambient air temperature not exceeding 45^ C .
- The motor must have a good grounding device
- Before option must measure 500-volt megohm table winding insulator resistance to ground, and its value should be more than 0.2 megohm, as be dried.
- Before starting pull action shaft, it should be flexible rotation, no fire and collisions, running should be smooth and lightly, without stagnation and the noise, if found the strange noise, overheating, burning smell, smoke or slow speed of the phenomenon, should immediately turn off power, shutdown inspection, repair it.
- The surrounding environment should keep clean and dry and well ventilated.
- When the motors are not allowed backward in the slow, not frequent start, Capacitor-running motors can not belong-term light-load use.
- Bearing grease should be changed every six months, to fill the beach chamber is about 60% of the gap is appropriate.
- Check whether the motor fastening is fasten
- Check whether the turn is right, if don't, then in accordance with following methods of grafting. (A. the introduction of three-phase line can any swap 2.B.any swap the main section of single-phase winding circumstances leading to side can help.)
-
According to the rated motor power continuous operation, the heating part of the maximum permissible temperature rise shall not exceed the following requirements.
-
Winding Temperature: 75^ Core: 75^ Rolling: 55^ .
- This series of motors using environment and conditions: can be used in wet dusty place, but should always pay attention to cleaning and inspection to prevent the extended, dust, iron and other foreign body breakdown motor interior.
- Motor routine maintenance:
Electrical outlet box part of the electrical contacts should be kept clear. Good contacts, whether the motor air inlet plug, so as not to affect the life. Regular maintenance should be a half a year, check the motor redust and oil, grease and abrasion.
- The motor running check:
When motor is operated it should always be paid attention to whether load data in current with requirement, whether the bearing has phenor of heat and leakage, if found abnormal or sound, should be stopped immediately for inspection. Until fault is identified, do not do Starting
TECHNICAL INFO
| Model No | Y2-90L-2-1.5kW-B3 | Y2-90L-2-2.2kW-B3 |
| Power | 1.5kW | 2.2kW |
| Mounting Type | B3 | B3 |
| Rated Current | 9.5A/3.5A | 4.7A |
| Shaft Length | 1.97" | 1.97" |
| Shaft Diameter | 0.945"Keyed shaft | 0.945"Keyed shaft |
| Rated Speed | 3000 RPM | 3000 RPM |
| Phase | Three-phase | Three-phase |
| Voltage | 230V/400V | 400V |
| Frequency | 50 Hz | 50 Hz |
| Rotation | CCW/CW | CCW/CW |
| Enclosure Type | TEFC | TEFC |
| Insulation | F | F |
| Service Factor | 1.1 | 1.1 |
| Duty | Cont.S1 | Cont.S1 |
| Class of protection | IP55 | IP55 |
| DES-AMB | 40 °C | 40°C |
CONNECTION METHOD

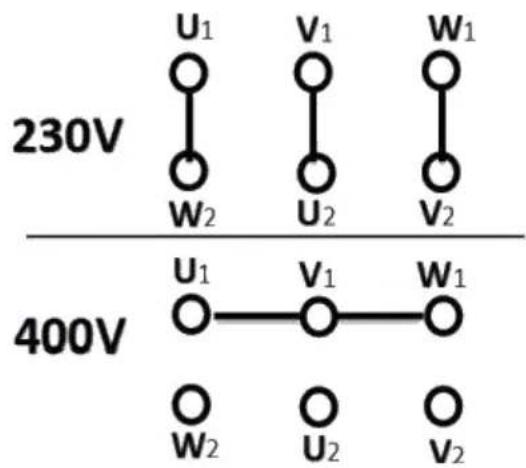

Three phase 230V wiring method
Three phase 400V wiring method
Attention: When wiring, please refer to and verify the motor nameplate parameters and wiring diagram synchronously
COMMON PROBLEMS AND REMEDIES
Problem 1:
When you receive the motor, please check whether the front shaft of motor can rotate. If you find that manual rotation is not possible.
Solution:
The concentricity of the motor may be damaged during transportation. You can hammer the shaft, front end cover and backend cover with a wooden hammer or a rubber hammer to adjust the concentricity. Until shaft of the motor can be turned flexibly manually.
Problem 2:
The motor does not work when it is powered on.
Solution:
1) Please check the power supply to make sure the output voltage is correct.
2) Please check the wiring carefully to make sure it's the same as the wiring diagram.
3) Please press the red protector button, hear the clear "click" reset then reconnect the power, start the motor.
Comply with the European security certification.
CORRECT DISPOSAL
This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in
the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
