BY1018-1 - Electric motor Vevor - Free user manual and instructions

Product Type	DC Electric Motor
Brand	Vevor
Model	BY1018-1
Rated Voltage	36 V DC
Max Power	450 W
Rated Speed	3000 rpm (400 rpm after reduction)
Rated Torque	1.43 Nm
Rated Current	≤ 16 A
No-Load Current	≤ 2.5 A
Efficiency	≥ 78 %
Gear Ratio	7.18:1
Reduction Ratio	9T:32T
Pinion	410-9T
Screw Thread	M8 × 1.25 (heat to 80°C, turn left)
Max Load Weight	≤ 100 kg
Dimensions	125 × 112 × 152 mm
Weight	2.35 kg
Controller Included	BY02LT01-C, 36 V, 450 W, undervoltage protection 29 V
Application Fields	Small electric car, bike, kart, scooter
Recommended Battery	Lead or lithium, 12 Ah to 20 Ah, compatible voltage
Included Accessories	Motor, controller, throttle, tools, flywheel, mounting plate, 410 chain, fuse wire, hardware
Safety	Warnings: electric shock, mechanical injury; requires electrical competence
Maintenance	Install in a dry, dust-free, well-ventilated place
Standards	Compliant with European directive 2012/19/EU, FCC Part 15

Frequently Asked Questions - BY1018-1 Vevor

Which battery to use with the Vevor BY1018-1 motor?

Use a lead or lithium battery of 36 V with a capacity of 12 to 20 Ah. The voltage must match the motor (tolerance +10%). The positive and negative terminals must be correctly connected.

How to connect the controller to the motor?

Connect the yellow wire of the controller to the red wire of the motor, and the blue wire of the controller to the black wire of the motor. Make sure the connections are tight.

What to do if the motor does not start?

Check the battery voltage (must be ≥ 29 V). Make sure the electric lock is connected (orange and red wires). Check all connections (plugs, wire colors). If the problem persists, contact customer service with clear photos.

What is the maximum speed of the motor?

The rated speed is 3000 rpm. After reduction (ratio 7.18:1), the output speed is approximately 400 rpm.

Can I use a lithium battery with this motor?

Yes, but make sure the voltage and power match. The recommended capacity is 12 to 20 Ah. Note that sparks may occur during connection, which is normal.

How to install the pinion and brake?

The pinion is a 410-9T. For the brake, connect the black wire to ground and the yellow wire to the low-level brake signal. The brake cuts the motor power when activated.

What safety precautions should be observed?

Read all warnings before use. Avoid electric shocks and mechanical injuries. Install the motor in a dry, dust-free, and well-ventilated place. Only trained personnel should handle the equipment.

How to maintain the Vevor BY1018-1 motor?

Place the motor in a dry and dust-free environment. Regularly check connections and carefully clean dust after removing the cover. Regular maintenance extends the lifespan.

What accessories are included in the kit?

The kit includes: the motor, the controller, a throttle (or twist grip with battery indicator), hardware tools, a 16T flywheel, a mounting plate, a 410 chain, a fuse wire, and mounting hardware.

What to do in case of malfunction?

Contact Vevor customer service via www.vevor.com/support. Provide clear photos of the motor and controller nameplates, as well as videos of the wiring (visible wire colors). This allows for a quick diagnosis.

USER MANUAL BY1018-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DC motor

Model: BY1018-1

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: BY1018-1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of data changes on our product.

Safety precautions

1.1 Safety advisory warning

Please read carefully before operation.

Be sure to read all safety warnings and all instructions before operating the motor. Failure to comply with warnings and instructions may result in electric shock or serious injury.

If you encounter problems, please communicate with customer service in time to solve them. Your satisfaction is our service purpose.

1.2 Warning sign for safe operation of motor

1.3 Risk factor

1) Mechanical damage 2) Electric shock 3) Extrusion collision 4) Object impact 5) Other injuries

1.4 Operational considerations and triggers for motor non-work accidents

1) Check whether all accessories are connected tightly and not loose, check whether the pins in each plug-in are bent, and visually check whether each interface is consistent with the instructions in the wiring manual and whether connection is correct. To avoid writing errors and burning the controller.

2) It is recommended to use lead-acid batteries. Lithium batteries can also be used (note that the battery voltage and battery power match the kit power). The recommended battery capacity is 12AH-20AH. The battery voltage needs to be consistent with the motor kit voltage, allowing an over voltage range of +10%. The positive and negative terminals of the power supply must be connected correctly (the positive terminal is connected to the thick line of the controller in red, the negative terminal is connected to the thick line of the controller in black). When the battery and controller are connected, small arcing and sparks may occur, which is normal.

3) The electric door lock (orange, red) must be connected (you can use the electric door lock, or you can shorten the orange and red wires with wires). This is the last step. 4) The accessories outside this kit, which belong to the accessories you purchase, may not match with the kit and need to be used after matching. Please contact customer service in time to match the kit with each other.

1.5 Precautions and suggestions

All machine operators should be trained and certified in electrical skills.

1) Before opening the box, check whether the package is intact, broken, and whether there is water. After removing the cover, carefully remove dust from the motor. 2) Install in a dry, dust-free place; 3) Install in a well-ventilated place; 4) Install in a wide and smooth place for easy daily operation and maintenance.

Thank you for reading. If you still have operational problems, please contact customer service in time. Before contacting customer service, please provide photos taken of the motor and controller nameplate, provide clear photos and clear videos of the accessory wiring connected to each plug-in of the controller. You need to clearly see the color of each wire and the color of the accessory. In order to provide you with a more convenient and faster solution.

TECHNICAL INFO

PERFORMANCE PARAMETERS OF BY1018-1 MOTOR

Parameter	Numerical value
Rated Voltage	36V DC
Max Wattage	450W
Rated Speed	3000RPM (400 RPM after gear reduction)
Rated Torque	1.43N.m
Rated Current	≤16A
Gear ratio	7.18:1
No-load Current	≤2.5A
Motor Efficiency	≥78%
Sprocket Number	410-9T
Screw thread	M8*1.25the thread(Heat 80°C for 1-2 minutes,rotate left and remove)
Reduction gear ratio	9T:32T
Load weight	≤100KG
Size	125mm×112mm×152mm
Weight	2.35KG
Range of application	Small electric car, Electric bicycle, Electric go-kart, Electric scooter......

PERFORMANCE PARAMETERS OF BY02LT01-C

CONTROLLER

Parameter	Numerical value
Rated Voltage	36V DC
Max Wattage	450W
Rated Current	25A
Brake	BRAKE LOW LEVEL
Under Voltage Protection	29V
Working Temperature	-40°C~60°C
Size	106*69*37mm
Weight	0.2KG

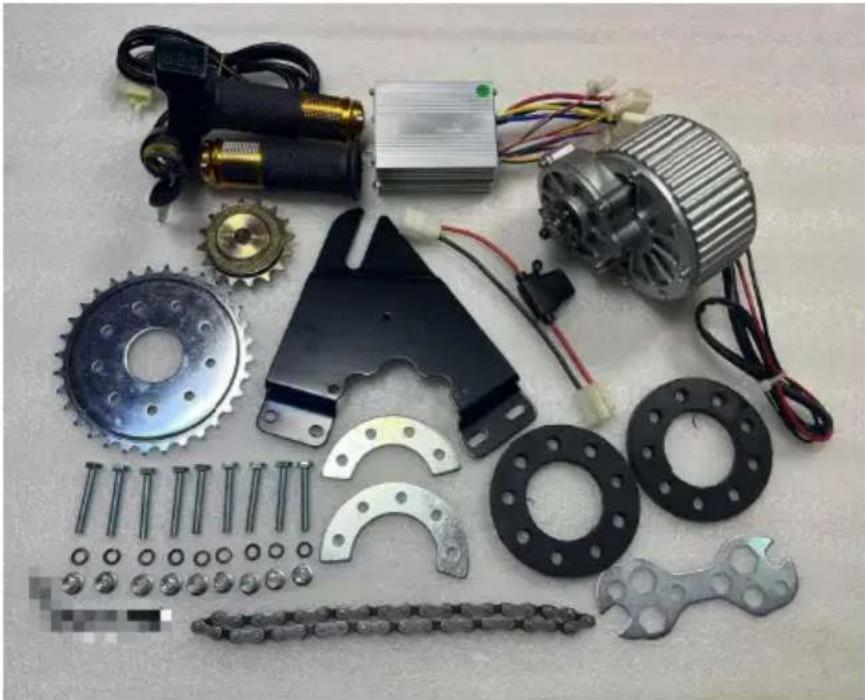

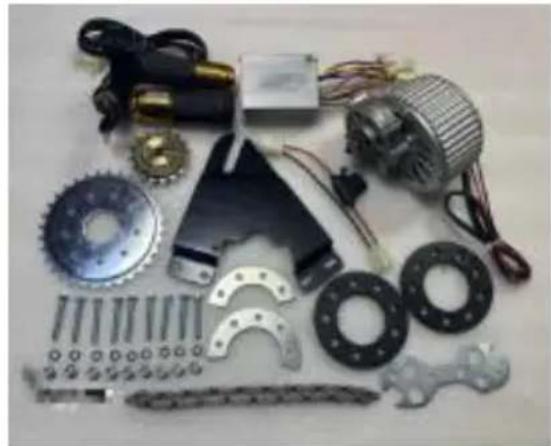

CONFIGURATION LIST

1. Motor
2. The controller
3. Twist throttle or thumb twist throttle (with battery indicator)
4. Hardware tools
5. 16T flywheel
6. Mounting plate
7. Model: 410 chain
8. Fuse wire
9. Mounting fittings

INSTALLATION PROCEDURE

Step 1

Connect the controller yellow wire to the more red wire.

Connect the controller blue wire to the motor black wire.

Step 2

Voltage: DC36V-40V

1. Red: 36V+
2. Black: 36V-

Positive and negative cannot be connected wrong, otherwise it will burn the controller. There may be a slight spark when connecting.

	a normal phenomenon of power-on.
Step 3

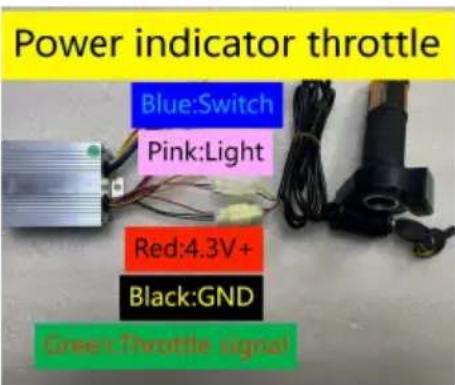

	Throttle :1.Red: +4.3V2.Black: GND3.Green: signal Electriclock:1.Pink: p+2.Blue:VCCThe electronic lock must be connected, othe the controller is not owe ed o

Instructions for other functions

Please purchase the necessary accessories by yourself

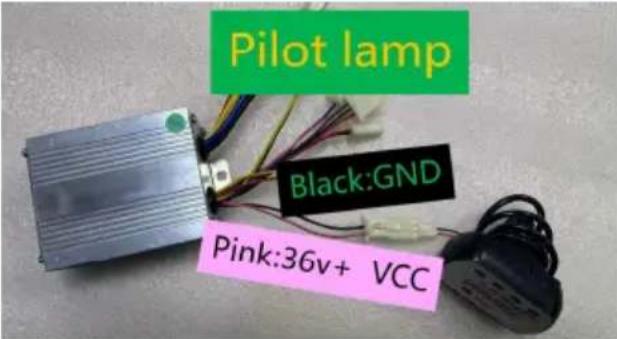

	Indicator Light:Connect the battery level display.It can also be used as a DC36V output to supply DC36V light.The positive and negative terminals can be reversed

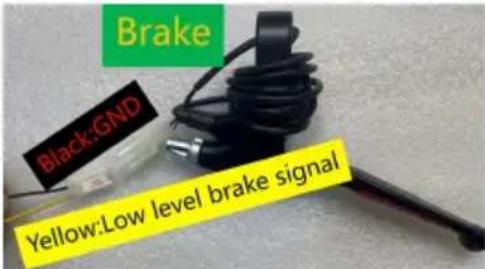

	Brake light:Connect DC 36V LED lights.

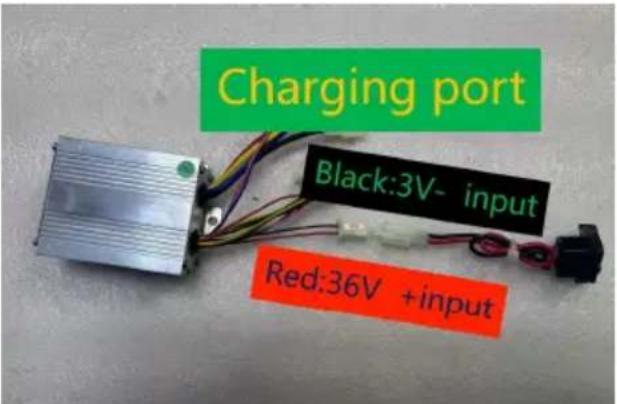

	Charging port:Red: DC36V inputBlack: - inputThe positive and negative terminals must be connected correctly.Brakes: Connect the electronic brake to realize the braking power off function.

COMMON PROBLEMS AND REMEDIES

Phenomenon:

The electronic lock must be opened. When the electronic lock is opened, the throttle is turned and the motor does not work.

Reason:

Battery: The battery is too low and does not reach the required operating voltage.

Solution:

1. Charging;
2. Select a battery with the corresponding operating voltage;
3. Check whether each plug-in is connected correctly and whether the connected terminals are connected reliably, so as to avoid failure to work normally due to incorrect connection or poor contact.
