SCROLL SAW - PDS 120 B3

DEKUPIERSÄGE - PDS 120 B3

SCIE À CHANTOURNER - PDS 120 B3

GB IE NI CY MT DE

SCROLL SAW

Operating and Safety Instructions.

Translation of Original Operating Manual.

FR BE CH

SCIE À CHANTOURNER

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT CH

Close-up of a mechanical device labeled 'PARKSIDE' with measurement lines and number 19, no readable text or symbols beyond labels

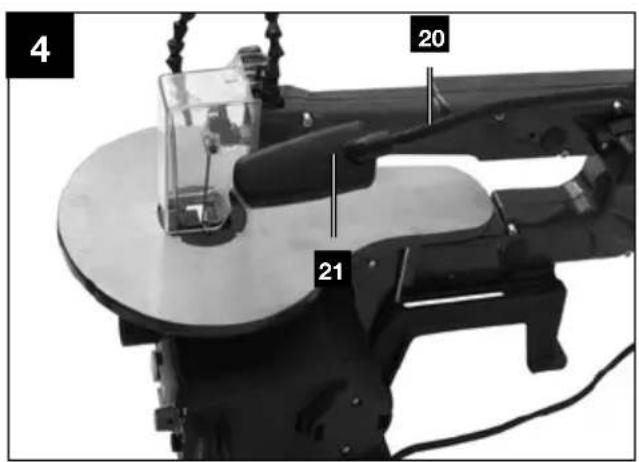

4 20 21

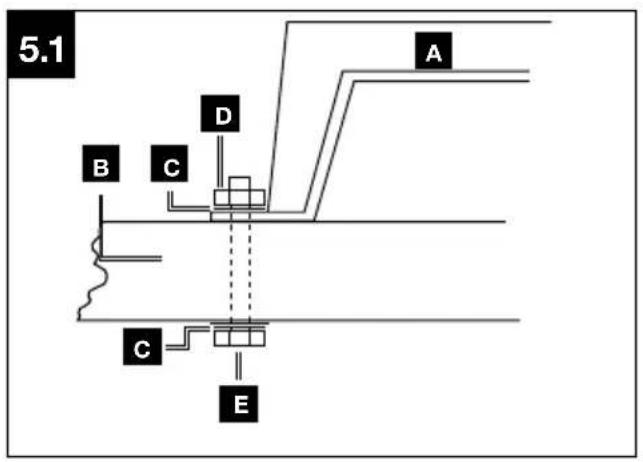

5.1 A B C D C E

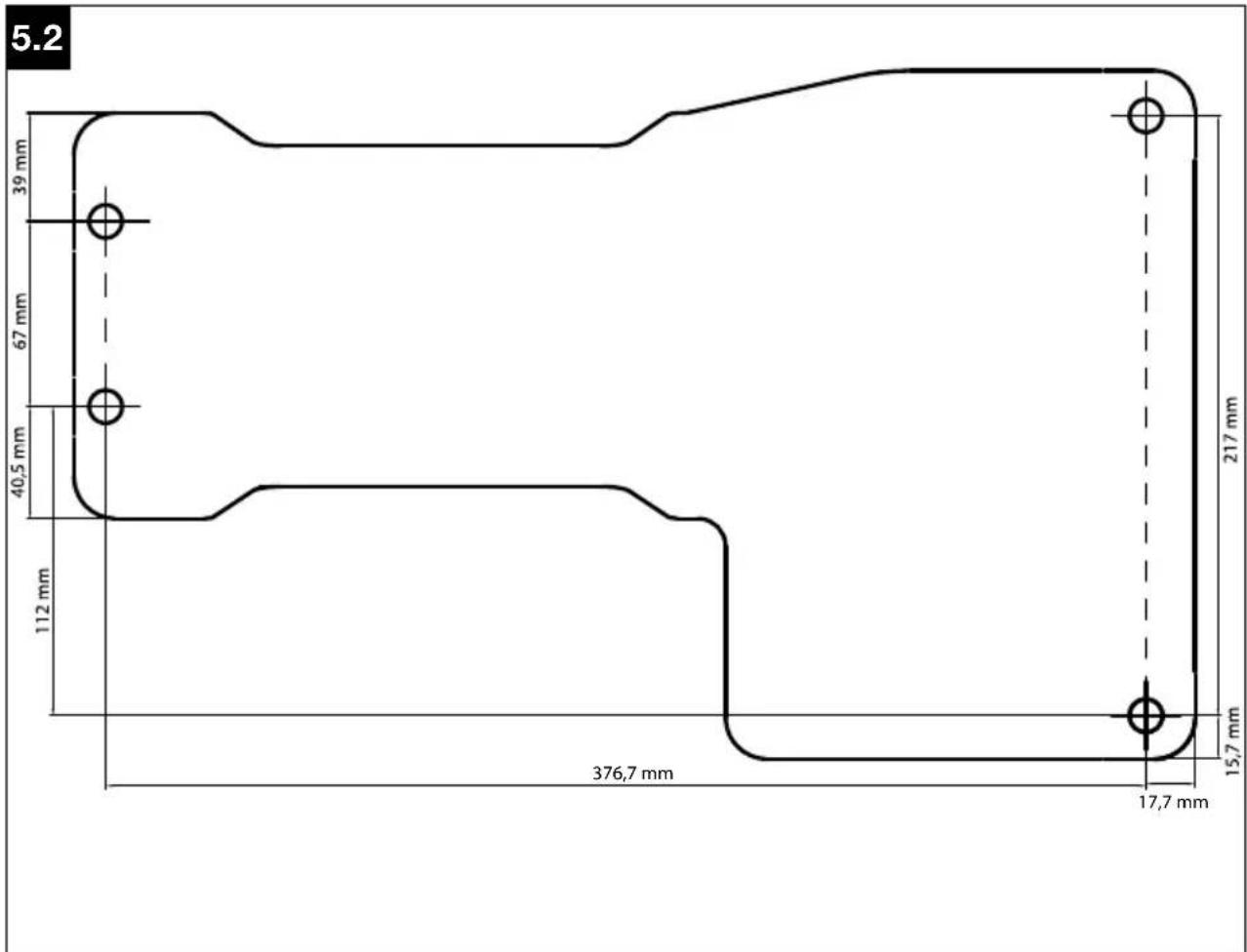

5.2 39 mm 67 mm 40,5 mm 112 mm 376,7 mm 17,7 mm 217 mm 15,7 mm

6 1 31 22 5 25 24 23 C = 8x D = 4x E = 4x

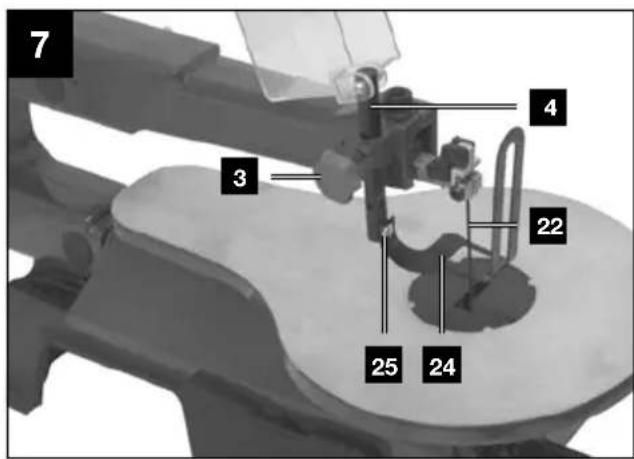

7 3 4 22 25 24

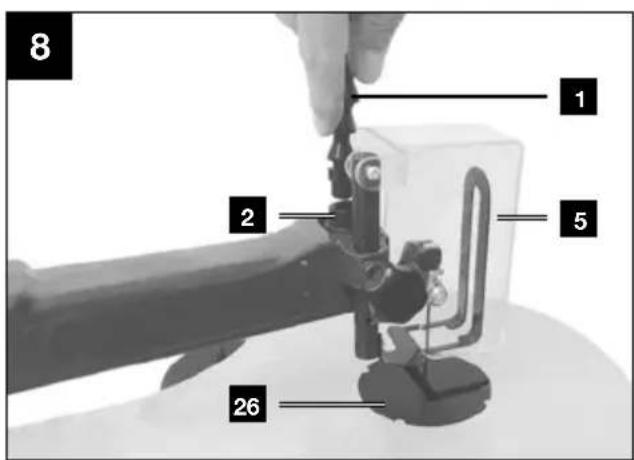

8 1 2 5 26

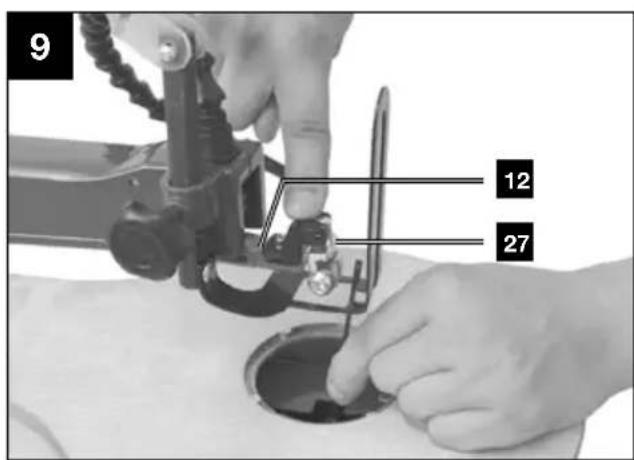

9 12 27

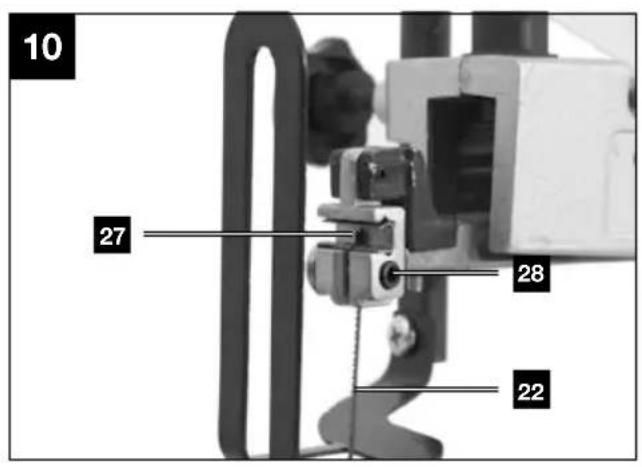

10 27 28 22

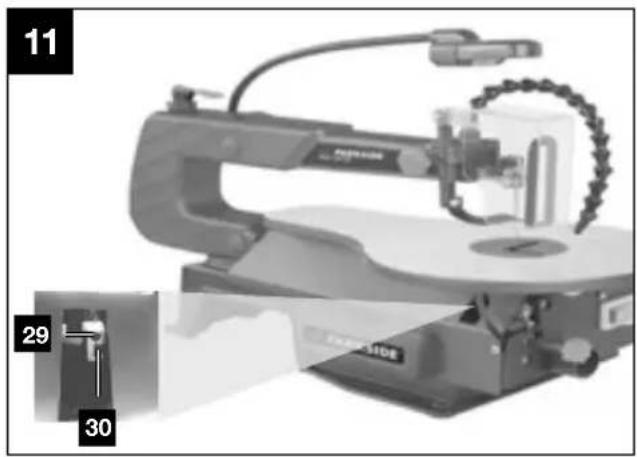

Industrial machine with labeled parts (no readable text or symbols)

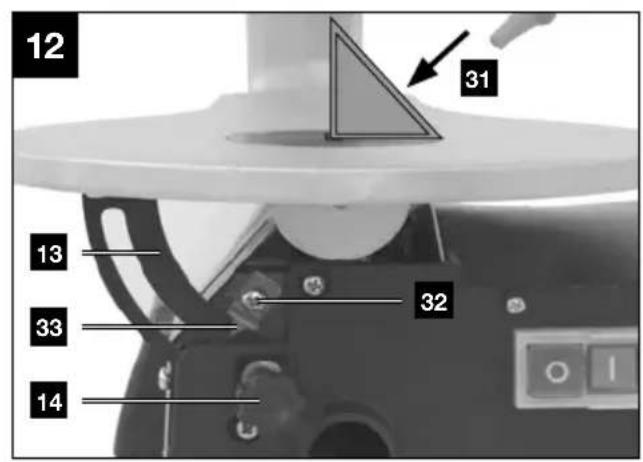

12 31 13 33 14 32

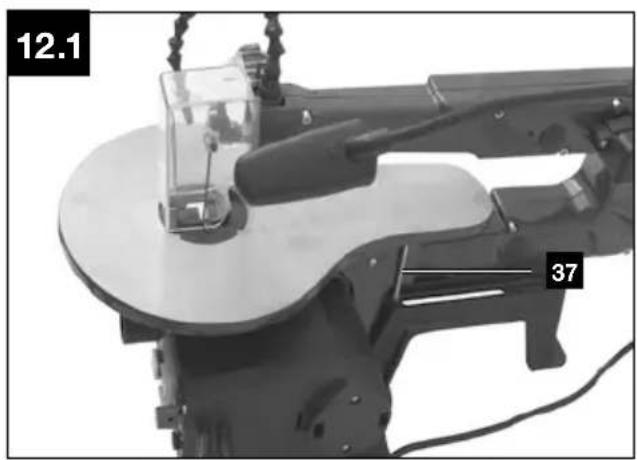

Mechanical robotic arm with labeled parts (12.1 and 37), no readable text or symbols beyond labels

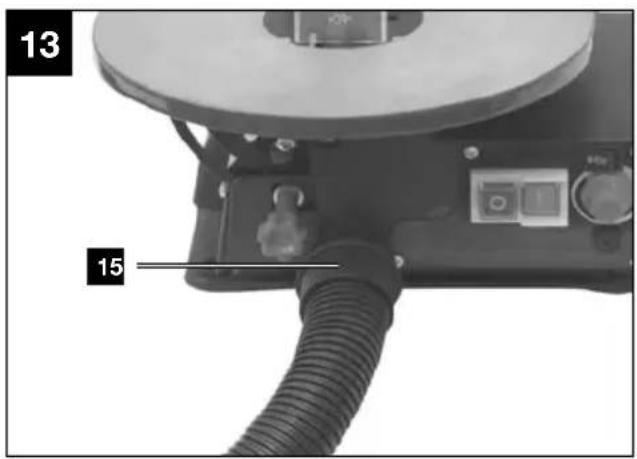

13 15

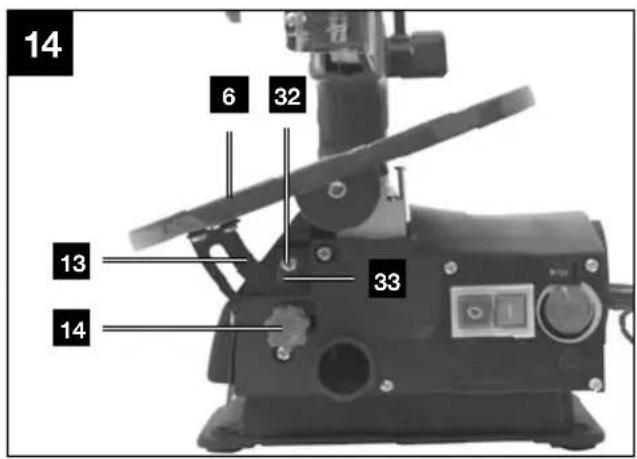

14 6 32 13 33 14

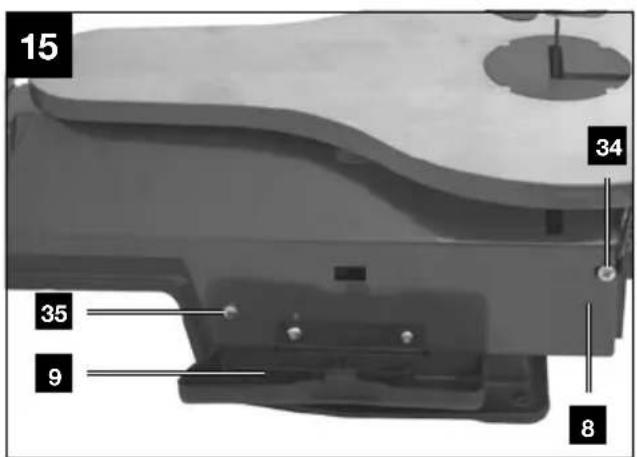

15 34 35 9 8

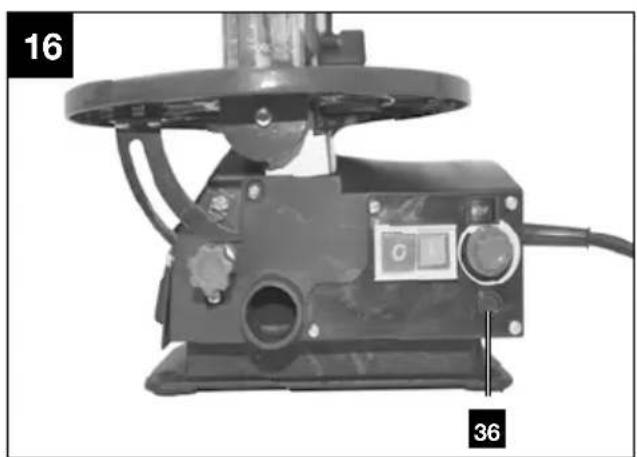

Close-up of a mechanical device with labeled parts (16 and 36), no readable text or symbols beyond labels

Table of contents: Page:

1. Explanation of the symbols on the product 2
2. Introduction 3
3. Product description (fig. 1 - 16)....3
4. Scope of delivery (fig. 5.1, 5.2, 6)....4
5. Proper use....4
6. General safety instructions....4
7. Residual risks....7
8. Technical data .... 7
9. Unpacking 8
10. Before commissioning....9
11. Layout....9
12. Operation.... 11
13. Electrical connection.... 13
14. Transport 13
15. Storage.... 13
16. Cleaning & maintenance 13
17. Repair & ordering spare parts 14
18. Disposal and recycling 15
19. Troubleshooting.... 16
20. Warranty certificate 17
21. Exploded view....211
22. Declaration of conformity 212

1. Explanation of the symbols on the product

	Before commissioning, read and observe the operating manual and safety instructions!		Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!
	Wear hearing protection. Excessive noise can result in a loss of hearing.		Wear safety goggles. Sparks created during work or fragments, chippings and dust ejected by the device can case sight loss.
	Attention! Danger of injury! Do not reach into saw blade while it is running!		Switch for changing between manual control (M), stop position and foot pedal control (F) (see 12.4 and 12.5)
	Working with long hair is prohibited. Tie long hair back in a hair net.		Wearing gloves is prohibited.
	Max. cutting height at 0° Max. cutting
	On/off switch work lamp Speed regular
		CE	The product complies with the applicable European directives.

Explanation of the signal words in the operating manual

DANGER	Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
ATTENTION	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.
NOTE	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

2. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed

Note:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your product and to use it for its intended purpose.

The operating manual includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The product may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such products must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

3. Product description (fig. 1 - 16)

1. Blow-off device
2. Mounting (blow-off device)
3. Knurled screw
4. Holder (saw blade guard)
5. Saw blade guard
6. Saw table
7. Foot pedal
8. Cover, left
9. Storage box
10. Bearing points
11. Tightening lever
12. Arm
13. Graduated scale
14. Knurled nut
15. Suction connection
16. On/off switch
17. Operating mode selection switch
18. Speed regulator
19. Assembly points (premounted rubber feet)
20. Work lamp
21. On/off switch work lamp
22. Saw blade
23. Allen key, 3 mm
24. Depressor
25. Screw (depressor)
26. Table inlay
27. Top saw blade holder
28. Upper saw blade clamping screw
29. Lower saw blade clamping screw
30. Bottom saw blade holder
31. Angle
32. Screw (graduated scale)
33. Pointer

34. Screw (left cover - front)

35. Screw (left cover - rear)

36. Fine-wire fuse
37. Adjustment screw with locknut

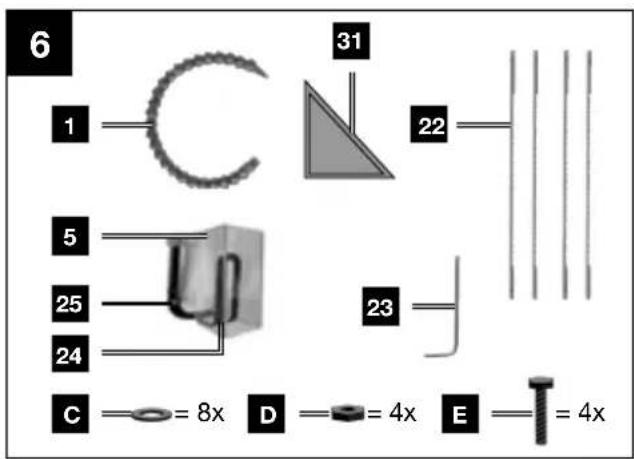

4. Scope of delivery (fig. 5.1, 5.2, 6)

Item Quantity Designation

A 1x	Scroll saw
5 / 24	1x	Saw blade guard with depressor
25	1x	Screw (depressor)
1	1x	Blow-off device
22	4x	Saw blade for wood and plastics
31	1x	Angle
	1x	Drill template
23	1x	Allen key, 3 mm
E	4x	Hexagonal bolt M8 x 70
D	4x	Hexagonal nut M8
C	8x	washers
	1x	Original Operating Manual

5. Proper use

The scroll saw is used for cutting angular timbers or other materials such as Plexiglas, GRP, foam, rubber, leather and cork. Never use the saw to cut round material. Round material can tilt easily.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

• Only suitable saw blades may be used for the machine.
• An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.
• Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers.
• In addition, the applicable accident prevention regulations must be strictly observed.
• Other general occupational health and safety-related rules and regulations must be observed.
• The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

6. General safety instructions

General power tool safety warnings

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoe hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or screwdriver before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use electric tools, insertion tools, etc. according to these instructions. taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

a) Only have your electric tool repaired by qualified specialists and only with original spare parts. . This will ensure that the safety of the power tool is maintained.

Special safety instructions for scroll saws

• In an emergency, switch the machine off directly and pull out the mains plug.
• Observe all of these notes before and while working with the saw.
• Never use the saw to cut firewood.
• The machine is equipped with a safety switch against reactivation if the voltage drops.
• If an extension cable is required, make sure that its cross-section is sufficient for the current consumption of the saw. Minimum cross-section 1.5 mm ^2 .
• Only use the cable drum when unrolled.

• Personnel working on the machine must not be distracted.

• Under no circumstances should the saw blades be braked by pushing against the side after switching off the drive.

• Only install saw blades that are well sharpened, free of cracks and not deformed.
• Faulty saw blades must be replaced immediately.
• Do not use saw blades that do not correspond to the characteristics specified in these usage instructions.
• Ensure that all devices that cover the saw blade work properly.
• Safety equipment on the machine must not be disassembled or made unusable.
• Damaged or faulty protective devices must be replaced immediately.
• Do not cut workpieces that are too small in order to keep them secure in your hands.
• Do not load the machine so much that it comes to a standstill.

- Always press the workpiece firmly against the working plate.

- Never remove loose fragments, chips or jammed wood pieces from the running saw blade.

- Switch off the machine to rectify any faults on the blocked tool attachment. Pull out the mains plug. Remove the blockage. Attention! Danger of injury due to saw blade! Wear protective gloves! Perform a test run without a workpiece. Make sure that no unusual noises or vibrations occur. If this is the case, switch the device off and contact the manufacturer.

- Only carry out modifications, adjustment, measuring and cleaning work when the engine is switched off. Pull out the mains plug.

- Before switching on, make sure that keys and adjusting tools are removed.

- Switch off the motor and pull out the mains plug when leaving the work station.

- Electrical installation, repairs and maintenance work may only be carried out by specialists.

- All protection and safety equipment must be reassembled immediately after repair or maintenance work is completed.

- The safety, operating and maintenance information of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

- The relevant accident prevention regulations and the other generally accepted safety rules must be observed.

• The saw is only intended for installation indoors.
• Workpieces that are smaller than the saw blade guard can cause injuries to the hands and fingers. Use a suitable aid!
• Avoid cramped hand positions when guiding the workpiece and positions in which the hand would slip directly into the saw blade.
• Always insert the saw blade so that the teeth point down towards the saw table.
• Always set the correct blade tension in order to avoid breaking the saw blades.
• Use extra care when cutting material with irregular cutting profiles.
• When withdrawing the workpiece, teeth can get caught in the kerf, especially if the shavings block the kerf. In this case you should switch off saw, pull out the mains plug, open the kerf with a wedge and remove the workpiece.
• Never leave the work station without setting down the saw beforehand. Wait until the saw has come to a standstill.
• Do not place, glue, or assemble any parts on the work table while the saw is running.
• Do not switch on the saw until the work table is cleared of material residues and tools. Only leave the workpiece to be machined and any work aids (wedges) on the workbench.
  • Always wear eye protection.
• Keep fingers at a safe distance from the saw blade.
• Guide the workpiece securely and firmly and do not let it loose at any point.
• Never leave the work station without setting down the saw beforehand.
• Do not let your familiarity with the saw lead you to carelessness. Carelessness can lead to serious injuries in a split second.

Warning! This power tool generates an electromagnetic field during operation. This field can active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Keep these safety instructions in a safe place.

7. Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the “Safety Instructions” and the “Intended Use” together with the operating manual as a whole are observed.

- Avoid accidental start-ups of the product: The op-the erating button may not be pressed when inserting the plug in a socket. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.

- Keep your hands away from the working area when the product is in operation.

- Lung damage if suitable dust protection mask is not worn.

- Hearing damage if suitable hearing protection is not worn.

- Risk of accident due to contact with the hands in the uncovered cutting area of the tool.

- Danger of injury during a tool change (cutting hazard).

- Crushing of fingers.

- Danger due to kick-back.

- Tilting of the workpiece due to insufficient workpiece support surface.

- Touching the cutting tool.

- Ejection of branches and workpiece parts.

8. Technical data

impair

Mains voltage.... 220-240 V\~/50 Hz

Power consumption ....80 Watt (S1*)

120 watts (S6 30 %**)

Stroke rate 500-1700 rpm

Lifting movement....12 mm

Base 630 x 295 mm

Tilting table....0° to 45° to the left

Table size 415 x 255 mm

Saw blade length approx. 134 mm

Swing 406 mm

Max. cutting height at 0^ .....50 mm

Max. cutting height at 45^ .....22 mm

Min. size of workpiece W x H.....100 x 22 mm

Max. size of workpiece W x H.....400 x 50 mm

Protection category.... IP X0

Protection class....I

Weight .... approx. 13 kg

*Operating mode S1:

Continuous operation at constant load

**Operating mode S6 30%:

Uninterrupted periodic operation (operating time 10 min).

In order to avoid impermissible overheating of the motor, the motor should be driven for only 30% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 70% of the operating time.

Device emissions values

Noise

The noise levels have been determined in accordance with EN 62841.

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Sound pressure level L_pA 66.9 dB

Uncertainty K_pA 3 dB

Sound power level L_WA 79.9 dB

Uncertainty K_WA ......3 dB

• The specified total vibration value and the specified noise emission value have been measured in accordance with a standardised test procedure and can be used to compare one power tool with another.
• The specified total vibration value and the specified noise emission value can also be used for an initial estimation of the exposure.
• The vibration and noise emission values can vary from the specified values during the actual of the power tool, depending on the type and the manner in which the power tool is used, and in particular the type of workpiece being processed.

- It is necessary to define safety measures to protect the operator which are based on an estimate of vibration exposure during the actual operating conditions (for this, all parts of the operating cycle have to be considered, e.g. times during which the power tool is switched off and times during which it is switched on but runs in no-load mode).

The permitted workstation values can also vary from country to country. However, this information should enable the operator to better evaluate the hazards and risks.

Limit the noise level to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.

Suitable saw blades

All industry-standard saw blades with a minimum length of 127 mm with and without a pin may be used.

9. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as 1 packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the first time.

• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

10. Before commissioning

10.1 General information

• Prior to commissioning, all covers and safety devices must be mounted correctly.
• The saw blade must be able to run freely.
• In case of previously machined wood, be aware of any foreign objects, such as nails or screws, etc.
• Before pressing the on/off switch, make sure that the saw blade is correctly fitted, and that moving parts run smoothly.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.
• Only connect the machine to a correctly installed protective contact socket, with fuse protection of at least 10 A.

10.2 Mounting the saw blade guard (5) (fig. 1 + 7)

1. Turn the knurled screw (3) anticlockwise the thread no longer protrudes into the hole.
2. Remove the screw (depressor) (25) and take out the depressor (24). Use a Phillips screwdriver for this (not included in the scope of delivery).
3. Insert the holder (saw blade guard) (4) into the hole.
4. Clamp the holder (saw blade guard) (4) by tightening the knurled screw (3).
5. Remove the saw blade as described in 11.1.4.
6. Fasten the depressor (24) to the holder blade guard) (4) using the screw (depre (25). Use a Phillips screwdriver for this (not included in the scope of delivery)
7. Insert the saw blade again, as described in 11.1.5..

10.3 Install the scroll saw on the workbench

You require the following for assembly: Included in the scope of delivery:

• M8 hexagonal bolt (4x) (E)
• M8 hexagon nut (4x) (D)
- Washer ∅ 8.4 mm (8x) (C)
- Drill template

The length of the screws to be used vary depending on the thickness of the tabletop.

WARNING

Danger of injury! Disconnect the mains plug on the scroll saw before all assembly work.

1. Mount the scroll saw (A) on a solid wood workbench. This way, a high noise level due to vibrations can be avoided.
2. Mark the drill holes (see fig. 5.2) using the attached drill template.
3. Drill the 4 holes (diameter 8 mm) into the workbench(B).
4. Screw the scroll saw onto the workbench (B with the hexagonal bolt (E) through the assembly points (fig. 3 item 19) in the following quence (fig. 5.1):
5. D Hexagon nut
6. C Washer
7. A Scroll saw
8. B Workbench
9. C Washer

10. E Hexagonal bolt

11. Finally tighten the hexagonal nuts (D).

11. Layout

WARNING

Danger of injury! Disconnect the mains plug on the scroll saw before all assembly work.

11.1 Fitting/changing the saw blade (fig. 1, 8-11) WARNING

To avoid injuries due to unintentional start up: Before removing or replacing the saw blade, always press "0" and remove the mains plug from the socket.

11.1.1 Removing/inserting the table inlay

1. Loosen the knurled screw (3).
2. Set the saw blade guard (5) all the way up to the top position.
3. Reach under the saw table (6) and press the table inlay (26) upwards.
4. It is now possible to remove the table inlay (26).

Pay attention to the position of the sawing gap when inserting the table inlay (26). The table inlay (26) must be inserted as shown in Fig. 8. Otherwise the machine can be damaged during mitre cuts.

11.1.2 Removing the saw blade without pins (optional)

1. To remove the saw blade (22), remove the table inlay (26) upwards. (see 11.1.1)
2. First, release the tension by flipping the tightening lever (11) upwards. If necessary, the tension can be further reduced by turning the tightening lever (11) counterclockwise.
3. Press the arm (12) down lightly (see fig. 9).
4. Then loosen the upper saw blade clamping screw (28).
5. Now hold the sawblade firmly, otherwise it will fall into the interior of the machine (see fig. 10).
6. Loosen the lower saw blade clamping screw (29) with the Allen key (23) (see fig. 11).
7. Remove the saw blade upwards.

11.1.3 Inserting the saw blade without pins (optional)

The teeth of the saw blade must always point downwards.

1. Fix the saw blade (22) in place in the saw blade holder (30). To fix the saw blade (22) in place, tighten the lower saw blade clamping screw (29) with the Allen key (23).

2. Press the arm (12) down lightly. Fasten the other end of the saw blade (22) in the top saw blade holder (27) (see fig. 9).

3. Fasten the saw blade (22) using the upper saw blade clamping screw (28) (see fig. 10).

4. Tension the saw blade (22) with the tightening lever (11) by pressing down on it again. Check the tensioning of the saw blade (22). If the tension is too low, you can increase it by tu the tightening lever (11) clockwise. Before doing this, release the tightening lever (11) again.

5. Insert the table inlay (26) again. (see 11.1.1)

11.1.4 Removing the saw blade with pins

1. To remove the saw blade (22), remove the table inlay (26) upwards. (see 11.1.1)

2. First, release the tension by flipping the tightening lever (11) upwards. Continue reducing the tension by turning counterclockwise as required.

3. Hold the saw blade firmly and press the arm (12) down slightly (see Fig. 9).
4. Remove the saw blade from the top and bottom saw blade holder (27/30).

11.1.5 Inserting the saw blade with pins

The teeth of the saw blade must always point downwards.

1. Insert one end of the saw blade (22) through the drilled hole in the table. Insert the pins of the saw blade (22) into the corresponding recesses of the top and bottom saw blade holder (27/30).
2. First, insert the saw blade (22) into the bottom saw blade holder (30).
3. Press the arm (12) down lightly (see fig. 9). Insert the saw blade (22) into the upper saw blade holder (27).
4. Check the position of the saw blade pins in the saw blade holders (27/30).
5. Tension the saw blade (22) with the tightening lever (11) by pressing down on it again. Check the tensioning of the saw blade (22). If the ten-tottomsion is too low, you can increase it by turning it clockwise. Before doing this, release the tightening lever (11) again.
6. Insert the table inlay (26) again. (see 11.1.1)

NOTE

The left side features a storage box (9), which enables you to stow replacement saw blades and the hexagon wrench (see fig. 15).

11.2 Checking the saw blade tension WARNING

tuCheck the blade tension regularly and after inserting a saw blade.

Tension the saw blade after assembly by pressing down the tightening lever (11).

If the blade tension is too low or too high, proceed as follows:

1. Fold the tightening lever (11) upwards.

2. Turn the tightening lever (11) clockwise to increase the tension and counterclockwise to reduce it.

3. Pressthetighteninglever(11)downagaintoengage the setting.

If the tension is correct, the saw blade should produce a light tone when it is "plucked", like a guitar string.

11.3 Calibrating the angle scale (fig. 12; 12.1) ATTENTION

Check the setting of the angle scale before working with the device.

1. Loosen the adjustment screw locknut (37) using a spanner, size 8 (not included in the scope of delivery).
2. To set the saw table, use a 90° bracket Place this against the saw table and the saw blade (fig. 12).
3. Loosen the knurled nut (14). Adjust the adjustment screw (37) until the angle between the saw blade (22) and the saw table (6) is 90°.
4. Tighten the knurled nut (14) and the locking nut of the adjusting screw (37) again.
5. Loosen the screw (32) and turn the pointer (33) to the 0^ marking.
6. Make a test cut. Check the angle on the workpiece with a protractor. If necessary, readjust the pointer (33).

11.4 Mounting the depressor (fig. 6, 7) NOTE:

Before assembling the depressor (24), the saw blade (22) pre-installed at the factory must be (see 11.1).

1. Remove the saw blade (22) as described in 11.1.
2. Remove the depressor (24) from the holder (4). Completely loosen the screw (25) using a Phillips screwdriver (not included in the scope of delivery) (see fig. 6).
3. Insert the holder (4) into the opening (see fig. 7).
4. Fasten the holder (4) with the knurled screw (3).
5. Mount the depressor (24) to the holder (4). Fit the screw (25) on the holder (4). Tighten the screw (25) with a Phillips screwdriver (not included in the scope of delivery).
6. Insert the saw blade (22) again as described in 11.1.
7. Ensure that the depressor (24) does not touch the saw blade (22).

11.4.1 Setting the depressor

NOTE: The depressor (24) must always be adjusted according to the workpiece height. However, the workpiece should not be clamped, but should rather be able to move freely. The depressor (24) is used to lock the workpiece so that it cannot swing upwards, which would destroy the saw blade (22).

1. Loosen the knurled screw (3) to set the depressor (24).
2. Adjust the depressor (24) according to the workpiece height.
3. Tighten the knurled screw (3) again.

1315. Installing the blow-off device (fig. 8)

1. Ensure that the saw blade guard (5) is fold down.
2. Screw the blow-off device (1) clockwise onto the holder (2) as described in fig. 8.

11.6 Chip extraction (fig. 13)

ATTENTION: Only operate the product with a suitable chip extraction system. Do not use household vacuum cleaners.

Connect a suitable chip extraction system (not included in the scope of delivery) to the extract connection (15) (see fig. 13, sample figure).

ATTENTION: Check and clean the suction channels at regular intervals.

12. Operation

12.1 General information

• The saw does not cut wood by itself. The user makes cutting possible by guiding the wood into the moving saw blade.
• The teeth only cut the wood on the down stroke.
• The wood must be fed slowly into the saw blade as the teeth of the saw blade are very small.
• Anyone who wants to use the saw requires a certain amount of learning time. During this time some blades are sure to break.
• When cutting thick timbers, particular care must be taken to ensure that the saw blade is not bent or twisted.
• Working carefully will increase the service life of the saw blade.

12.2 On/Off switch (16) (fig. 2)

• Switching on: Press the "I" button.
• Switching off: Press the "0" button.

ATTENTION

The machine is equipped with a safety switch against reactivation if the voltage drops.

If the scroll saw is switched on and the power supply in the mains is interrupted, the scroll saw remains switched off, even if the power supply is re-established. Press the "I" button to switch it on.

12.3 Work lamp operation (fig. 4)

1. Press the on/off switch (21) to switch the work lamp (20) on and off.

12.4 Speed regulator (fig. 2)

The stroke rate controller (18) allows you to set the stroke rate according to the material to be cut. In case of soft material, we recommend high stroke rates, while strokes rates should be kept low for hard material. Turn the stroke rate controller (18) clockwise to increase the stroke rate. Turning anti-clockwise lowers the stroke rate.

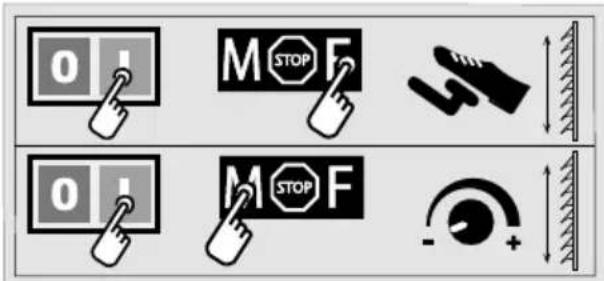

12.5 Operating modes (fig. 1, 2)

The scroll saw is able to be operated manually or via the foot pedal.

01 M STOP F 01 M STOP F - - +

12.5.1 Manual control

1. Ensure that the machine is switched on.
2. Set the operating mode selection switch (17) to the "M" position to operate the saw manually.
3. Use the speed regulator (18) to set the appropriate stroke rate for the material (see 12.4).

12.5.2 Foot pedal controls

1. Ensure that the machine is switched on.

2. Set the operating mode selection switch (17) to the "F" position to operate the saw via the foot pedal (7).

3. The stroke rate may now be regulated via the foot pedal position. If you depress the foot pedal (7) completely, you will reach the maxim stroke rate.

CAUTION

When changing from foot pedal controls to manual controls, the machine starts automatically. The stroke rate corresponds with the stroke rate set on the speed regulator (18).

12.5.3 Stop position

If the operating mode selection switch (17) is to the Stop position (middle position), the machine stops.

CAUTION

stroke the machine is not switched off in this position. When changing from foot pedal controls to manual control, the machine starts automatically. The stroke rate corresponds with the stroke rate set on the speed regulator (18).

12.6 Making inside cuts

This scroll saw allows inside cuts in workpieces without damaging the outside or the circumference of the workpiece.

1. Remove the saw blade (22) as described in 11.1.
2. Drill a hole into the workpiece.
3. Place the workpiece with the drilled hole over the opening of the table inlay (26) on the table (6).
4. Install the saw blade (22) (as described in 11.1) through the drilled hole in the workpiece and set the blade tension.
5. After completing the inside cut, remove the saw blade (22) from the blade holders (as described in 11.1).
6. Remove the workpiece from the table.

12.7 Carrying out mitre cuts (Fig. 14) WARNING

Be particularly careful when making mitre cuts. The incline of the saw table supports slipping. There is a danger of injury.

1. To carry out mitre cuts, adjust the distance between the saw blade guard (5) mounted to the retaining device (24) and the work table accordingly.
2. Swivel the table by loosening the knurled nut (14) and tilting the saw table (6) into the desired position.
3. Tighten the knurled nut (14).

13. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables passed through windows or doors
• Kinks where the connection cable has been improperly fastened or routed
• Places where the connection cables have been cut due to being driven over
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions.

Only use connection cables with the marking H 05 W-F.

The printing of the type designation on the connection cable is mandatory.

Connection type Y

If the mains connection cable for the product is damaged then it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.

AC motor

The mains voltage must be 220-240 V\~.

Extension cables up to 25 m long must have a cross-section of 1.5 mm ^4 .

14. Transport

• Transport the electric tool by lifting it on the recesses provided for this on the frame and the engine cover.
• Never use the protective devices for handling or transport.
• Make sure that the exposed part of the saw blade is covered during transport, e.g. by the protective device.

15. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

16. Cleaning & maintenance

WARNING

Always switch the machine off and remove the mains plug prior to all maintenance and cleaning work.

16.1 Cleaning

Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. We recommend cleaning the device directly after every use.

16.1.1 Cleaning outside

• Clean the device at regular intervals using a damp cloth and a little soft soap.
• Do not use cleaning agents or solvents. These could damage the plastic parts of the device.

- Make sure that no water can penetrate the device interior.

16.1.2 Cleaning inside (fig. 15)

1. Open the storage box (9).
2. Remove the screw (35).
3. Loosen the screw (34).
4. Remove the cover (8).
5. Blow out the device interior with compressed air.
6. Attach the cover again (8).
7. Fasten the screw (34).
8. Insert the screw (35) again and tighten it.
9. Close the storage box (9).

16.2 Maintenance

16.2.1 Bearings (fig. 1/item. 10)

Lubricate the bearing points (10) of rollers after approx. 25-30 operating hours at the latest using high-quality machine grease.

16.2.2 Carbon brushes

If excessive sparks are generated, have an electrician check the carbon brushes.

ATTENTION

The carbon brushes must only be replaced by an electrician.

16.2.3 Mains cable

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

16.2.4 Replacing the fine-wire fuse (fig. 16)

If the fine-wire fuse (36) is defective, it must be replaced with a fine-wire fuse of the same type 5 A/250 V ( 5 x 20 mm).

WARNING

Do not bypass the fine-wire fuse (36). Do not use fuses of any other type. This can lead to damage to the device.

17. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts. Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

m17.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Article Item no.
Universal saw blade set5 x 12 pieces, 130 x 75 x 16	88000010
Round saw blade, 12 pieces,130 x 1.03 x 0.38 / Z 38	88001509
Fret saw blades, 12 pieces,130 x 1.16 x 0,43 / Z 8	88002701
Fret saw blades, 12 pieces,130 x 1.25 x 0.45 / Z 12	88002702
Fret saw blades, 12 pieces,135 x 0.97 x 0.40 / Z 13	88002703
Fret saw blades, 12 pieces,135 x 0.82 x 0.36 / Z 16	88002704
Fret saw blades, 12 pieces,135 x 0.62 x 0.29 / Z 20	88002705
Pin saw blades, 6 pieces,135 x 2 x 0.25 / Z 25	88000011
Pin saw blades, 6 pieces,135 x 2 x 0.25 / Z 18	88000012
Pin saw blades, 6 pieces, 135 x 3 x 0.5 / Z 10	88000013
Blow-off device	5901403012
Saw blade guard	5901403009
Table inlay	5901403039

17.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Carbon brushes, saw blade, table inlay

* may not be included in the scope of delivery!

18. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

- Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)
• LIDL offers you return options directly in shops and markets. Return and disposal are free of charge.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- For additional take-back conditions of the manufacturers and distributors, please contact the respective customer service.

- In the case of delivery of a new electrical device by the manufacturer to a private household, the latter may arrange for the free collection of the old electrical device upon request from the end-user. Get in contact with the manufacturer's customer service.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

19. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Saw blade without pins loosens after switching off the engine	Saw blade clamping screw (28/29) not tightened enough	Tighten the saw blade clamping screw (28/29)
Motor does not start Mains	fuse blown Check mains fuse
	Extension cable defective Replace the extension cable
	Fine-wire fuse defective Check the fine-wire fuse and, if necessary, replace it with a fine-wire fuse of the same type.
	Connection to the motor or switch not OK	Have this checked by an electrician
	Motor or switch faulty Have this checked by an electrician
Saw blades brake Tension set incorrectly Set correct tension
Saw blade oscillates, not aligned straightly.	Holders not aligned	Open the screws that fasten the holders. Bring the holders into the vertical position and tighten the screws again.

20. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

- The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

20.1 Processing of warranty claims

To ensure that your request is processed quickly, please follow the instructions below:

• Please have the receipt and article number (e.g. IAN 457888_2401) ready as proof of purchase for all enquiries.
• Please refer to the type plate on the product, an engraving on the product, the title page of your instructions (bottom left) or the sticker on the back or underside of the product for the article number.
• If functional faults or other defects occur, first contact the service department named below by telephone or e-mail.
• You can then send a product recorded as defective to the service address provided to you free of charge, enclosing the proof of purchase (receipt) and stating what the defect is and when it occurred.

- You can view and download these and many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search mask to search for the operating instructions. Enter the article number (IAN) 457888_2401 to access the operating instructions for your article.

Service contact (GB):

Name: Forest Park & Garden Coed Court, Taffsmead Road Treforest, Ind. Estate, Pontypridd CF375SW

Tel: [phone]

E-Mail: [e-mail]

Location: Great Britain

Service contact (NI):

Name: Forest Park & Garden Coed Court, Taffsmead Road Treforest, Ind. Estate, Pontypridd CF375SW

Tel: [phone]

E-Mail: [e-mail]

Location: Great Britain

Service contact (IT):

Service contact (IE):

Name: Forest Park & Garden Coed Court, Taffsmead Road Treforest, Ind. Estate, Pontypridd CF375SW

Tel: [phone]

E-Mail: [e-mail]

Location: Great Britain

Service contact (CY):

Name: GEORGE C SOLOMONIDES & SON LTD PO.BOX 56236 / 169, LEONTIOS A' GR - 3022 LIMASSOL/CYPRUS

Tel: [phone]

E-Mail: [e-mail]

Location: Cyprus

PDF ONLINE parkside-diy.com

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

01 M STOP F 01 M STOP F - +

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

01 M STOP F 01 M STOP F - +

12.5.1 Commande manuelle

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

11.6 Spanenafzuiging (afb. 13)

01 M STOP F 01 M STOP F - +

12.5.1 Handmatige bediening

Servicecontact (NL):

Naam: TeleMarCom European

Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Telefoon: 00800 4003 4003

E-mail: [e-mail]

Günzburger Straße 69

01 M STOP F 01 M STOP F - +

12.5.1 Control manual

Günzburger Straße 69

89335 Ichenhausen, Germania

Egregio cliente,

01 M STOP F 01 M STOP F - +

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

0 M STOP F 0 M STOP F -

12.5.1 Ruční řízení

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

01 M STOP F 01 M STOP F -

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

01 M STOP F 01 M STOP F - +

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

0 M STOP F 0 M STOP F - +

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde,

01 M STOP F 01 M STOP F - +

12.5.1 Manuel styring

12.5.3 Stop-stilling

Exploded view diagram of a mechanical assembly with numbered components and exploded views

EU Declaration of Conformity Translation of the original EU Declaration of Conformity

Standard references:

EN 62841-1:2015; EN ISO 12100:2010; EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A1:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Tobias Ihle

Günzburger Str. 69, D-89335 Ichenhausen

FR ©

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FSC www.fsc.org MIX Papier aus ver- antwortungsvollen Quellen FSC® C160858 F

FSC www.fsc.org MIX Paper from responsible sources SC ©C160858

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C160858

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Estado de las informaciones · Versione delle informazioni · Stav informaci · Stav informacií · Információk állása · Stan informacji · Tilstand af information Update: 04 / 2024 · Ident.-No.: 457888_2401_39014109915
