USER MANUAL TZJ-01-02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRUCK BED EXTENDER

MODEL:TZJ-01-01/TZJ-01-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRUCK BED EXTENDER

MODEL:TZJ-01-01/TZJ-01-02

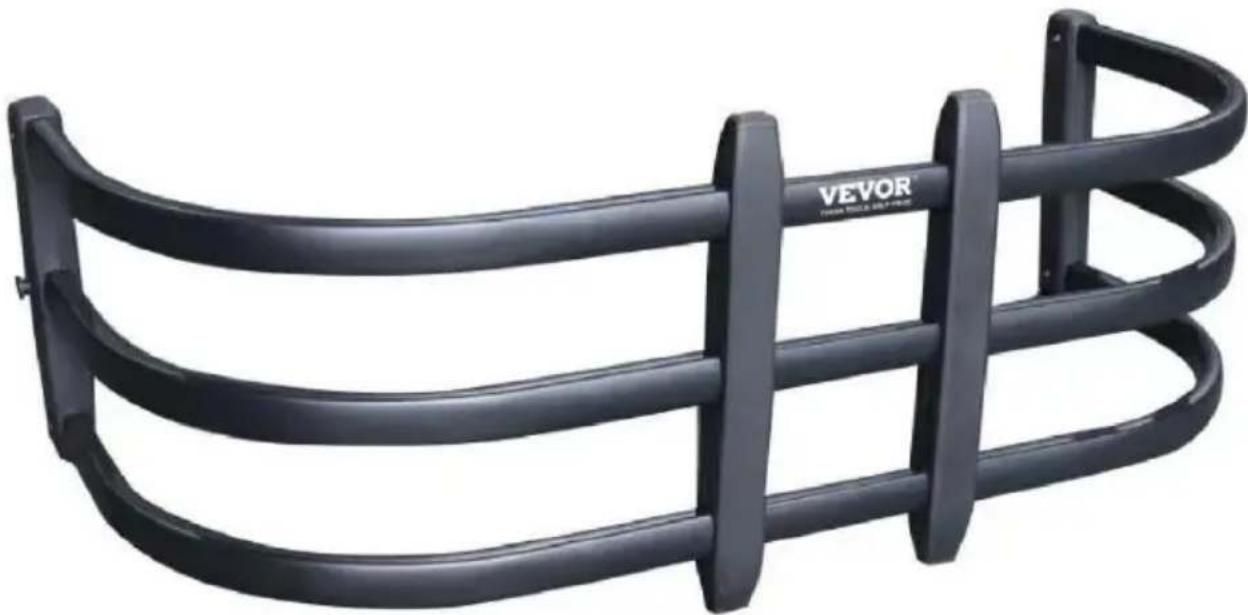

Black VEVOR sports gear bar with three curved metal bands (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

WARNING:

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.

1. Adhere to all Department of Transportation(D.O.T.) require ments when usir this product.
2. Use common sense when working. Stay alert and concentrate when setting and using this product. Never work while under the influence of alcohol, drug medications.
3. While assembling and using this product keep work area clean and well I Keep spectators and children out of the work area.
4. Dress appropriately. Never wear loose fitting clothing or jewelry when work Contain long hair, and keep hair, clothing and gloves away from moving part
5. Always keep this truck bed extender away from children
6. Check the truck bed extender is in good condition before using it.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	TZJ-01-01	TZJ-01-02
Range	51.6~64 in	55.5~68in
Material	Aluminum, Plastic
Color	Black
Fitment	Ridgeline,Tacoma,Gladia tor,Colorado/Canyon, Frontier,ranger	Ford SuperDuty,F150, Dodge Ram 1500/2500/3500, Toyota Tundra,Nissan Titan, Chevrolet Silverado

ASSEMBLY PREPARATION

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NUMBER	QTY		NO	PICTURE	PART NUMBER	QTY
A		Bumper Upright Assembly	2		J		Hex key	1
B		Strap Buckle Assembly	2		K		Bumper	2
C		Pivot Upright Assembly	2		L		Hex Nut M6	2
D		Quick Mount Bracket set	2		M		Lock nut M9	8
E		Straight Tube	3		N		Drill Bit φ4.1	1
F		Bent Tube	6		O		Strap Latch Insert φ15	2
G		Phillips Head Screw M5*20	8		P		Strap Latch Insert φ11	2
H		Phillips Head Self-tapping Screw 5*16	20		Q		Drilling template	2
I		Hexagon socket head cap screw M6*40	2		R		Bracket	2

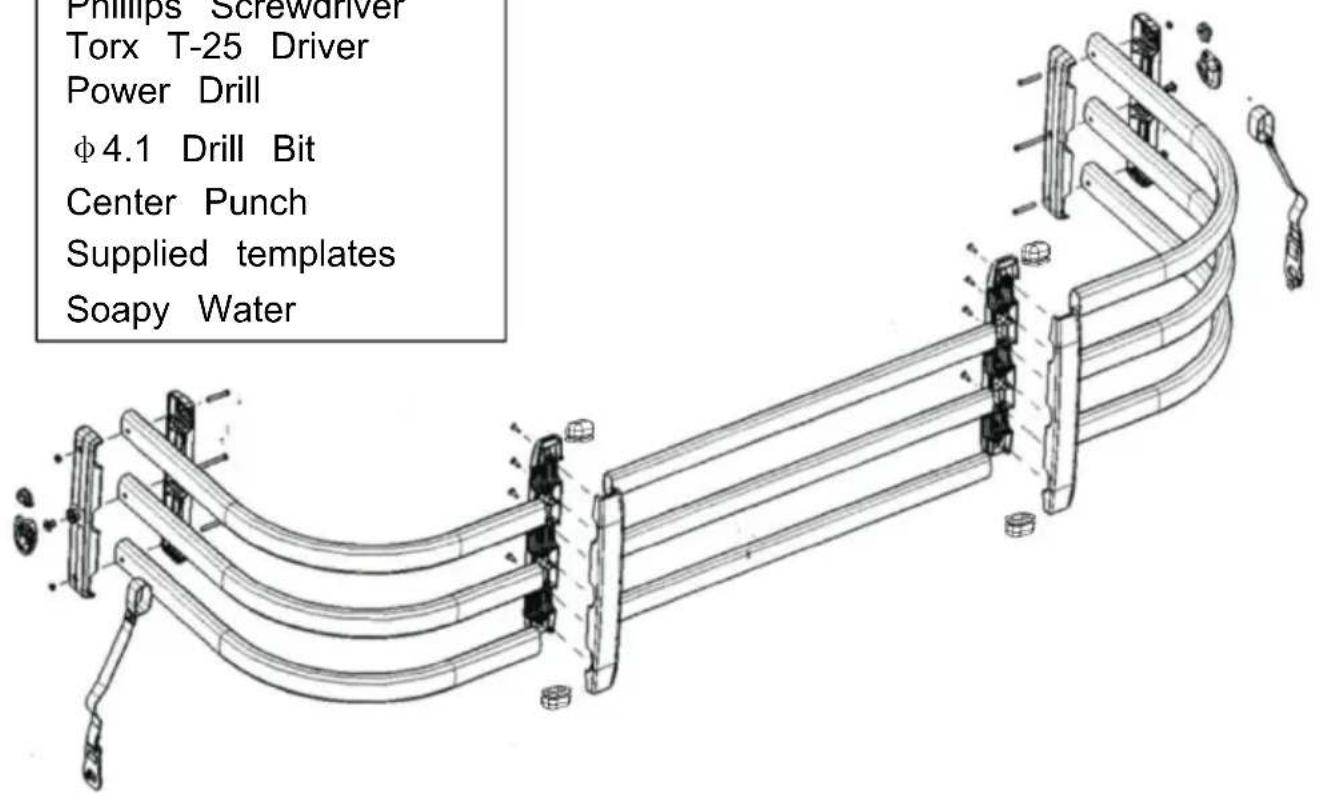

PRODUCT ASSEMBLY EXPLODED

TOOLS REQUIRED

Phillips Screwdriver

Torx T-25 Driver

Power Drill

Φ4.1 Drill Bit

Center Punch

Supplied templates

Soapy Water

Phillips Screwdriver Torx T-25 Driver Power Drill Φ4.1 Drill Bit Center Punch Supplied templates Soapy Water

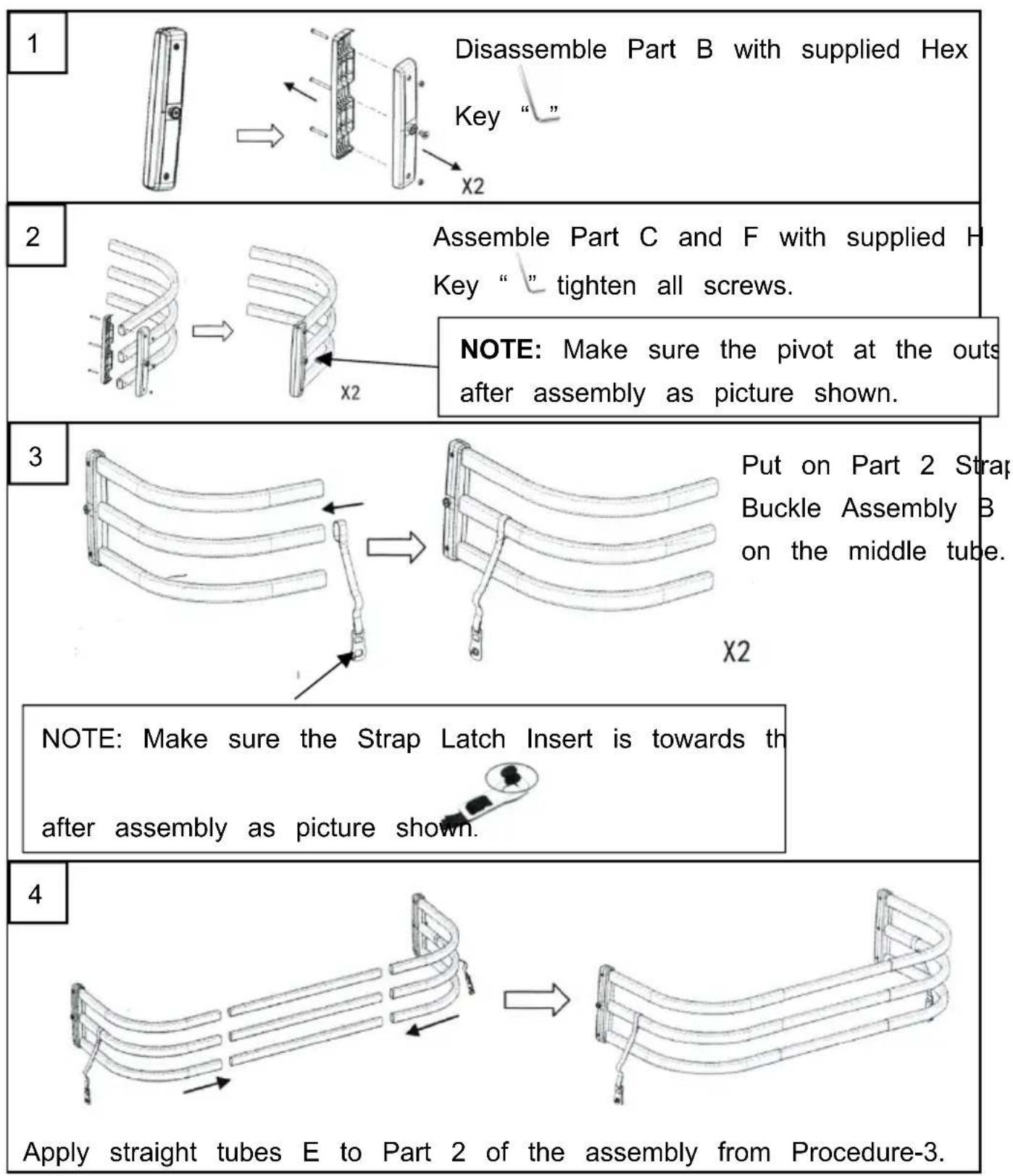

1. Assembly Procedures

2. Installation Procedures

5

Technical line drawing of a car interior showing structural components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a component inserted, showing a right-angle view (no text or symbols)

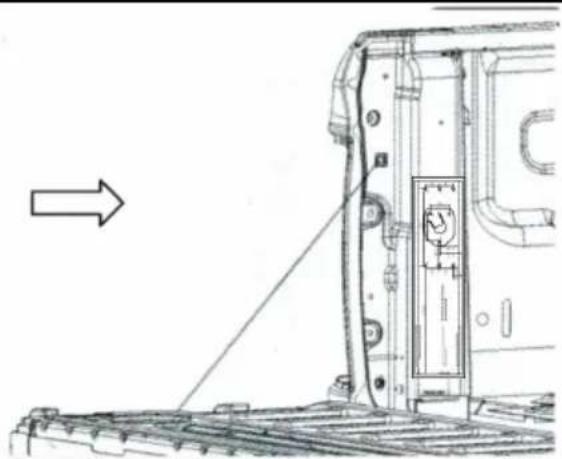

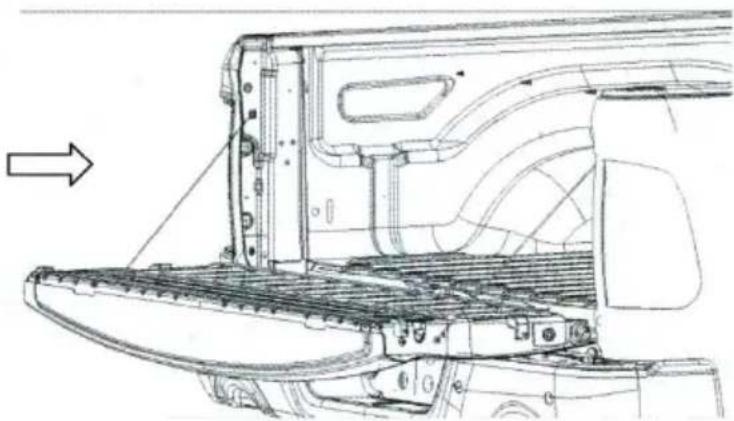

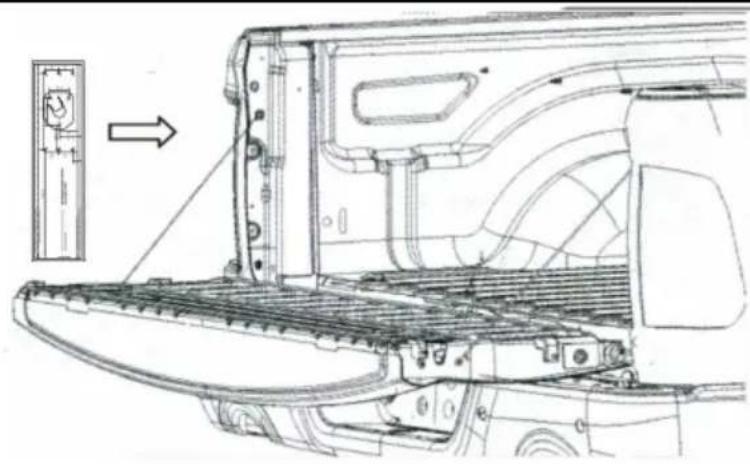

Adjust and place the drilling template Q at the tailgate D-pillar and mark screw holes with marker on both sides

6

Technical line drawing of a mechanical assembly with a hammer and gavel (no text or symbols)

Technical line drawing of a car's front panel assembly (no text or symbols)

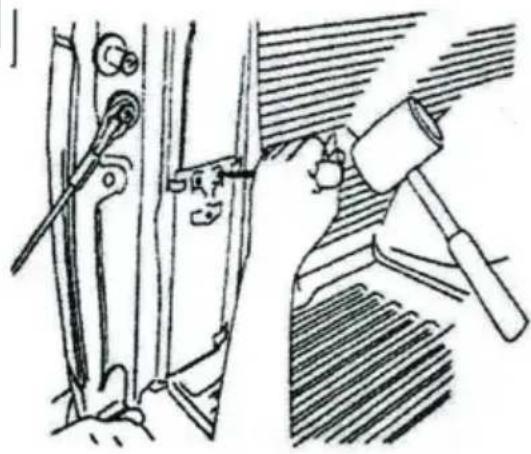

Use the center punch to mark screw holes for preparation of drilling.

7

Illustration of a hand using a tool to adjust or install a car door panel (no text or symbols visible)

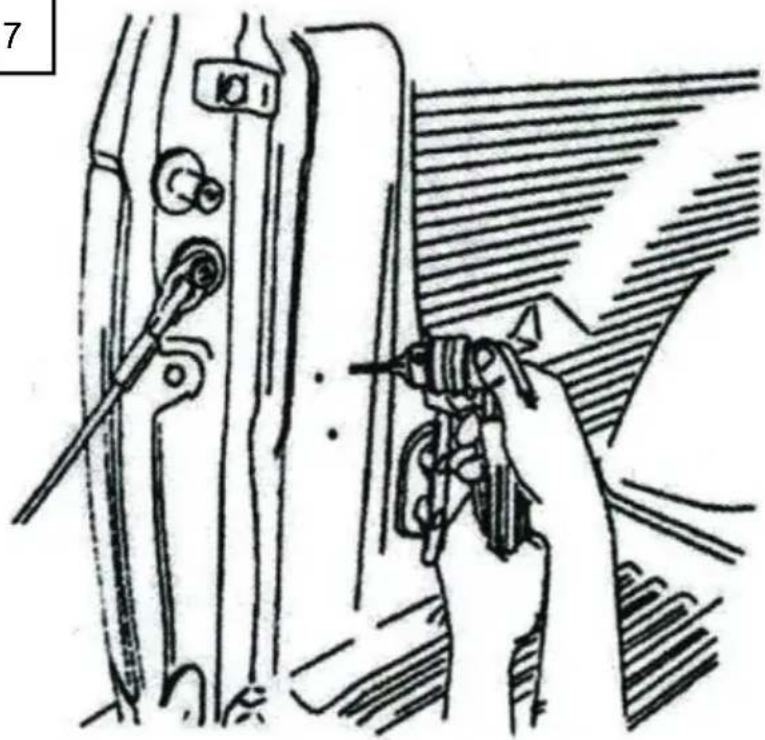

Use a power drill and 1

drill bit to drill through the sheet metal. If equipped with a bed liner, drill through the bed liner as well.

8 ① ⑦

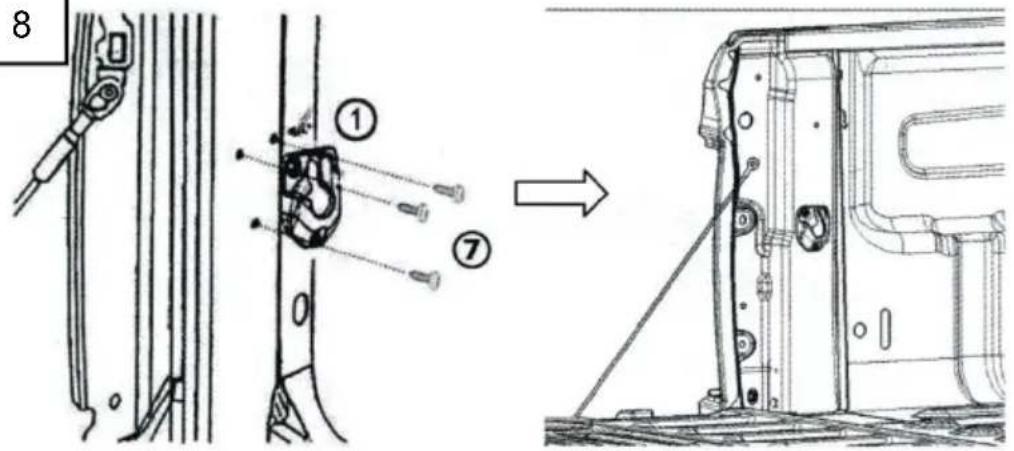

Fasten Bracket D with Screw H by using a Phillips screw

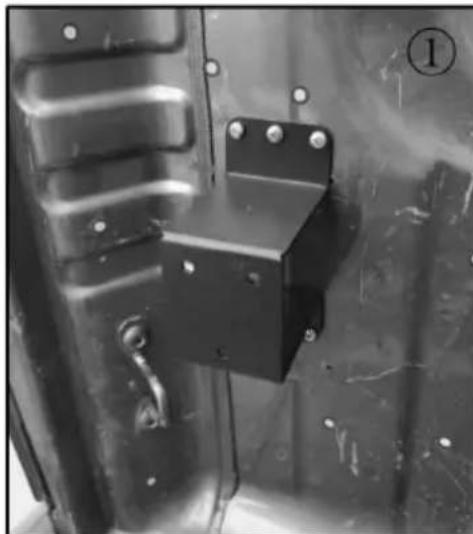

Tips: The black

U-shaped frame is a optional accessory. If the width of the carriage is not on the same horizontal line the tailgate, it needs be installed (as show in the figure). If the width of the carriage on the same horizon line as the tailgate, does not need to be installed.

Close-up of a metal bracket component with bolts and mounting holes, no visible text or symbols

Close-up of a mechanical component with bolts and mounting brackets (no visible text or symbols)

Close-up of a metal bracket with a handle and bolts, no visible text or symbols

Close-up of a mechanical component with black brackets and mounting holes, no visible text or symbols

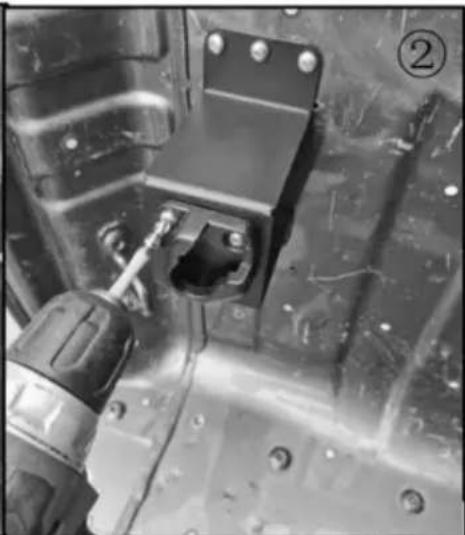

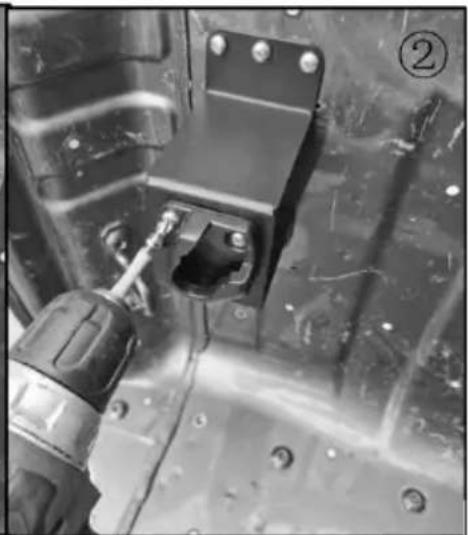

Use a power drill and 4.1 drill bit to drill through the sheet metal. If

with a bed liner, drill through the bed liner as well.

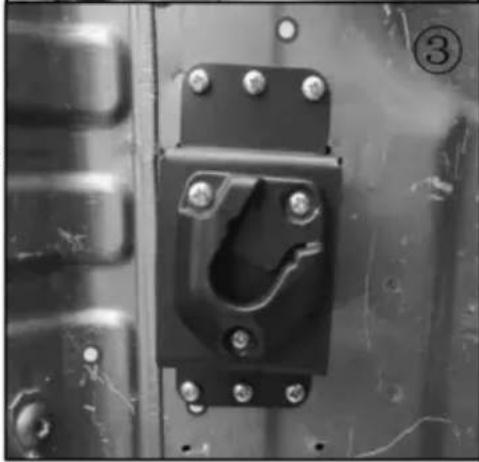

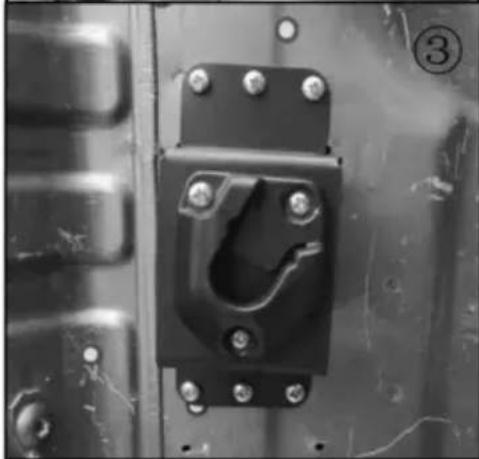

Fasten Bracket R with Screw H by using a Phillips screw.

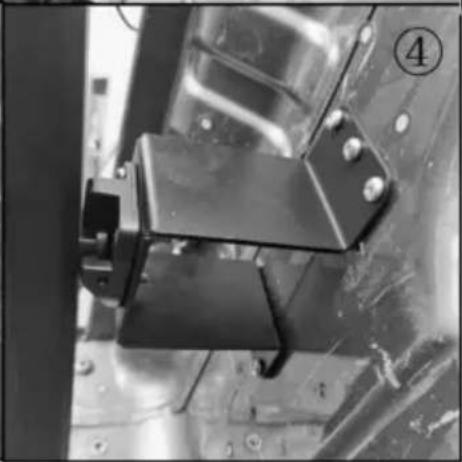

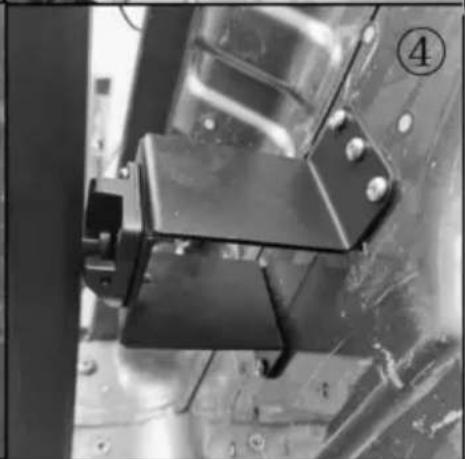

Fasten Bracket D with Screw G and nut M by using a Phillips screw.

9

Technical line drawing of a vehicle chassis frame with curved structural elements (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and mounting brackets (no text or symbols)

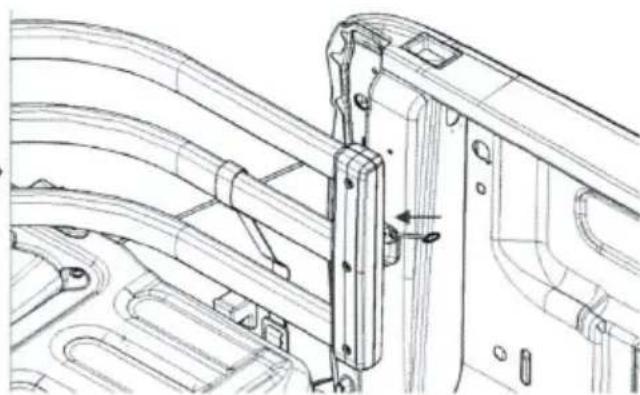

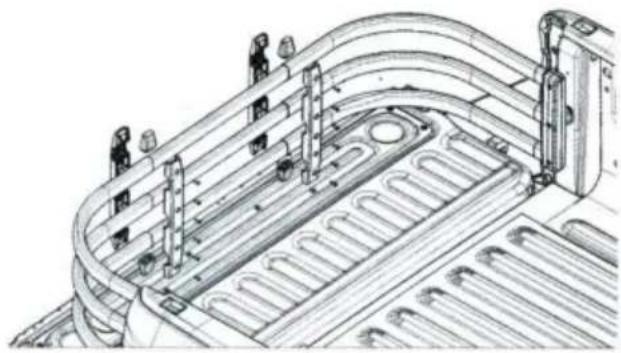

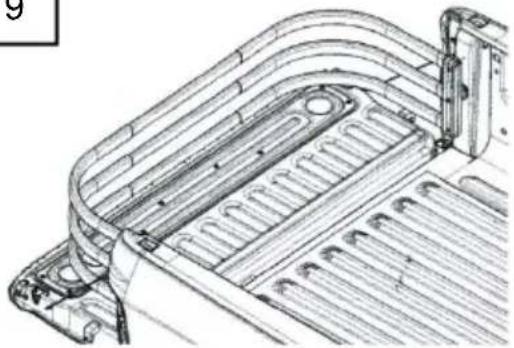

Adjust the width of the bed extender to fit preinstalled Quick Mount Bra

Phillips screw driver "to fasten Part A"".

Technical line drawing of a mechanical component with curved internal structure and mounting brackets (no text or symbols)

→

Technical line drawing of a car interior showing structural components and mounting brackets (no text or symbols)

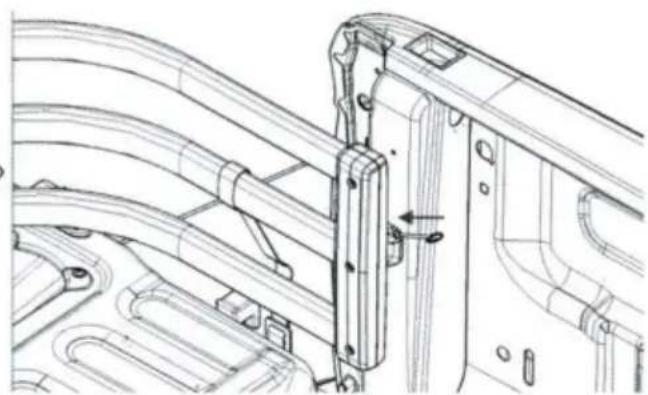

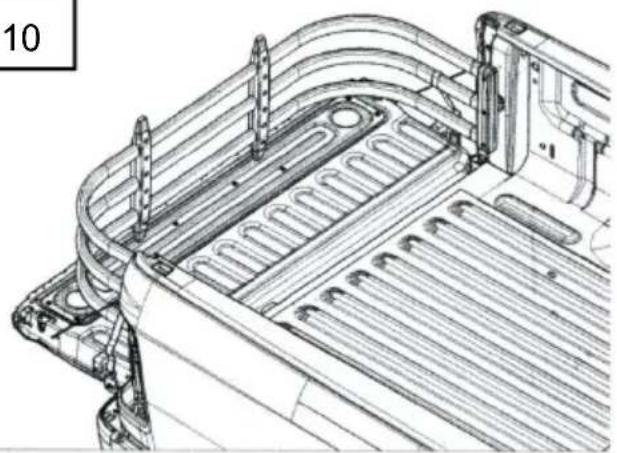

Insert "into the Quick Mount Bracket, and put" back on the brackets

11

Technical line drawing of a vehicle chassis frame with structural ribs and mounting brackets (no text or symbols)

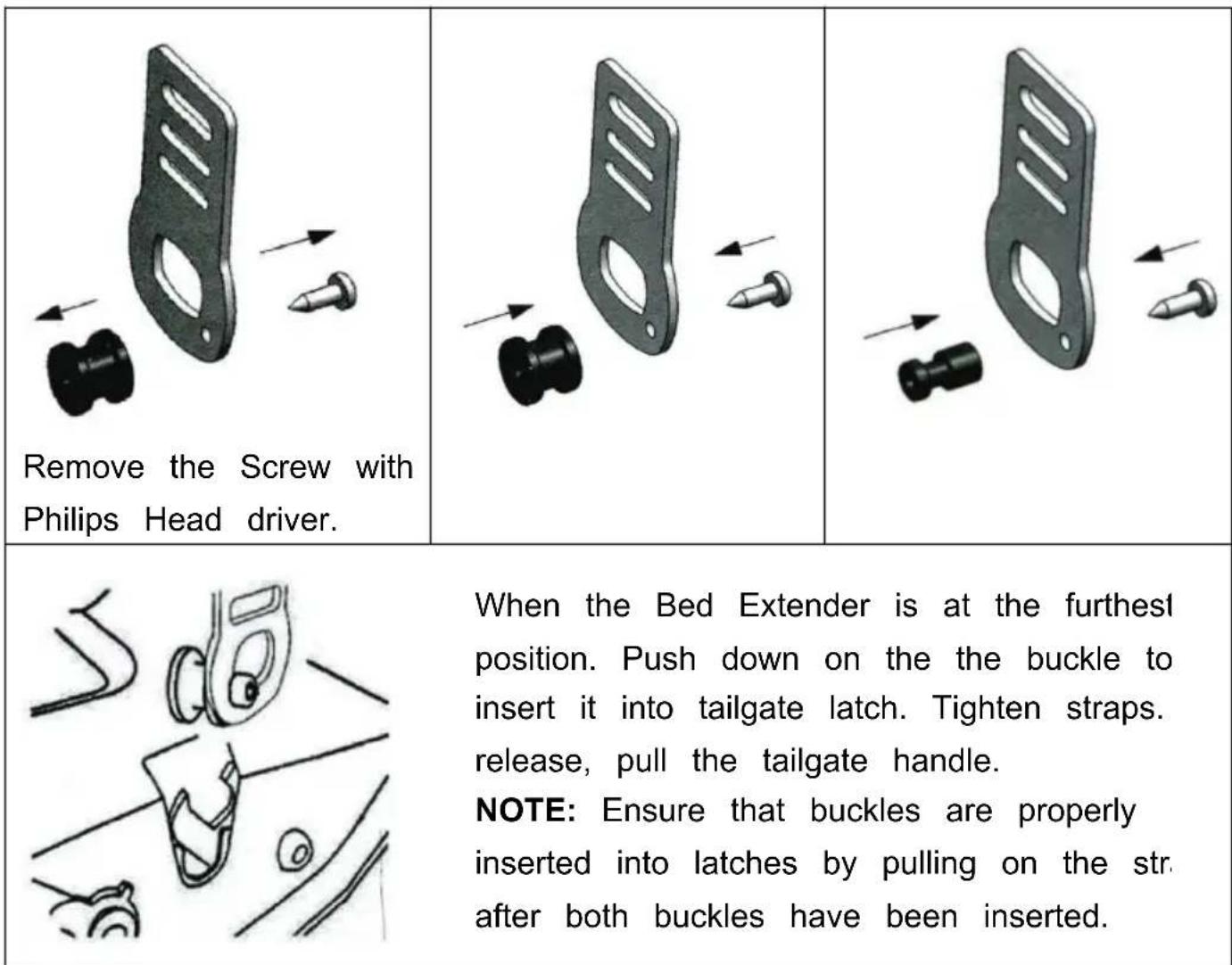

Adjust Strap Buckles to lock into the tailgate when Bed Extender is deployed. Your assembly is now complete.

Tips: Strap Latch Insert is supplied in 2 diameter sizes, you can choose to fit your tailgate latch.

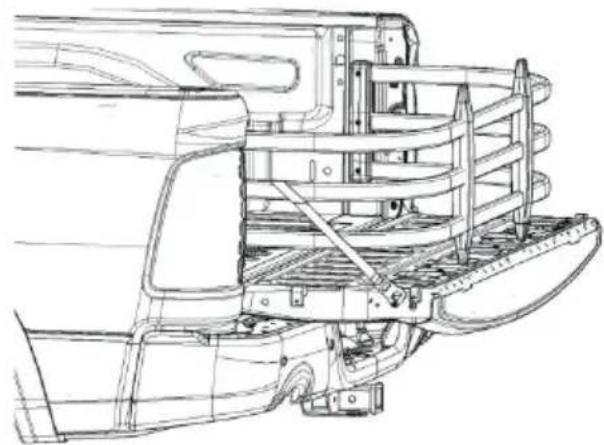

• With the tailgate open, place Bed Extender pivot pins into the left and rig mounting brackets. Rotate to 45 until it drops into place, then lower onto open tailgate.
• Flip Bed Extender out to contain cargo in the truck bed when the tailgate open. CAUTION: 200lb maximum load on the open tailgate. Always distribute the cargo evenly and properly secure inside the bed. Do not secure cargo the Bed Extender or the tailgate.
• Before driving, secure Bed Extender by locking the provided strap buckles into the truck's tailgate latches. To release, pull the tailgate handle. NOTI Ensure that both buckles are properly locked into the latches by pulling each strap.

- Flip Bed Extender forward and close the tailgate to keep smaller cargo sa and organized.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black VEVOR wire bar with curved metal frame (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

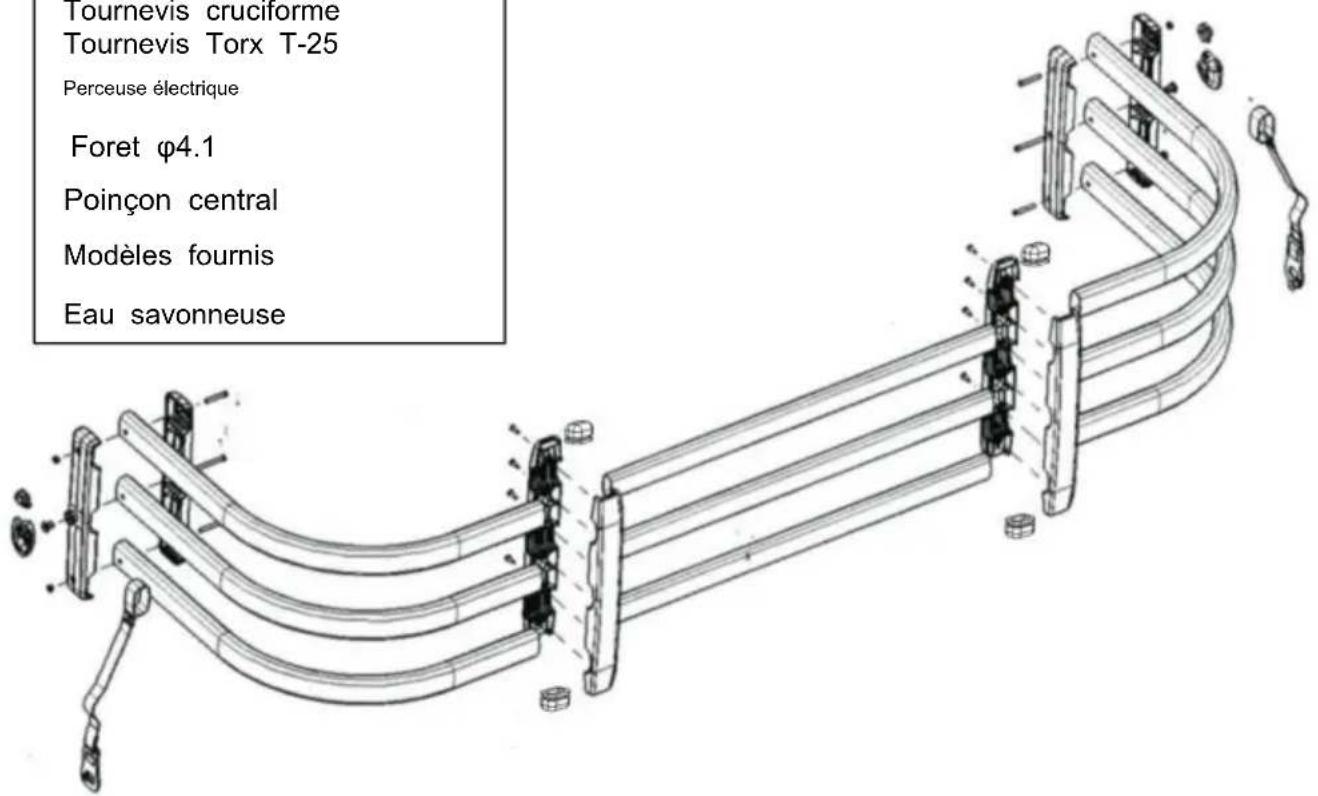

ASSEMBLAGE DU PRODUIT ÉCLATÉ
