USER MANUAL TK-4.75A-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHACKLE HITCH RECEIVER

MODEL: TK-2A / TK-4.75S-1 / TK-8S / TK-4.75A-1 / TK-4.75A-2 / TK-4.75S-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHACKLE HITCH RECEIVER

MODEL: TK-2A/TK-4.75S-1/TK-8S/TK-4.75A-1/TK-4.75A-2/TK-4.75S-2

Three black plastic components: a curved tool, a flat strip, and a rounded rectangular object with holes (no text or symbols visible)

TK-2A

Product photo of a handheld electronic device with red strap and black handle, accompanied by a yellow square and black ring (no text or symbols visible)

TK-4.75S-1

Assorted mechanical components including a black clamp, ring, washer, and yellow strip (no text or symbols visible)

TK-8S

Collection of automotive components including a black handle, red grip, black strap, and yellow clip (no text or symbols visible)

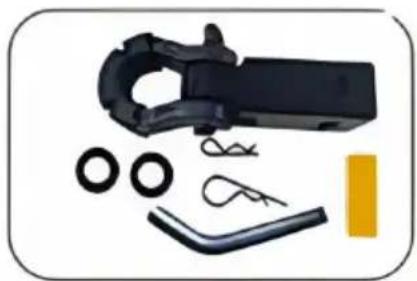

TK-4.75A-1

Collection of mechanical tools and components including a black tool, red handle, yellow bar, black ring, and wire clips (no text or symbols visible)

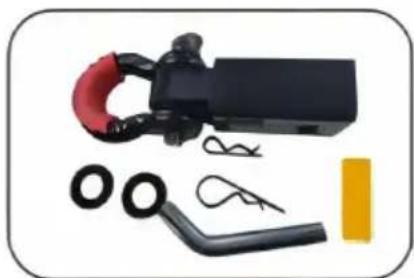

TK-4.75A-2

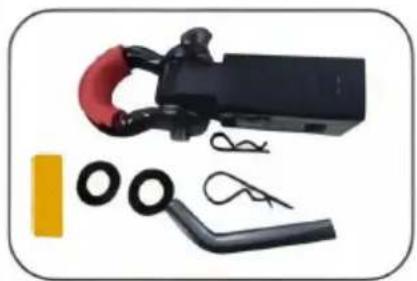

Product photo of a mechanical clamp device with tools and a yellow rectangular component (no visible text or symbols)

TK-4.75S-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. Make sure your vehicle is compatible with the receiver and select receiver with the appropriate load range.

2. Follow towing procedures in the vehicle owner's manual.

3. Prior to usage, inspect all towing equipment for cracked welds, mis or worn parts and loose bolts.

4. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of the towing system it is being used with. The consumer or operator is advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.

5. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.

6. During their period of use, accessories must be checked for wear, cracks, and other damage.

7. Please be sure to use within the safe working Load Limit range!

MODEL AND PARAMETERS

Model	TK-2A
Working Load Limit	5 Ton (11000 Lbs Capacity)
Breaking Strength Limi	Receiver:24 Ton (52900 Lbs Capacity)
Parameter	2"Receiver;Horizontal 2 holes+vertical 1 hole Pin Φ5/8"; Work Φ5/8"
Material	Aluminium alloy 6061-T6
Model	TK-4.75S-1
Working Load Limit	5 Ton (11000 Lbs Capacity)
Breaking Strength Limi	Shackle/Receiver): 20 Ton (44100 Lbs Capa
Parameter	2"Receiver;Horizontal 1 hole+vertical 1 holePin Φ5/8"; Work Φ5/8"
Material	Steel

Model	TK-8S
Working Load Limit	5 Ton (11000 Lbs Capacity)
Breaking Strength Limi	Shackle: 29.9 Ton (65900 Lbs Capacity)
Parameter	2"Receiver;Horizontal 1 hole+vertical 1 holePin Φ5/8"; Work Φ5/8"
Material	Steel

Model	TK-4.75A-1
Working Load Limit	7.25 Ton (16000 Lbs Capacity)
Breaking Strength Limi	Receiver: 24 Ton (52900 Lbs Capacity)
Parameter	2"Receiver;Horizontal 1 hole+vertical 1 holePin Φ5/8"; Work Φ5/8"
Material	Aluminium alloy 6061-T6
Model	TK-4.75A-2
Working Load Limit	7.25 Ton (16000 Lbs Capacity)
Breaking Strength Limi	Shackle: 29.9 Ton (65900 Lbs Capacity)
Parameter	2"Receiver;Horizontal 2 holes+vertical 1 hole Pin Φ5/8"; Work Φ5/8"
Material	Aluminium alloy 6061-T6

Model	TK-4.75S-2
Working Load Limit	7.7 Ton (17000 Lbs/The recommended us is13000-14000lbs.)
Breaking Strength Limi	Shackle: 29.9 Ton (66000 Lbs Capacity)
Parameter	2"Receiver;Horizontal 1 hole+vertical 1 hole Pin Φ5/8"; Work Φ5/8"
Material	Steel

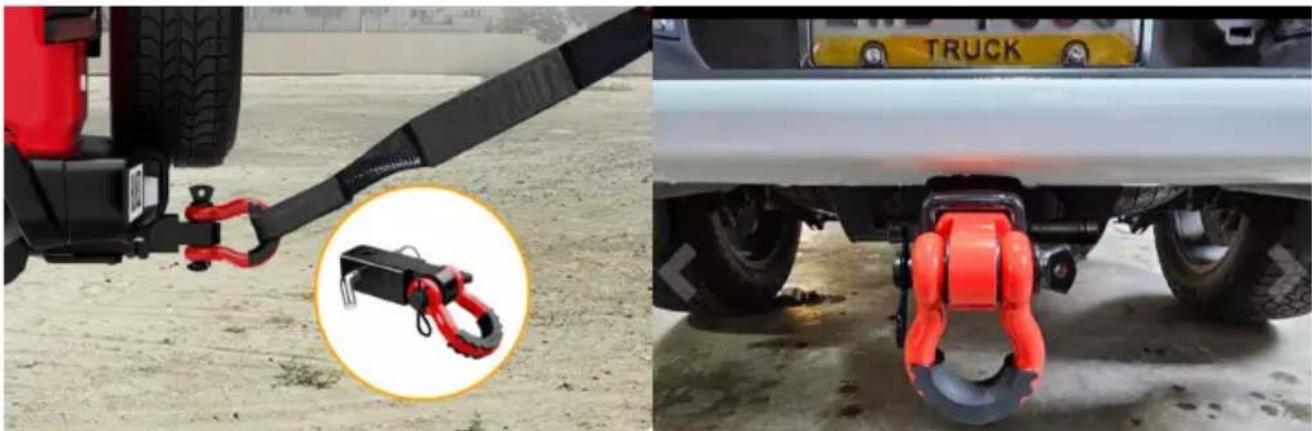

APPLICATION SCENARIOS

1) Preparation before installation: Check that the accessories are complete and verify that your vehicle is compatible with the receiver.
2) Installation: The receiver is installed in the reserved trailer tube of vehicle to ensure that it is secure and stable, usually by means of a specific accessory trailer pin or trailer lock.
3) Pre-trip inspection: After the connection is complete, check whether all the connection parts are tight. Before starting to drive, make sure trailer weight is within the maximum allowable towing weight of the ve

4) Driving precautions:

a. During driving, the speed should be kept low, especially when turn and braking, to slow down in advance to avoid instability caused by inertia.
b. When towing for a long time, stop regularly to check the status of trailer arm and the connection part to prevent loosening or wear caused long-term driving.

Two views of a red and black vehicle suspension system: one with a close-up inset showing a red chain link, the other showing a yellow truck (no text or symbols visible)

Three-step illustration showing a hand holding a pen, with arrows indicating movement or force (no text or symbols)

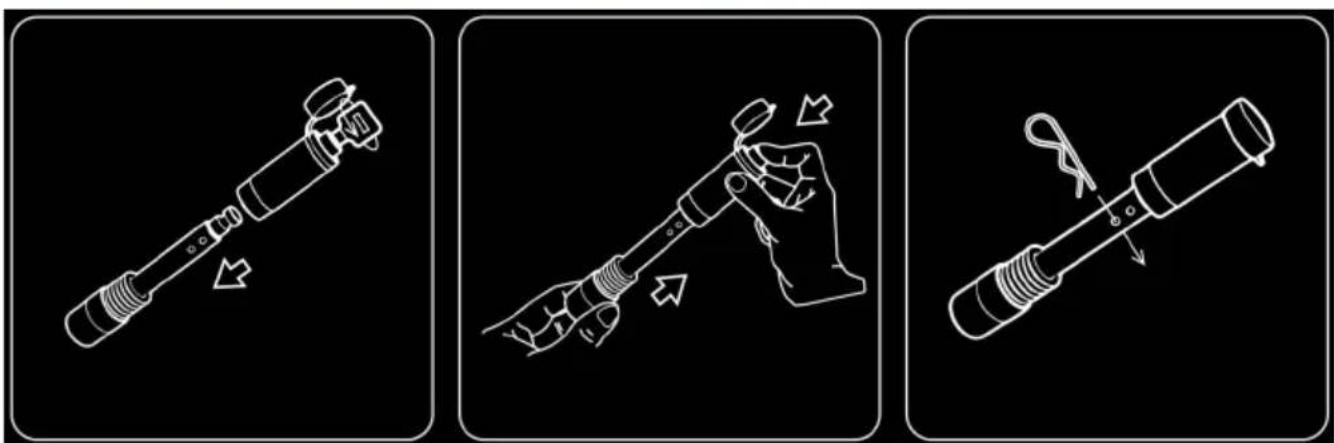

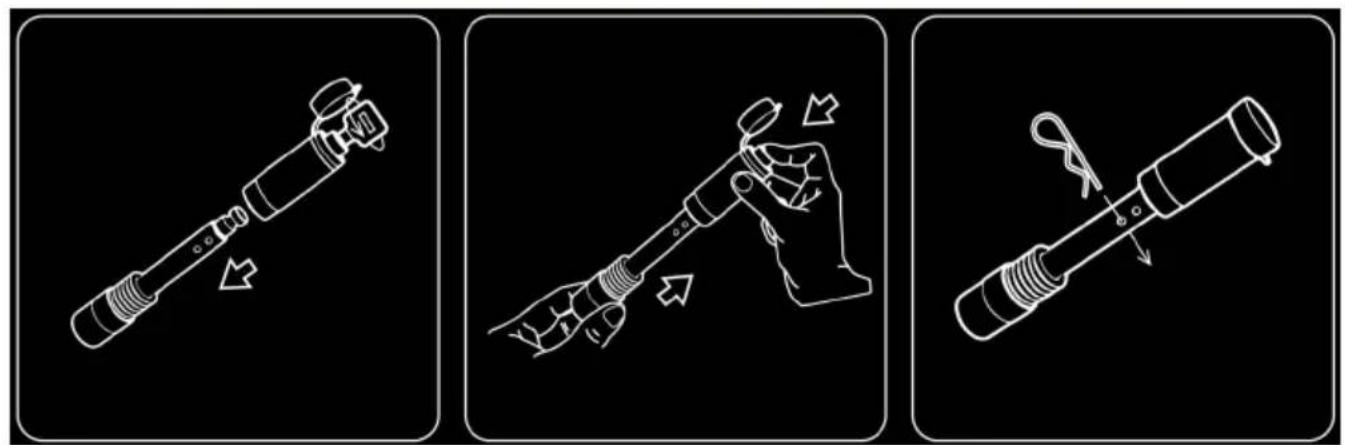

HOW TO USE THE HITCH PIN LOCK

1. Insert the Key and Unscrew the Lock, Separate the Pin.
2. Push the Button of the Lock head to Securely Lock the Pin in P
3. For Extra Safety Insert the Spring Clip into the Pin Hole.

MAINTENANCE

1. Check bolts and safety pins regularly.
2. Do not overload.
