Product Type	Wheel Spacers (Adapters)
Brand	Vevor
Model	6135-6135-ET-87.1-50
Thickness	2 inches (50.8 mm)
Center Bore Diameter	87.1 mm
Number of Studs	6
Bolt Pattern	6x135 mm (5.3 inches)
Thread Pitch	M14x2
Quantity per Kit	4 pieces
Mounting Type	Hub Centric
Material	Steel (estimated)

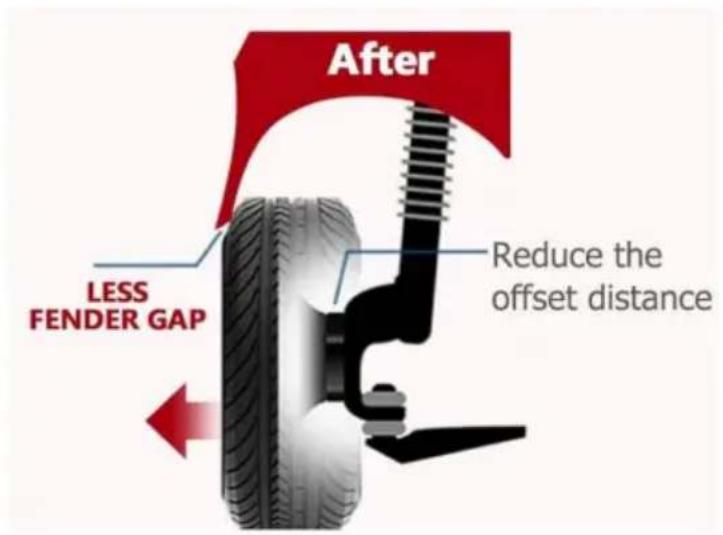

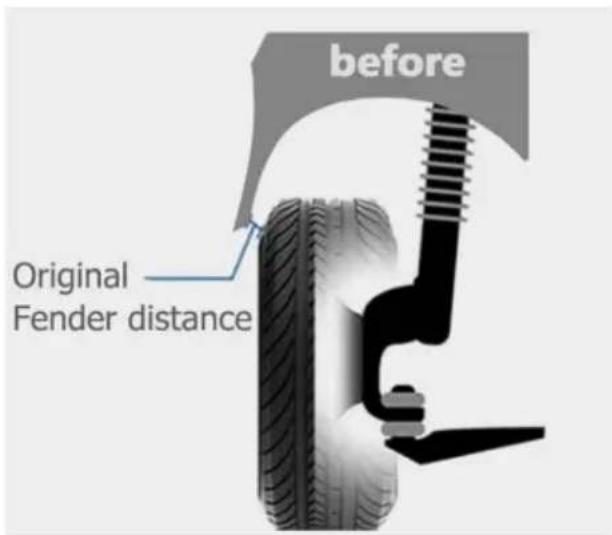

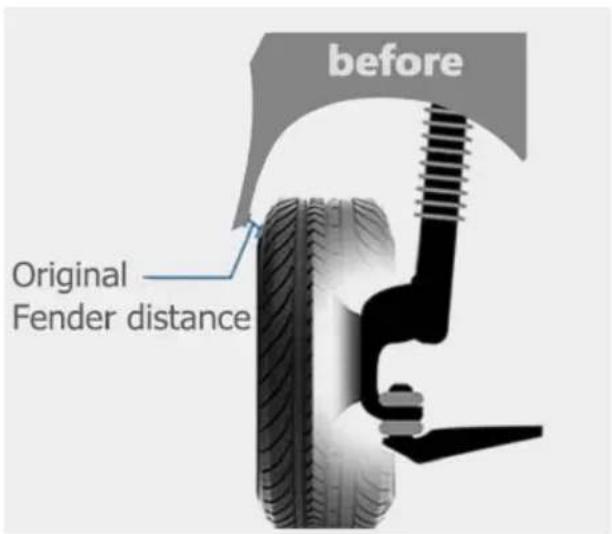

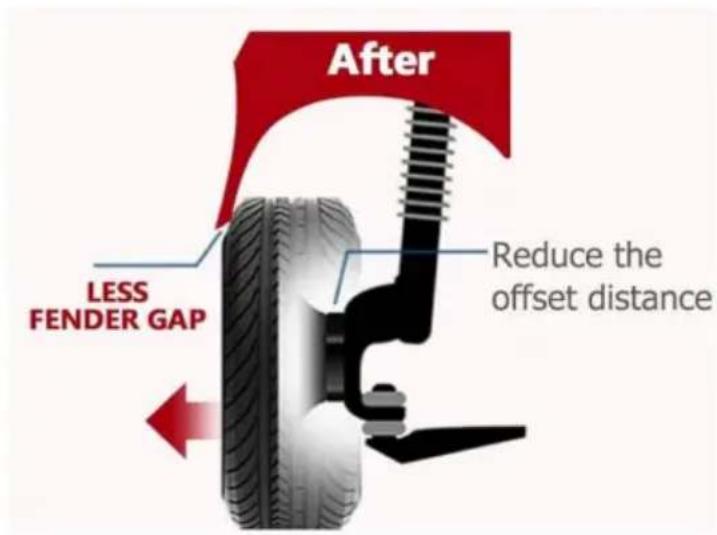

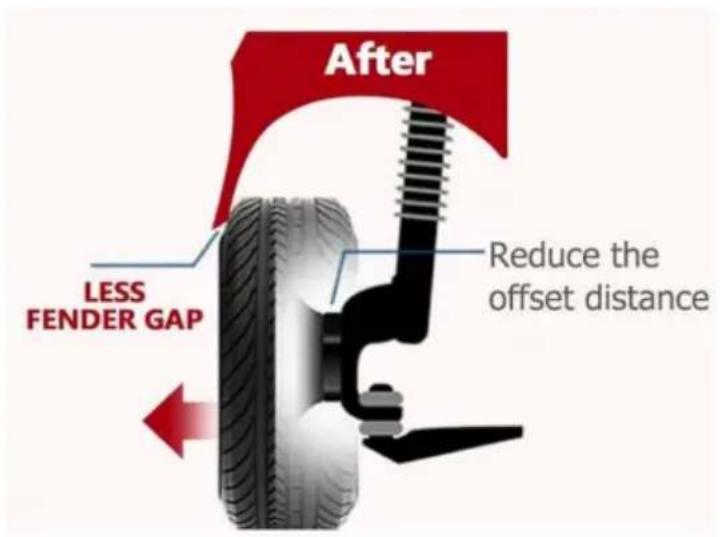

Main Function	Widen wheel track and adapt bolt pattern
Compatible Vehicles	Ford F-150 & Expedition, Lincoln Navigator (2003-2015)
Installation	Torque wrench only, no impact tools
Torque Specification	Refer to the manual's table
Maintenance	Check torque after 25-50 miles then 2000 miles
Safety	Do not modify, do not stack, use threadlocker
Warranty Certification	www.vevor.com/support
Origin	Shanghai, China

Frequently Asked Questions - 6135-6135-ET-87.1-50 Vevor

What is the recommended torque for the lug nuts on these spacers?

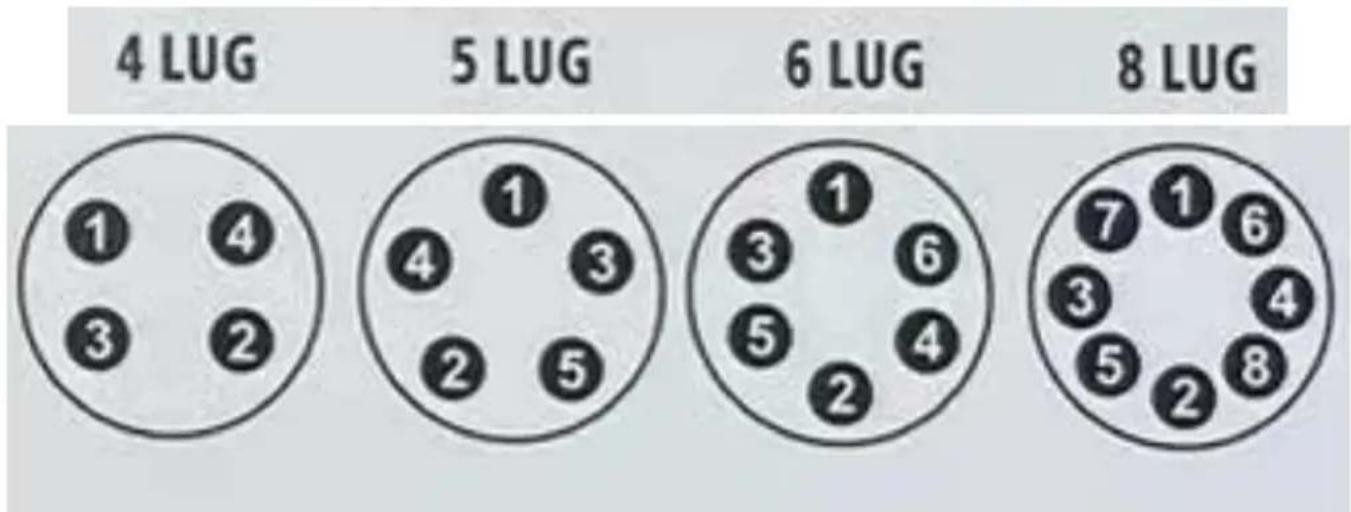

Use a torque wrench following a star pattern. The exact torque depends on the vehicle; refer to the table in the manual or the manufacturer's instructions. Tighten by hand, never with an impact wrench.

Are these spacers compatible with my 2010 Ford F-150?

Yes, this model is designed for Ford F-150, Ford Expedition, and Lincoln Navigator from 2003 to 2015. Check the bolt pattern 6x135 mm and bore 87.1 mm.

Can I use additional spacers at the same time?

No, it is strictly forbidden to stack multiple adapters or spacers on the same wheel. This could cause a dangerous failure.

Should I reuse the original studs or install the ones provided?

The spacers come with their own studs. Never remove the factory-installed studs on the adapter and do not use the original studs to attach the spacer.

How to check if my tires clear after installation?

After mounting the wheel, turn the steering wheel fully left and right. Ensure no contact occurs between the tire and the body or suspension. Also check under full load.

How often should I check the torque of the nuts?

Retorque all nuts after 25 to 50 miles (40-80 km) of driving, then again after 1,000 to 2,000 miles (1,600-3,200 km). Use threadlocker to prevent loosening.

Are these spacers hub centric or wheel centric?

They are hub centric and wheel centric. The center bore of 87.1 mm fits the vehicle's hub.

Can I use an impact wrench to tighten the nuts?

No, never use an impact wrench. It could damage the nuts and studs. Use a hand wrench with appropriate torque.

What to do if the rotor flange is rusty?

Thoroughly clean the rotor mating flange to remove any rust or obstruction. An uneven surface can cause misalignment and breakage.

Where can I get technical support or warranty replacement?

Go to www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL 6135-6135-ET-87.1-50 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL:6135-6135-ET-87.1-50

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6135-6135-ET-87.1-50

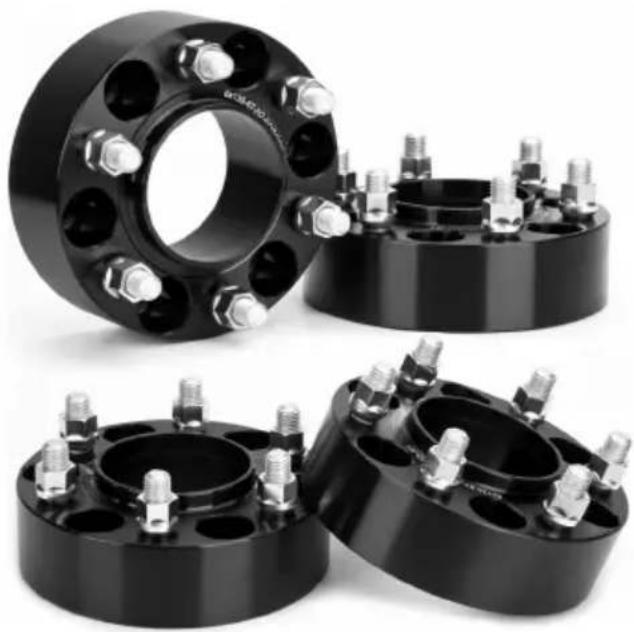

Four black industrial flange components with metallic bolts and bolt holes, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
• Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damageor cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting fl to both the inner and outer side of the spacers. Improperly seated spacers a

hazardous and may cause adapterfailure, resulting in the loss of a wheel which driving the vehicle.

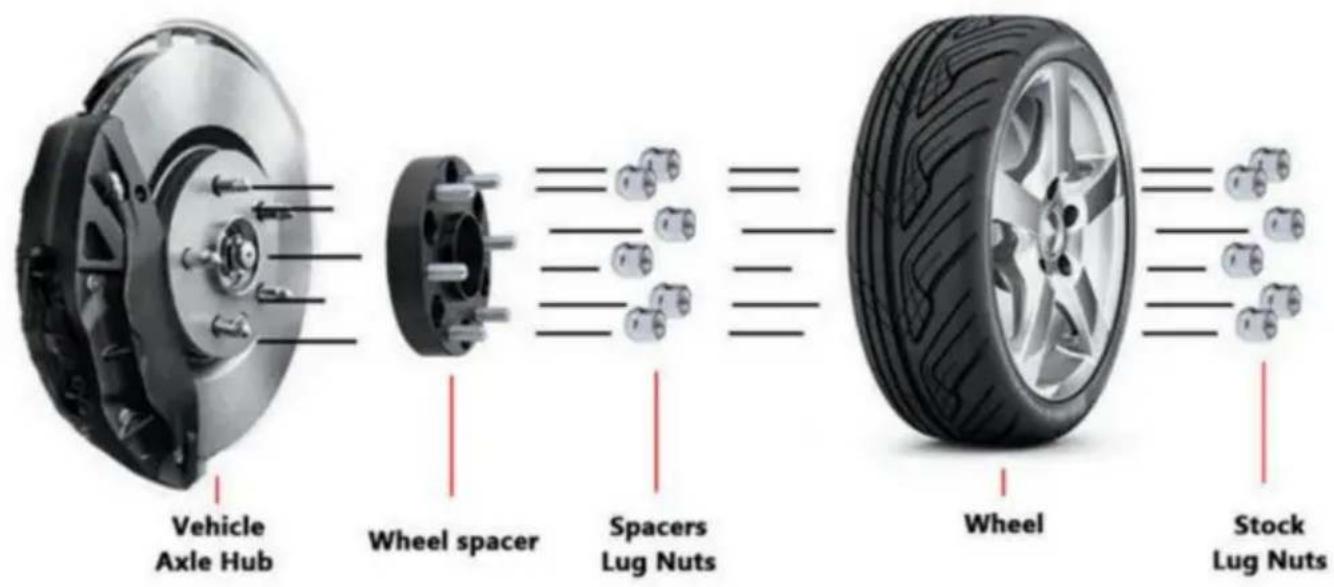

1. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Don't impact or it will damage the nuts.

2. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.

3. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

6.

Standard torque of Nuts or bolts:

Torque of Nuts :

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

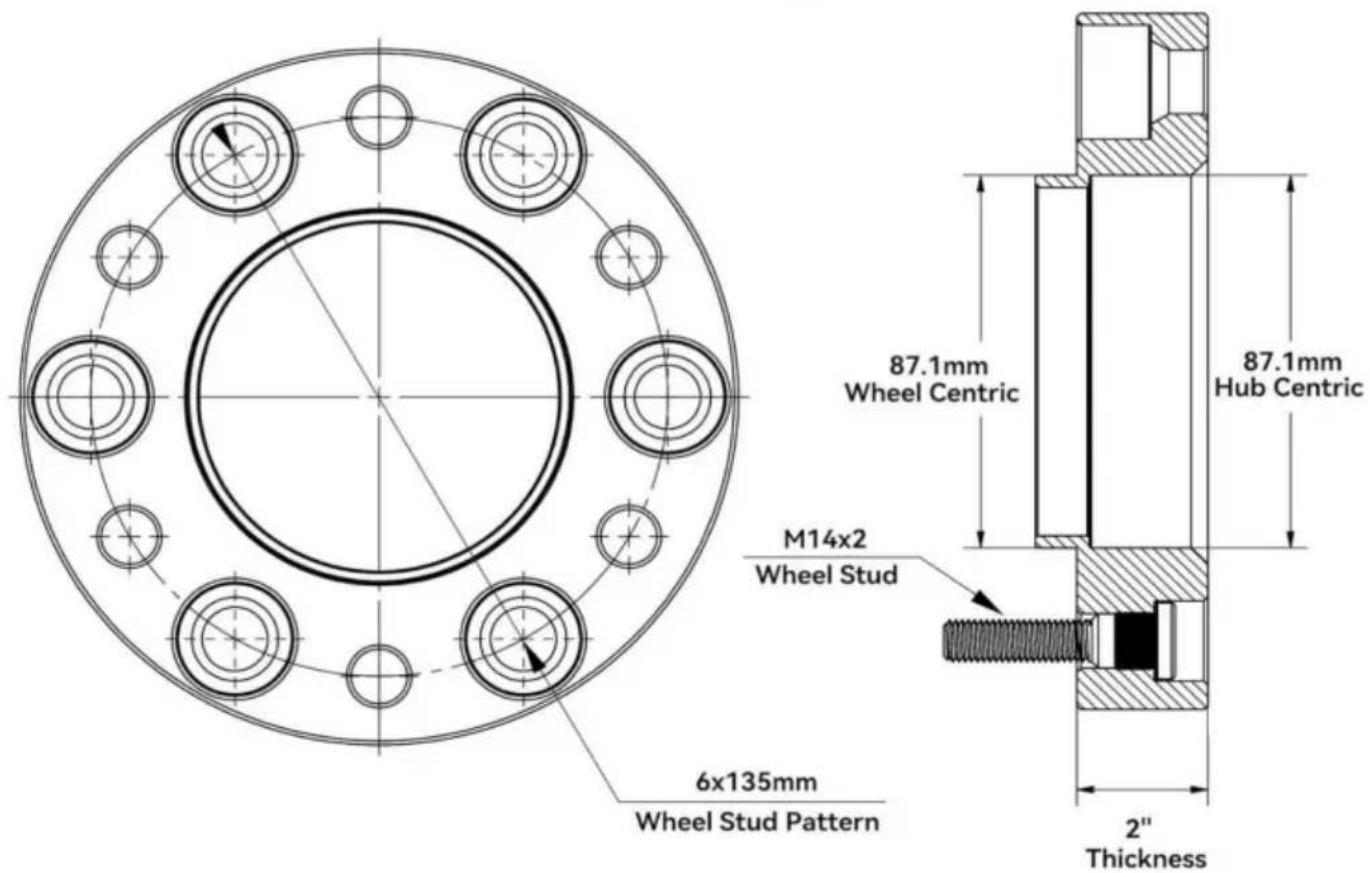

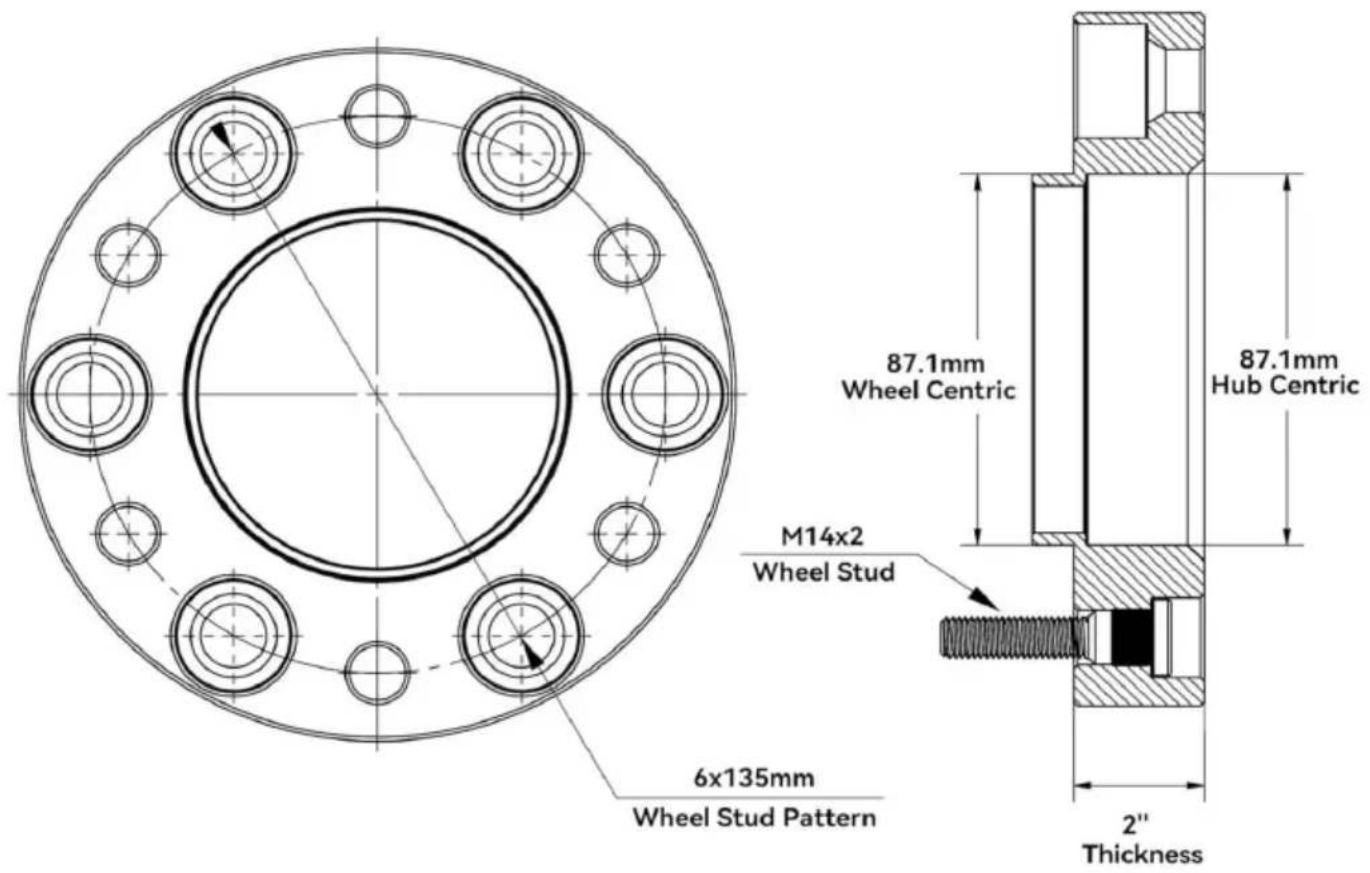

Model	6135-6135-ET-87.1-50
Thickness(inch)	2
Wheel Bolt Pattern	6 x 5.3 in
Center Bore	87.1 mm
Thread Pitch	M14x2
Qty.	4

Adaptive Model
Ford	2003-2014	Expedition
	2004-2015	F150
Lincioln	2003-2014	Navigator

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®
