Notice Vevor 6550-6550-E-108-09 - page 1
1 / 64
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Wheel Spacers (Set of 4)
Brand Vevor
Model 6550-6550-E-108-09
Thickness 2 inches (50.8 mm)
Bolt Pattern 6 x 5.5 inches (6 x 139.7 mm)
Center Bore 108 mm (Hub Centric)
Stud Thread Pitch M14 x 1.5
Quantity 4 Spacers
Material Steel
Estimated Weight Approximately 2 kg (the set)
Main Functions Modify wheel offset, allow mounting of wheels with a different bolt pattern, widen track
Installation Requires lifting the vehicle, cleaning the flanges, mounting on the original studs, cross-tightening with a manual wrench
Recommended Torque According to vehicle specifications (not provided, follow vehicle manual)
Safety Do not modify, do not stack, check tightness after 25-50 miles then after 1,000 miles, use thread locker
Maintenance Clean contact flanges, inspect studs and nuts regularly
Compatibility Vehicles with hub 108 mm, bolt pattern 6x139.7 mm, thread M14x1.5
Warranty Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - 6550-6550-E-108-09 Vevor

How to install Vevor 6550-6550-E-108-09 wheel spacers?
Lift the vehicle with a jack and support it with jack stands. Remove the wheel, clean the rotor flange. Mount the spacer onto the vehicle's studs, then secure it with the supplied conical seat nuts following a cross pattern. Tighten by hand with a torque wrench to the torque specified in your vehicle's manual. Then, remount the wheel onto the spacer's studs and tighten the wheel nuts.
What is the recommended torque for spacer nuts?
The torque depends on your vehicle. Refer to the owner's manual. In general, for M14x1.5 studs, the torque is between 120 and 150 Nm. Use a torque wrench and follow a cross pattern.
Are these spacers compatible with my vehicle?
They fit vehicles with a center bore of 108 mm, a bolt pattern of 6x5.5 inches (6x139.7 mm), and a thread of M14x1.5. Check these dimensions on your vehicle before purchase.
Can I stack multiple spacers?
No, it is strictly forbidden to stack multiple spacers or adapters on a single wheel. This can lead to failure and loss of the wheel.
Should I use thread locker on the studs?
Yes, it is recommended to apply thread locker (Loctite type) on the spacer studs before mounting to reduce the risk of loosening due to vibrations.
How often should I check the tightness of the nuts?
Retighten all wheel and spacer nuts after 25 to 50 miles of driving, then again after 1,000 miles. Thereafter, check periodically.
Can I use an impact wrench for installation?
No, never use an impact wrench. It could damage the nuts and studs. Use a manual wrench or a torque wrench.
What if the spacer does not fit perfectly on the hub?
Make sure the rotor flange is clean and free of rust, burrs, or obstructions. If the spacer does not sit flat, do not use it. Improper fit can cause dangerous failure.
Are these spacers supplied with nuts?
Yes, the kit includes conical seat nuts suitable for M14x1.5 studs to secure the spacer to the vehicle. The original wheel nuts are used to attach the wheel to the spacer.
Where to find technical support and warranty?
Go to www.vevor.com/support for technical assistance and the electronic warranty certificate.

User questions about 6550-6550-E-108-09 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Car accessory in PDF format for free! Find your manual 6550-6550-E-108-09 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 6550-6550-E-108-09 by Vevor.

USER MANUAL 6550-6550-E-108-09 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL:6550-6550-E-108-09

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:6550-6550-E-108-09

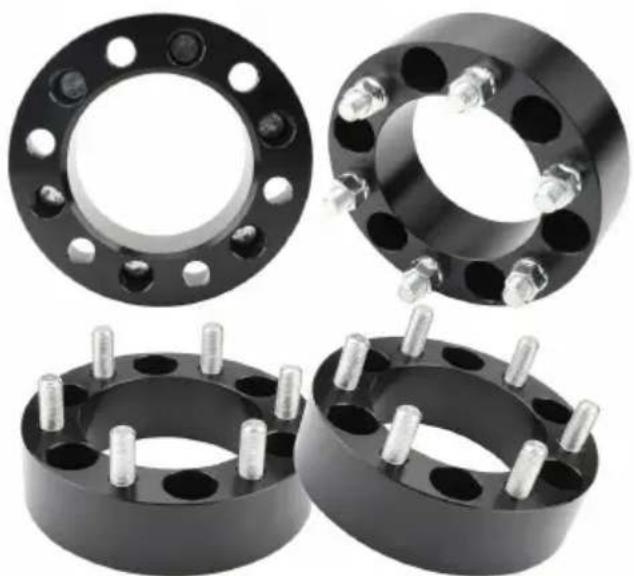

Vevor 6550-6550-E-108-09 - WHEEL SPACERS - 1

natural_image Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (no text or symbols visible)

Vevor 6550-6550-E-108-09 - WHEEL SPACERS - 2

natural_image Row of identical transparent cylindrical containers with no visible text or markings

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

  • Never modify the wheel adapters/spacers.
  • Never remove the factory-installed studs on the wheel adapters/spacers.
    ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

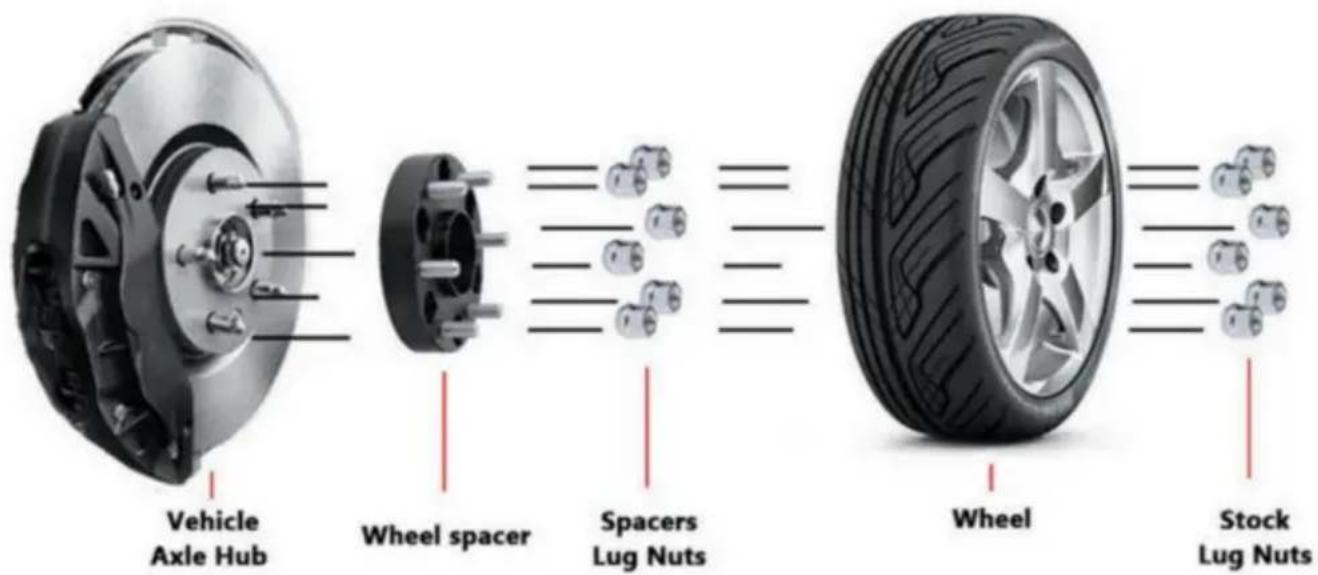

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

  1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damage or cracks. If any damage is identified, do not continue with this installation.

  2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins, both the rotor nd wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting fl to both the inner and outer side of the spacers. Improperly seated spacers a hazardous and may cause adapter failure, resulting in the loss of a wheel w driving the vehicle.

  3. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.

  4. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
  5. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

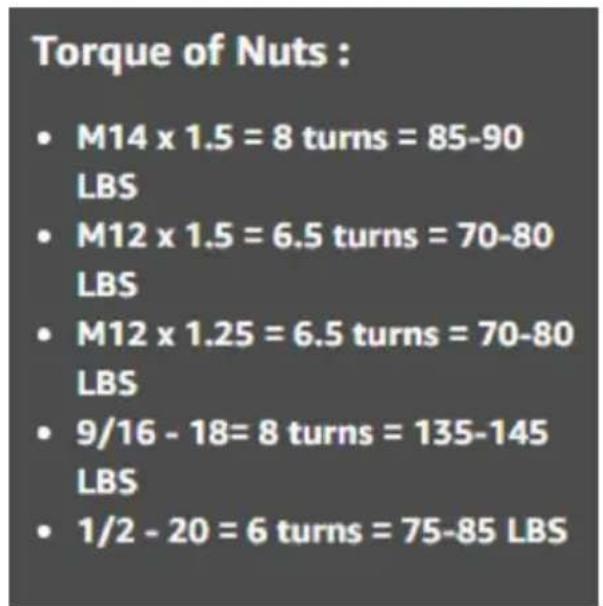

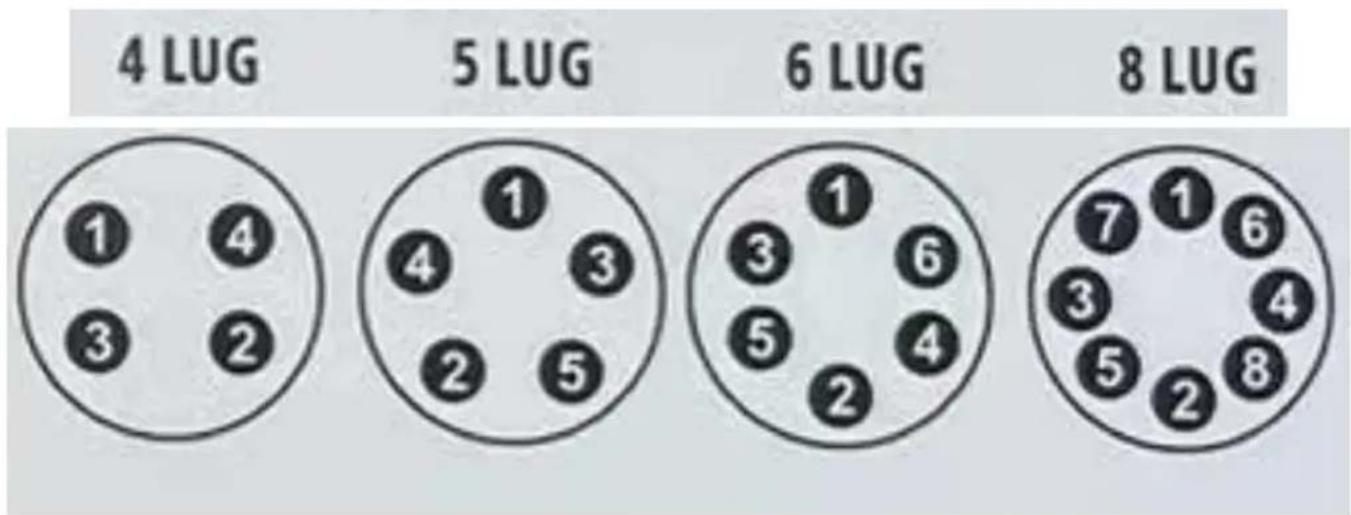

Standard torque of Nuts or bolts:
4 LUG 5 LUG 6 LUG 8 LUG

Torque of Nuts : • M14 x 1.5 = 8 turns = 85-90 LBS • M12 x 1.5 = 6.5 turns = 70-80 LBS • M12 x 1.25 = 6.5 turns = 70-80 LBS • 9/16 - 18= 8 turns = 135-145 LBS • 1/2 - 20 = 6 turns = 75-85 LBS

Model6550-6550-E-108-09
Thickness(inch)2
Wheel Bolt Pattern6 x 5.5 in
Center Bore108 mm
Thread PitchM14x1.5
Qty.4

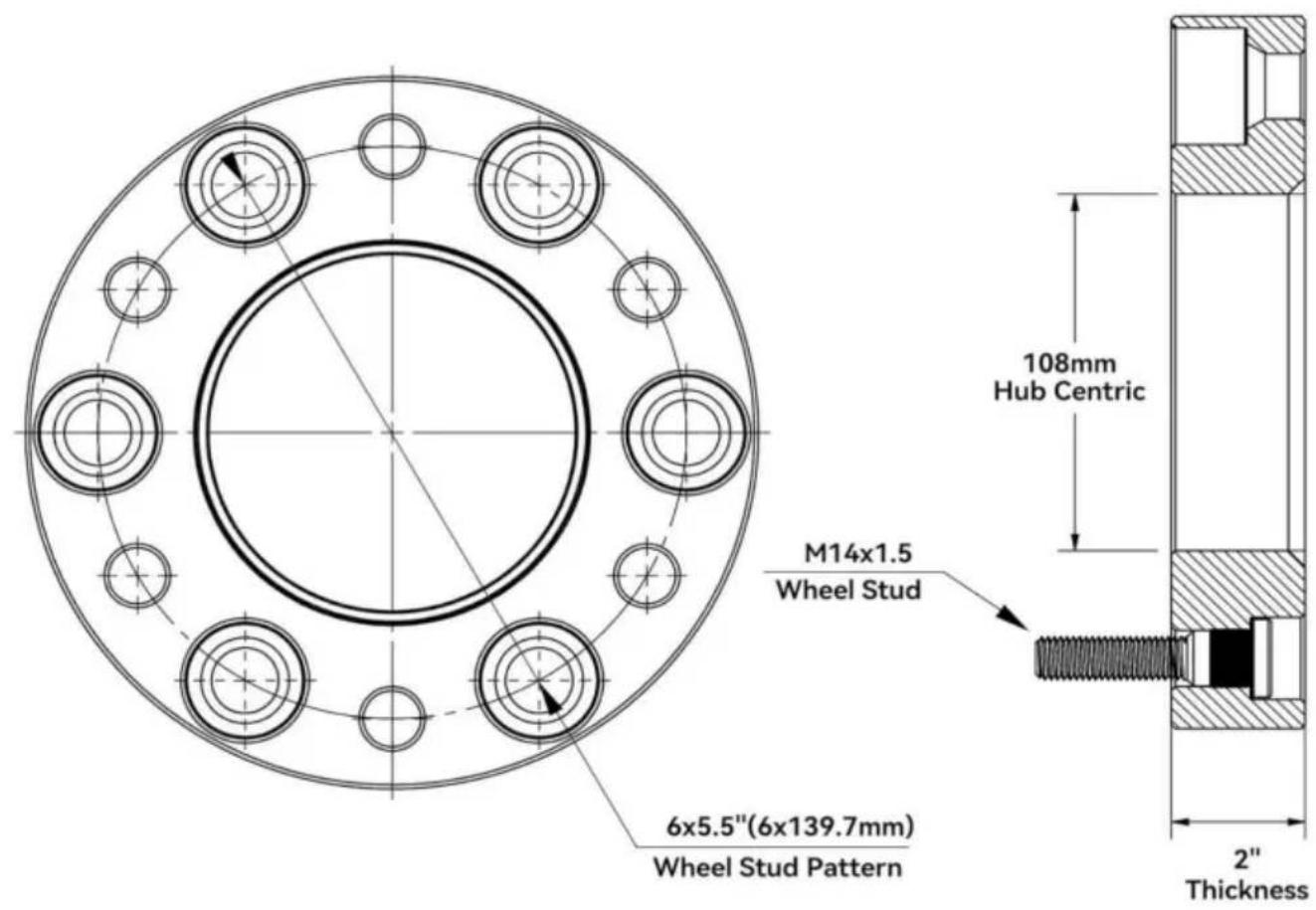

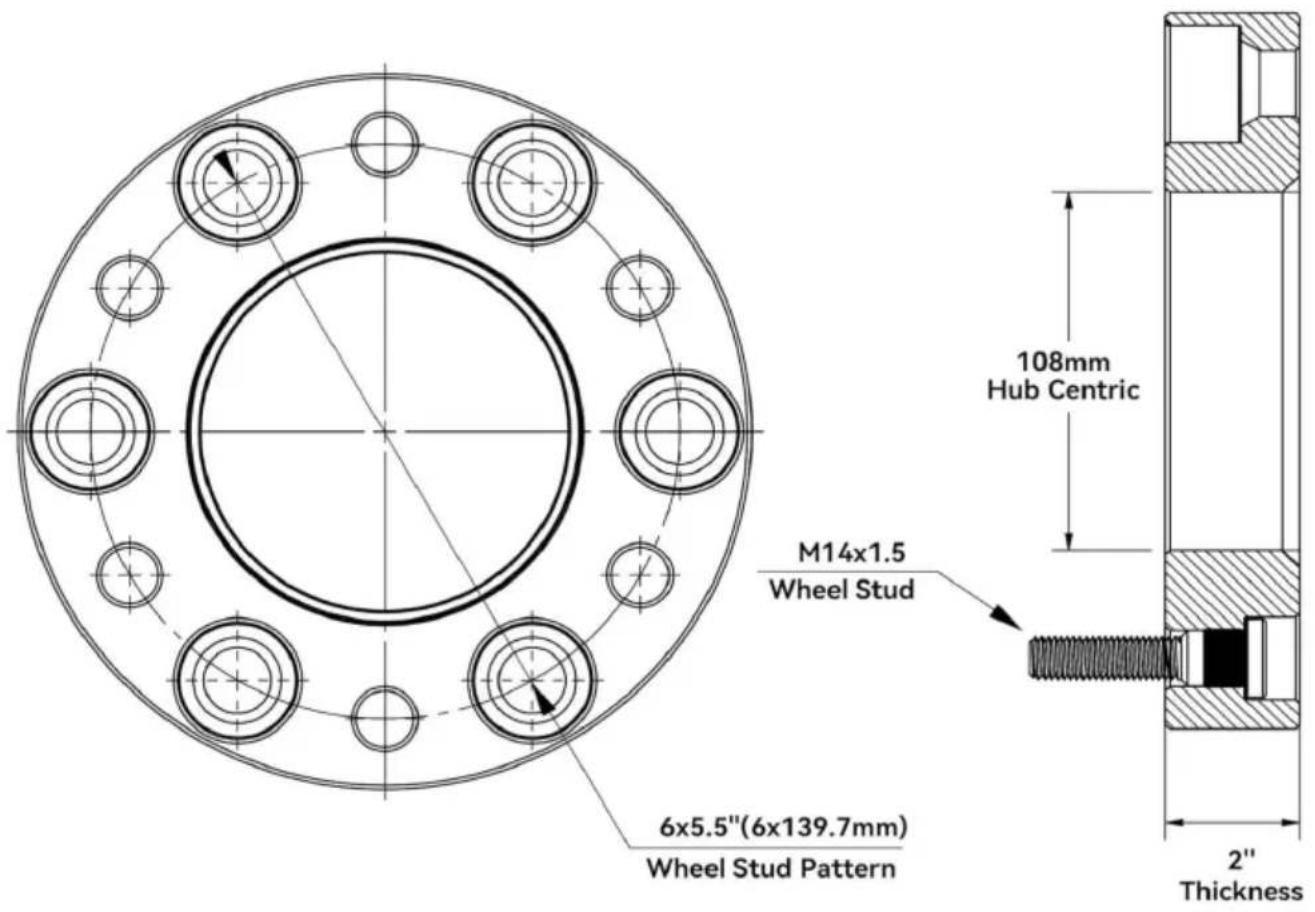

M14x1.5 Wheel Stud 6x5.5"(6x139.7mm) Wheel Stud Pattern 108mm Hub Centric 2" Thickness

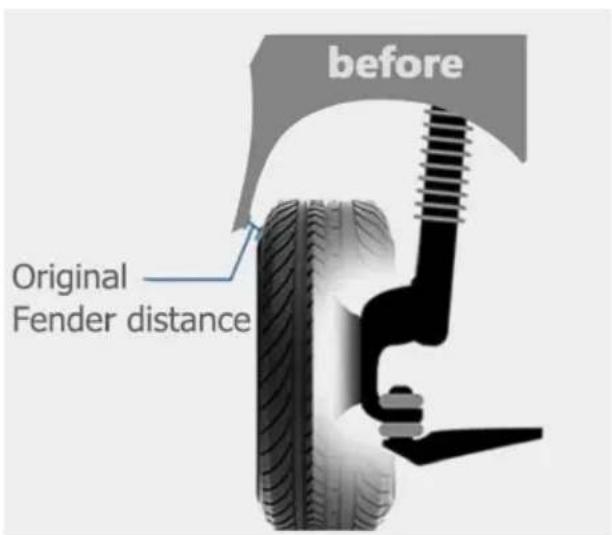

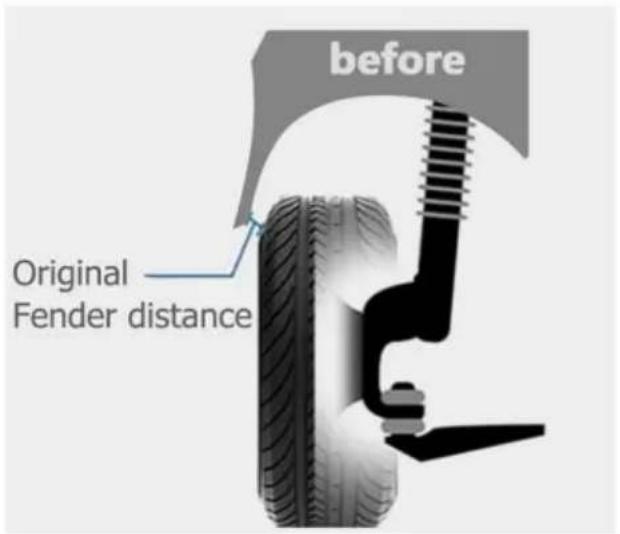

before Original Fender distance

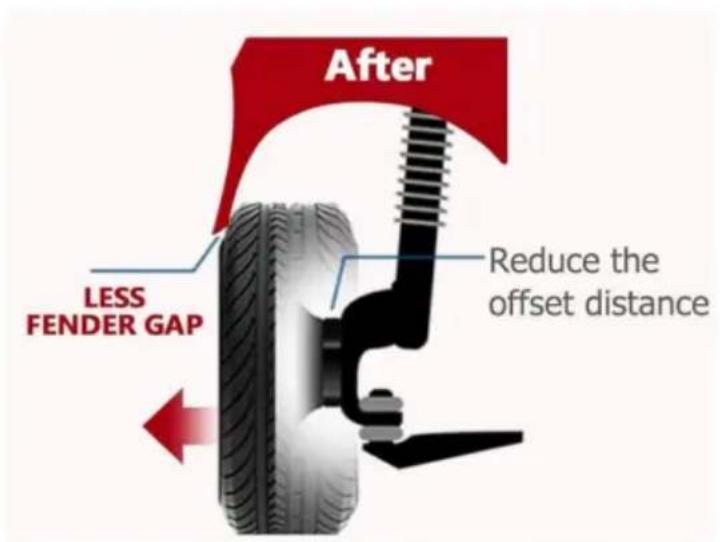

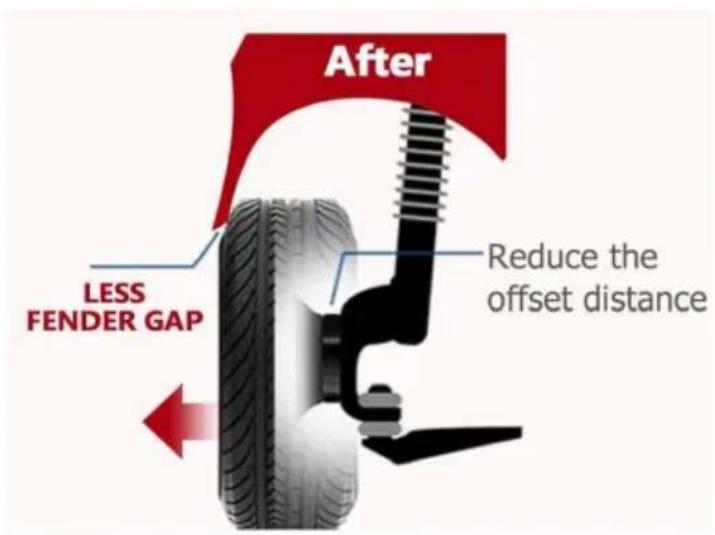

After LESS FENDER GAP Reduce the offset distance

Adaptive Model
Chevrolet1999-2023Silverado 1500GMC1999-2023Sierra 1500
2002-2006Avalanche 15002003-2014Savana 1500
1995-2000Tahoe 4WD2000-2023Yukon
2007-2013Avalanche2015-2023Yukon XL
2000-2014Suburban 15002000-2014Yukon XL 1500
2015-2023SuburbanCadilac1999-2023Escalade
2001-2023TahoeChevrolet2003-2014Express 1500

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

ECREP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

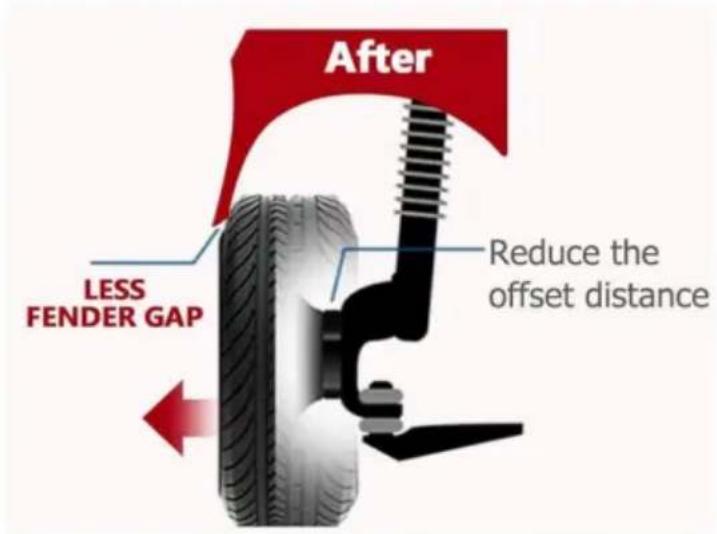

After LESS FENDER GAP Reduce the offset distance

Modèle adaptatif
Chevrolet1999-2023Silverado1500GMC1999-2023Sierra 1500
2002-2006avalanche15002003-2014 Savane 1500
1995-2000Tahoe 4WD2000-2023 Yukon
Avalanches 2007-20132015-2023Yukon XL
2000-2014De banlieue15002000-2014Yukon XL1500
2015-2023 BanlieueCadillacEscalade 1999-2023
Tahoe 2001-2023Chevrolet2003-2014Express1500

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

After LESS FENDER GAP Reduce the offset distance

Adaptives Modell
Chevrolet1999-2023Silverado 1500GMC1999-2023Sierra 1500
2002-2006Lawine 15002003-2014Savana 1500
1995-2000Tahoe 4WD2000-2023Yukon
Lawine 2007–20132015-2023Yukon XL
2000-2014Vorort 15002000-2014Yukon XL 1500
2015–2023VorstadtCadillac1999-2023Escalade
2001-2023TahoeChevrolet2003-2014Express 1500

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

After LESS FENDER GAP Reduce the offset distance

Modello adattivo
Chevrolet1999-2023Silverado1500GMC1999-2023 Sierra 1500
2002-2006Valanga15002003-2014 Savana 1500
1995-2000 Tahoe 4 ruote motrici2000-2023 Yukon
2007-2013 Valanga2015-2023 YukonXL
2000-2014Suburbano15002000-2014YukonXL1500
2015-2023 SuburbanoCadillacScalata 1999-2023
2001-2023 TahoeChevrolet2003-2014Espresso1500

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

After LESS FENDER GAP Reduce the offset distance

Modelo adaptativo
chevrolet1999-2023plateado1500GMC1999-2023Sierra 1500
2002-2006avalancha15002003-2014 sabana 1500
1995-2000 Tahoe 4WD2000-2023 Yukón
2007-2013 Avalancha2015-2023 Yukon XL
2000-2014Suburbano15002000-2014Yukón XL1500
2015-2023 suburbanoCadillacEscalada 1999-2023
2001-2023 TahoeChevrolet 2003-2014Expreso1500

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

After LESS FENDER GAP Reduce the offset distance

Model adaptacyjny
Chevrolet1999-2023Silverado1500GMC1999-2023 Sierra 1500
2002-2006Lawina15002003-2014 Savana 1500
1995-2000 Tahoe 4WD2000-2023 Jukon
2007-2013 Lawina2015-2023 Yukon XL
2000-2014Podmiejski15002000-2014Jukon XL1500
2015-2023 PodmiejskieCadillac1999-2023 Eskalada
2001-2023 TanoeChevroleta 2003-2014Ekspres1500

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

WIEL SPACERS

MODEL: 6550-6550-E-108-09

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES
Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Model6550-6550-E-108-09
Dikte (inch)2
Patroon van wielbouten6 x 5,5 inch
Centrum boring108 mm
DraadafstandM14x1,5
Aantal4

M14x1.5 Wheel Stud 6x5.5"(6x139.7mm) Wheel Stud Pattern 108mm Hub Centric 2" Thickness

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptief model
Chevrolet1999-2023Zilverado1500GMC1999-2023 Sierra 1500
2002-2006Lawine15002003-2014 Savana 1500
1995-2000 Tahoe 4WD2000-2023 Yukon
2007-2013 Lawine2015-2023 Yukon XL
2000-2014Voorstedelijk15002000-2014Yukon XL1500
2015-2023 VoorstedelijkCadillacEscalade 1999-2023
2001-2023TahoeChevrolet 2003-2014Express1500

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Four black mechanical flange components with bolt holes and metallic pins, shown from different angles (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modell6550-6550-E-108-09
Tjocklek (tum)2
Hjulbultsmönster6 x 5,5 tum
Center Bore108 mm
TrådtäthetM14x1,5
Antal.4

M14x1.5 Wheel Stud 6x5.5"(6x139.7mm) Wheel Stud Pattern 108mm Hub Centric 2" Thickness

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptiv modell
Chevrolet1999-2023Silverado 1500GMC1999-2023$ierra 1500
2002-2006Lavin 15002003-2014Savana 1500
1995-2000Tahoe 4WD2000-2023Yukon
2007-2013lavin2015-2023Yukon XL
2000-2014Förorts 15002000-2014Yukon XL 1500
2015-2023FörortCadillac1999-2023Escalade
2001-2023TahoeChevrolet2003-2014Express 1500

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

ECREP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : 6550-6550-E-108-09

Category : Car accessory
